PL-64009 Stuart Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 10

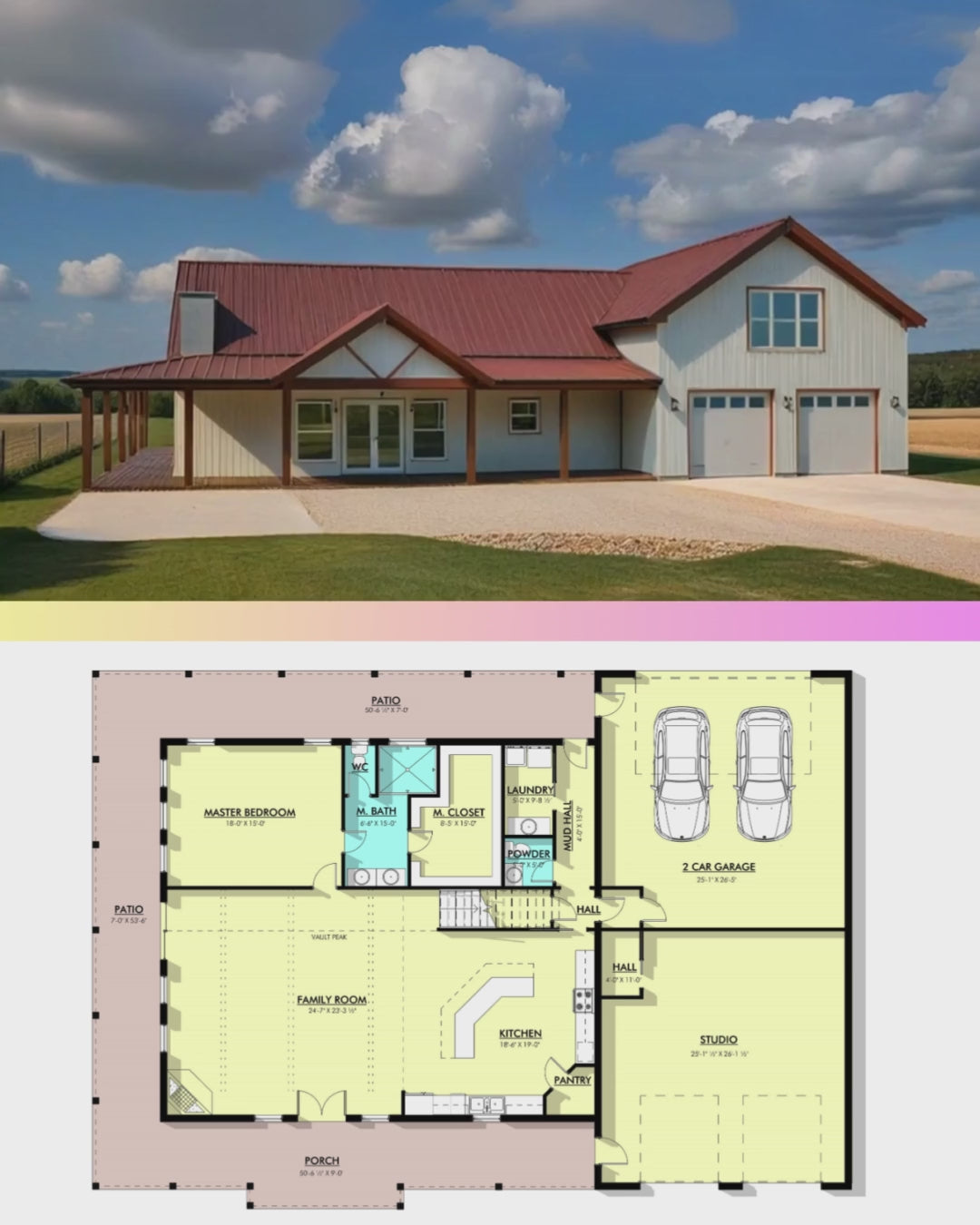

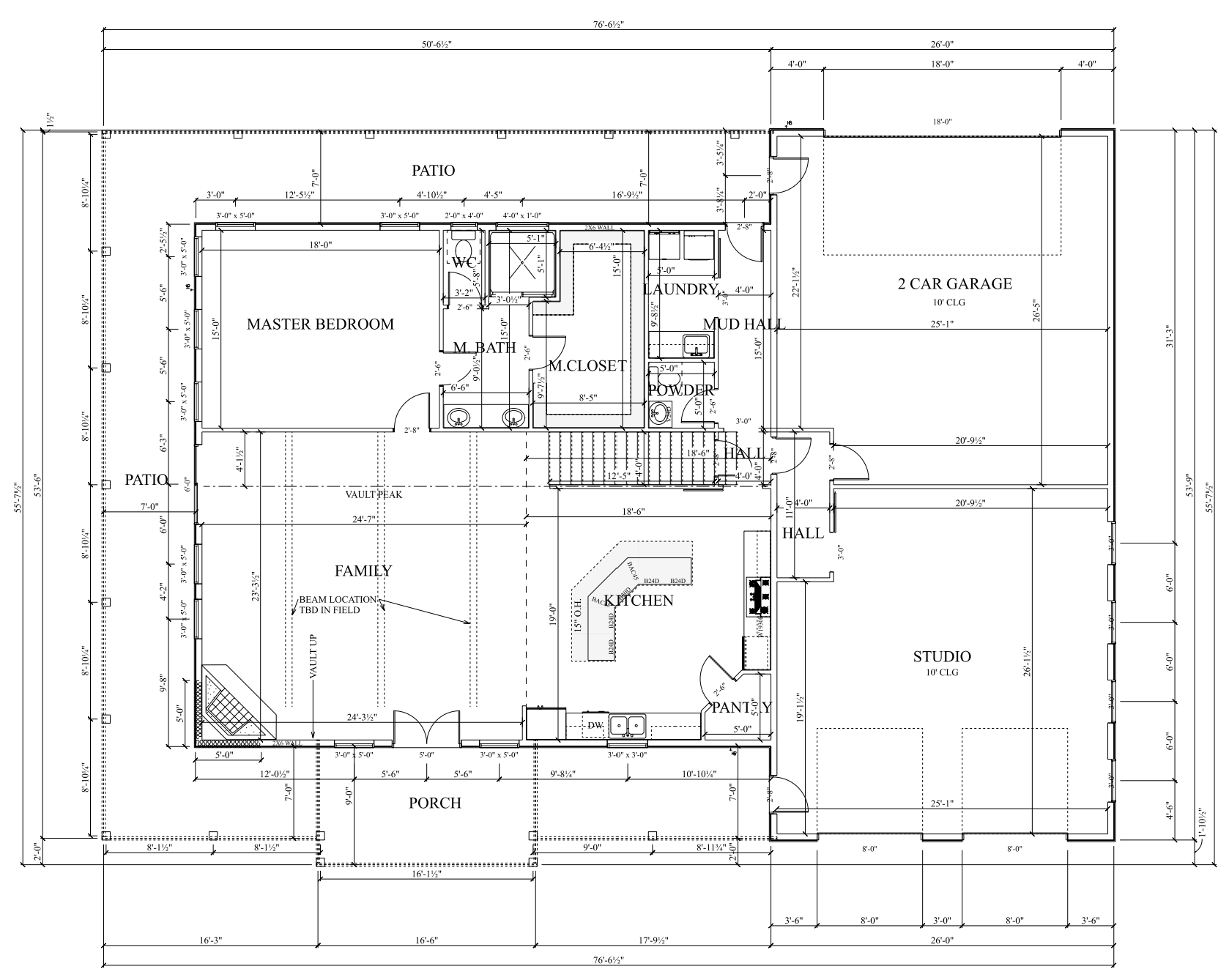

Floor Plan

DETAILS

HEATED SQ FT

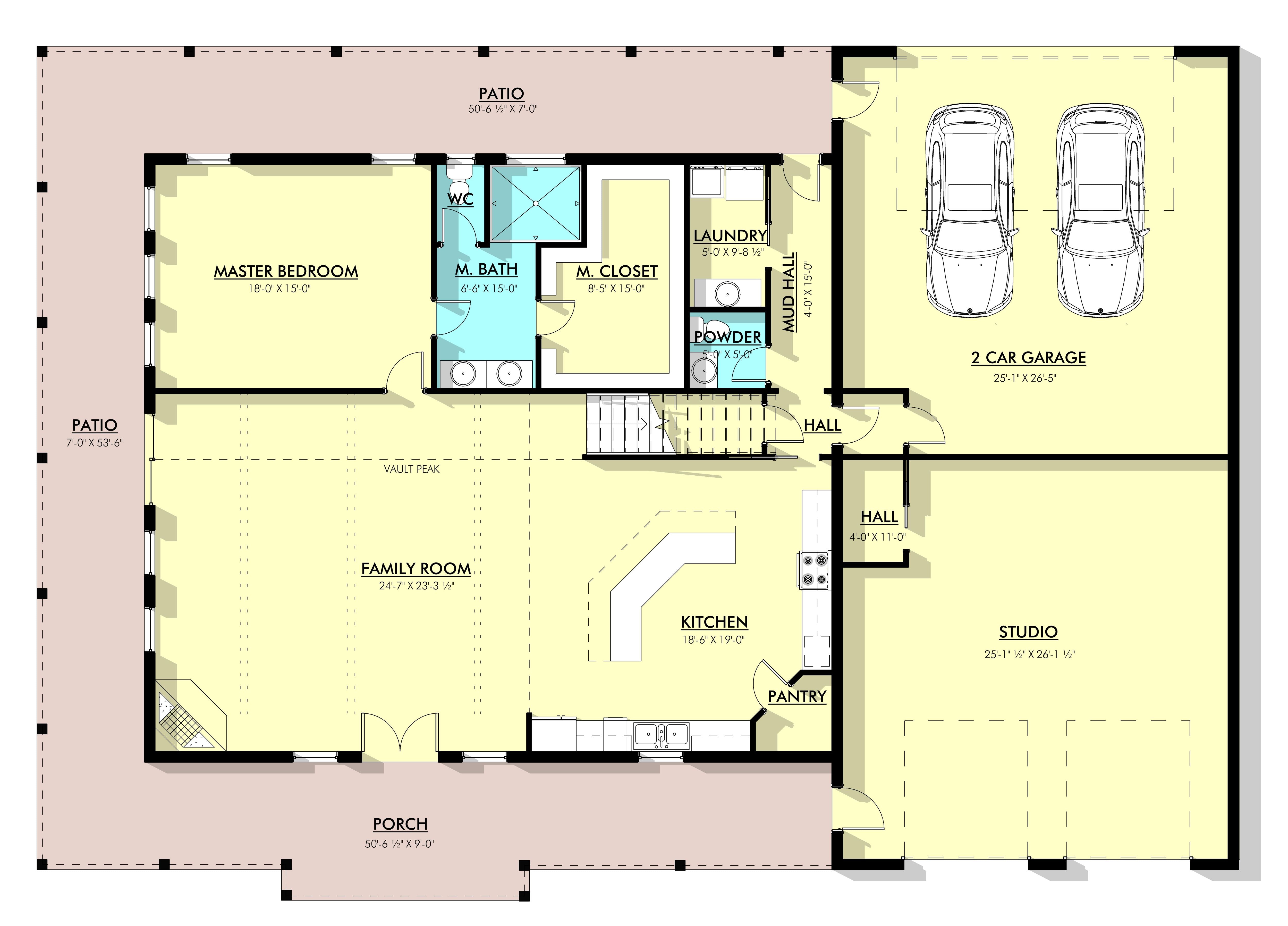

First Floor:

2471 SF

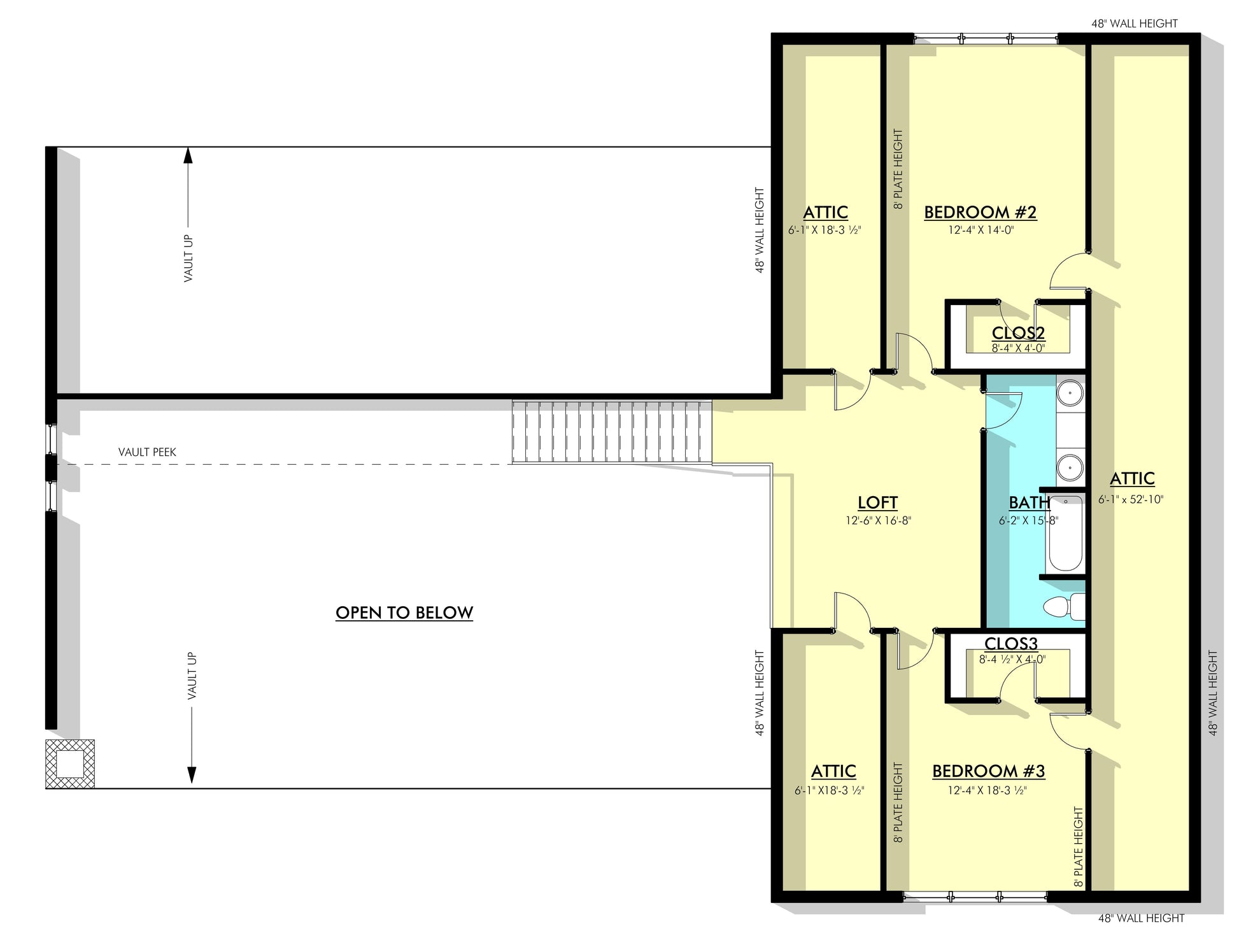

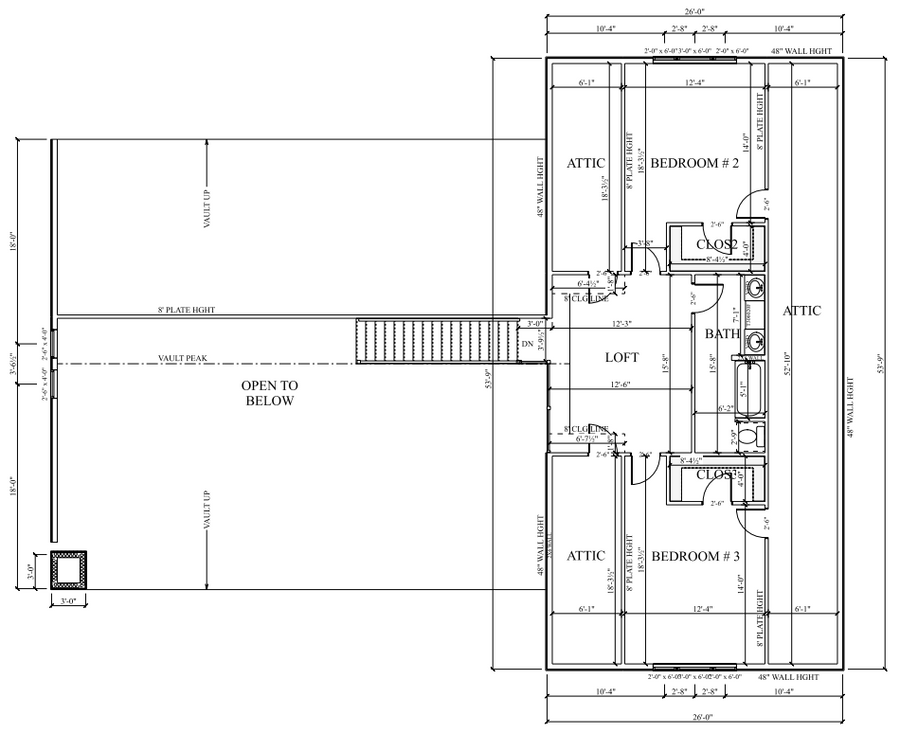

Second Floor:

821 SF

Total Heated Sq Ft:

3292 SF

UNHEATED SQ FT

Total Unheated Area:

1019 SF porch + 679 SF garage = Total 1698 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

679 SF

Width:

76'-6 1/2"

Depth:

53'-6"

Height:

24'-6 9/32"

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

9'

PL-64009 Stuart Barndominium House Plan

About this barndominium house plan:

  • 3292 Heated square feet
  • 679 sq ft attached 2-car garage
  • 3 Bedrooms
  • 2.1 bathrooms
  • 2-story
  • Open concept
  • Mudroom
  • Studio
  • Fireplace
  • Attic
  • Loft
  • Wraparound porch

  • 3,292 sq. ft. of heated living space, designed for cozy elegance.
  • A spacious 679 sq. ft. attached 2-car garage, perfect for storage and convenience.
  • Three thoughtfully designed bedrooms, offering restful retreats.
  • 2.1 bathrooms, blending style and functionality.
  • Stunning 2-story open-concept design that maximizes natural light and flow.
  • A mudroom that keeps clutter at bay while adding everyday convenience.
  • Private studio, ideal for work, hobbies, or artistic inspiration.
  • Charming fireplace, ready to set the mood for cozy nights.
  • Versatile attic space for storing memories or future expansion.
  • Stylish loft that adds dimension and character to the home.
  • Classic wraparound porch, blending outdoor relaxation with timeless curb appeal.

What's included in PL-64009:

Cover Sheet
Detailed Floor Plan Dimensions
Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section

For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
