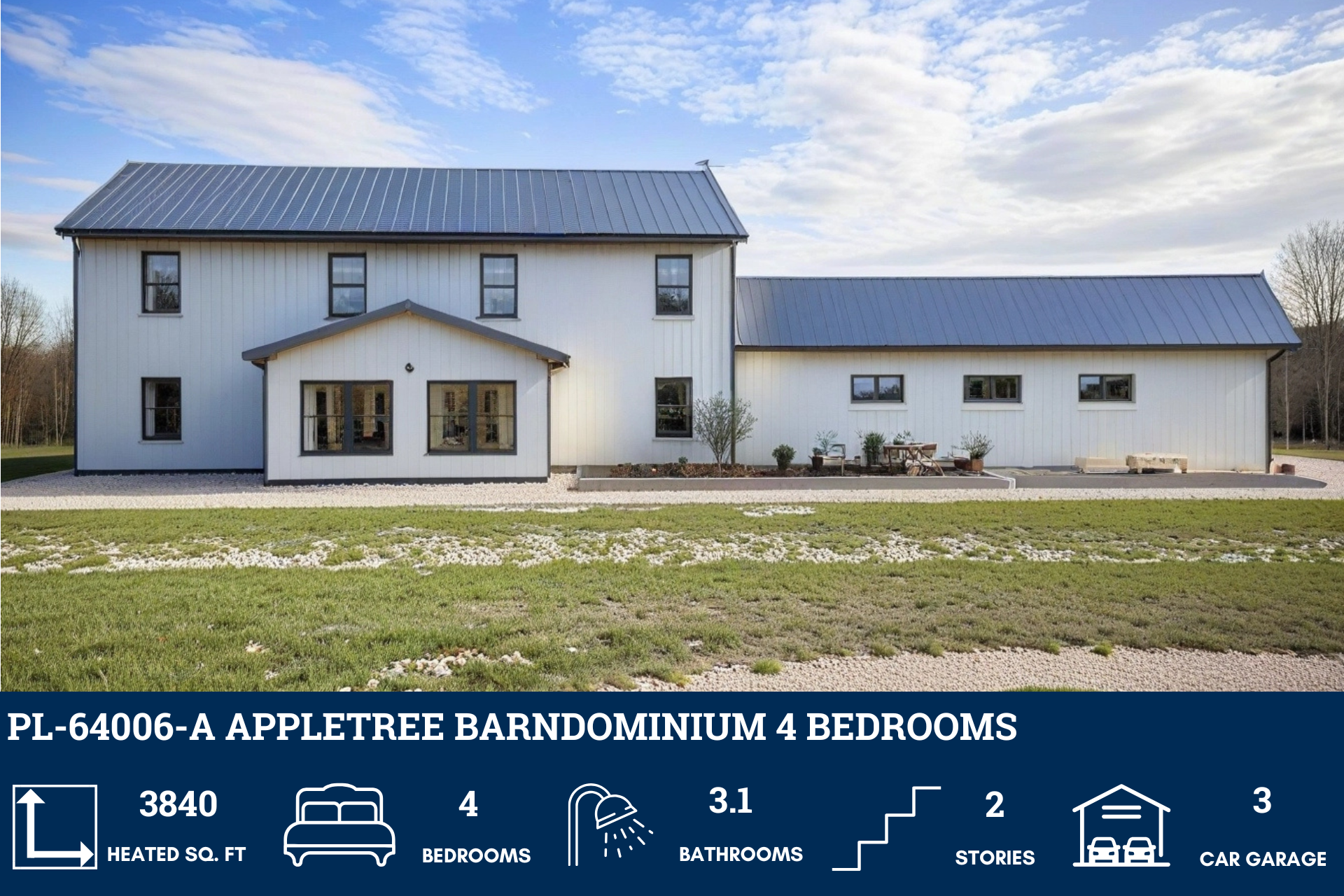

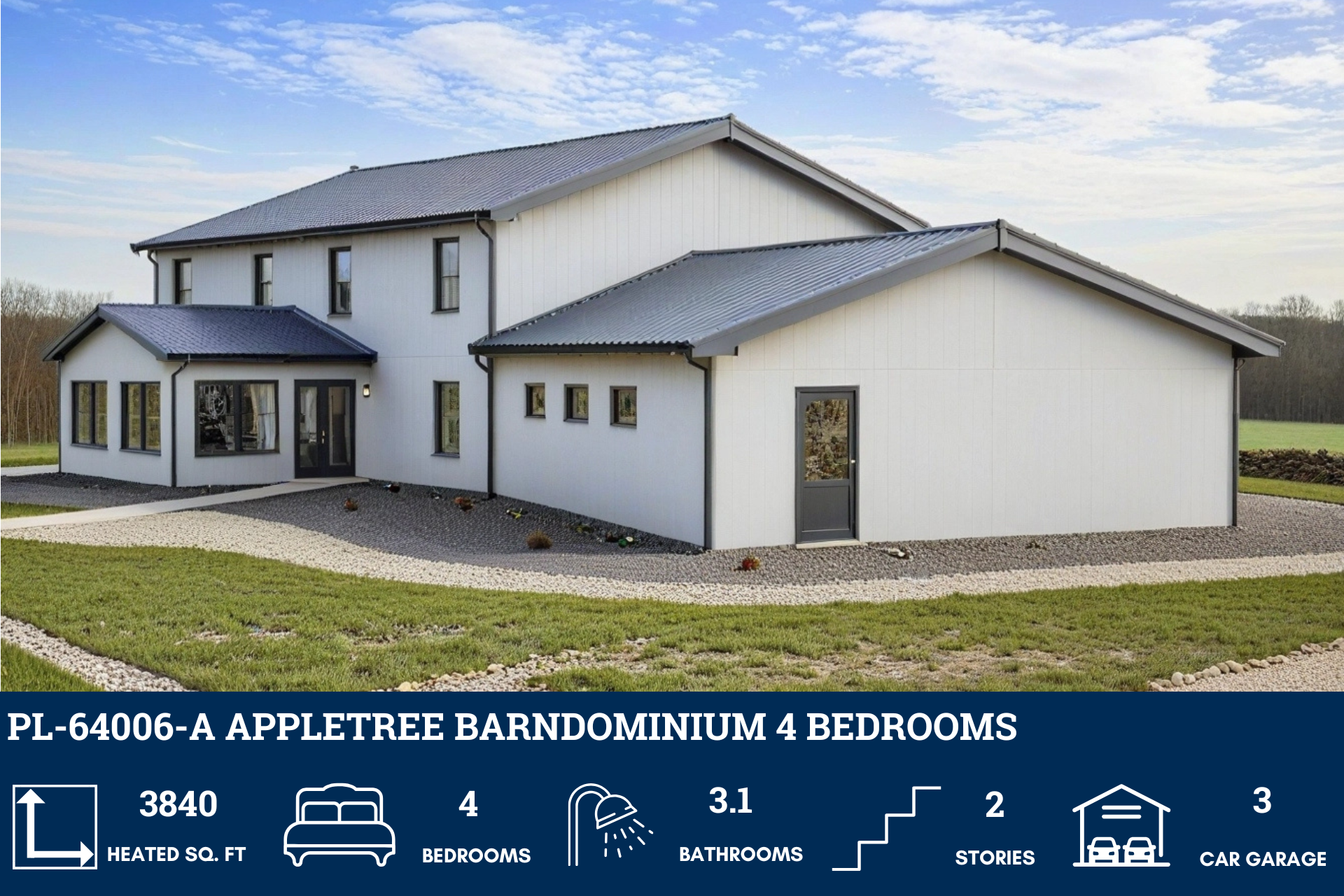

PL-64006-A Appletree Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
1 14

Floor Plan

DETAILS

HEATED SQ FT

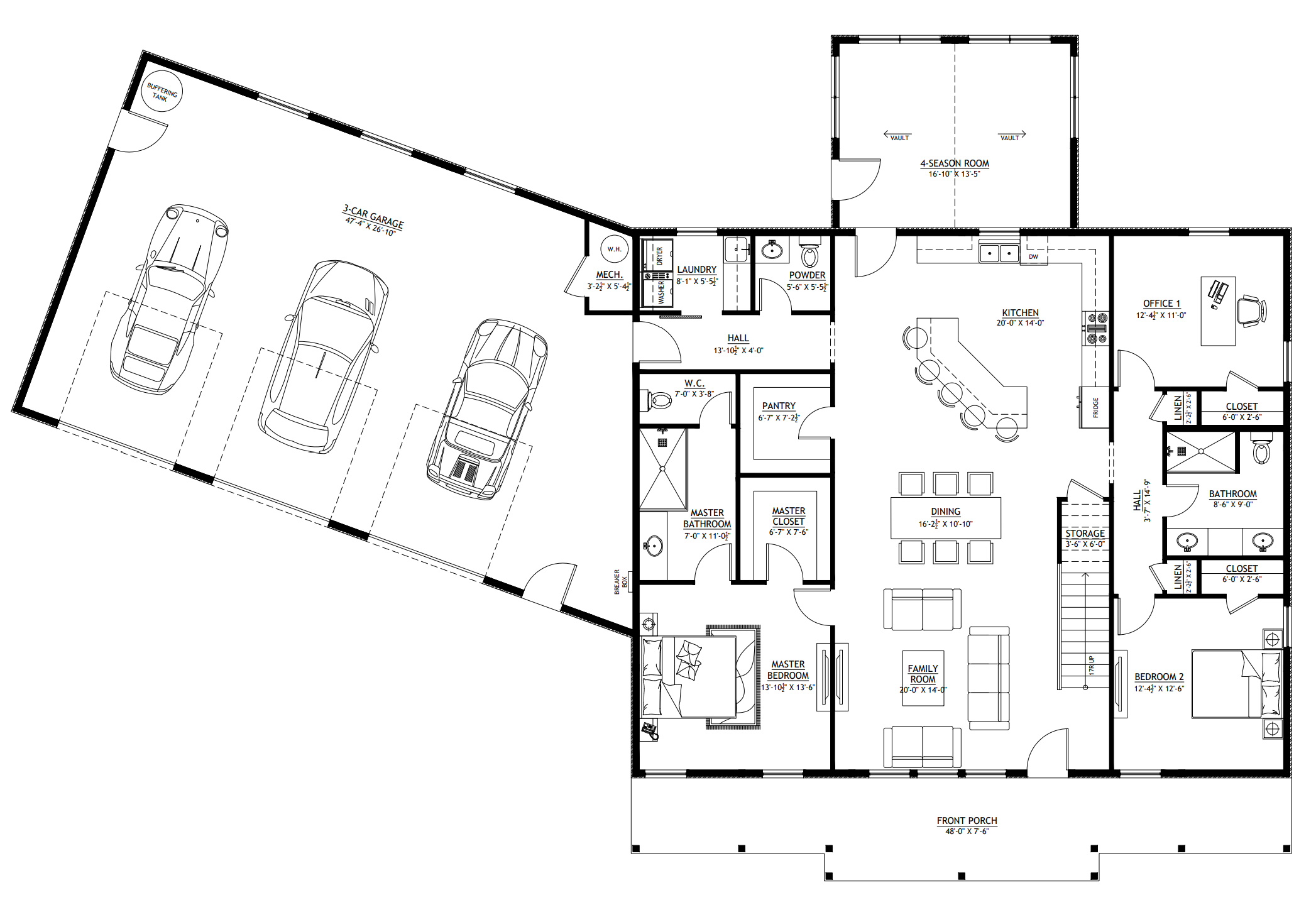

First Floor:

1920 SF

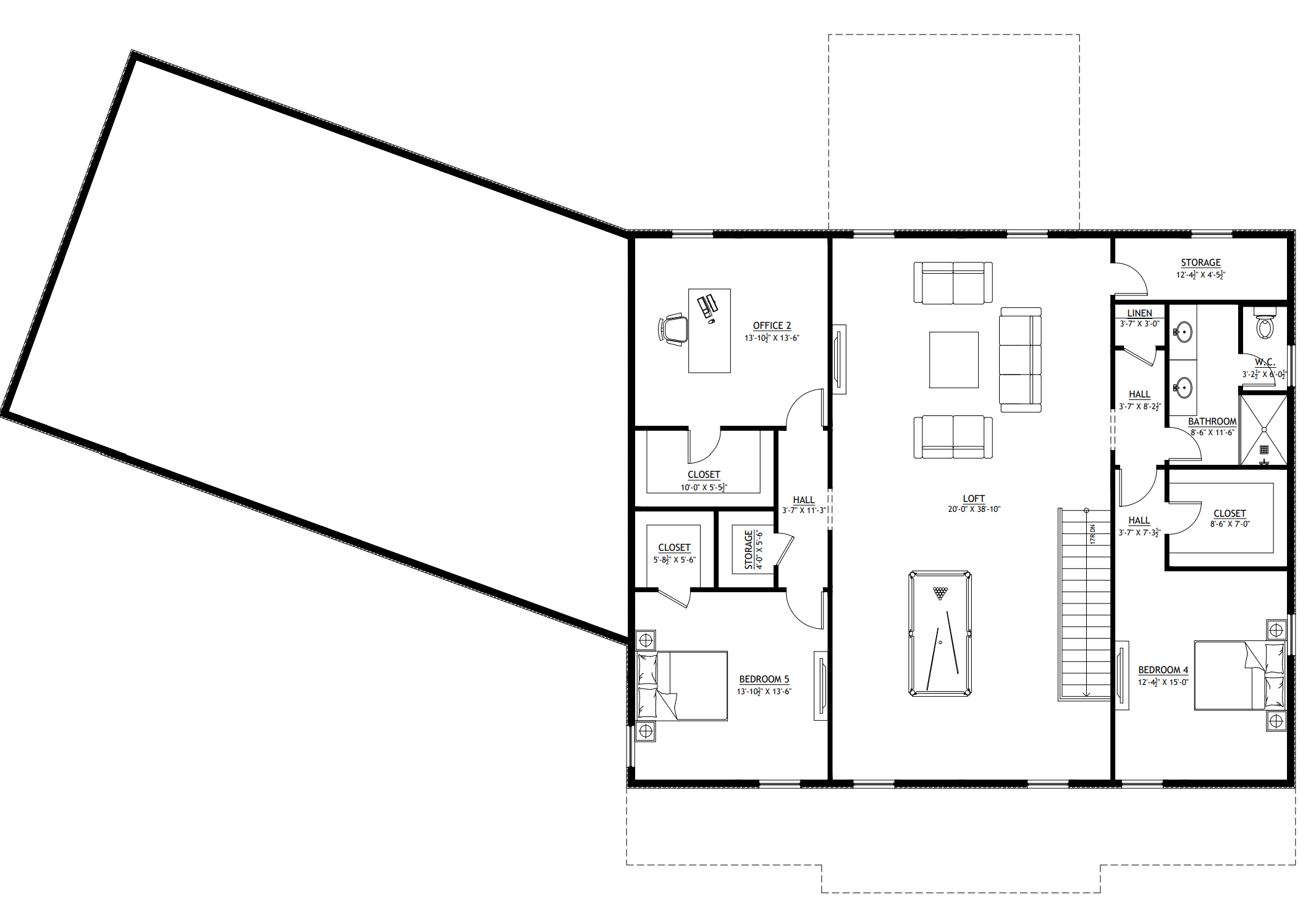

Second Floor:

1,920 SF

Total Heated Sq Ft:

3,840 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,201 SF, Porch 304 SF, 4 Season Room 252 SF = TOTAL 1,757 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

1,201 SF

Width:

40'

Depth:

48'

Height:

24'-8 1/2"

Foundation:

Concrete slab

Main Roof Pitch:

4:12

Exterior Framing:

2x6 studs

CEILING HEIGHTS

First Floor:

8'

PL-64006-A Appletree Barndominium House Plan



Looking for this plan, but a bit smaller? Discover a similar floor plan here that's 3,366 sq ft.



About this barndominium house plan:

  • 3840 Heated Sq Ft
  • 40x48 living space dimensions
  • 4 Bedrooms
  • 3.1 Bathrooms
  • Open concept
  • Two-story
  • 4-Season room
  • 2 Offices
  • Storage spaces
  • Loft
  • Front porch
  • Mechanical room
  • 3-car Garage





  • A spacious 3840 heated sq ft retreat with ample room to live, work, and entertain, all wrapped in year-round comfort.
  • Four private sanctuaries, each crafted for relaxation, with room to dream, unwind, and recharge in style.
  • A perfect blend of luxury and practicality, featuring spa-like retreats, sleek finishes, and just the right number of essentials for convenience.
  • Seamless connections between spaces, fostering light-filled interiors, lively conversations, and easy, modern living.
  • A dynamic layout where expansive design meets cozy nooks, offering multiple levels of functionality and style.
  • Whether basking in summer’s warmth or cozying up in winter’s embrace, this sunlit haven is a year-round delight.
  • 2 Offices designed for productivity, inspiration, and a perfect work-life balance—ideal for deep focus or creative brainstorming.
  • Smart solutions to keep life clutter-free, with room for all your essentials, keepsakes, and organized living.
  • The loft- an ultimate fun zone, where lively gatherings, movie nights, and game days come to life in a stylish, elevated space.
  • A welcoming embrace for guests, morning coffee moments, and endless evenings of relaxation and conversation on the front porch.
  • The powerhouse of the home, a mechanical room seamlessly supporting everyday function and efficiency behind the scenes.





What's Included In PL-64006-A:

Cover Sheet
Detailed Floor Plan Dimensional

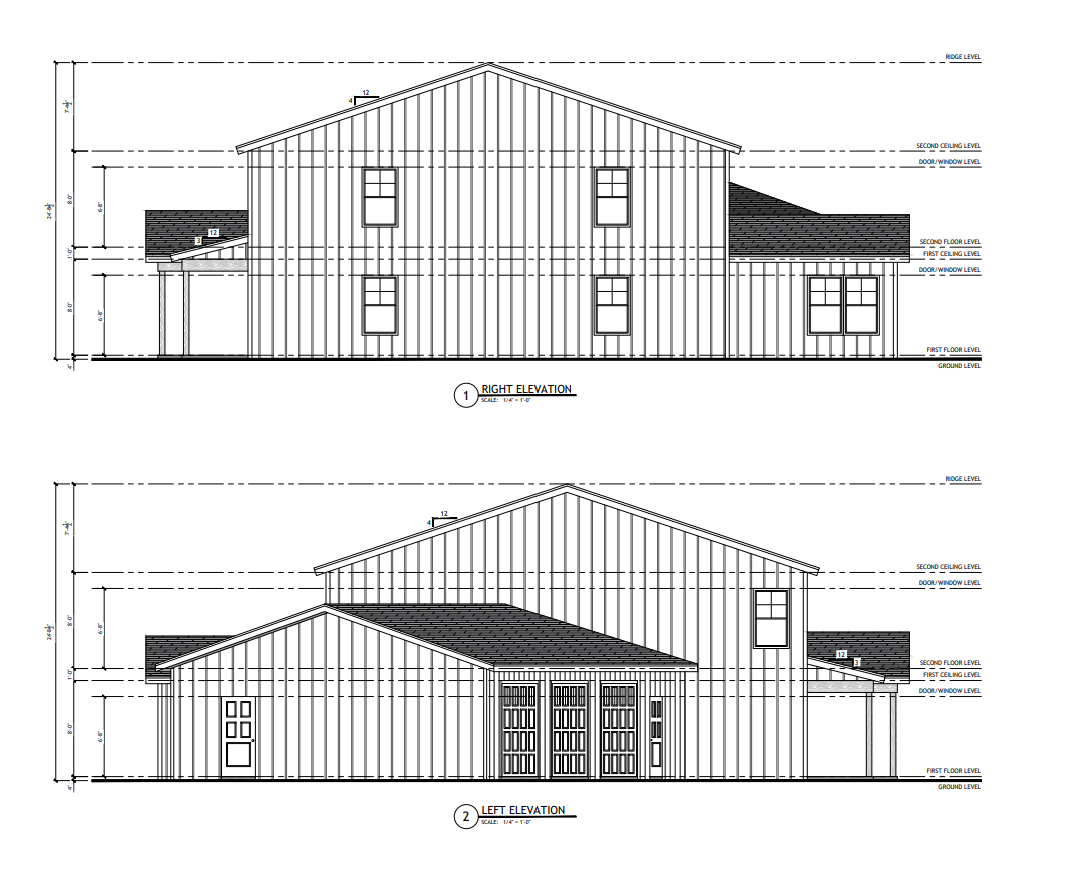

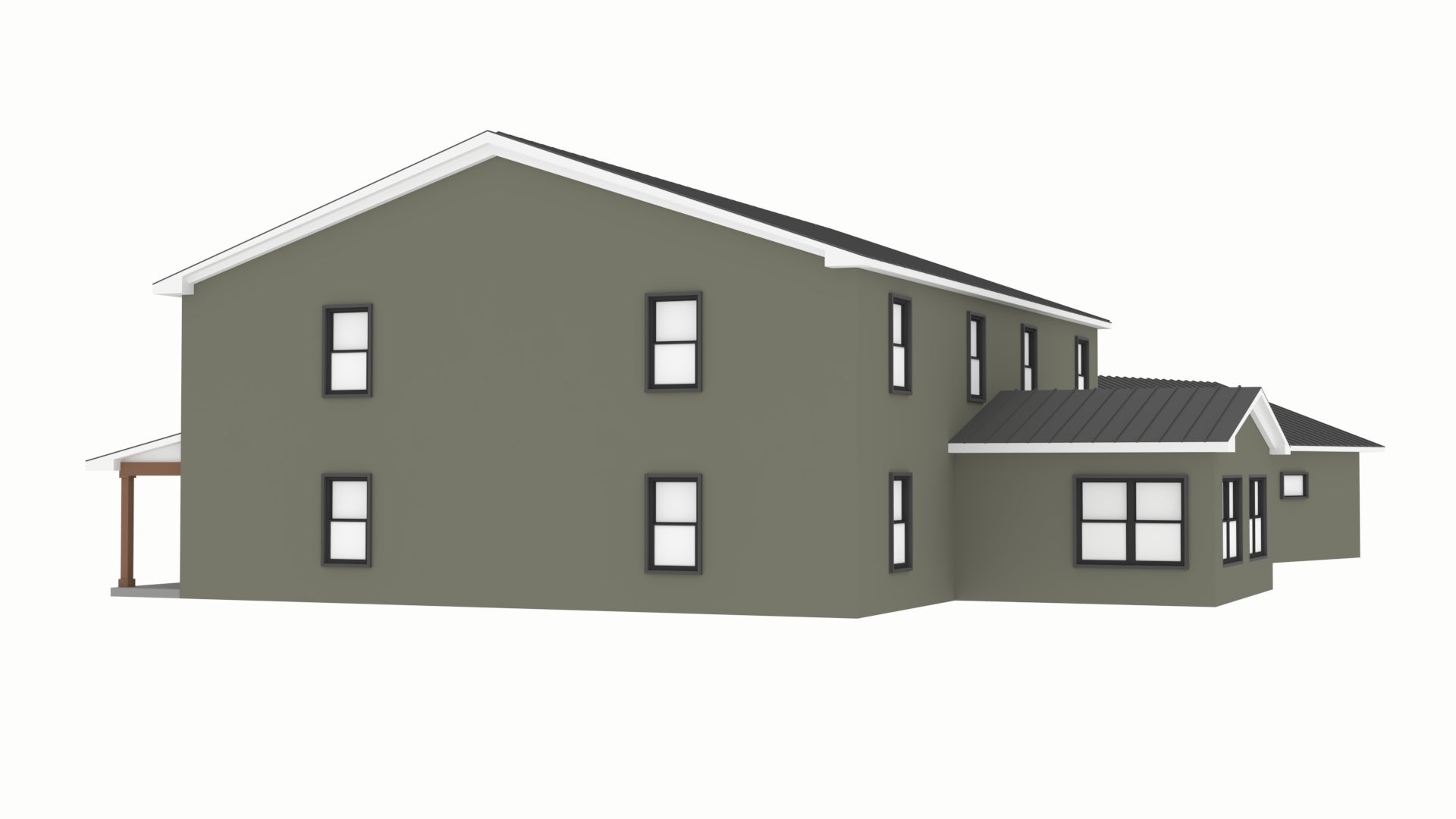

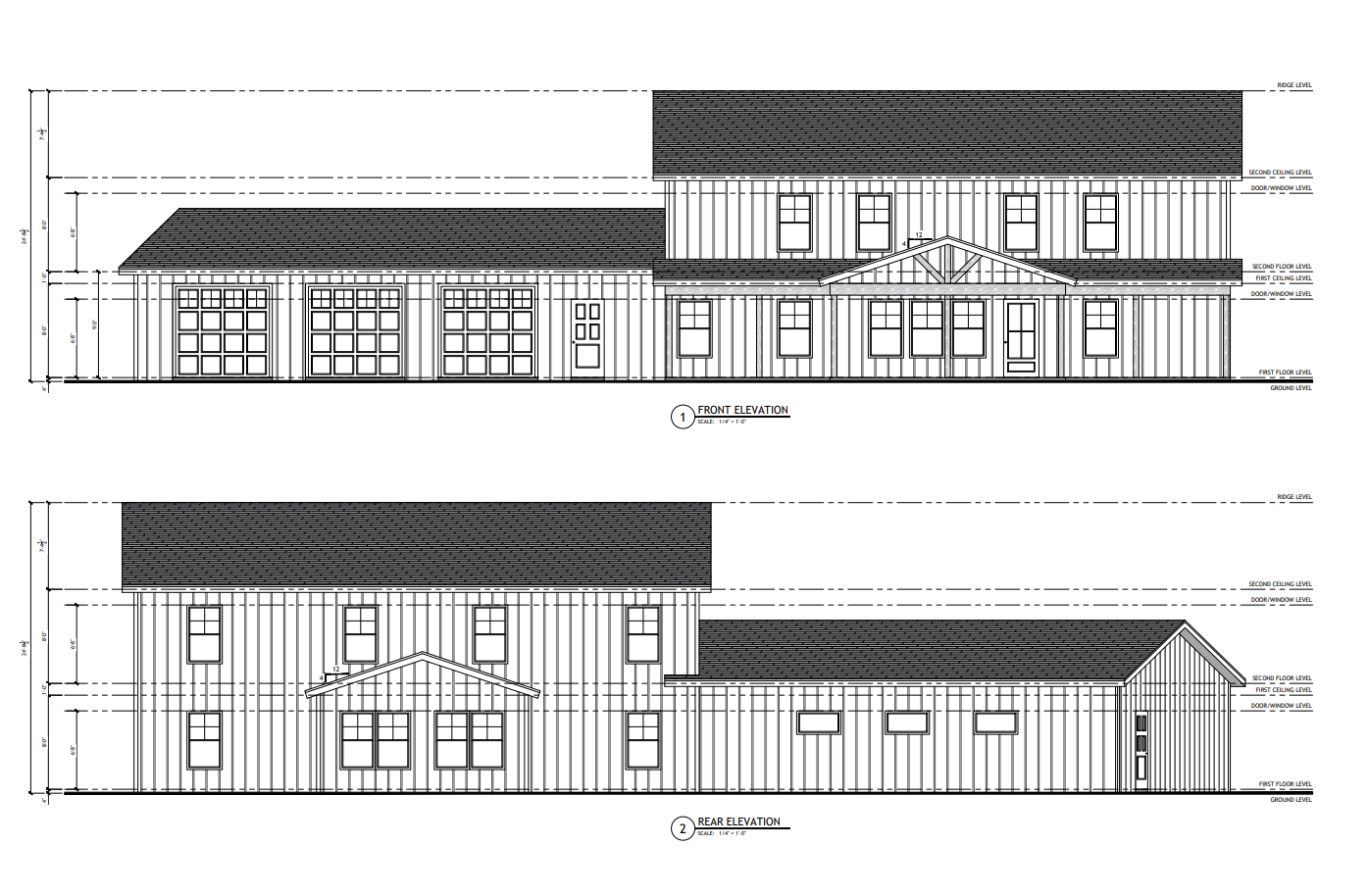

Front, Back, Left Side, Right Side Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section





For more barndominium floor plans, check out our complete collection of 4 bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
