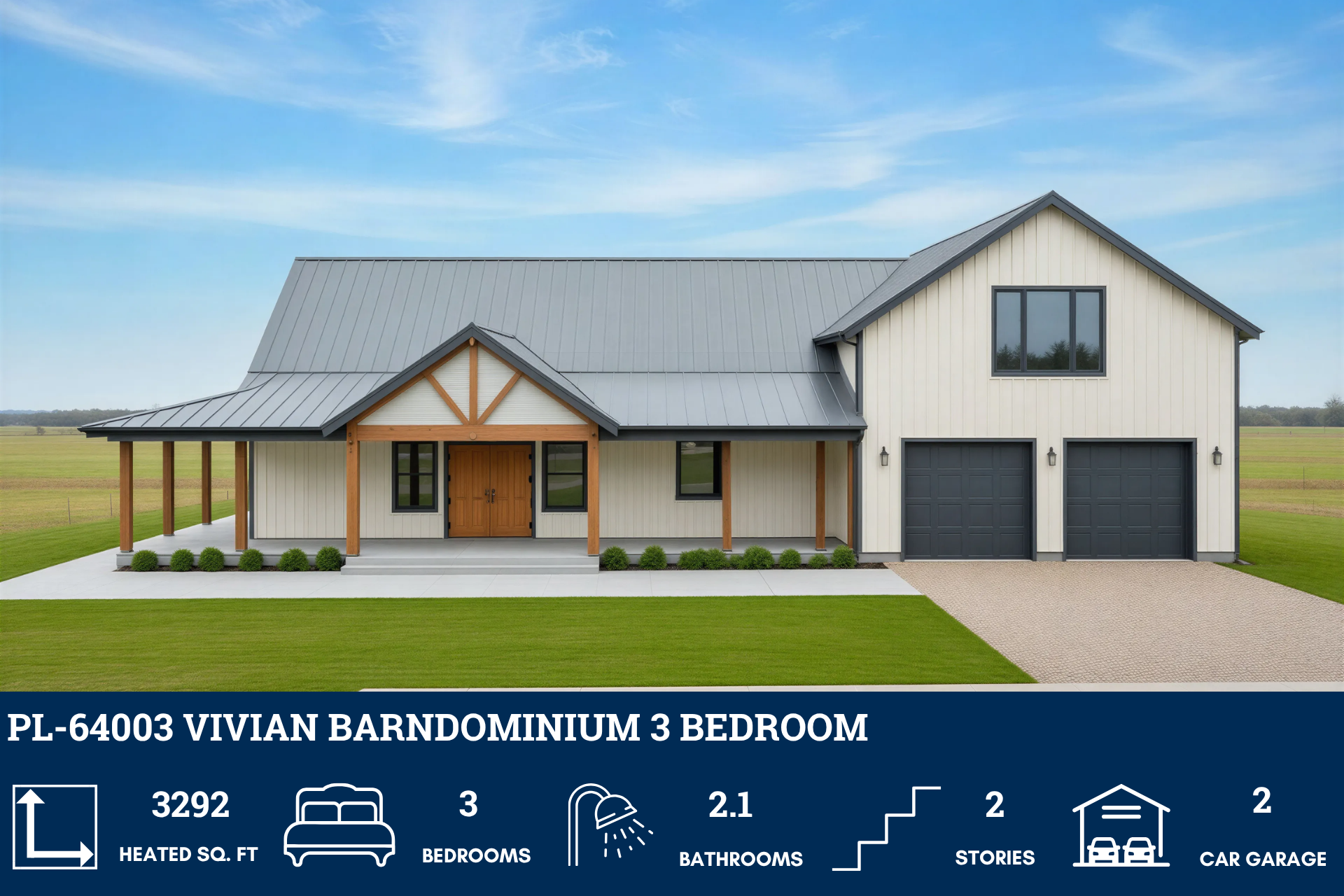

PL-64003 Vivian Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
1 6

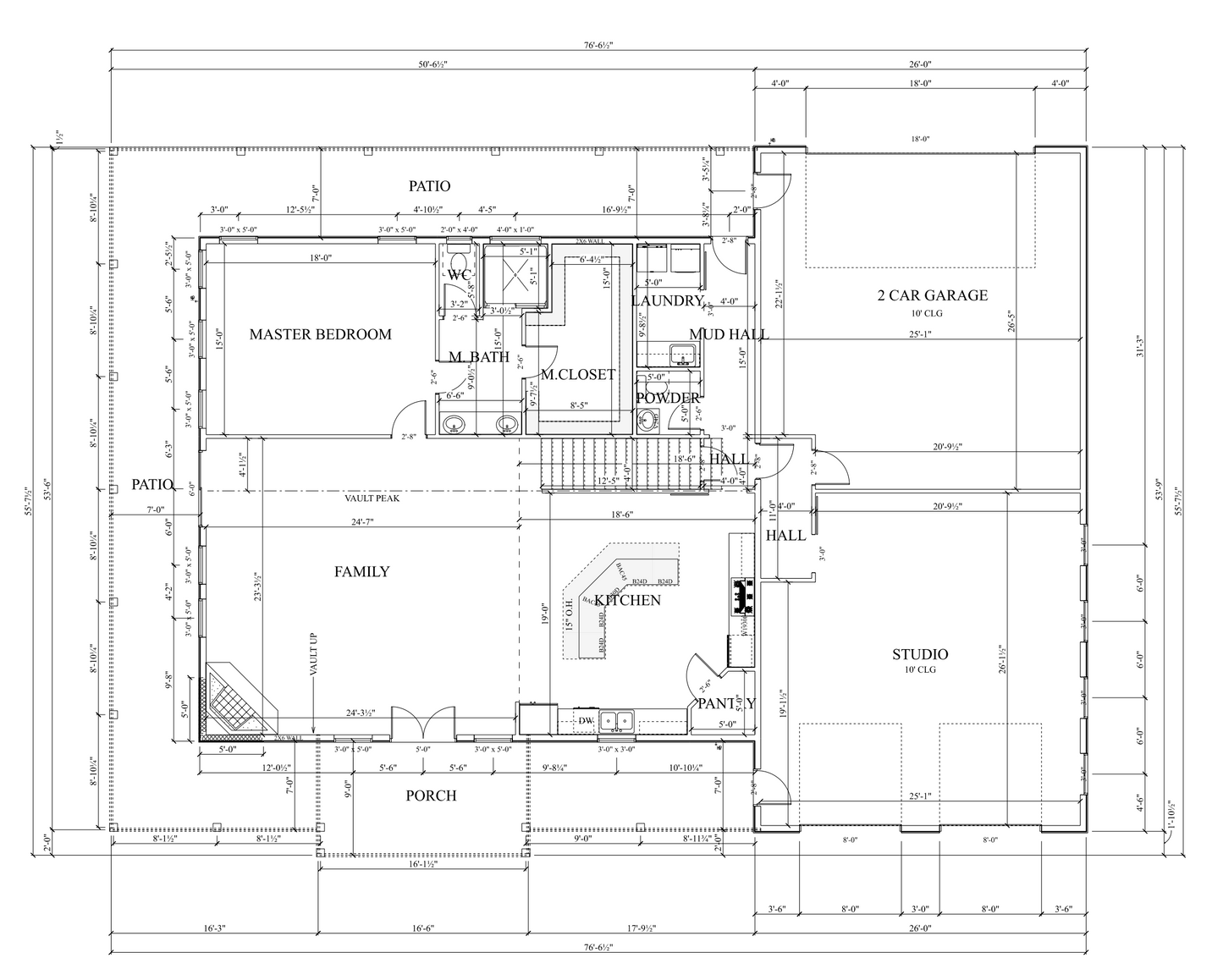

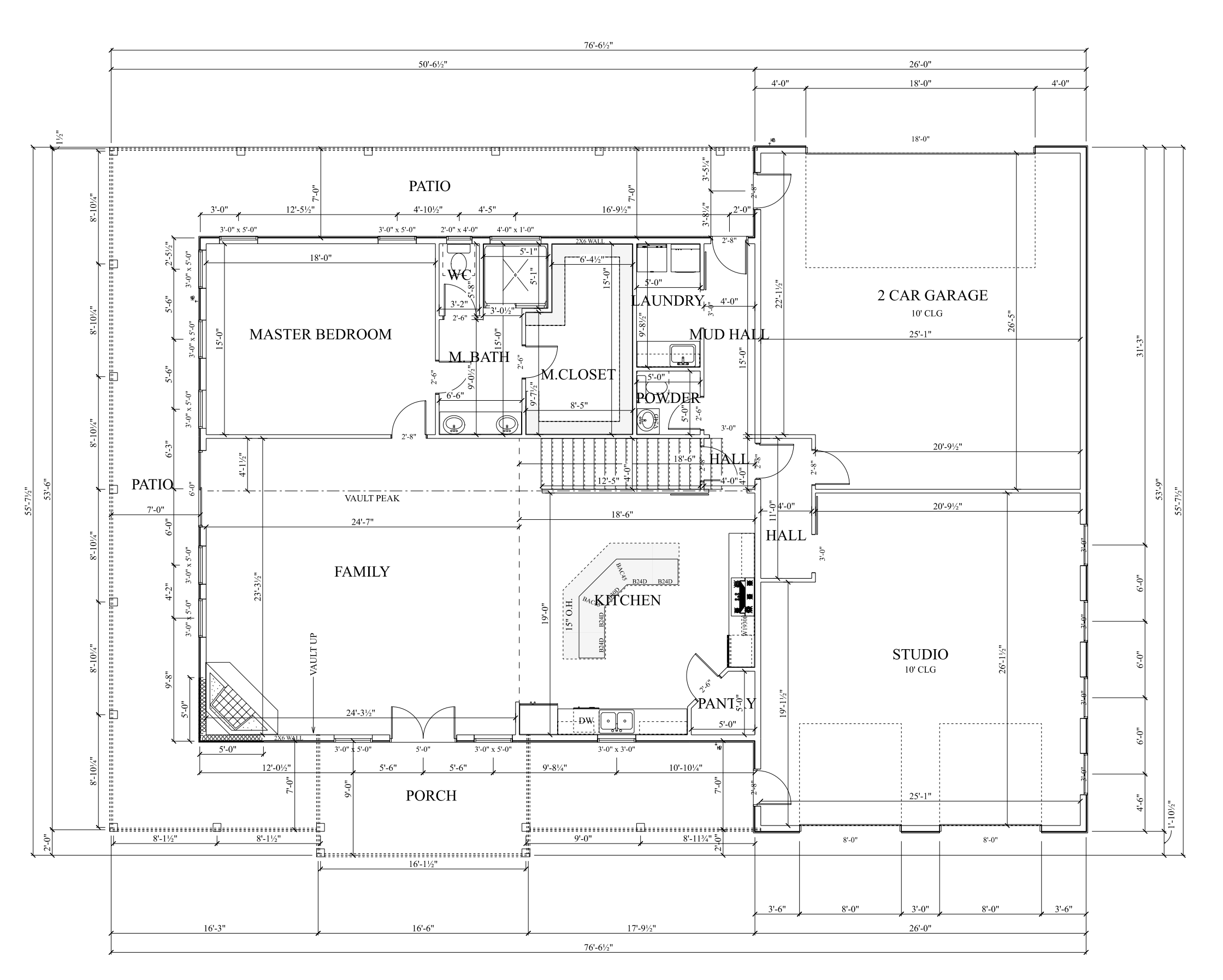

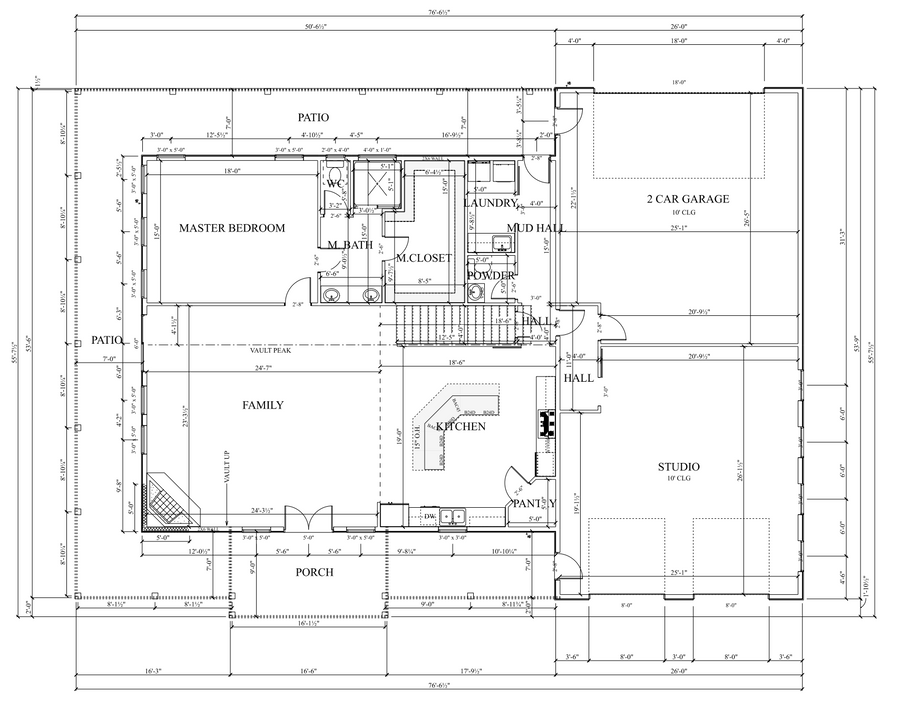

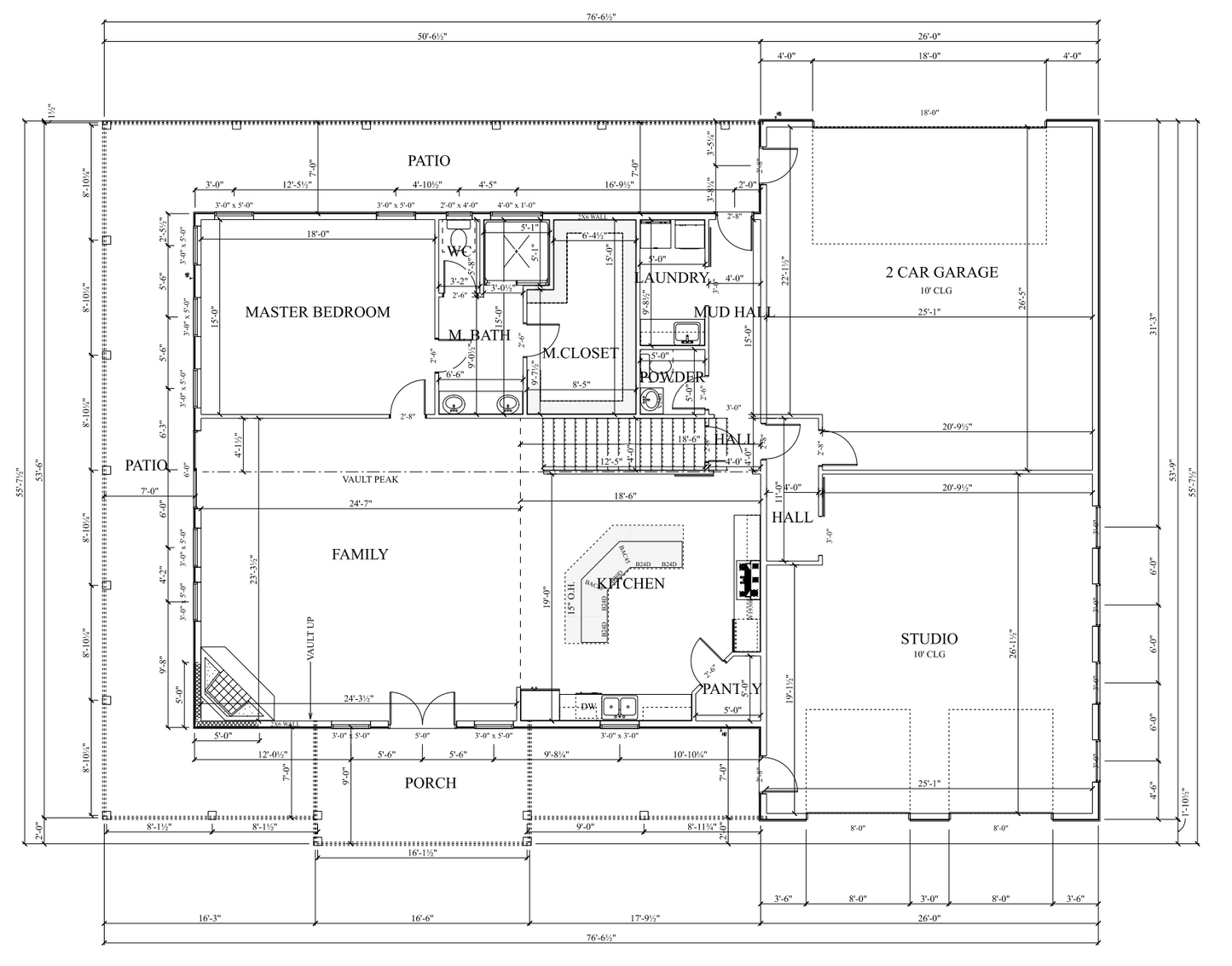

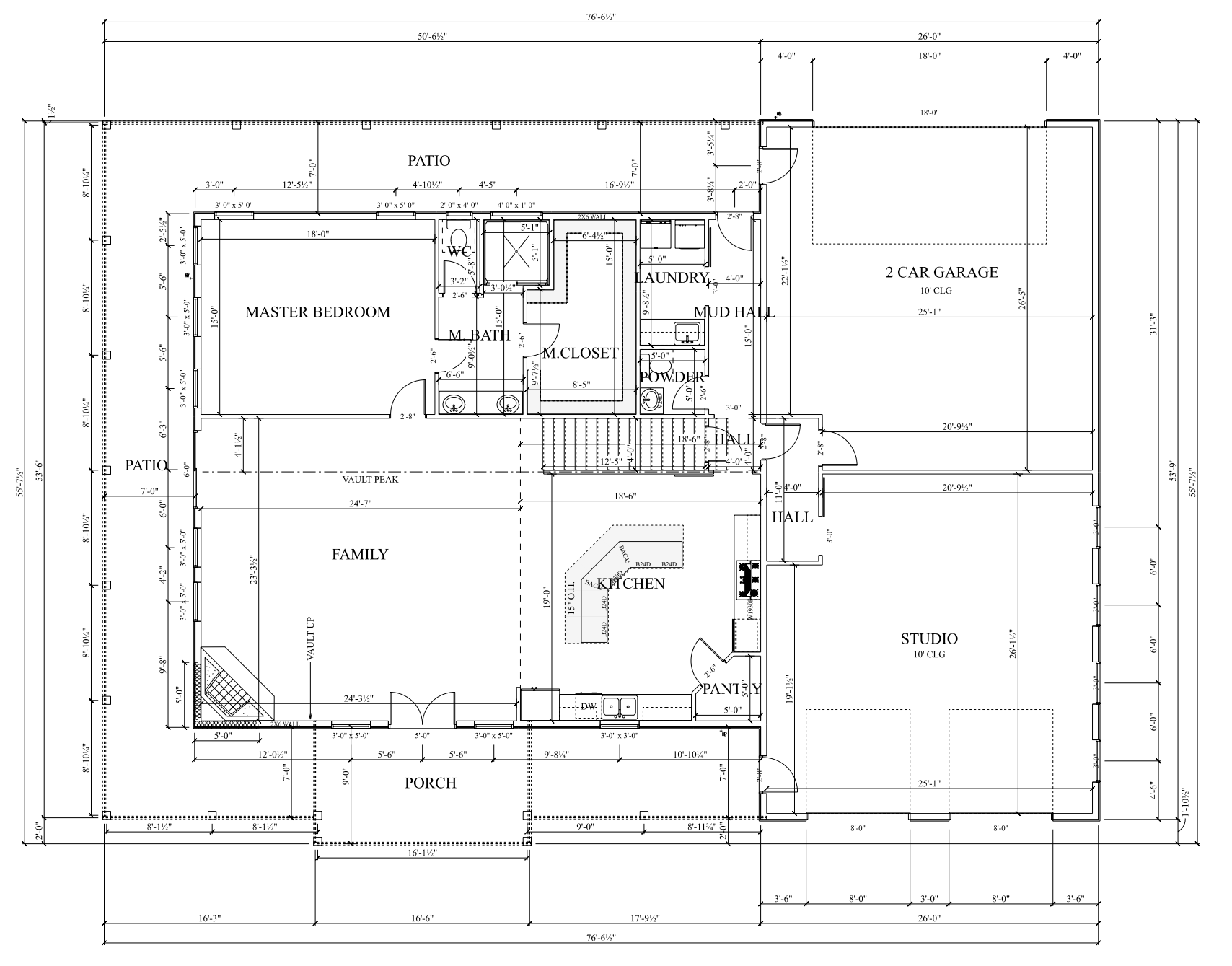

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,471 SF

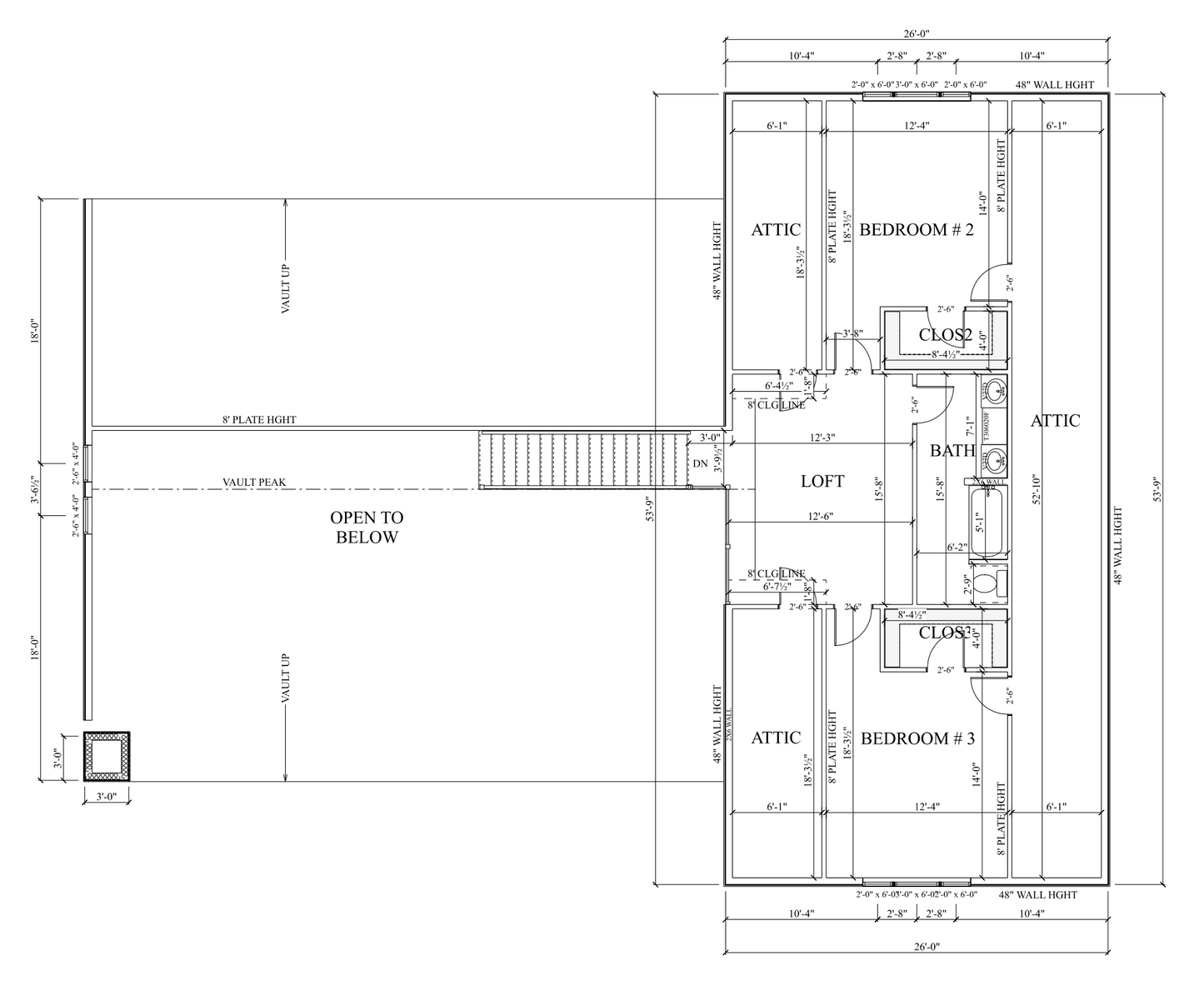

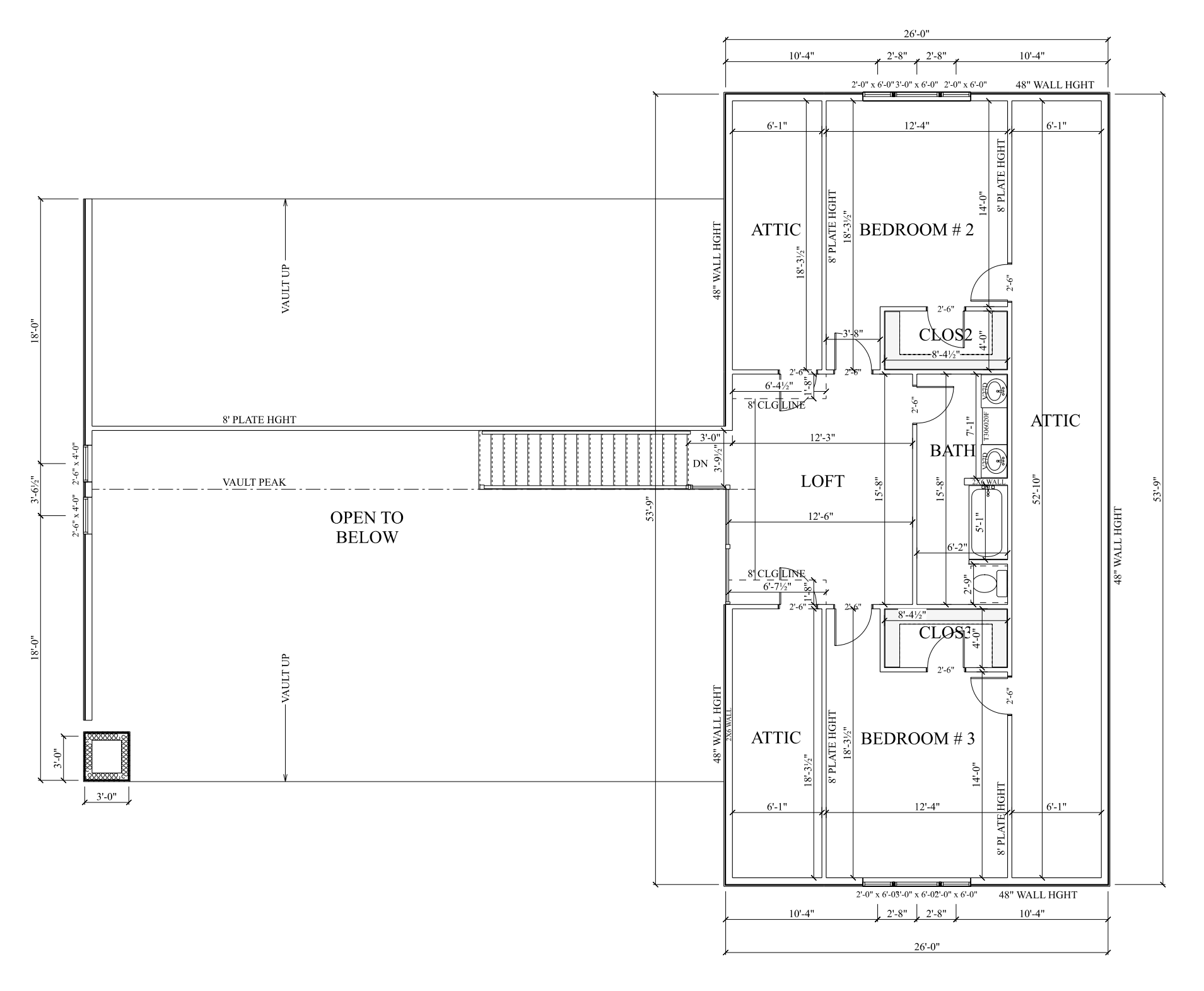

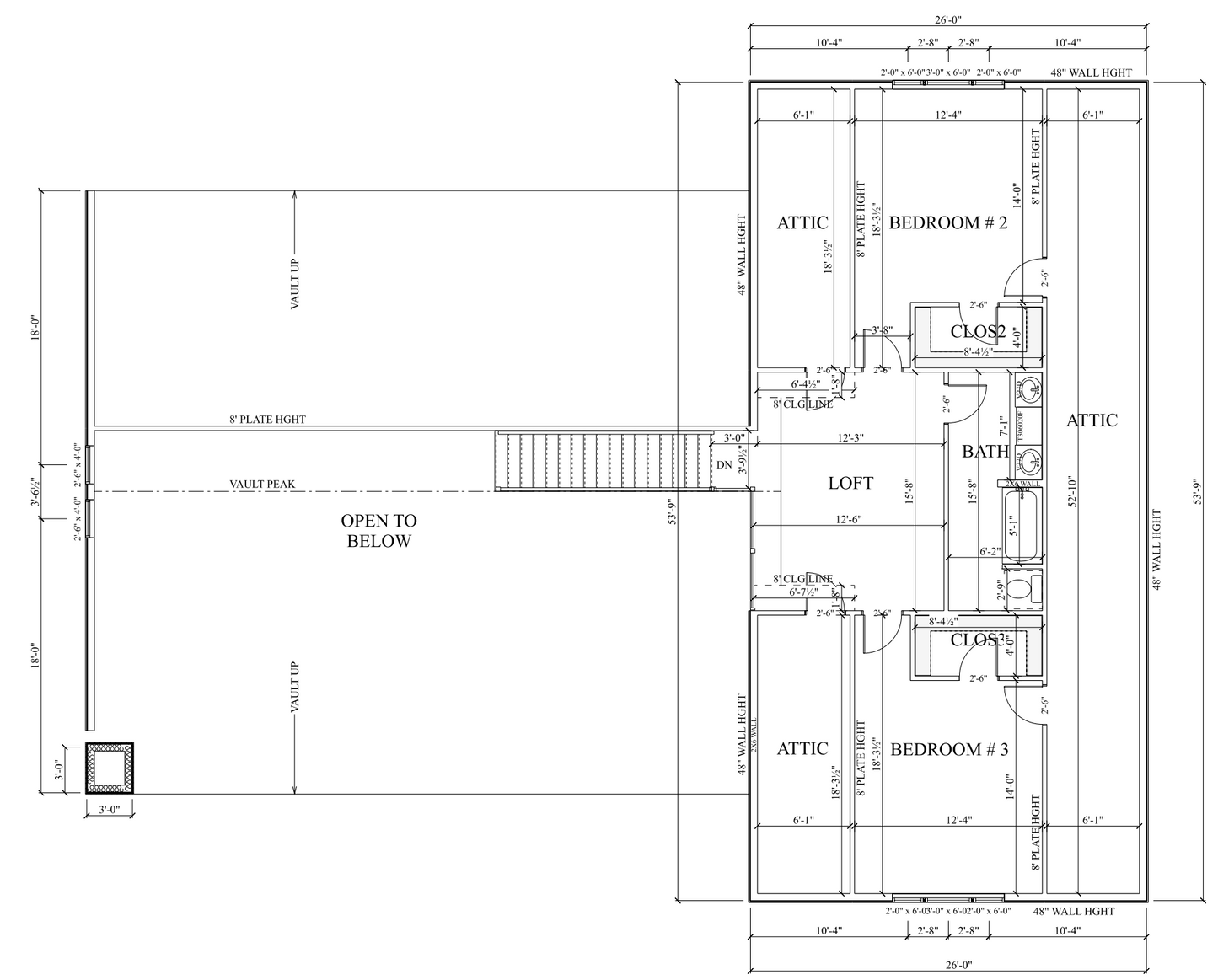

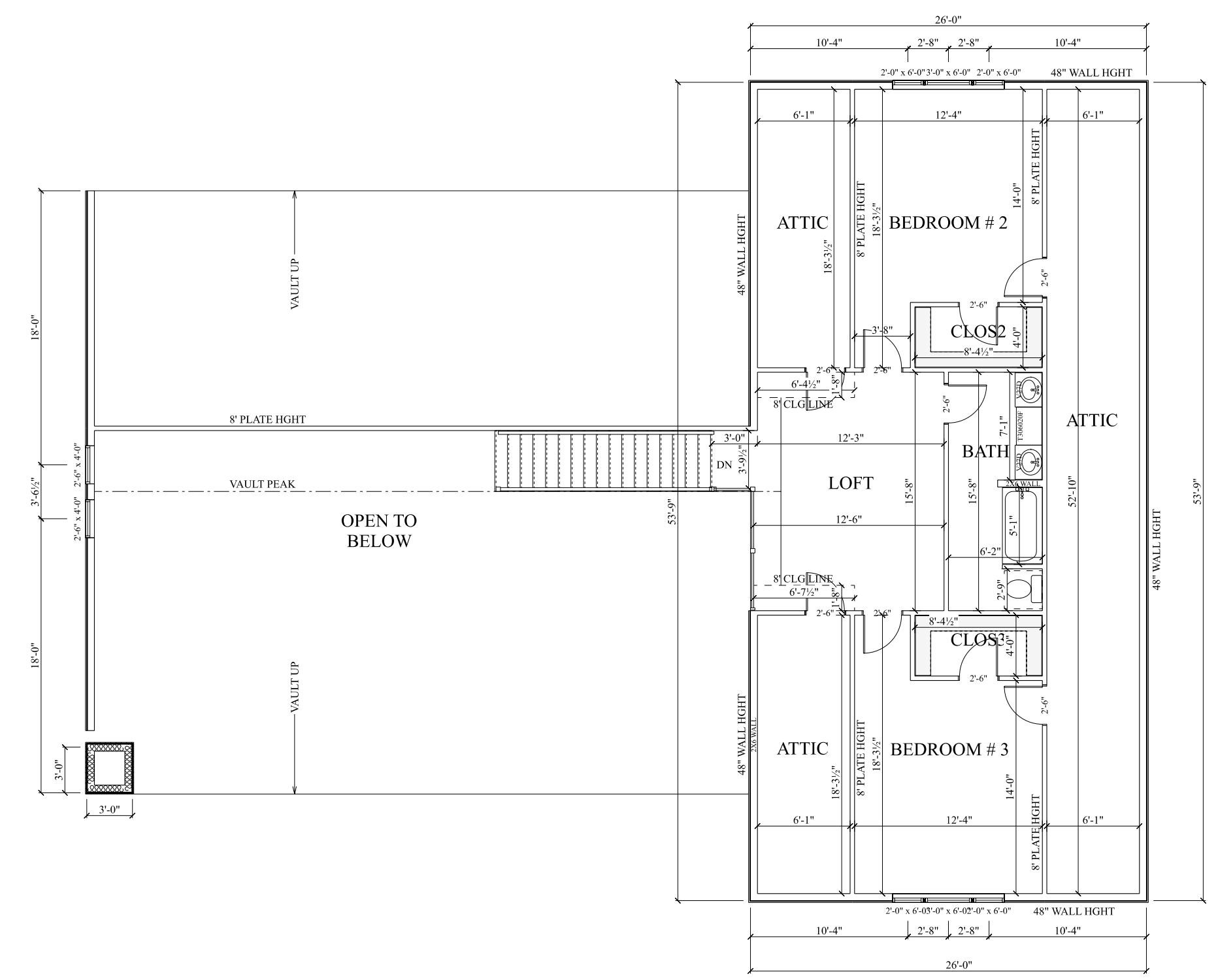

Second Floor:

821 SF

Total Heated Sq Ft:

2,471 SF

UNHEATED SQ FT

Total Unheated Area:

1,019 SF porch + 679 SF garage = TOTAL 1,698 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

679 SF

Width:

76'-6 1/2"

Depth:

55'-7 1/2"

Height:

24'-6 9/32"

Foundation:

Concrete slab

Main Roof Pitch:

8:12

Exterior Framing:

2x6 studs

CEILING HEIGHTS

First Floor:

9'

PL-64003 Vivian Barndominium House Plan



About this barndominium house plan:

  • 3292 Heated square feet
  • 40x44 living space dimension
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Two-story
  • Open concept
  • 679 square feet 2-car Garage
  • Mudroom
  • Loft

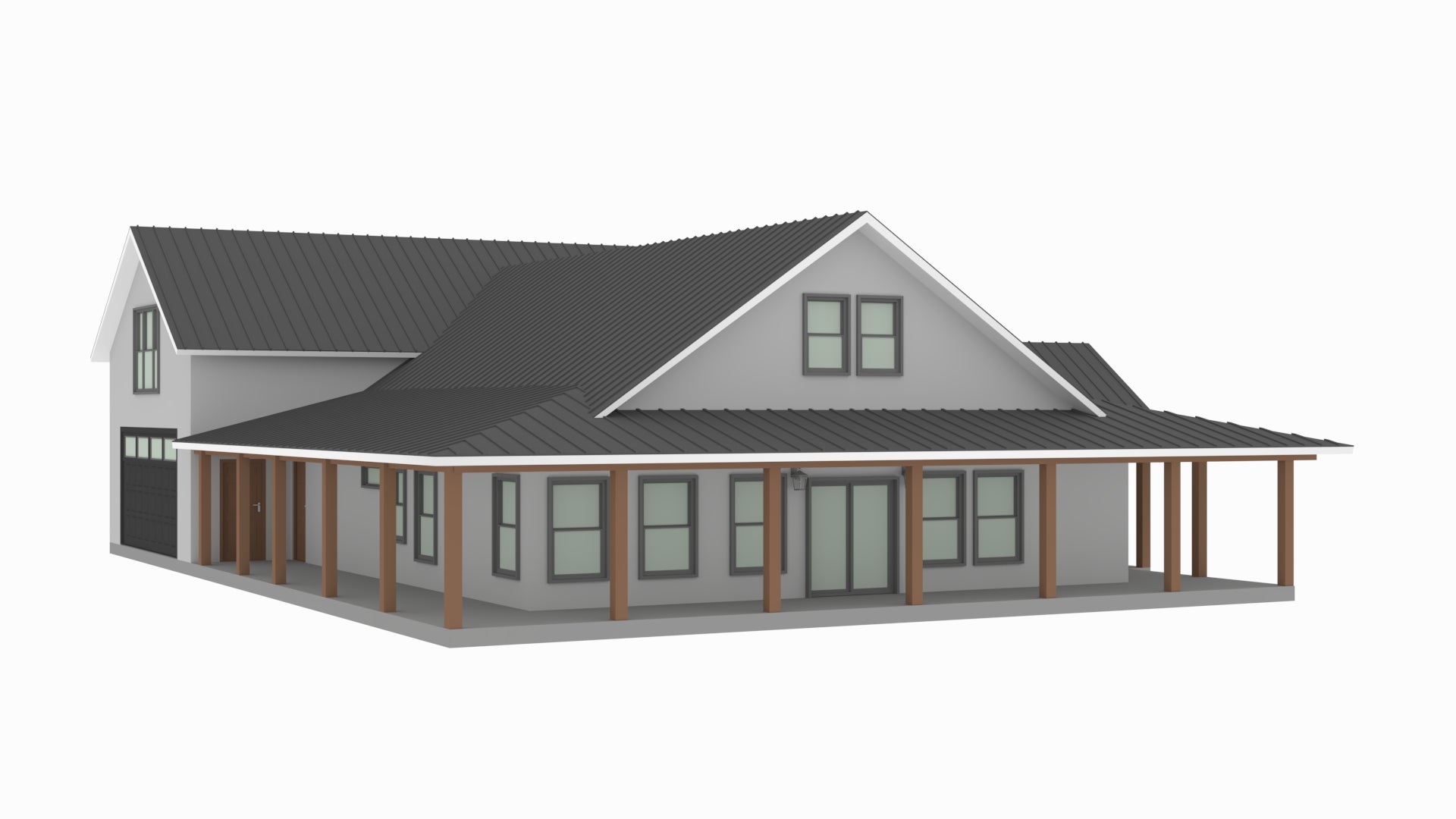

  • Wraparound porch
  • Fireplace
  • Studio
  • Attic



  • This expansive living space offers an abundance of room to create lasting memories, blending luxury and comfort for a lifestyle of ease.
  • Three well-appointed bedrooms provide peaceful retreats, perfect for family members or guests to unwind and recharge.
  • With two full bathrooms and an additional powder room, your daily routines are streamlined, ensuring both practicality and style.
  • A two-level design offers a beautiful balance of separation and connection, with private spaces upstairs and shared living areas below.
  • The open layout invites seamless interaction and effortless flow, making entertaining or family gatherings a true joy.
  • A spacious two-car garage provides secure parking and ample storage for vehicles, tools, or hobbies.
  • Keep the rest of your home tidy with a dedicated mudroom for organizing shoes, coats, and everyday essentials.
  • Embrace outdoor living with a charming wraparound porch, perfect for enjoying scenic views, morning coffee, or evening relaxation.
  • The fireplace creates a cozy focal point, bringing warmth and character to your main living area.
  • A dedicated studio caters to creativity, productivity, or personal projects, offering endless possibilities to make it your own.
  • The attic space provides additional storage or potential for customization, ready to adapt to your evolving needs.



What's included in PL-64003:

Cover Sheet
Detailed Floor Plan Dimensions

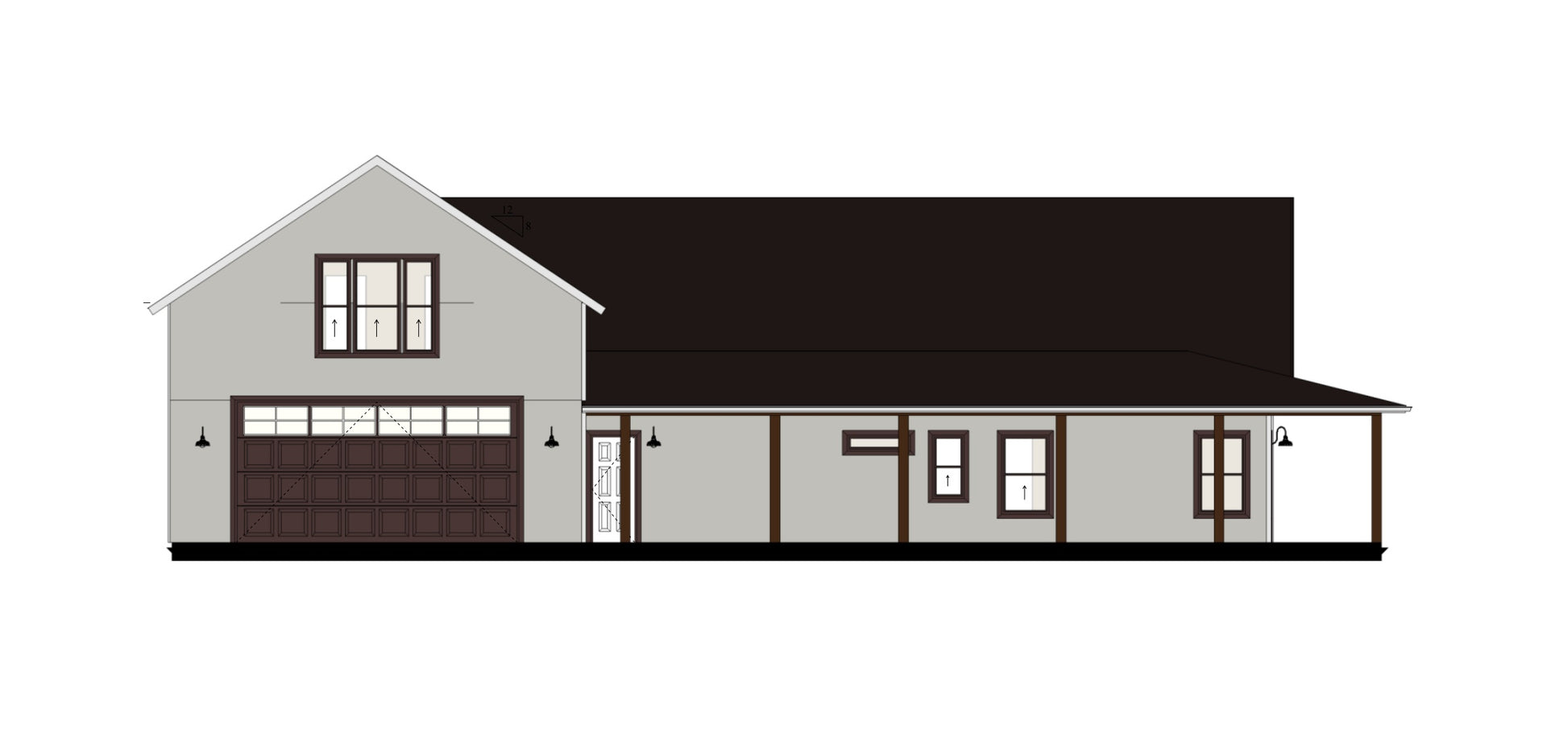

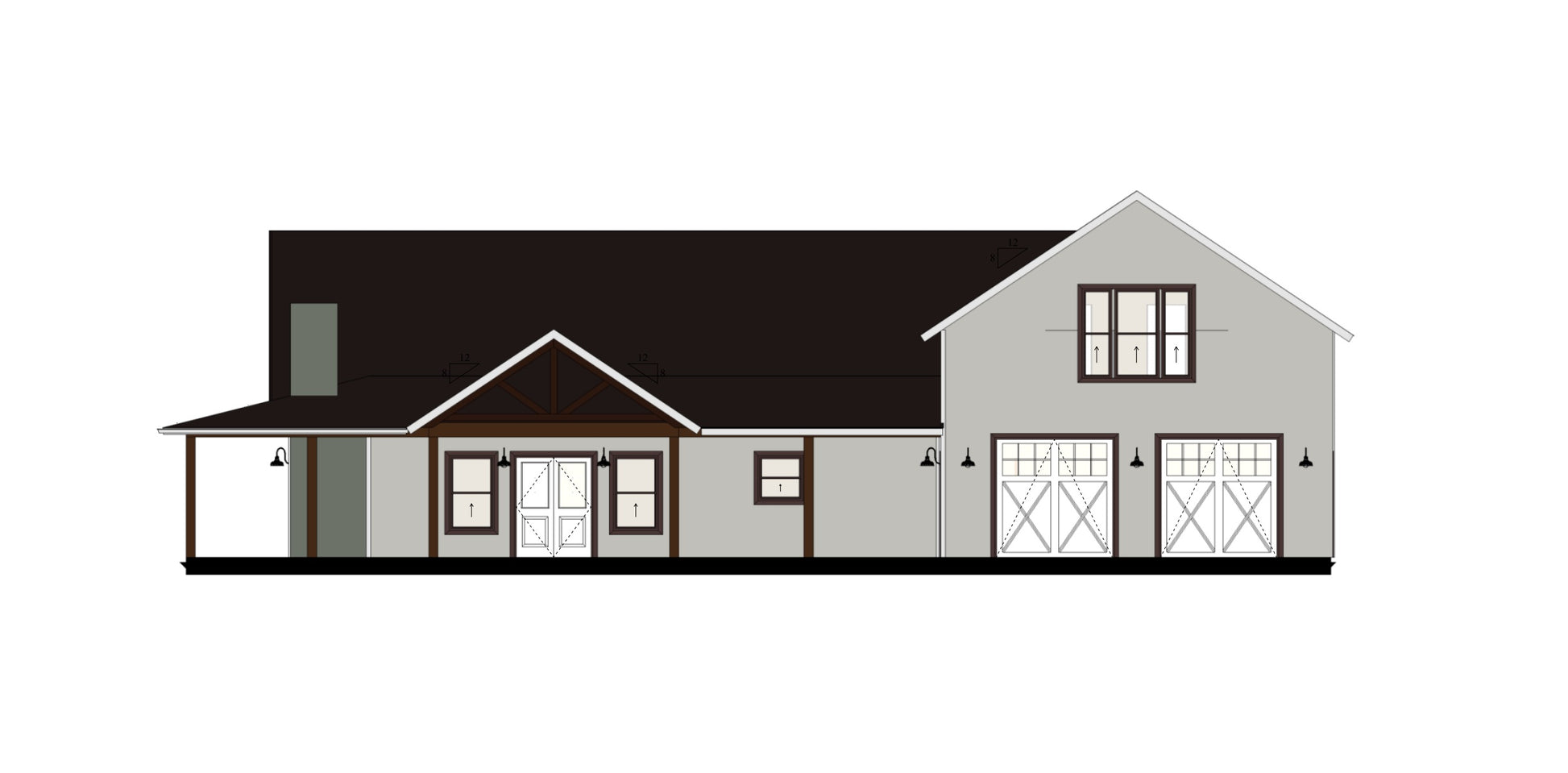

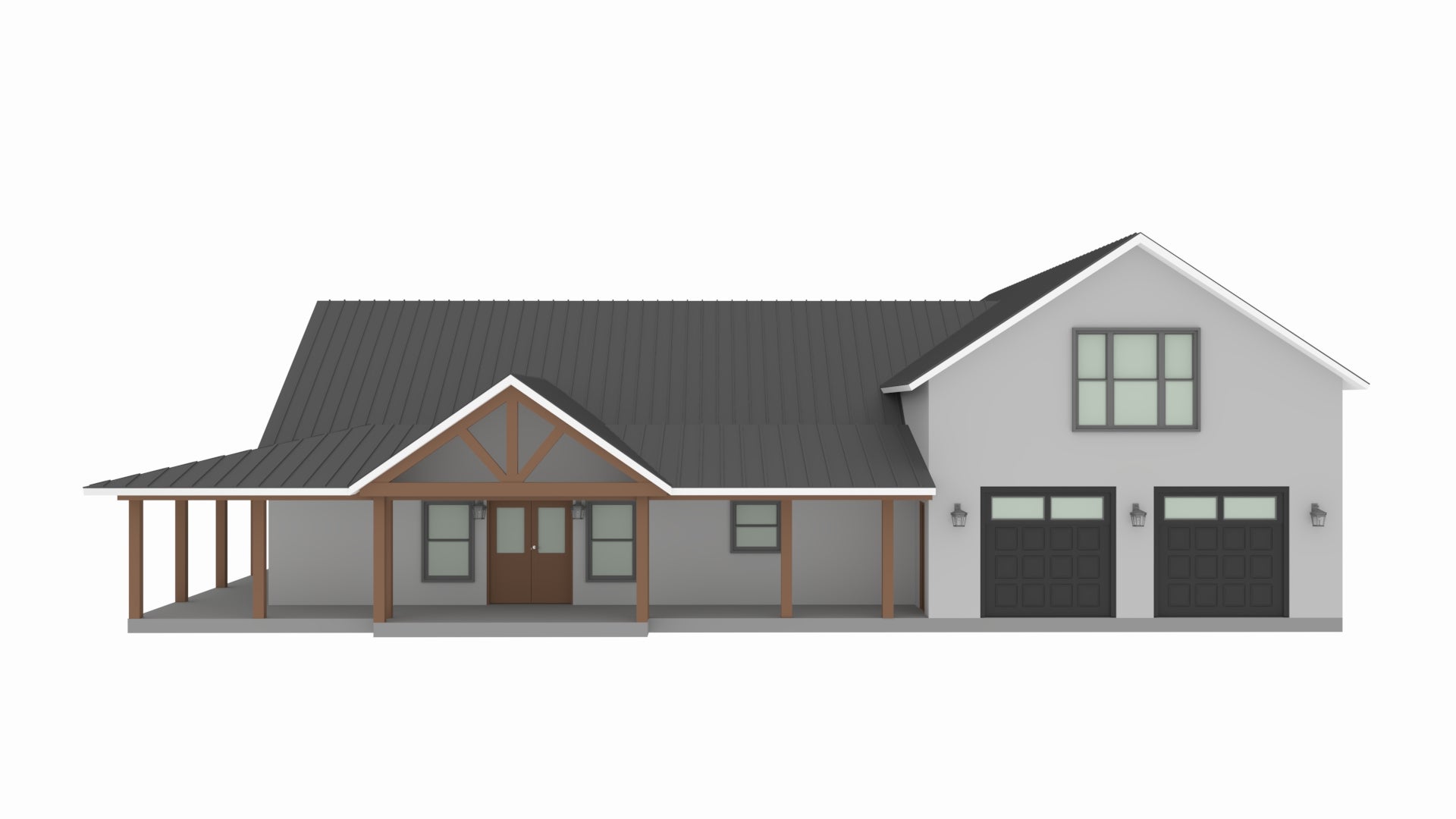

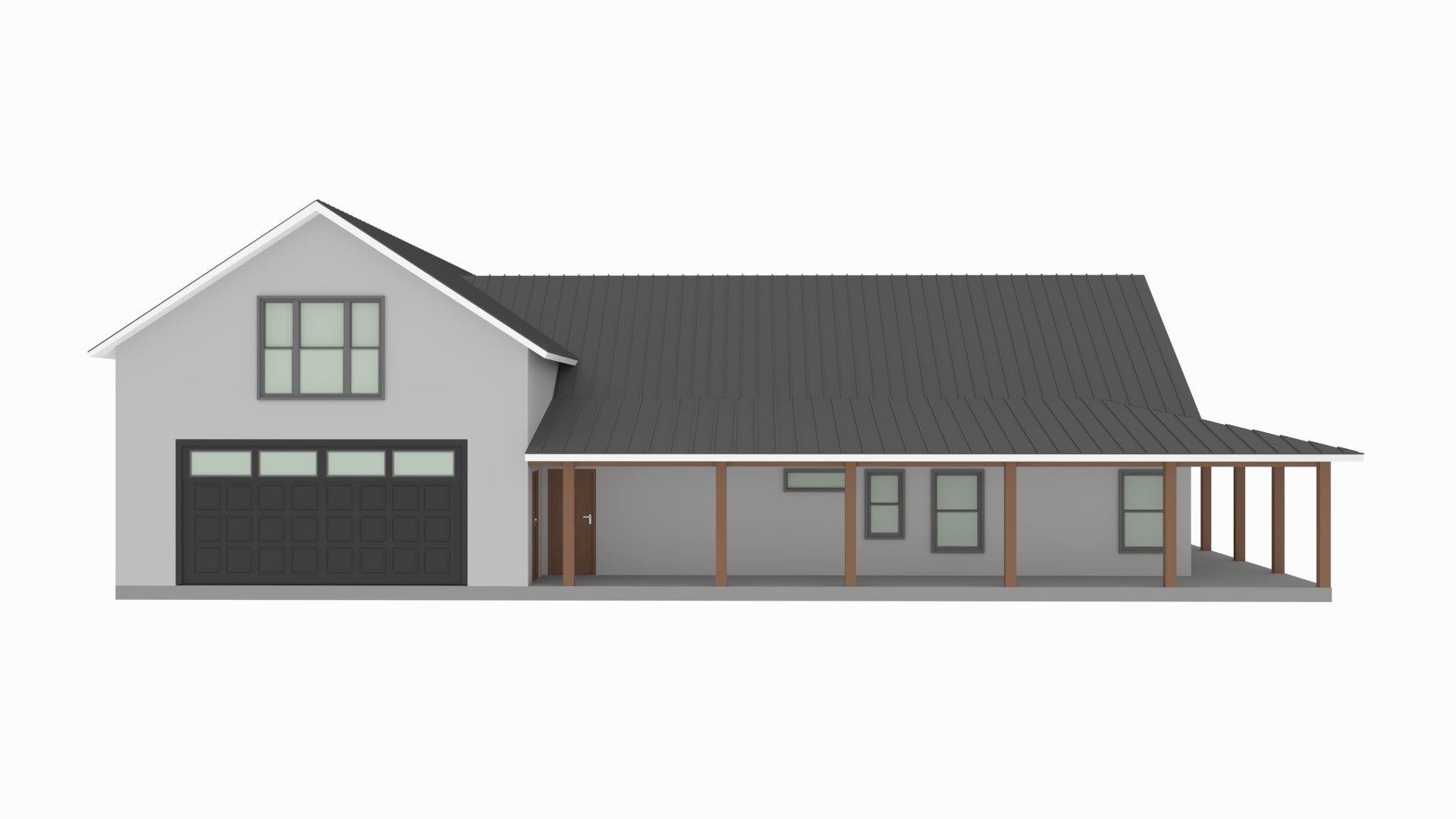

Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
