PDF (Single Build)
Couldn't load pickup availability
Barndominium Plans

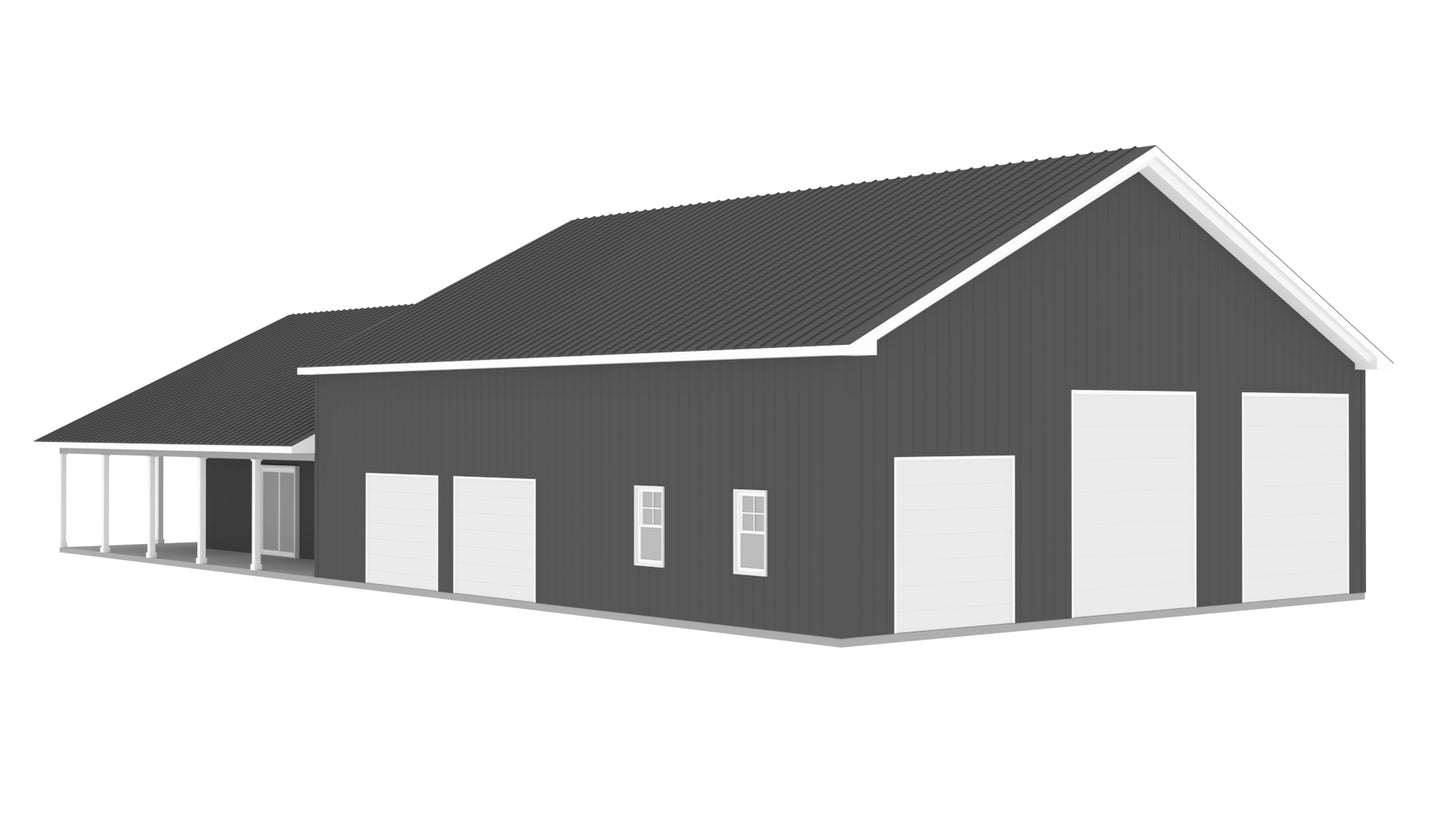

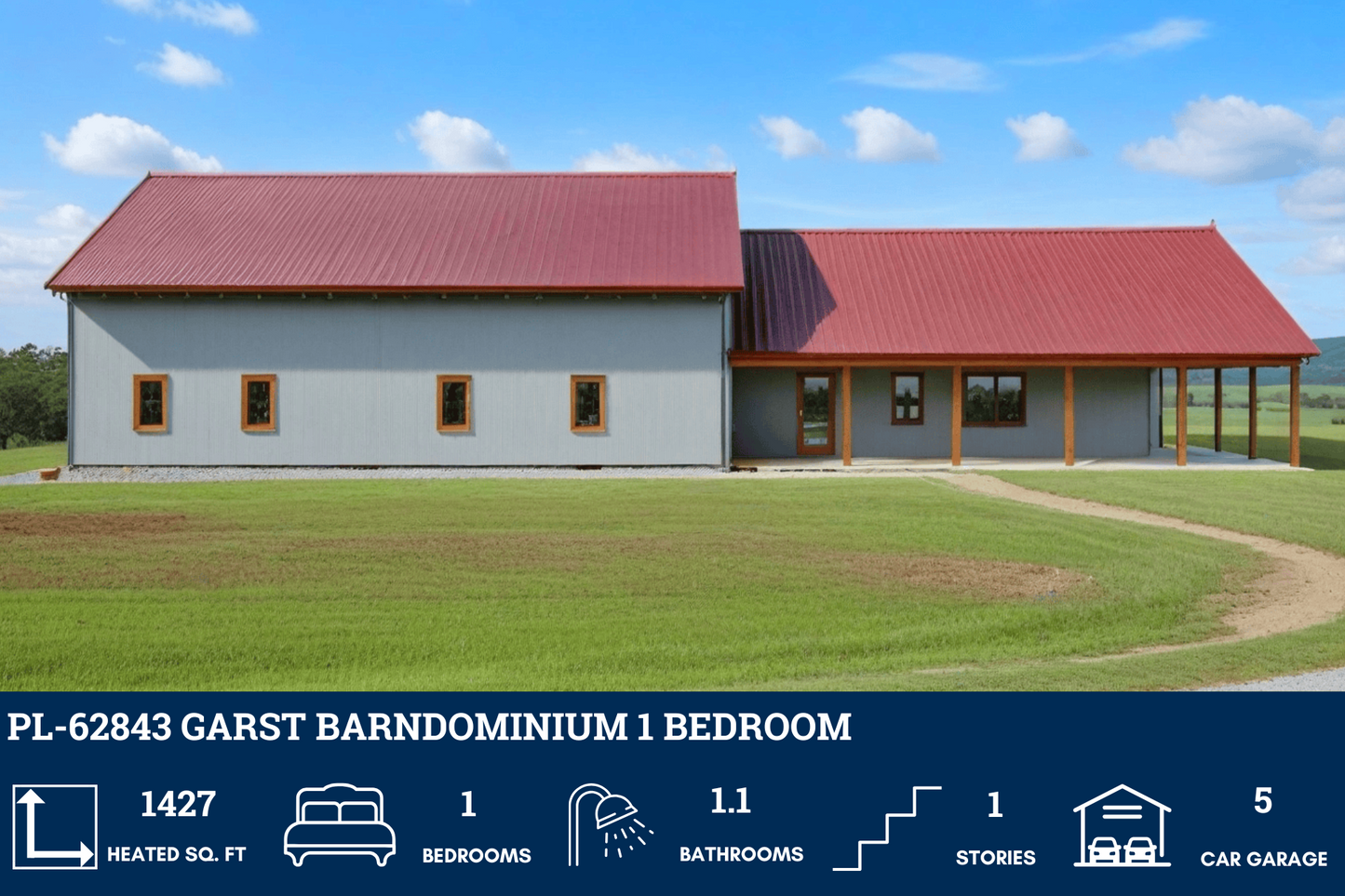

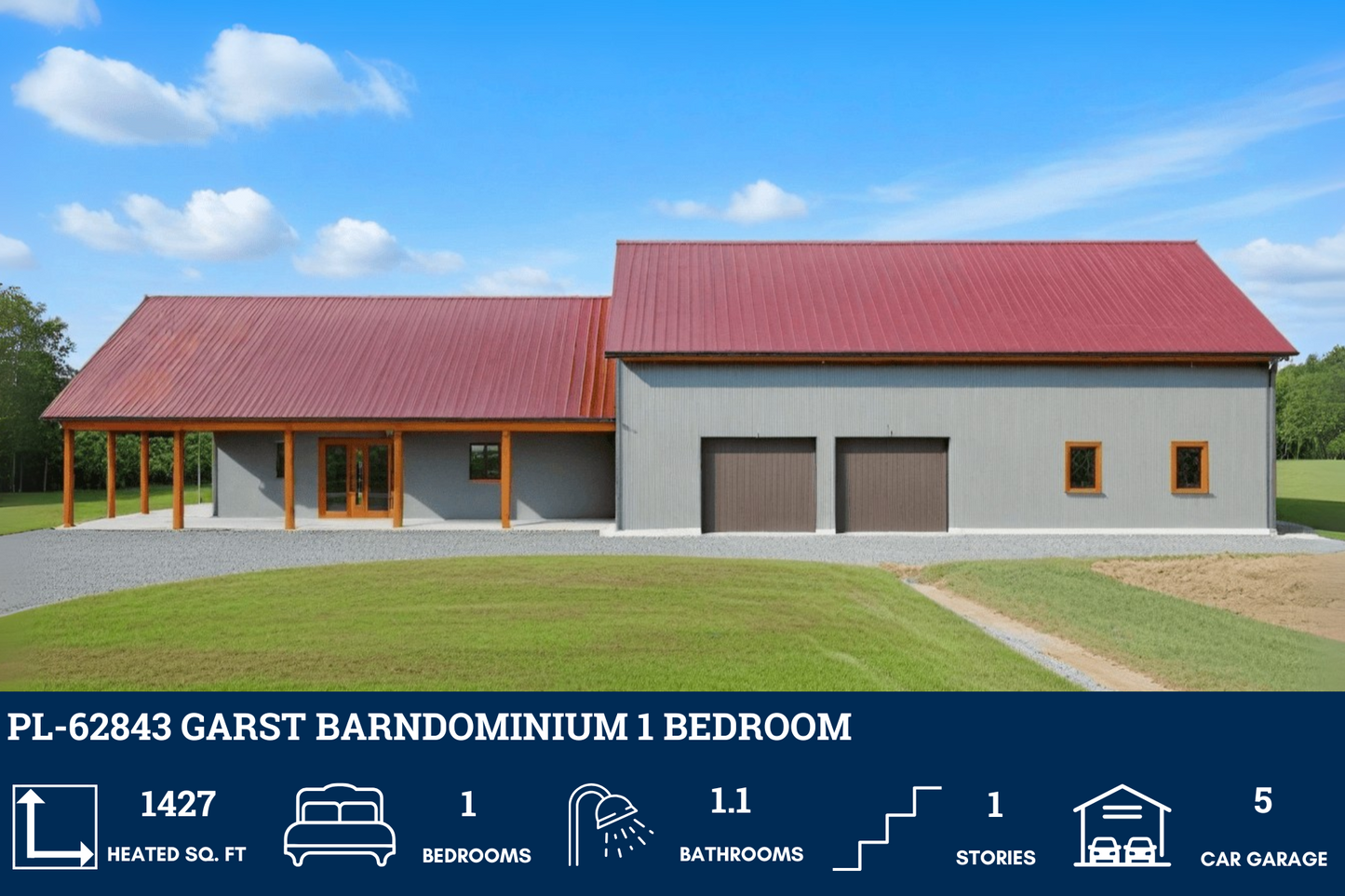

PL-62843 Garst Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

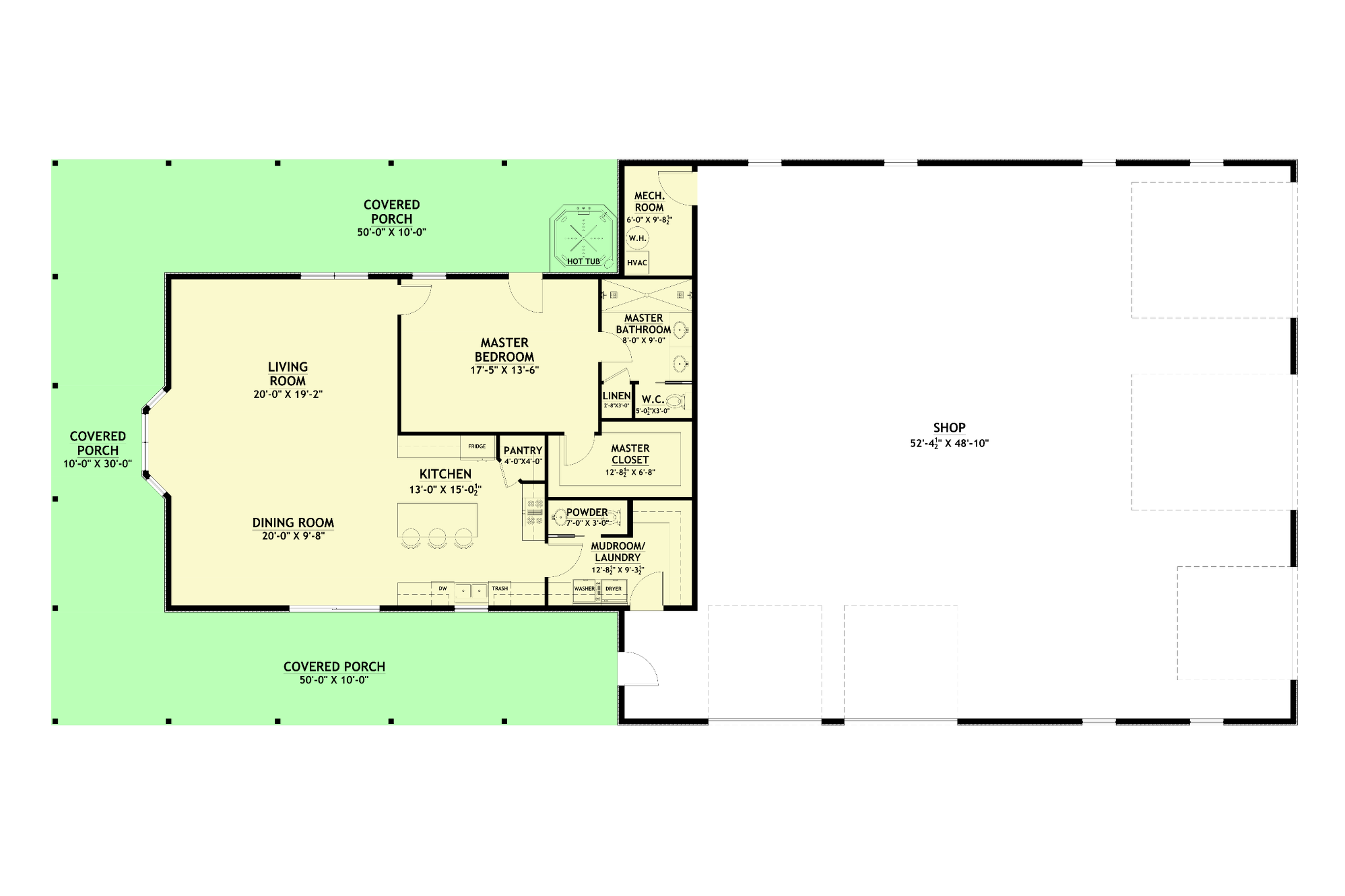

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,427 SF
Second Floor:None
Total Heated Sq Ft:1,427 SF
UNHEATED SQ FT
Total Unheated Area:
1,284 SF porch + 2,789 SF shop = TOTAL 4,073 SF
Carport:None
Bedrooms:
1
Full Baths:
1
Floors:
1
Garage Size:
2,789 SF
Width:
110'
Depth:
50'
Height:
29'-7"
Foundation:
Concrete Slab
Main Roof Pitch:
06:12
Exterior Framing:
Post-Frame
CEILING HEIGHTS
First Floor:
10'
PL-62843 Garst Barndominium House Plan
About this barndominium house plan:
- 1427 heated sq ft
- 30x47 living space dimension
- 1 bedroom
- 1.1 bathrooms
- Single story
- Open concept
- 5-car garage
- Mechanical room
- Mudroom

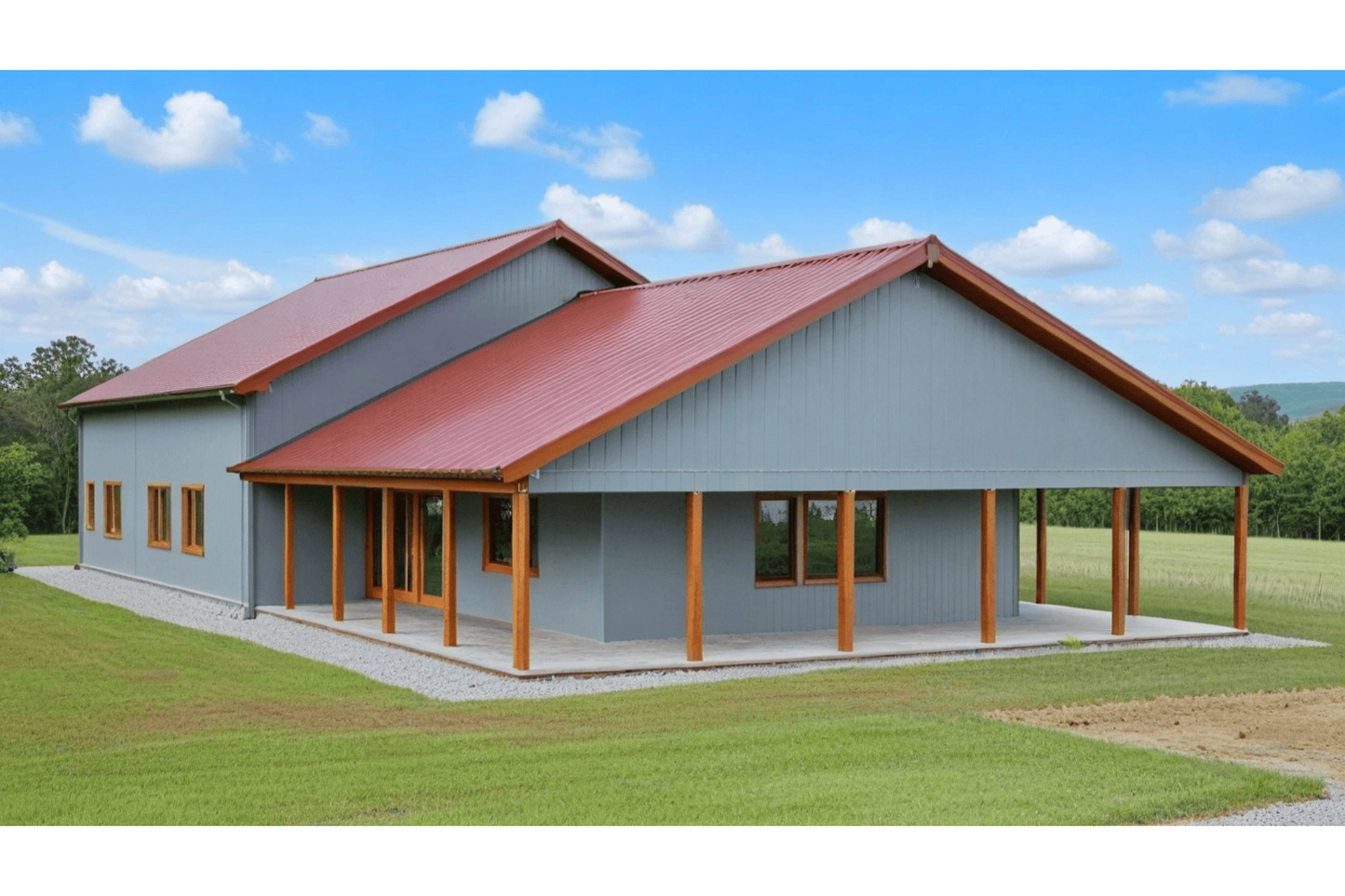

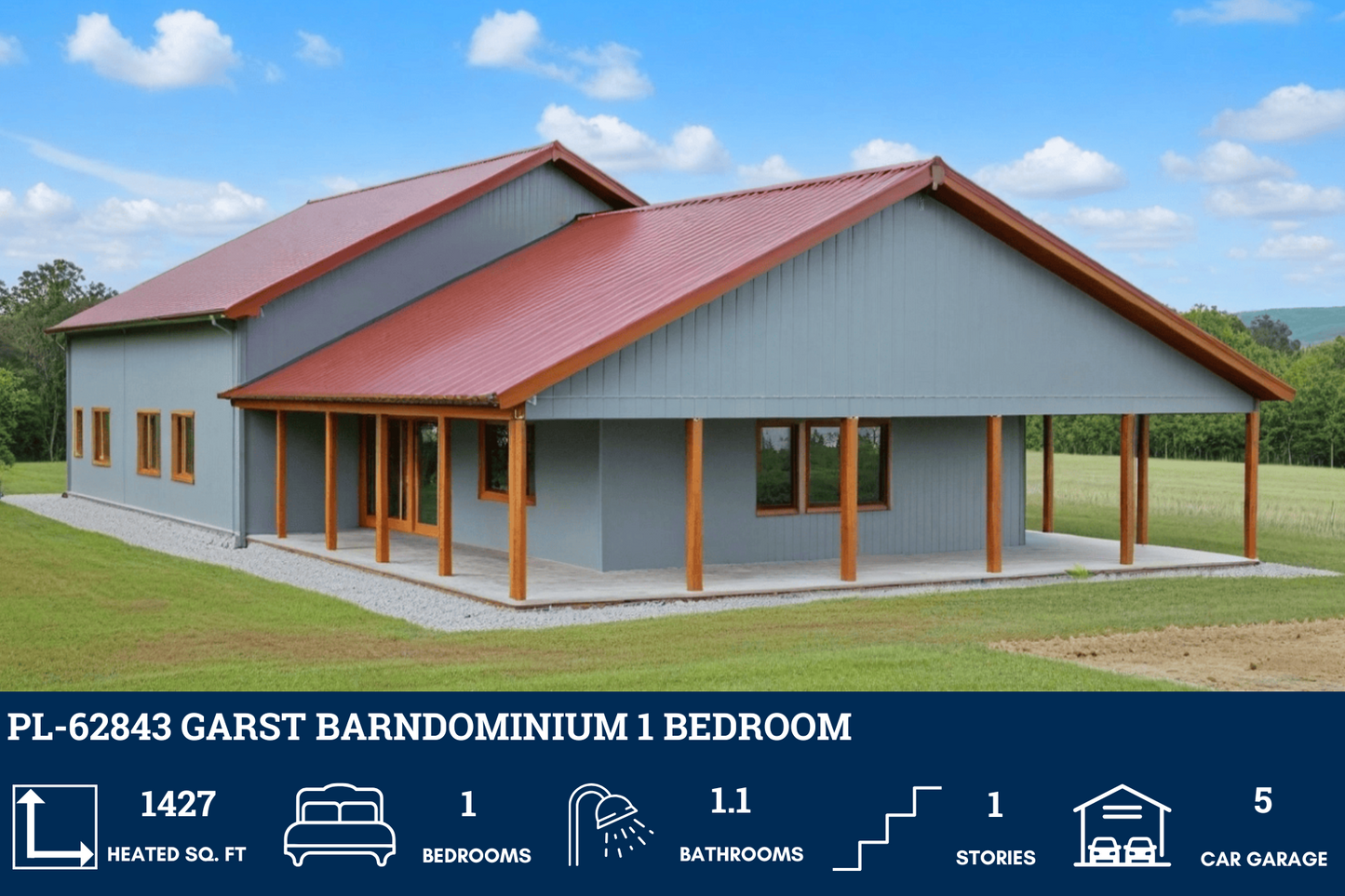

- Wraparound porch
- The open-concept design seamlessly connects the living room, dining area, and kitchen, creating an inviting space perfect for entertaining and daily living.
- The floor plan includes one spacious bedroom, providing a comfortable retreat with ample closet space.
- This home features 1.1 bathrooms, ensuring convenience for residents and guests alike.
- A remarkable 5-car garage offers extensive space for vehicles, storage, and hobbies.
- A dedicated mechanical room ensures that all home systems are easily accessible and well-organized.
- The mudroom provides a practical entryway space to keep the home clean and organized.
What's included in PL-62843:
Cover Page
Floor Plan
Roof Plan
Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 1-bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
