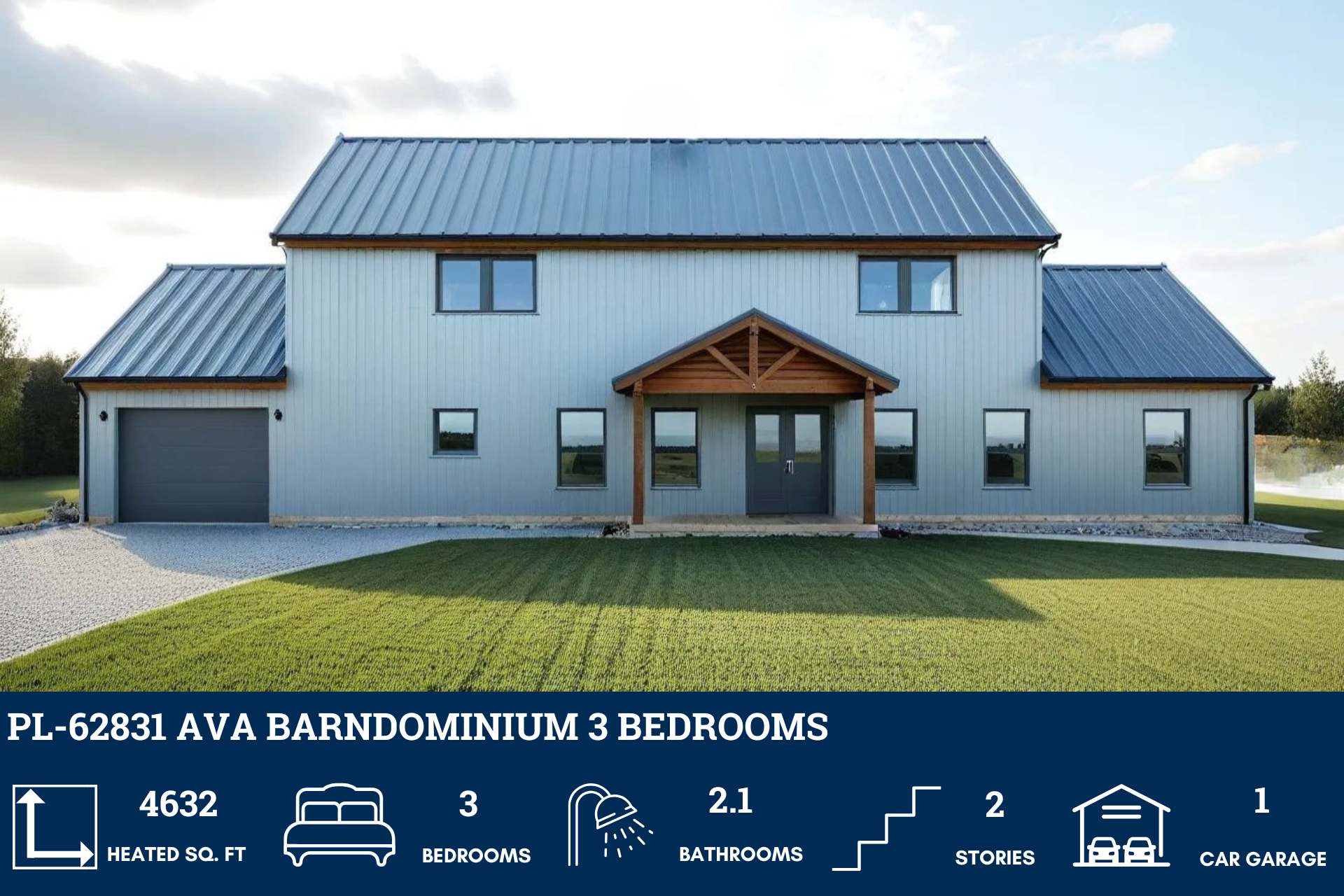

PL-62831 Ava Barndominium House Plan

$1,499.99 USD
$1,499.99 USD
Sale Sold out
Add To Wishlist
1 12

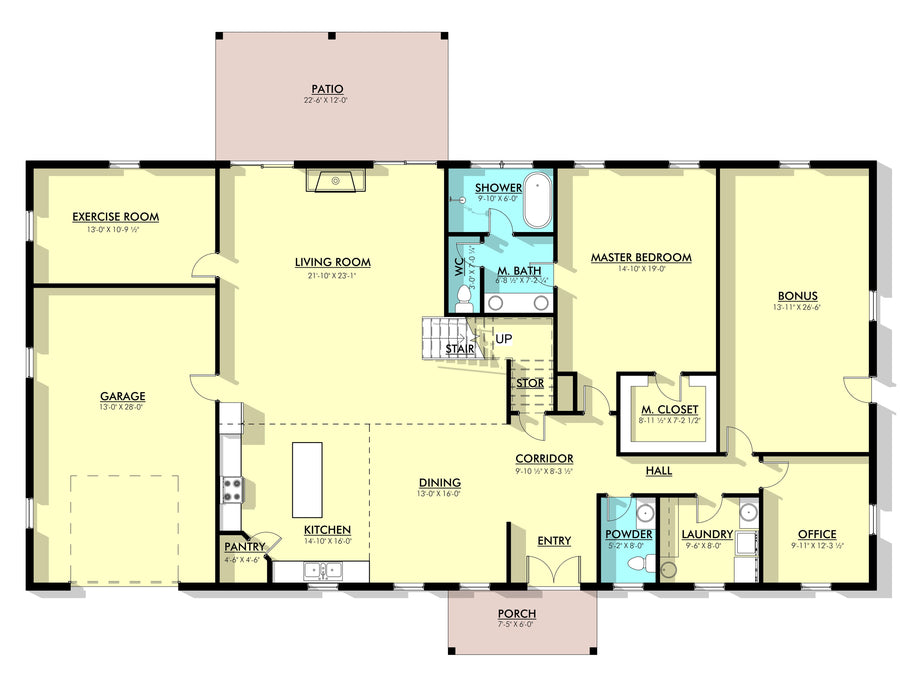

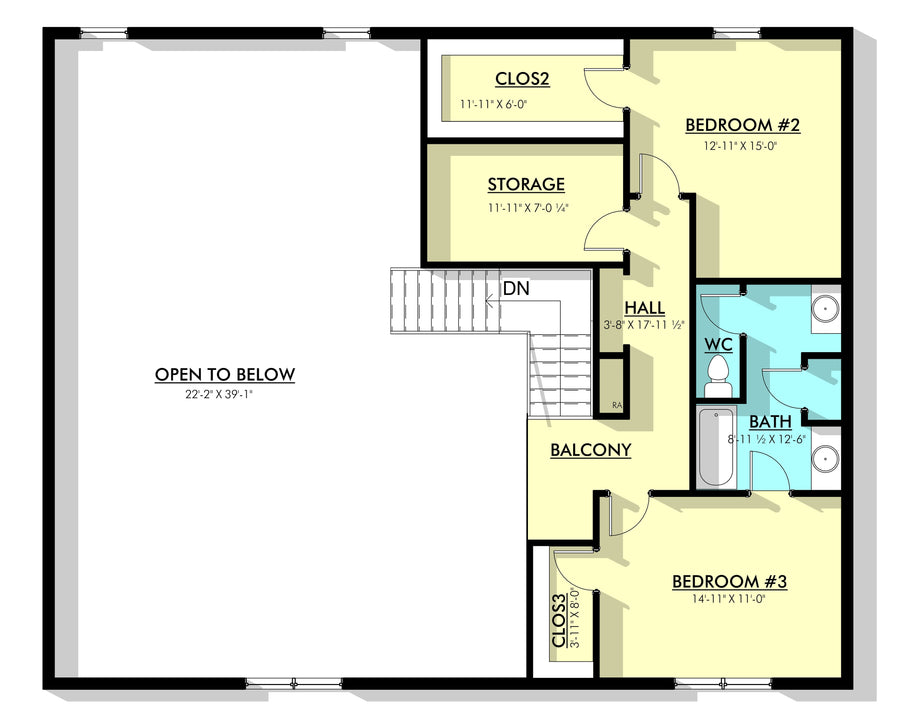

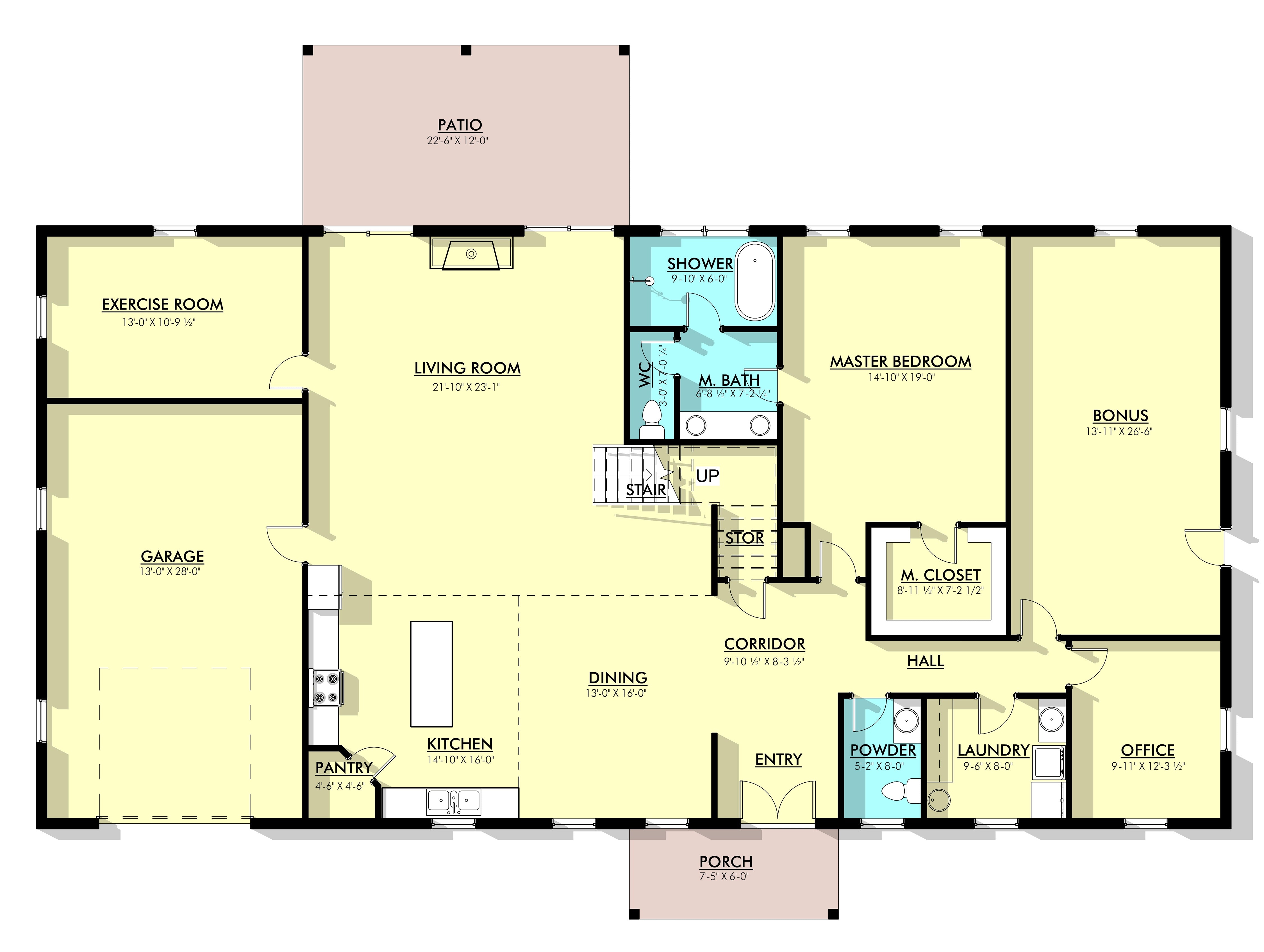

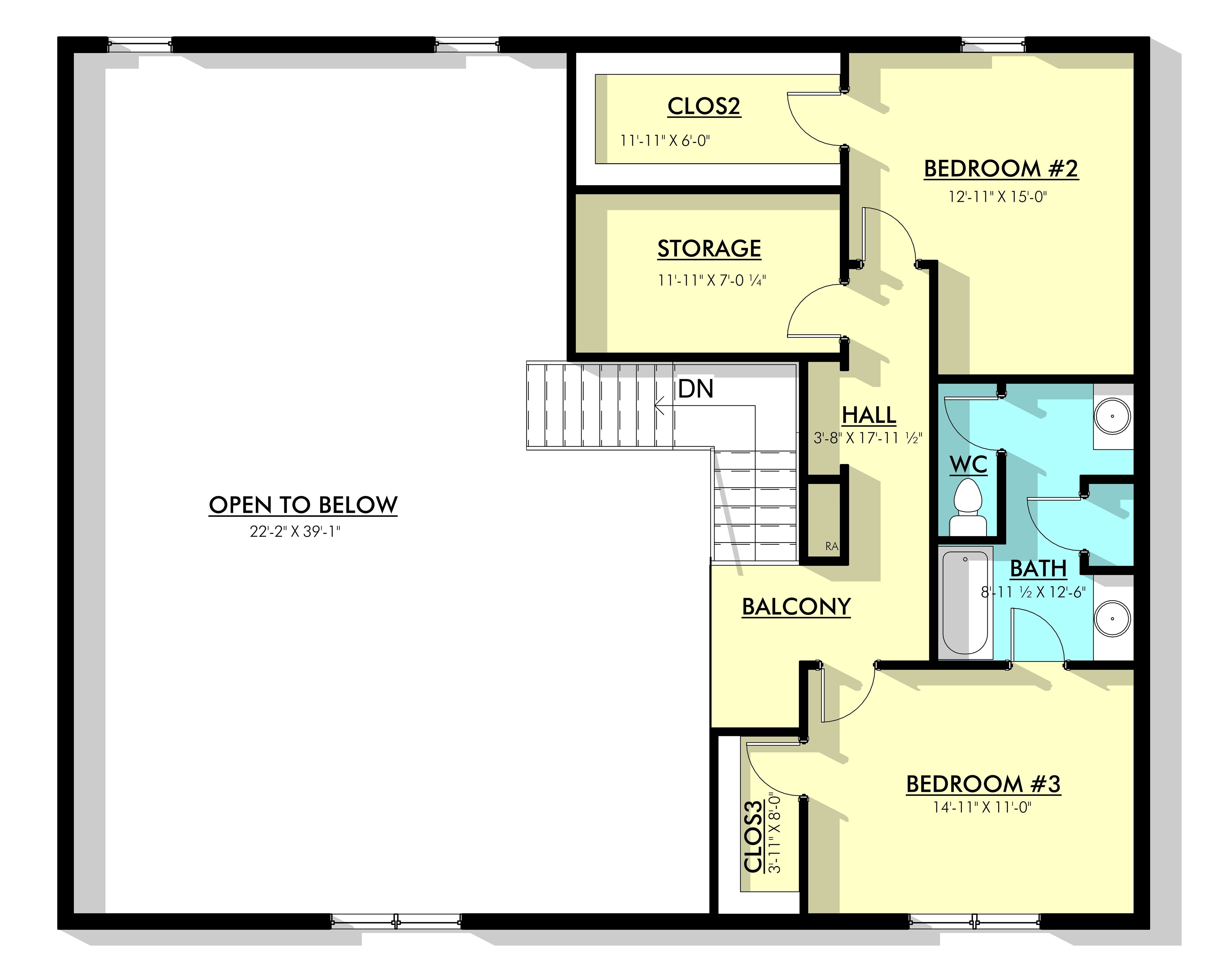

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,683 SF

Second Floor:

1,949 SF

Total Heated Sq Ft:

4,632 SF

UNHEATED SQ FT

Total Unheated Area:

357 SF porch + 387 SF garage = TOTAL 744 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

387 SF

Width:

76'

Depth:

58'

Height:

26'-6 15/16"

Foundation:

Concrete Slab

Main Roof Pitch:

5:12

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

9'

PL-62831 Ava Barndominium House Plan

About this barndominium house plan:

  • 4632 Heated square feet
  • 40x63 living space dimension
  • 3 Bedrooms
  • 2.1 Bathrooms
  • 2-story
  • Loft
  • Open concept
  • Exercise Room
  • Bonus Room
  • Office
  • Jack 'n Jill bathroom
  • Attached garage

  • This spacious two-story, open-concept floor plan with loft offers 4632 heated square feet, providing ample room for comfortable living, and a 387 sq ft attached garage.
  • The home includes three well-sized bedrooms, the master bedroom on the main floor and 2 bedrooms on the upper floor.
  • With 2.1 bathrooms, including a Jack 'n Jill bathroom shared by the 2 bedrooms on the upper floor, convenience and privacy are ensured for all residents.
  • Stay fit and healthy with a dedicated exercise room within the comfort of your home while the bonus room offers additional flexible space that can be tailored to your needs. A dedicated office space provides a quiet and productive environment for work or study.

What's included in PL-62831:

Cover Sheet
Detailed Floor Plan Dimensions

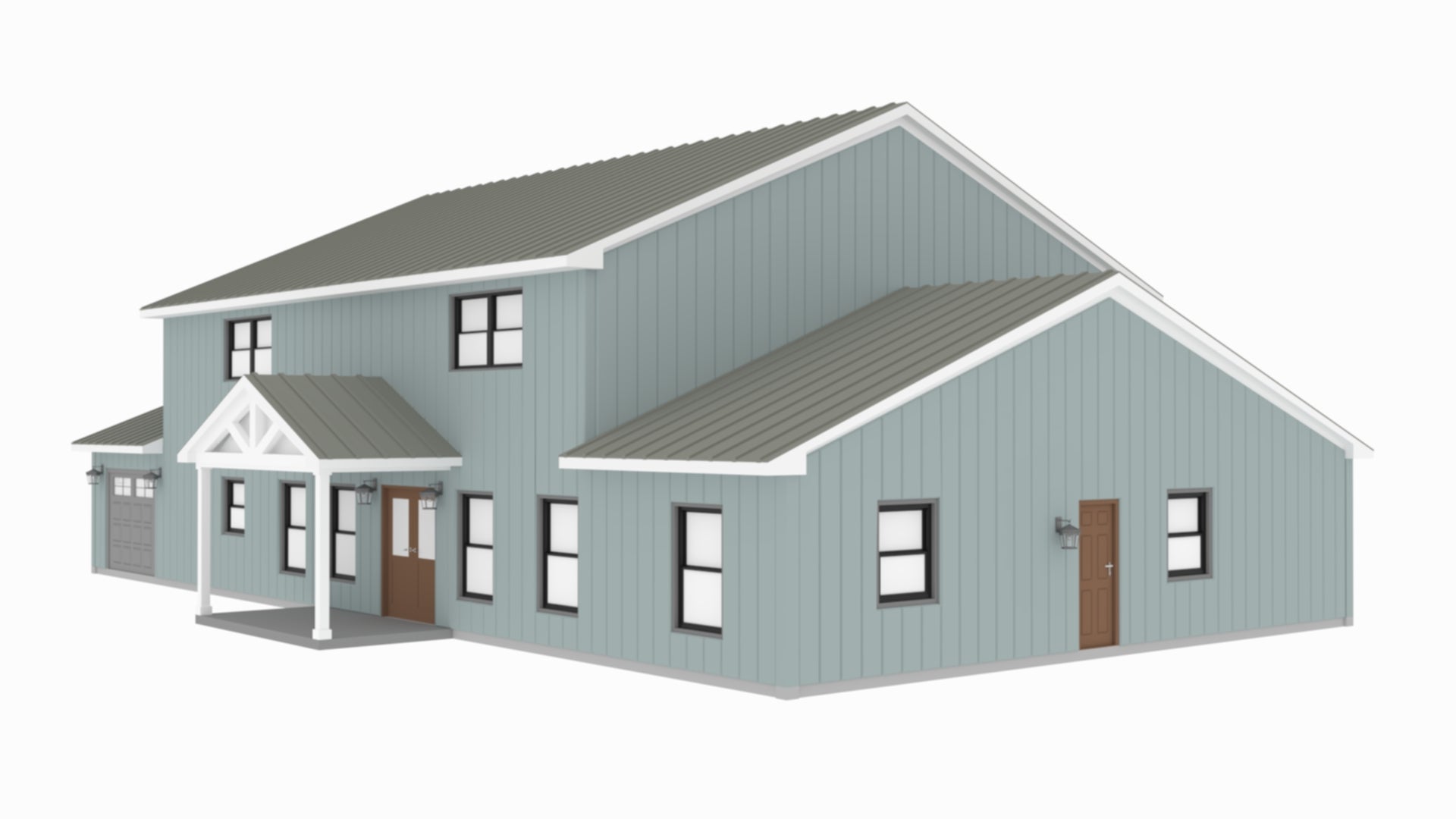

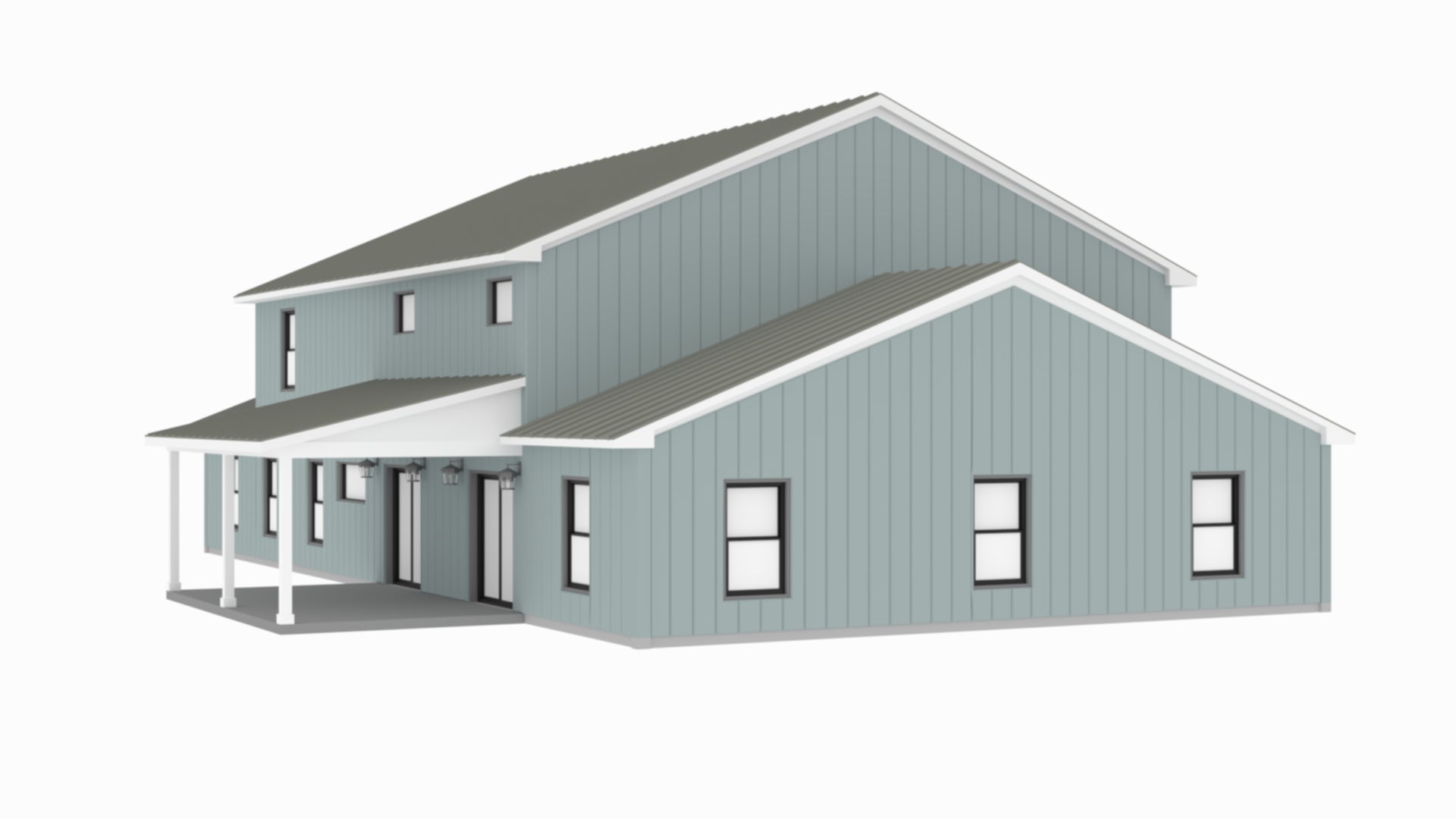

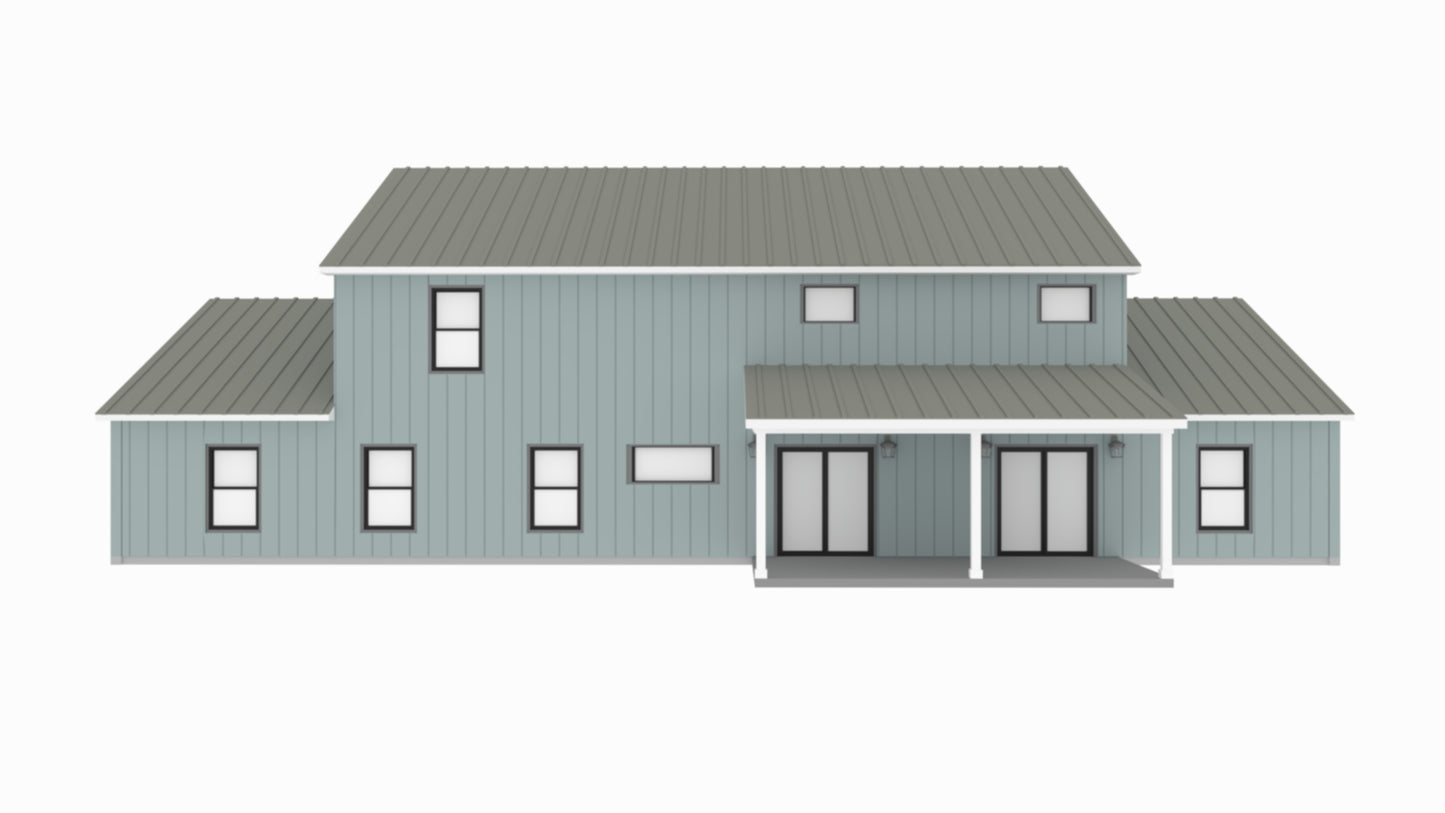

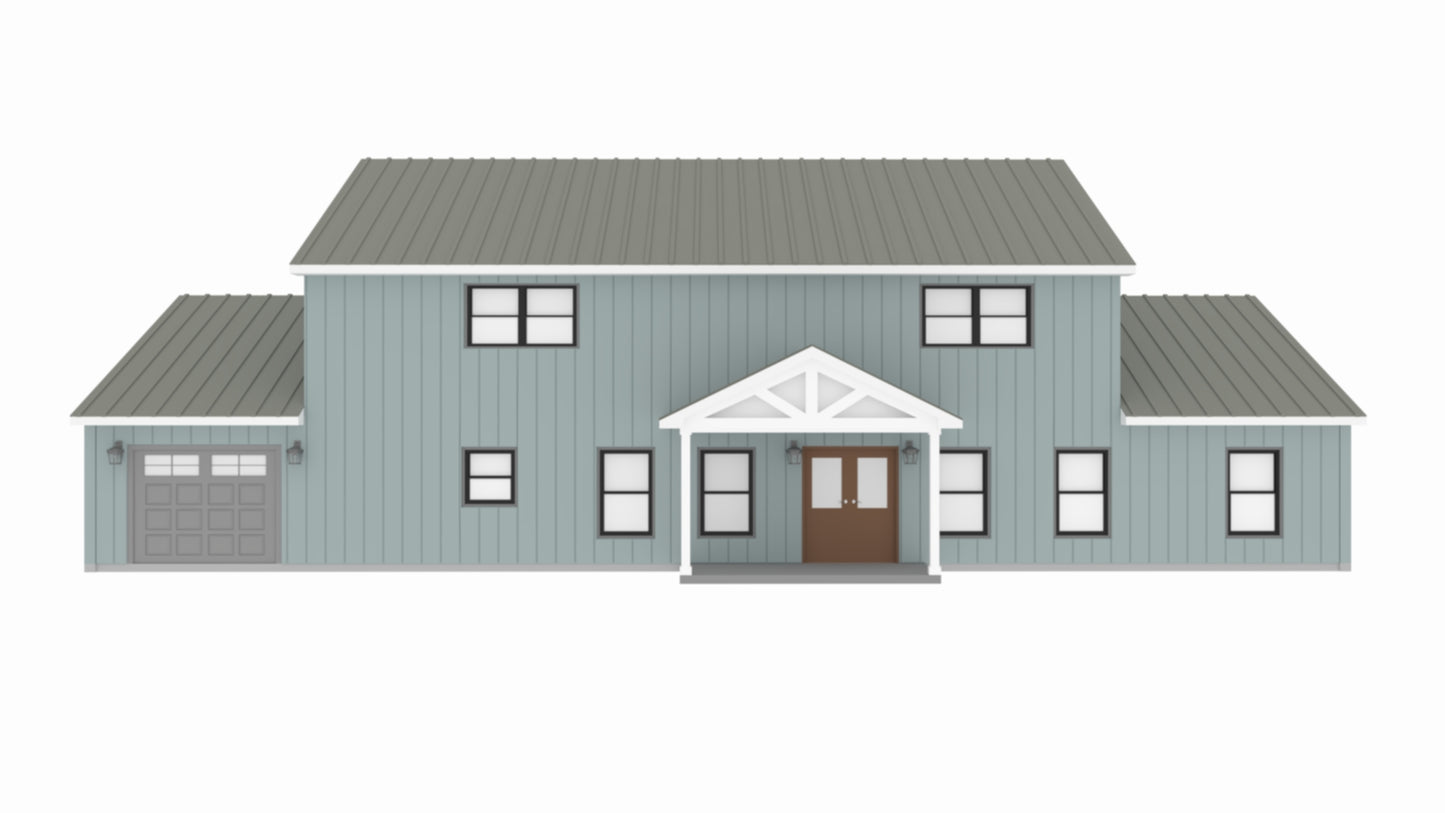

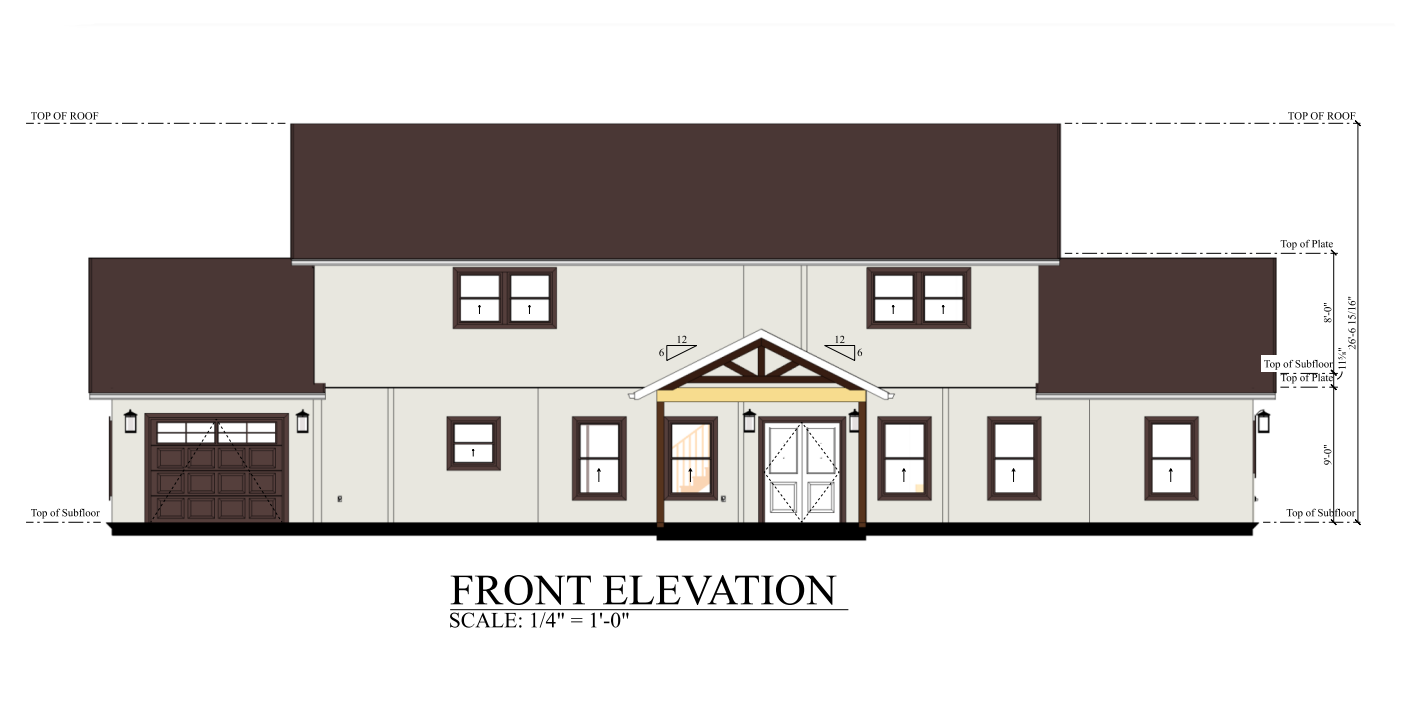

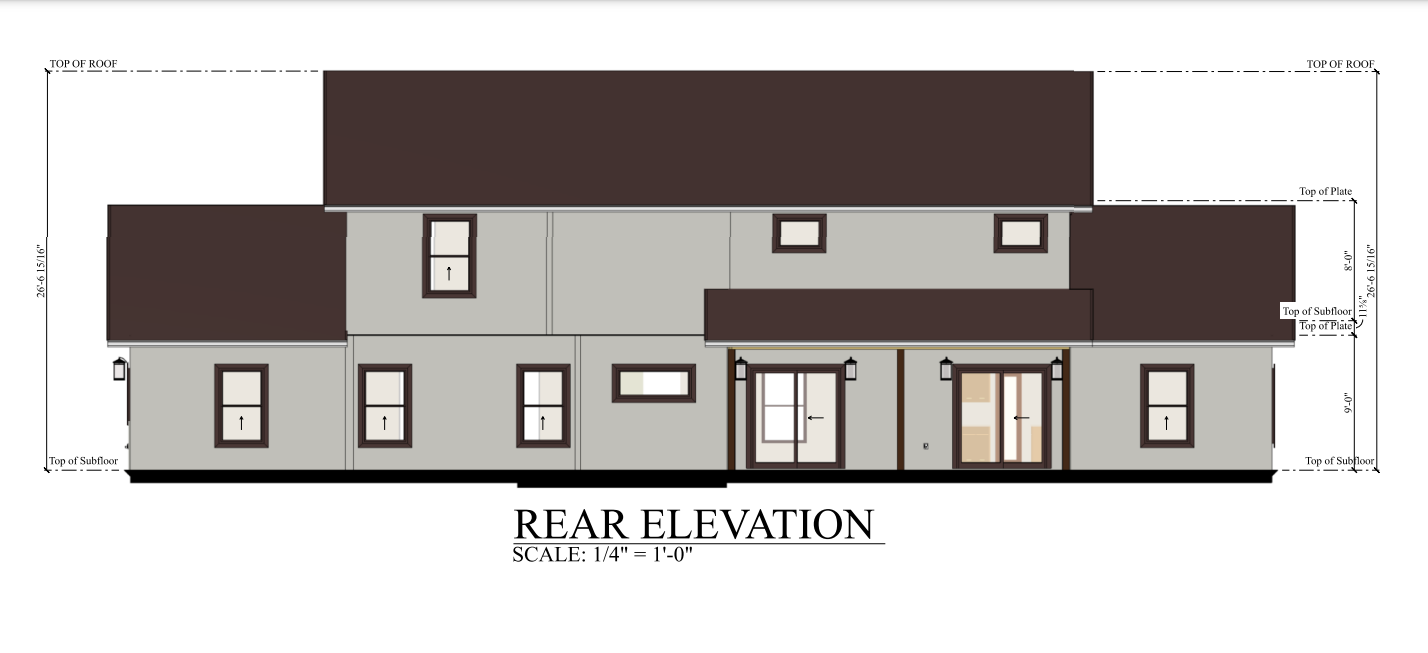

Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Wall Section

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
