Barndominium Plans
PL-62516 Johnson Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

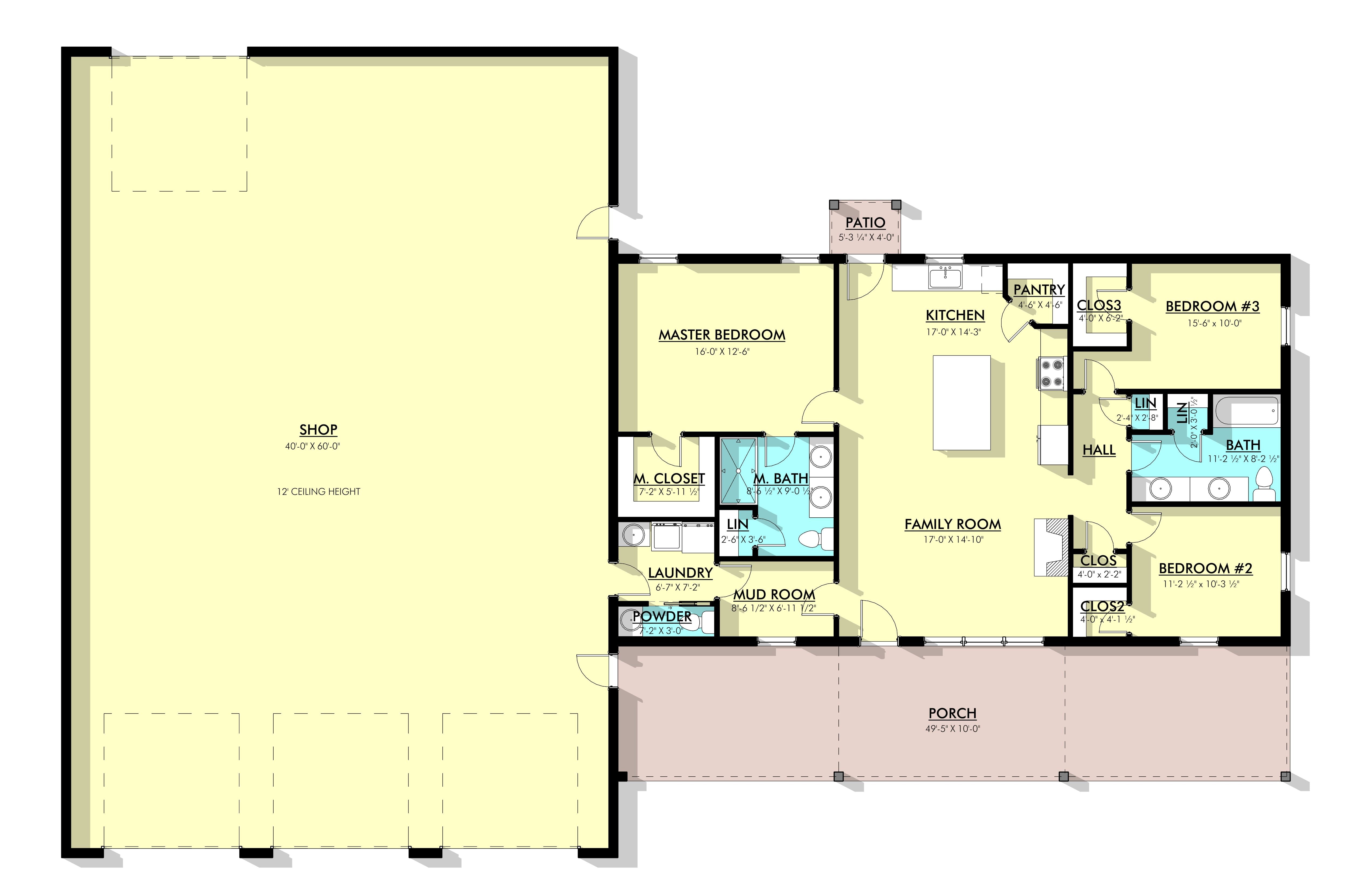

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,500 SF
Second Floor:None
Total Heated Sq Ft:1,500 SF
UNHEATED SQ FT
Total Unheated Area:
501 SF porch + 2,420 SF garage = TOTAL 2,921 SF
Carport:None
Bedrooms:
3
Full Baths:
2
Floors:
1
Garage Size:
2,420 SF
Width:
89'-6 1/2"
Depth:
60'
Height:
20'-7 5/8"
Foundation:
Concrete Slab
Main Roof Pitch:
06:12
Exterior Framing:
Stick Frame
CEILING HEIGHTS
First Floor:
10'
PL-62516 Johnson Barndominium House Plan
About this barndominium house plan:
- 1500 Heated square feet
- 30x50 living space dimension
- Shop
- 3 bedrooms
- 2.1 bathrooms
- Fireplace
- Open Concept
- Laundry room
- Mudroom
- 1500 heated square feet of comfort await you in this charming single-story home.
- Enjoy the convenience of a spacious shop for your hobbies and storage needs.
- Three inviting bedrooms provide ample space for you and your family.
- With 2.1 bathrooms, there's no need to wait in line during busy mornings.
- Warm up by the fireplace on cozy evenings, creating a perfect ambiance.
- The open-concept design ensures a seamless flow throughout the living spaces.
- A dedicated laundry room adds convenience to your daily routine.
- Stay organized with a practical mudroom, making your entryway clutter-free.
What's included in PL-62516:

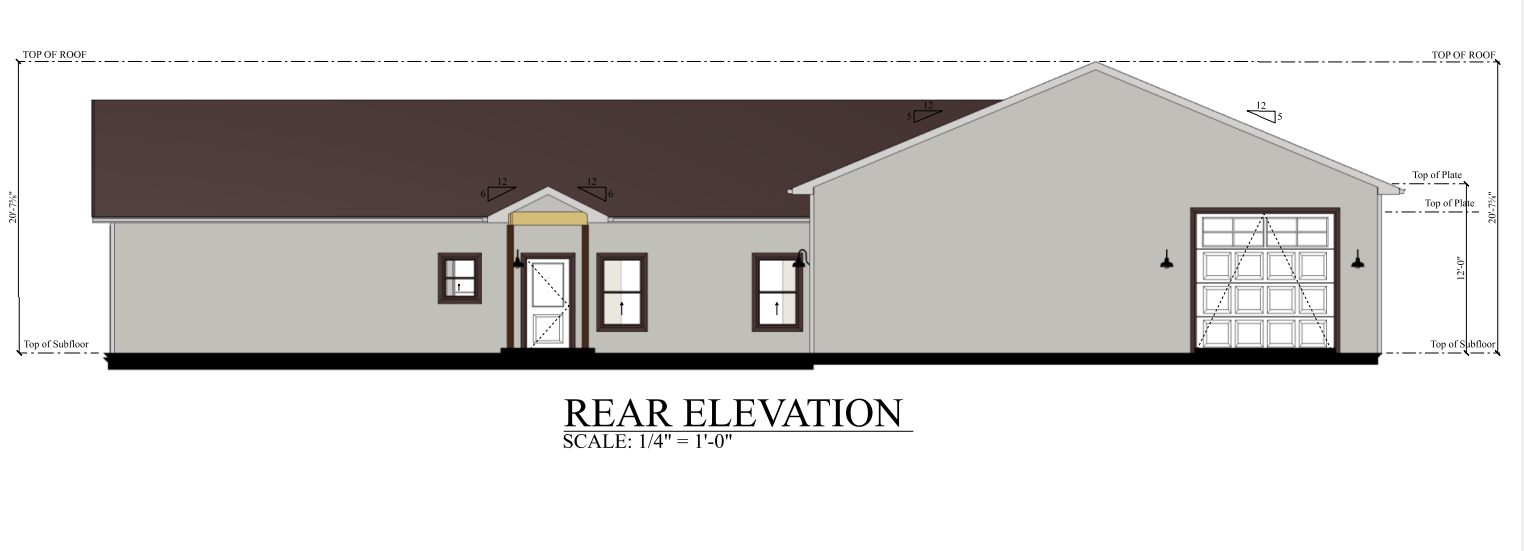

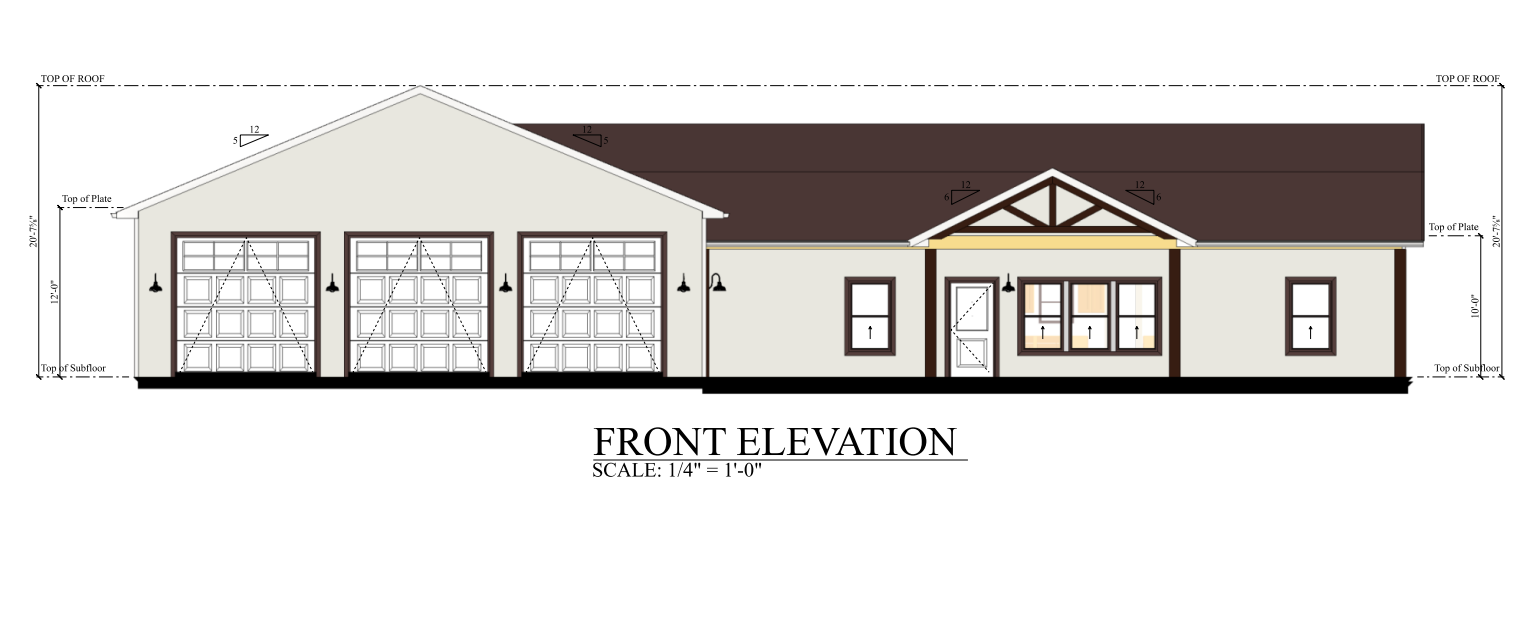

Elevations - Front, Back, Left Side, Right Side
Detailed Floor Plan
Electrical Plan
Flooring Plan
Ceiling Joist Plan
Roof Plan
Plumbing Plan
Foundation Plan
For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
