Barndominium Plans
PL-62513-W Wooddale Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

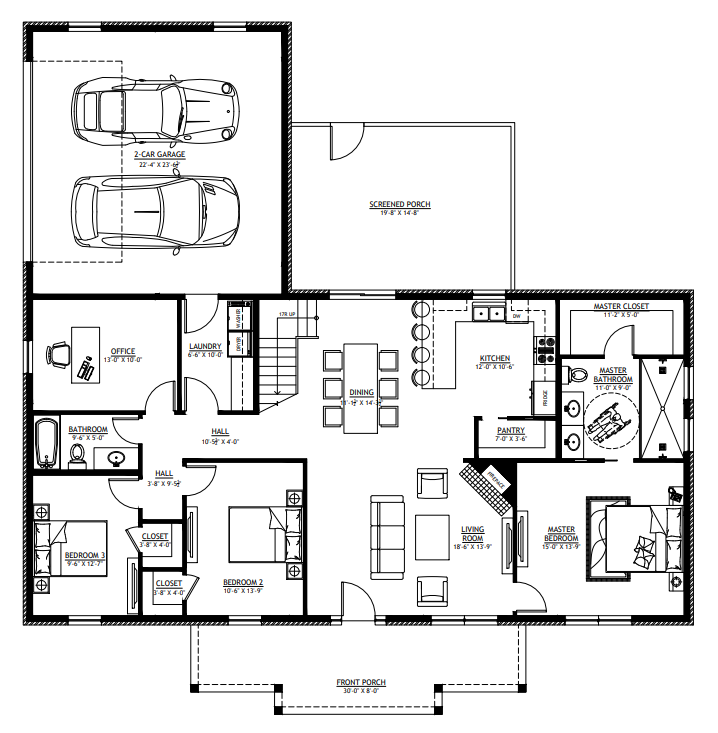

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
1,800 SF
Second Floor:326 SF
Total Heated Sq Ft:2,126 SF
UNHEATED SQ FT
Total Unheated Area:
Garage 576 SF, Front Porch 210 SF, Screened Porch 300 SF = 1,086 SF
Carport:None
Bedrooms:
3
Full Baths:
2
Floors:
2
Garage Size:
576 SF
Width:
60'
Depth:
62'
Height:
24'-4 1/2"
Foundation:
Concrete Slab
Main Roof Pitch:
10:12
Exterior Framing:
Metal Shell
CEILING HEIGHTS
First Floor:
10'
PL-62513-W Wooddale Barndominium House Plan
About this barndominium house plan:
- 2126 Heated Square Feet
- 30x60 living space dimension
- 3 Bedrooms
- 2 Bathrooms
- Two story
- Open concept
- Wheelchair-accessible
- Office
- Screened porch
- Loft
- Attic
- Front porch
- Metal Shell
- 2-car Garage
- Versatile two-level layout offering over 2,100 square feet of conditioned living—designed for families, guests, and multi-use living.
- An airy loft adds vertical dimension and flexible use, while the attic provides tucked-away storage or future expansion potential.
- Thoughtfully designed with accessibility in mind—ensuring smooth navigation, wider transitions, and inclusive comfort for all.
- A private workspace near the main living zones—ideal for remote work, study, or creative pursuits.
- Dual outdoor living zones: a screened porch for bug-free relaxation and a welcoming front porch that enhances curb appeal.
What's included in PL-62515:
Cover Page
Main Floor Plan

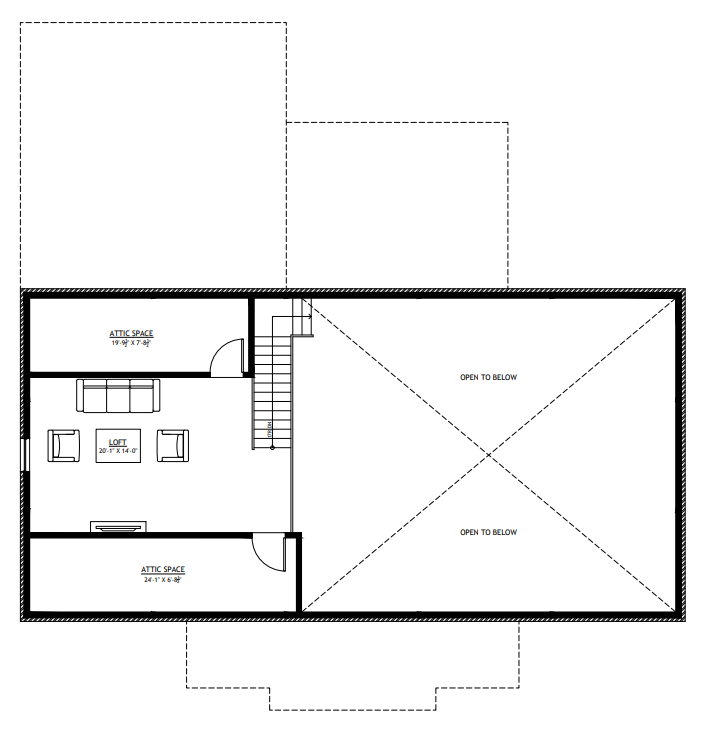

Loft Floor Plan
Roof Plan

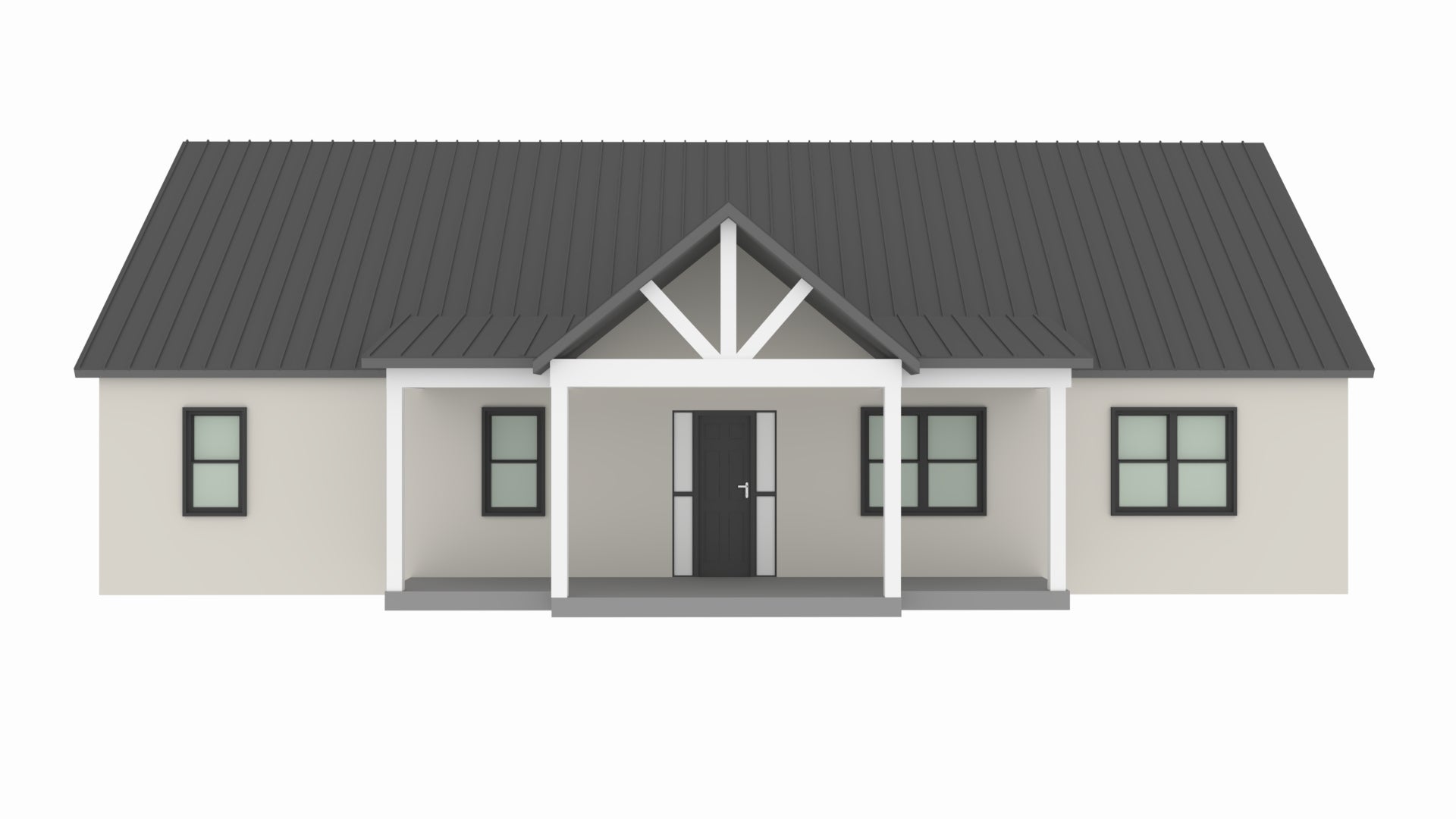

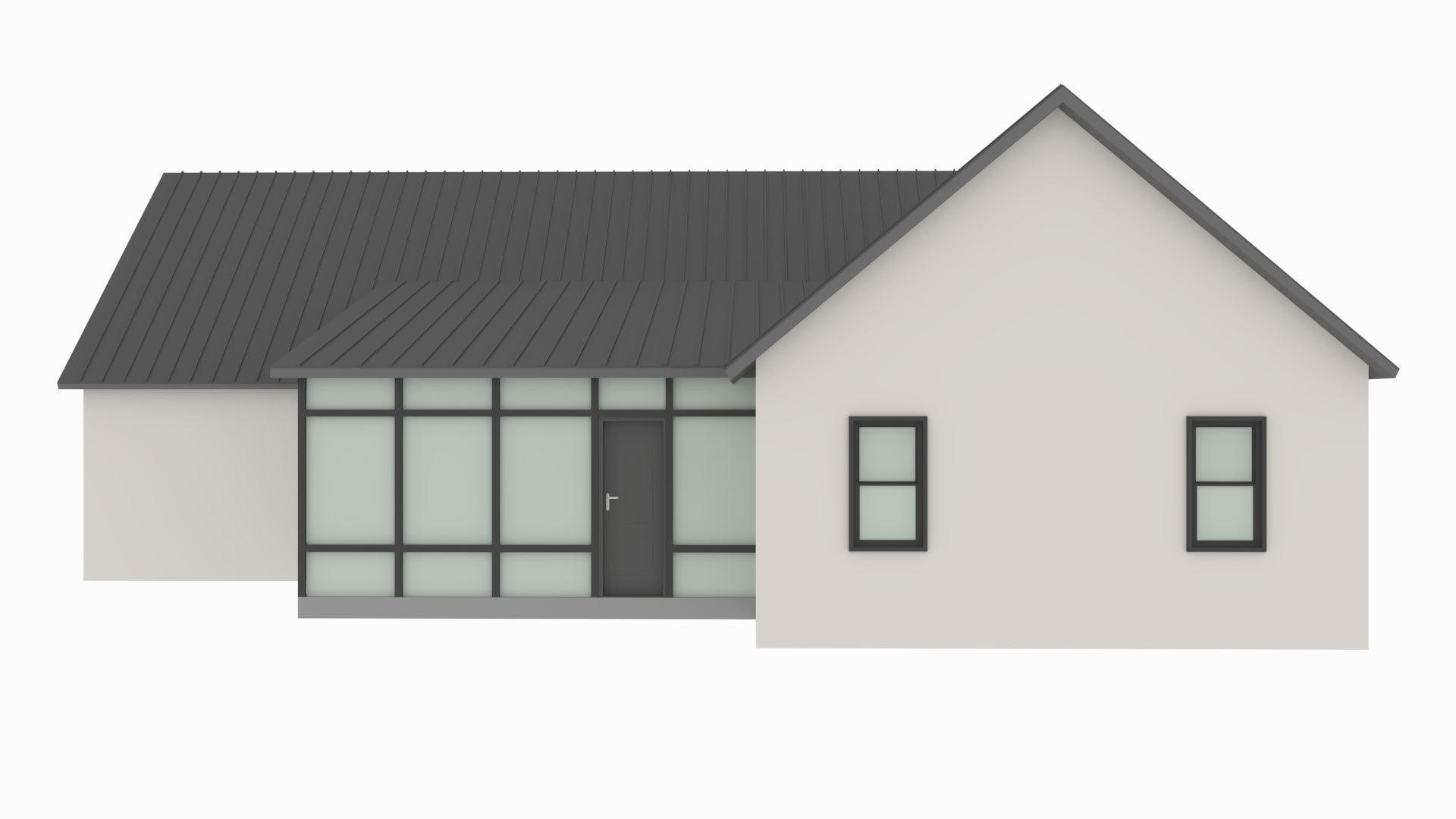

Front & Rear Elevation
Right & Left Elevation
Main Floor Electrical Plan
Loft Electrical Plan
Main Floor Plumbing Plan
Main Floor HVAC Plan
Loft HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
