Barndominium Plans

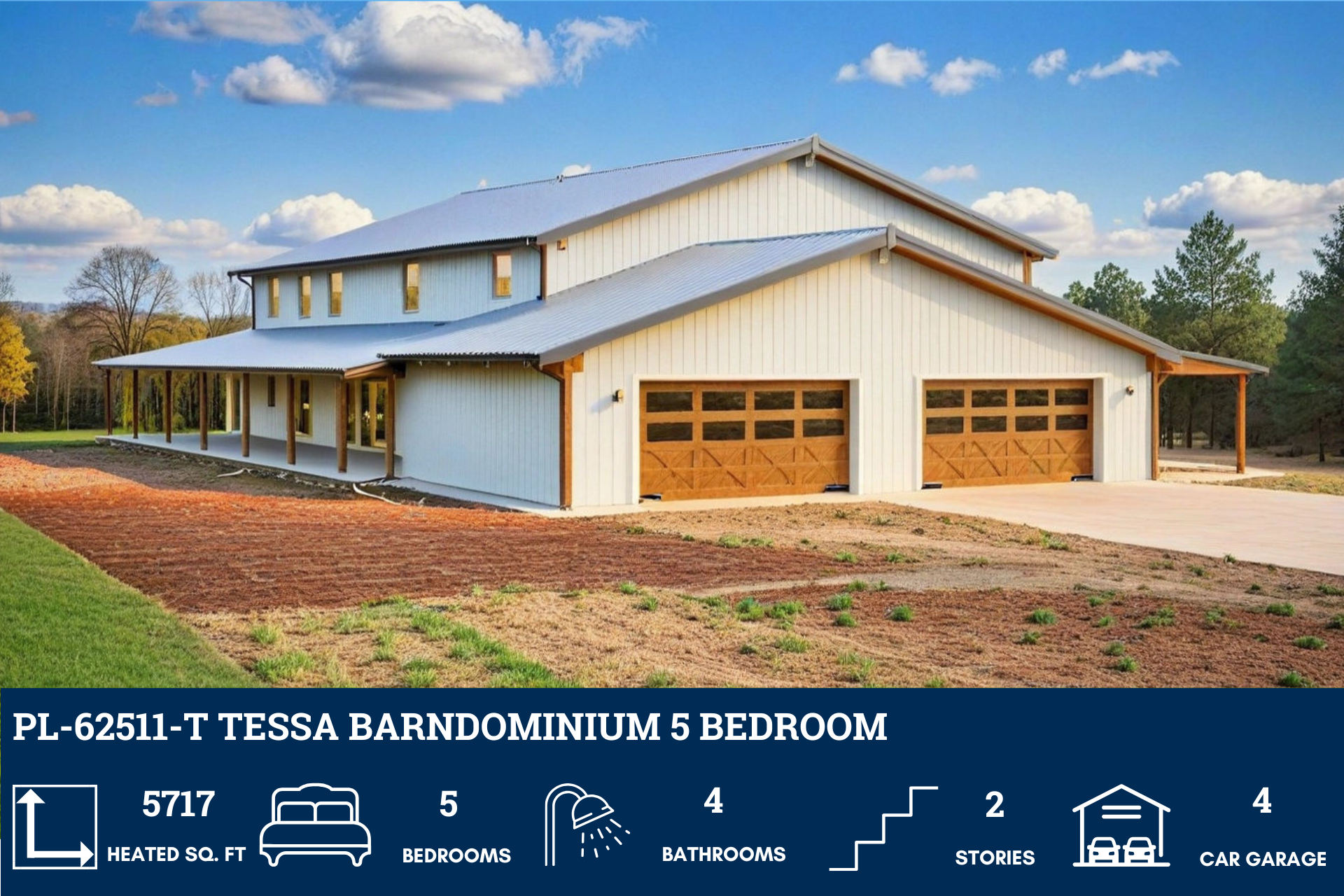

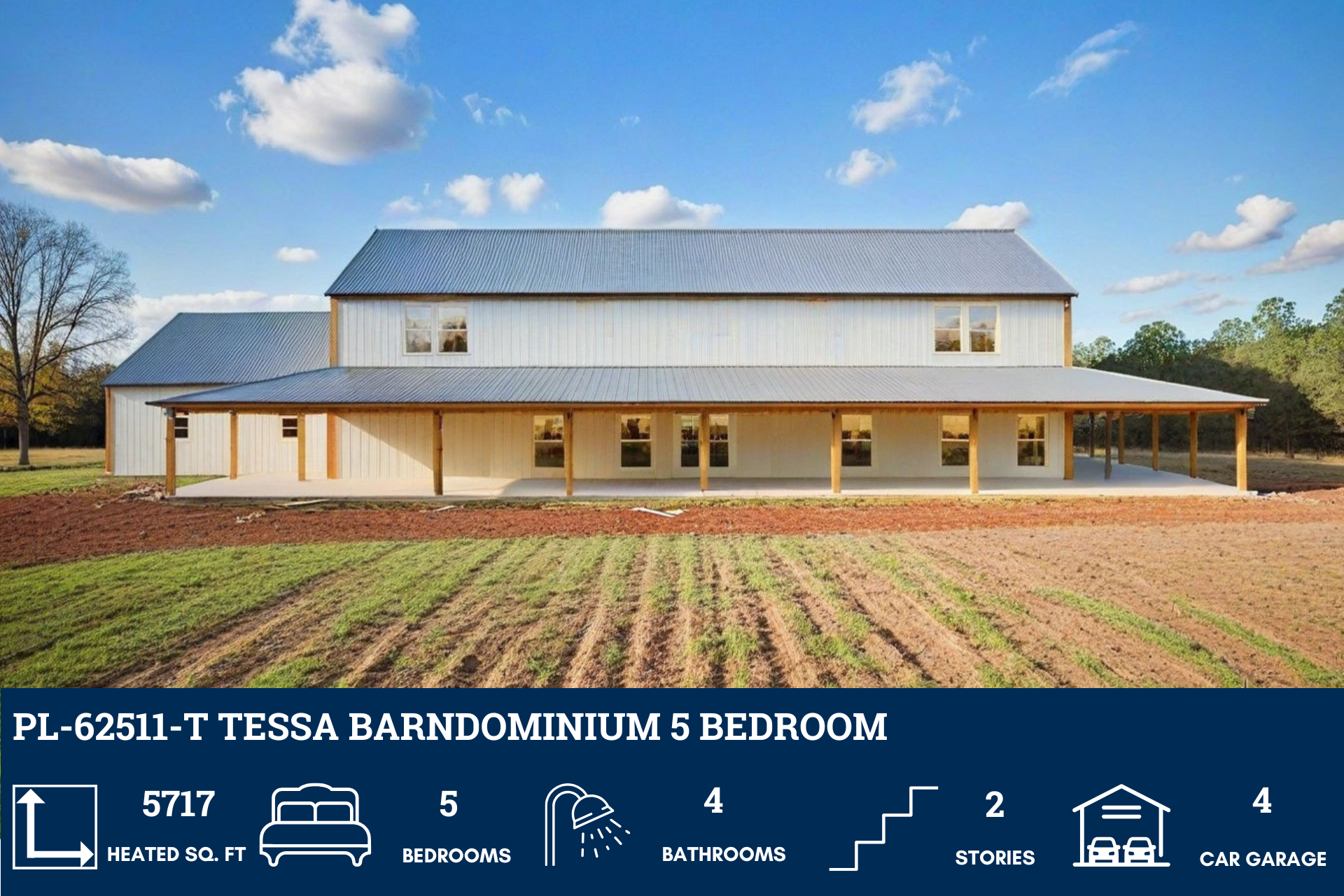

PL-62511-T Tessa Barndominium House Plan

$1,749.99 USD
$1,749.99 USD
Sale Sold out
Add To Wishlist
1 12

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

3,150 SF

Second Floor:

2,567 SF

Total Heated Sq Ft:

5,717 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,196 SF, Porch 2,800 SF = TOTAL 3,996 SF

Carport:

None

Bedrooms:

5

Full Baths:

4

Floors:

2

Garage Size:

1,196 SF

Width:

107'

Depth:

69'-4"

Height:

225'-9 15/16"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

PL-62511-T Tessa Barndominium House Plan



About this barndominium house plan:

  • 5,717 Heated Sq Ft
  • 5 bedrooms
  • 4 bathrooms
  • Two Story
  • Open Concept
  • Craft room
  • Mechanical room
  • J&J Bathroom

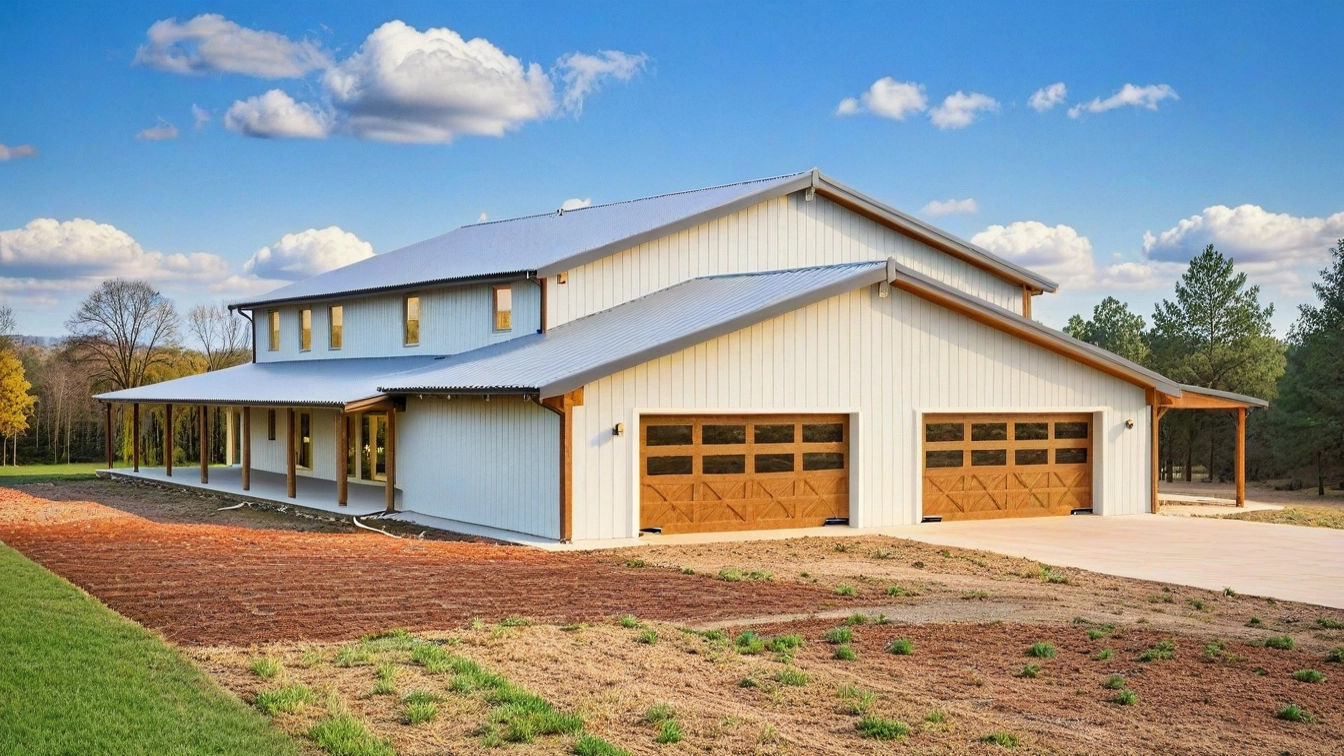

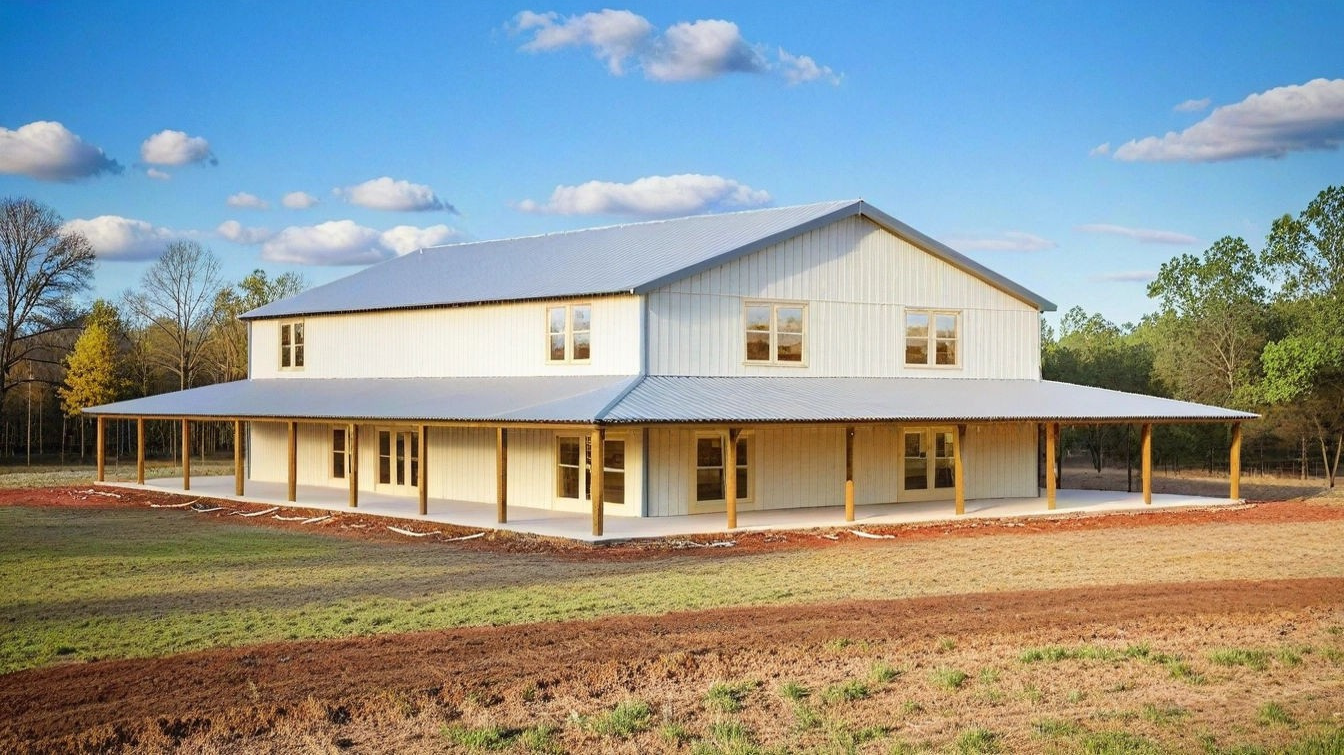

  • Wraparound porch
  • 1,196 Sq Ft Garage



  • Grand two-level layout offering over 5,700 square feet of conditioned space—designed for multi-generational living, entertaining, and long-term comfort.
  • Dedicated zones for creativity and function—supporting hobbies, storage, and home systems with purpose-built space.
  • Shared bath connects two secondary bedrooms—ideal for siblings, guests, or flexible family arrangements.
  • Full-perimeter porch offers shaded outdoor living, breezy transitions, and architectural charm from every angle.
  • Spacious garage with room for multiple vehicles and gear—perfect for active households or hobbyists.



What's included in PL-62511-T:

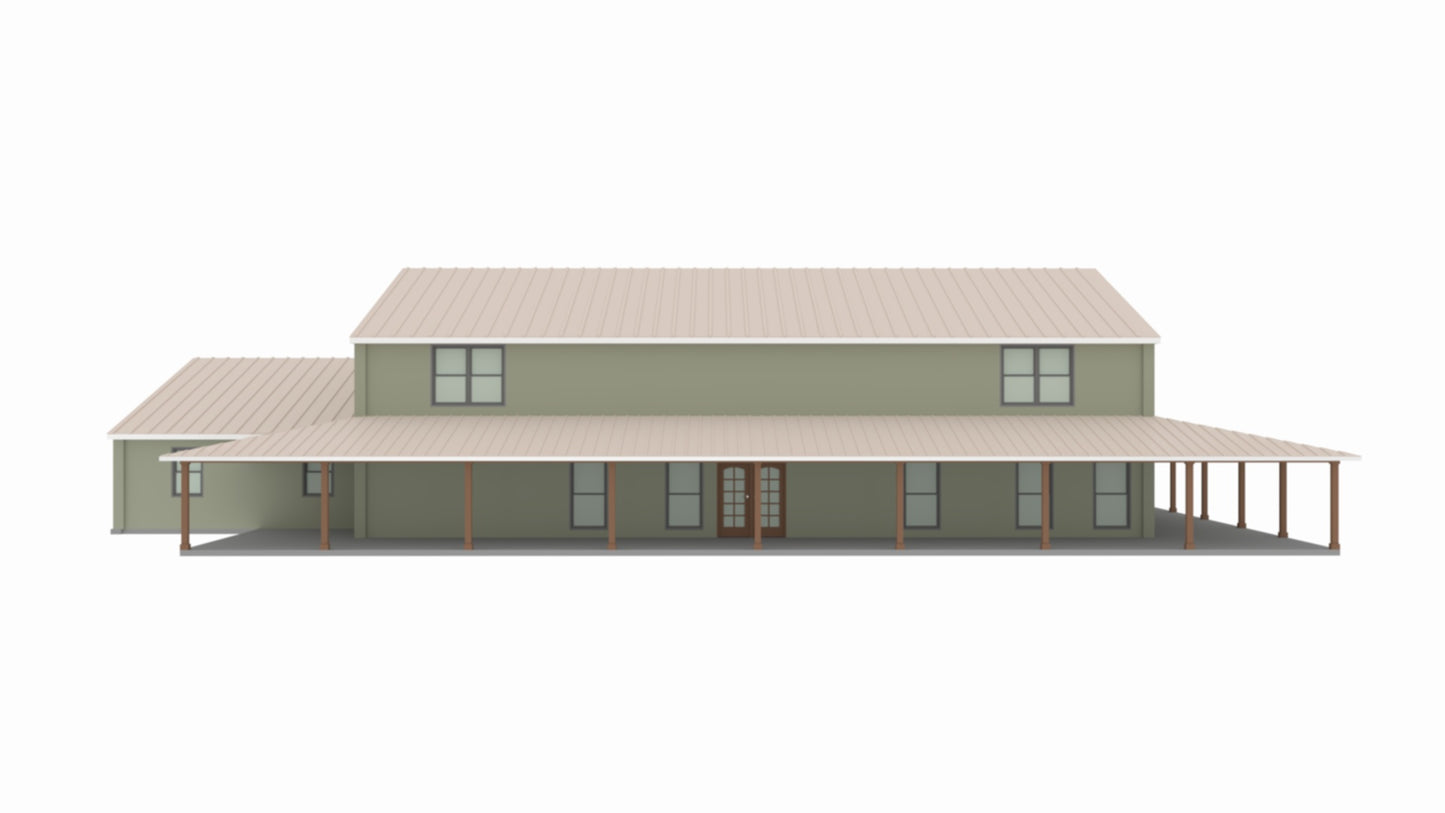

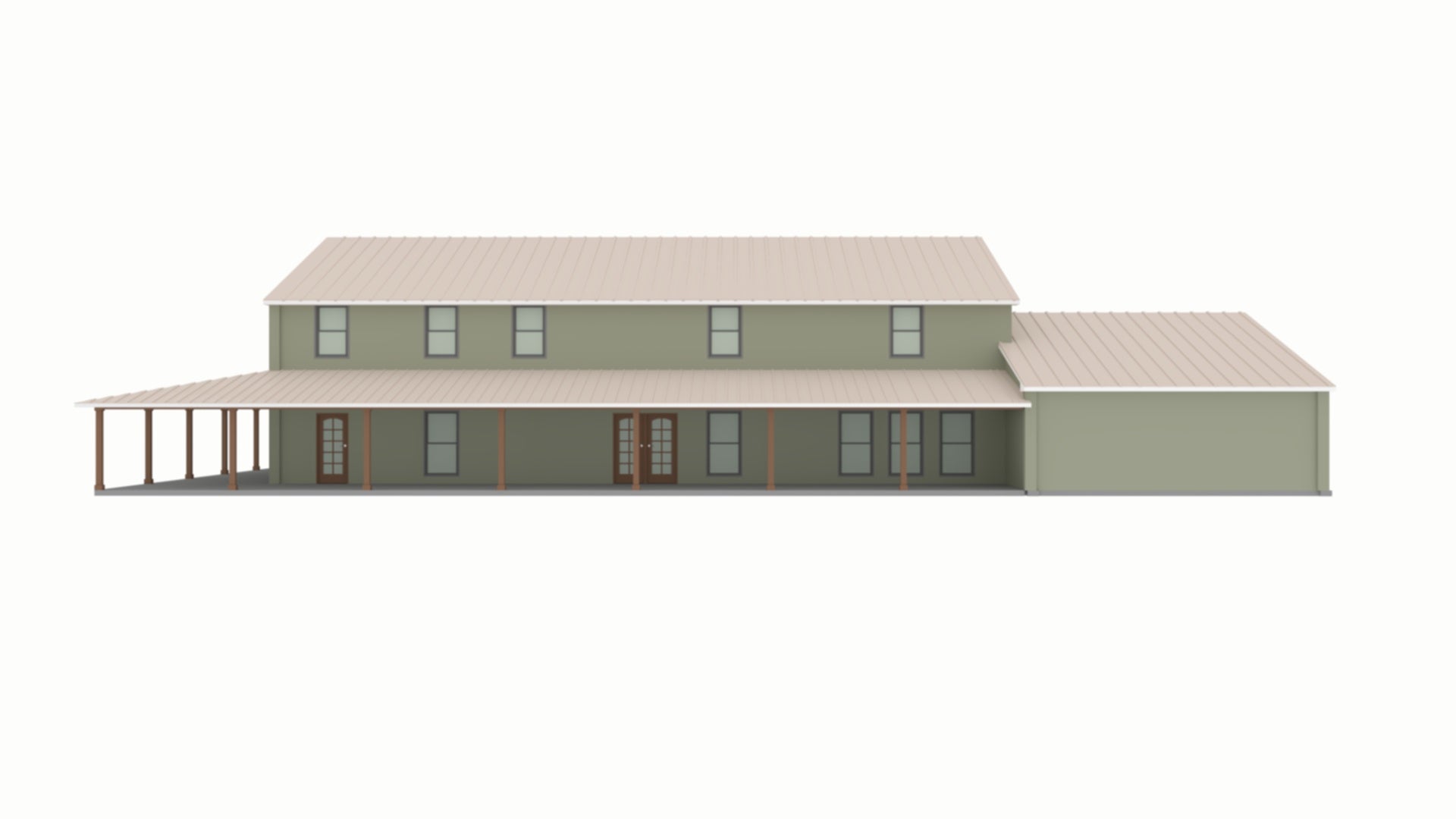

Elevations - Front, Back, Left Side, Right Side

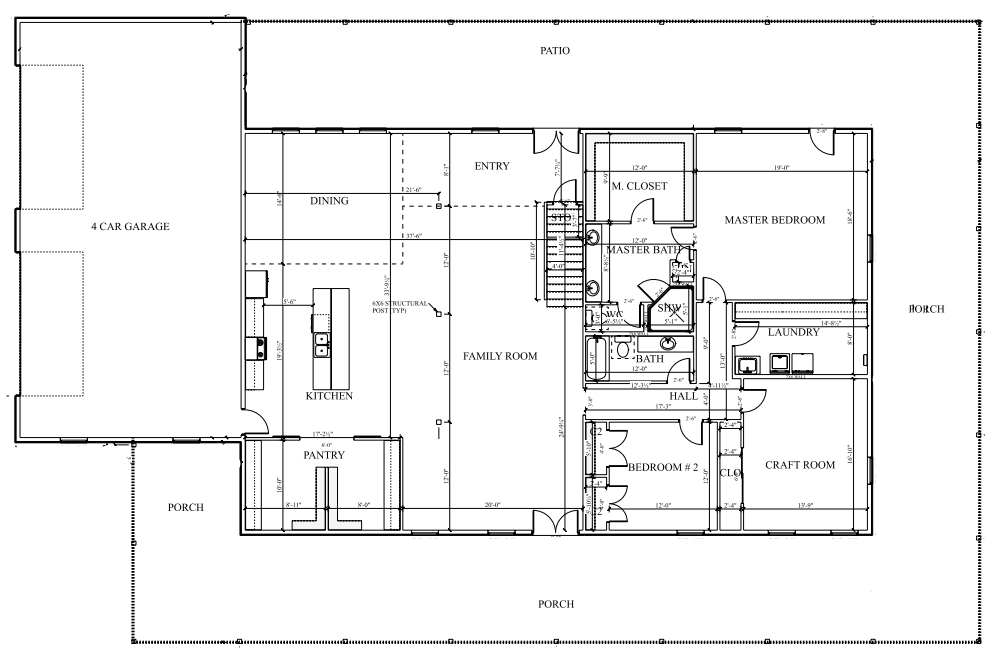

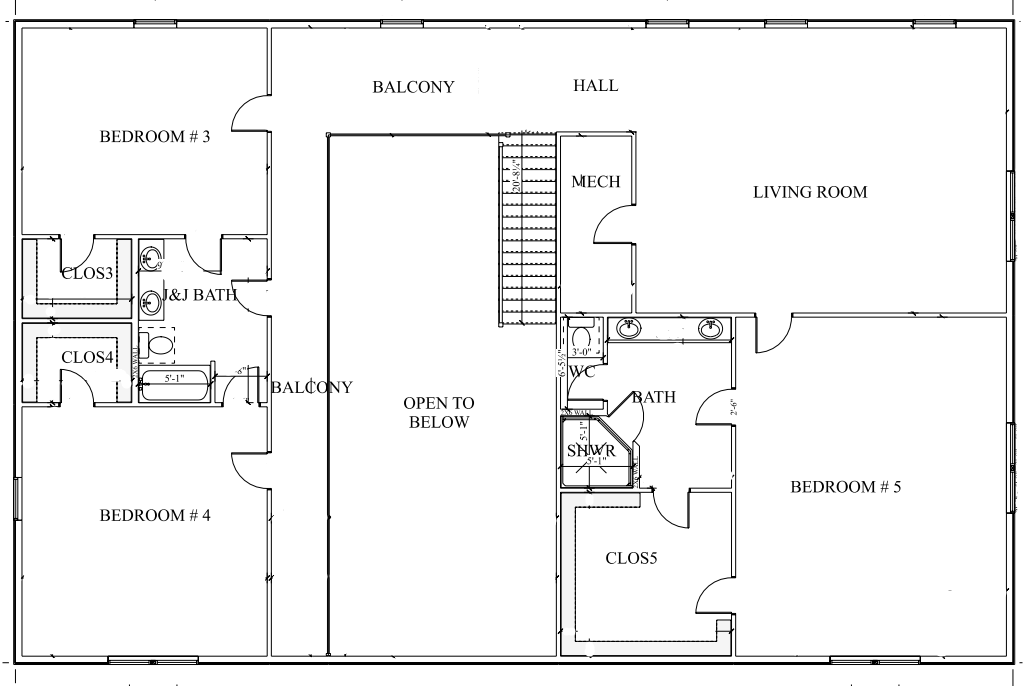

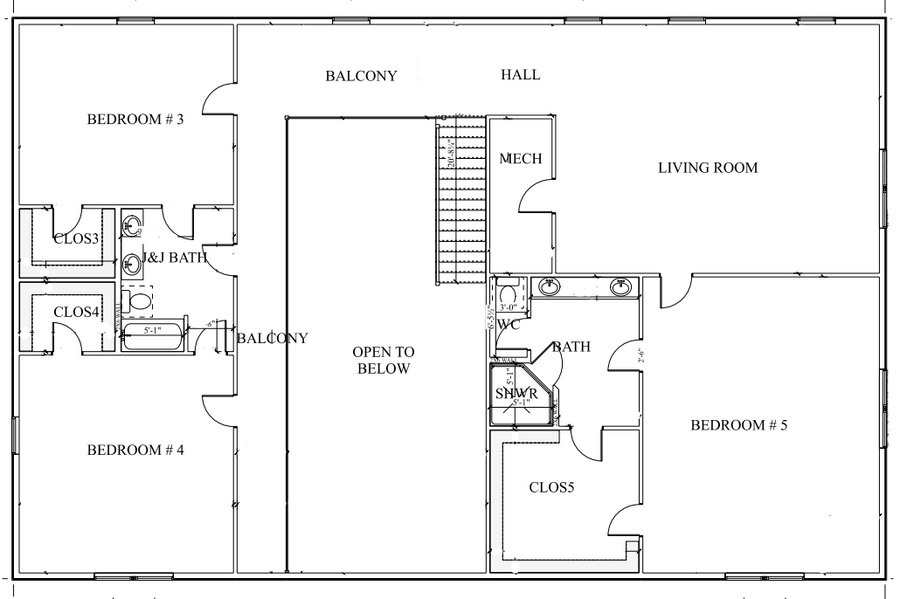

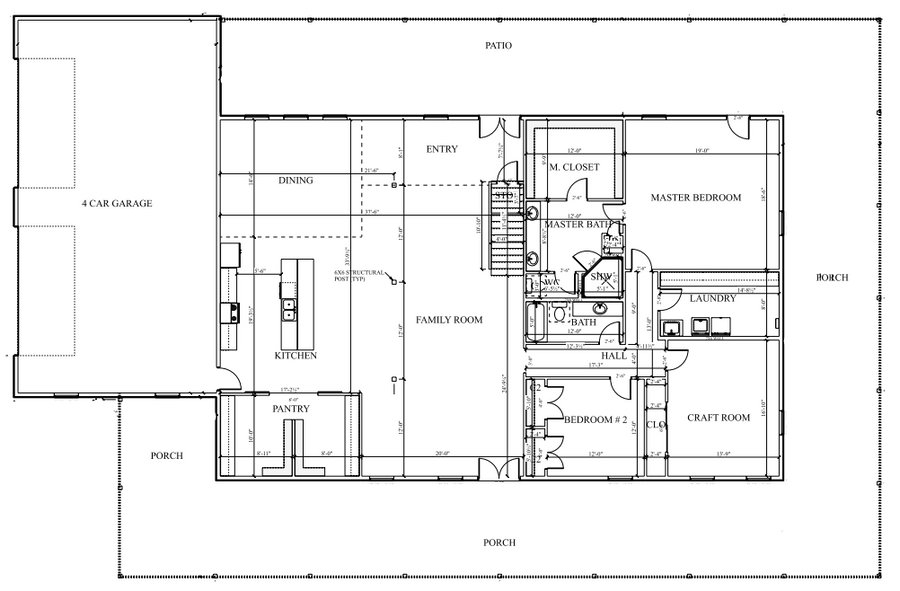

Detailed Floor Plan
Electrical Plan
Flooring Plan
Ceiling Joist Plan
Roof Plan
Plumbing Plan
Foundation Plan



For more barndominium floor plans, check out our complete collection of 5 bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
