Barndominium Plans

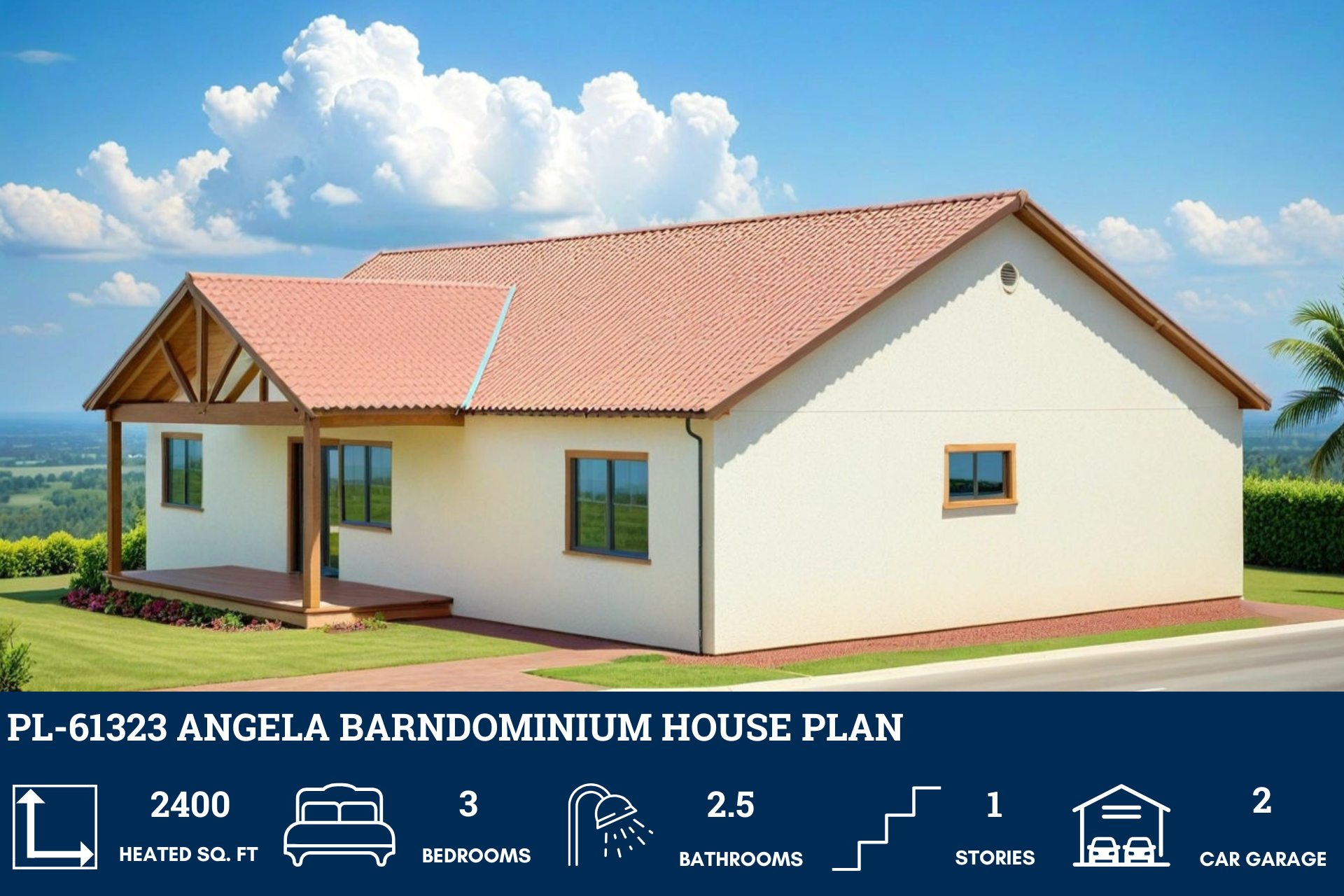

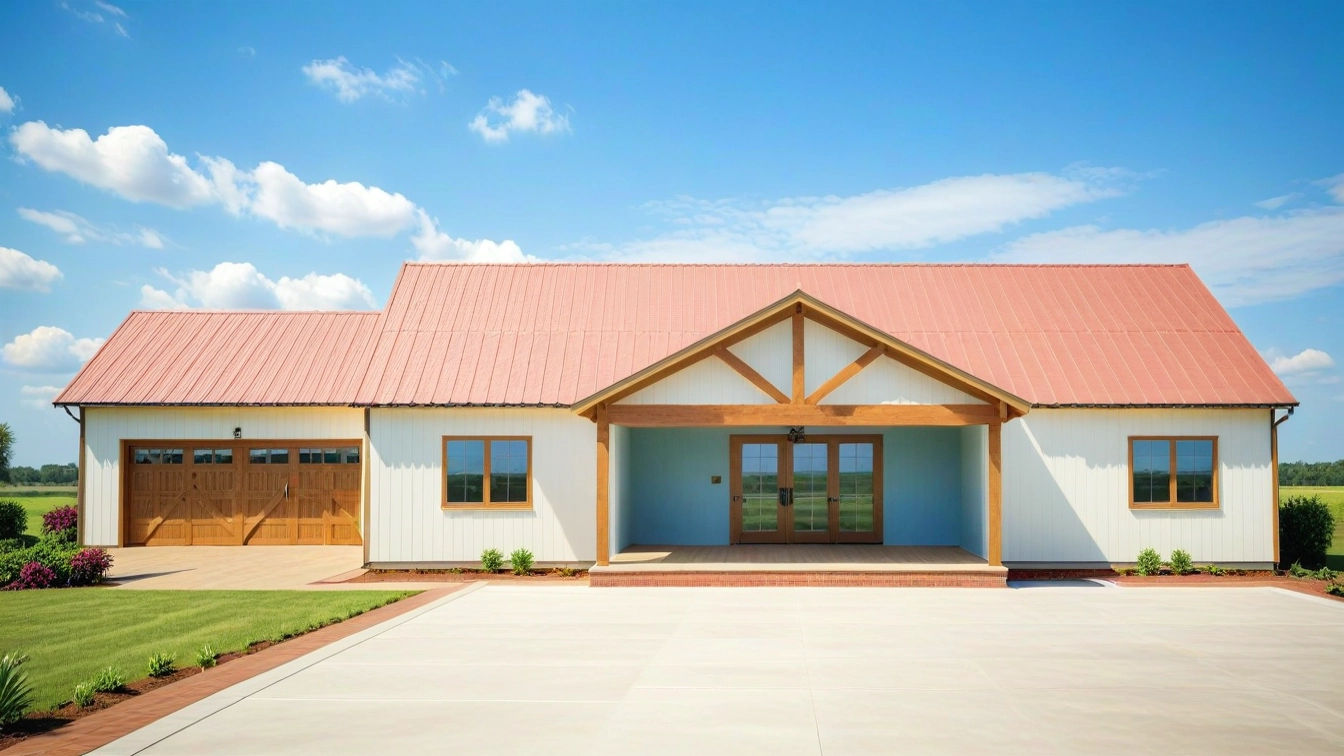

PL-61323 Angela Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9

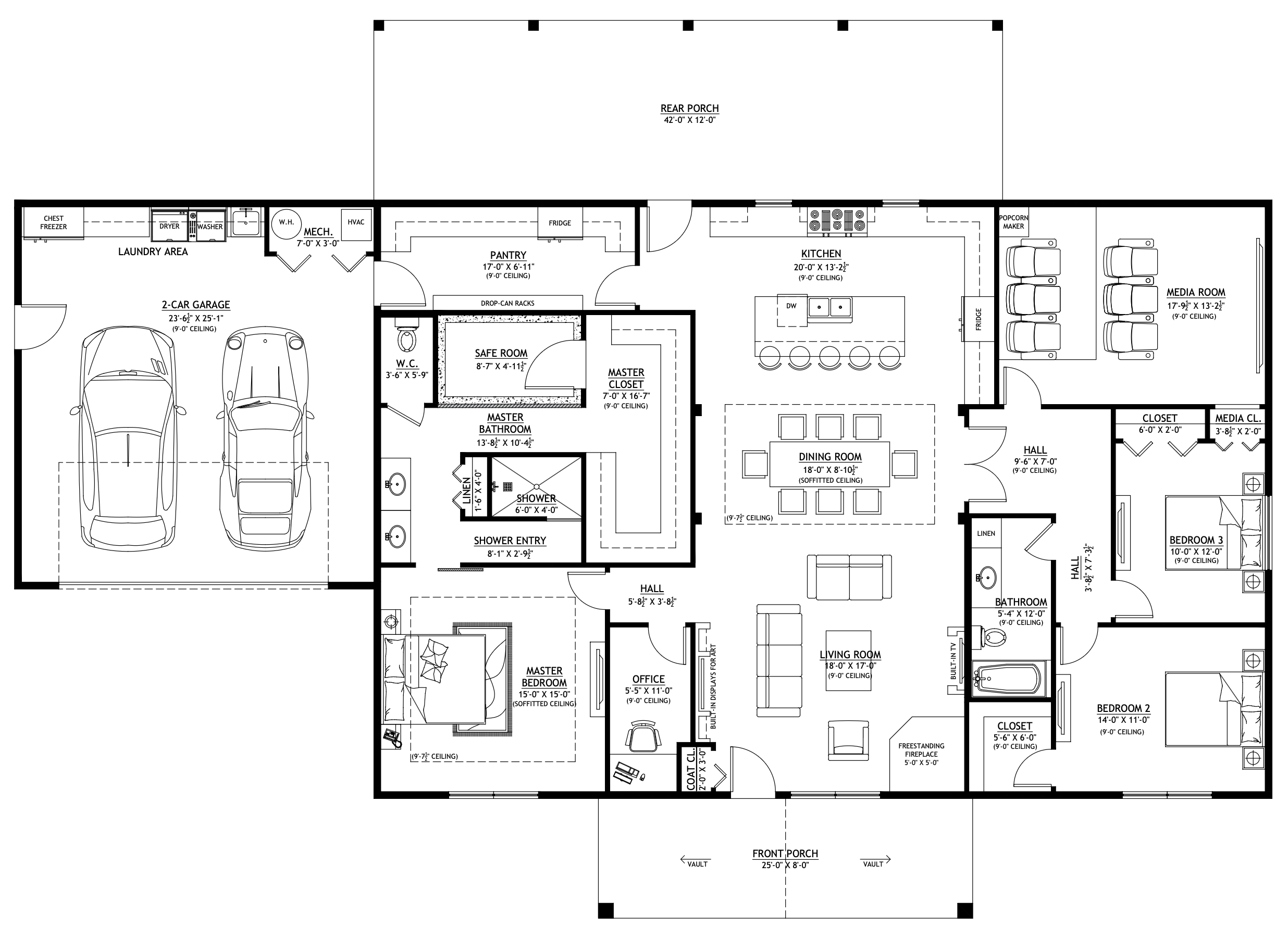

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,400 SF

Second Floor:

None

Total Heated Sq Ft:

2,400 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 624 SF, Front Porch 160 SF, Rear Porch 504 SF = TOTAL 1,288 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

624 SF

Width:

70'

Depth:

42'

Height:

10'

Foundation:

Concrete Slab

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

8'

PL-61323 Angela Barndominium House Plan

About this barndominium house plan:

  • 2,400 Heated Sq Ft
  • 3 Bedrooms
  • 2.5 Bathrooms
  • One Story
  • 2-Car Garage
  • Open concept
  • Foyer
  • Utility room
  • Bonus room
  • Mudroom
  • Front porch & rear porch

  • This large and well-appointed barndominium floor plan offers a comprehensive and luxurious living experience.
  • The layout is designed for both functionality and entertainment, with a central open-concept kitchen and living area.
  • A spacious media room provides a dedicated space for entertainment and relaxation.
  • The master suite is a true private sanctuary, featuring a safe room, a large bathroom, and a generous walk-in closet.
  • The plan also includes a private office and a separate laundry area connected to a two-car garage.

    What's included in PL-61323:

    Cover Page
    Detailed Floor Plan
    Roof Plan
    Four Elevations - Front, Back, Left Side, Right Side
    Electrical Plan
    Plumbing Plan
    HVAC Plan
    Roof Framing Plan
    Foundation Plan
    Foundation Detail
    Interior Bearing Footing
    C-Typical Column Detail
    Wall Section

    For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

    Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

    Please note all square footage are estimates.

    What's Included

    Our house plan sets typically have the following details:

    4 Elevations – Front, Back, Both Sides

    Detailed Floor Plan Drawing

    Electrical Plans with placements for HVAC

    Plumbing Plans with Placements

    Flooring Plan

    Roof Plan

    Foundation Plan

    For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

    Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

    What's Not Included

    The following items are NOT included:

    Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

    Site Plan - We can provide this if needed for $300 additional.

    Materials List - handled locally when required

    Energy calculations - handled locally when required

    Snow load calculations - handled locally when required

    Delivery

    This plan is available as a digital product or printed + shipped.

    If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

    If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

    We ship from the midwest in order to serve the entire country within 3-5 business days!

    Return policy

    All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

    💥 [COUNT] People are currently viewing this product.
    Build
    PDF (Single Build) $849.99
    PDF (Single Build)

    Modifications

    Additional Options
    Still making a decision? Get an estimate of the construction cost for this house in your area.
    Modify this Plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.
