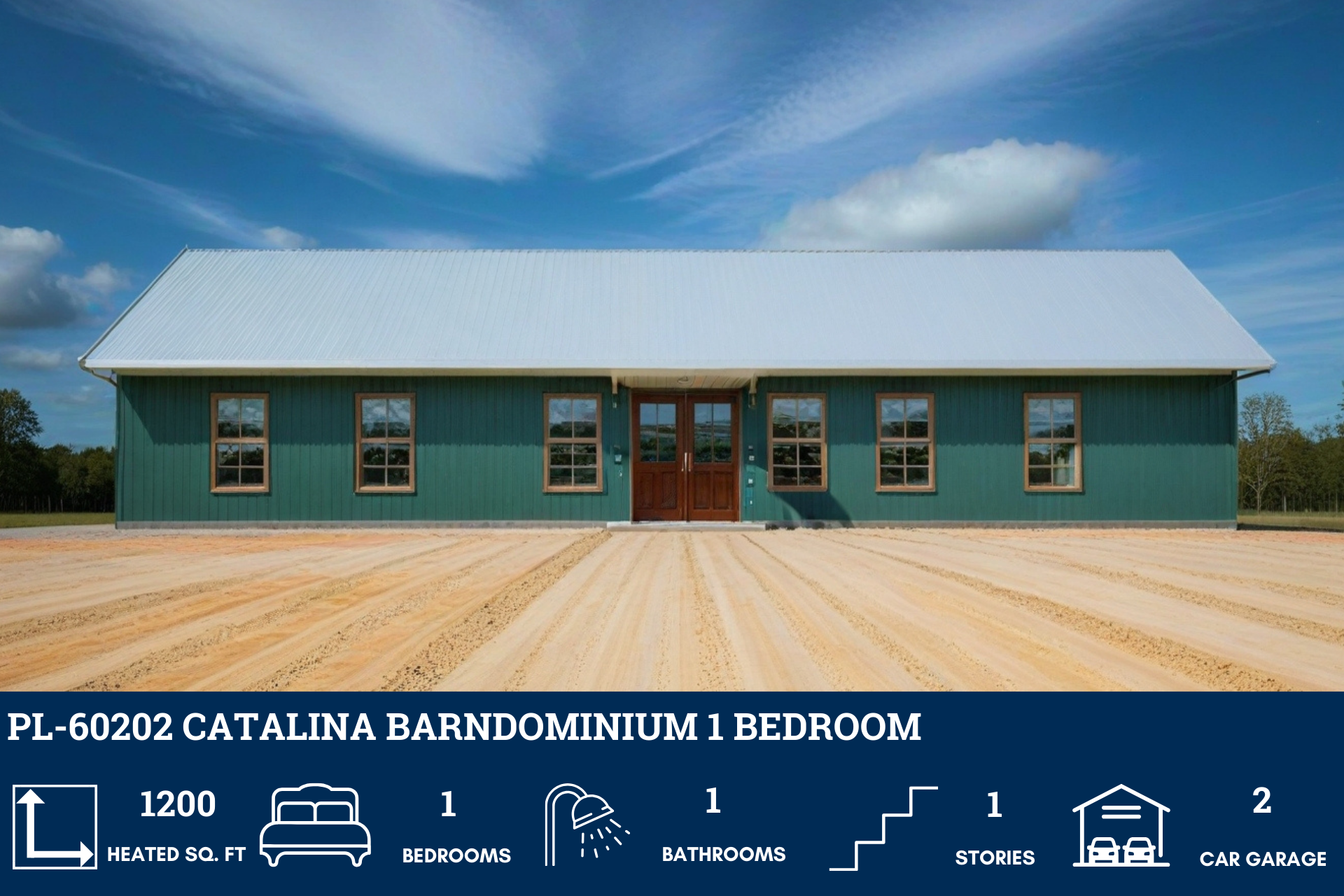

PL-60202 Catalina Barndominium House Plan



About this barndominium house plan:

  • 1200 Heated square feet
  • 1 bedroom
  • 1 bathroom
  • 1 Story
  • Open-concept
  • Sewing Room
  • 2-Car Garage



  • Experience the warmth of a cozy home while enjoying the freedom of a spacious layout with this open-concept living space that spans 1200 square feet of heated space.
  • Simplicity and comfort in this 1-story barndominium house plan. With 1 bedroom and 1 bathroom, it’s the perfect compact living solution.
  • Equipped with a dedicated sewing room for your artistic endeavors and a spacious 2-car garage for your automotive needs, this home is designed to cater to your lifestyle.



For more barndominium floor plans, check out our complete collection of 1 bedroom barndominium floor plans.



Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

This house plan set has the following details:

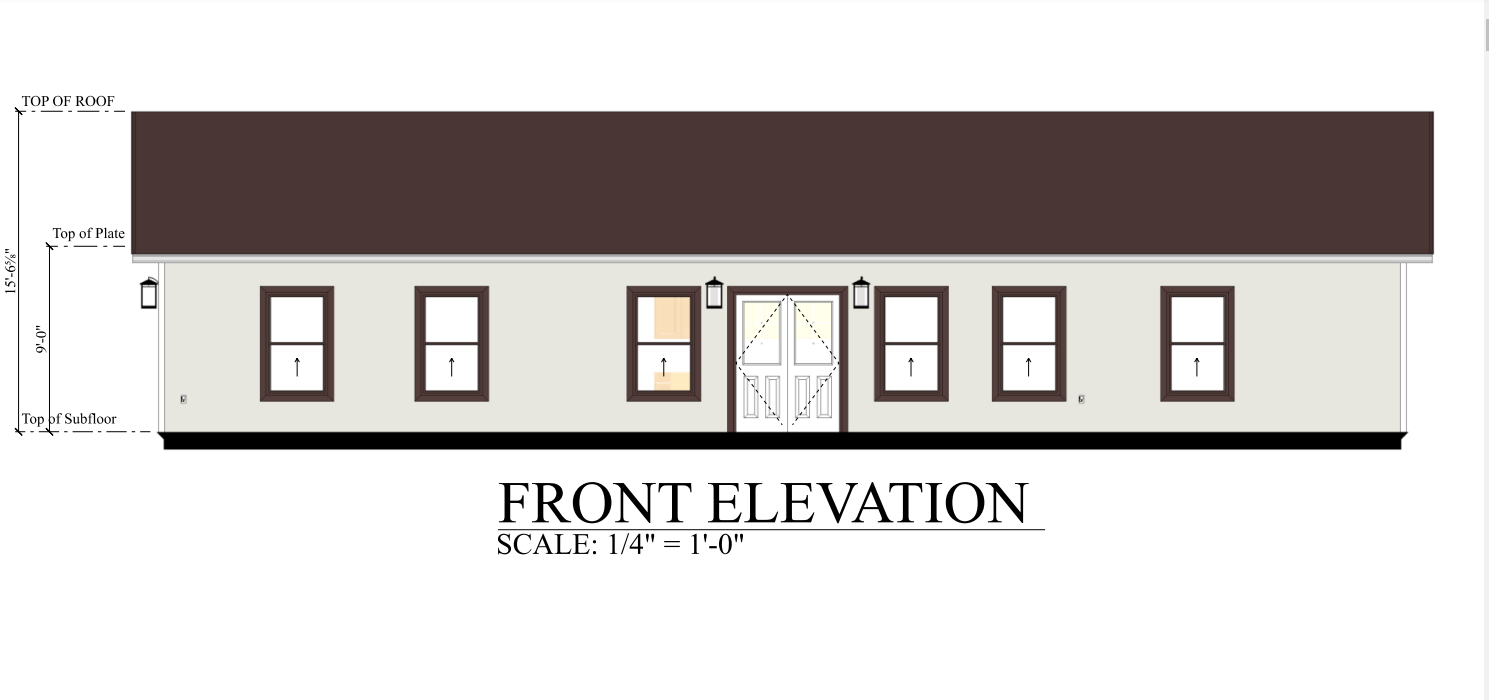

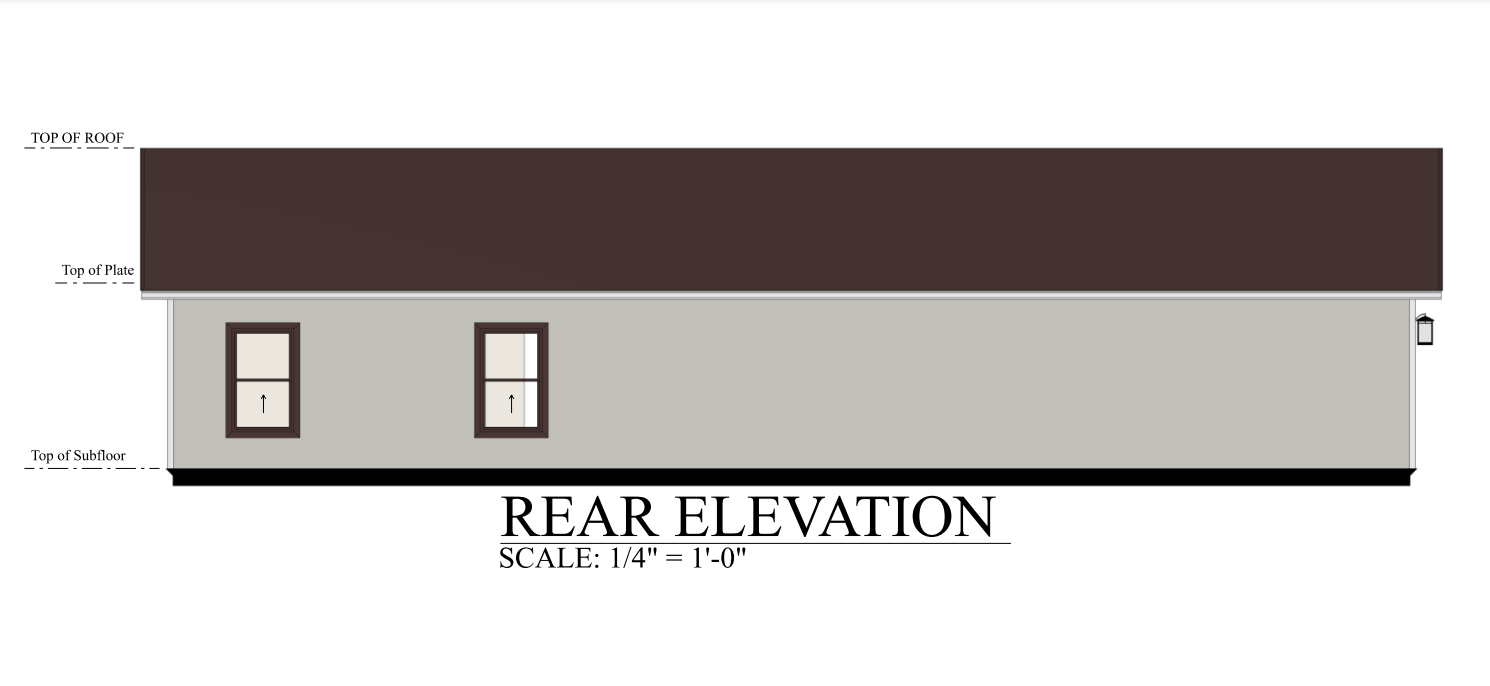

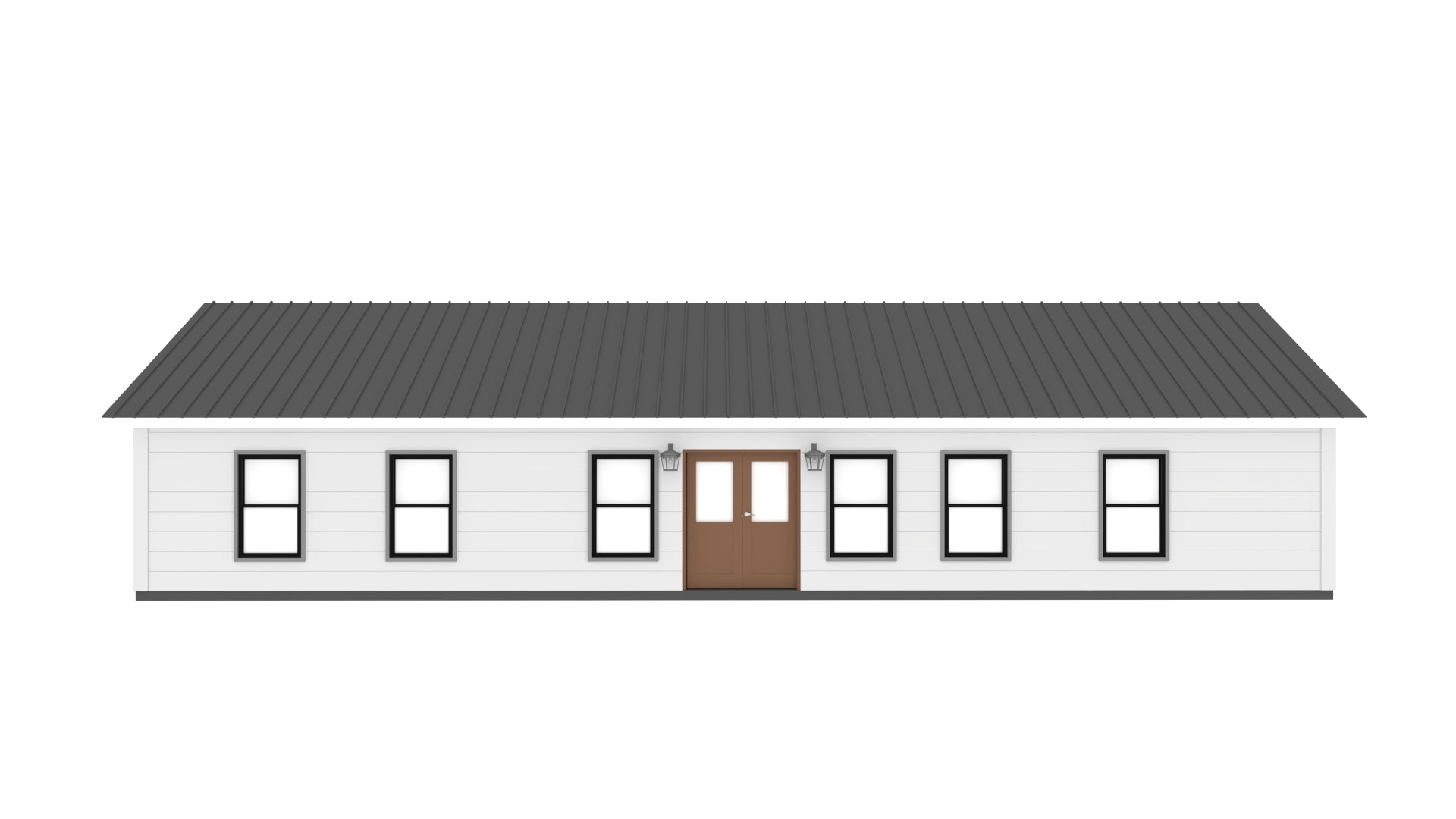

4 Elevations – Front, Back, Both Sides

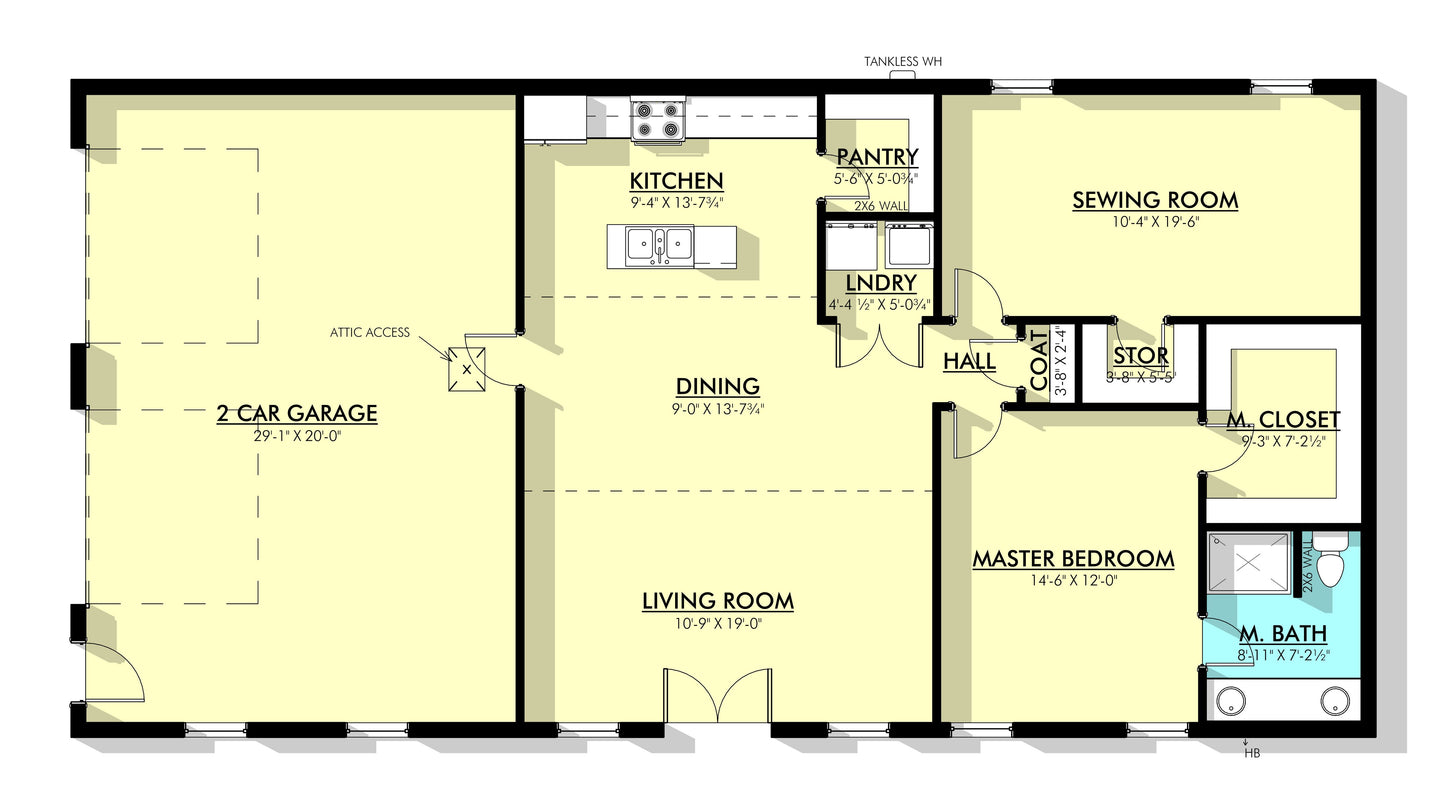

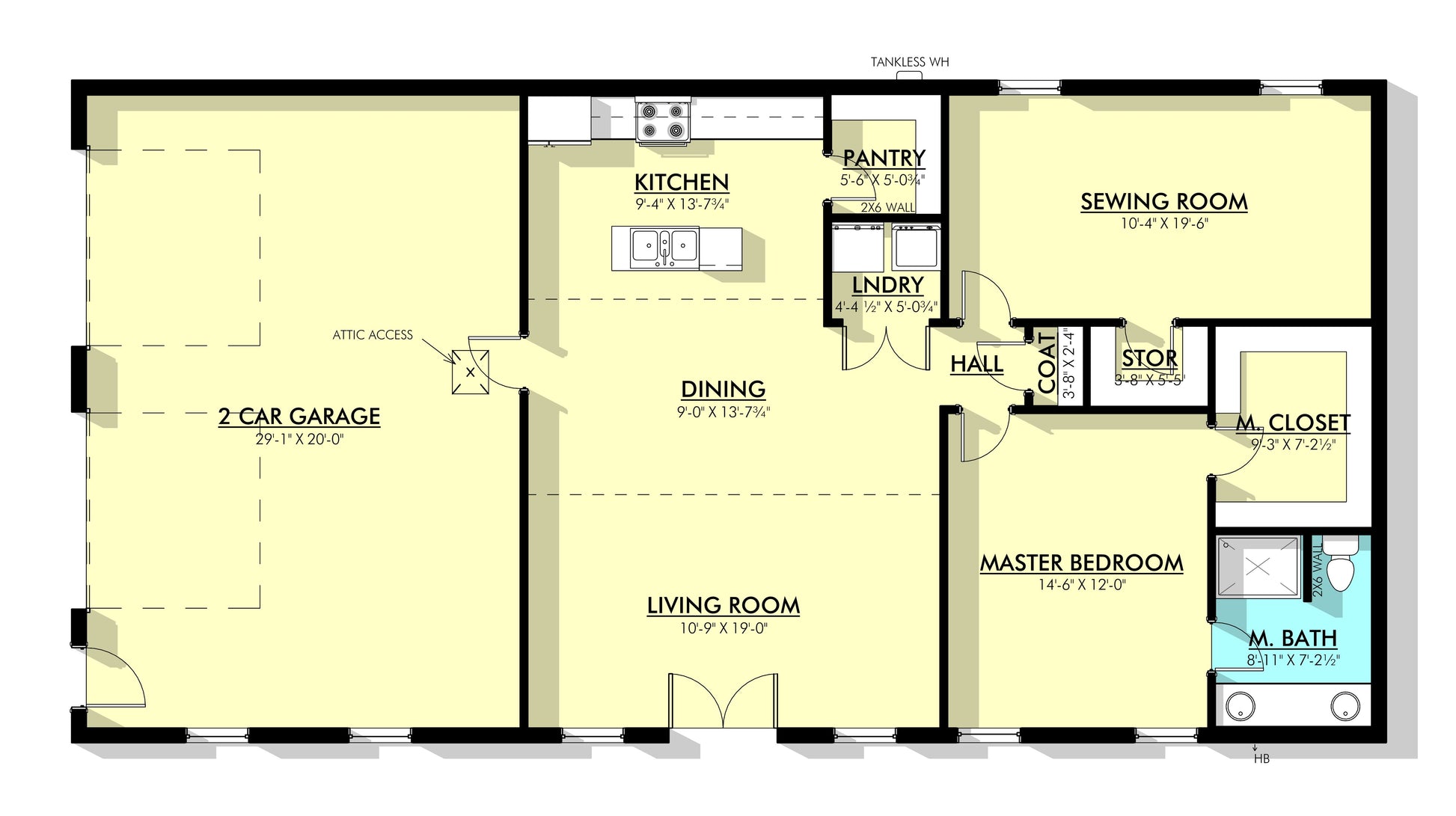

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan with Room Finish Schedule and Opening Schedule

Ceiling Joists with Framing Schedule

Rafters with Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

The following items are NOT included:

Architectural or Engineering Stamp - handled locally if required. We can help you find a structural engineer locally

Site Plan - handled locally when required

Energy calculations - handled locally when required

Delivery

This is a 100% digital product. The plan will be delivered to you via email as a PDF file.

Return policy

All barndominiun house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
