PL-2846 Maddox Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 10
Bedrooms 3 Bedrooms
Floors 2 Floors
Full Baths 4 Full Baths
Total Heated Area 3,820 Total Heated Area

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2400 SF

Second Floor:

1,420 SF

Total Heated Sq Ft:

3,820 SF

UNHEATED SQ FT

Total Unheated Area:

None

Carport:

None

Bedrooms:

3

Full Baths:

4

Floors:

2

Garage Size:

None

Width:

60'

Depth:

40'

Height:

29'-0 3/4"

Foundation:

Concrete Slab

Main Roof Pitch:

5:12

Construction Type:

Metal Shell

CEILING HEIGHTS

First Floor:

9'

PL-2846 Maddox Barndominium House Plan

Ā

About this barndominium house plan:

  • 3820 Heated Square Feet
  • 3 Bedrooms
  • 4 Bathrooms
  • Two Story
  • Open concept
  • His/Her Master Closets
  • Loft
  • Office
  • Walk-in Pantry
  • Laundry/Mudroom

Ā

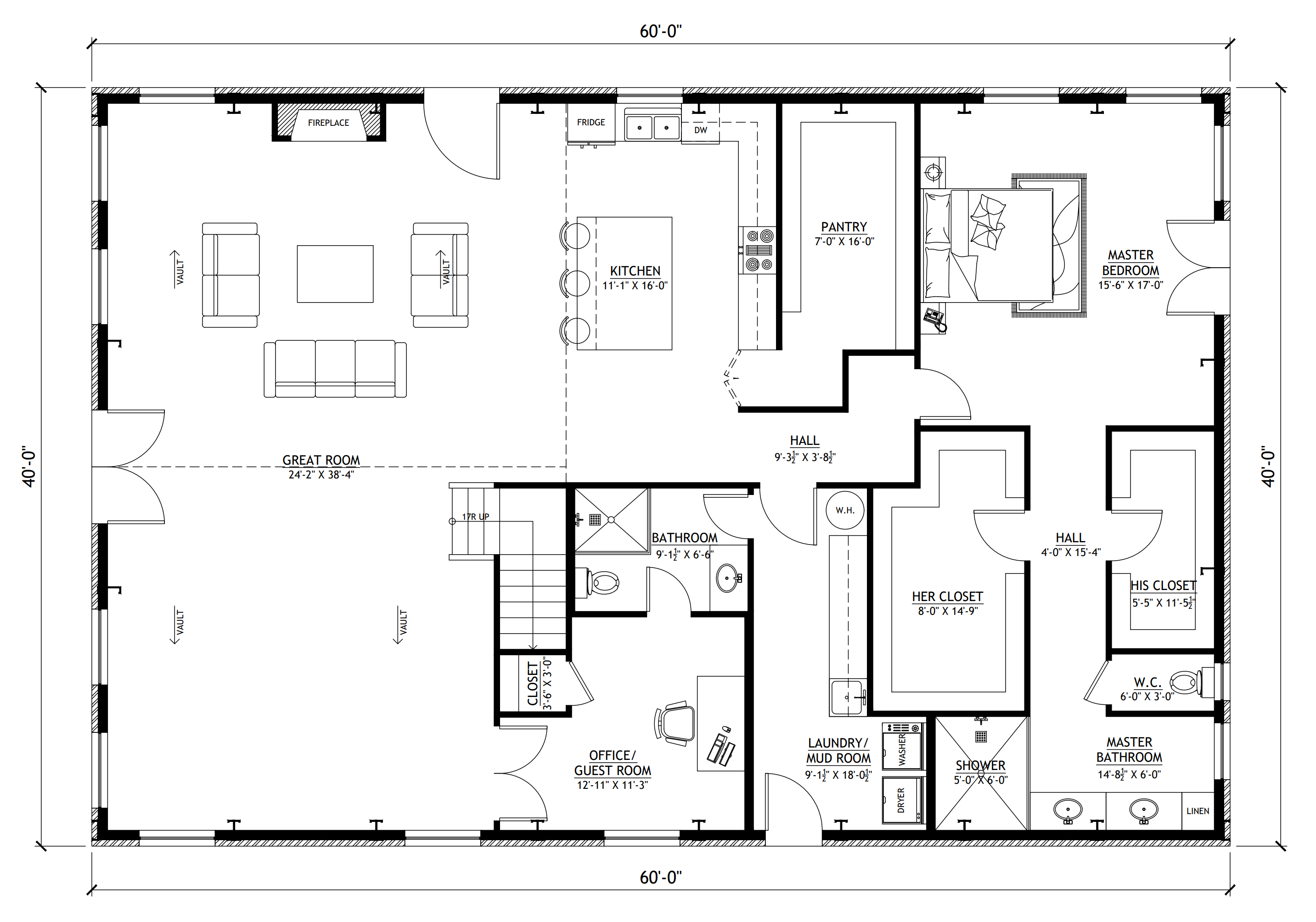

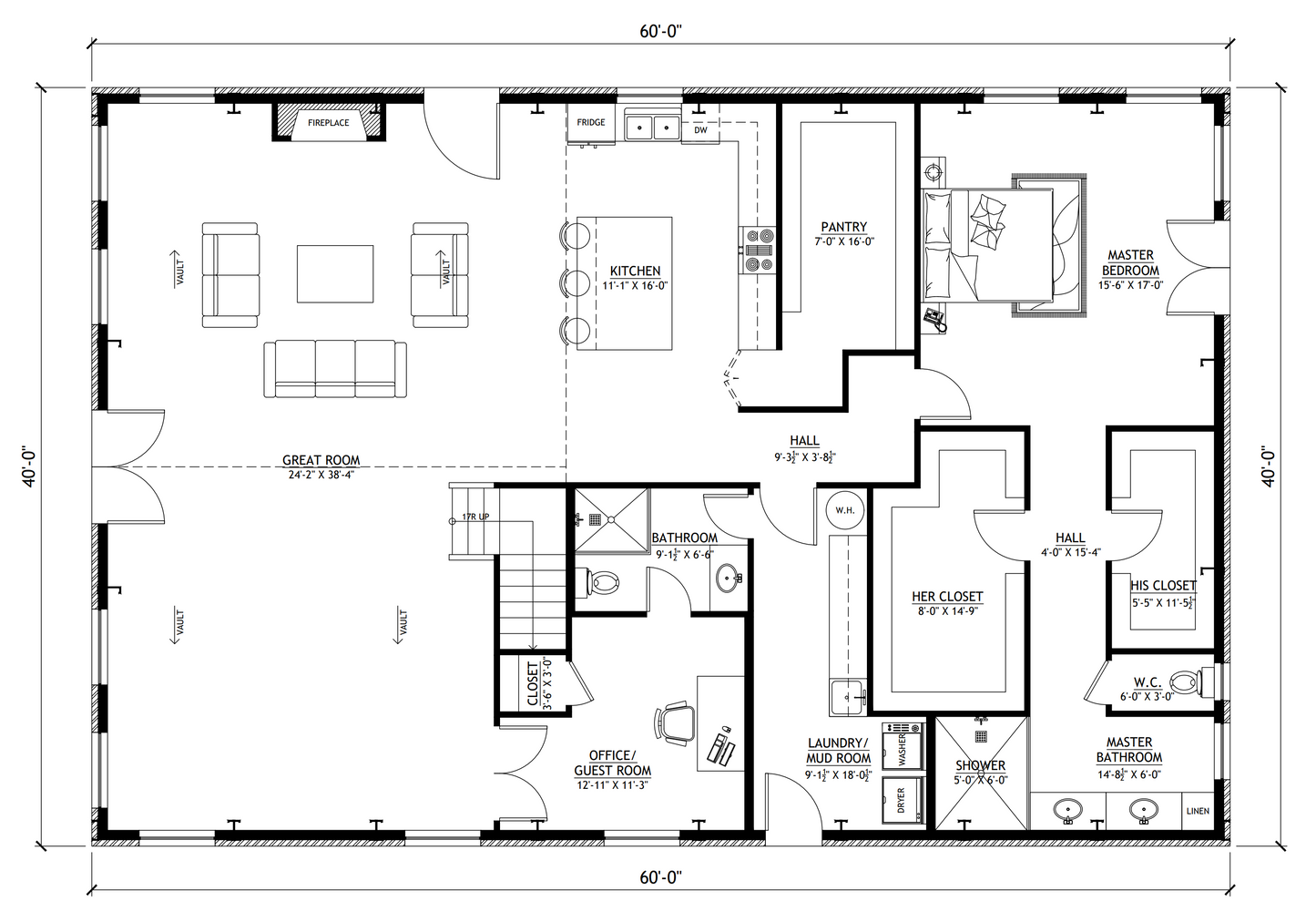

  • Main floor features a large great room with vaulted ceilings and a fireplace, creating an inviting space for everyday living and entertaining.Ā
  • The open kitchen includes a large island, a generous walk-in pantry, and flows seamlessly into the main living area.
  • Private master suite offers a peaceful retreat with separate his-and-her walk-in closets, a spacious bathroom.Ā
  • An office that can easily double as a guest room sits near a full bathroom, making it ideal for visitors or working from home.Ā
  • A dedicated laundry and mudroom adds convenience to daily routines.

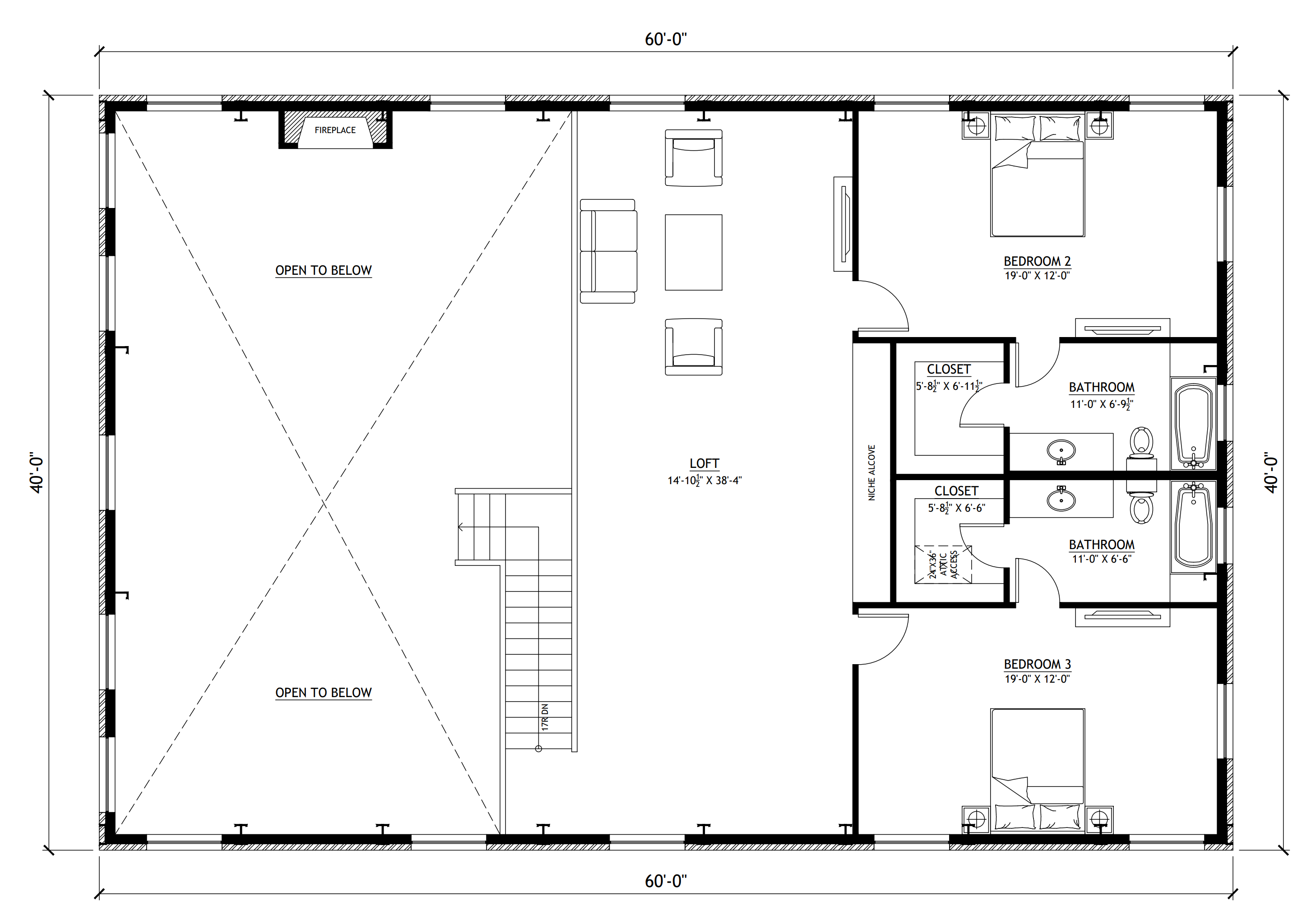

  • Upstairs, two oversized bedrooms each have their own walk-in closet and access to own full bathrooms, giving everyone extra privacy.Ā
  • A large loft overlooking the great room below provides flexible space for a media room, game room, or second family lounge.

Ā

Ā

What's included in PL-2846:

Cover PageĀ
Main Floor PlanĀ
Mezzanine Floor PlanĀ
Roof PlanĀ
Front And Rear ElevationĀ
Right And Left ElevationĀ
Main Floor Electrical PlanĀ
Mezzanine Electrical PlanĀ
Main Floor Plumbing Plan
Mezzanine Plumbing PlanĀ
Main Floor HVAC PlanĀ
Mezzanine HVAC Plan
Roof Framing PlanĀ
Foundation PlanĀ
Foundation DetailĀ
Interior Bearing FootingĀ
C-Typical Column DetailĀ
Wall Section
Edge of Slab Detail

Ā

For more barndominium floor plans, check out our complete collection ofĀ 3-bedroom barndominium floor plans.

Ā

Need to make changes? Submit a modification request using the button that saysĀ Modify This Plan. We will get you a free price quote within 72 hours.
