Barndominium Plans

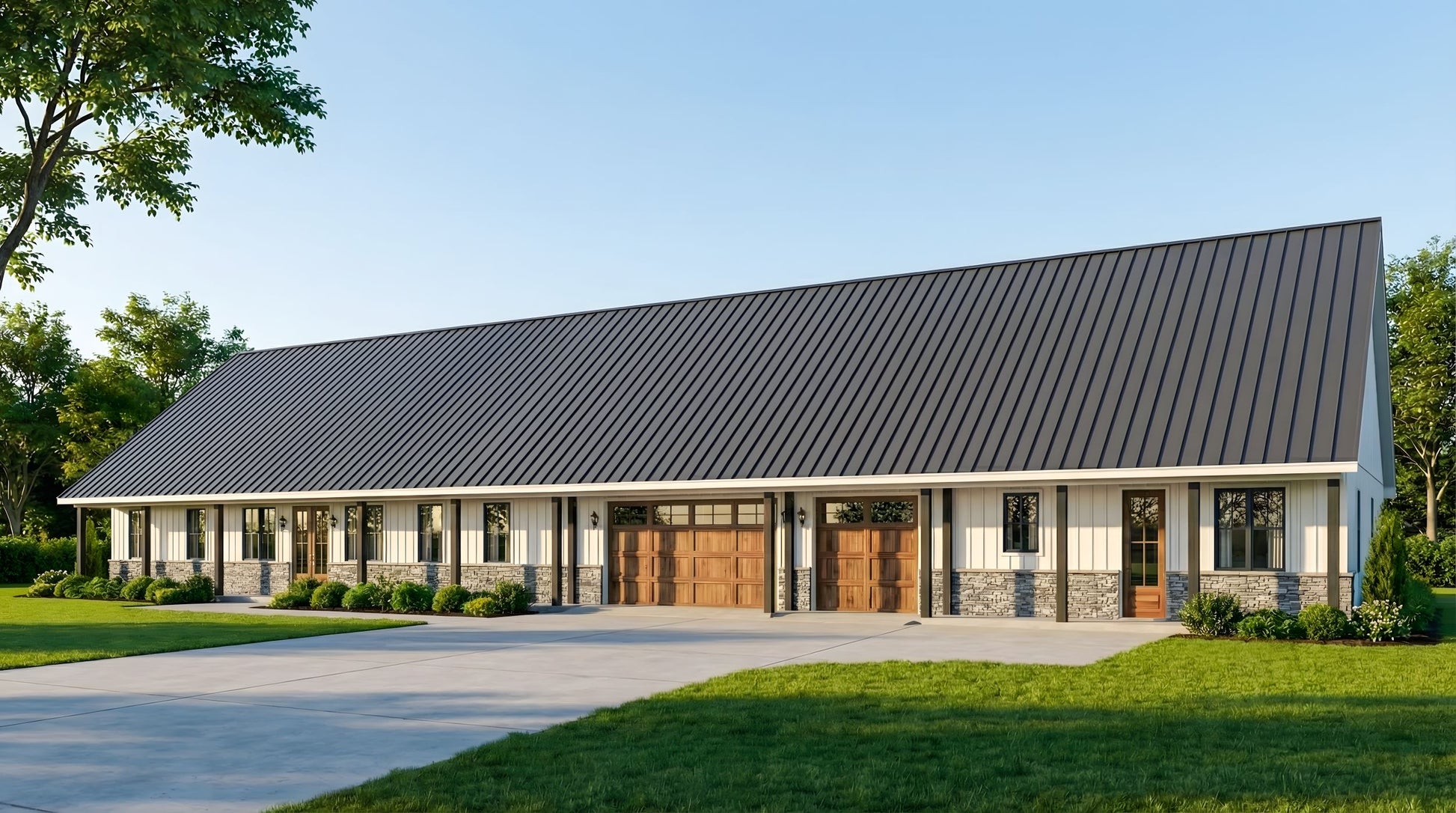

PL-2823 Helen Barndominium House Plan
Regular price
$1,349.99 USD
Regular price
Sale price
$1,349.99 USD
Unit price
per
Bedrooms
5
Floors
1
Full Baths
4
Total Heated Area
3,600 SF

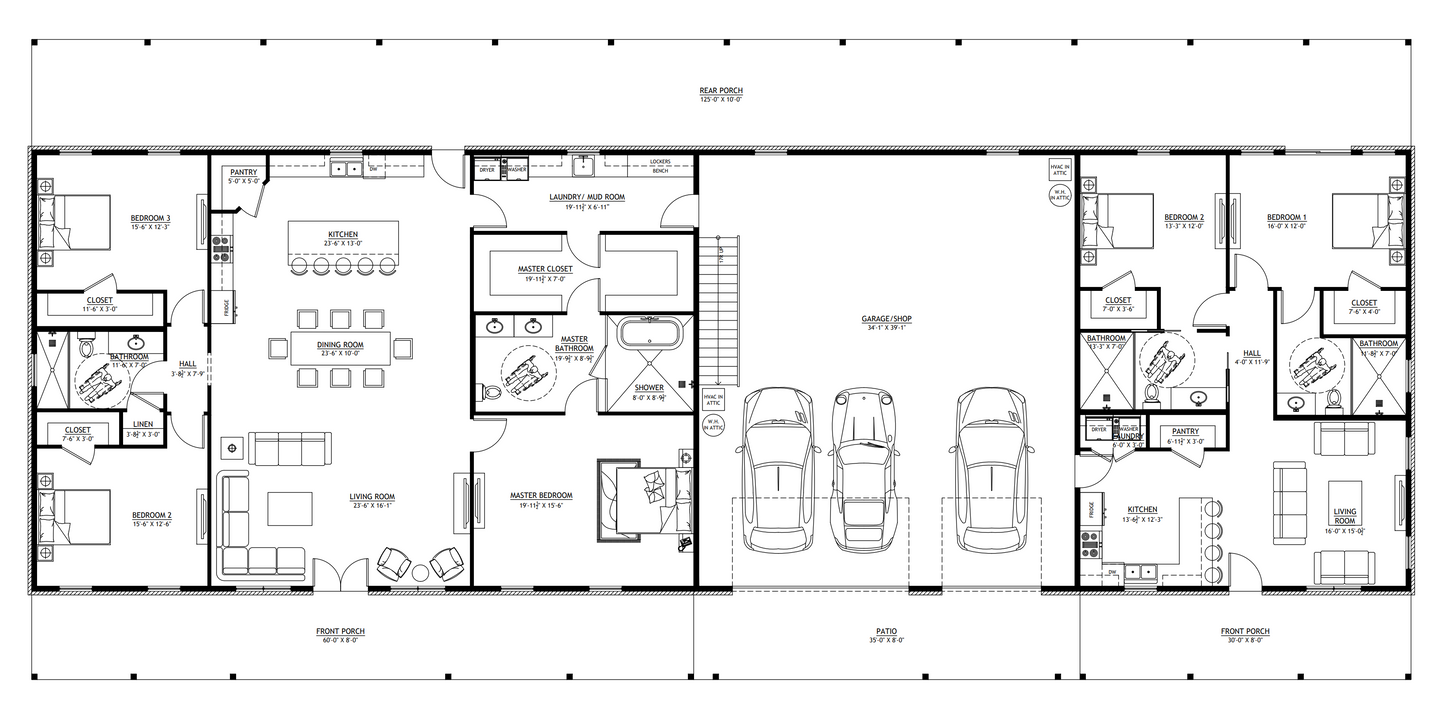

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
Main House Living Area 2,400 SF, Guest House 1,200 SF = TOTAL 3,600 SF
Second Floor:None
Total Heated Sq Ft:3,600 SF
UNHEATED SQ FT
Total Unheated Area:
Garage 1,400 SF, Patio, 280 SF, Front/Rear Porch 1,970 SF = TOTAL 3,650 SF
Carport:None
Bedrooms:
5
Full Baths:
4
Floors:
1
Garage Size:
1,400 SF
Width:
125'
Depth:
58'
Height:
25'-3"
Foundation:
Concrete Slab
Main Roof Pitch:
6:12
Exterior Framing:
Stick Frame
CEILING HEIGHTS
First Floor:
9'
PL-2823 Helen Barndominium House Plan
About this barndominium house plan:
- 3600 Heated Square Feet
- 5 Bedrooms
- 4 Bathrooms
- Single Story
- Open concept
- Laundry/Mudroom
- Main house & Guest House
- ADA-Accessible
- Multi-generation
- Patio
- Front & rear porch
- 1400 Sq Ft Garage
- A spacious 3,600 sq ft layout designed to comfortably support extended families, guests, or multi-generational living.
- Five generously sized bedrooms and four full bathrooms provide privacy, flexibility, and everyday comfort for everyone.
- A thoughtfully separated main living area and guest or secondary living space—ideal for in-laws, adult children, or long-term guests.
- Carefully designed ADA-accessible bathrooms that prioritise comfort, safety, and ease of use.
- A central patio and expansive front and rear porches that creates a perfect outdoor gathering space between living areas.
- A massive 1,400 sq ft three-car garage providing ample space for vehicles, storage, tools, and workshop needs.
For more barndominium floor plans, check out our complete collection of 5 bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
