Barndominium Plans
HC-24004 Hastings Barndominium House Plan
Regular price
$849.99 USD
Regular price
Sale price
$849.99 USD
Unit price
per

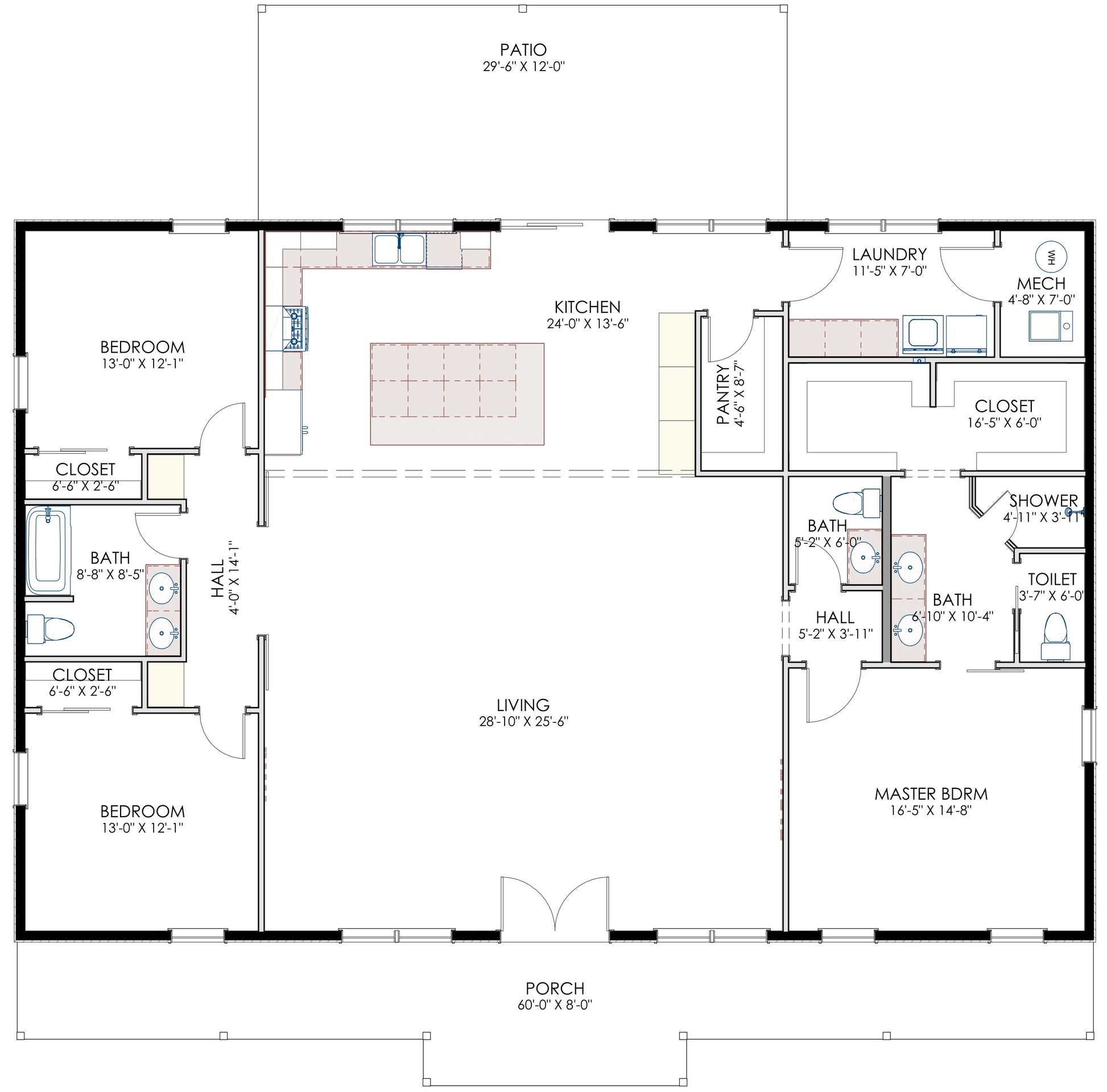

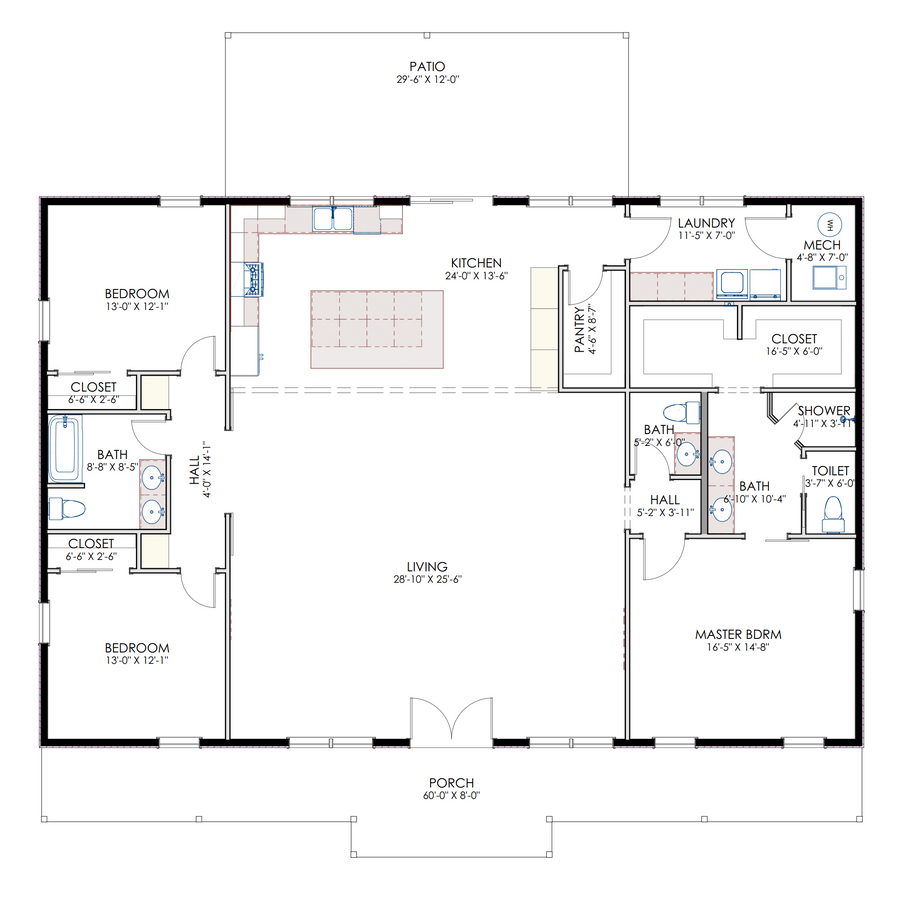

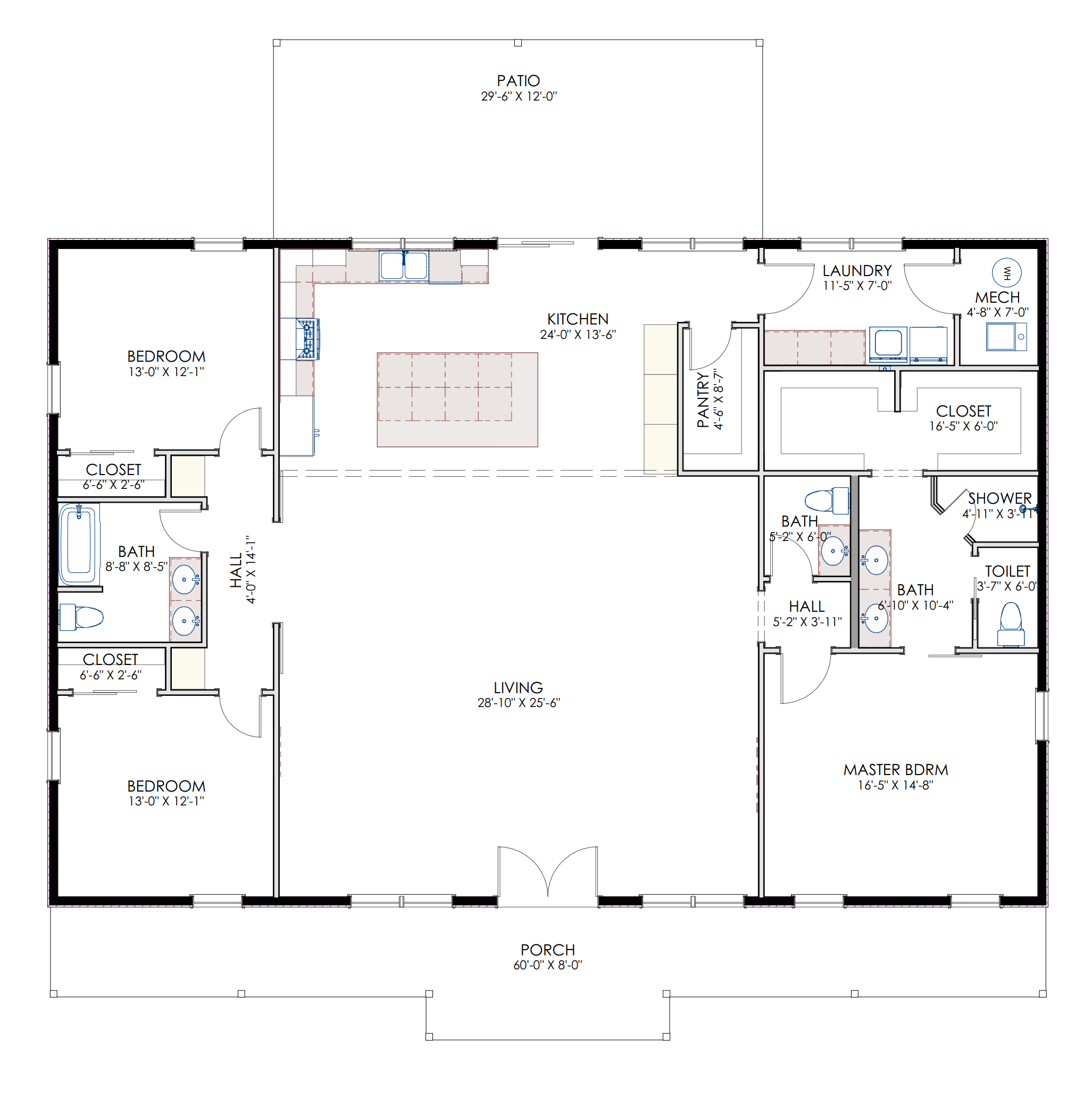

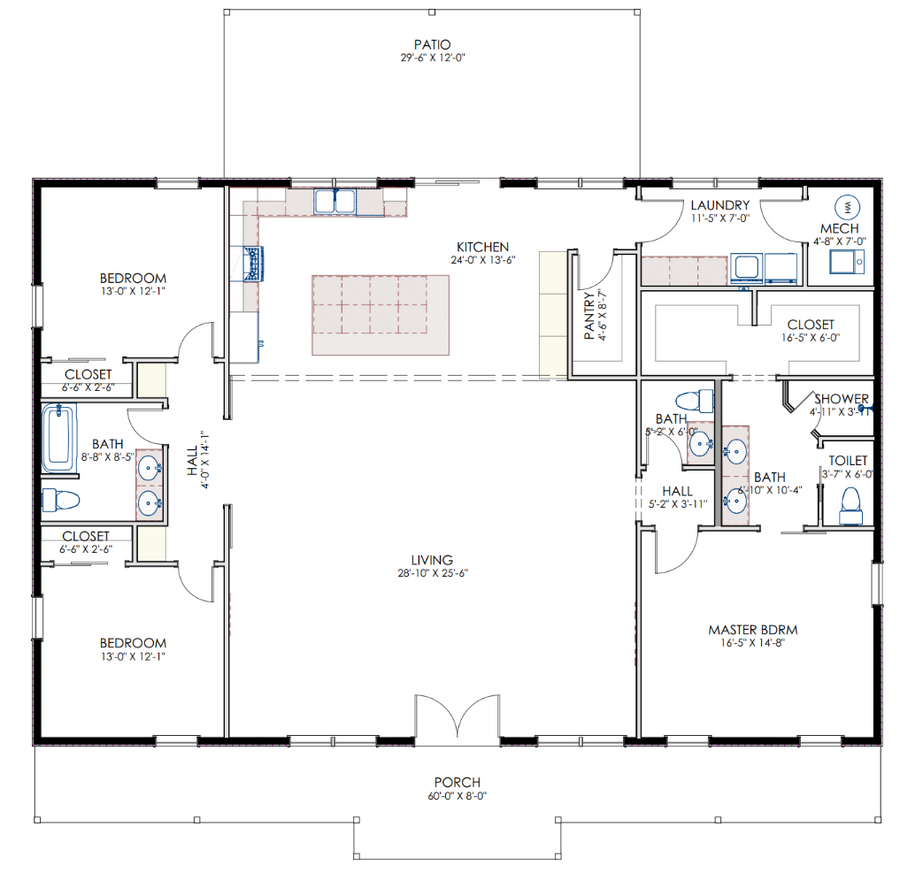

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
2,400 SF
UNHEATED SQ FT
Total Unheated Area:
725 SF
Carport:None shown
Bedrooms:
3
Full Baths:
2
Floors:
1
Garage Size:
No attached garage indicated
Width:
72'-2"
Depth:
60'
Height:
16'6" to roof ridge (main home), 13'6" porch ridge
Foundation:
16" Concrete Stem Wall (non-engineered, post-frame structure)
Main Roof Pitch:
8:12
Exterior Framing:
Post & Frame construction
CEILING HEIGHTS
First Floor:
9'

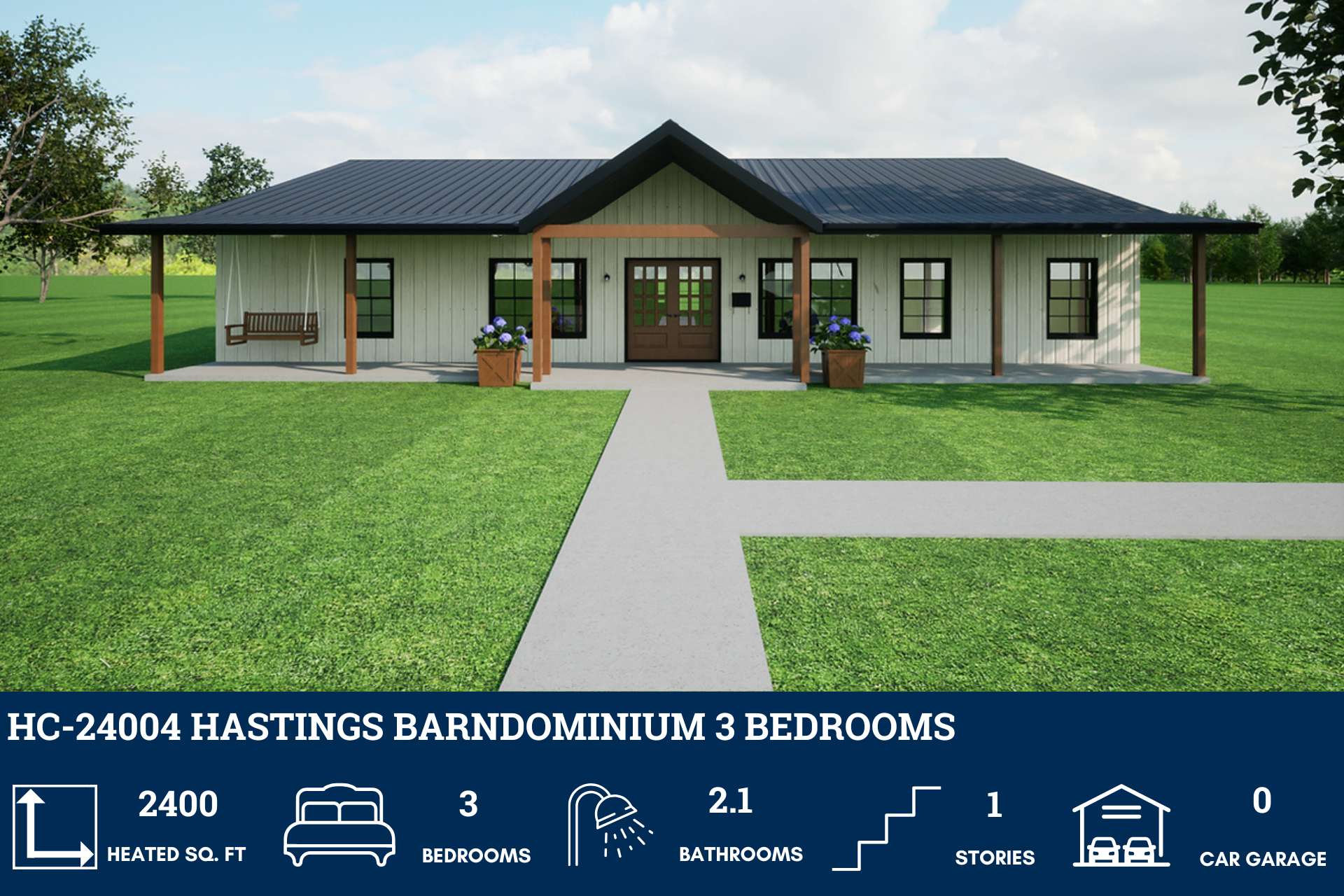

HC-24004 Hastings Barndominium House Plan
- 2400 Heated square feet
- 3 Bedrooms
- 2.1 Bathrooms
- Single story
- Mechanical room
- Front and back porch
- Spanning 2400 heated square feet, this home features 3 spacious bedrooms and 2.1 modern bathrooms.
- The layout is thoughtfully designed to include a mechanical room, ensuring all your technical needs are met without compromising on living space.
- Ideal for families or those who love to entertain, this floor plan offers a seamless flow and ample room for everyone.
For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.
Need to make changes? Email our modification department. We will get you a free price quote within 72 hours.
Please note all square footage are estimates.
What's Included
What's Included
Our house plan sets typically have the following details:

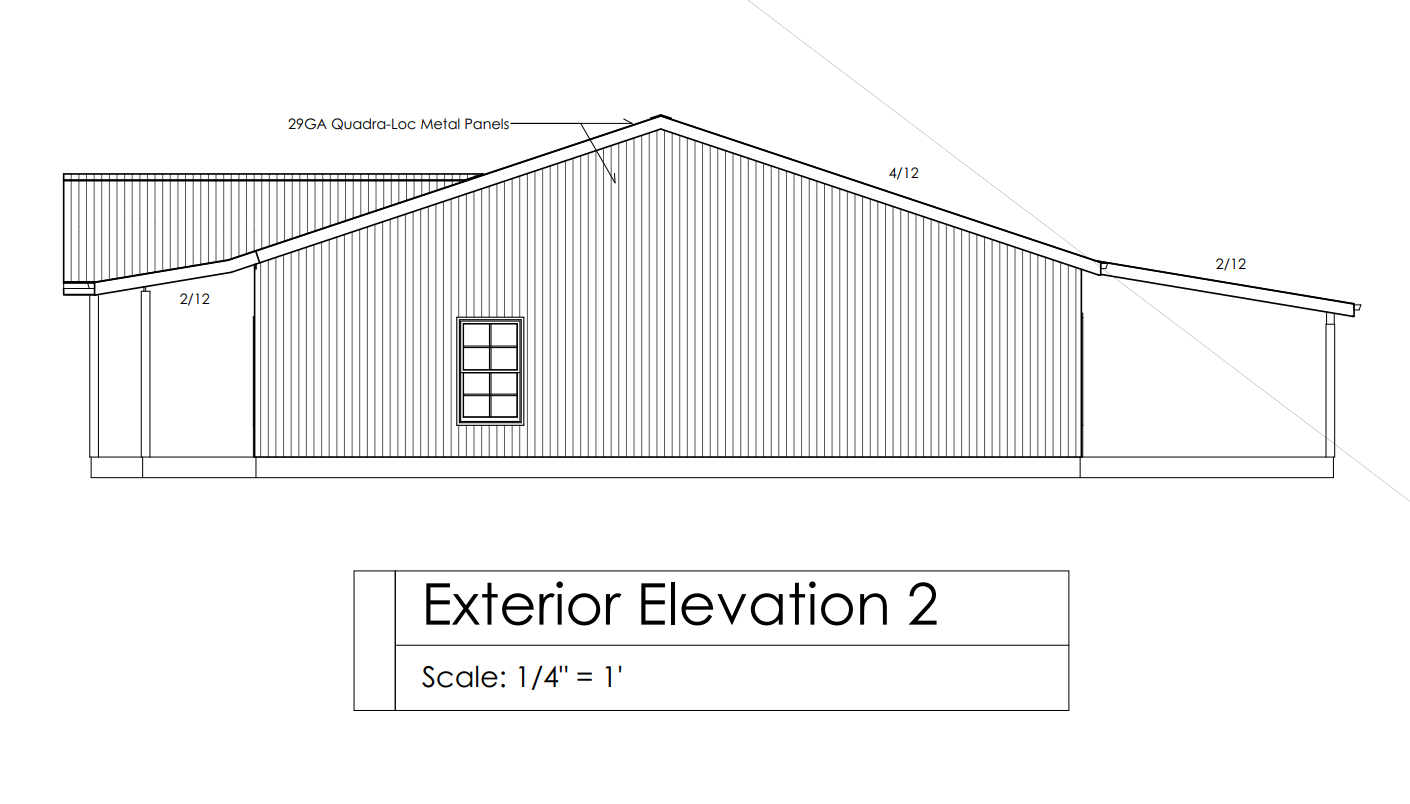

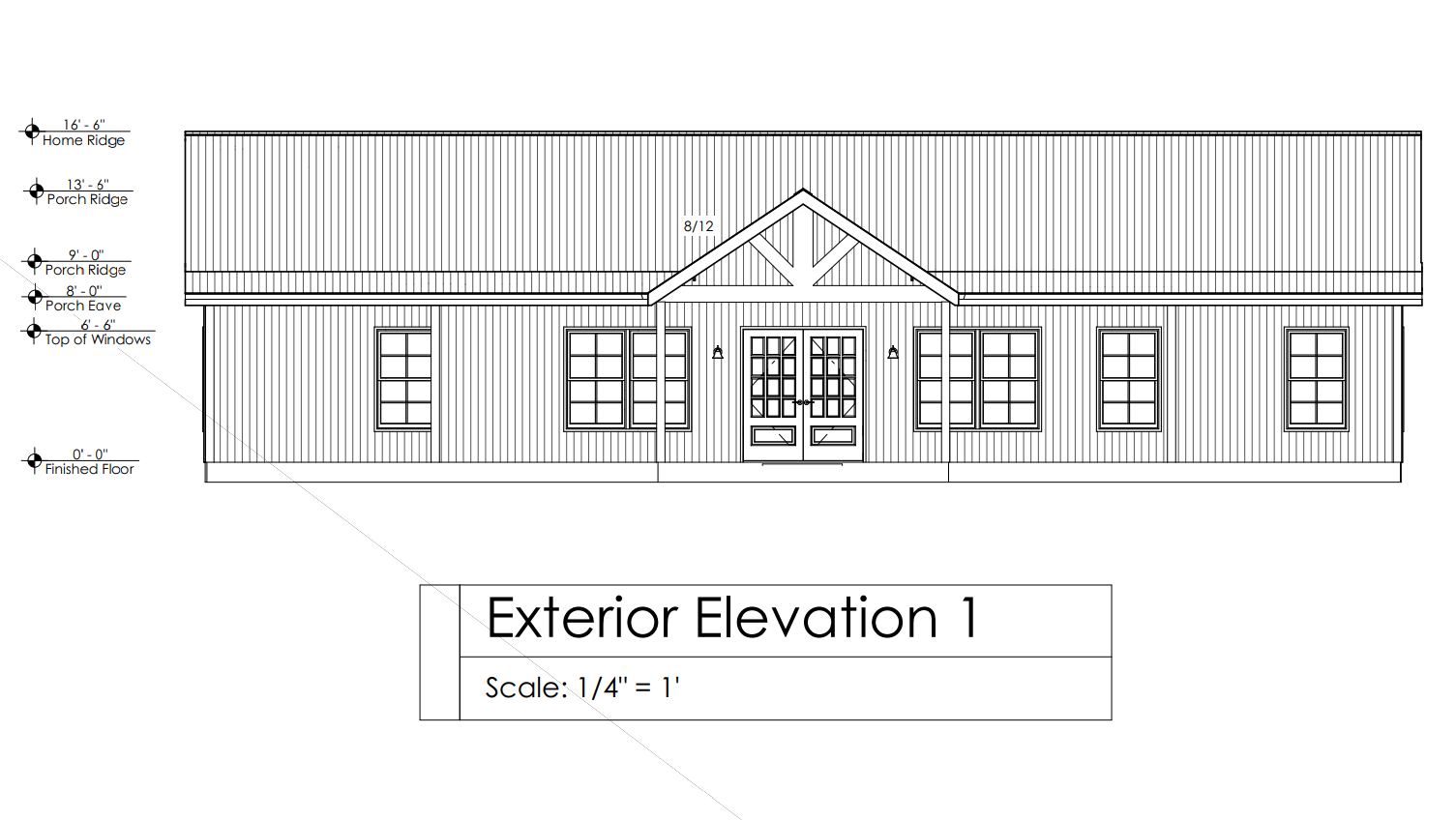

4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details.
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp - handled locally if required. We can help you find a structural engineer locally
Site Plan - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominiun house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
💥
