BP-2001-T Trevor Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 8
Bedrooms 3 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 2,072 Total Heated Area

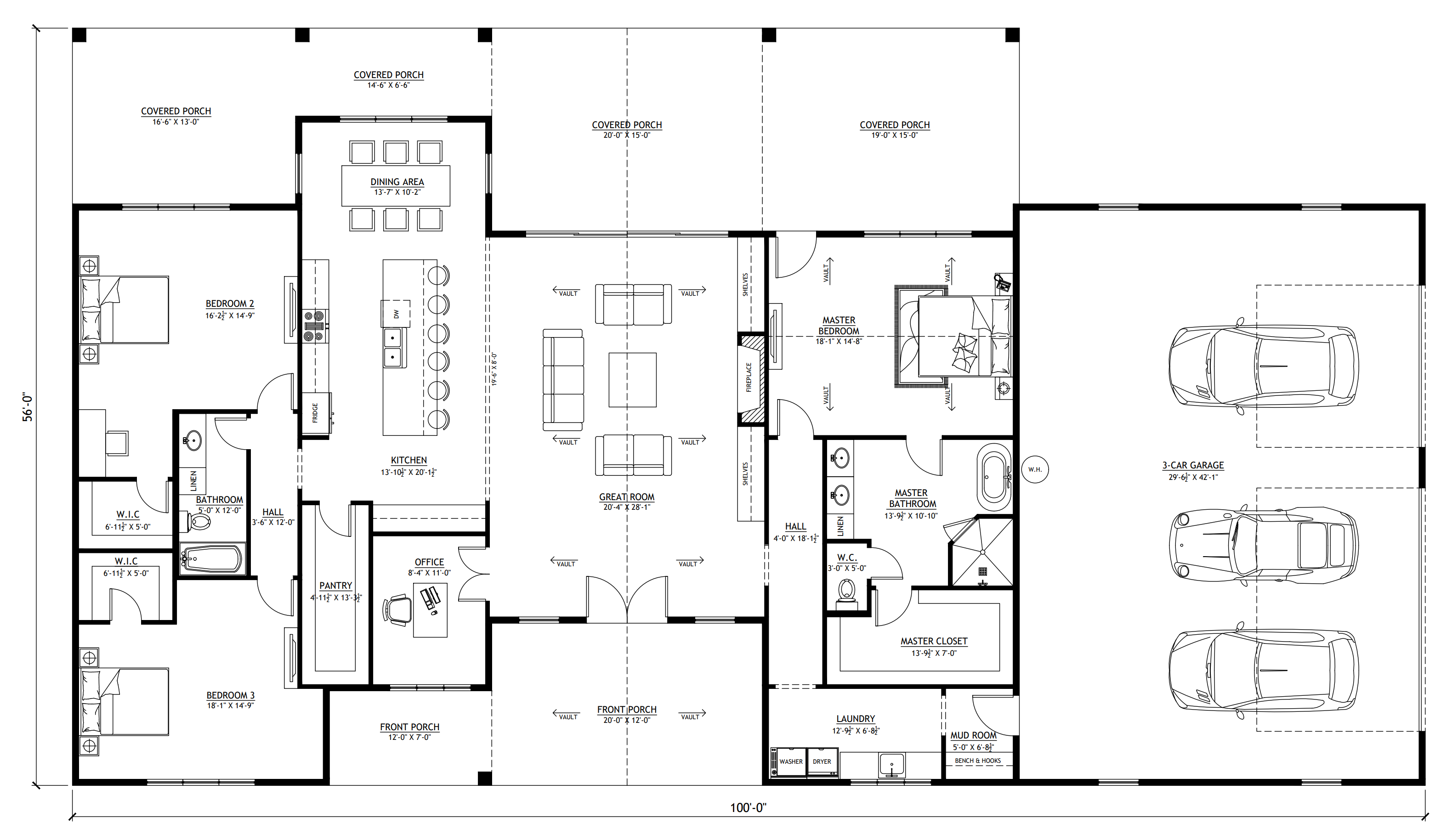

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,072 SF

Second Floor:

None

Total Heated Sq Ft:

2,072 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,291 SF, Porch 1,217 SF = TOTAL 2,508 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

1,291 SF

Width:

70'

Depth:

56'

Height:

25'-0 3/4"

Foundation:

Concrete Slab

Main Roof Pitch:

7:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BP-2001-T Trevor Barndominium House Plan



About this barndominium house plan:

  • 2072 Heated Square Feet
  • 3 Bedrooms
  • 2 Bathrooms
  • Single Story
  • Open concept
  • Office
  • Walk-in Pantry
  • Laundry/Mud Room
  • Front and Rear Porch
  • 1291 Sq Ft Garage

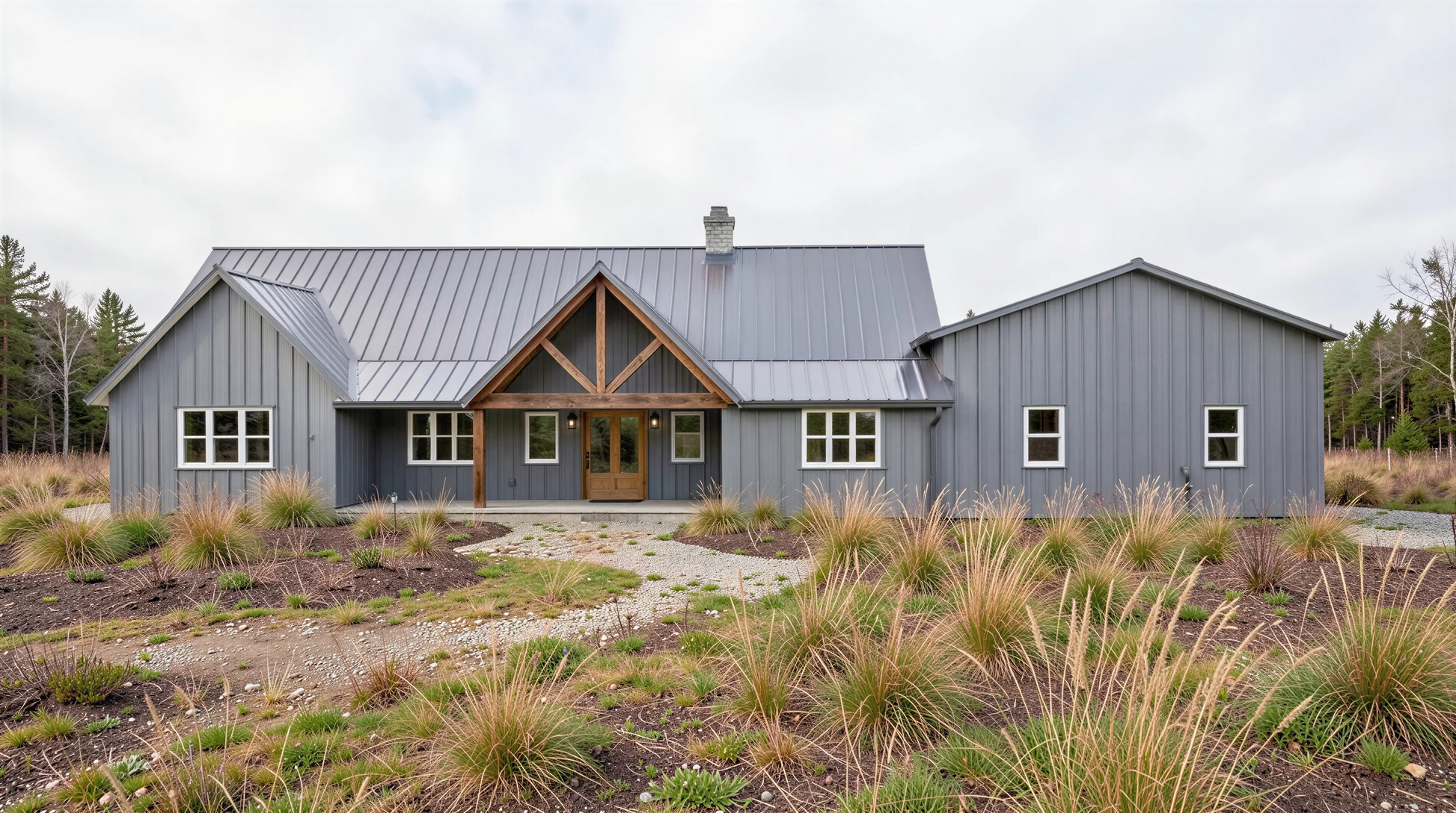

  • Double front entry doors under a vaulted porch lead right into a massive, open-concept great room anchored by a focal fireplace with built-in side shelving.
  • Flanking the great room, the culinary zone centers around an extra-long island with seating for six, backed by extensive counter runs.
  • A light-filled dining area extends out toward the back, supported by a deep walk-in pantry for organized food and appliance storage.
  • Dedicated office room with double entry doors offers a secluded workspace for remote work or managing household affairs, separate from the primary living areas.
  • Master bedroom features vaulted ceilings and private views over the rear porch. The connected master bathroom includes a direct entry into a large walk-in closet.
  • Far-left wing houses two spacious secondary bedrooms, each complete with its own walk-in closet and share a central full hallway bathroom.
  • Stepping in from the garage drops you into a dedicated mudroom prepped with built-in benching and storage hooks and leads right into a spacious laundry room.

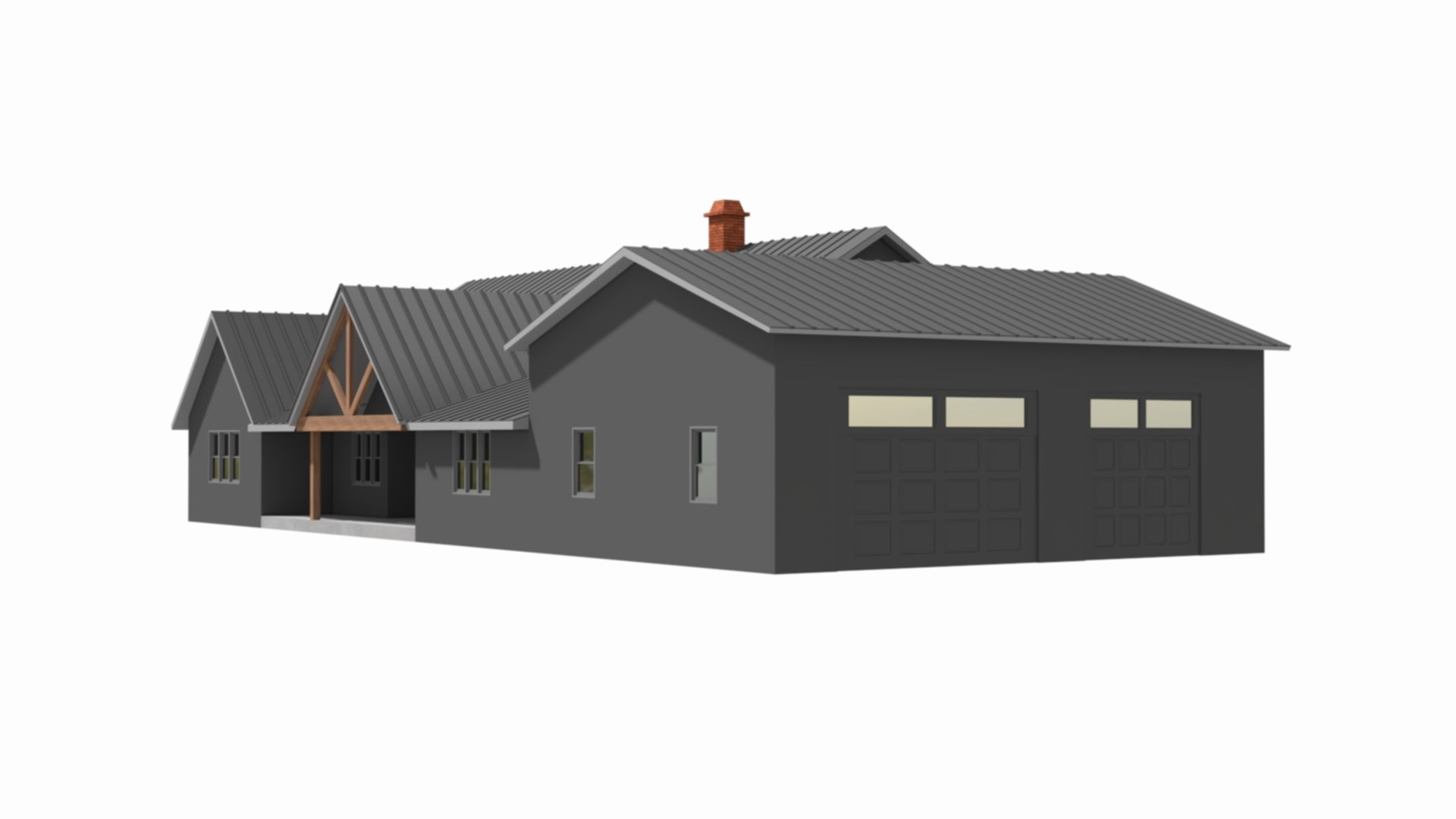

  • An attached 3-car garage provides ample width and depth for vehicle parking, workshop equipment, or extra property storage.

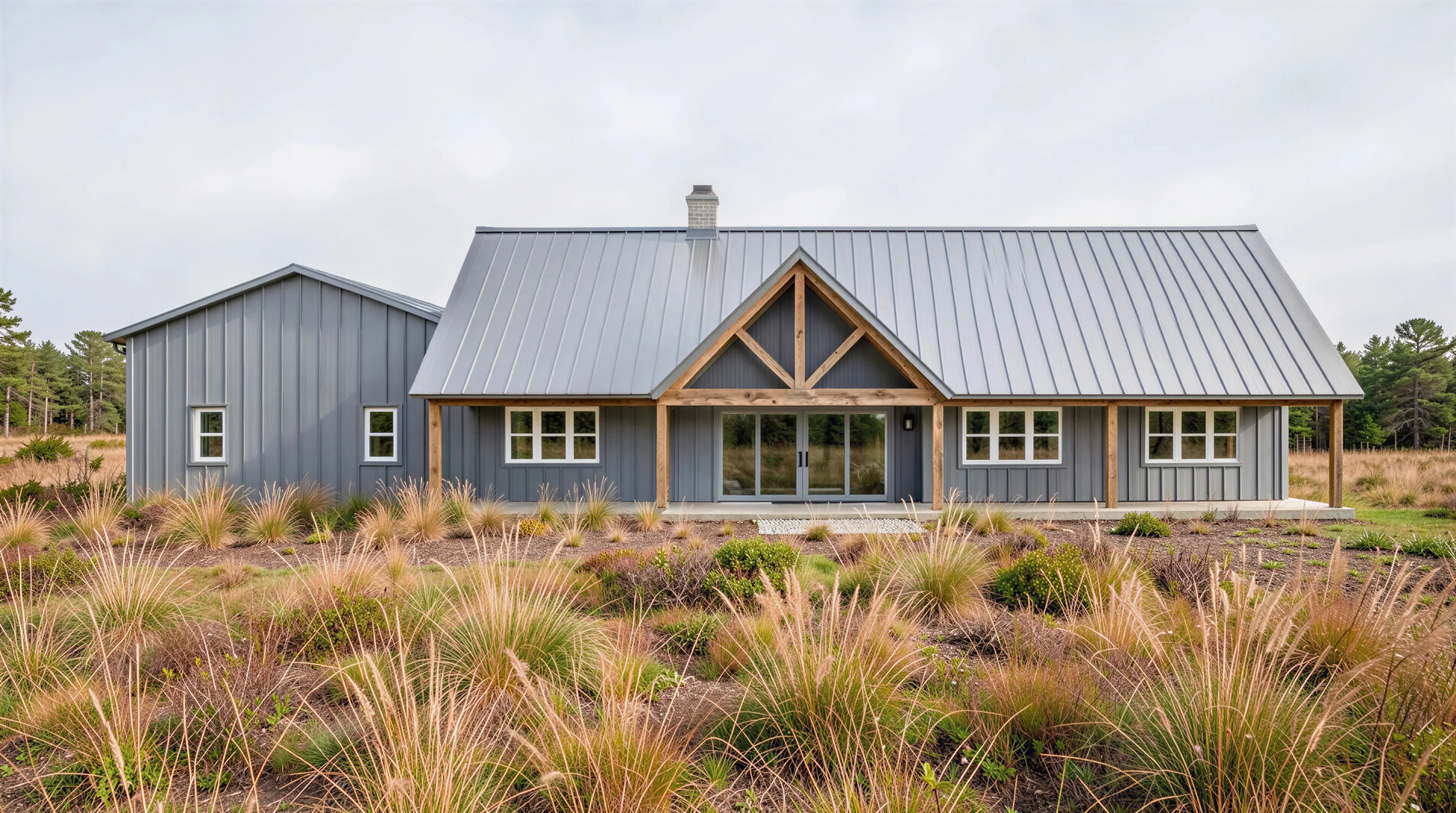

  • Outdoor living is prioritized with a vaulted front porch welcoming visitors and a multi-tiered covered rear porch running along the back of the residence.





What's included in BP-2001-M:

Cover Page
Floor Plan
Roof Plan

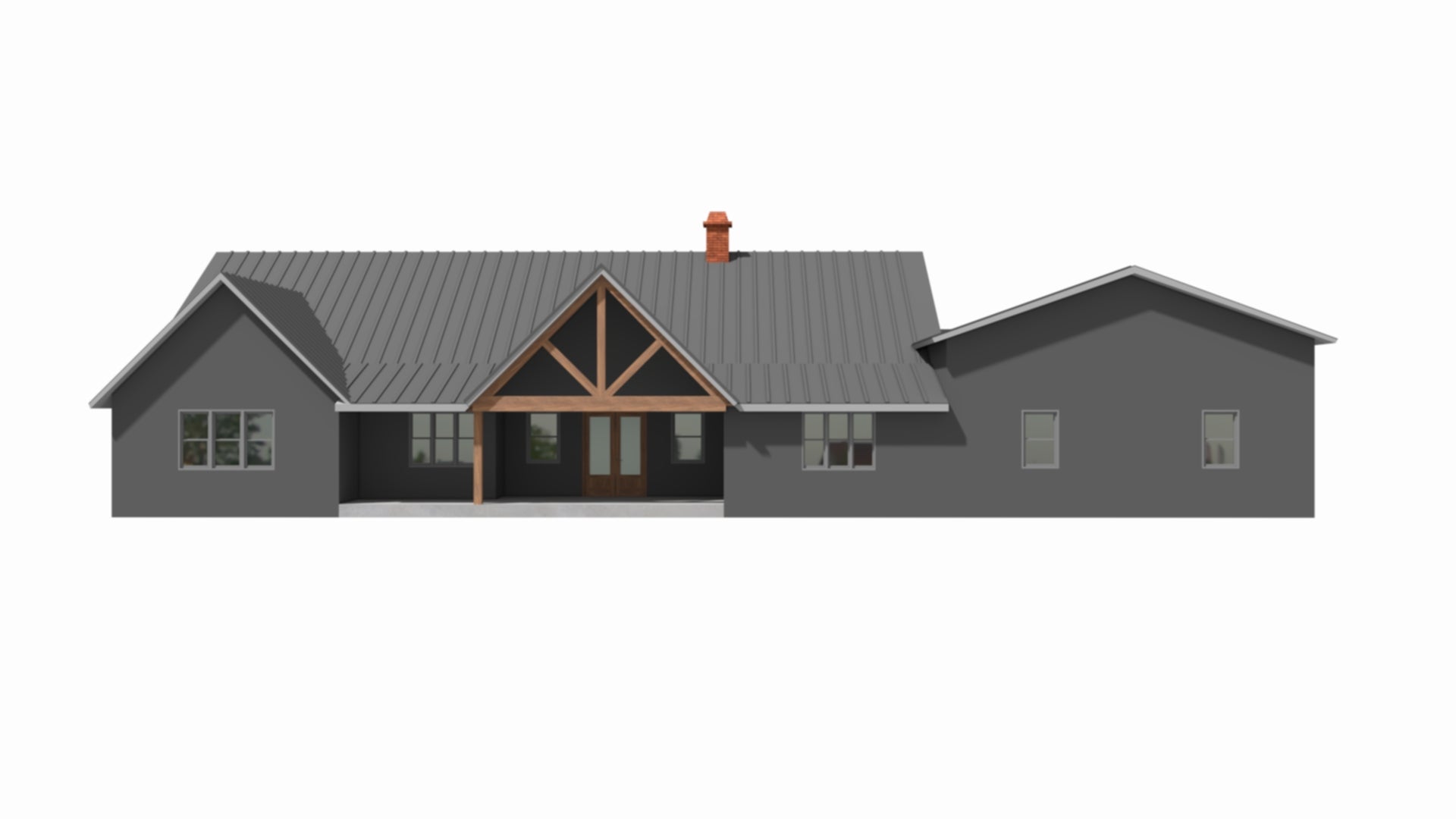

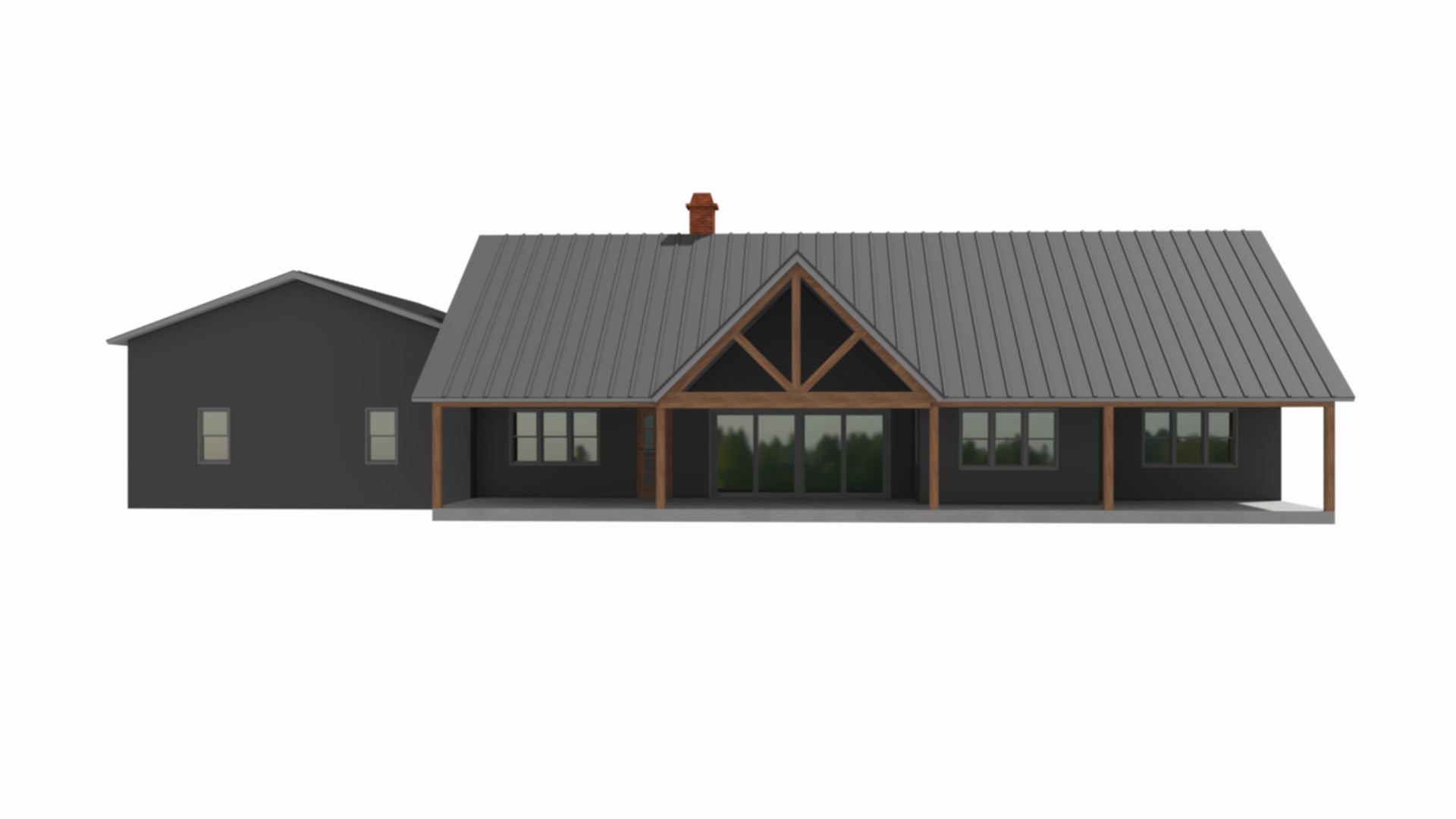

Front and Rear Elevation
Right and Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section


For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
