Barndominium Plans

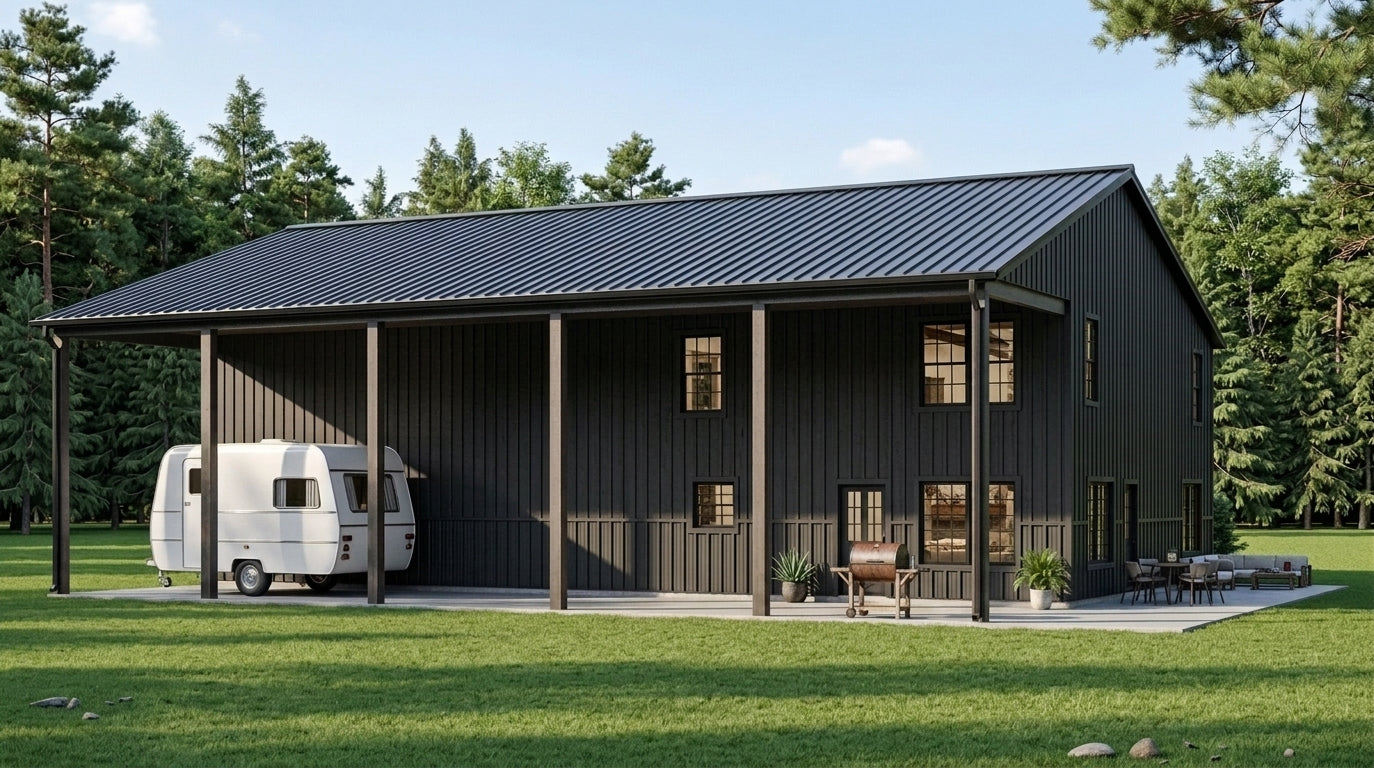

BG-20101 Vernon Barndominium House Plan

$1,250.00 USD
$1,250.00 USD
Sale Sold out
Add To Wishlist
1 15

Floor Plan

DETAILS

HEATED SQ FT

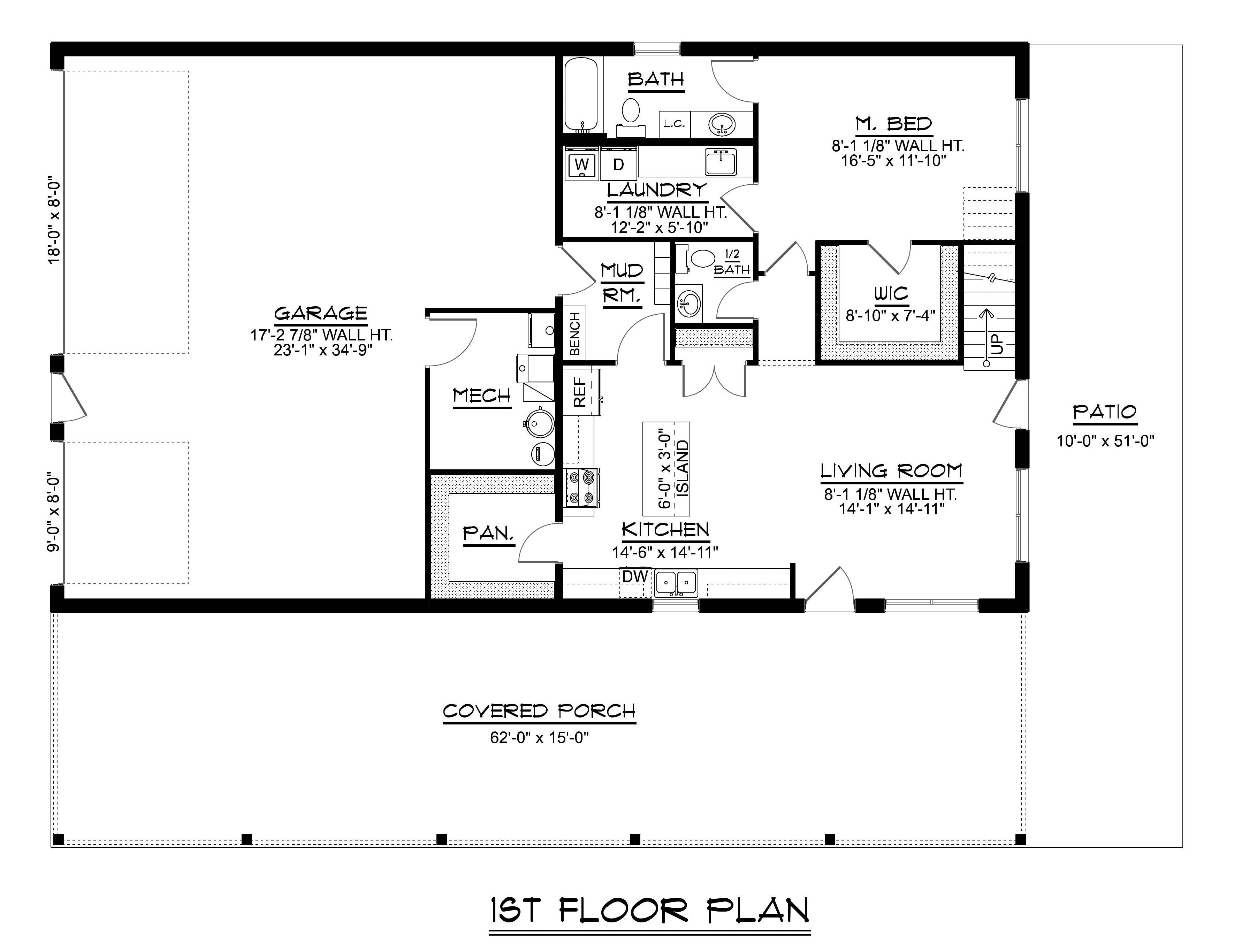

First Floor:

1,154 SF

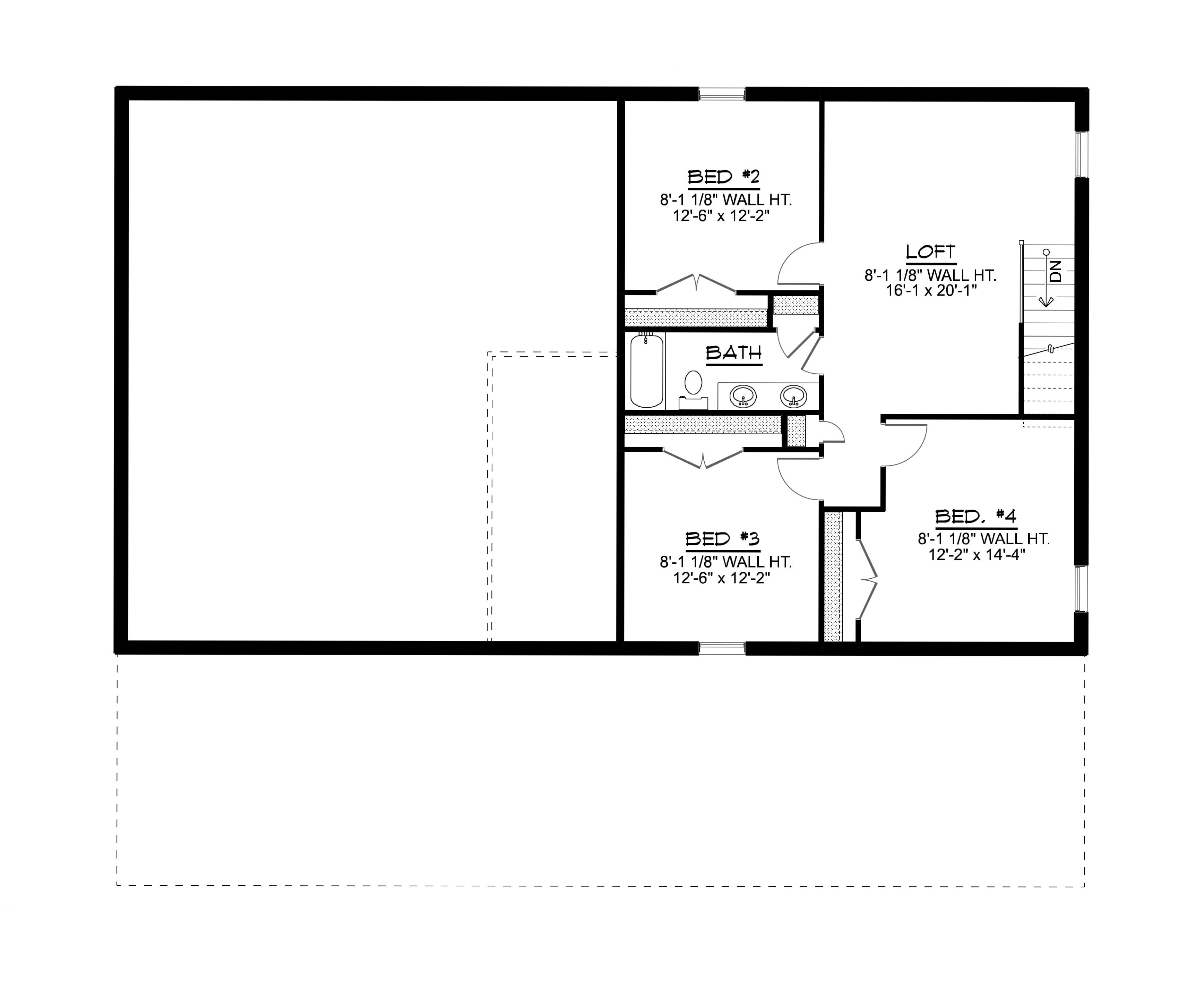

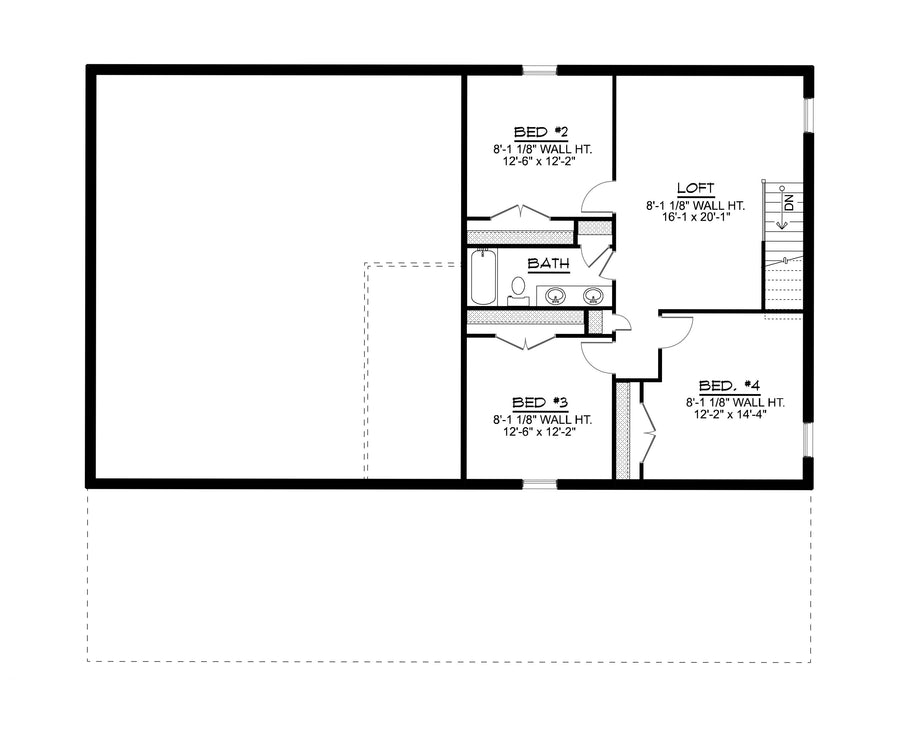

Second Floor:

1,080 SF

Total Heated Sq Ft:

2,234 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,078 SF, Porch 930 SF, Patio 512 SF = TOTAL 2,520 SF

Carport:

None

Bedrooms:

4

Full Baths:

2

Floors:

2

Garage Size:

1,078 SF

Width:

72'

Depth:

51'

Height:

26'-1"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

8'

BG-20101 Vernon Barndominium House Plan



About this barndominium house plan:

  • 2,234 Heated Sq Ft
  • 4 bedrooms
  • 2.1 bathrooms
  • Two Story
  • Open Concept
  • Loft
  • Mudroom
  • Mechanical room
  • Patio
  • Covered porch
  • 1,078 Sq Ft Garage



  • This two-level layout offers 2,234 square feet of conditioned space—designed for balanced living across four bedrooms and 2.1 bathrooms, with shared zones below and private retreats above.
  • A practical mudroom connects the garage to the main living area, while the mechanical room ensures easy access to home systems—streamlining daily routines and maintenance.
  • The front porch offers a shaded welcome, while the rear patio provides a cozy outdoor nook—perfect for morning coffee or evening wind-downs.
  • This spacious garage accommodates three vehicles with room to spare—ideal for gear, storage, or workshop flexibility.



What's included in BG-20101:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $1,250.00
PDF (Single Build)

Modifications

Additional Options
Wondering Cost To Build? Get an estimate of the construction cost for this house in your area.
Modify this Plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.
