Barndominium Plans

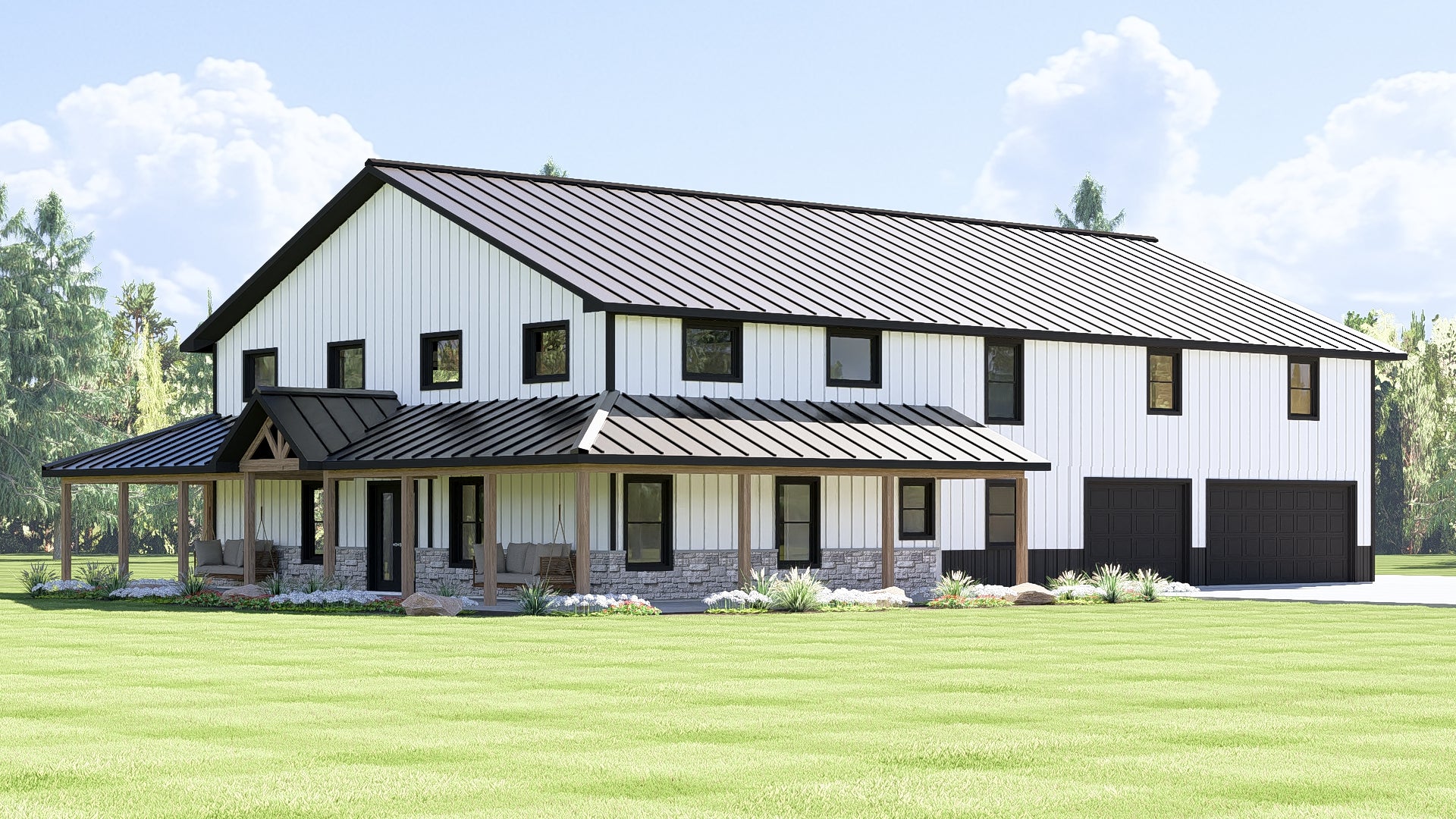

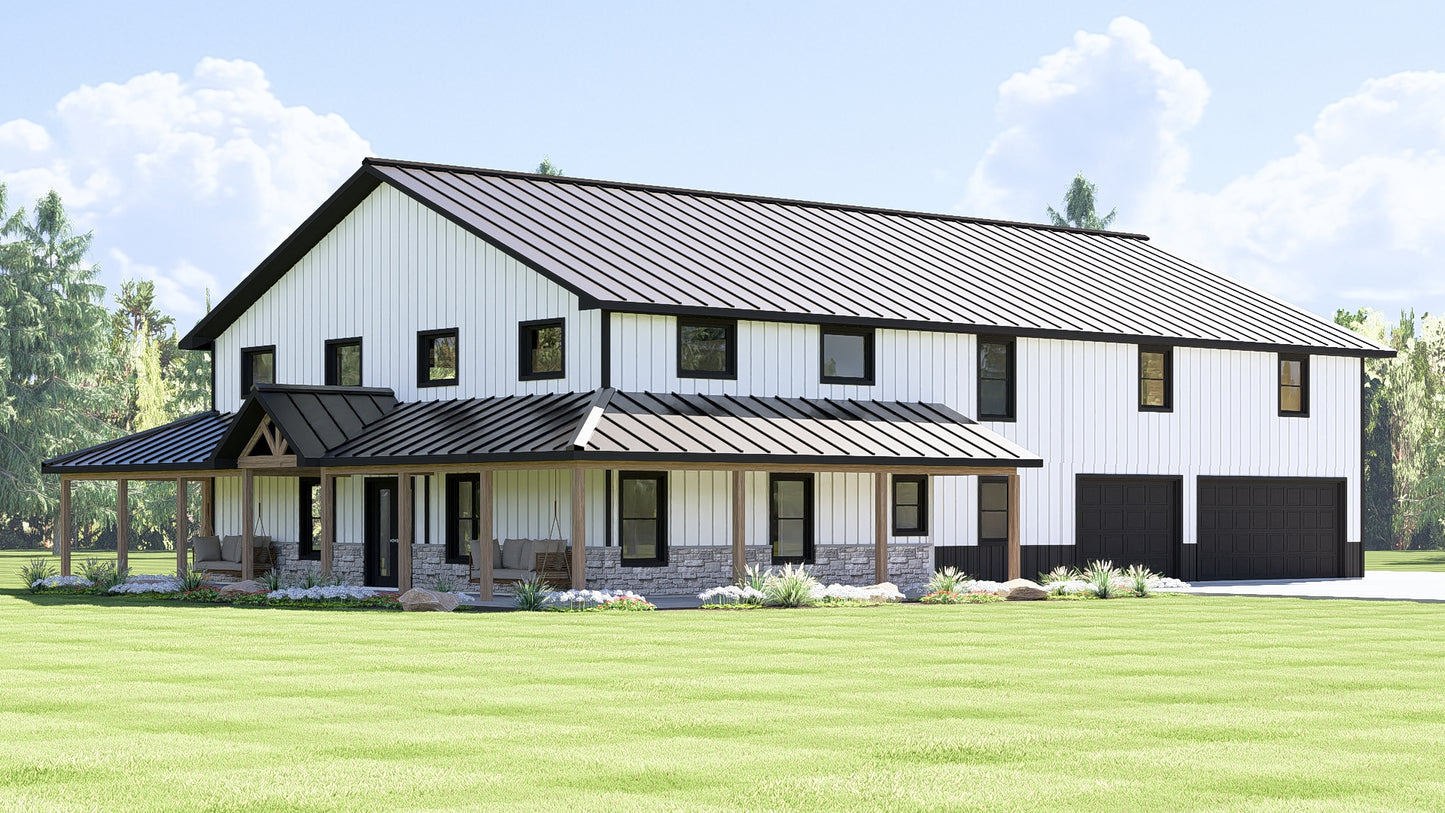

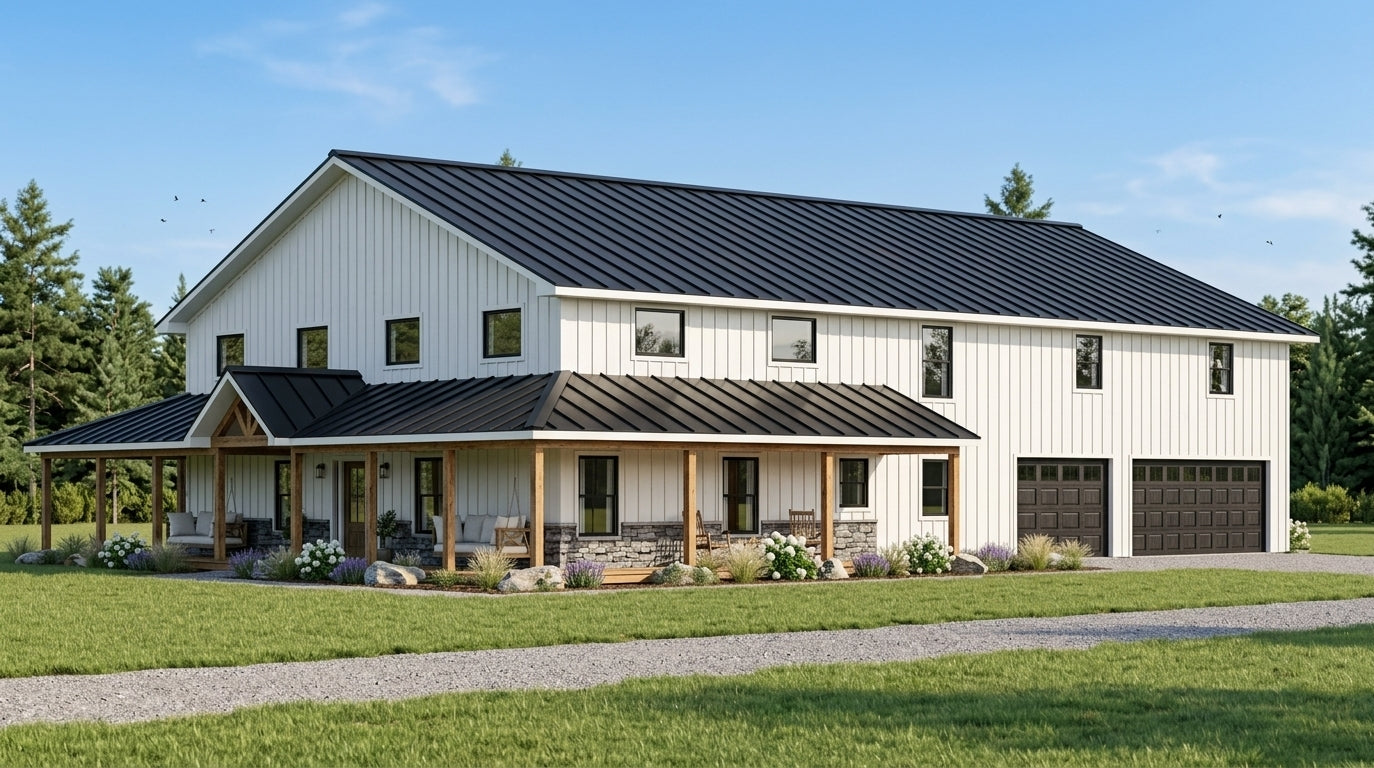

BG-20094 Irvine Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 18

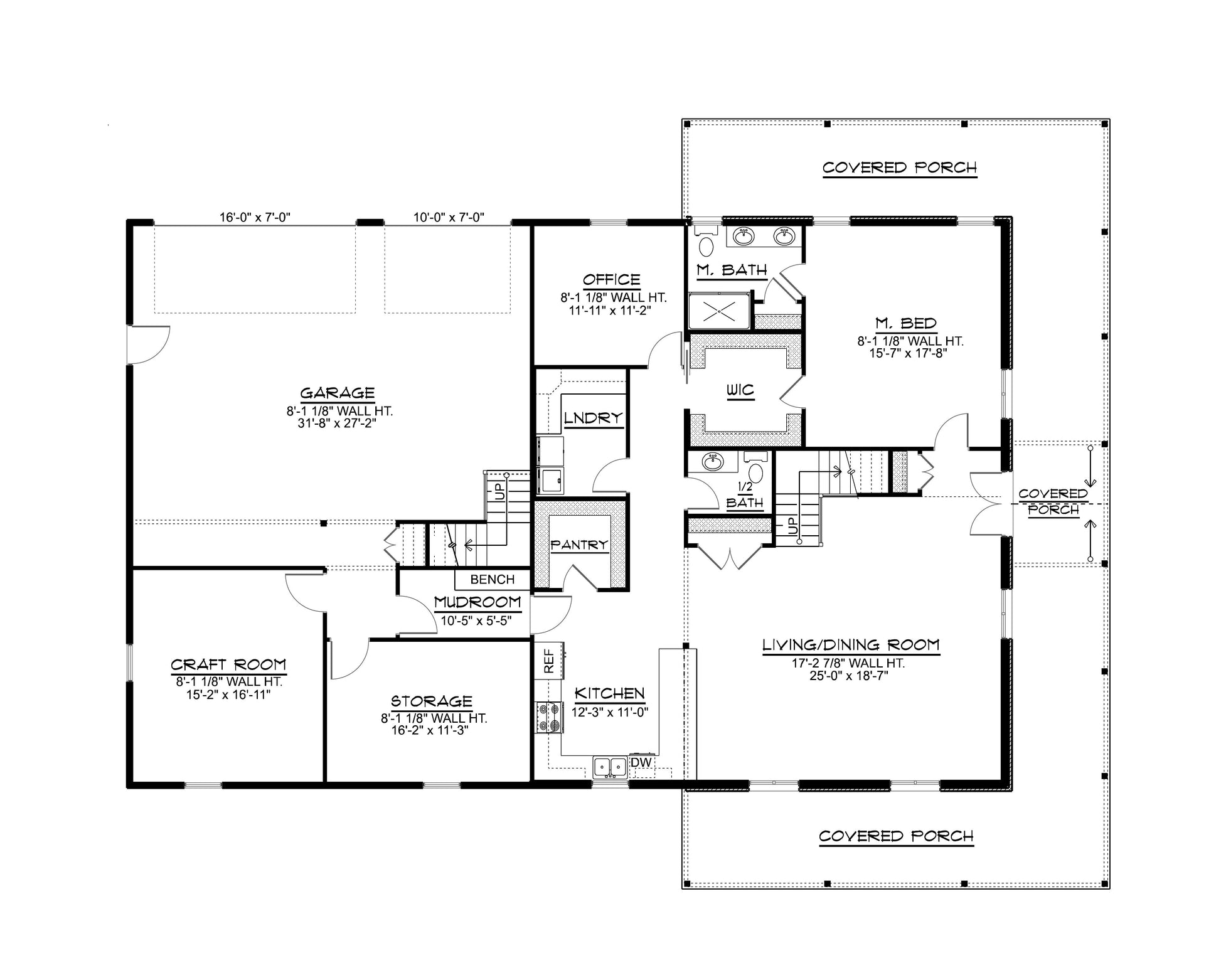

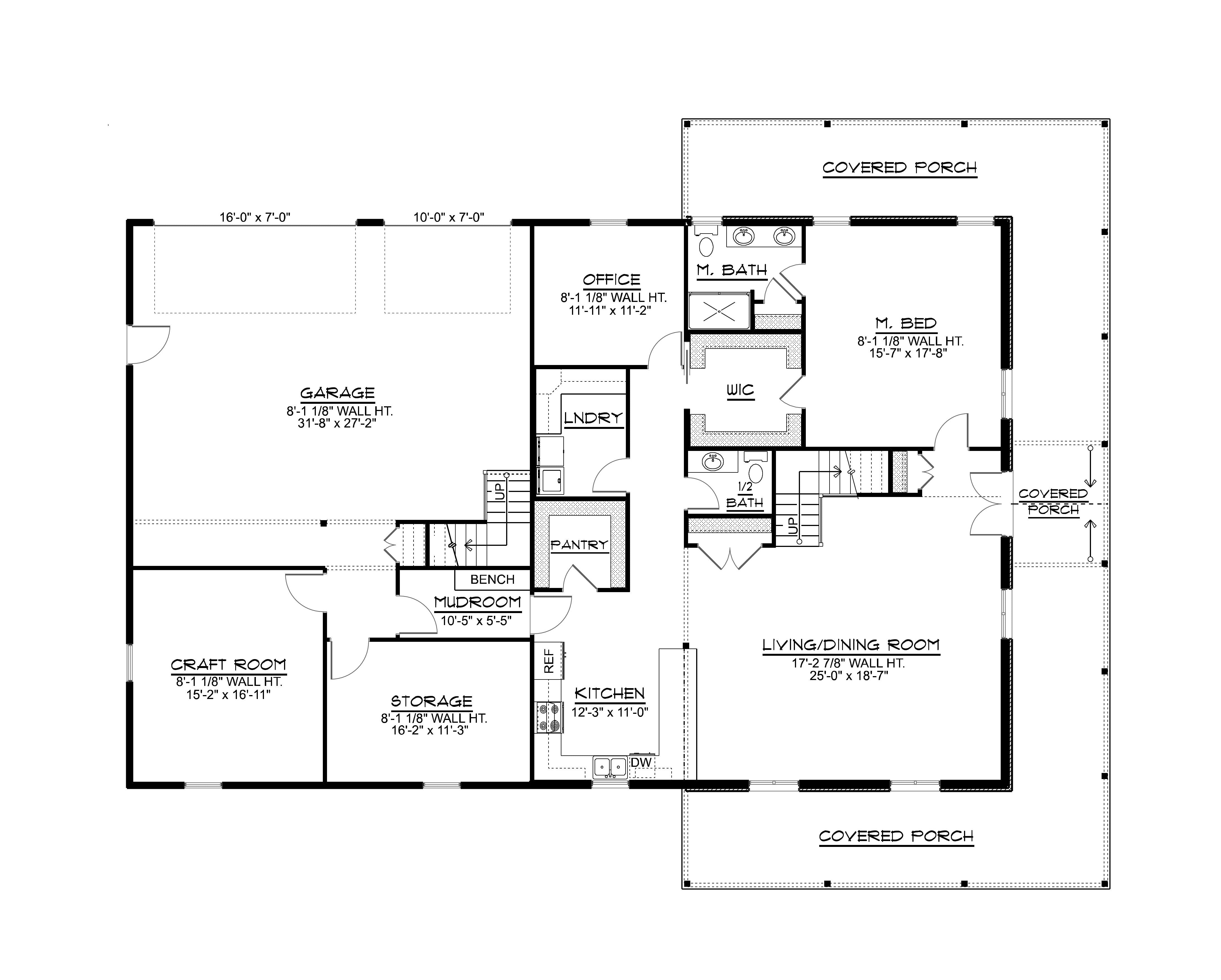

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,710 SF

Second Floor:

Second Floor + Apartment 1,685 SF

Total Heated Sq Ft:

3,395 SF

UNHEATED SQ FT

Total Unheated Area:

Second Floor 887 SF, Garage 1,4440 SF, Porch 900 SF = TOTAL 3,227 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

1,440 SF

Width:

78'

Depth:

61'

Height:

27'-5"

Foundation:

Concrete Slab

Main Roof Pitch:

5:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

8'

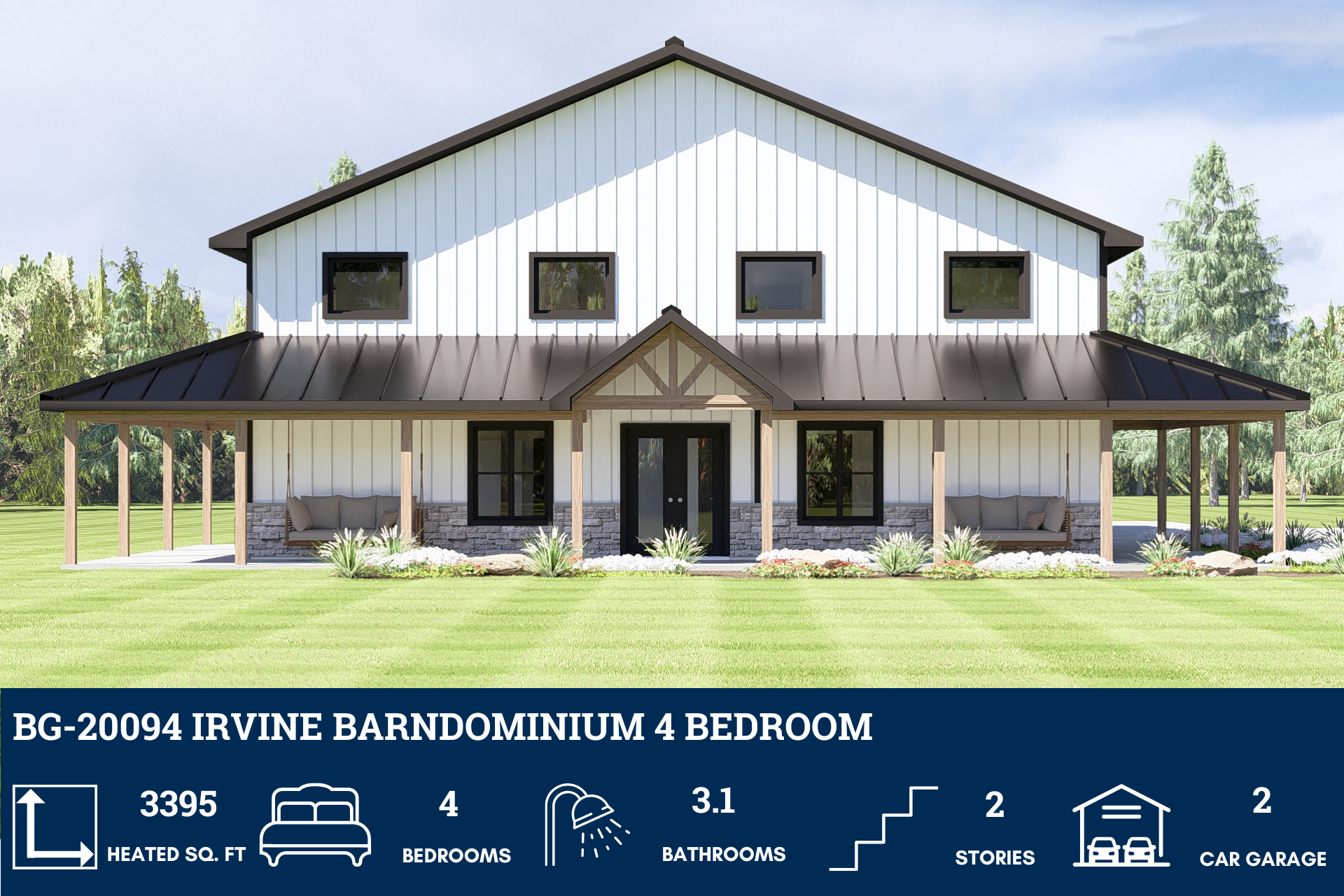

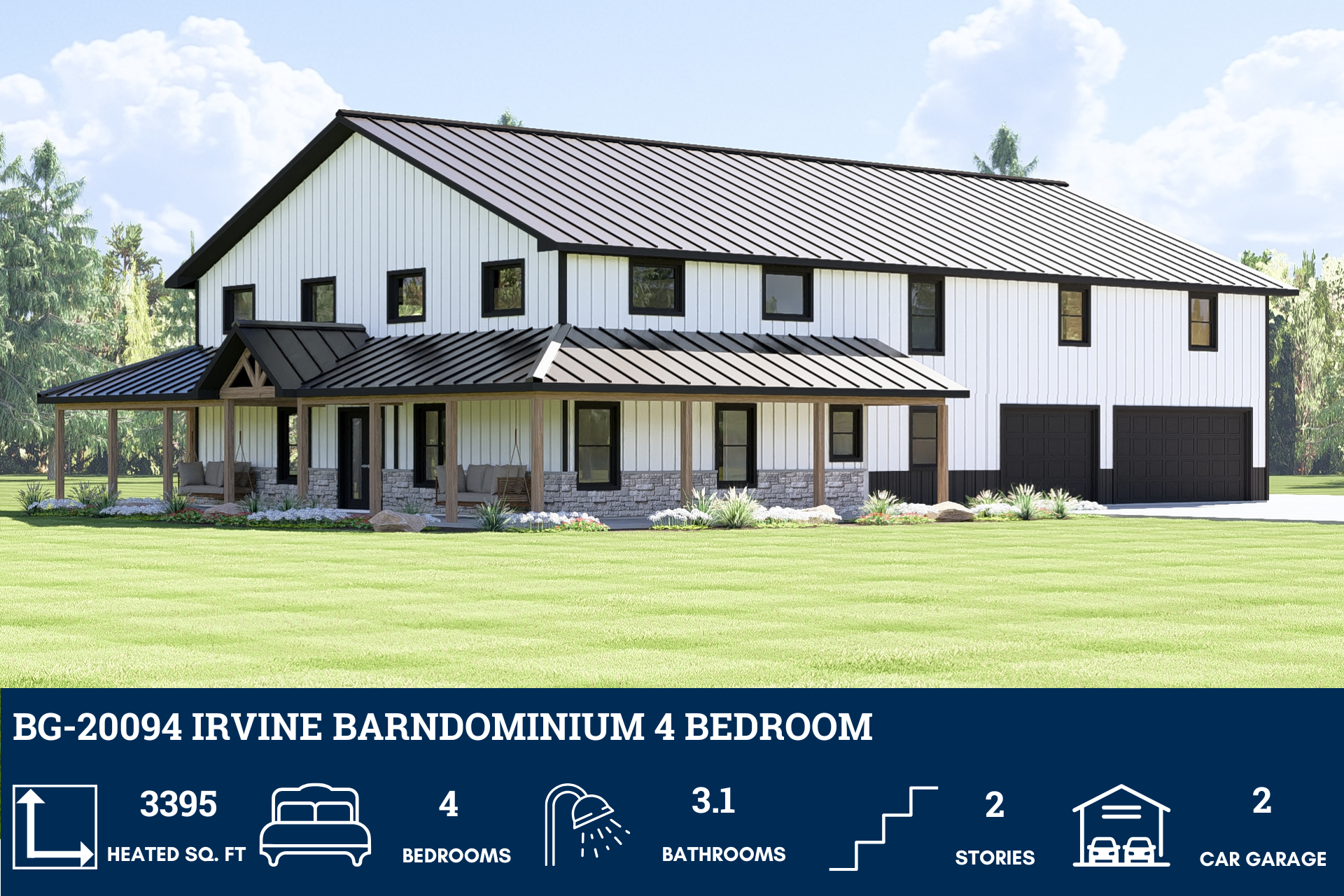

BG-20094 Irvine Barndominium House Plan



About this barndominium house plan:

  • 3,395 Heated Sq Ft
  • 44x52 living space dimension
  • 4 bedrooms
  • 3.1 bathrooms
  • Two Story
  • Open Concept
  • Loft
  • Unfinished Attic
  • Mudroom
  • Craft room
  • Storage room
  • Office
  • Multi-generation/guest suite
  • Wraparound porch
  • 1,440 Sq Ft Garage



  • This two-level layout spans 3,395 square feet of conditioned space across four bedrooms and 3.1 baths.

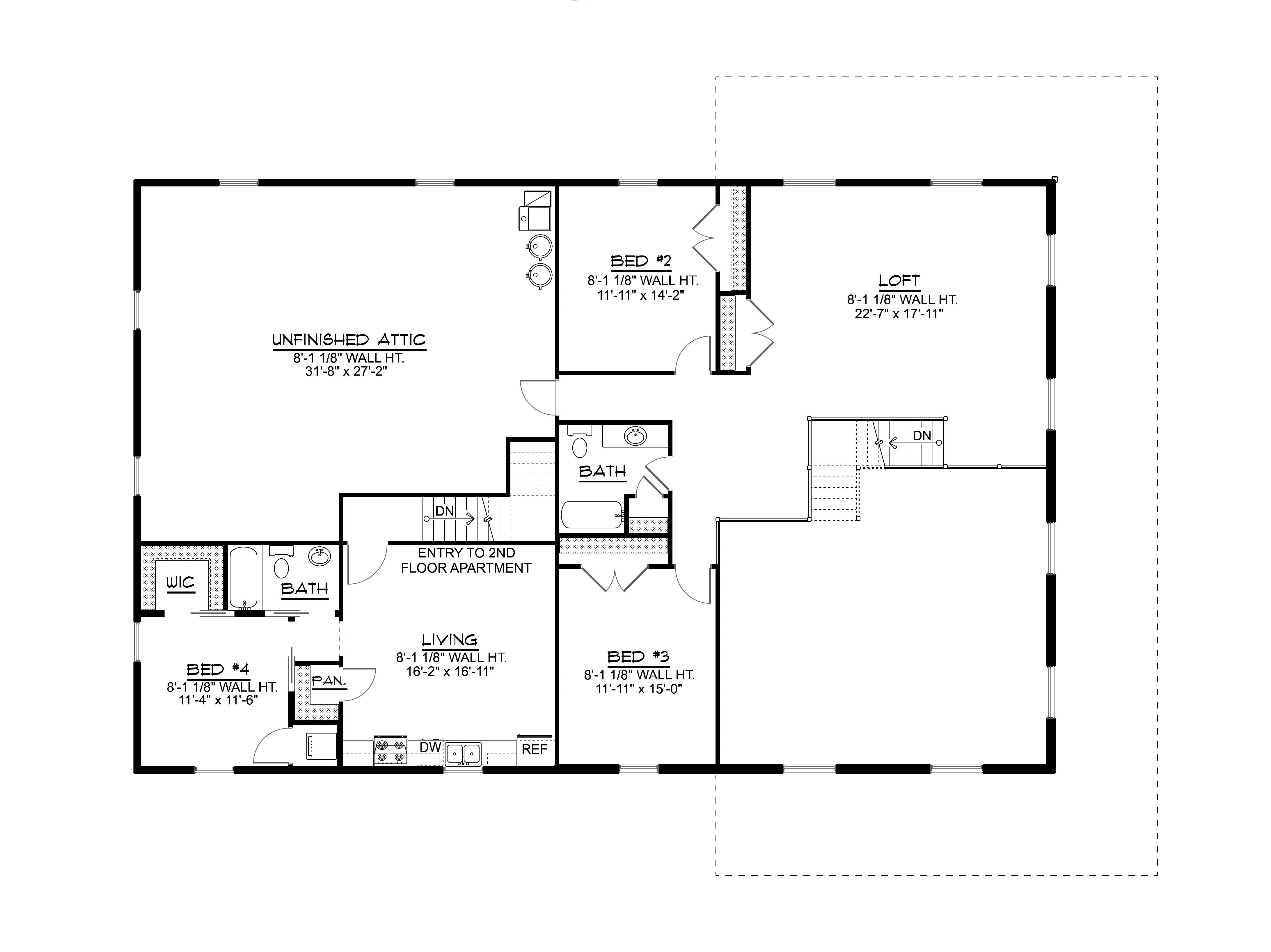

  • The second-floor apartment includes its own living area, dining space, a bedroom, and a full bath—ideal for extended family, guests, or independent living.
  • A spacious attic on the upper level offers flexible potential—perfect for seasonal storage or future expansion.
  • Located near the garage, the craft room and adjacent storage space provide dedicated zones for creativity, organization, and hands-on projects.
  • The mudroom connects the garage to the main living area and includes a built-in bench and direct access to the pantry—streamlining daily transitions and household flow.
  • Positioned near the master suite, the office offers a quiet workspace with generous dimensions and easy access to shared living zones.

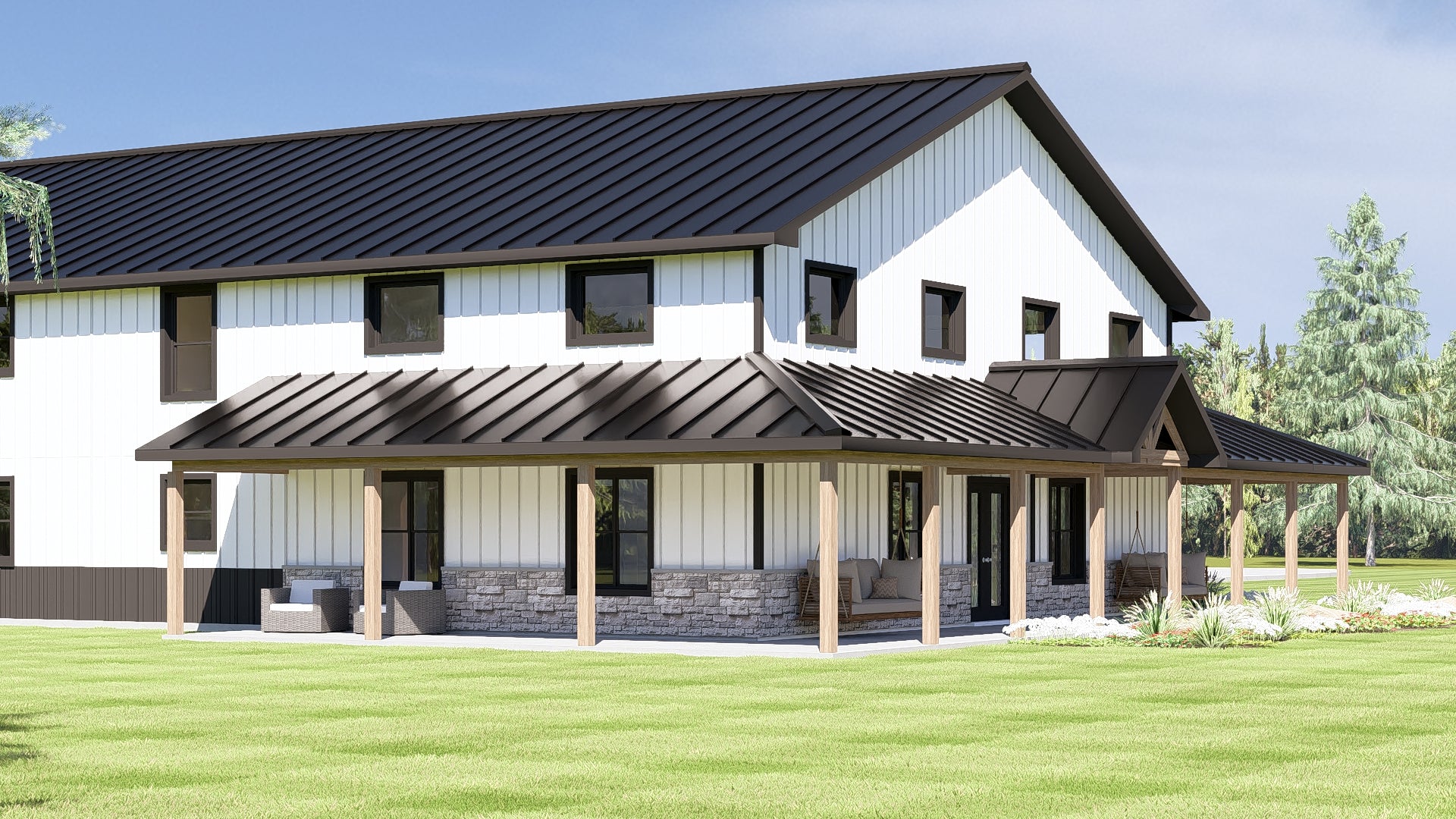

  • Covered porches extend across the front and rear of the home—creating shaded outdoor zones for lounging, entertaining, or quiet moments in the open air.
  • This oversized garage offers 1,440 square feet of functional space—ideal for vehicles, gear, and workshop needs, with direct access to the storage area.



What's included in BG-20094:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
