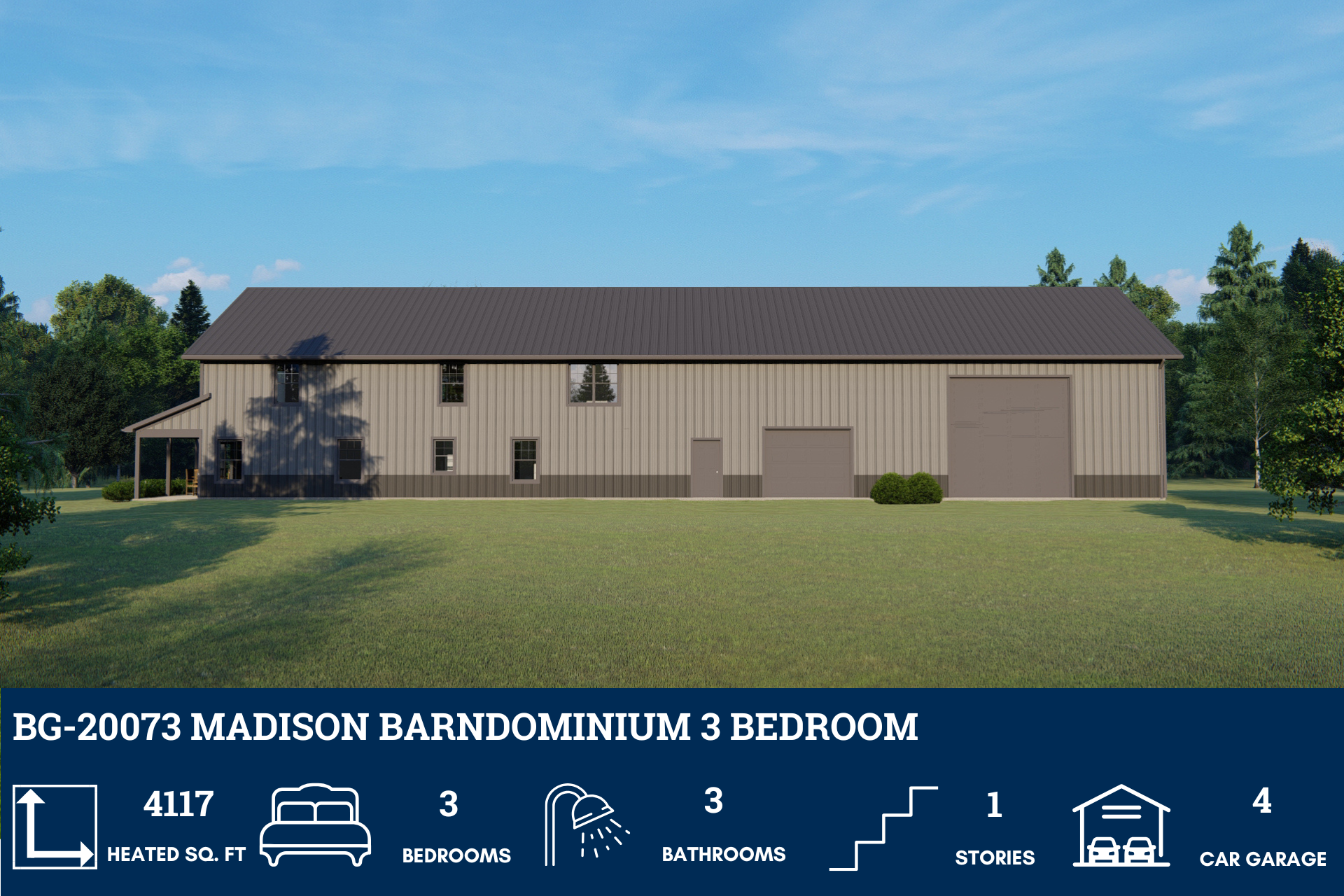

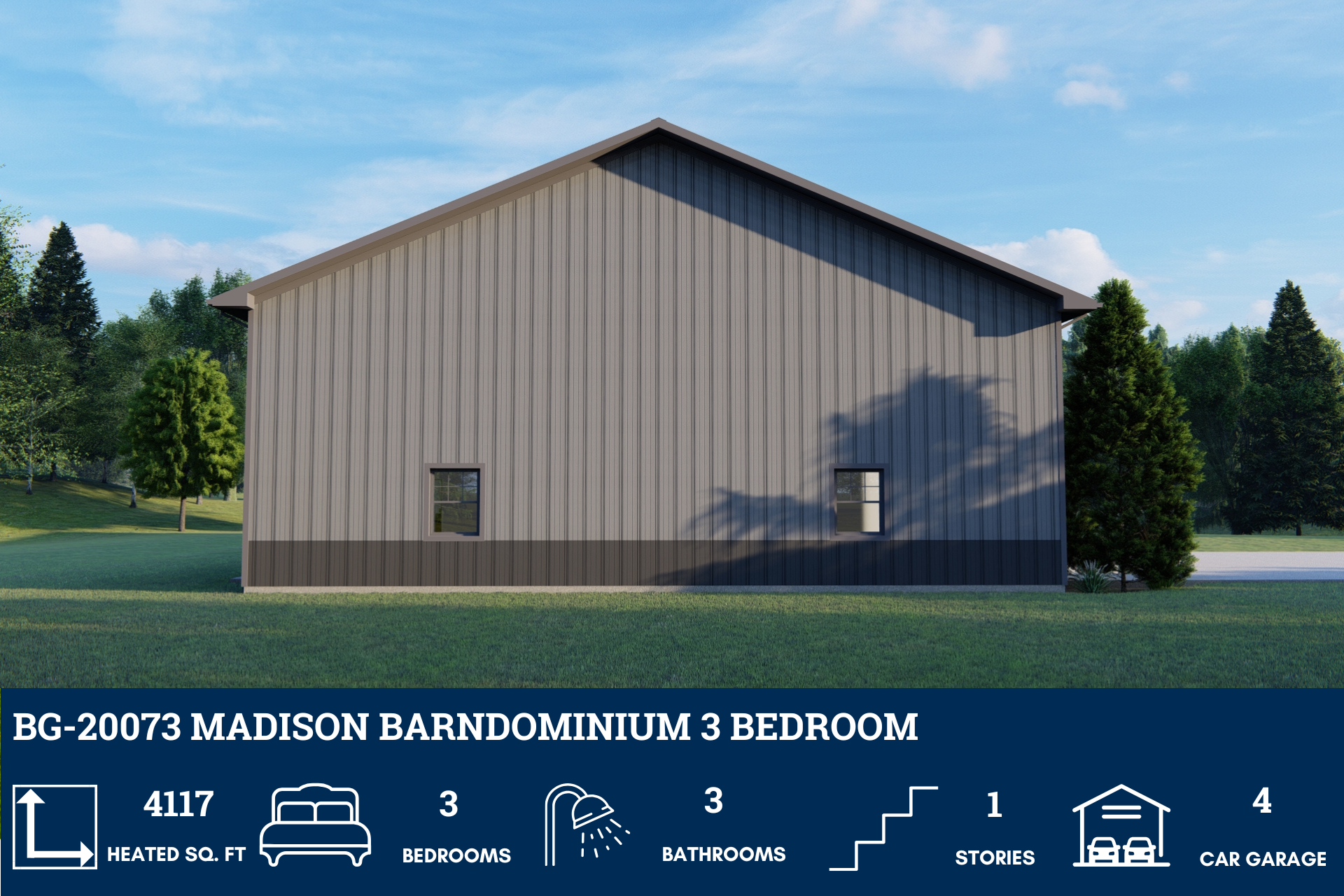

BG-20073 Madison Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 10

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,592 SF

Second Floor:

1,525 SF

Total Heated Sq Ft:

4,117 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 2,880 SF, Porch 711 SF = TOTAL 3,591 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

2

Garage Size:

2,880 SF

Width:

114'

Depth:

48'

Height:

26'-2"

Foundation:

Concrete Slab

Main Roof Pitch:

5:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

8'

BG-20073 Madison Barndominium House Plan



About this barndominium house plan:

  • 4,117 Heated Sq Ft
  • 3 bedroom
  • 3 bathrooms
  • Two Story
  • Open Concept
  • Office
  • Loft
  • Mech/storage room
  • Covered porch
  • 2,880 Sq Ft Garage



  • This two-story layout spans 4,117 square feet of conditioned space—offering three bedrooms and three full baths, designed for spacious living with room to grow.
  • A dedicated office provides a quiet workspace or creative retreat—and can easily convert into a fourth bedroom for added flexibility.
  • The laundry room connects both to the garage and the interior—streamlining chore flow and making everyday transitions seamless.
  • Mechanical and storage zones are thoughtfully placed: one upstairs for systems access, and another in the garage for tools, gear, or seasonal items.
  • A 2,880-square-foot garage offers space for four vehicles with room to spare—ideal for hobbyists, gearheads, or anyone who values storage and flexibility.





What's included in BG-20073:

Cover Sheet

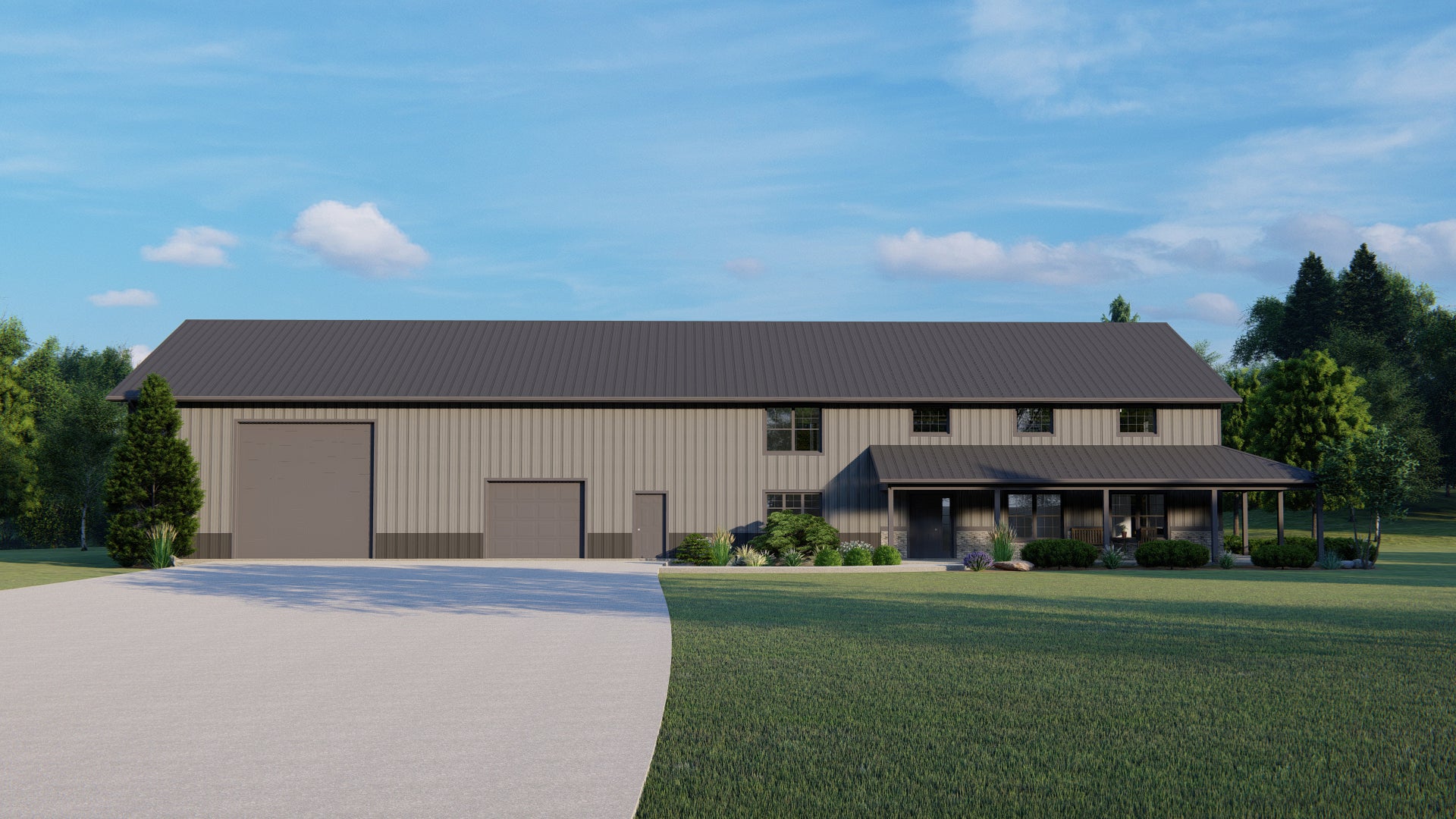

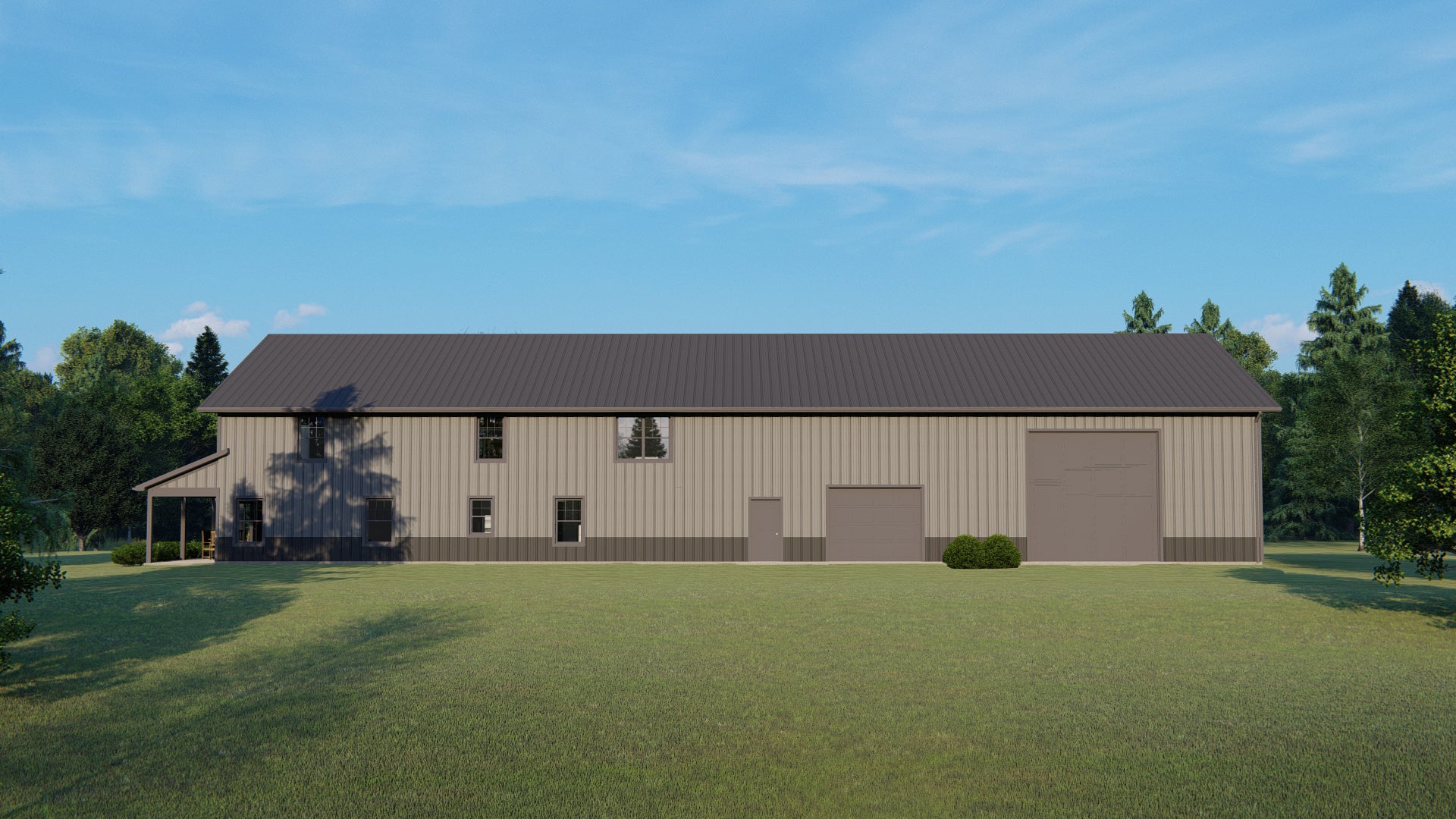

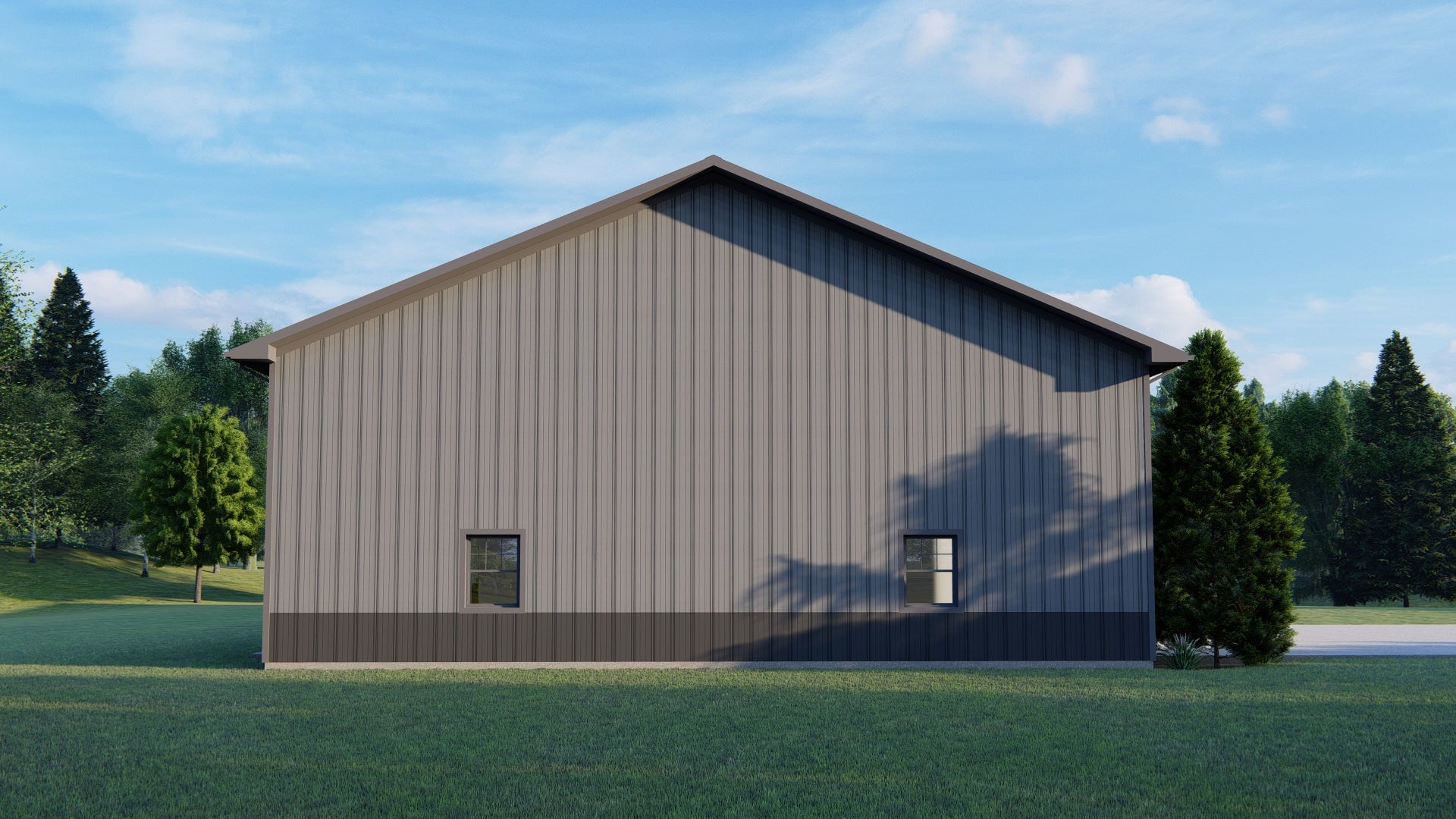

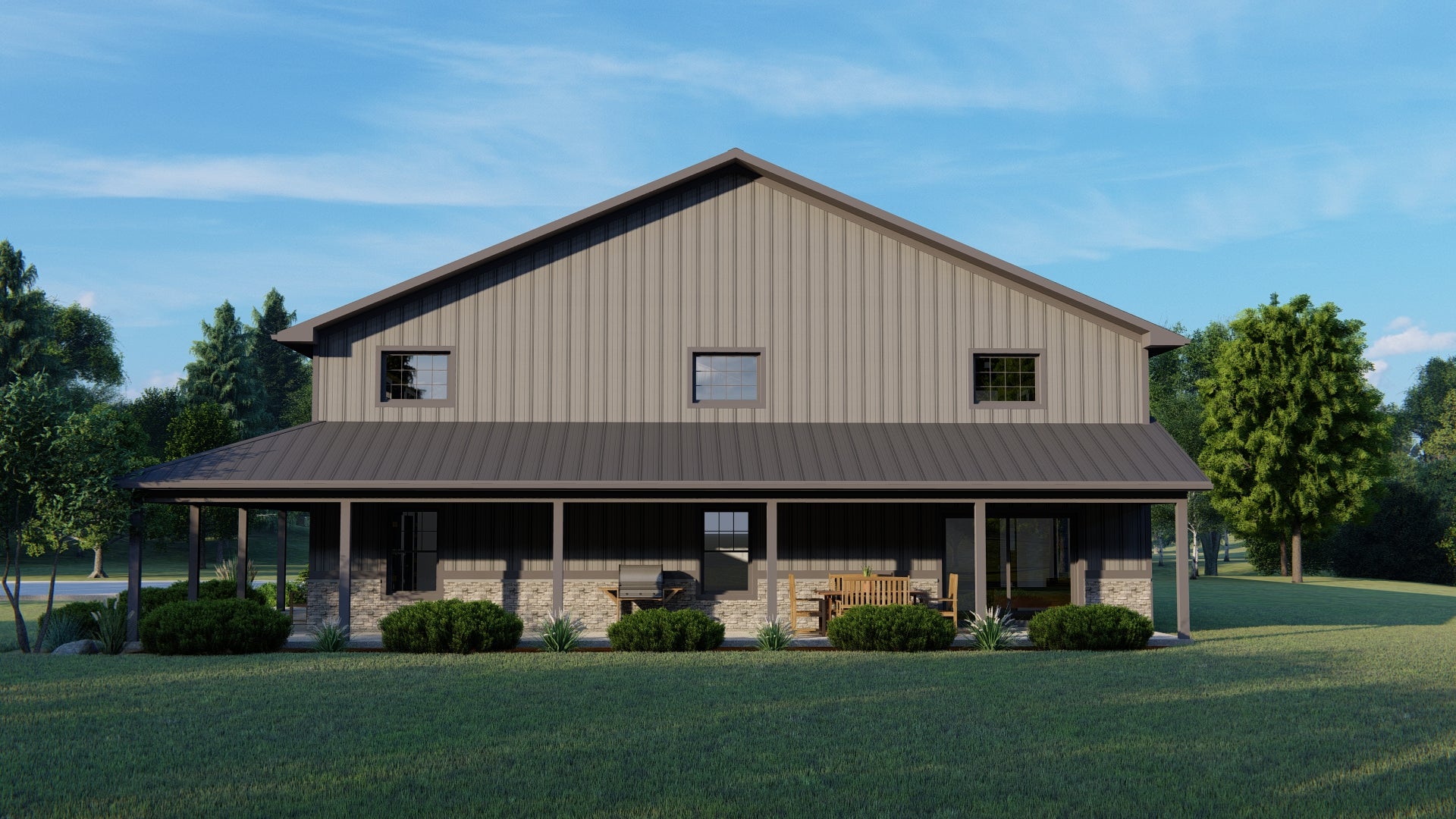

Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan

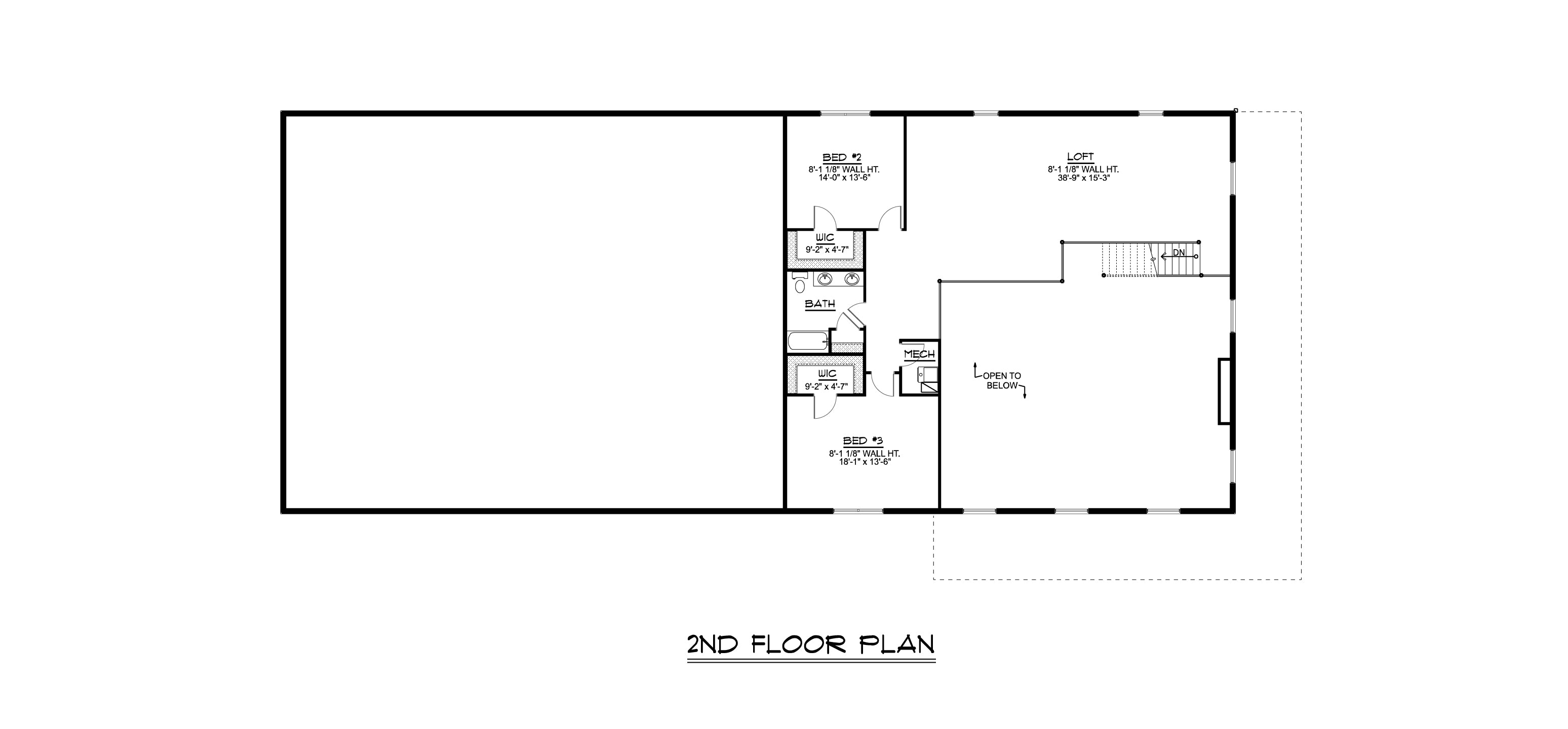

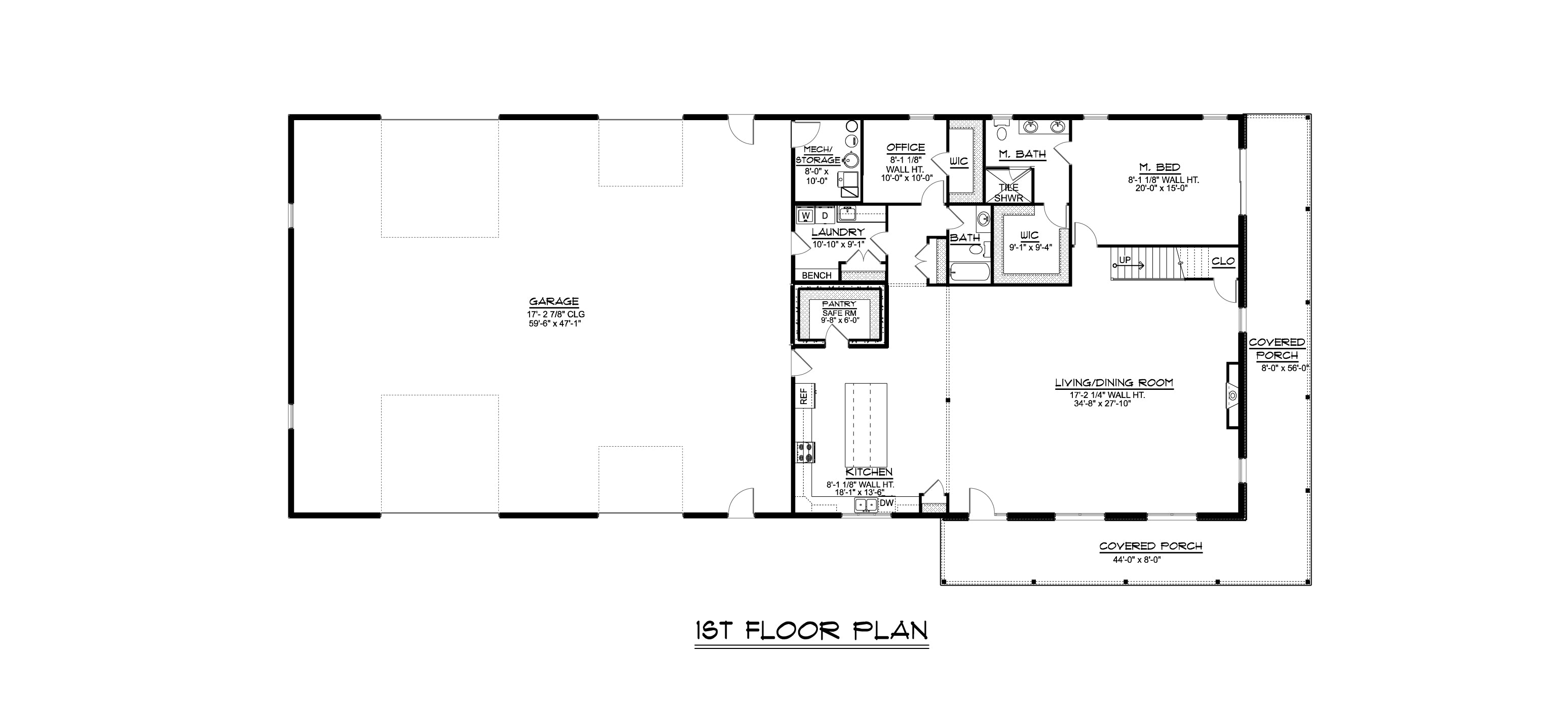

Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
