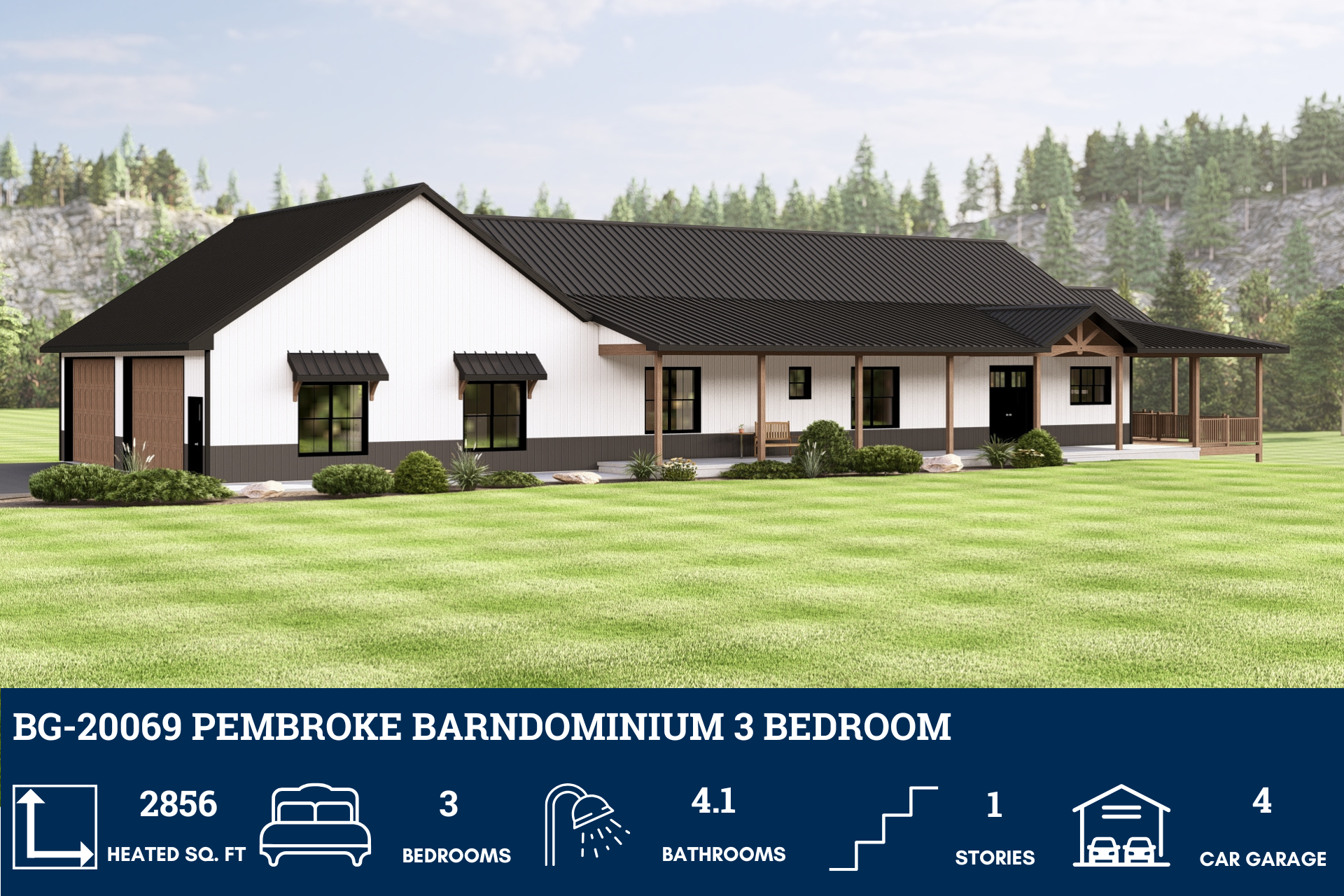

BG-20069 Pembroke Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 19

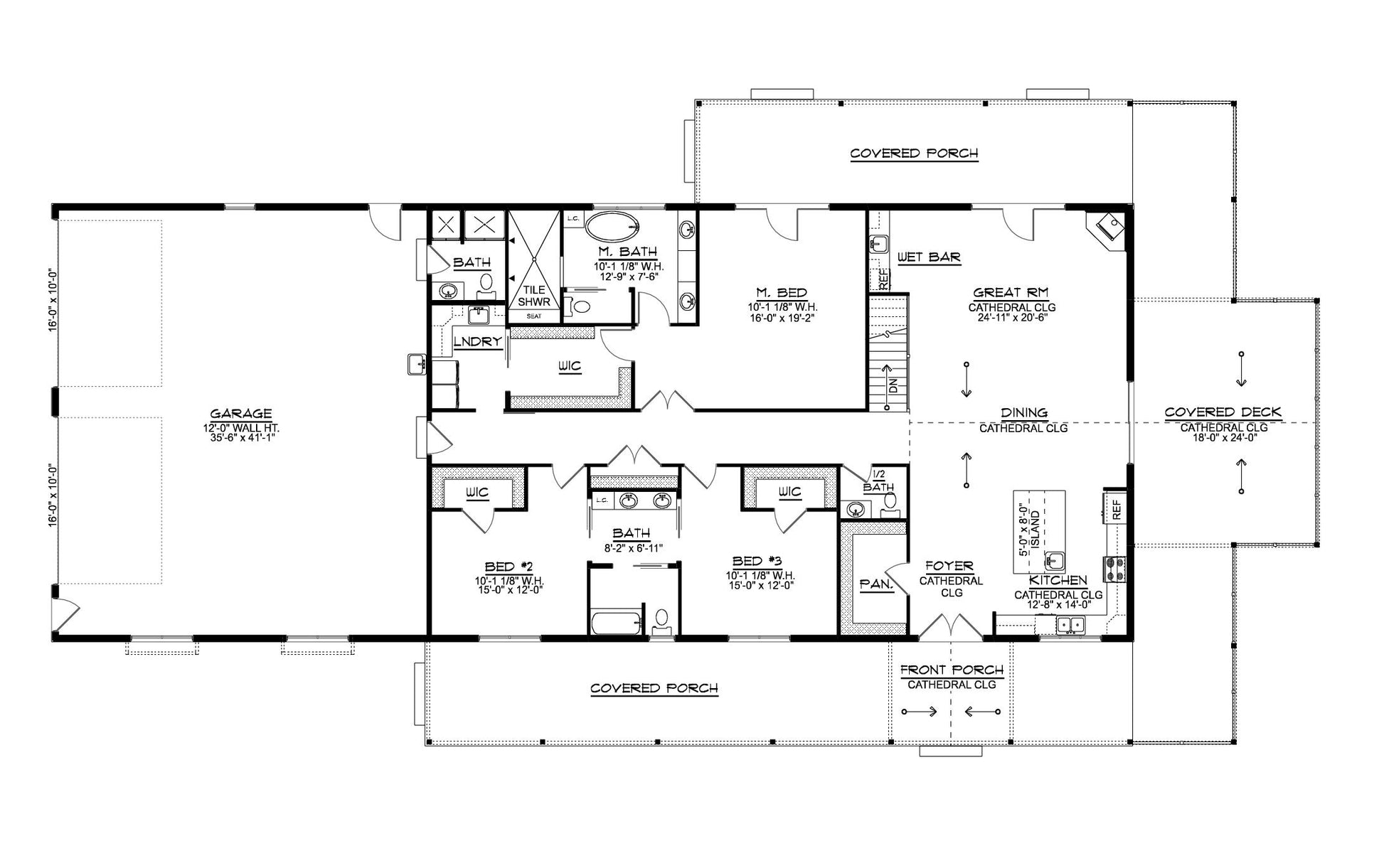

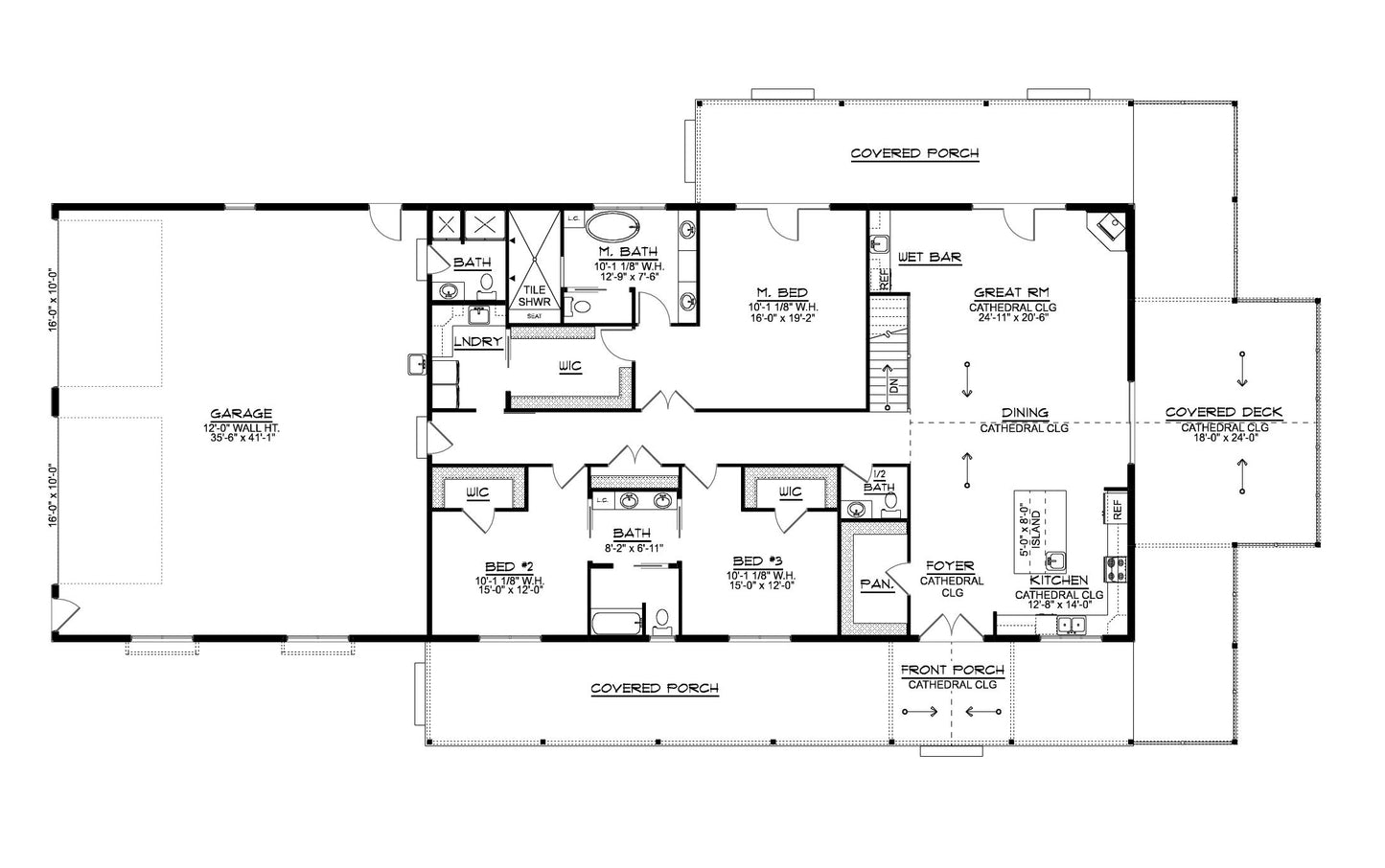

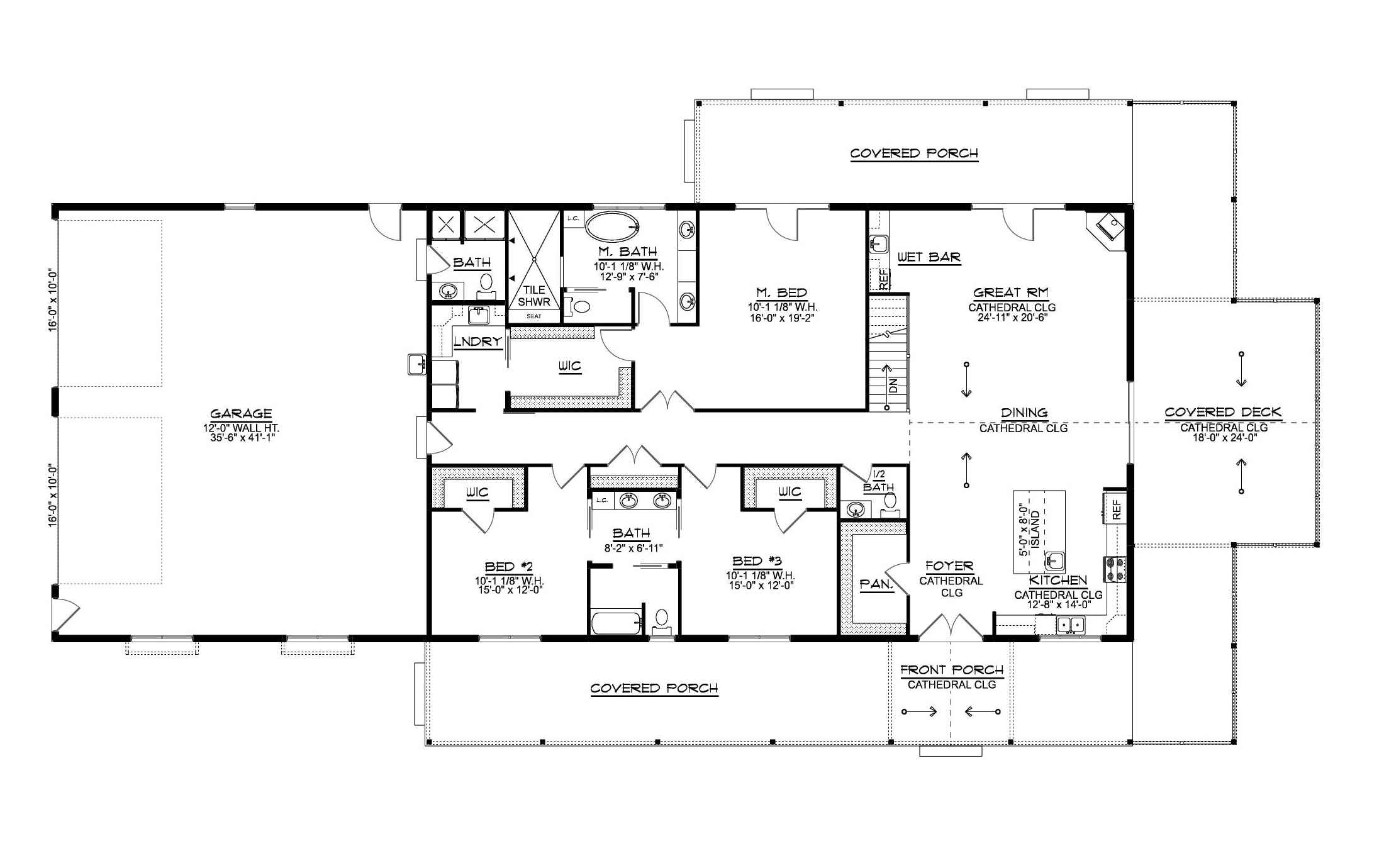

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,856 SF

Second Floor:

None

Total Heated Sq Ft:

2,856 SF

UNHEATED SQ FT

Total Unheated Area:

Basement 2,856 SF, Garage 1,512 SF, Deck 812 SF, Porch 1,100 SF, Patio 438 SF = TOTAL 6,718 SF

Carport:

None

Bedrooms:

3

Full Baths:

4

Floors:

1

Garage Size:

1,512 SF

Width:

122'

Depth:

62'

Height:

23'-6"

Foundation:

Walkout Basement

Main Roof Pitch:

7:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

10'

BG-20069 Pembroke Barndominium House Plan

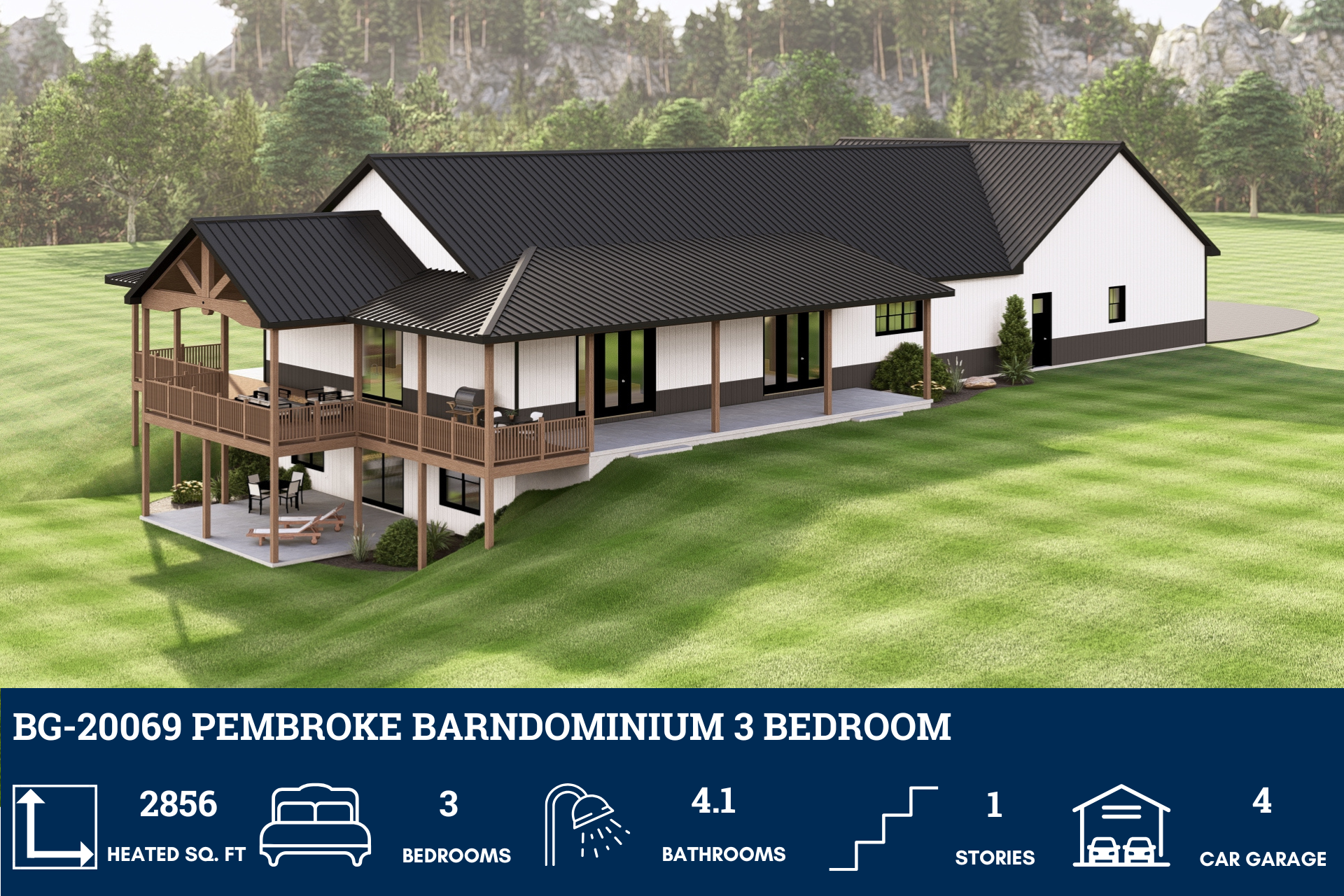

About this barndominium house plan:

  • 2,856 Heated Sq Ft
  • 3 bedrooms
  • 4.1 bathrooms
  • Single Story
  • Open Concept
  • Great room and Living room
  • Foyer
  • Bar
  • Safe room
  • Storage rooms
  • Wraparound porch
  • Walkout basement
  • Deck
  • Patio
  • 1,512 Sq Ft Shop



  • This expansive layout offers 2,856 square feet of conditioned living, with three bedrooms and a generous mix of full and half baths—crafted for comfort, privacy, and effortless hosting.
  • Two distinct gathering spaces—one on the main floor, one tucked below. The great room anchors the heart of the home, while the basement living room offers a quieter retreat.
  • A built-in bar elevates the great room—perfect for casual evenings, celebratory toasts, or weekend hosting with style.

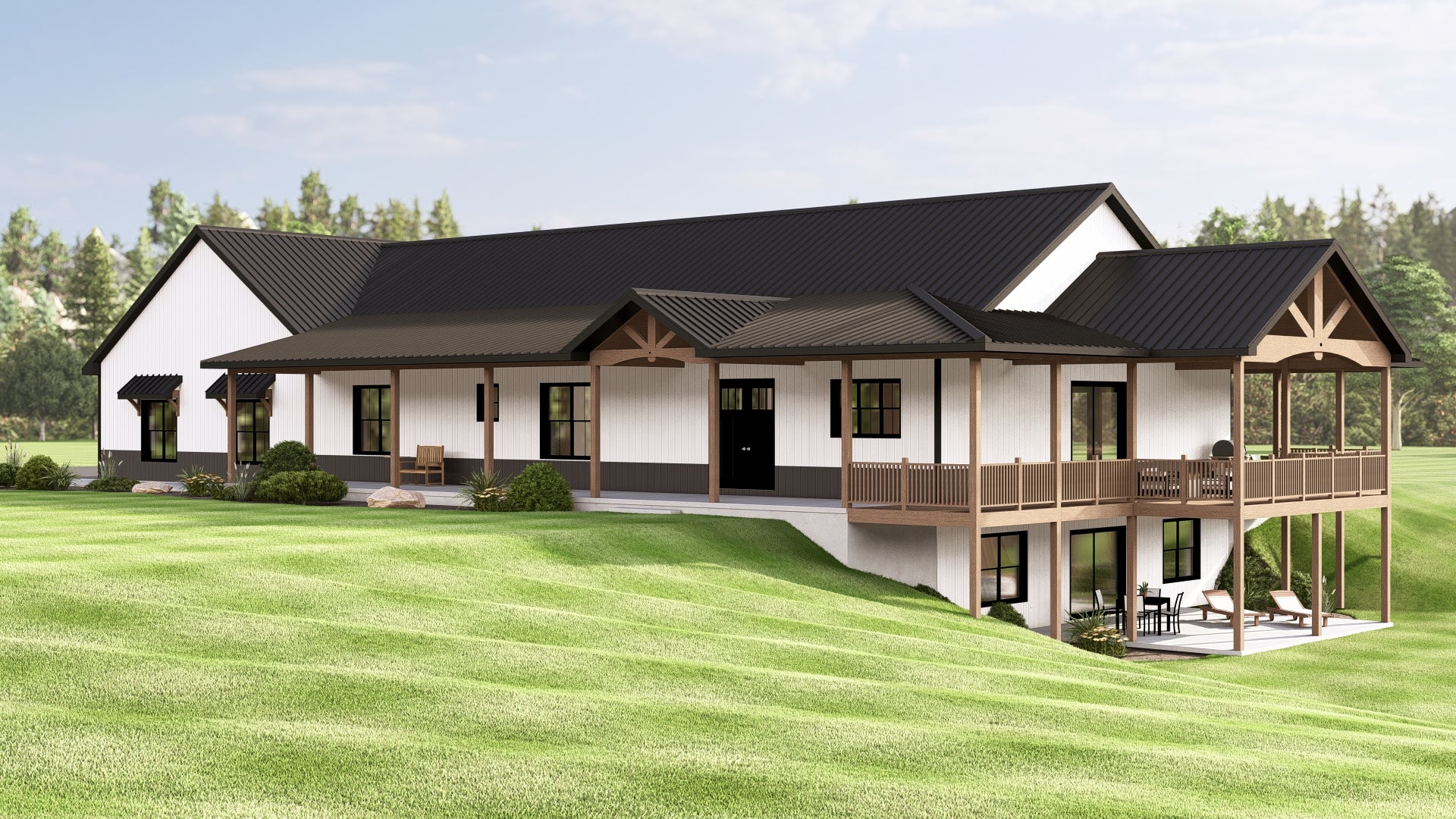

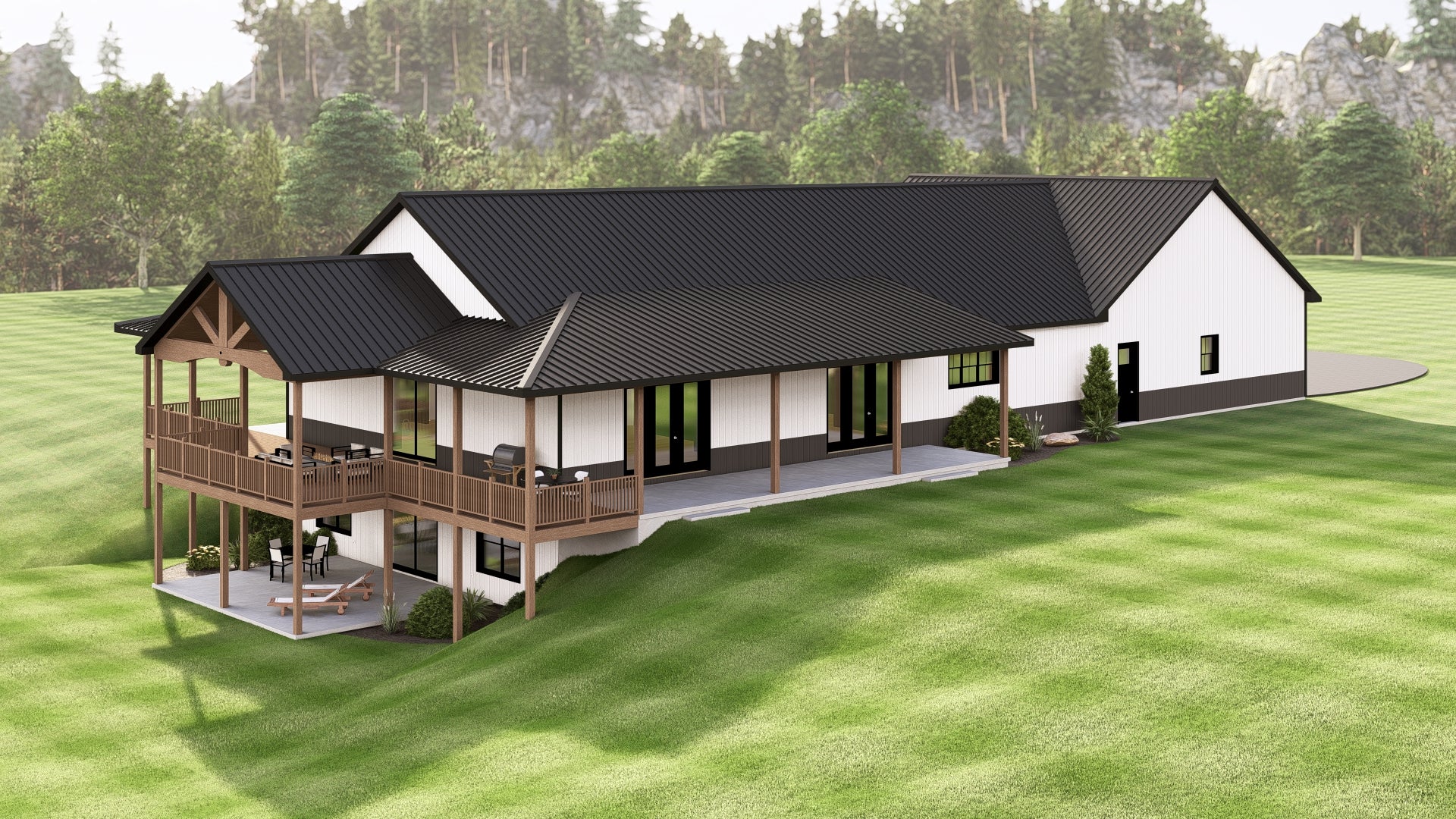

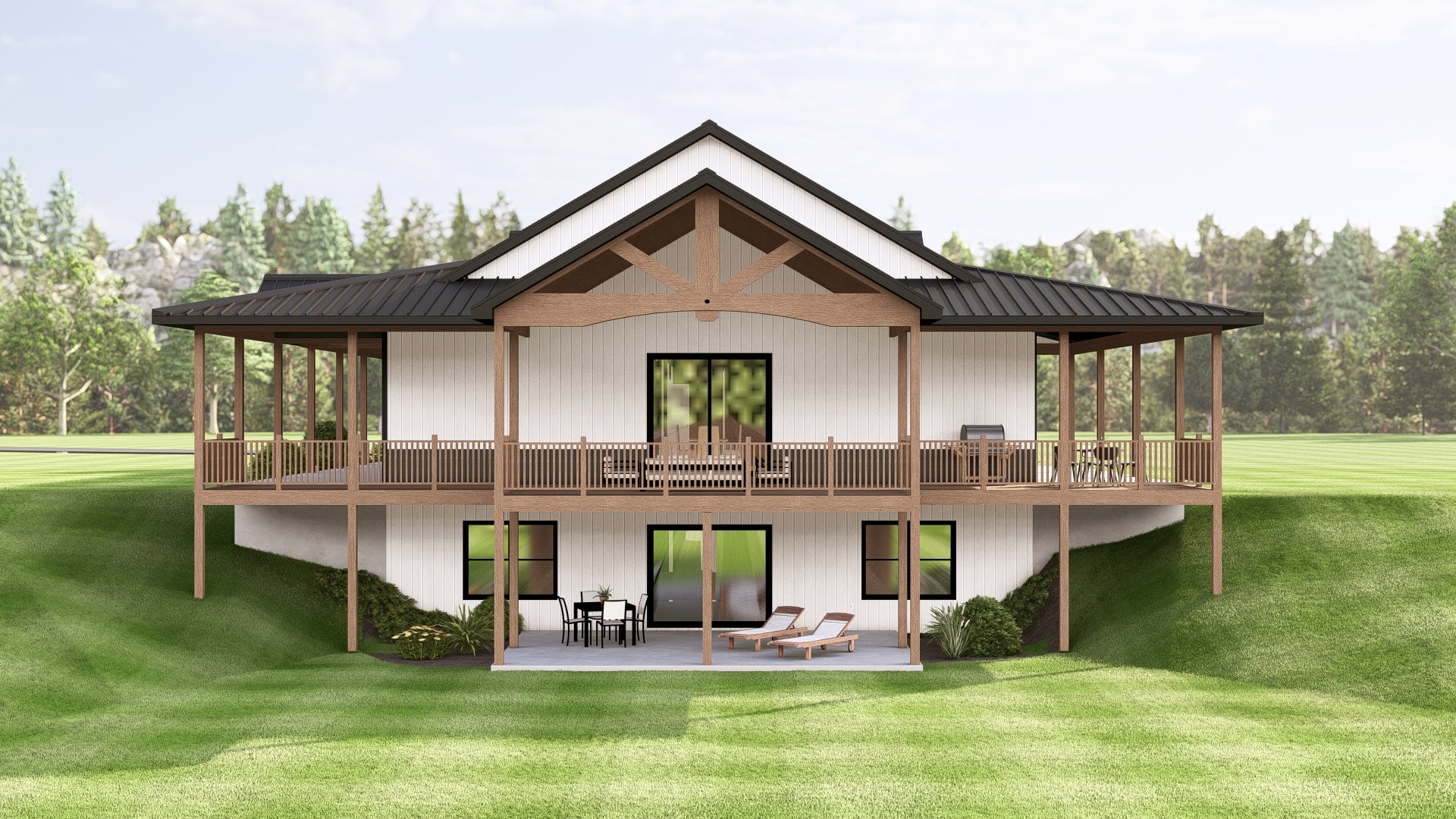

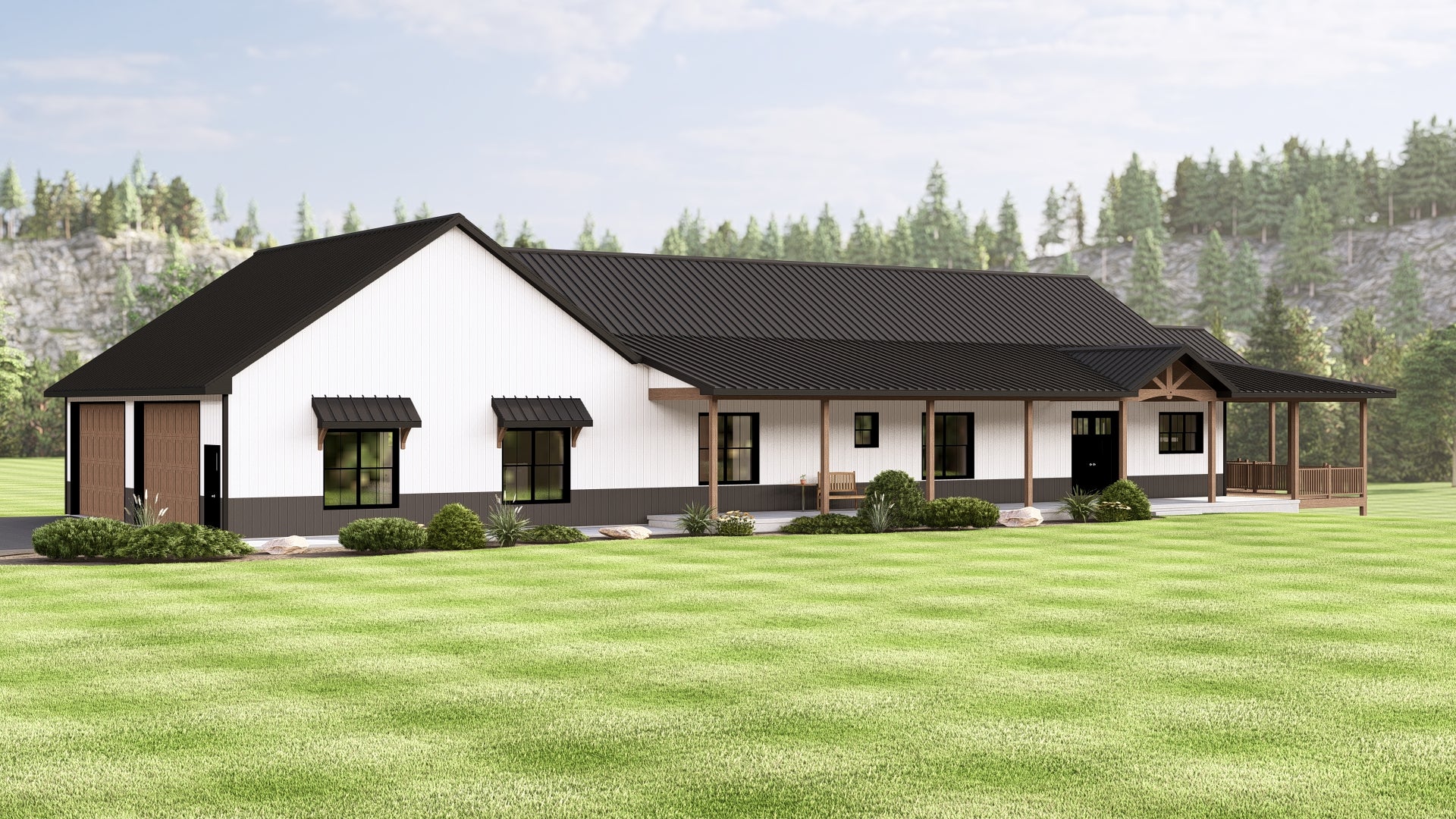

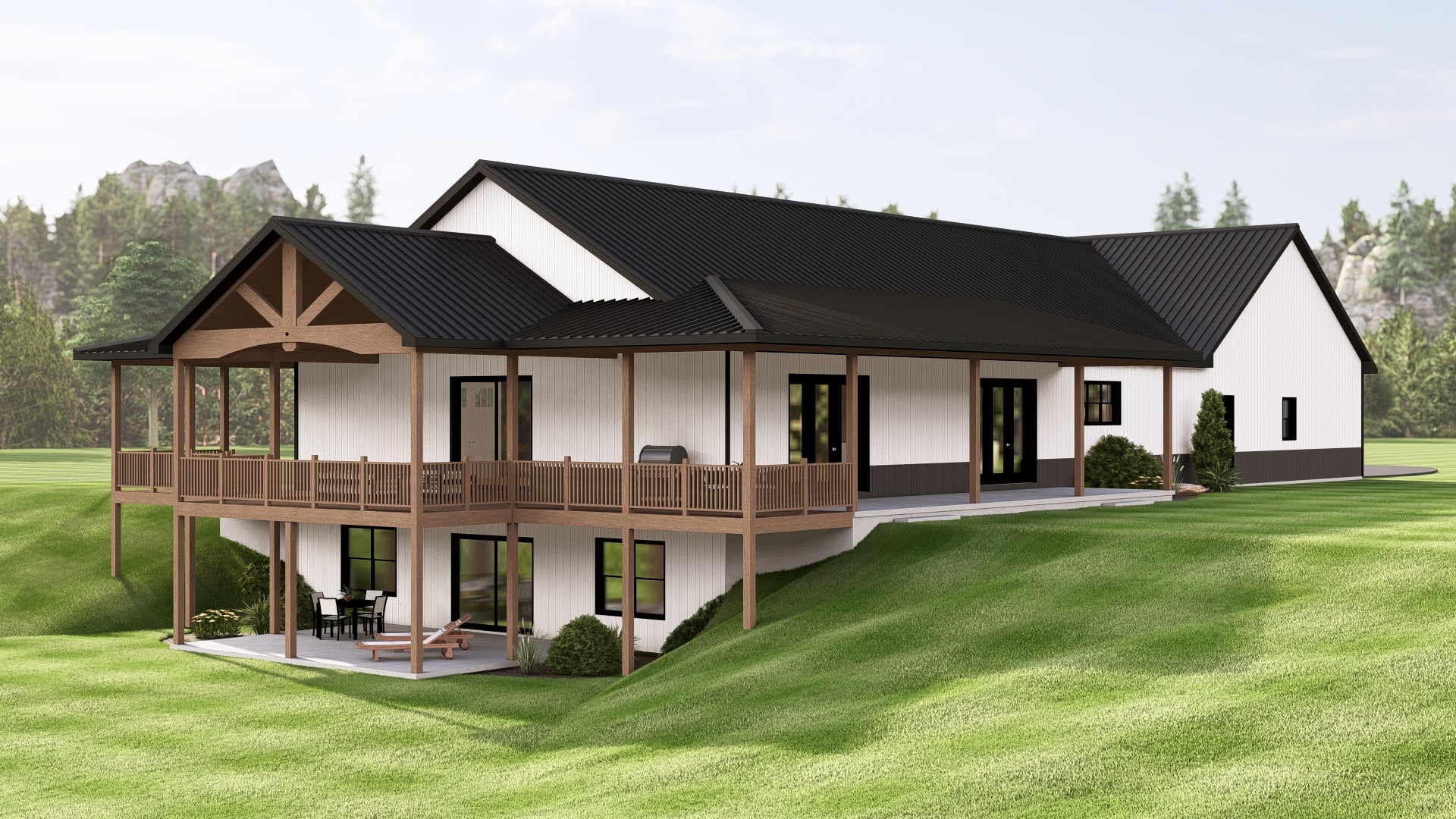

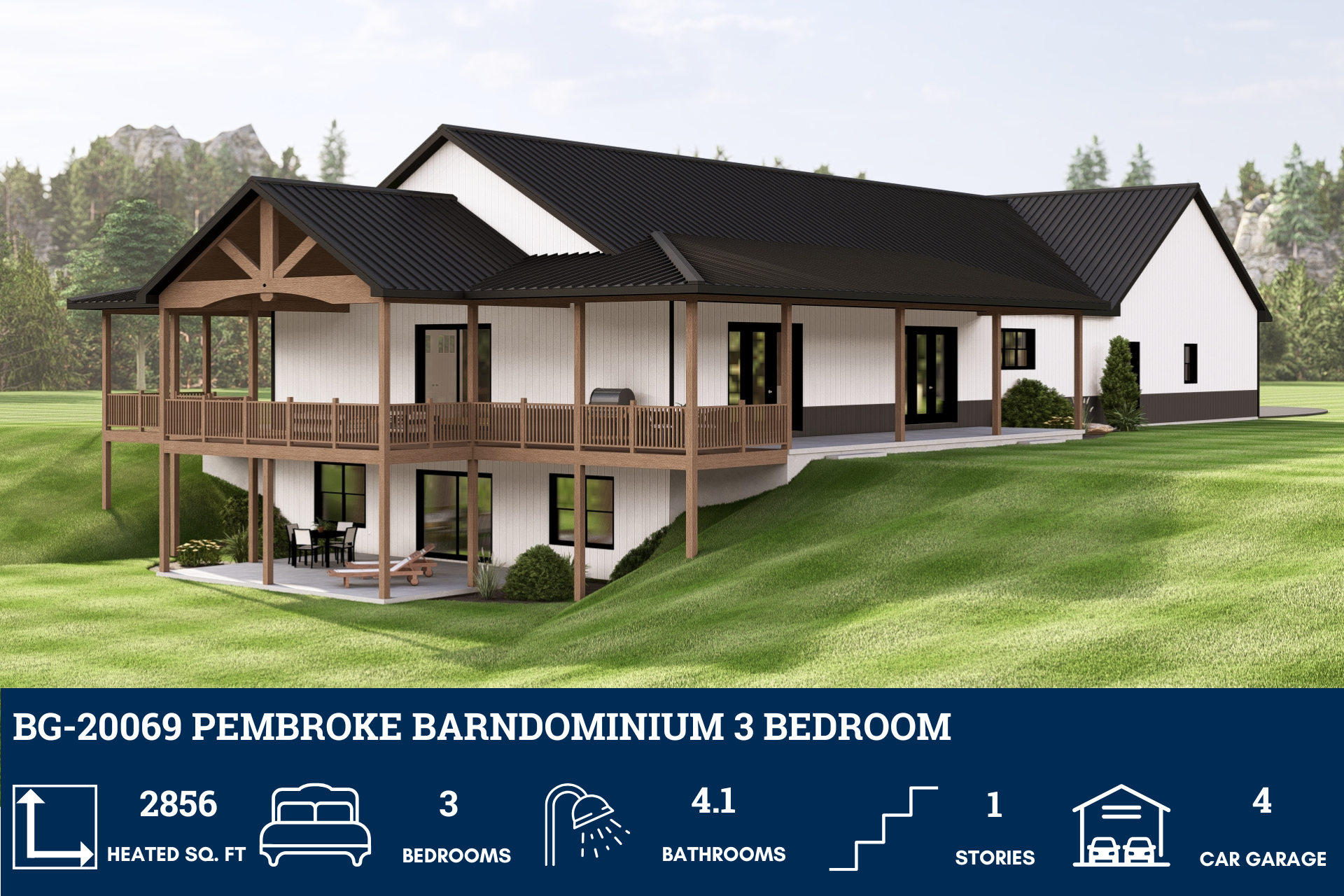

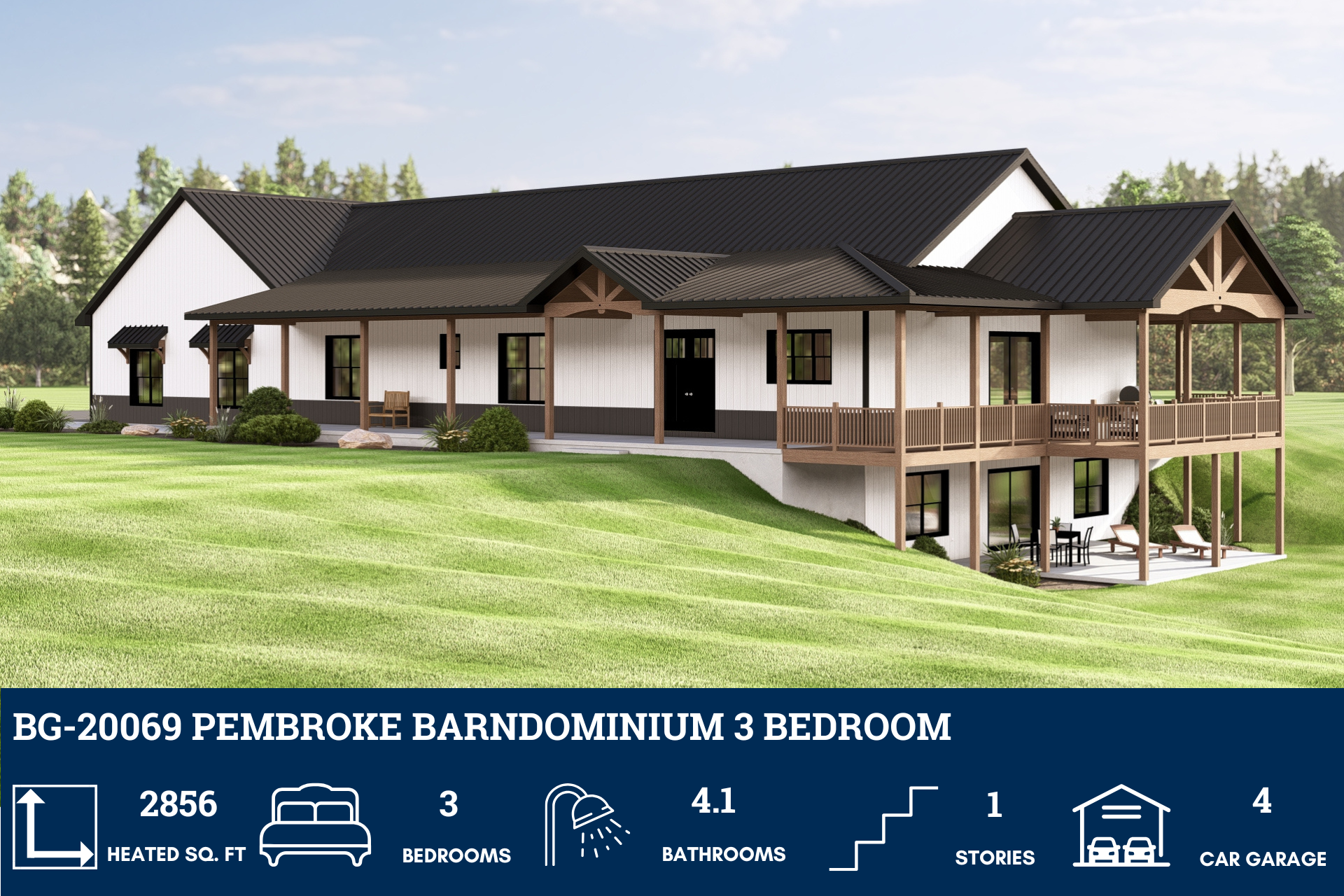

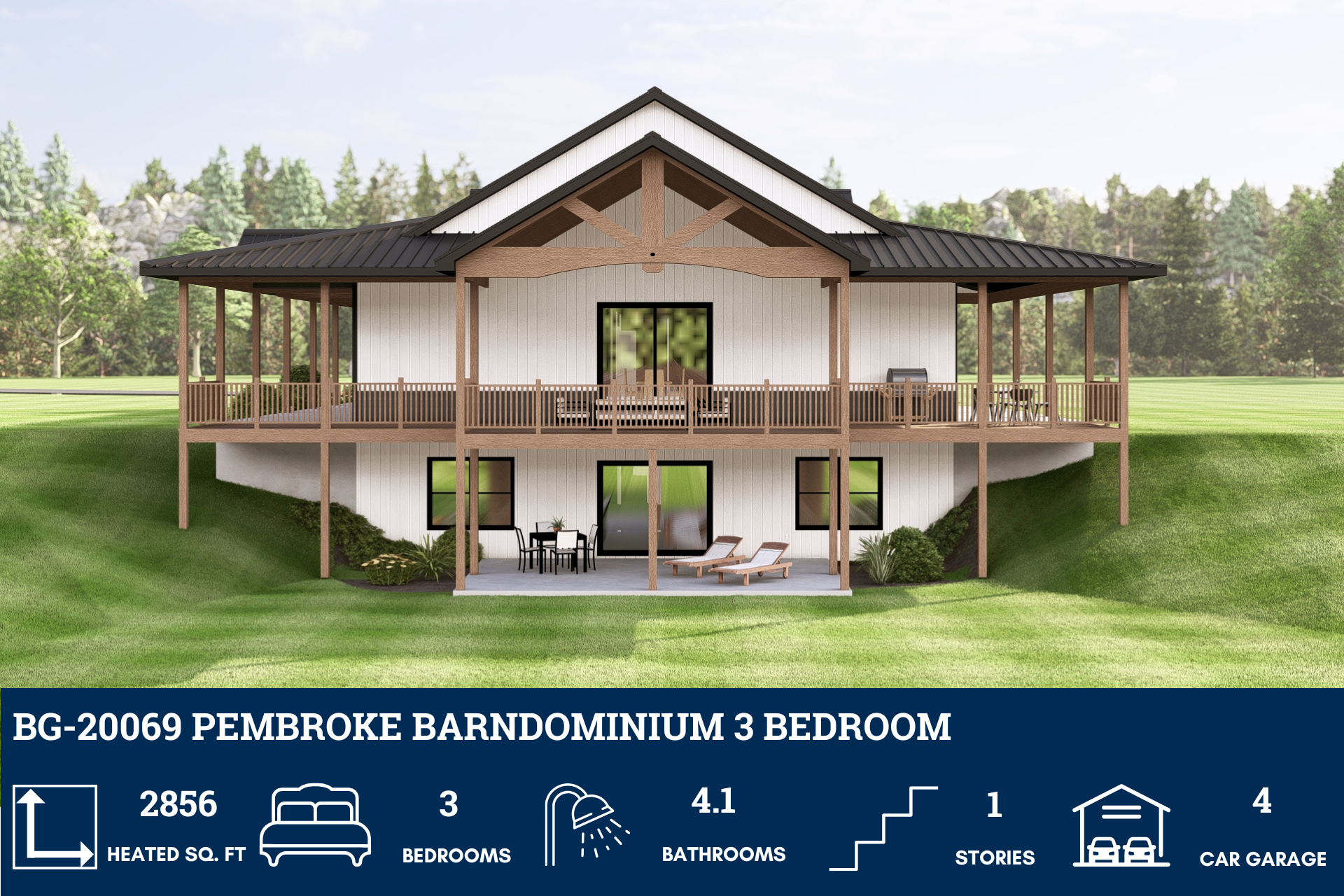

  • Outdoor living flows across a covered wraparound porch and side deck, all seamlessly connected. Below, a walkout basement opens to a patio—offering layered outdoor zones for every mood and moment.

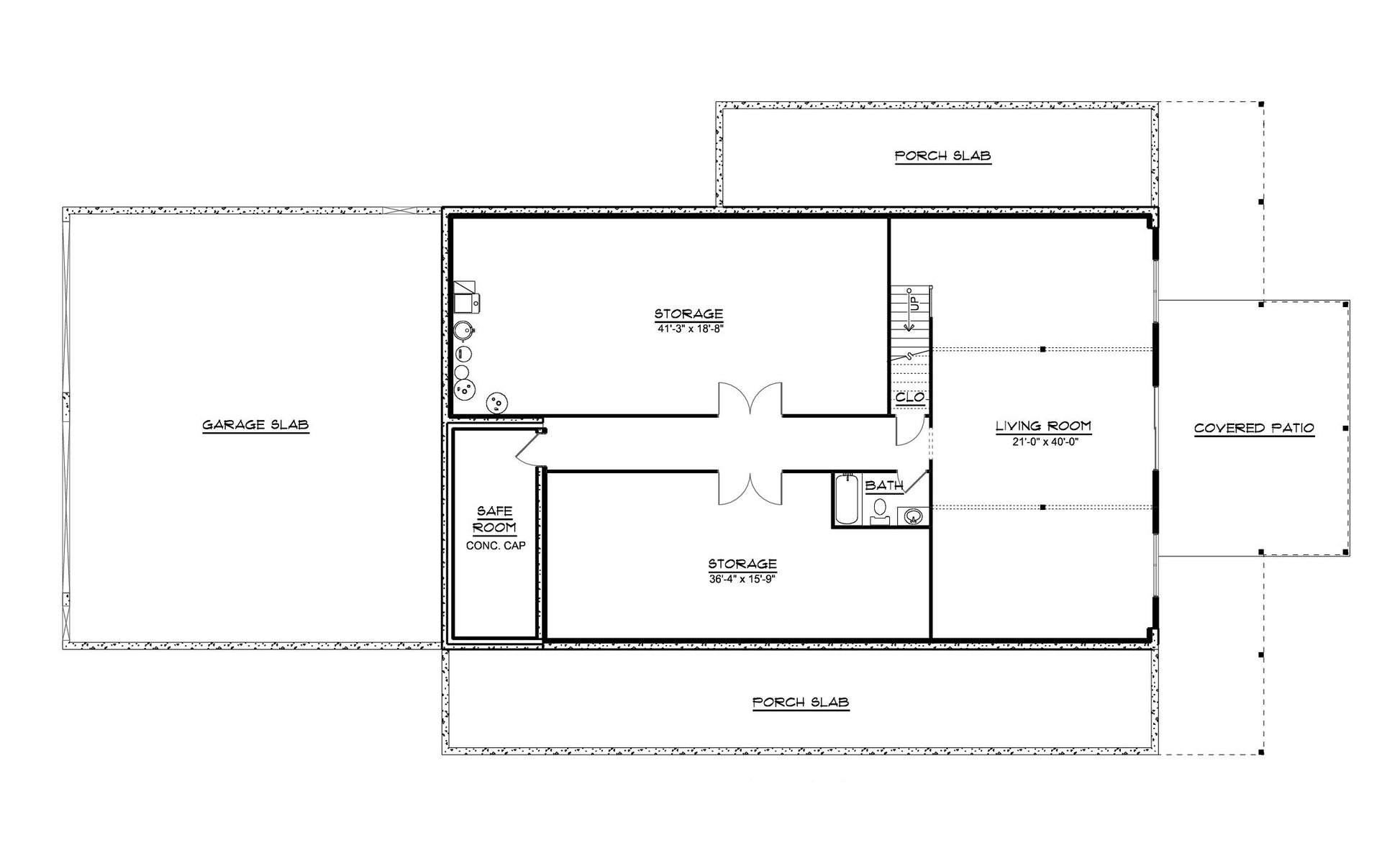

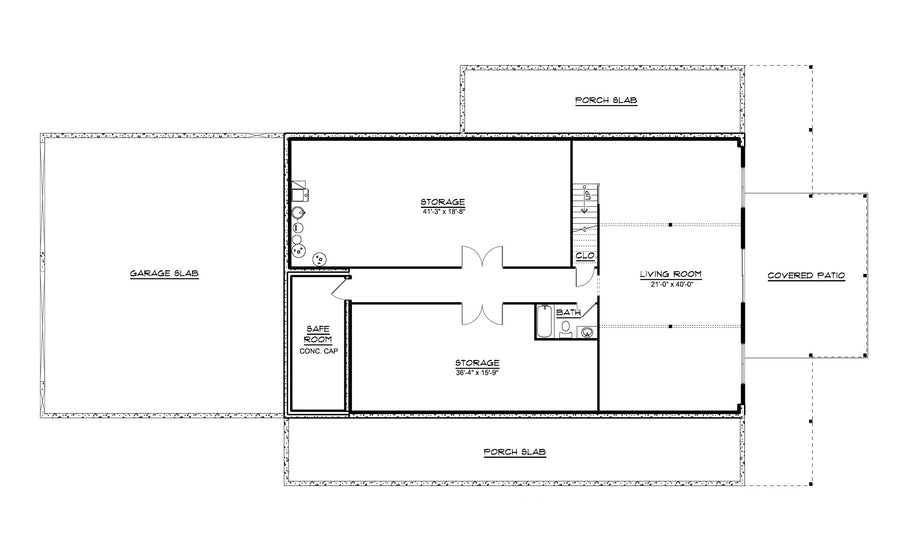

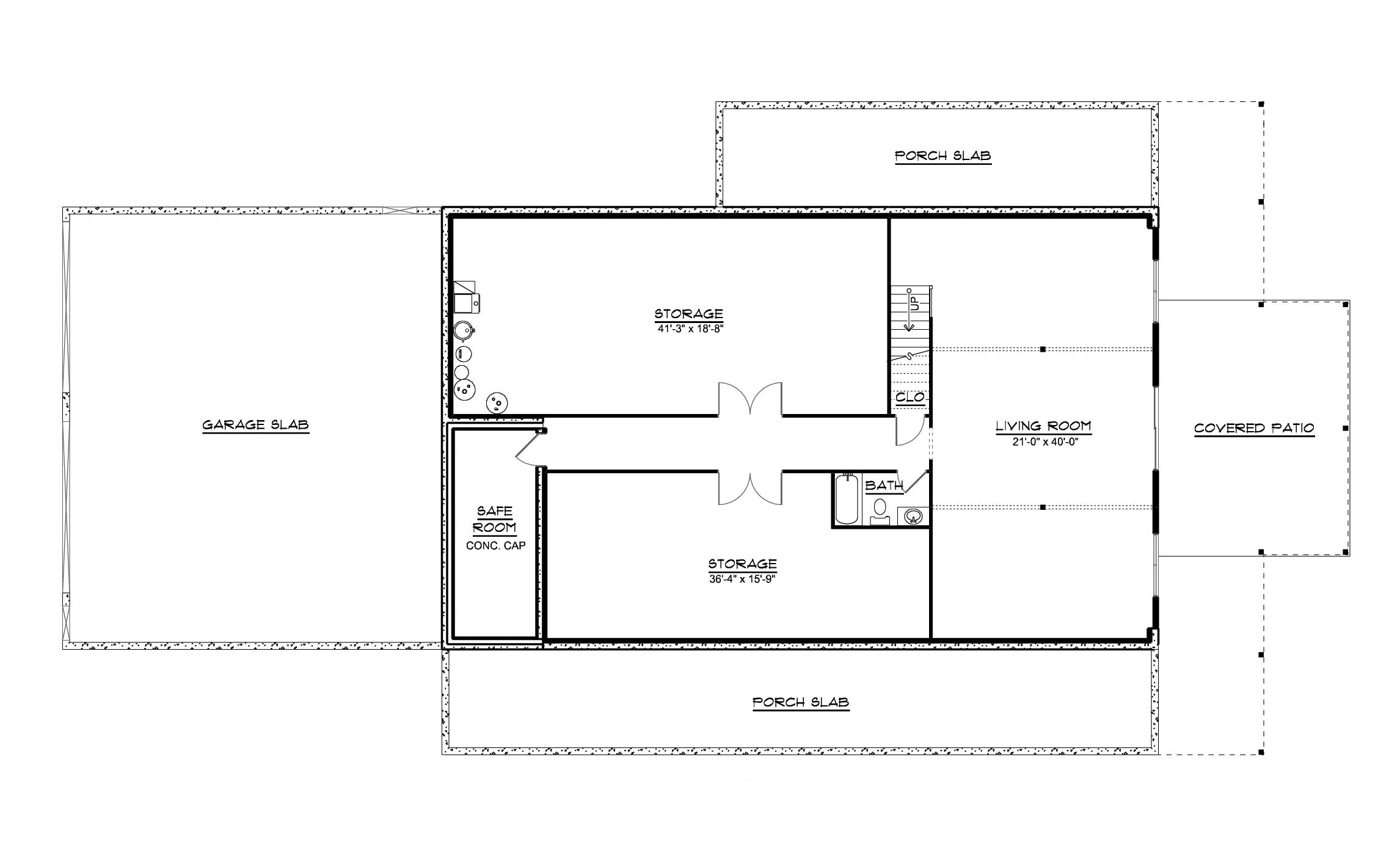

  • The basement includes a secure safe room and dedicated storage spaces.
  • A well-proportioned 1,512-square-foot garage designed to fit four vehicles with ease—offering clean lines, functional flow, and room for gear, tools, or weekend projects without excess.



What's included in BG-20069:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
