BG-20066 Wentworth Barndominium House Plan

$1,250.00 USD
$1,250.00 USD
Sale Sold out
Add To Wishlist
1 18

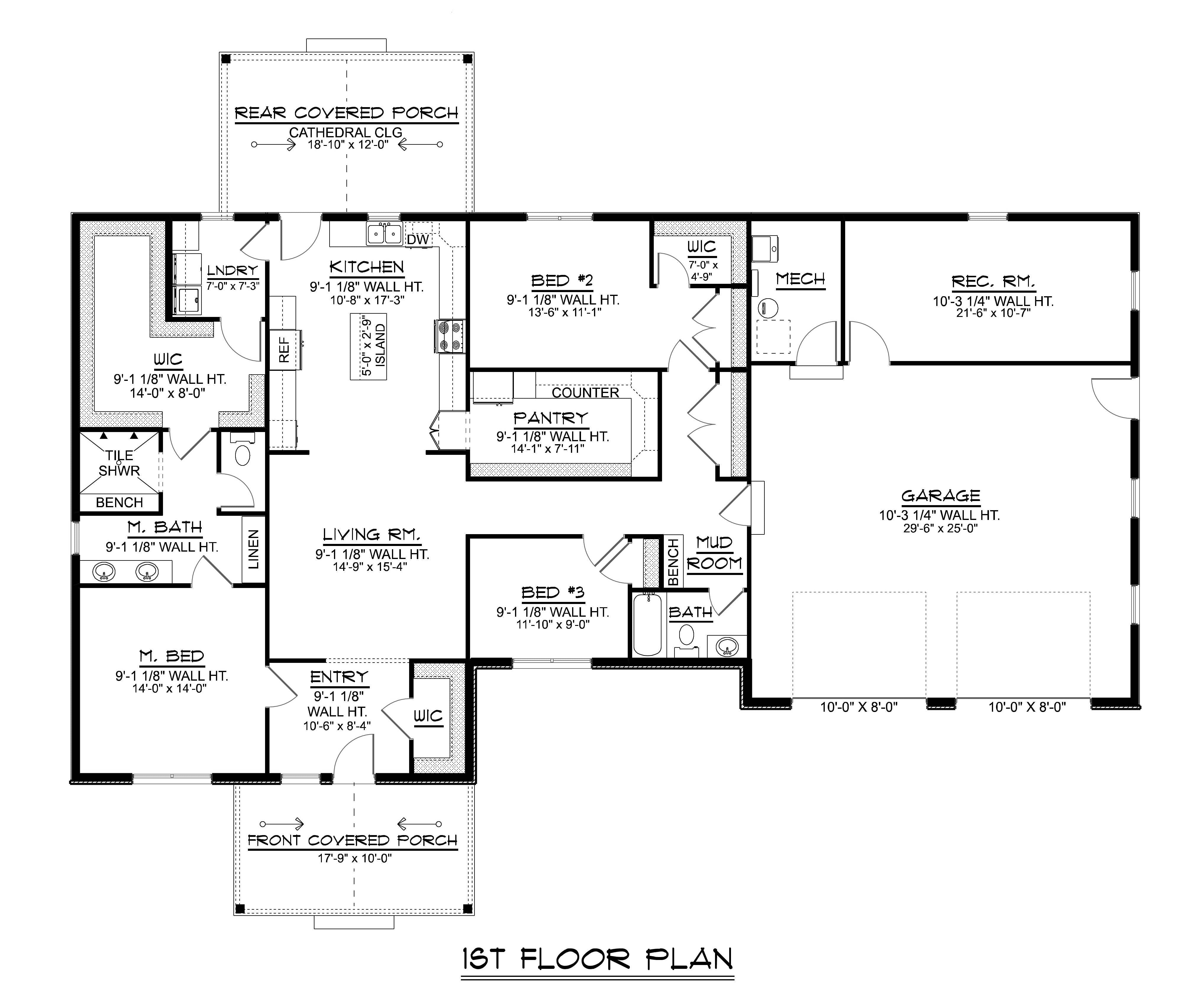

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,984 SF

Second Floor:

None

Total Heated Sq Ft:

1,984 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 1,071 SF, Porch 404 SF = TOTAL 1,475 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

1

Garage Size:

1,071 SF

Width:

80'

Depth:

64'-6"

Height:

17'-2"

Foundation:

Crawl Space

Main Roof Pitch:

6:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

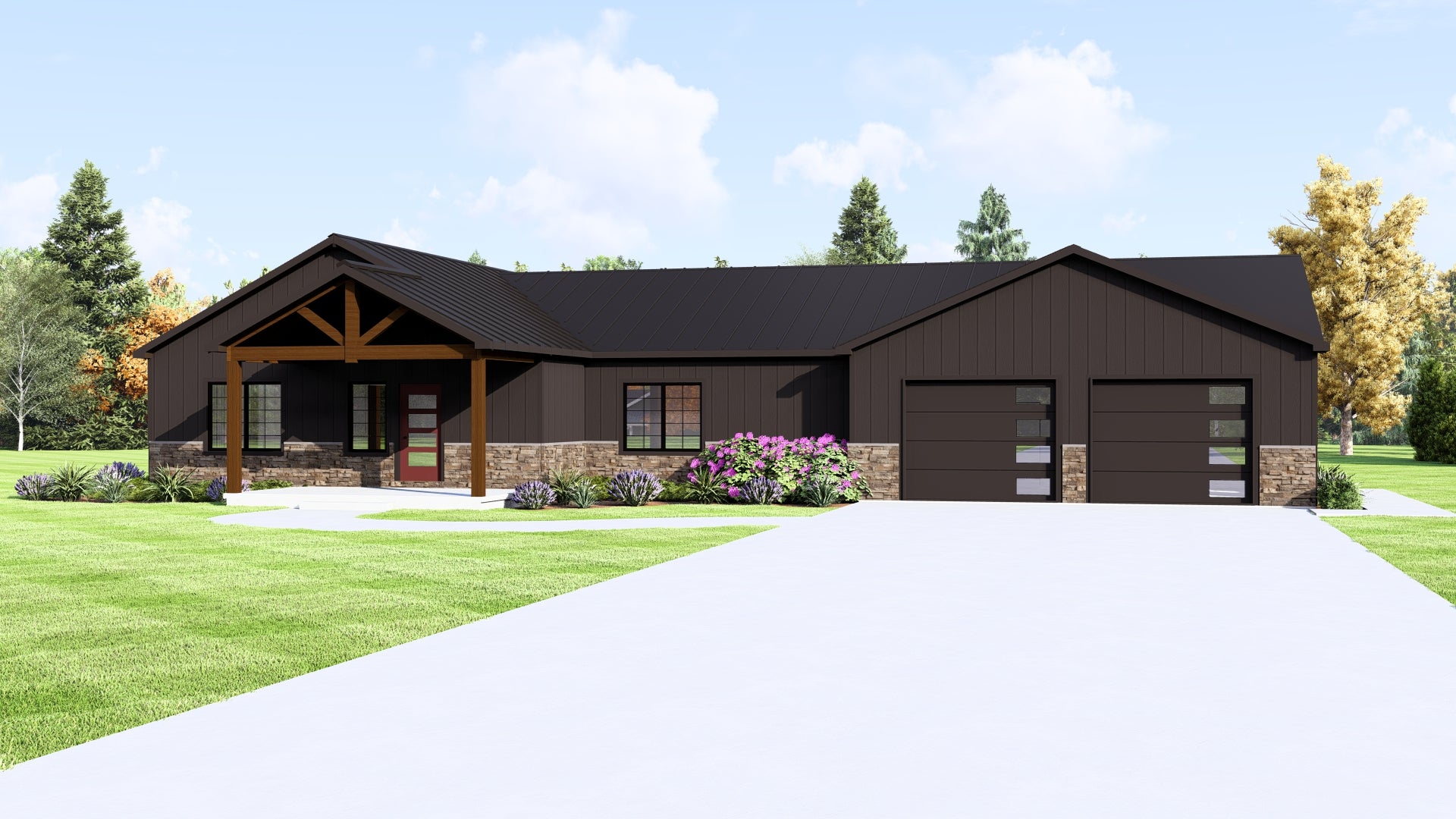

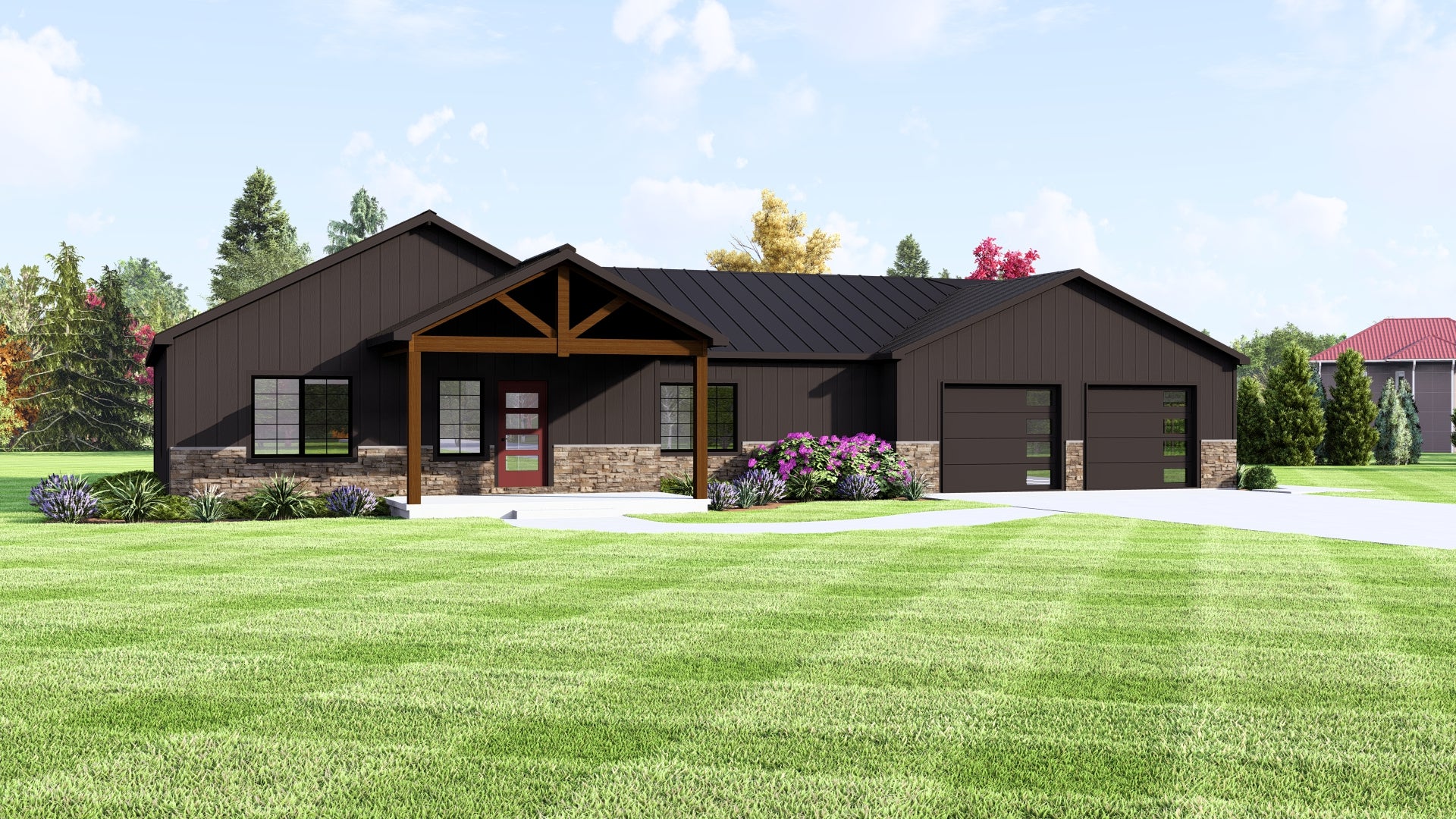

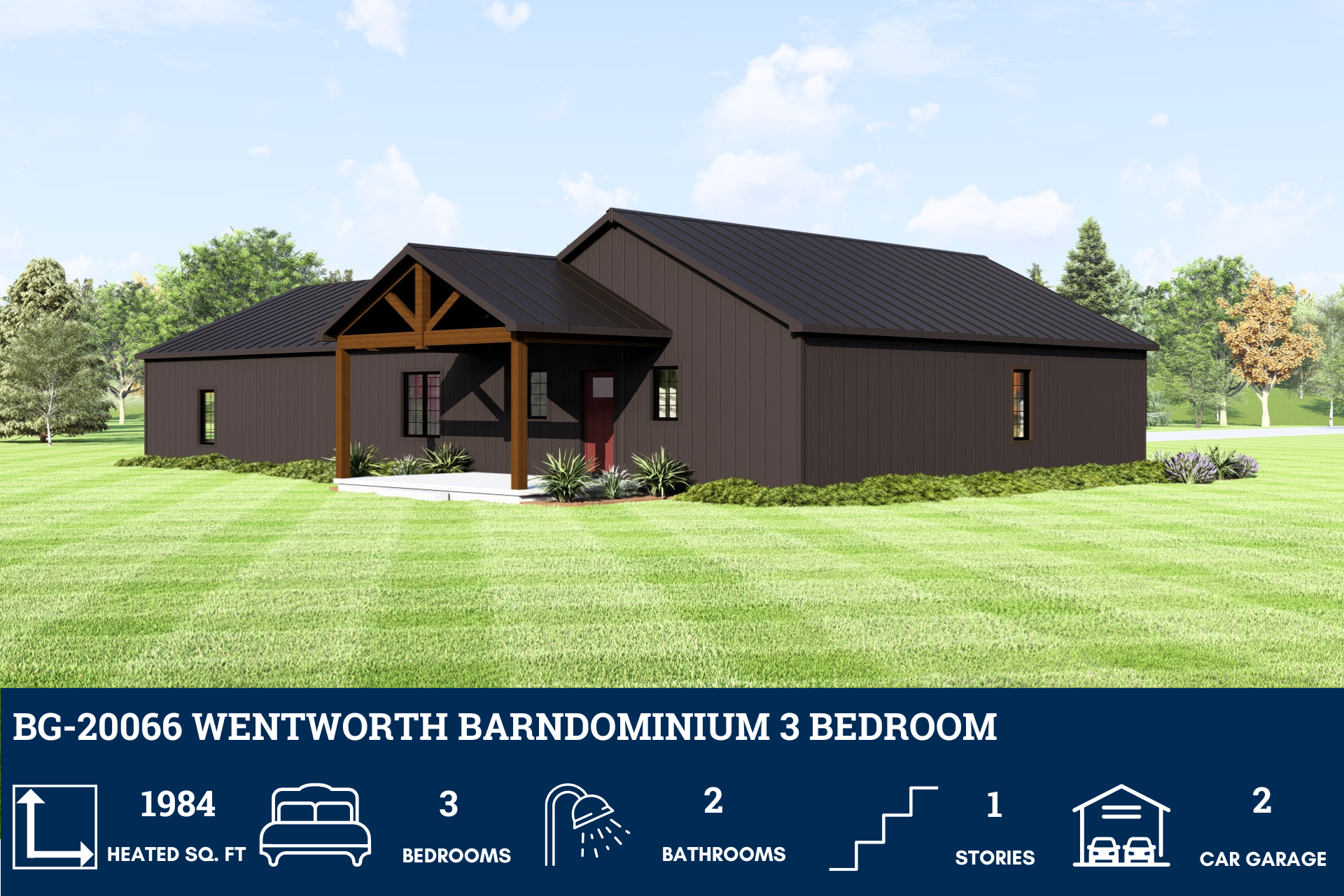

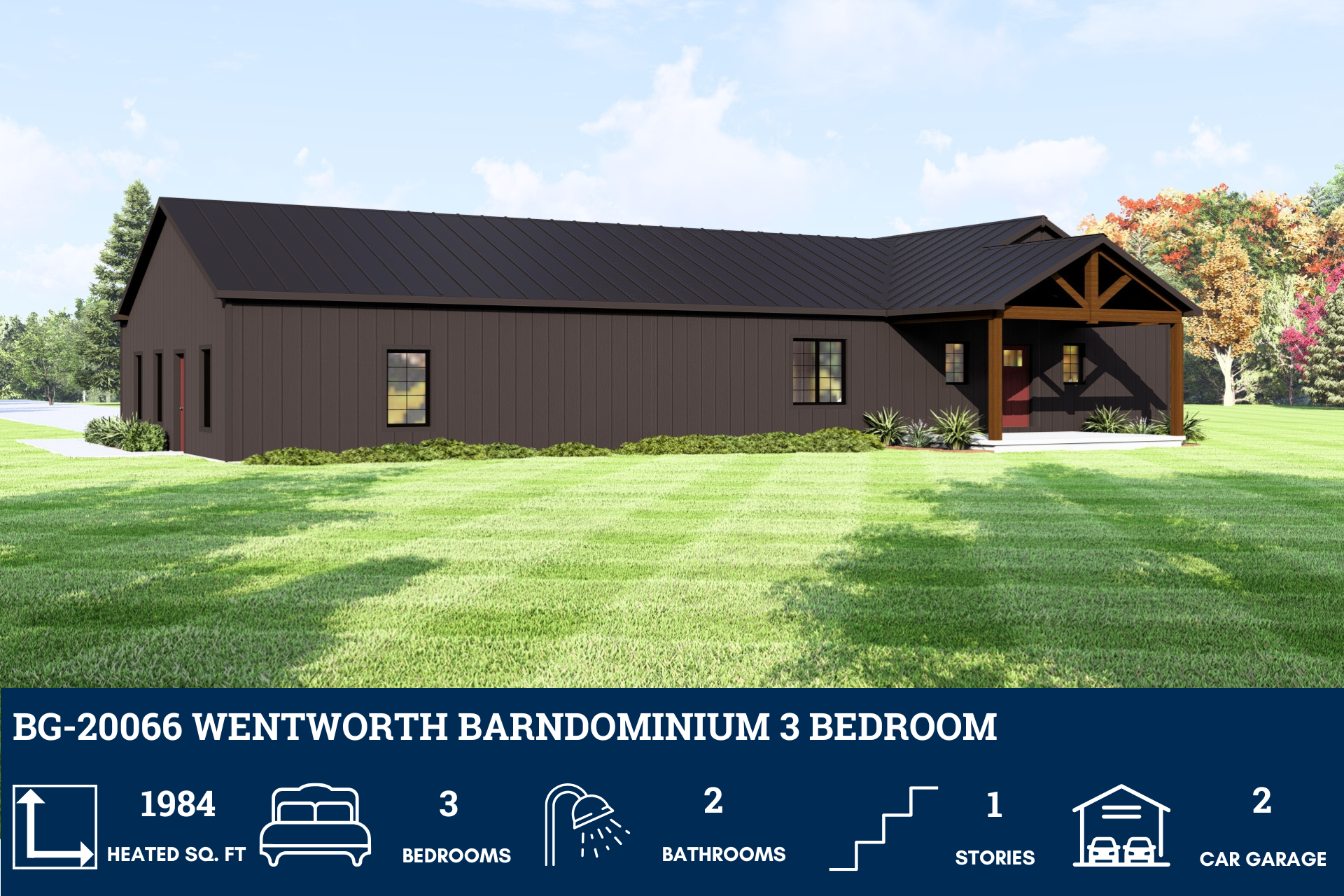

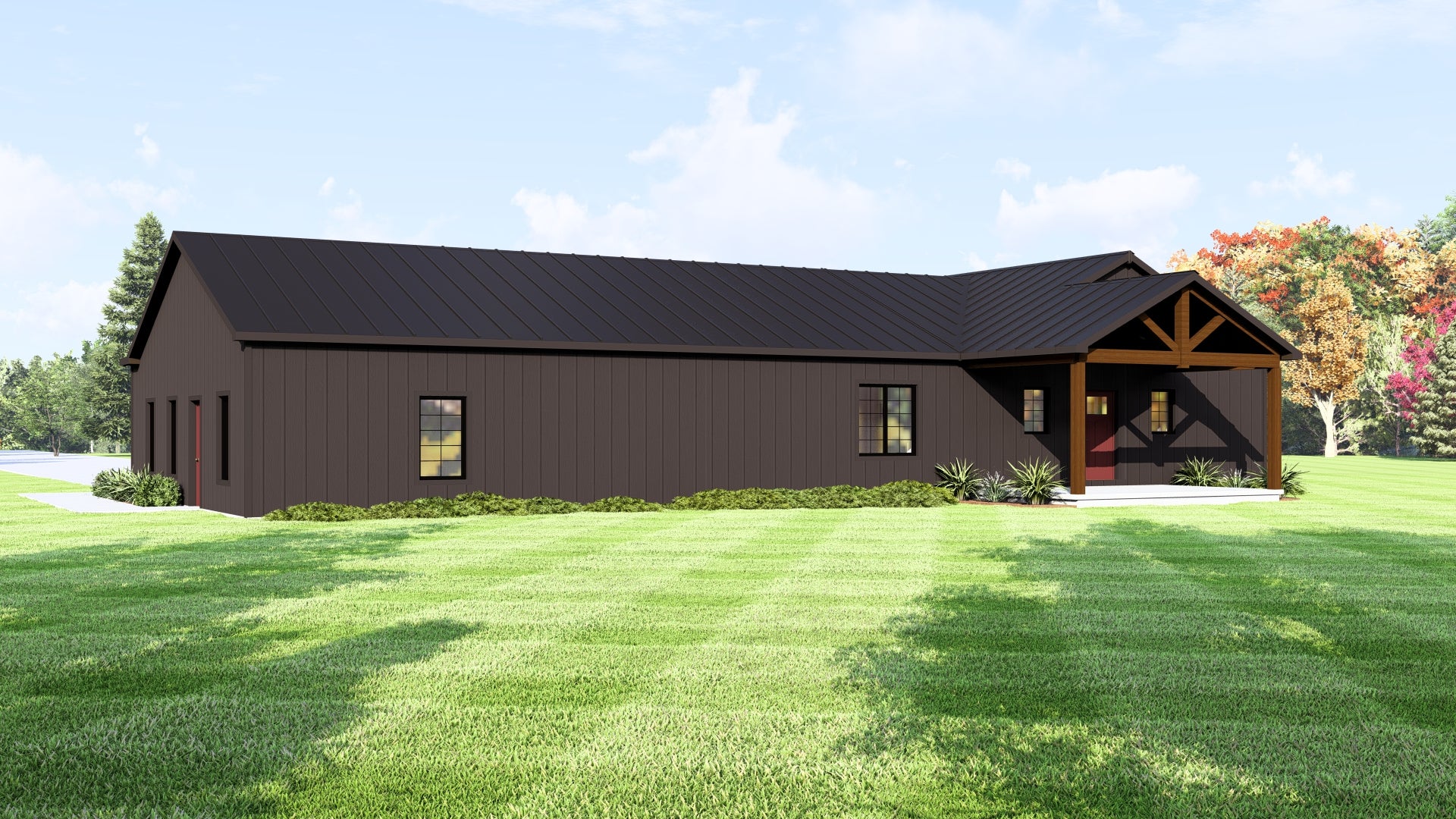

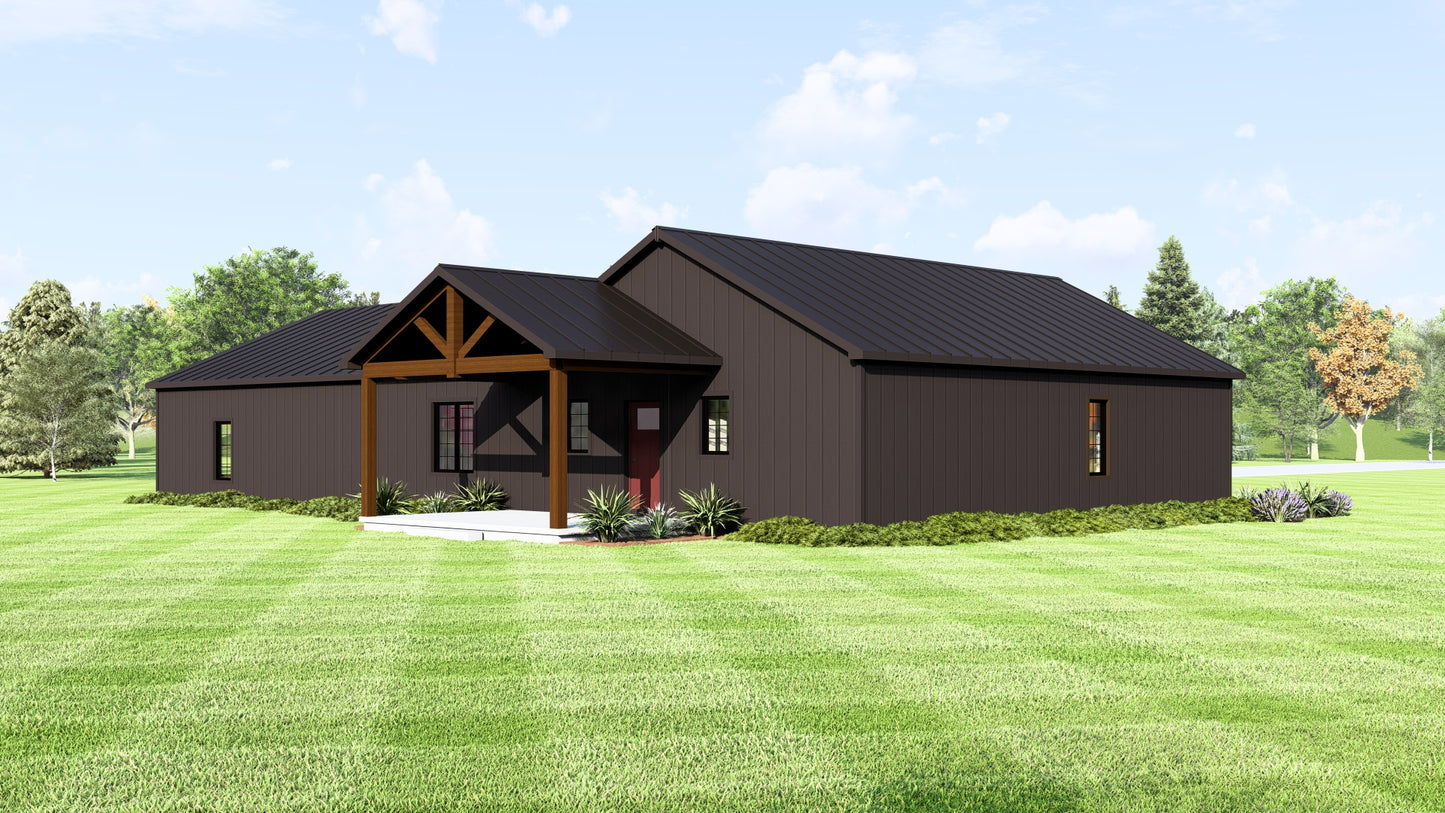

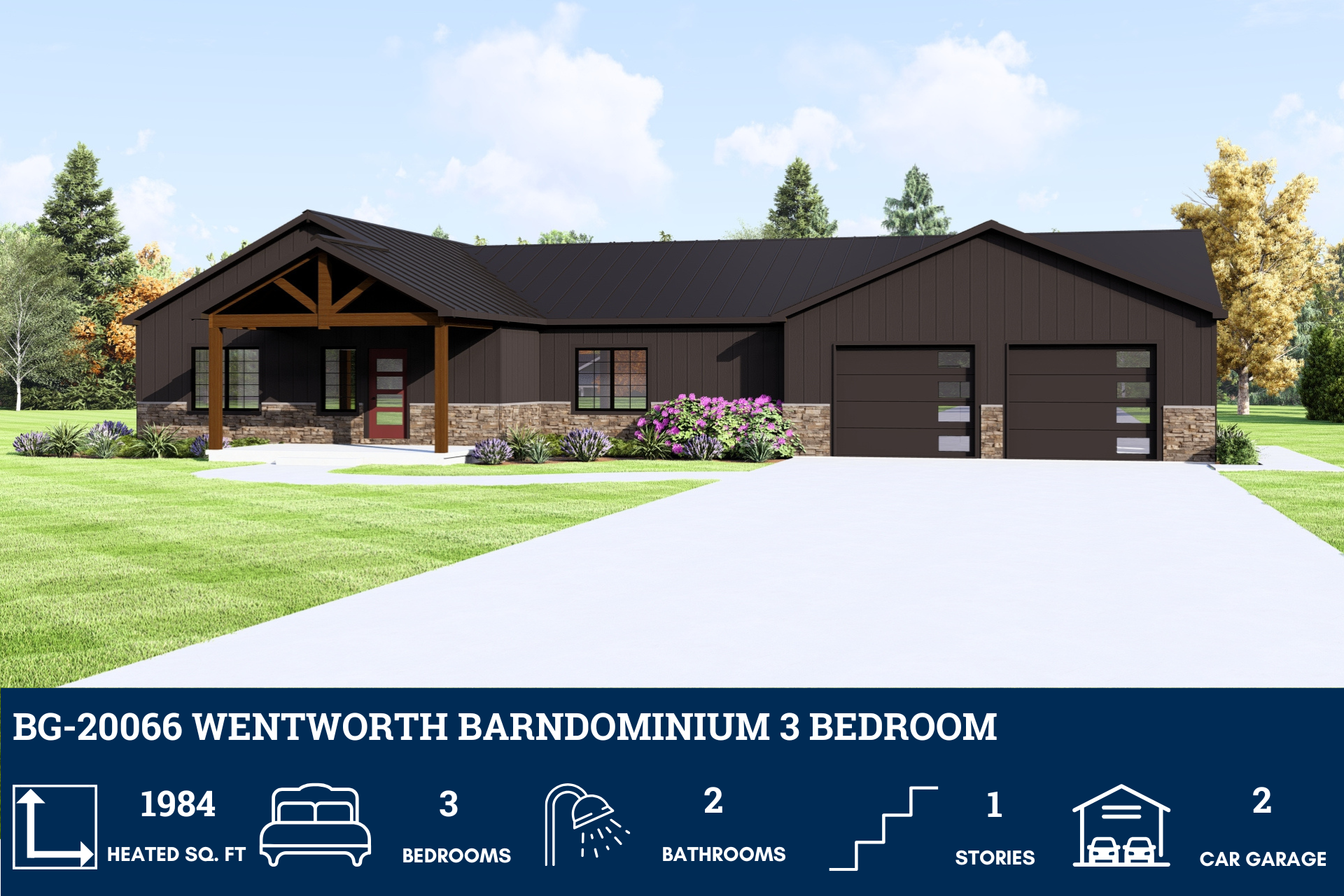

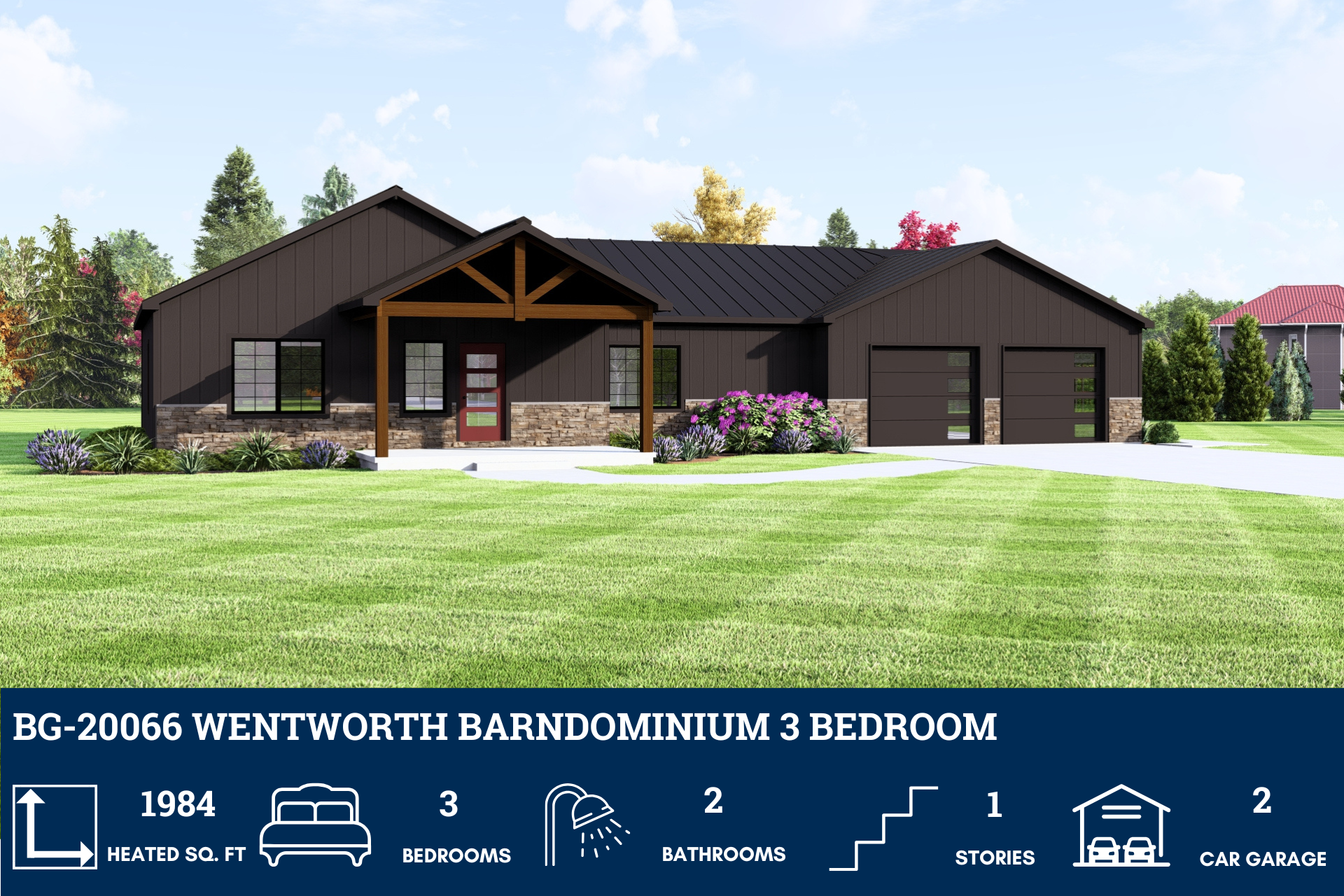

BG-20066 Wentworth Barndominium House Plan



About this barndominium house plan:

  • 1,984 Heated Sq Ft
  • 3 bedrooms

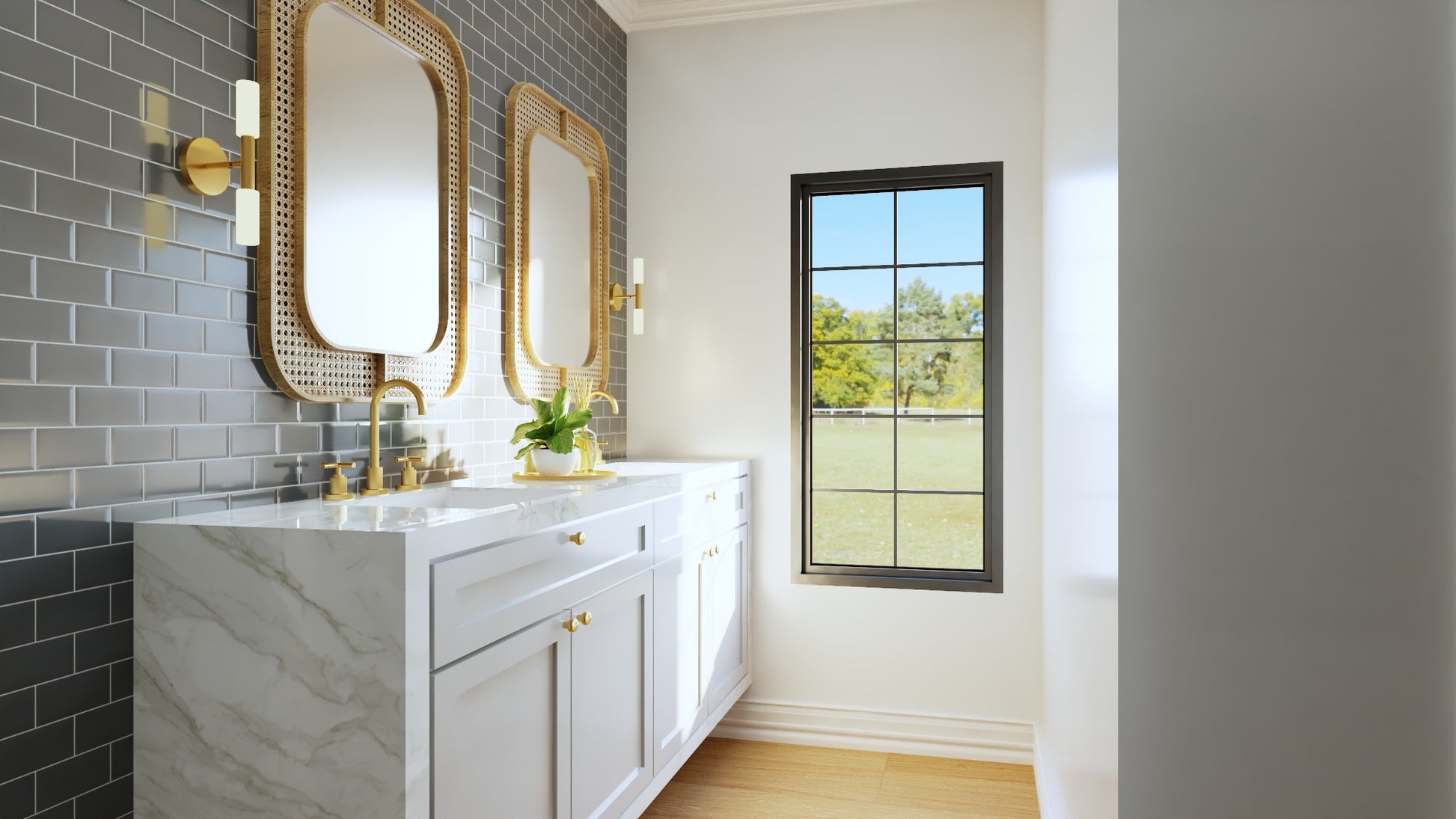

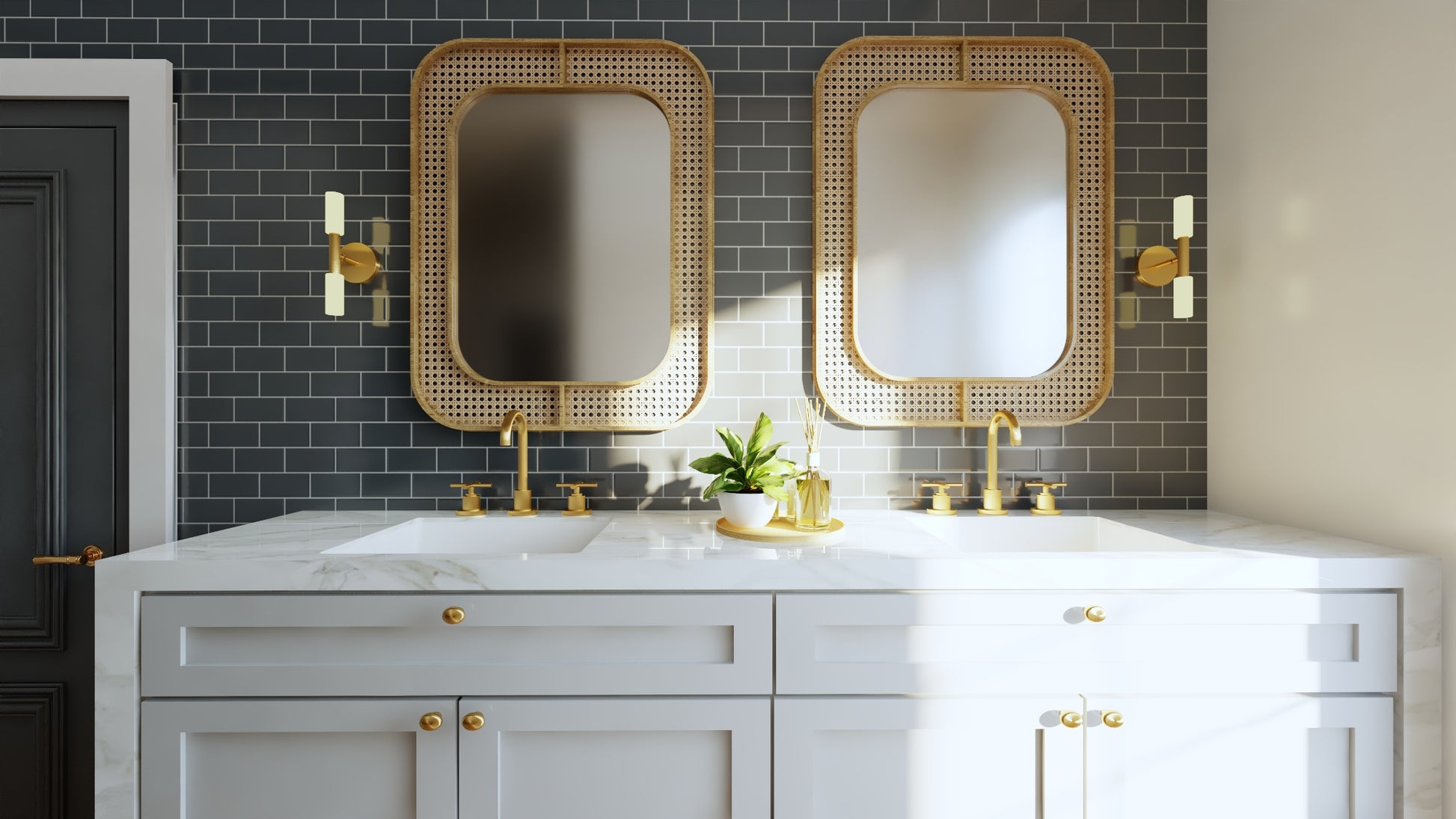

  • 2 bathrooms
  • Single Story

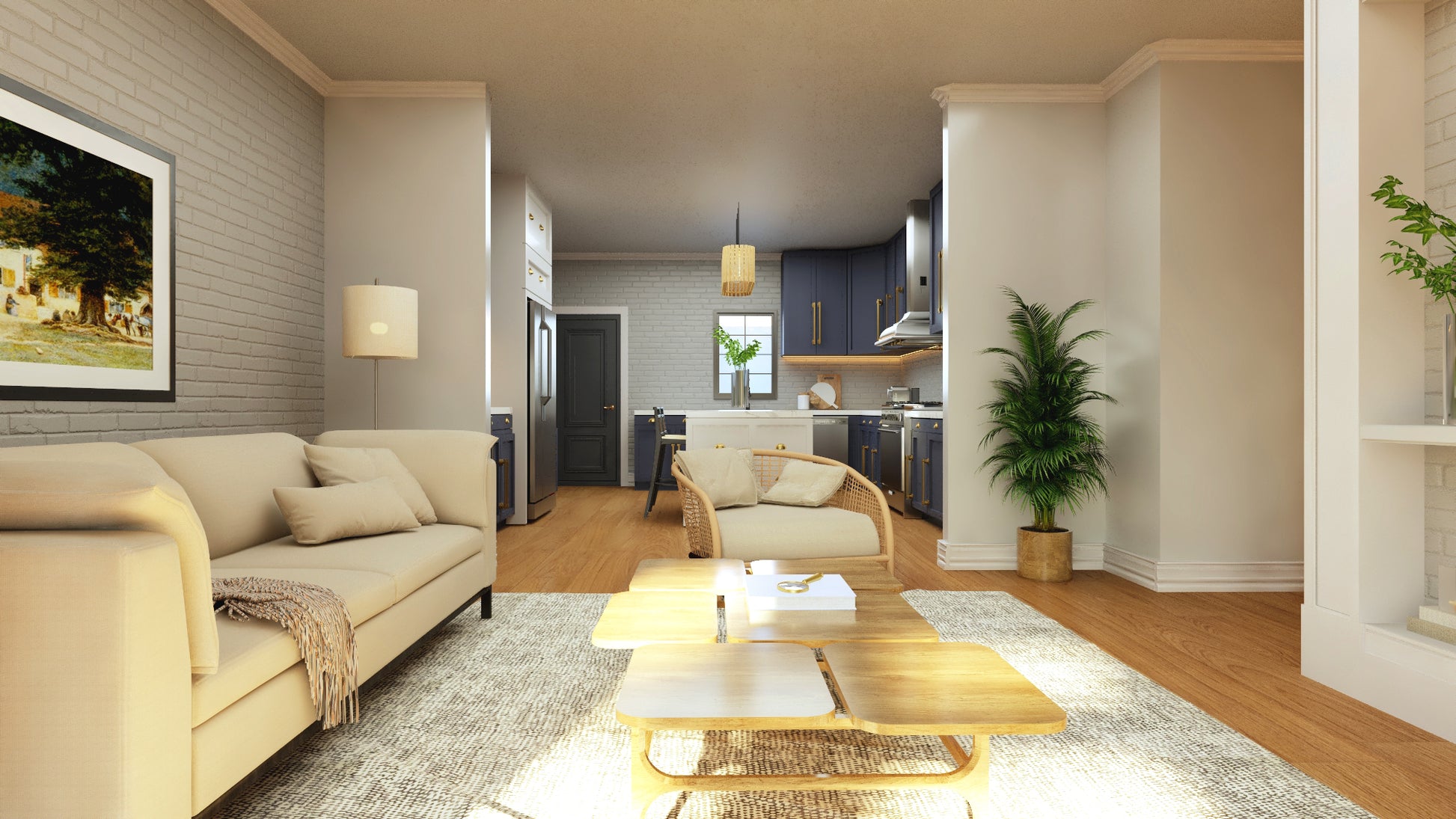

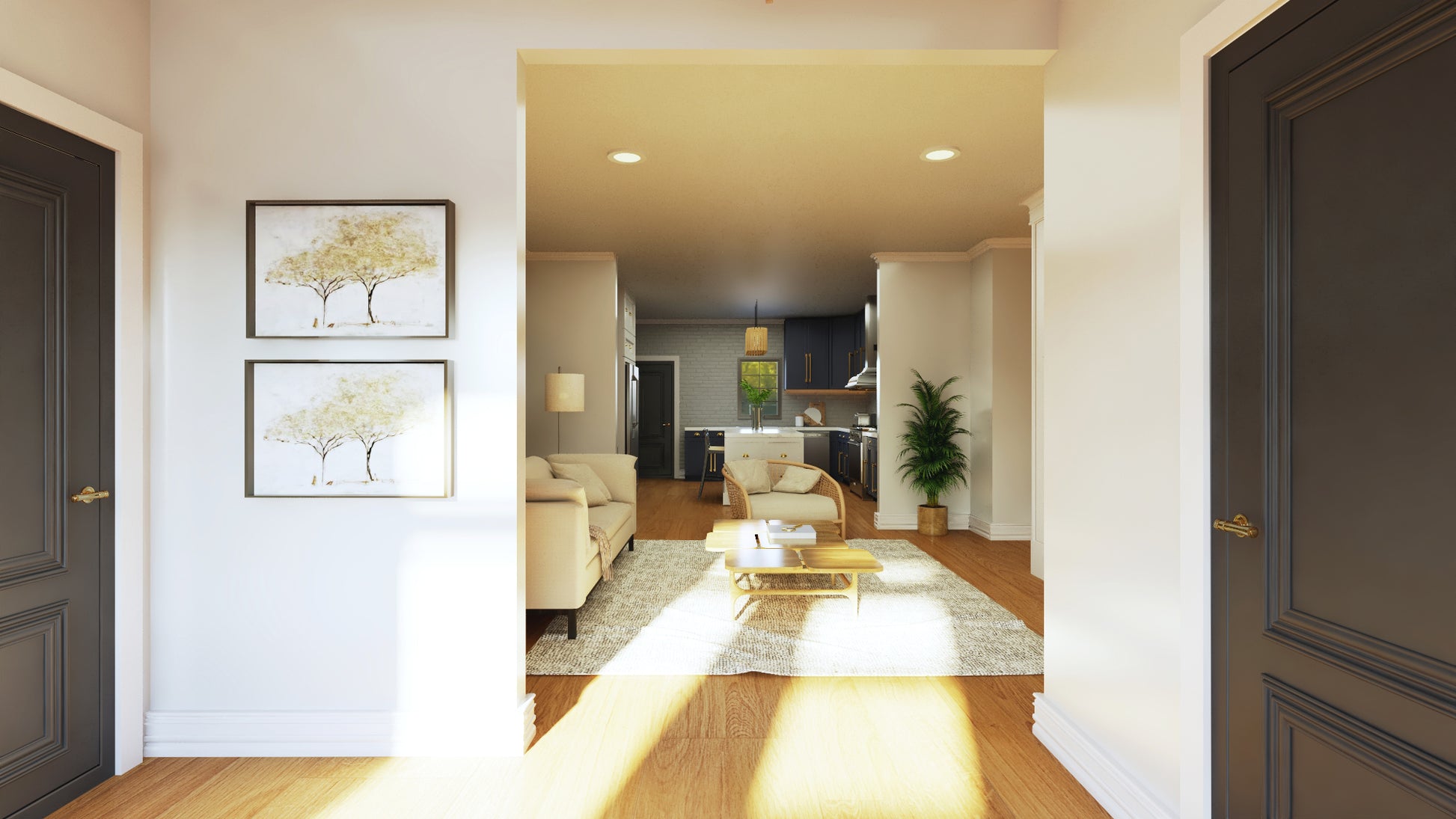

  • Open Concept
  • Recreation room
  • Mechanical room
  • Covered front & rear porch
  • 1,071 Sq Ft Garage



  • This home offers 1,984 square feet of thoughtfully conditioned space—designed to feel open yet intimate, with every square foot working hard to support daily life and quiet moments alike.

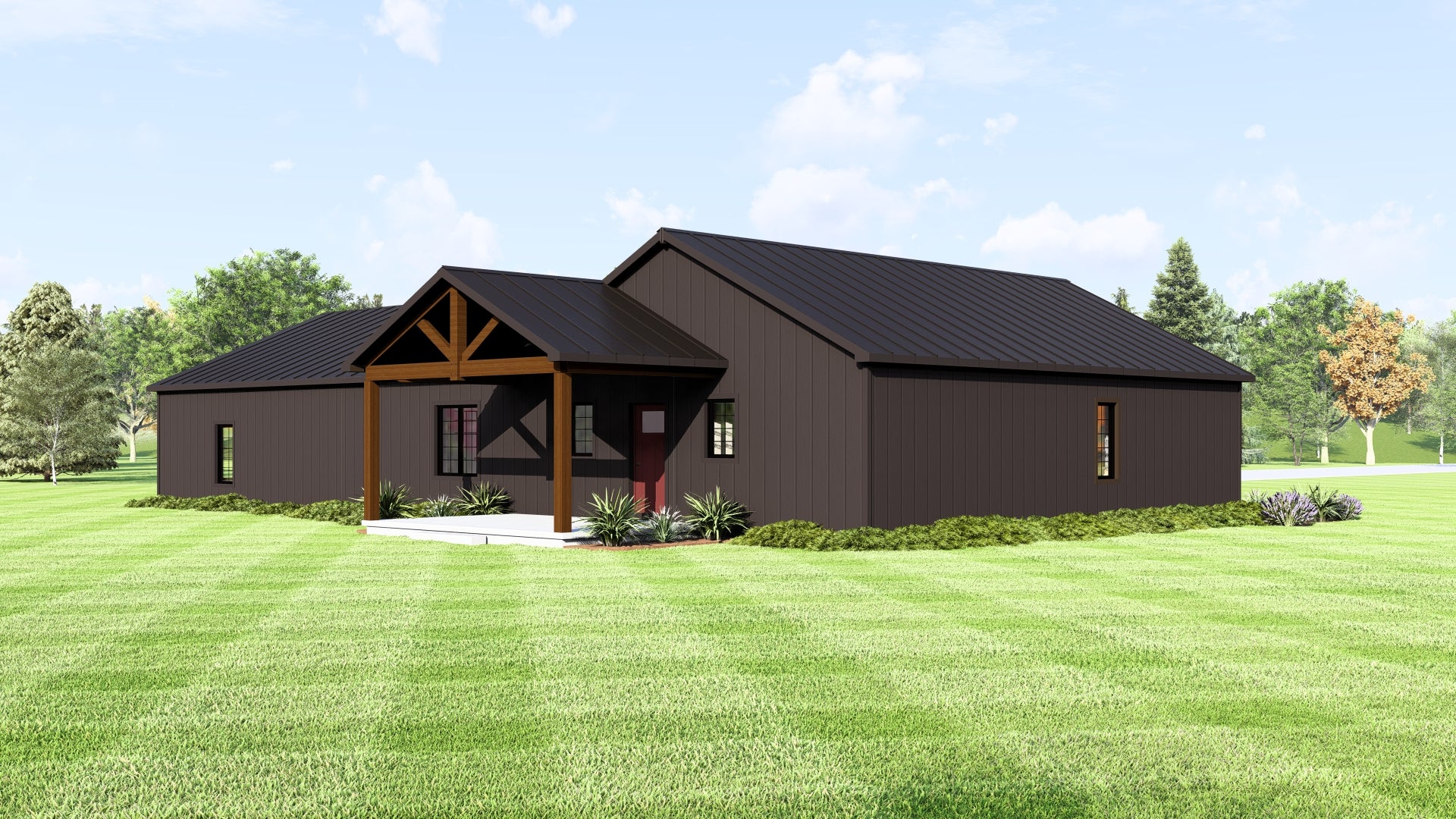

  • Two distinct outdoor zones—one welcoming from the front, the other tucked at the rear for greeting guests or winding down at sunset, these porches offer space to pause, gather, and breathe.

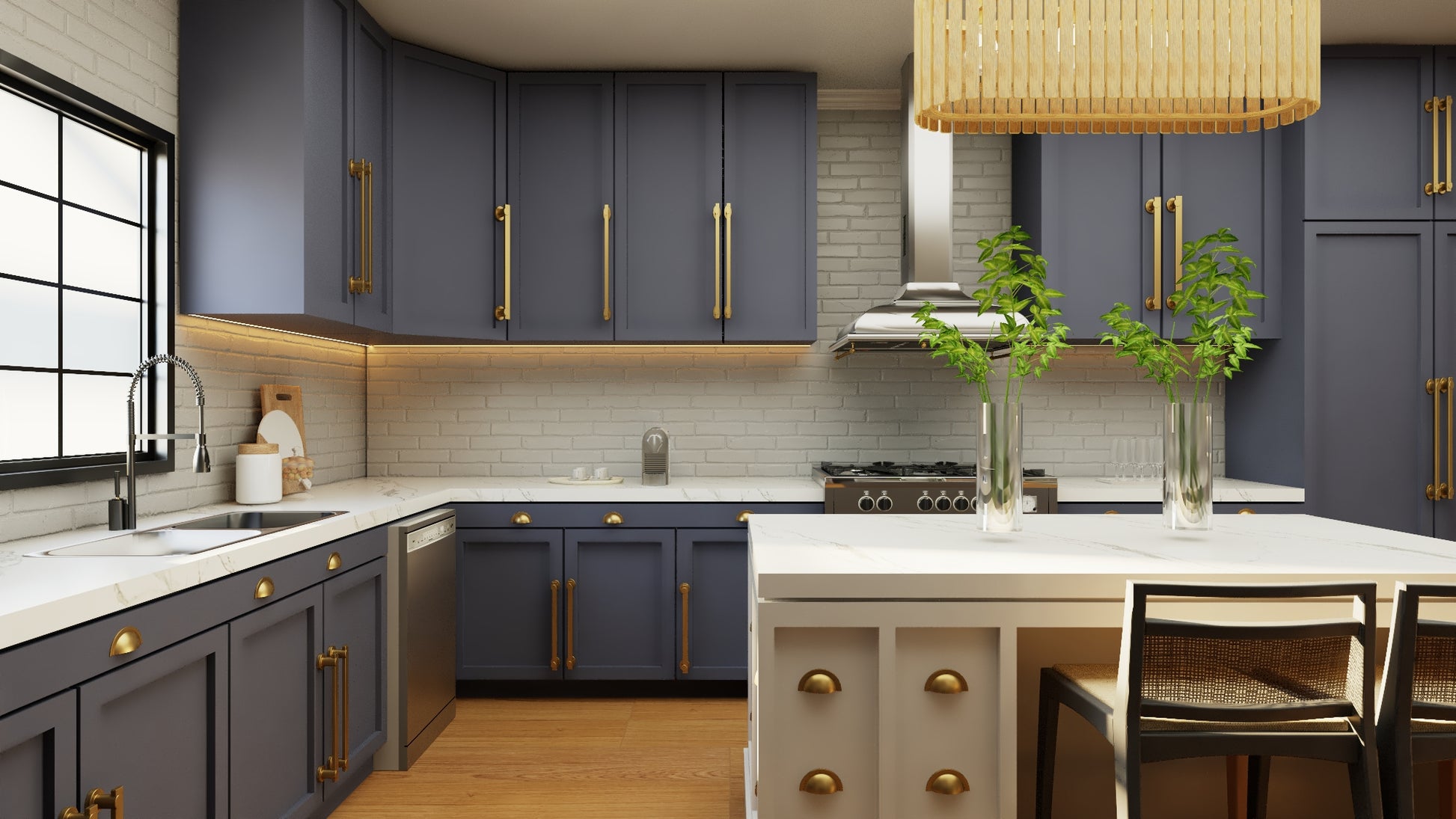

  • Conveniently positioned with entry from both the kitchen and the master walk-in closet, the laundry room supports seamless daily routines with smart connectivity.
  • A two-car garage with over 1,000 square feet of total space—complete with a dedicated recreation room and mechanical area, ideal for hobbies, storage, or weekend projects.



What's included in BG-20066:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
