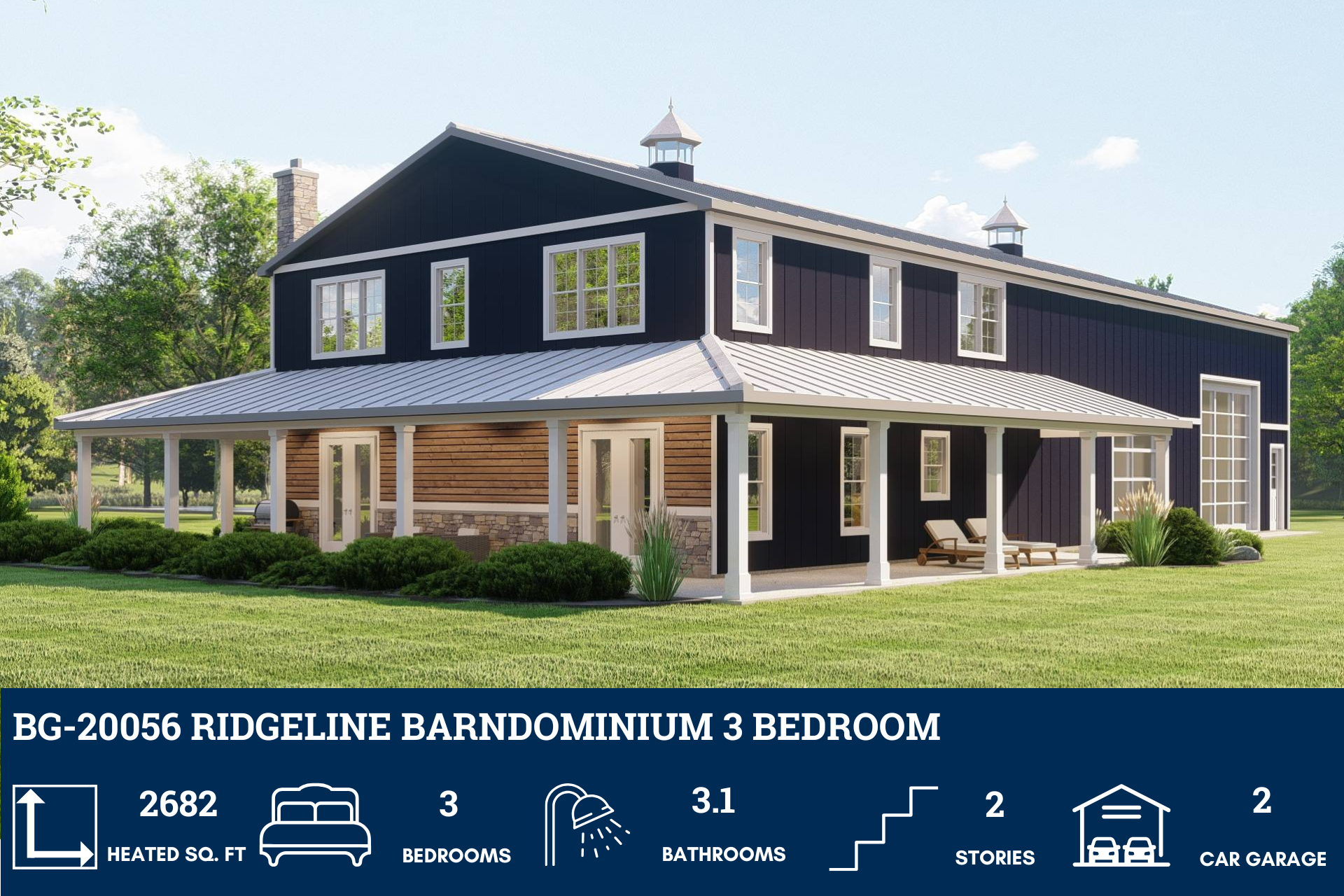

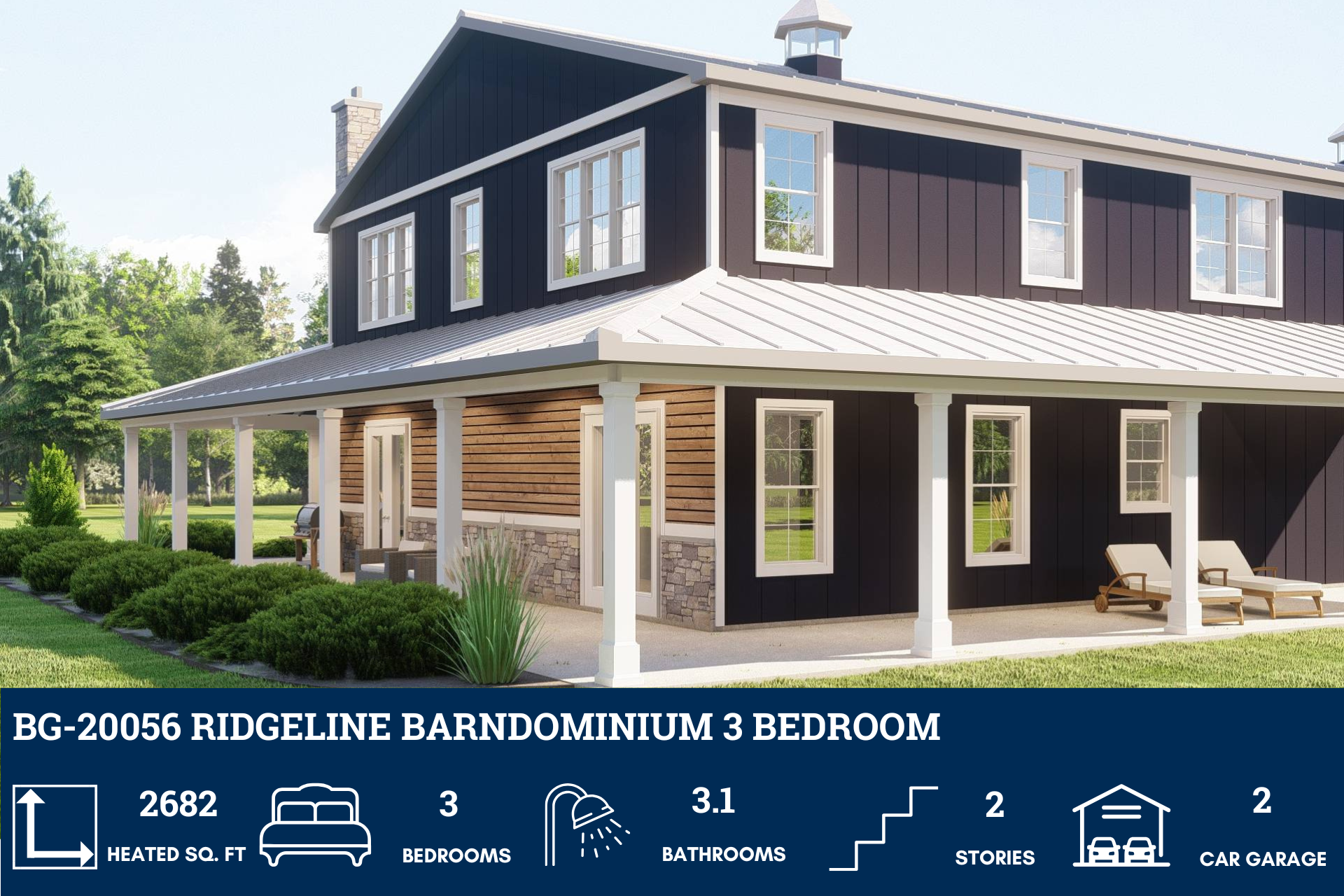

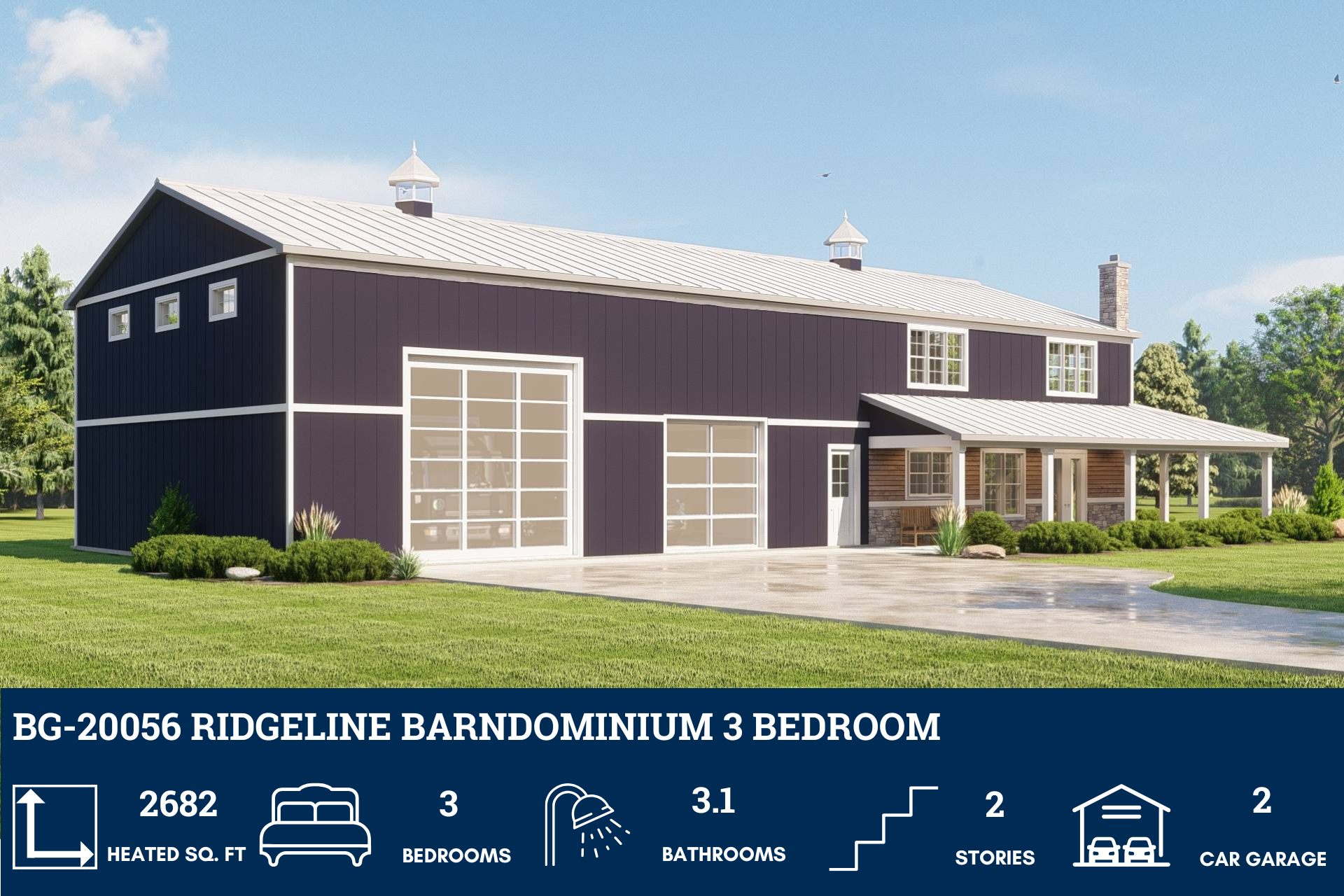

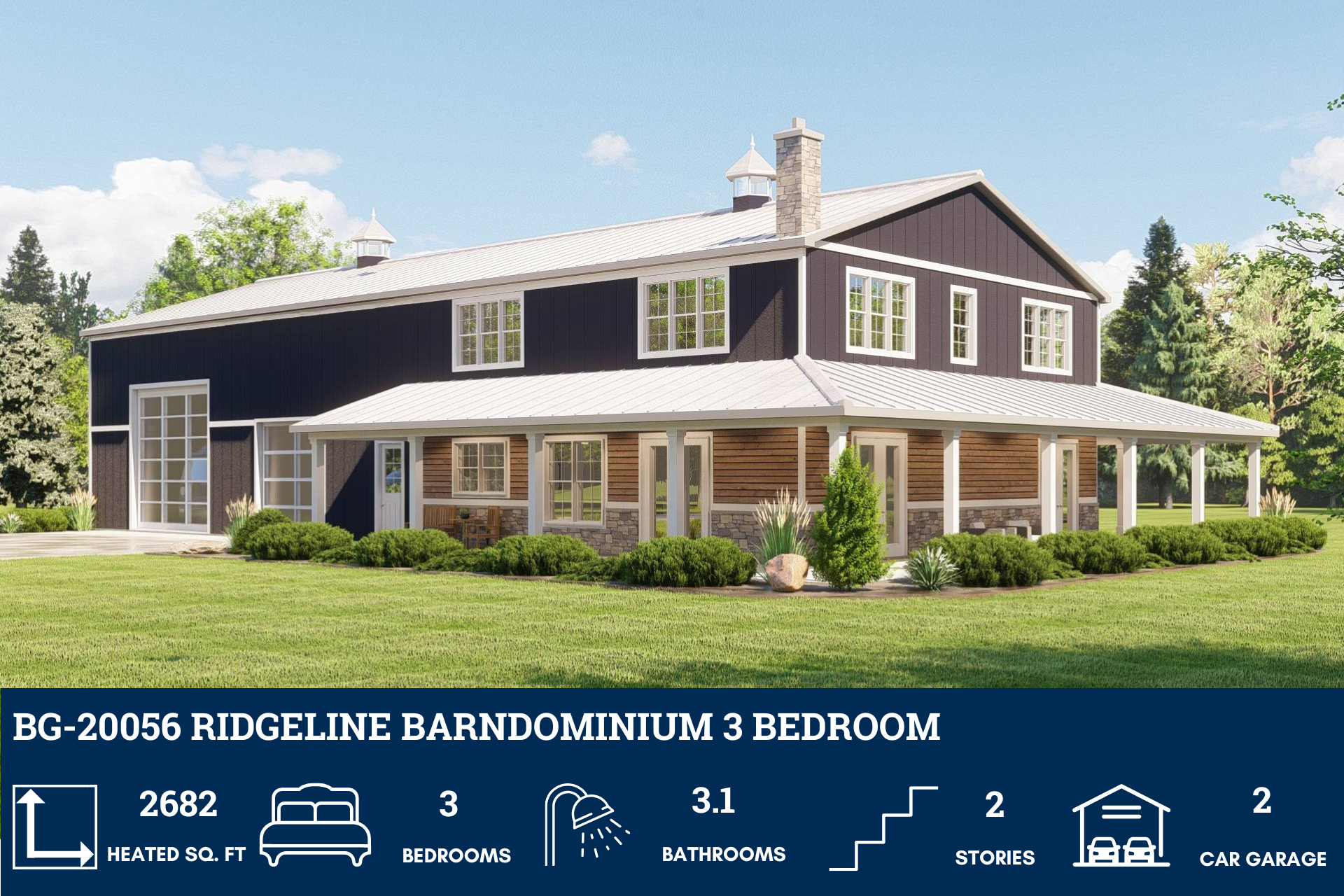

BG-20056 Ridgeline Barndominium House Plan

$1,450.00 USD
$1,450.00 USD
Sale Sold out
Add To Wishlist
1 13
Bedrooms 3 Bedrooms
Floors 2 Floors
Full Baths 3 Full Baths
Total Heated Area 2,682 Total Heated Area

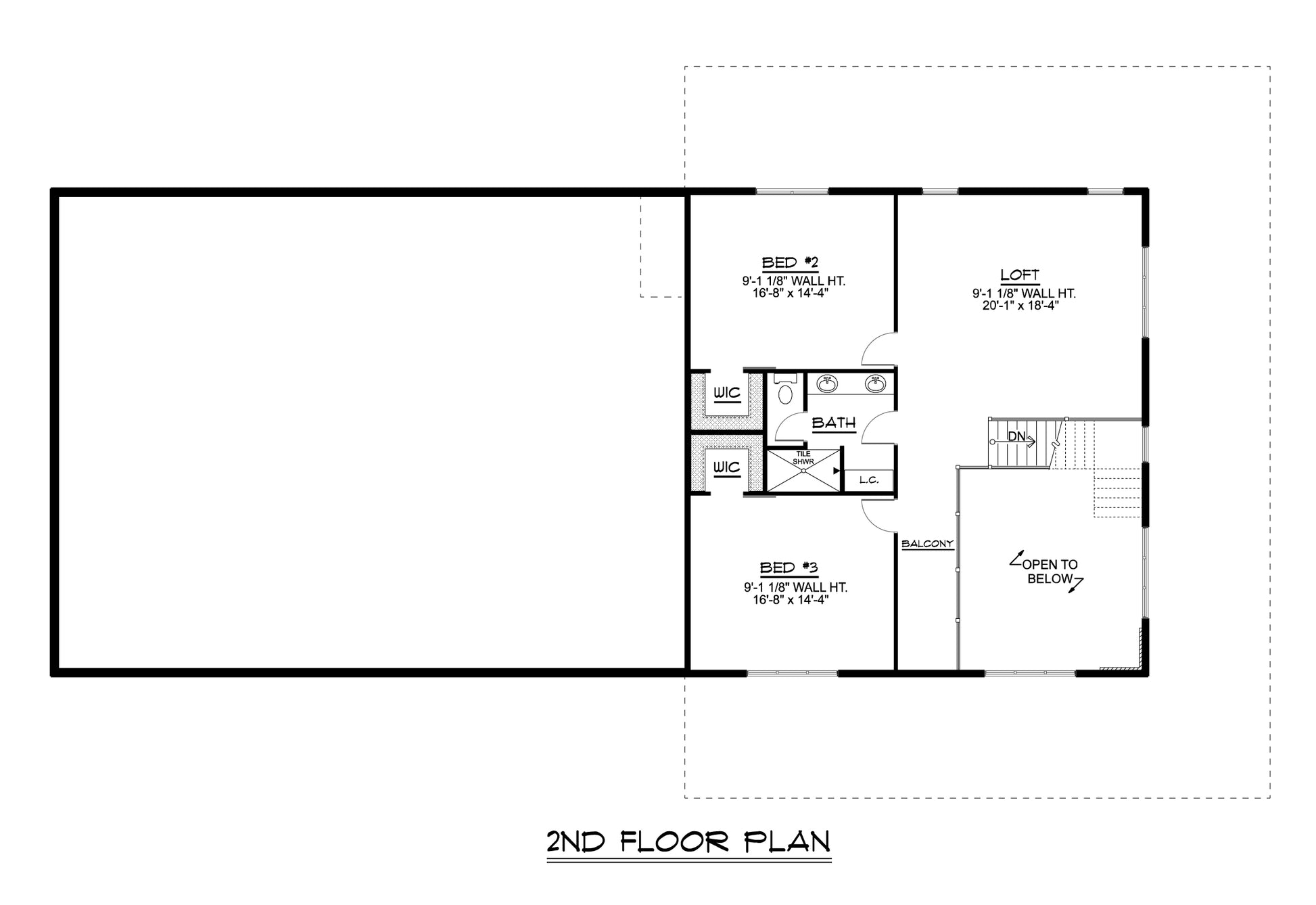

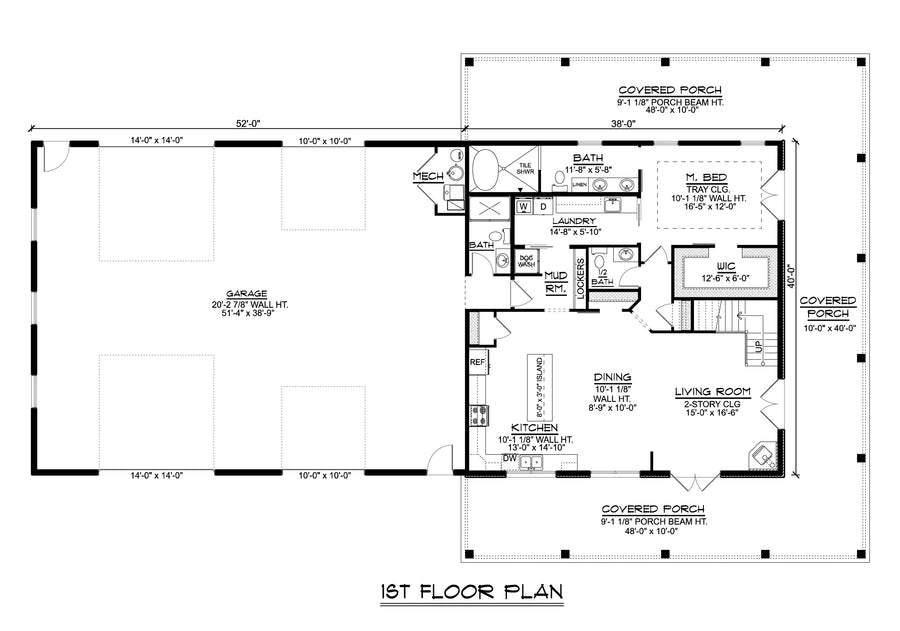

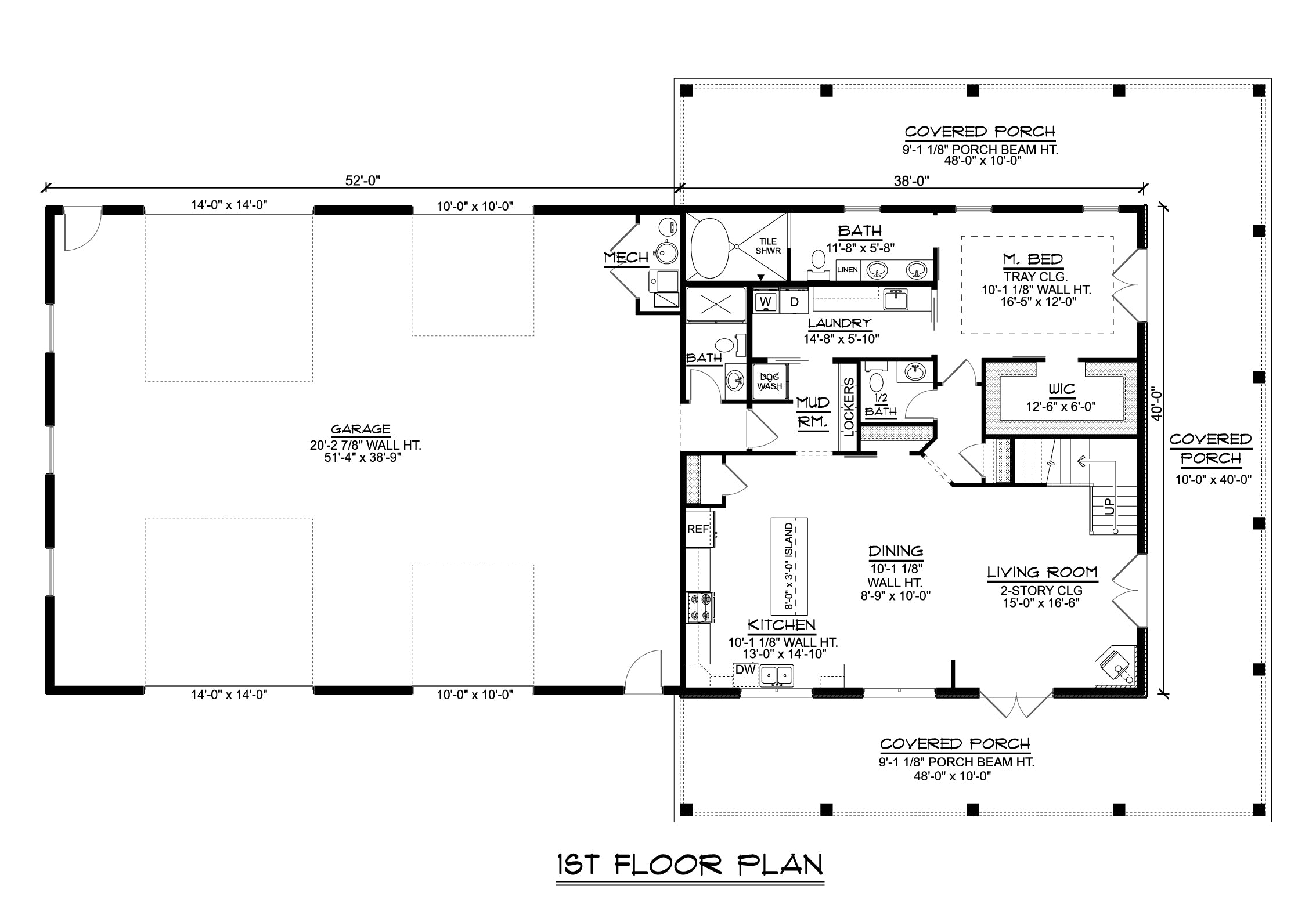

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,477 SF

Second Floor:

1,205 SF

Total Heated Sq Ft:

2,682 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 2,123 SF, Porch 1,359 SF = TOTAL 3,482 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

2

Garage Size:

2,123 SF

Width:

100'

Depth:

60'

Height:

27'-3"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

10'

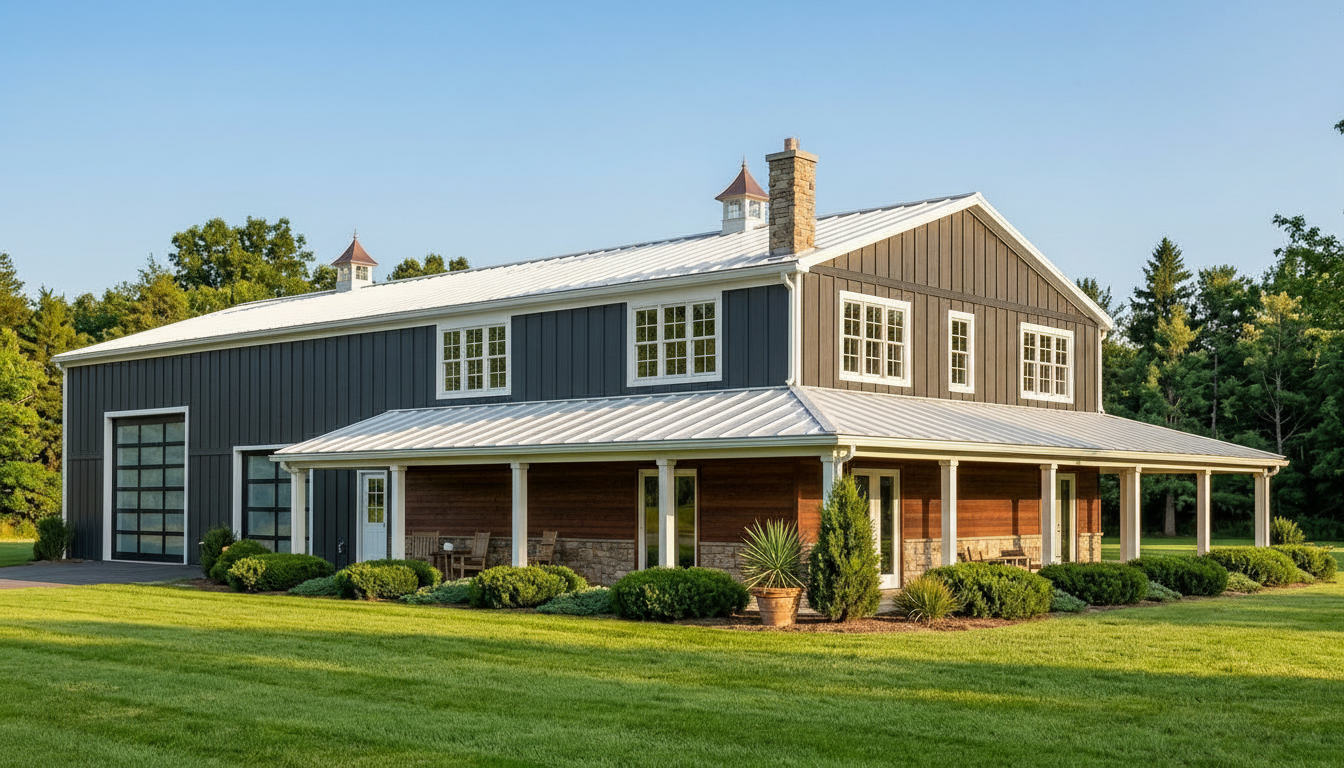

BG-20056 Ridgeline Barndominium House Plan

About this barndominium house plan:

  • 2,682 Heated Sq Ft
  • 38x40 living space dimension
  • 3 bedrooms
  • 3.1 bathrooms
  • Two Story
  • Open Concept
  • Mudroom
  • Loft
  • Wraparound porch
  • 2,123 Sq Ft Garage

  • Spanning 2,682 square feet of conditioned space, this home offers a layout that’s both generous and intuitive—designed for everyday comfort and seamless flow.
  • Three bedrooms and a mix of three full baths plus a powder room ensure everyone has space to unwind, refresh, and move through the day with ease.
  • The laundry room connects directly to both the mudroom and the master suite—making chores feel less like a task and more like a thoughtful part of the home’s rhythm.
  • A practical drop zone with a built-in dog wash station—perfect for muddy paws, garden boots, or post-adventure cleanups.

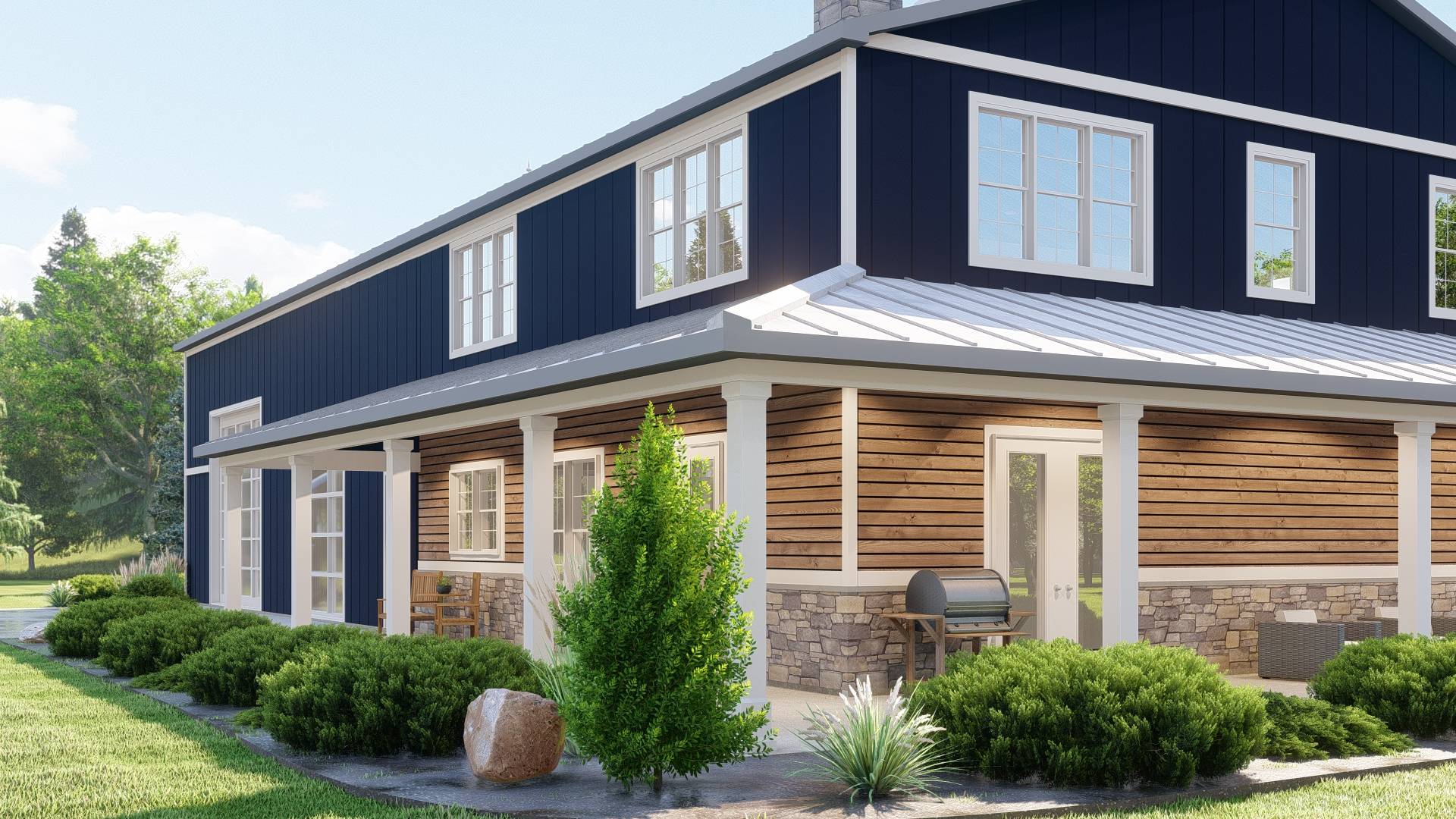

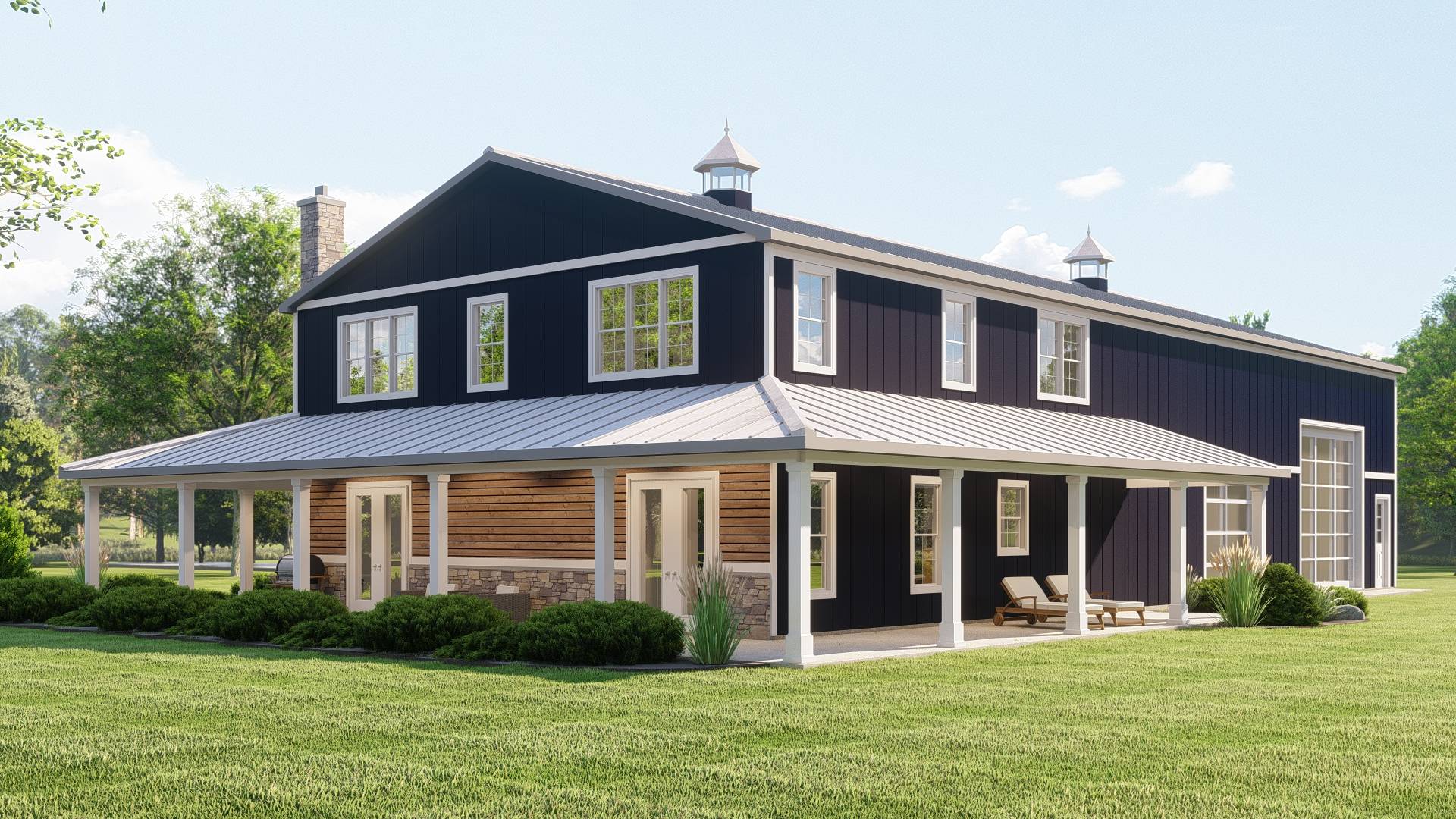

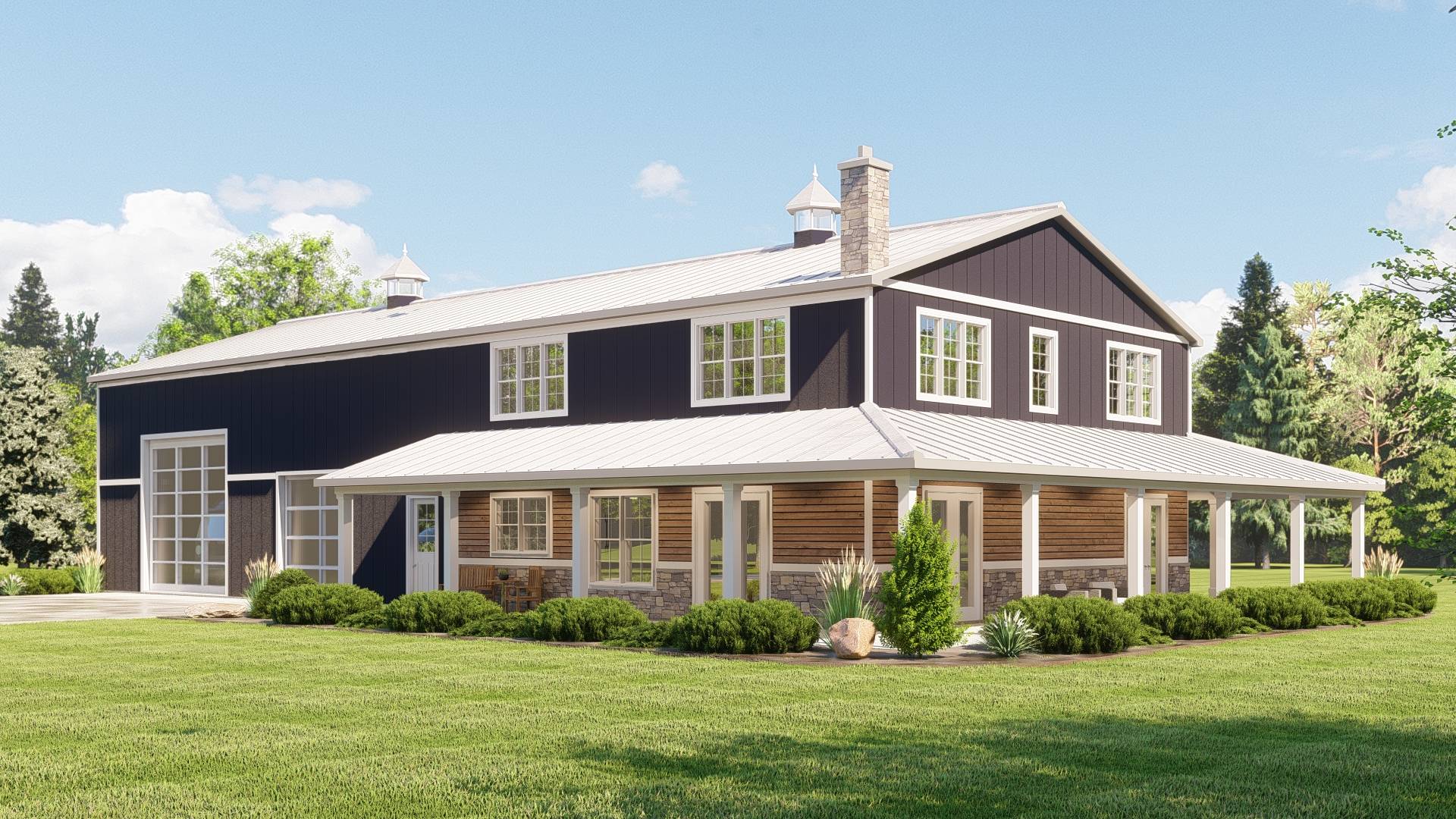

  • A classic wraparound porch invites slow mornings, shaded afternoons, and sunset conversations—blurring the line between indoors and out.

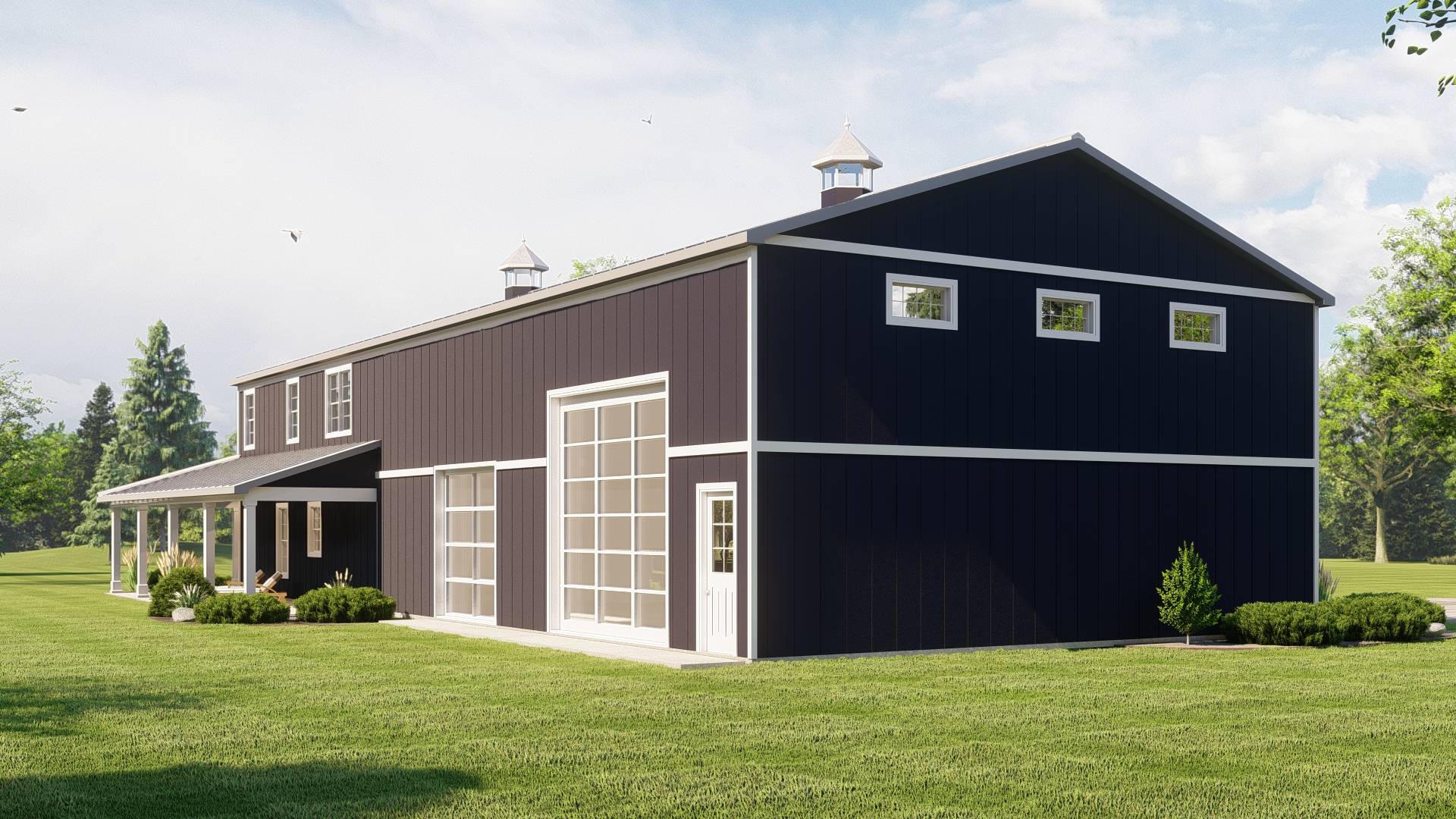

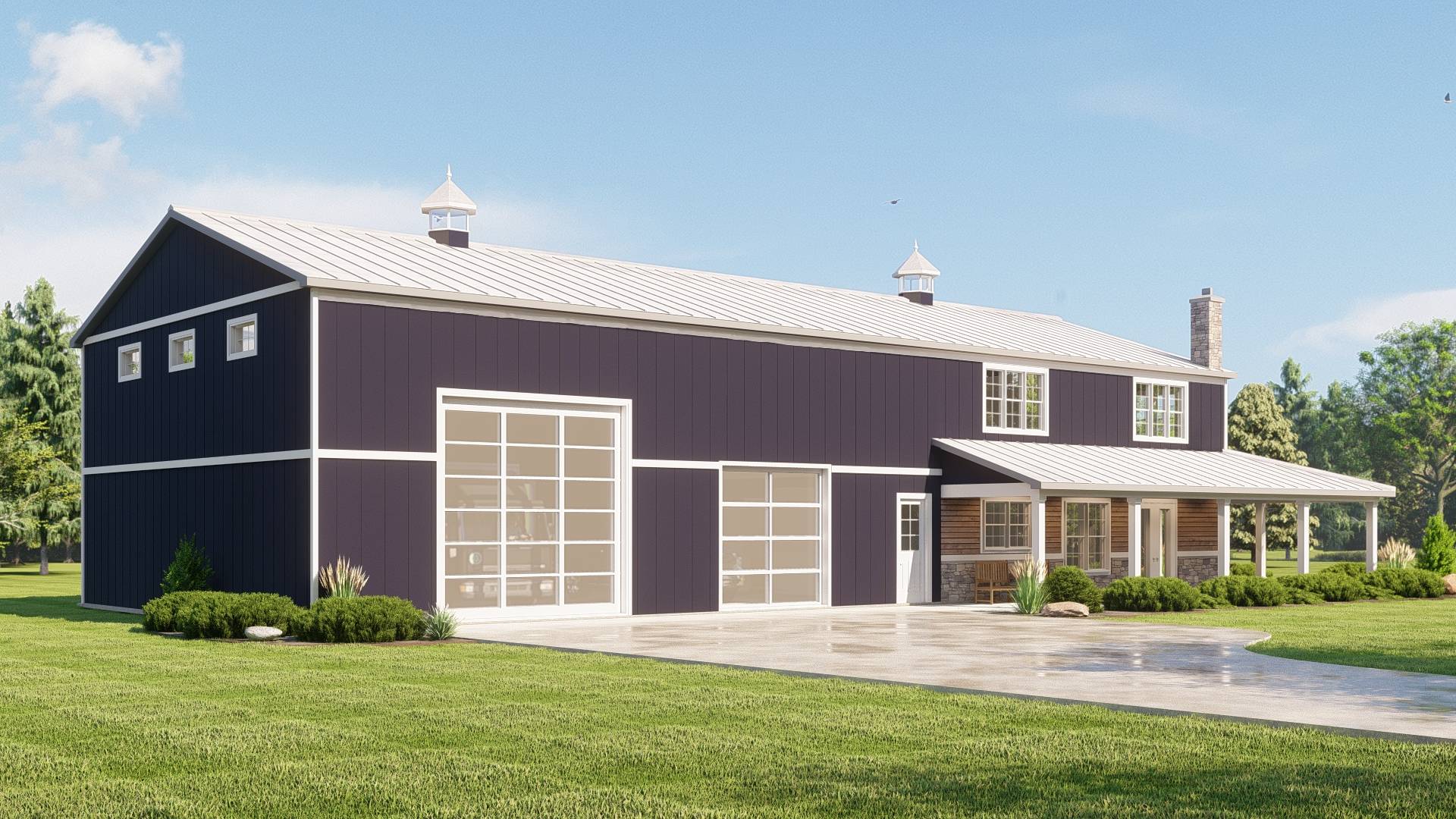

  • A spacious two-car garage with over 2,100 square feet of utility—offering room for vehicles, gear, and weekend projects, all tucked neatly into a well-planned footprint.

What's included in BG-20056:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
