BG-20041 Hawthorne Barndominium House Plan

$1,250.00 USD
$1,250.00 USD
Sale Sold out
Add To Wishlist
1 12

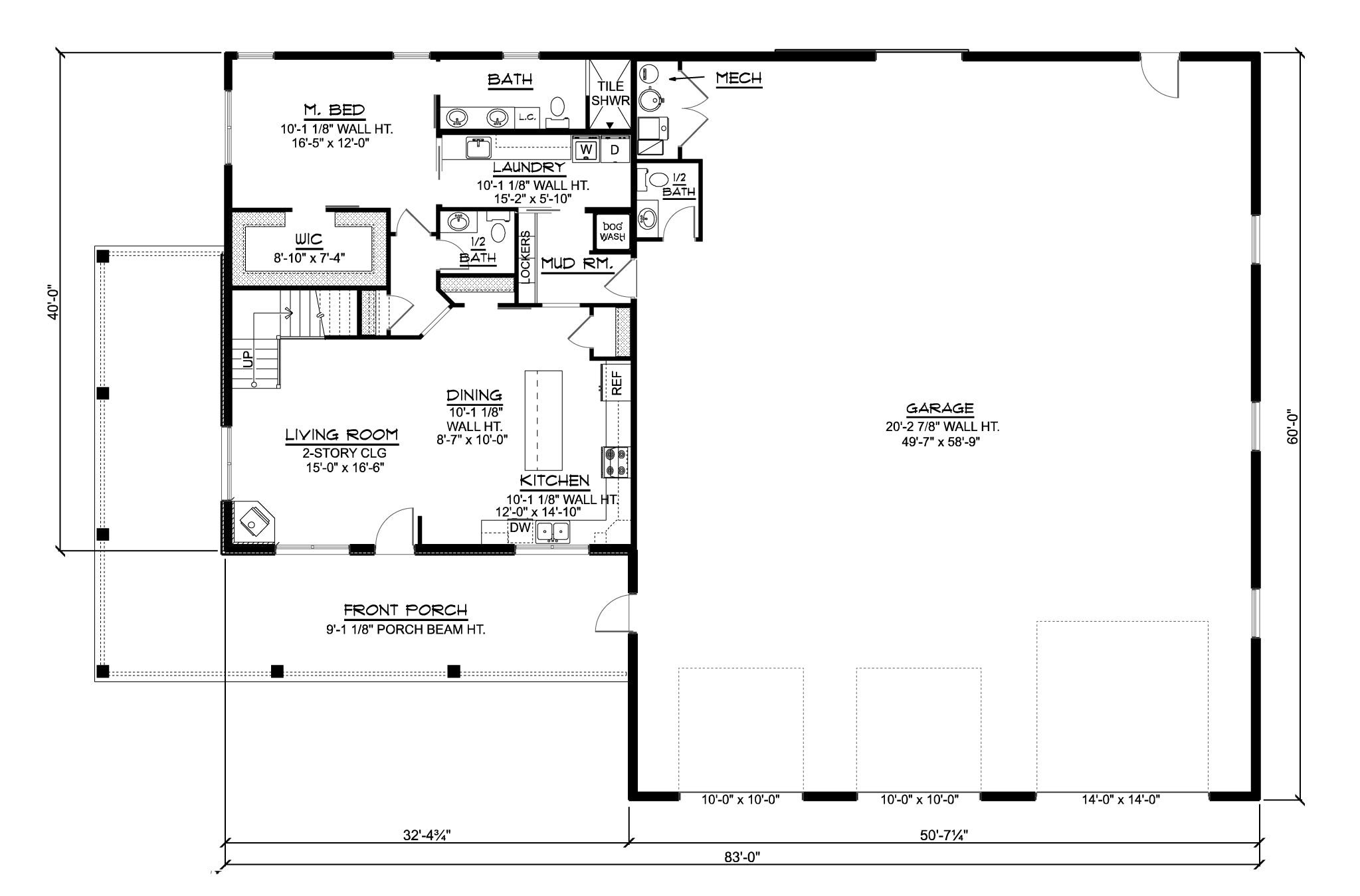

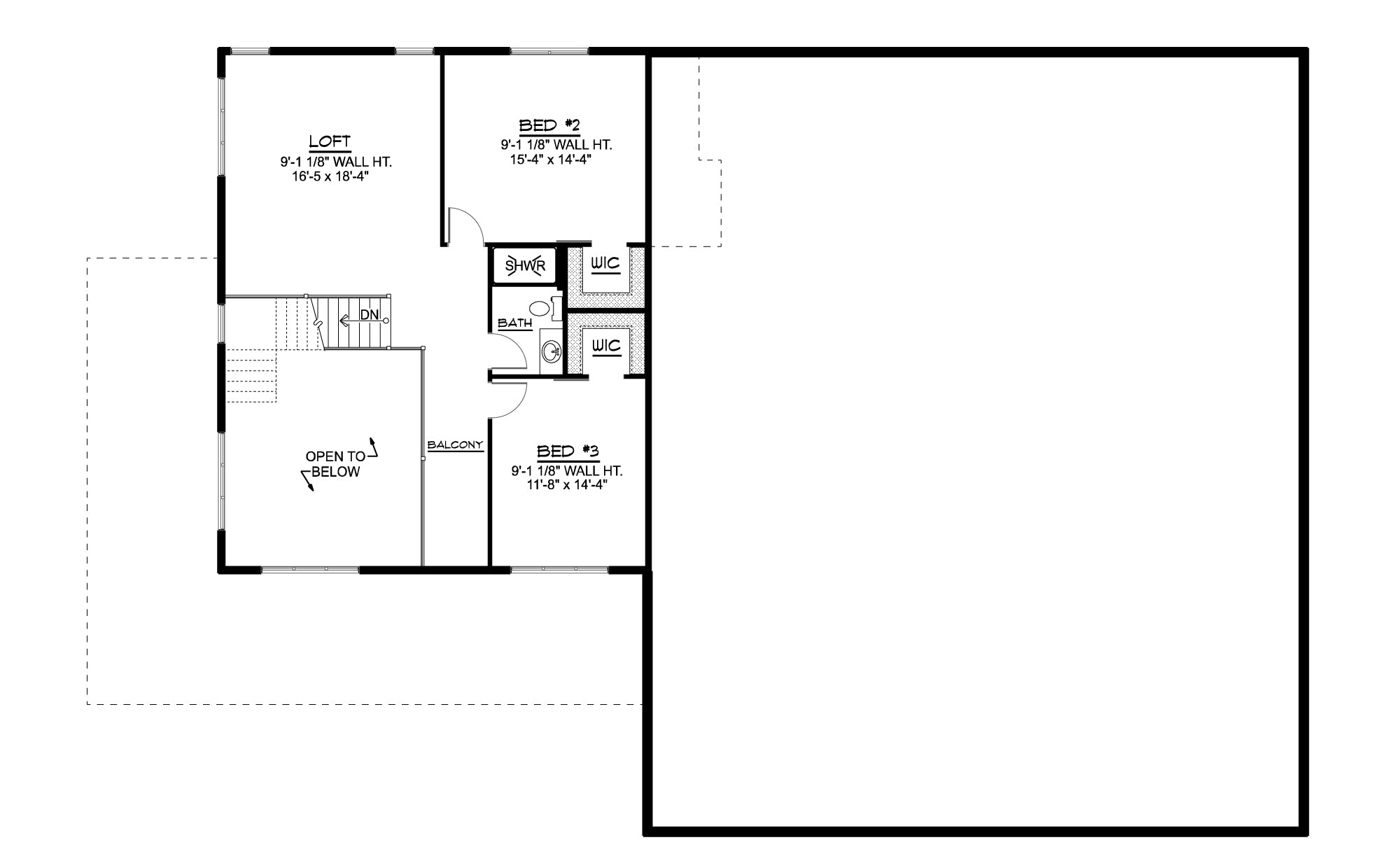

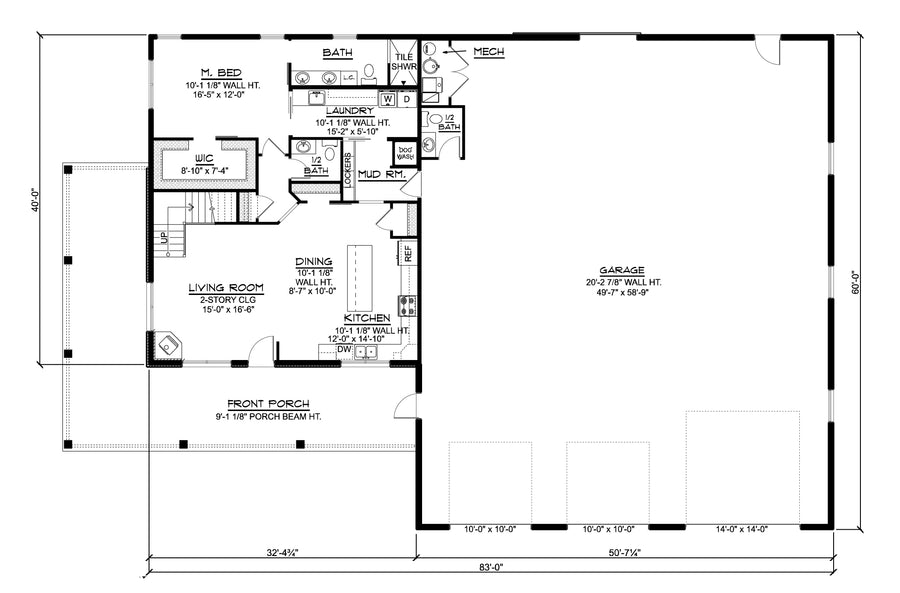

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,302 SF

Second Floor:

991 SF

Total Heated Sq Ft:

2,293 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 3,030 SF, Porch 664 SF = TOTAL 3,694 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

3,030 SF

Width:

30'-9"

Depth:

60'

Height:

30'-9"

Foundation:

Concrete Slab

Main Roof Pitch:

4:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

10'

BG-20041 Hawthorne Barndominium House Plan



About this barndominium house plan:

  • 2,293 Heated Sq Ft
  • 3 Bedrooms
  • 2.2 Bathrooms
  • Two-Story
  • Open concept
  • Loft
  • Mudroom
  • Mechanical closet
  • Front porch
  • 3,030 Sq Ft Garage



  • A well-proportioned interior offering 2,293 square feet of conditioned living—designed for comfort, movement, and spatial efficiency.
  • Three private bedrooms and a mix of two full baths plus two powder rooms provide flexibility for family life, guests, and entertaining with ease.
  • An airy upper-level loft adds a layer of versatility—perfect for media, play, study, or quiet retreat. It’s a space that adapts to your rhythm.
  • A practical transition zone that keeps the rest of the home clean and organised. Drop your gear, sort your shoes, and move through the day with ease.
  • Smartly integrated into the garage, the mechanical closet keeps systems accessible yet discreet—streamlining maintenance without disrupting the living space.
  • A supersized garage offering 3,030 square feet of covered utility—ideal for multiple vehicles, storage, workshop space, or hobby zones. It’s more than a garage; it’s a multifunctional extension of the home.



What's included in BG-20041:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours.

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
