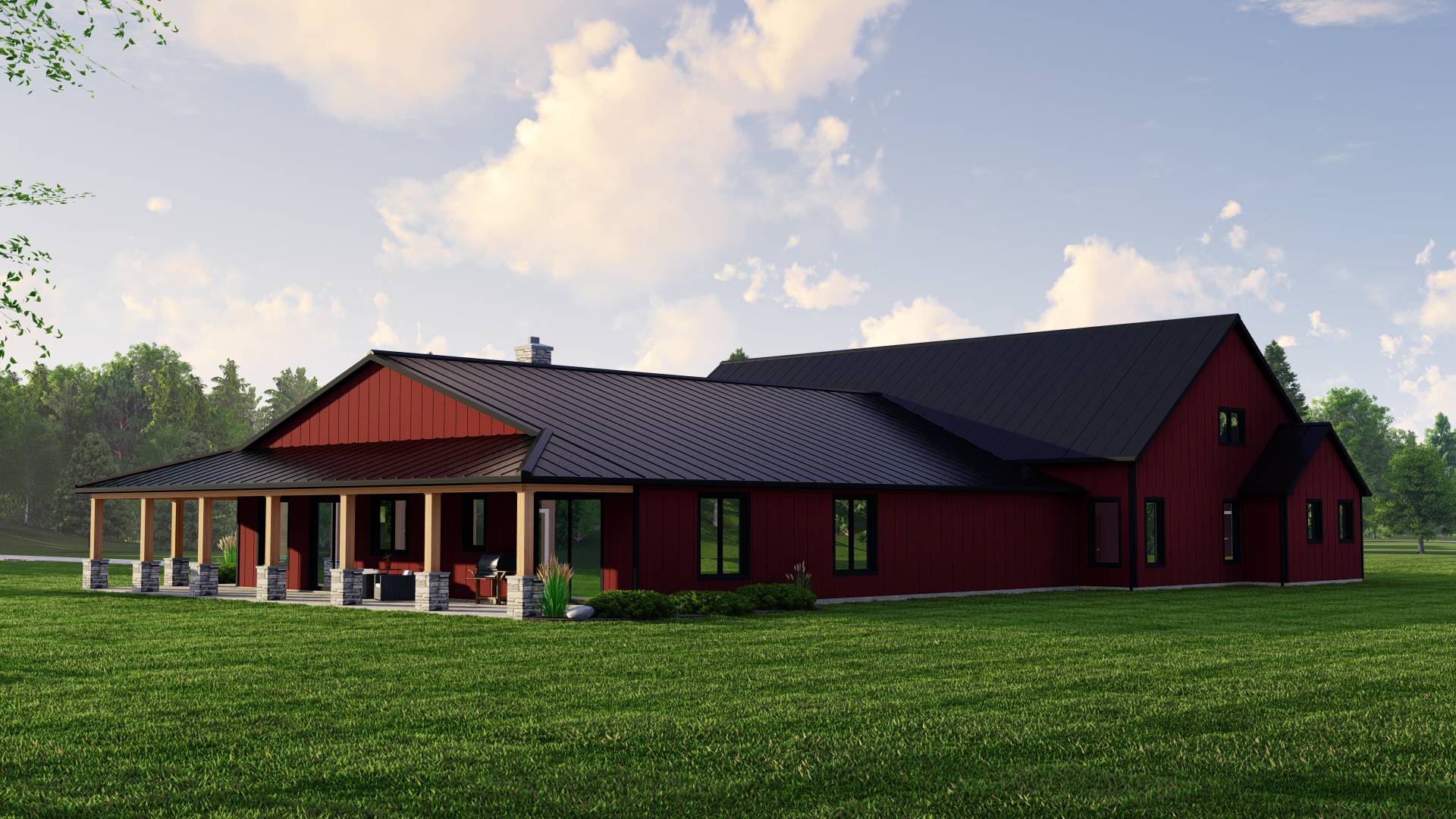

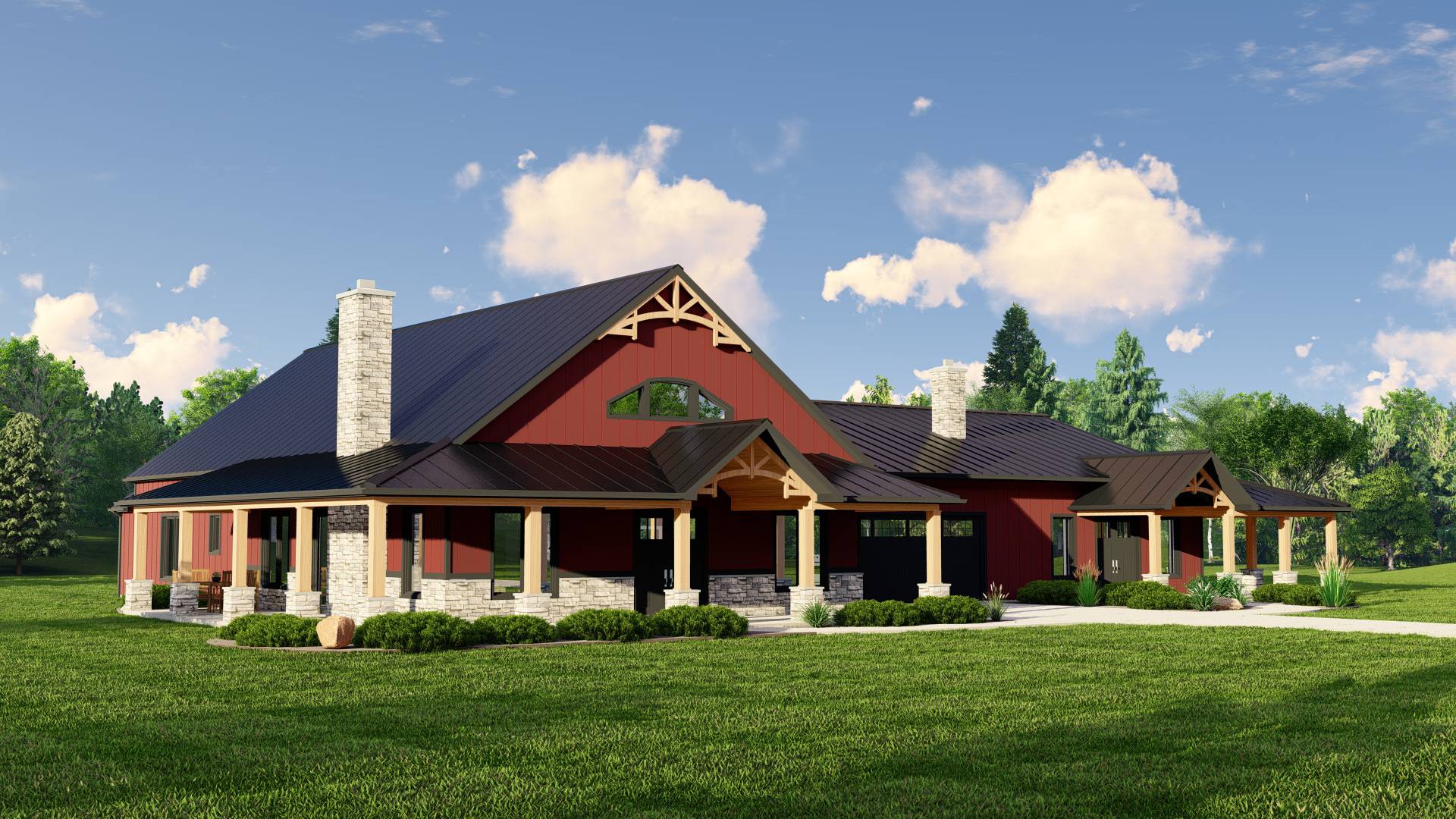

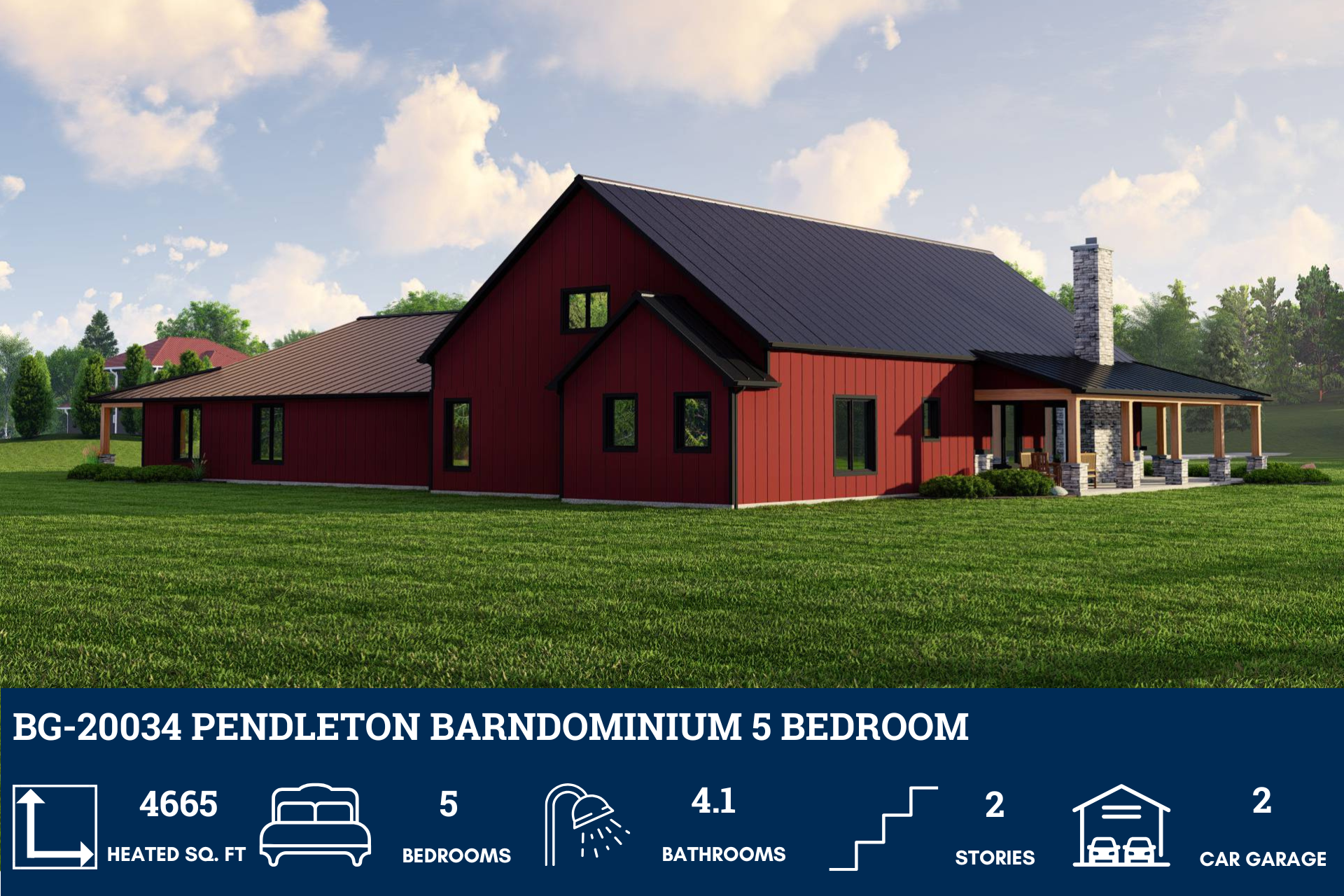

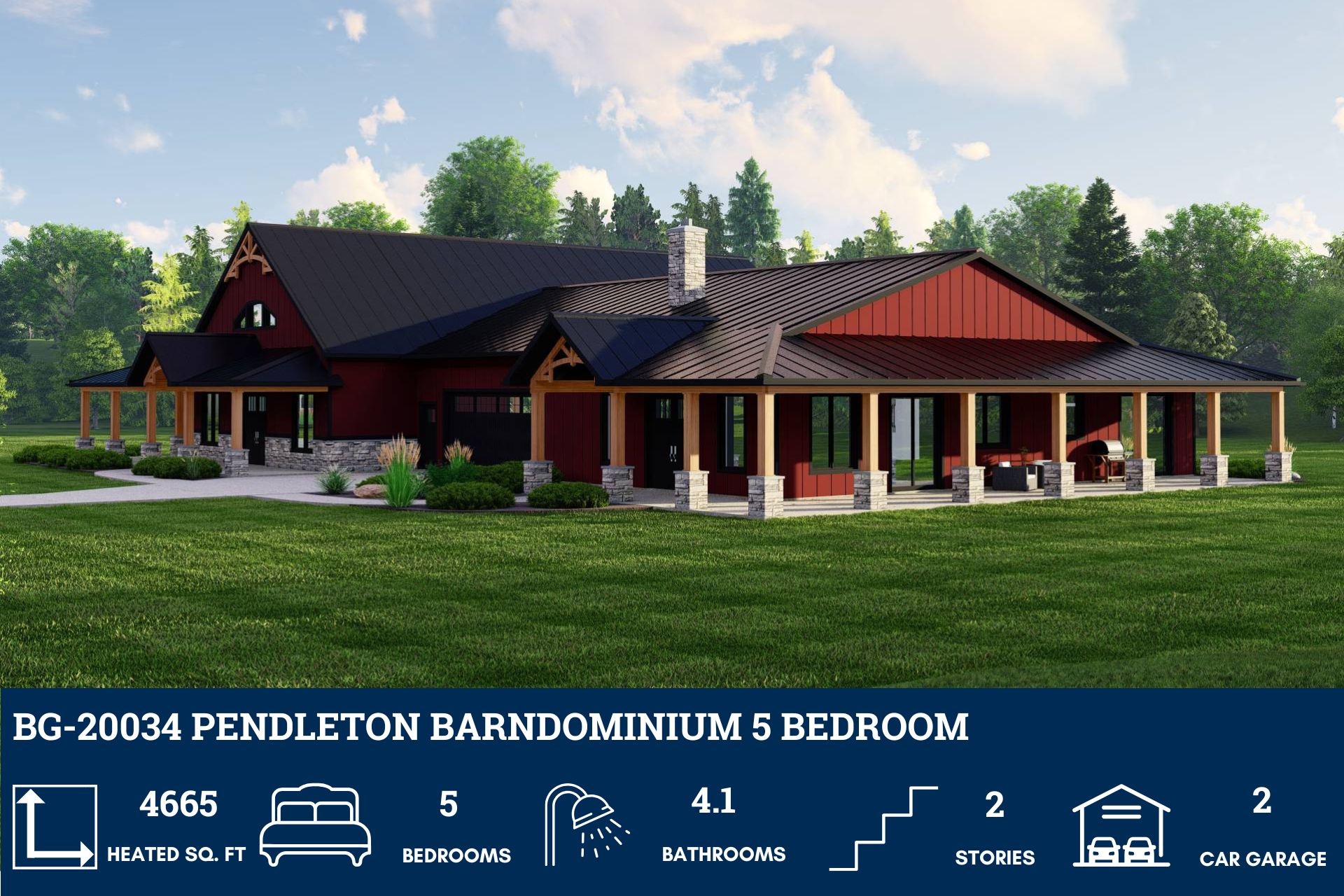

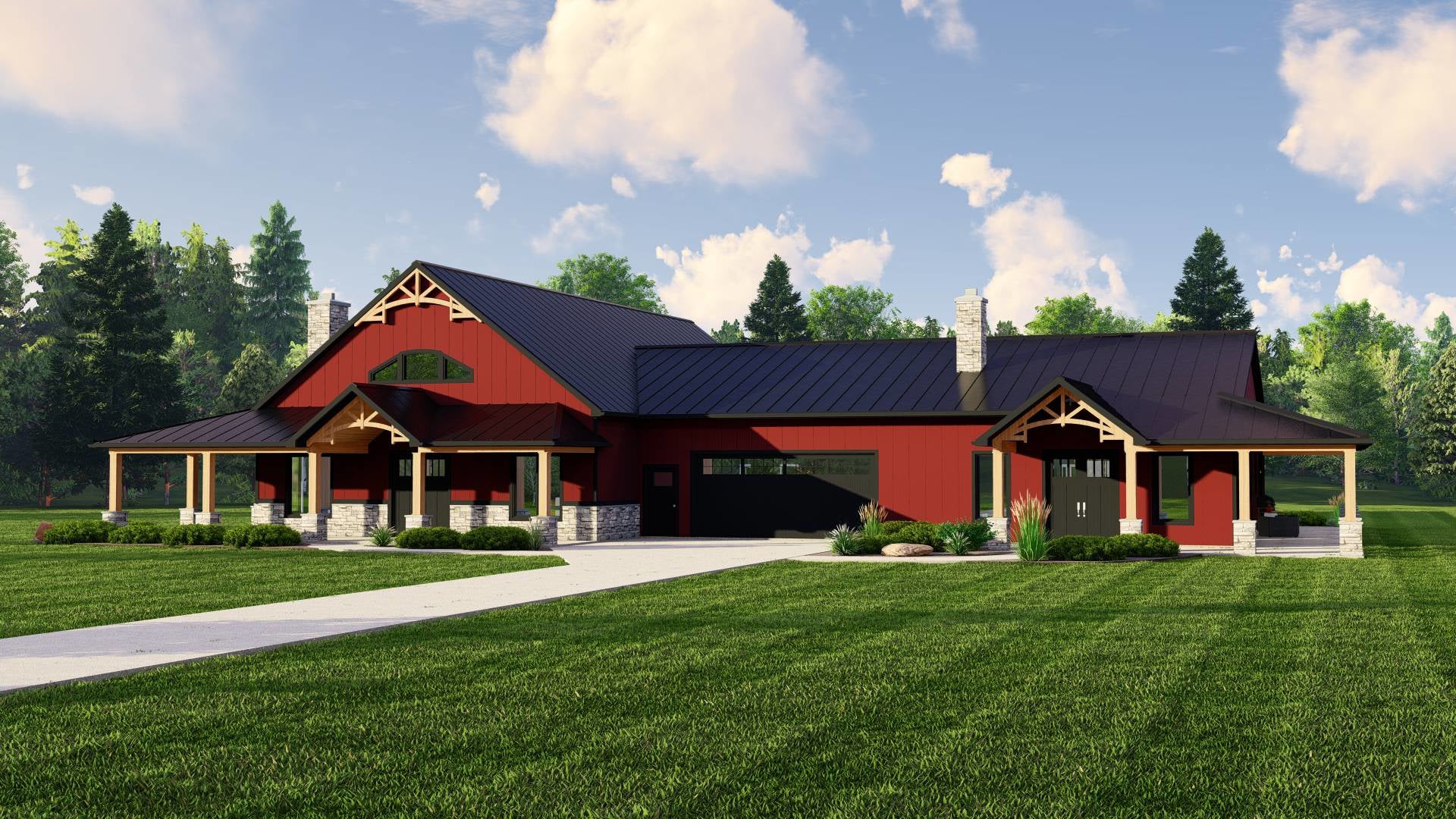

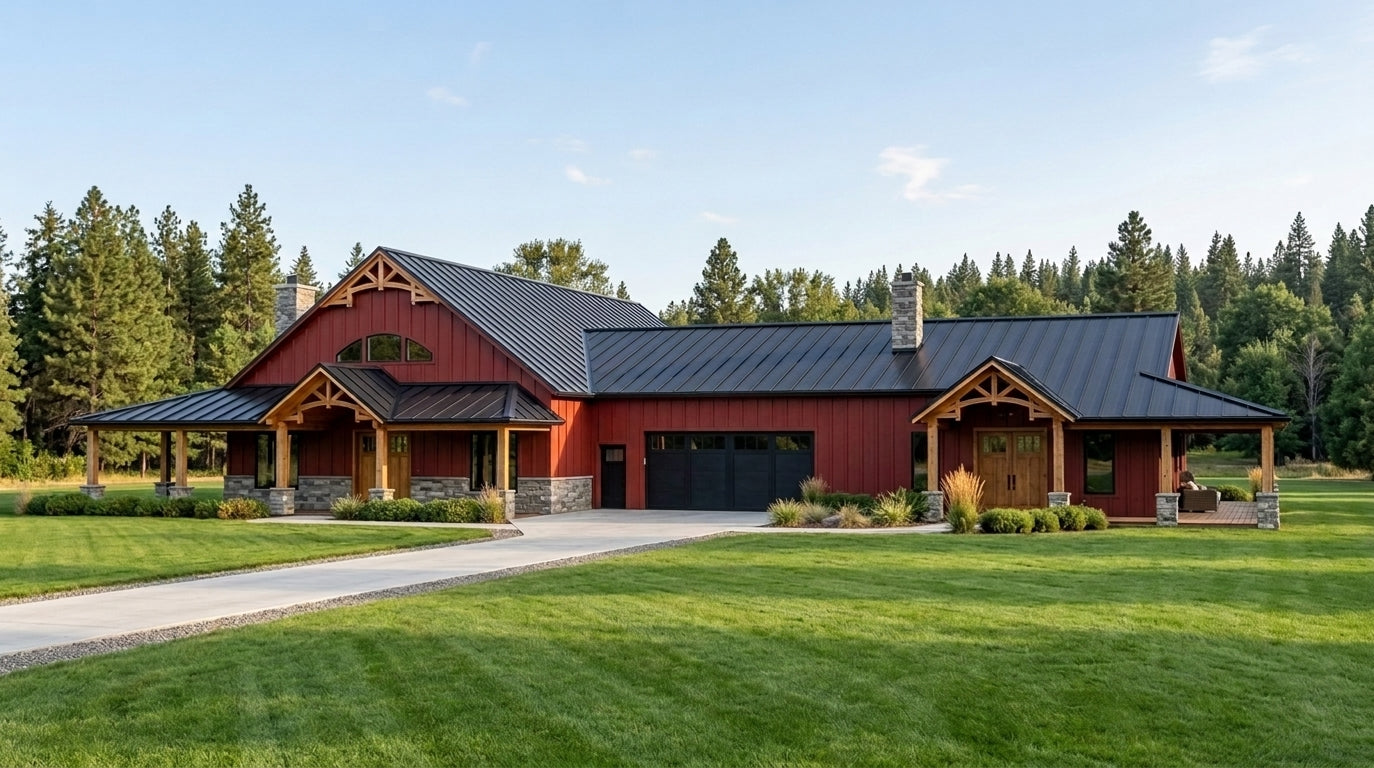

BG-20034 Pendleton Barndominium House Plan

$1,350.00 USD
$1,350.00 USD
Sale Sold out
Add To Wishlist
1 12

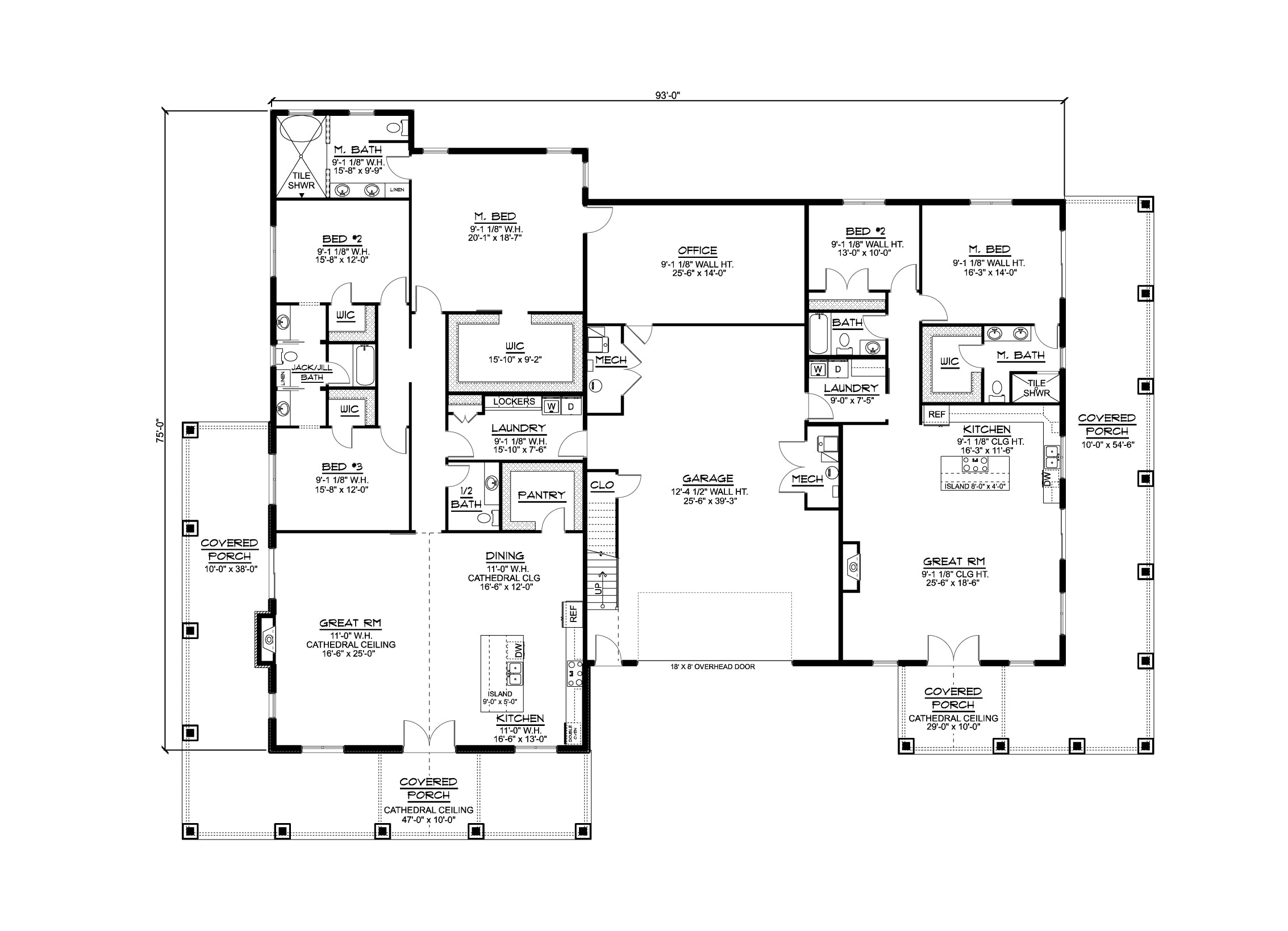

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

4,665 SF

Second Floor:

1,025 SF

Total Heated Sq Ft:

4,665 SF

UNHEATED SQ FT

Total Unheated Area:

Second Floor 1,025 SF, Garage 1,147 SF, Porch 1,705 SF = TOTAL 3,877 SF

Carport:

None

Bedrooms:

5

Full Baths:

4

Floors:

2

Garage Size:

1,147 SF

Width:

113'

Depth:

85'

Height:

26'-9"

Foundation:

Concrete slab, Basement Option Also Available

Main Roof Pitch:

9:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BG-20034 Pendleton Barndominium House Plan



About this barndominium house plan:

  • 4,665 Heated Sq Ft
  • 5 Bedrooms
  • 4.1 Bathrooms
  • Two story

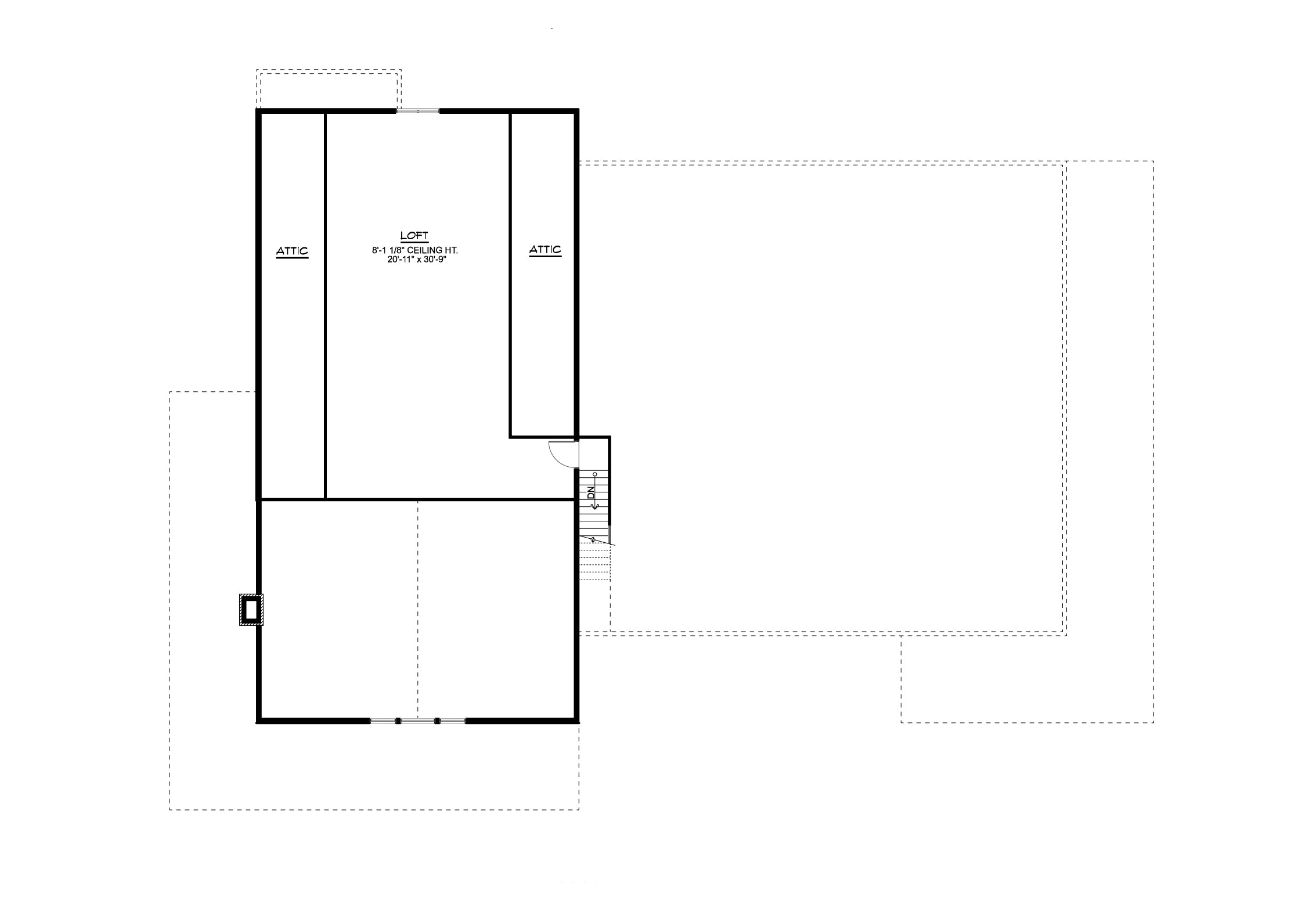

  • Loft/Attic
  • Open concept
  • Office
  • Covered porch
  • 1,147 Sq Ft Garage
  • Guest/in-law suite
  • 2 Master bedrooms
  • 2 living rooms
  • 2 kitchens
  • 2 laundry room
  • Mechanical closets



  • An impressive 4,665 square feet of heated living space offers room to live expansively, entertain effortlessly, and grow with intention.
  • Five spacious bedrooms provide comfort and flexibility for family, guests, and multi-generational living.
  • With four full baths and a powder room, the layout ensures smooth routines and seamless hosting.
  • A versatile loft and attic space add dimension—perfect for storage, creativity, or quiet retreat.
  • A dedicated office provides a focused environment for remote work, study, or creative pursuits.
  • The covered porch invites relaxed outdoor living, offering shade, charm, and a welcoming entry point.
  • A spacious 1,147-square-foot garage offers ample room for vehicles, tools, and workshop potential.
  • A private guest or in-law suite delivers comfort and independence—ideal for extended stays or multi-generational living.
  • Two luxurious master suites offer elevated comfort, privacy, and personal space for dual homeowners or long-term guests.
  • Dual living rooms provide space to gather, relax, and entertain—perfect for flexible lifestyles and large households.
  • Two fully equipped kitchens support entertaining, multi-family living, or culinary creativity across both levels.
  • Multiple mechanical closets keep systems organized and out of sight, preserving clean lines and functionality.



What's included in BG-20034:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
