BG-20023 Brighton Barndominium House Plan

$1,350.00 USD
$1,350.00 USD
Sale Sold out
1 26

Floor Plan

DETAILS

HEATED SQ FT

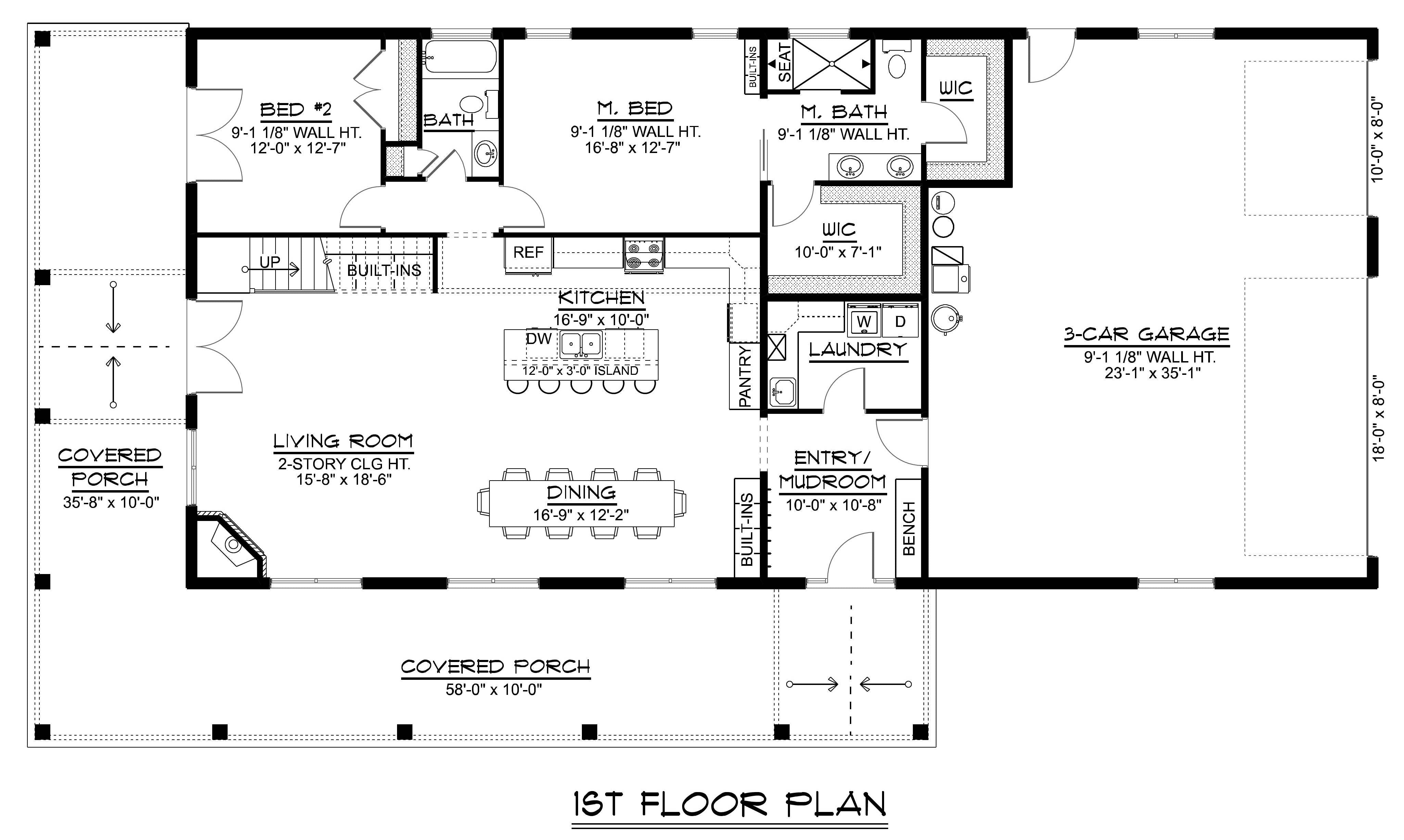

First Floor:

1,725 SF

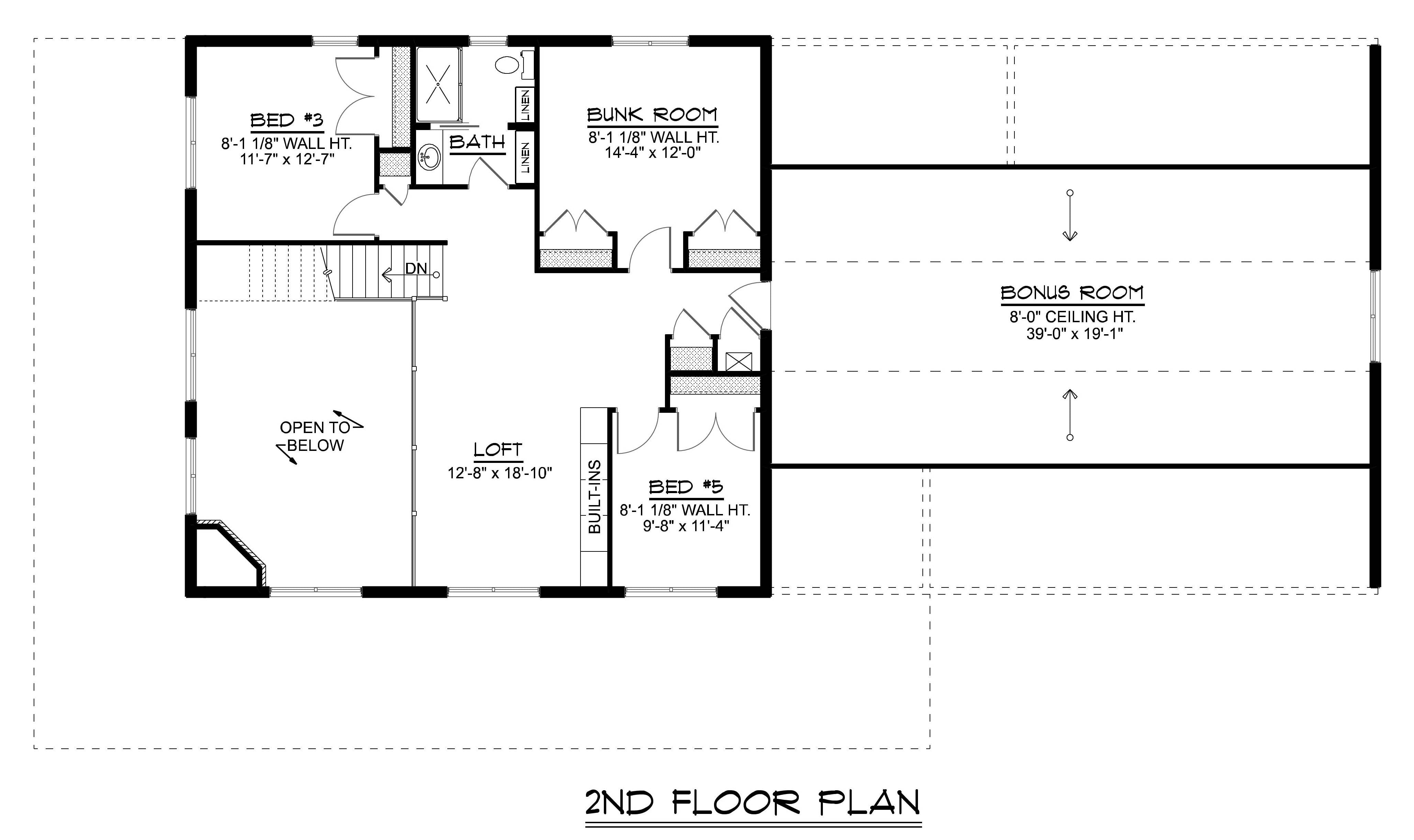

Second Floor:

1,018 SF

Total Heated Sq Ft:

2,743 SF

UNHEATED SQ FT

Total Unheated Area:

Bonus Room 776 SF, Garage 1,047 SF, Porch 940 SF = TOTAL 2,763 SF

Carport:

None

Bedrooms:

3

Full Baths:

5

Floors:

2

Garage Size:

1,047 SF

Width:

87'

Depth:

46'

Height:

27'-9"

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BG-20023 Brighton Barndominium House Plan



About this barndominium house plan:

  • 2743 Heated square feet
  • 5 Bedrooms
  • 3 Bathrooms
  • Two Story

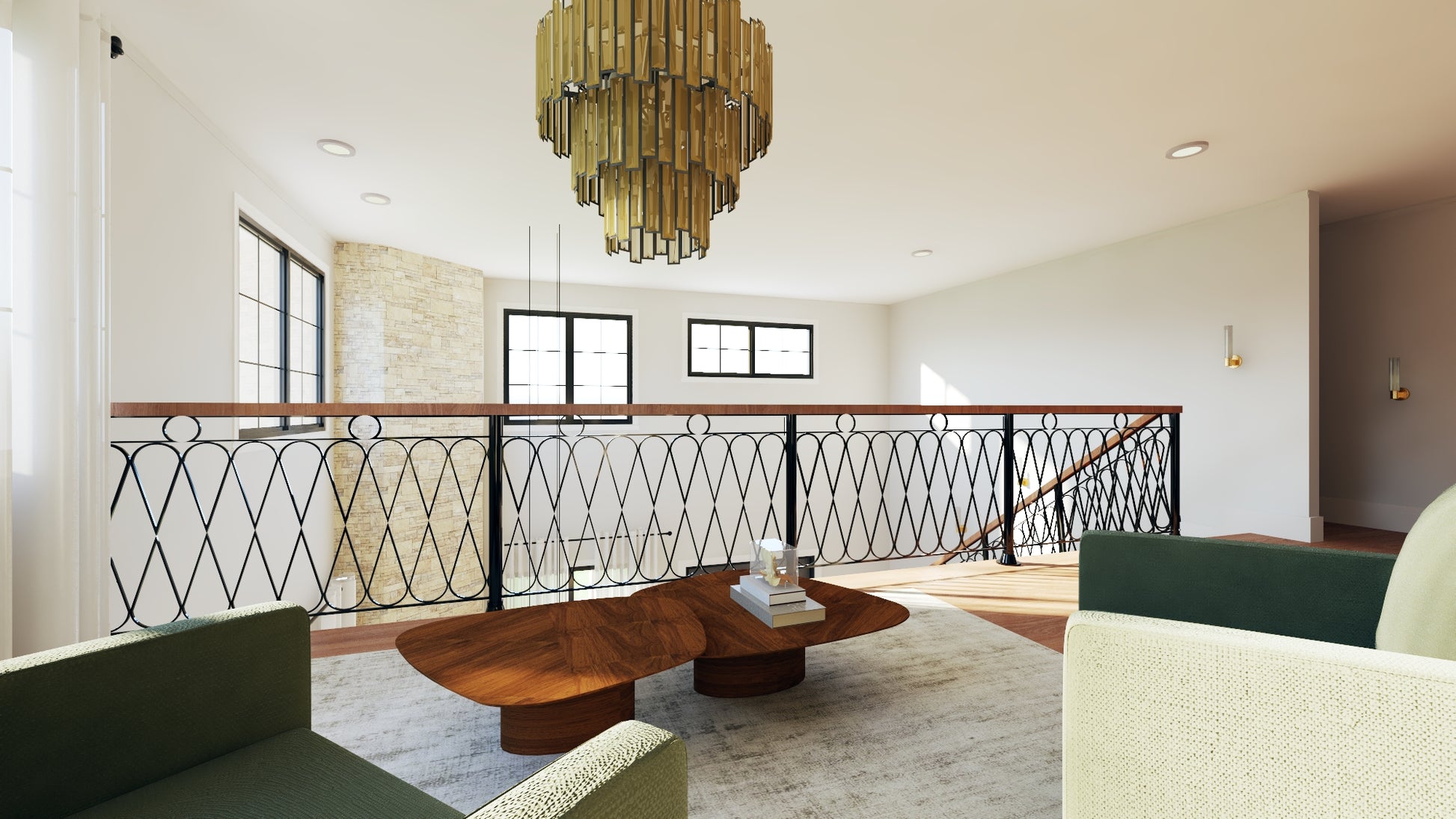

  • Loft
  • Mudroom
  • Bunk Room
  • Bonus Room

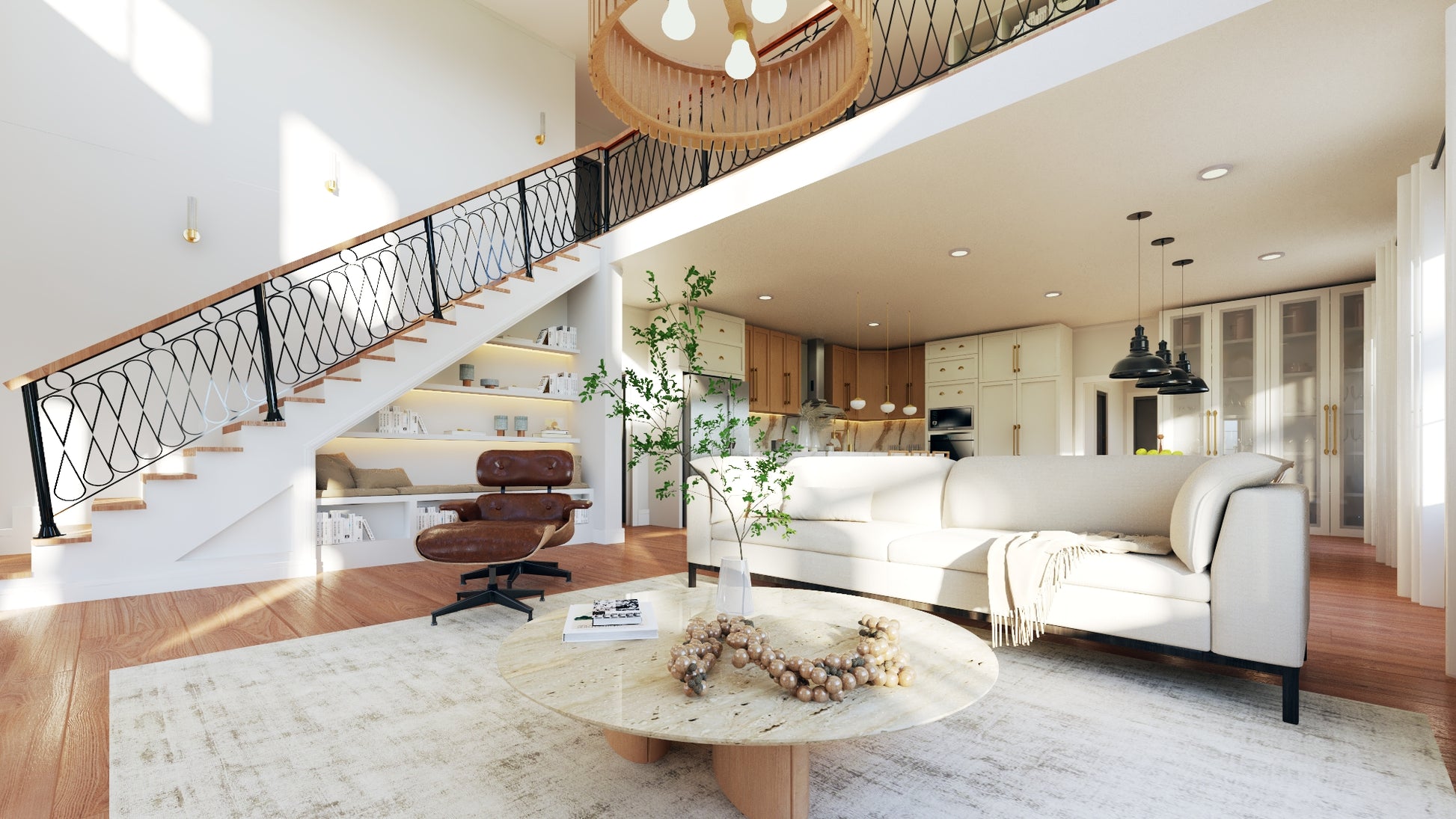

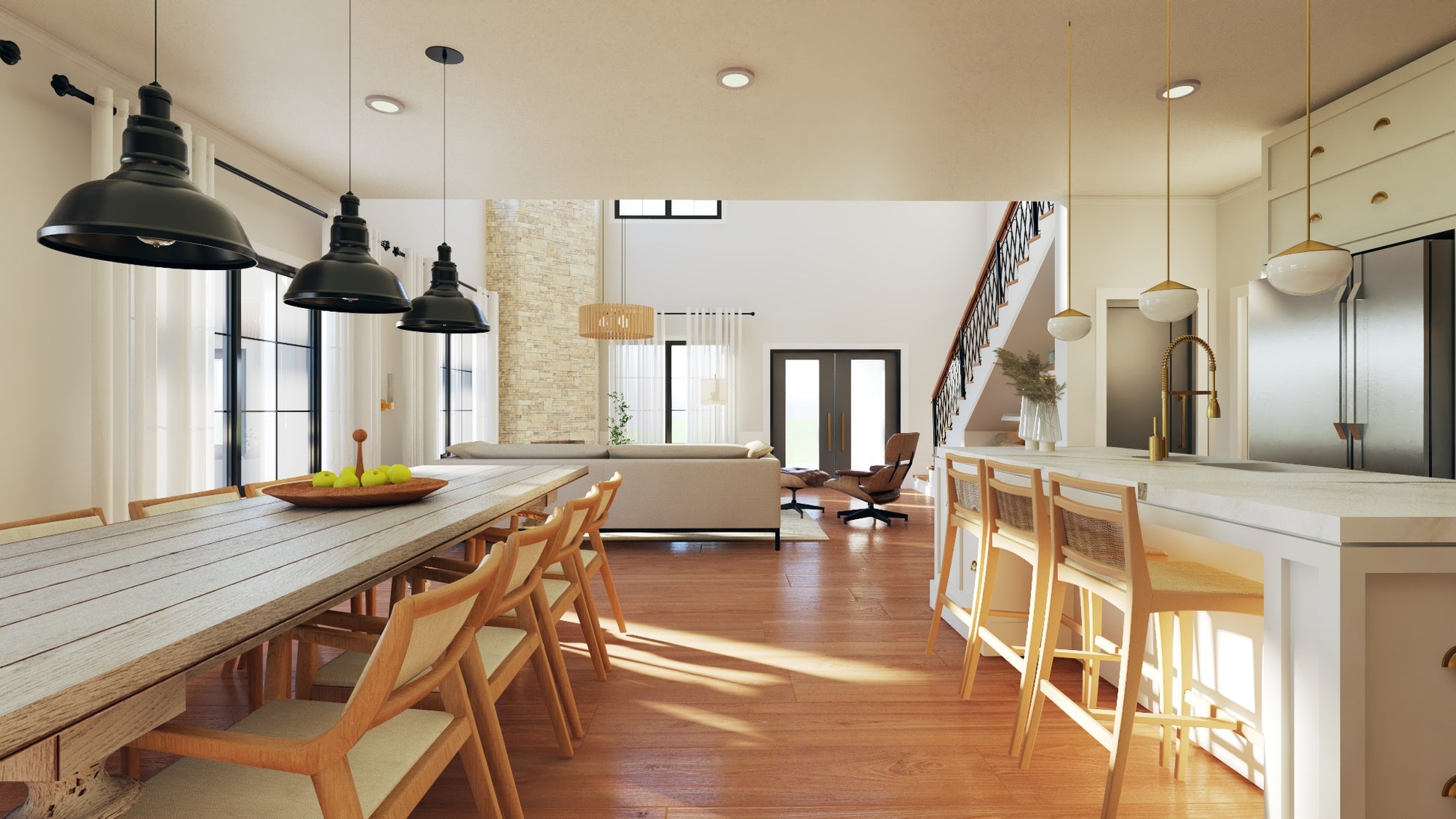

  • Open concept
  • Covered porch

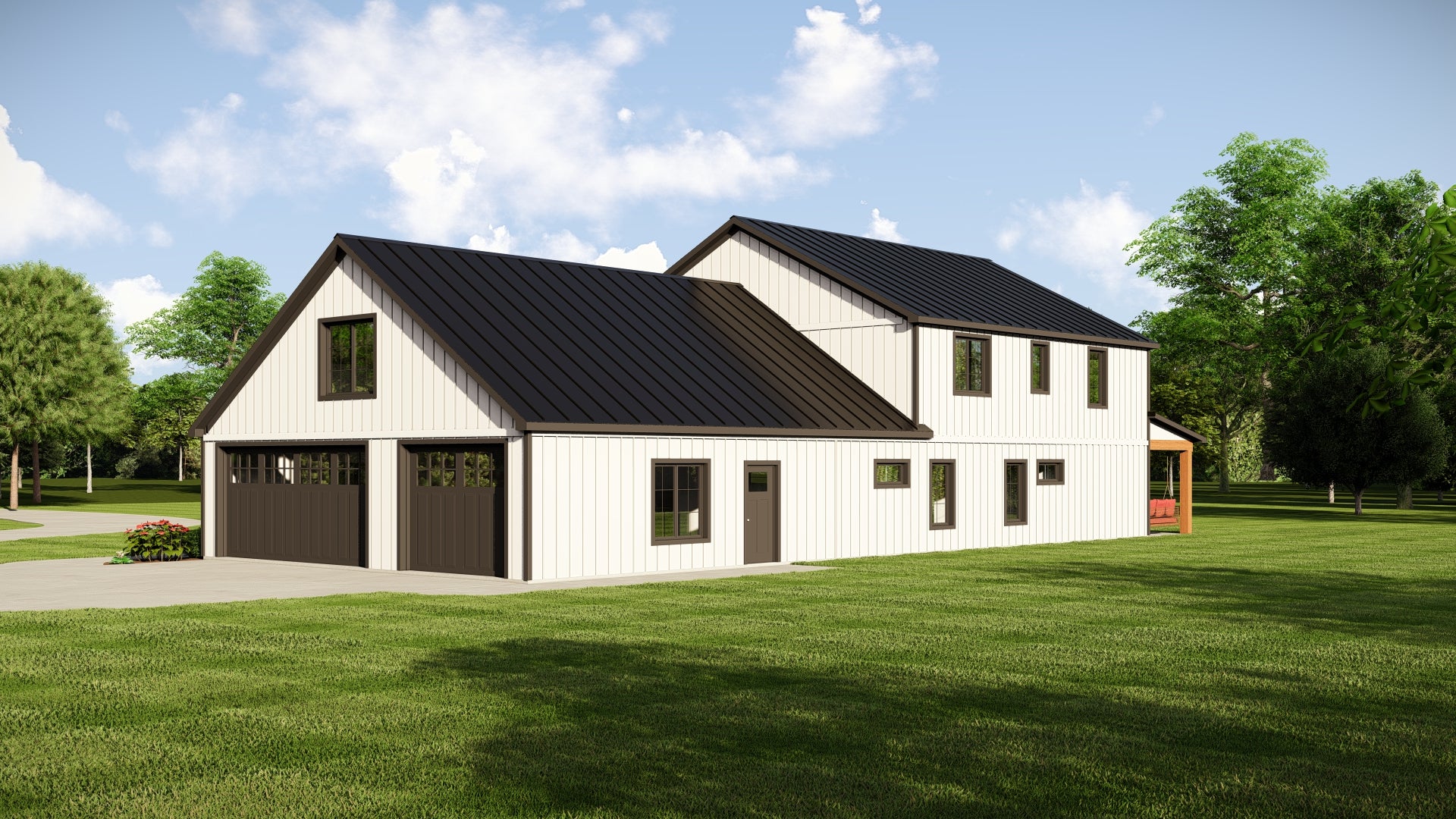

  • Attached 1047 Sq Ft Garage



  • Generously sized and thoughtfully designed, this home offers nearly 2,750 square feet of climate-controlled living—perfect for growing families, entertainers, or those who crave room to breathe.
  • Five spacious bedrooms provide unmatched flexibility—whether you're accommodating guests, creating a home office, or building the ultimate sleep sanctuary for every member of the household.
  • Three full bathrooms ensure comfort and convenience, with stylish finishes and smart layouts that support busy mornings and relaxing evenings alike.
  • A classic two-story layout offers architectural charm and functional separation—keeping social spaces vibrant and private areas peaceful.

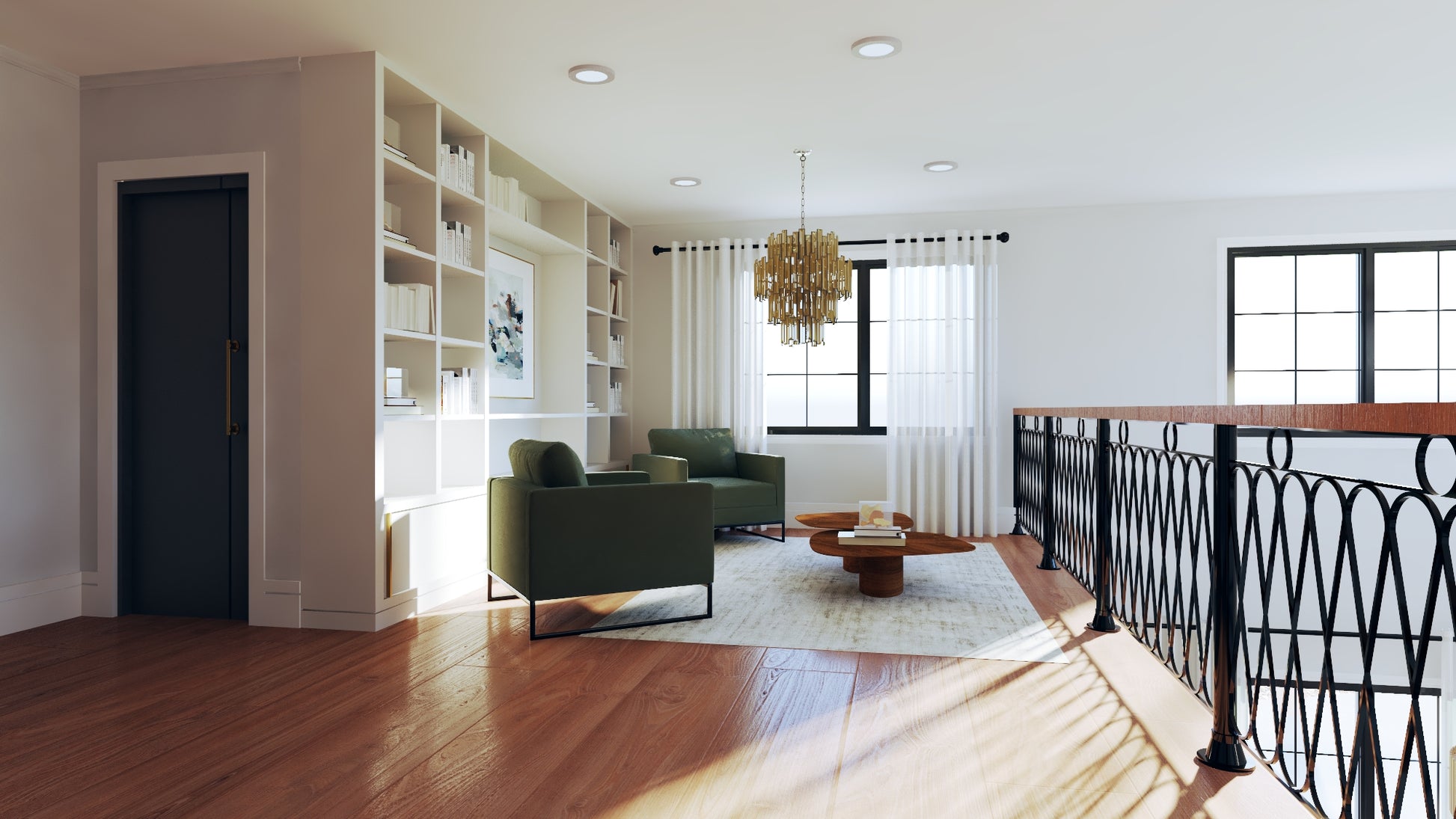

  • The loft adds a layer of versatility—ideal for a media lounge, study zone, or creative retreat that adapts to your lifestyle.
  • A practical yet polished mudroom keeps the chaos at bay—perfect for organizing shoes, coats, and gear while maintaining a tidy entryway.
  • The bunk room brings playful charm and efficient sleeping arrangements—ideal for kids, guests, or vacation-style hosting with personality.
  • A flexible bonus room offers endless possibilities—whether it's a game room, gym, craft studio, or quiet escape, it’s yours to define.
  • Relax and recharge on the covered porch—an inviting outdoor space that extends your living area and welcomes guests with timeless charm.
  • This oversized attached garage offers over 1,000 sq ft of secure, versatile space—perfect for vehicles, storage, hobbies, or even a workshop.





What's included in BG-20023:

Cover Sheet

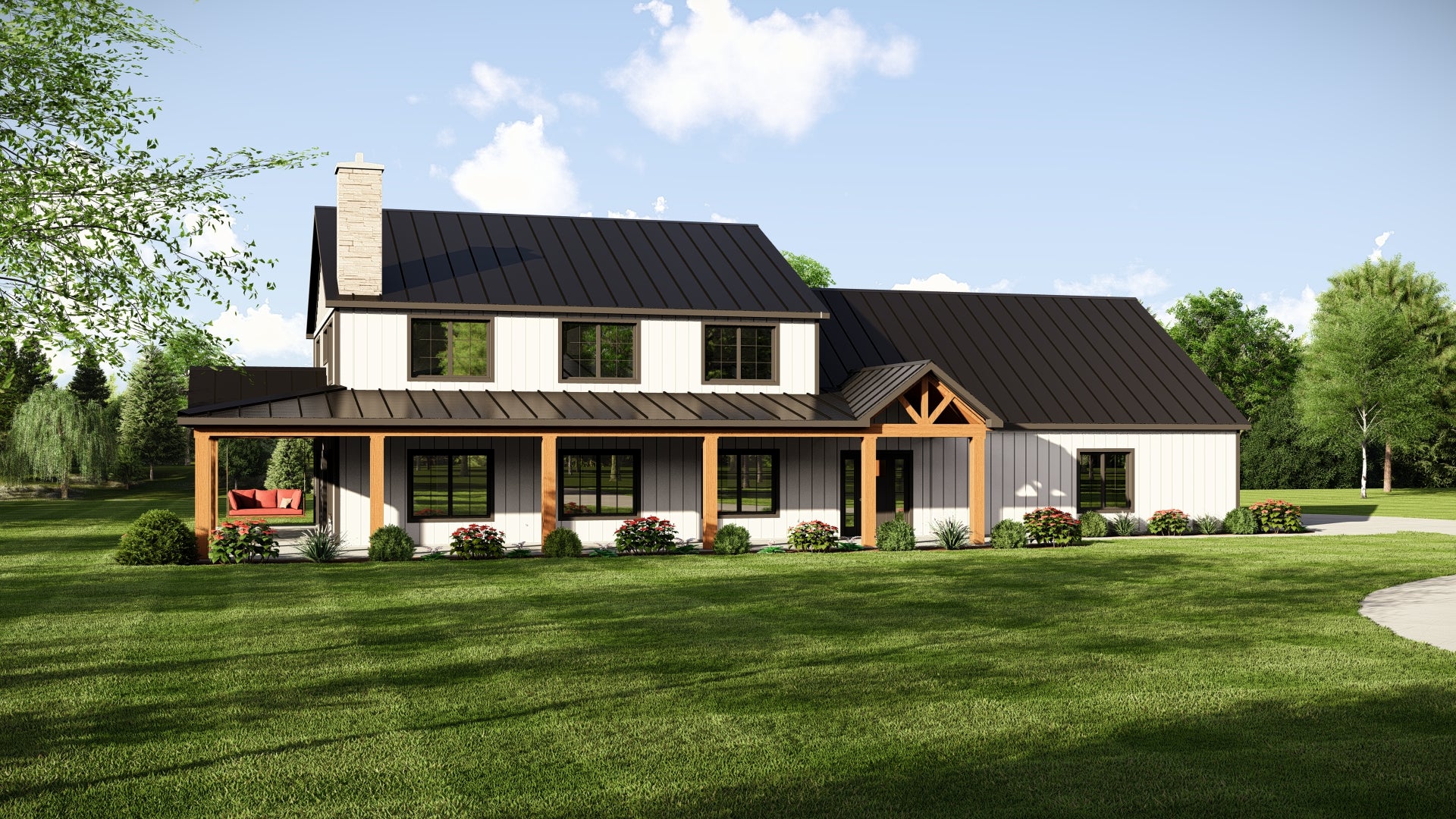

Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
