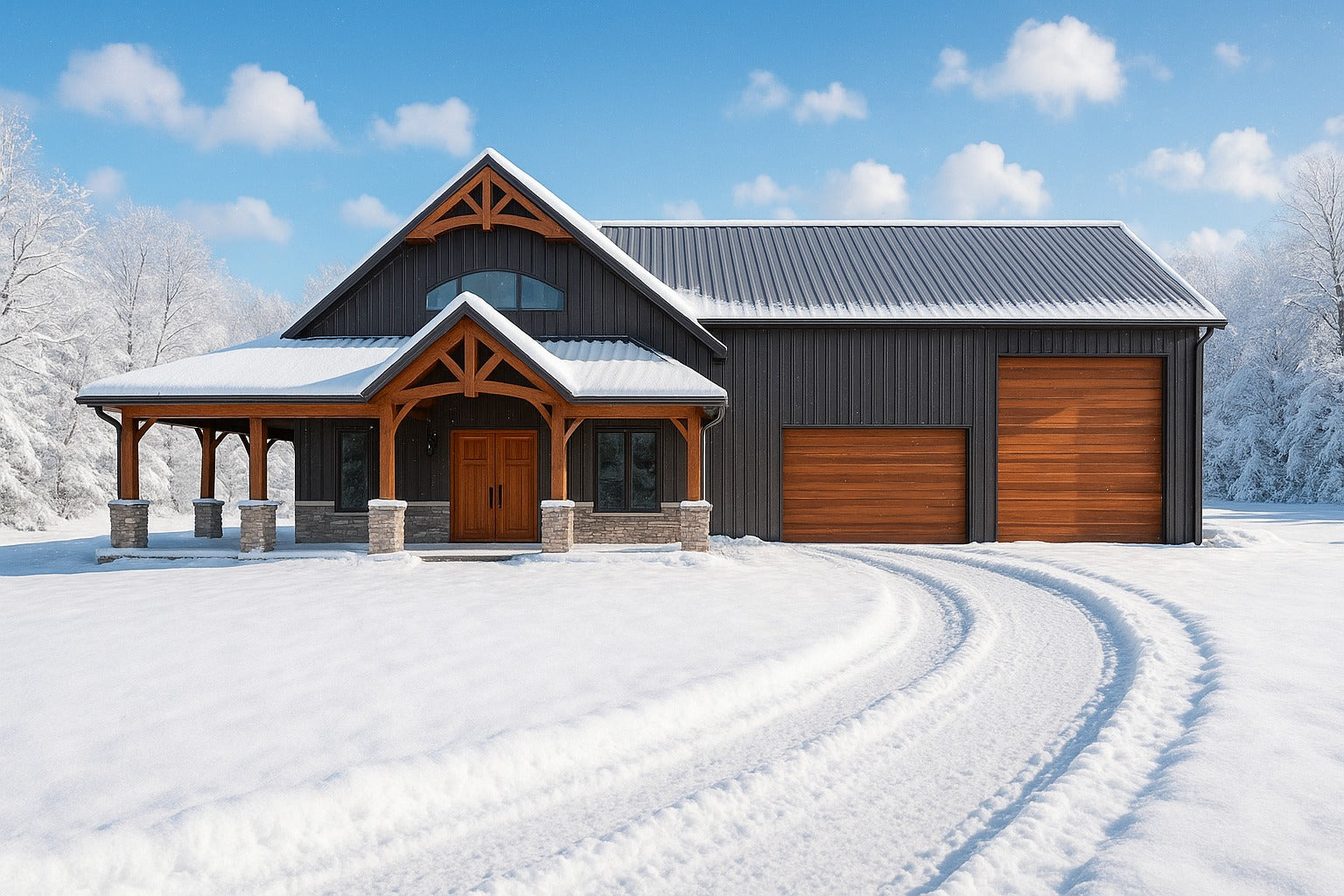

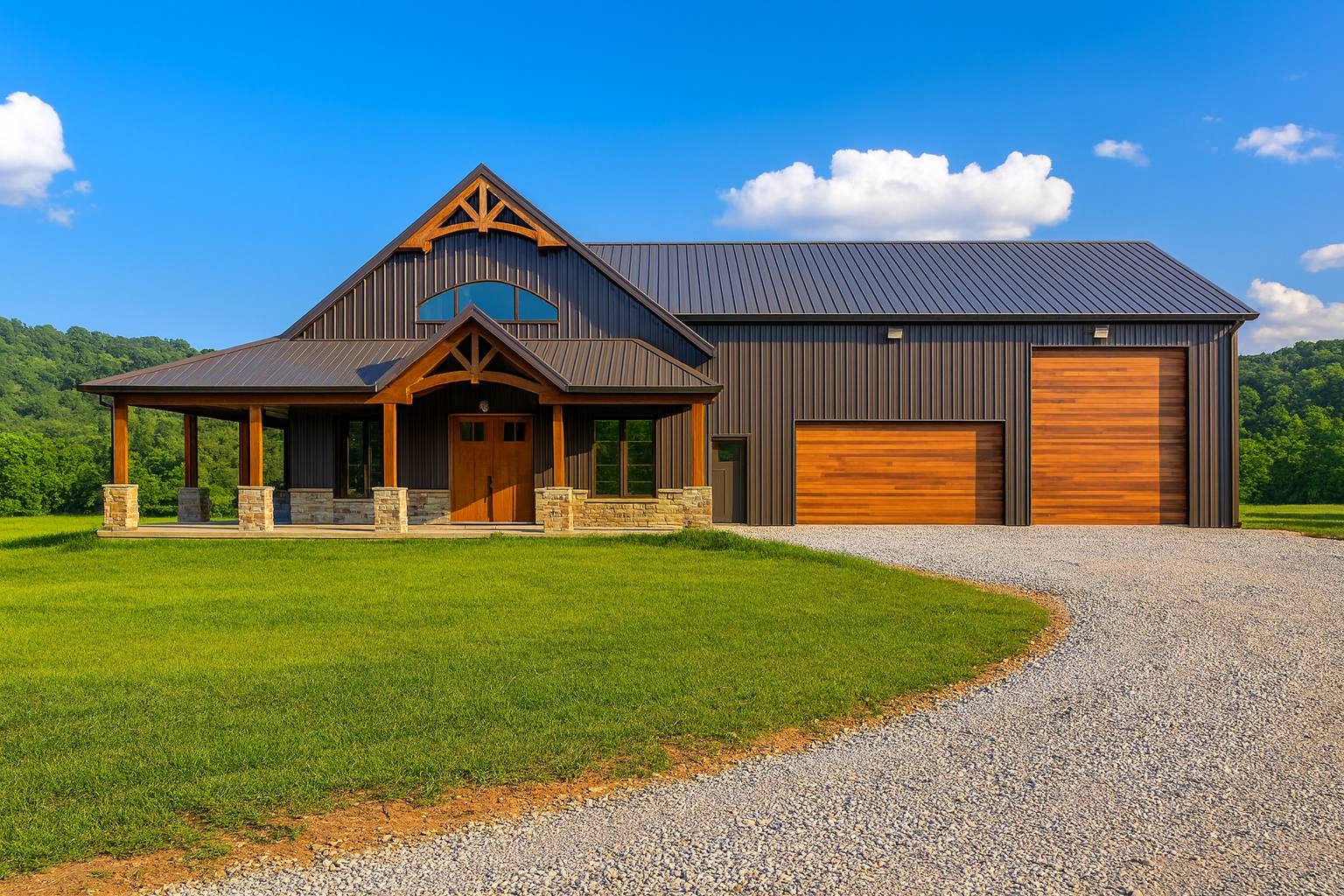

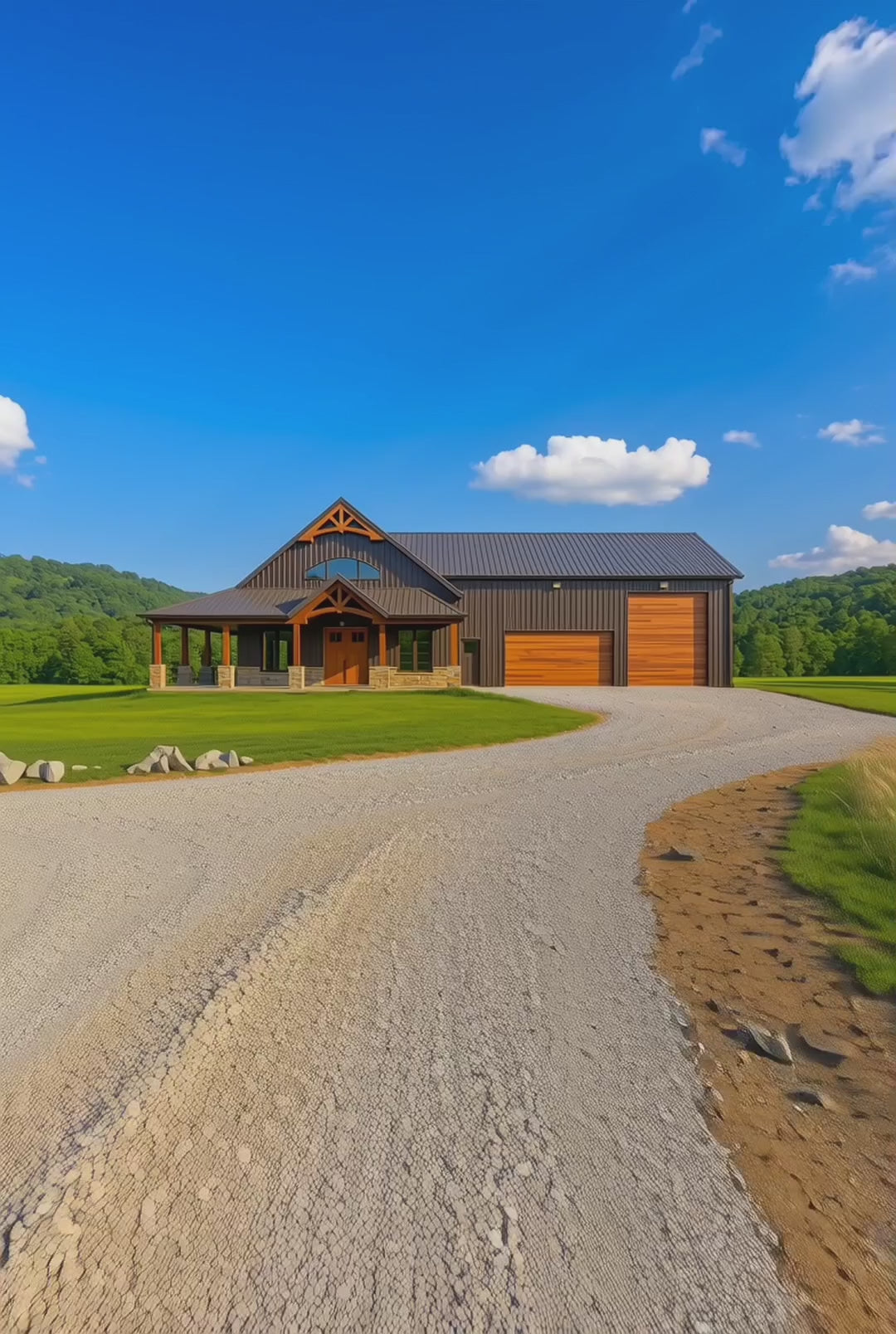

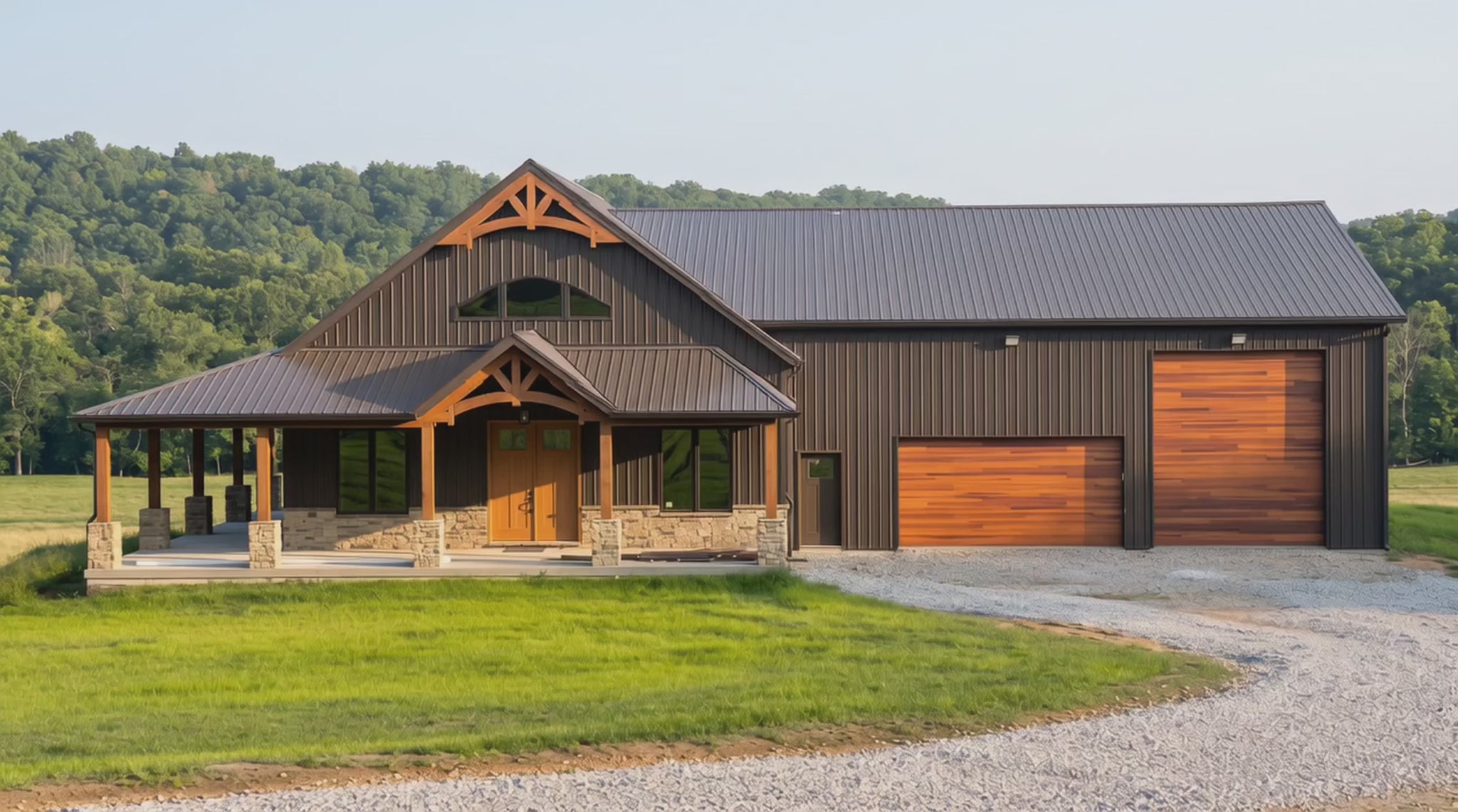

BG-20003 Legacy Barndominium House Plan

$1,150.00 USD
$1,150.00 USD
Sale Sold out
1 11

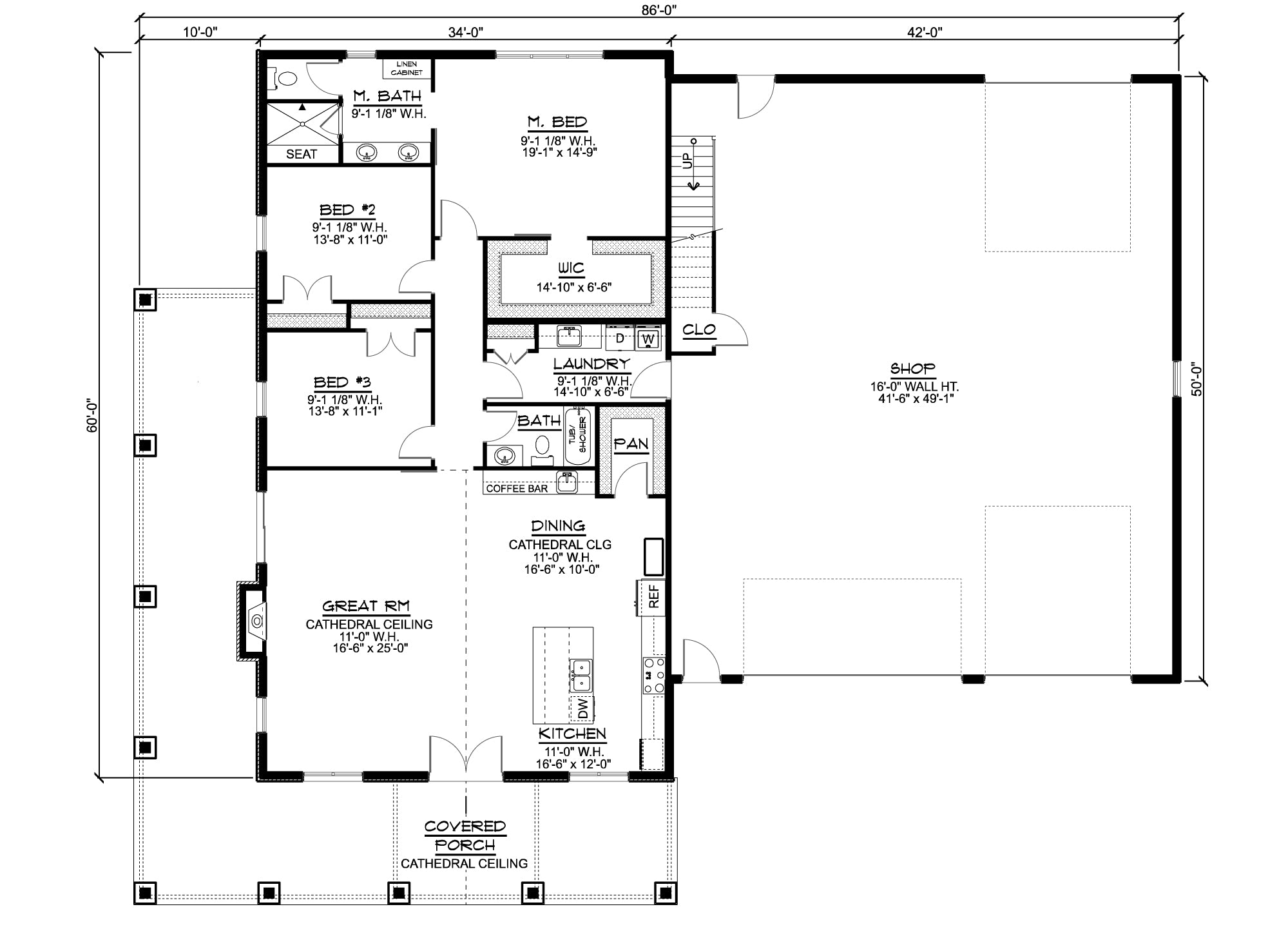

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,039 SF

Second Floor:

626 SF

Total Heated Sq Ft:

2,039 SF

UNHEATED SQ FT

Total Unheated Area:

Loft 626 SF, Garage 2,123 SF, Porch 830 SF = TOTAL 3,579 SF

Carport:

None

Bedrooms:

3

Full Baths:

2

Floors:

2

Garage Size:

2,123 SF

Width:

86'

Depth:

70'

Height:

25'-8"

Foundation:

Concrete Slab, Basement also available

Main Roof Pitch:

9:12

Exterior Framing:

2x6 Stick-frame

CEILING HEIGHTS

First Floor:

9'

BG-20003 Legacy Barndominium House Plan



About this barndominium house plan:

  • 2039 Heated square feet
  • 3 bedrooms
  • 2 bathrooms
  • Two Story

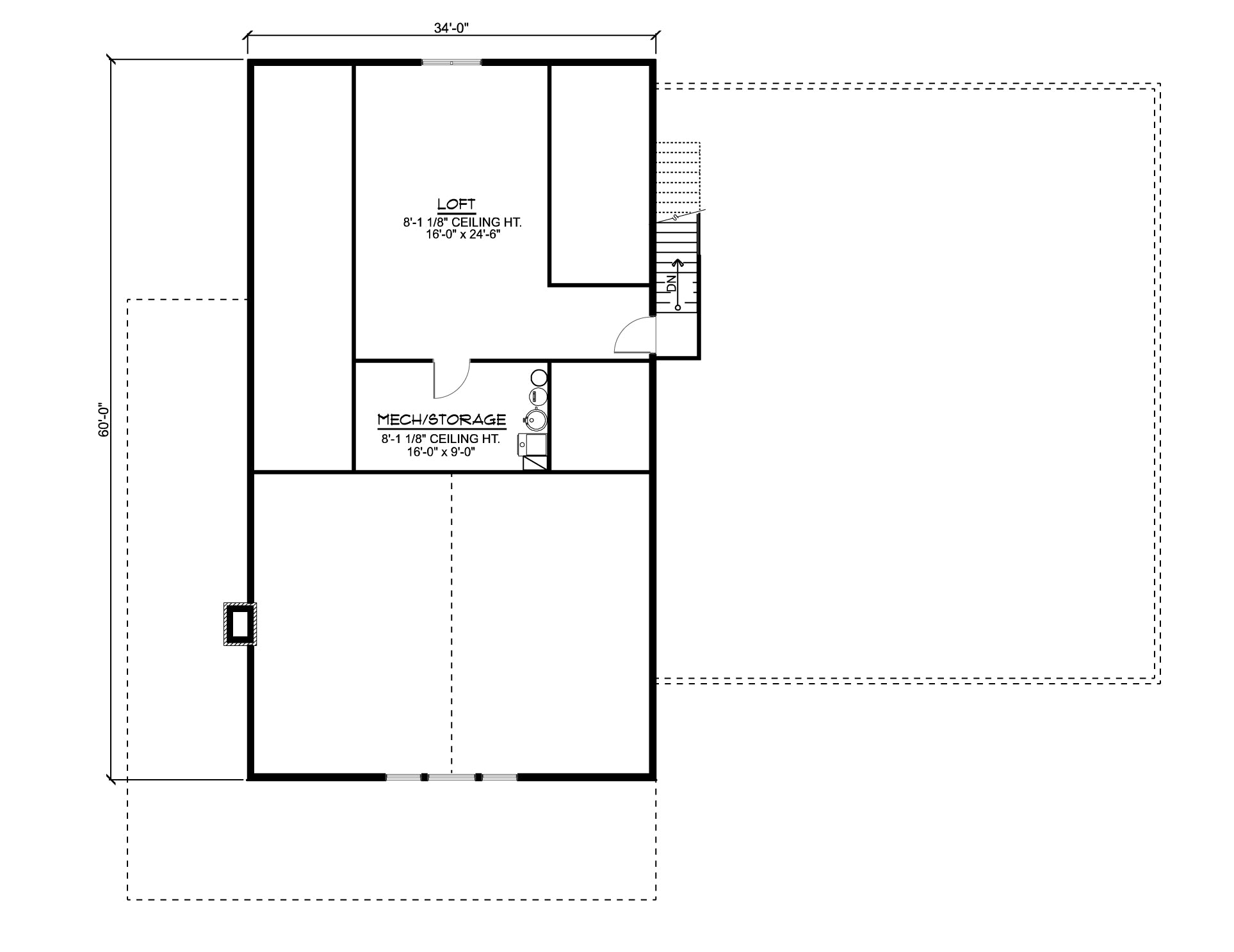

  • Loft
  • Open Concept
  • 2123 sq ft Shop
  • Front porch
  • Mechanical room/storage



  • Enjoy 2,039 square feet of thoughtfully designed living space—where comfort meets functionality in a layout that feels both spacious and intimate.

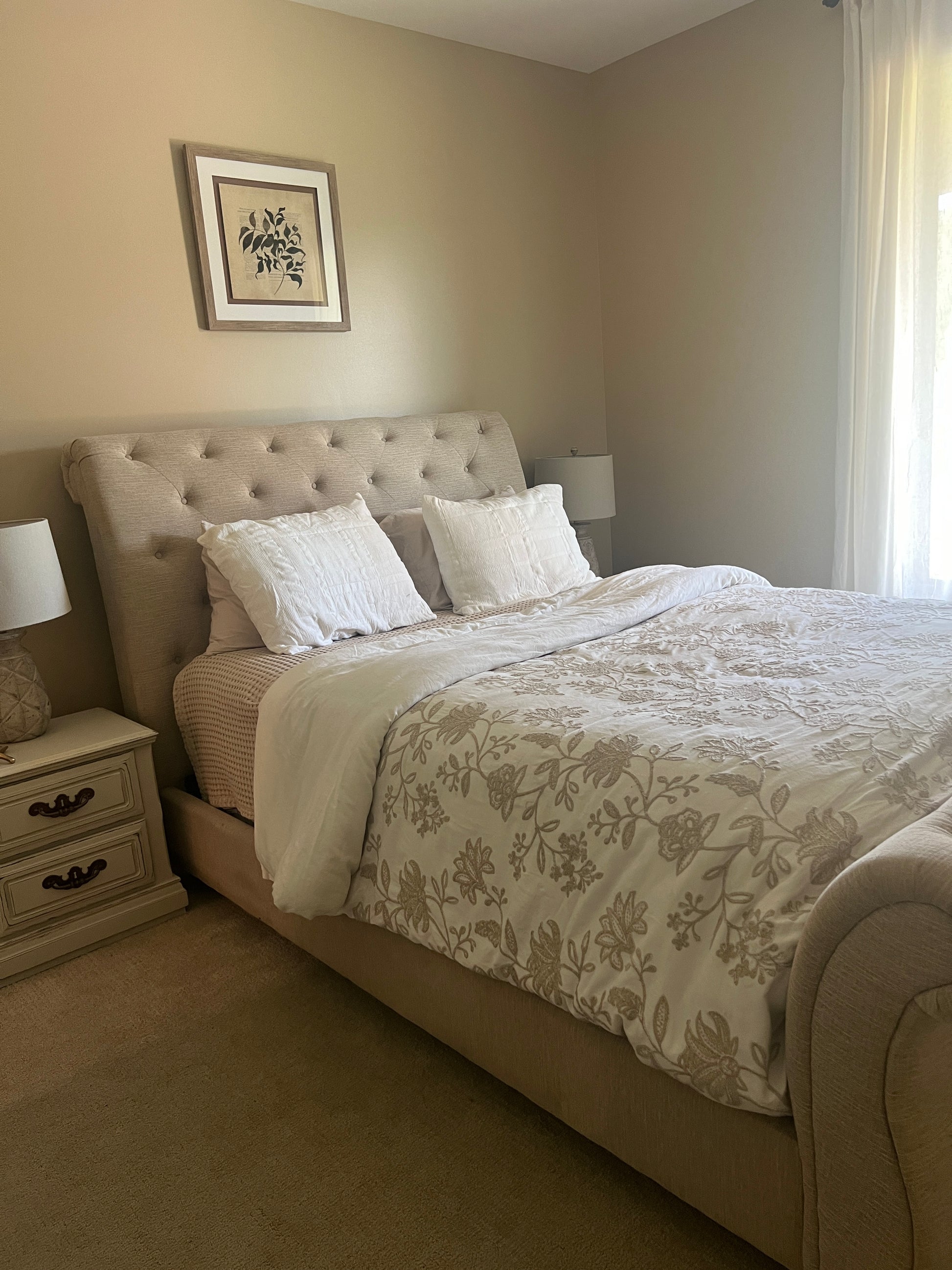

  • Three well-appointed bedrooms offer restful retreats for family, guests, or creative use, each designed to balance privacy with natural light.
  • Two full bathrooms provide convenience and style, featuring modern finishes and smart layouts that support both daily routines and relaxed living.
  • This two-story design creates a natural separation between shared and private spaces, offering vertical dimension and a dynamic flow that enhances everyday life.
  • The versatile loft adds a flexible bonus area—perfect for a media lounge, home office, playroom, or quiet reading nook with elevated charm.

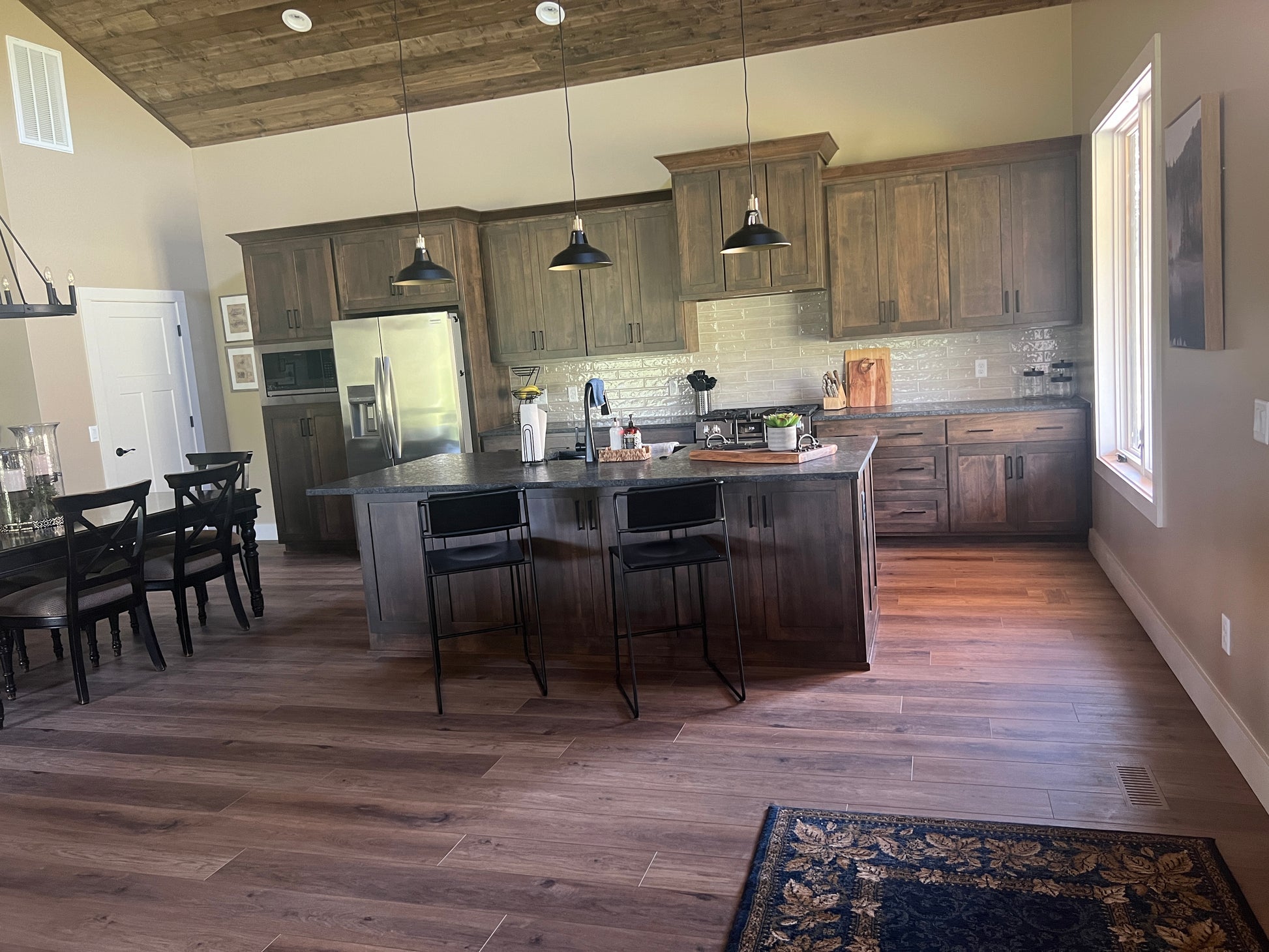

  • An open-concept layout connects kitchen, dining, and living areas into one cohesive space, ideal for entertaining, family time, or simply enjoying the flow of natural light.
  • A massive 2,123-square-foot shop delivers unmatched utility—whether you're a hobbyist, entrepreneur, or collector, this space adapts to your vision with room to spare.
  • The welcoming front porch invites relaxation and curb appeal, offering a cozy spot for morning coffee, evening chats, or seasonal décor.
  • A dedicated mechanical room doubles as smart storage, keeping essentials organized and systems accessible without disrupting the home's aesthetic.



What's included in BG-20003:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
