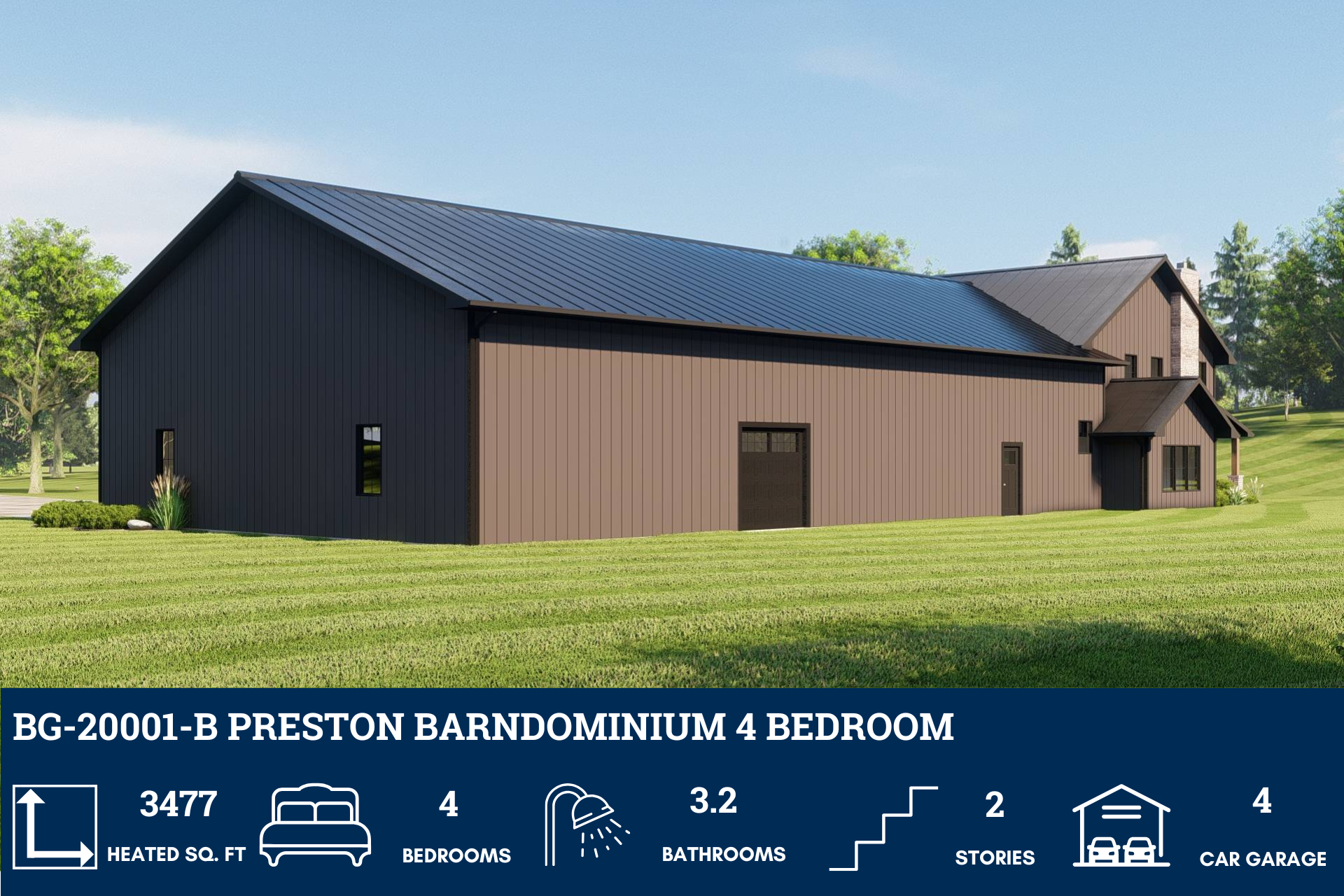

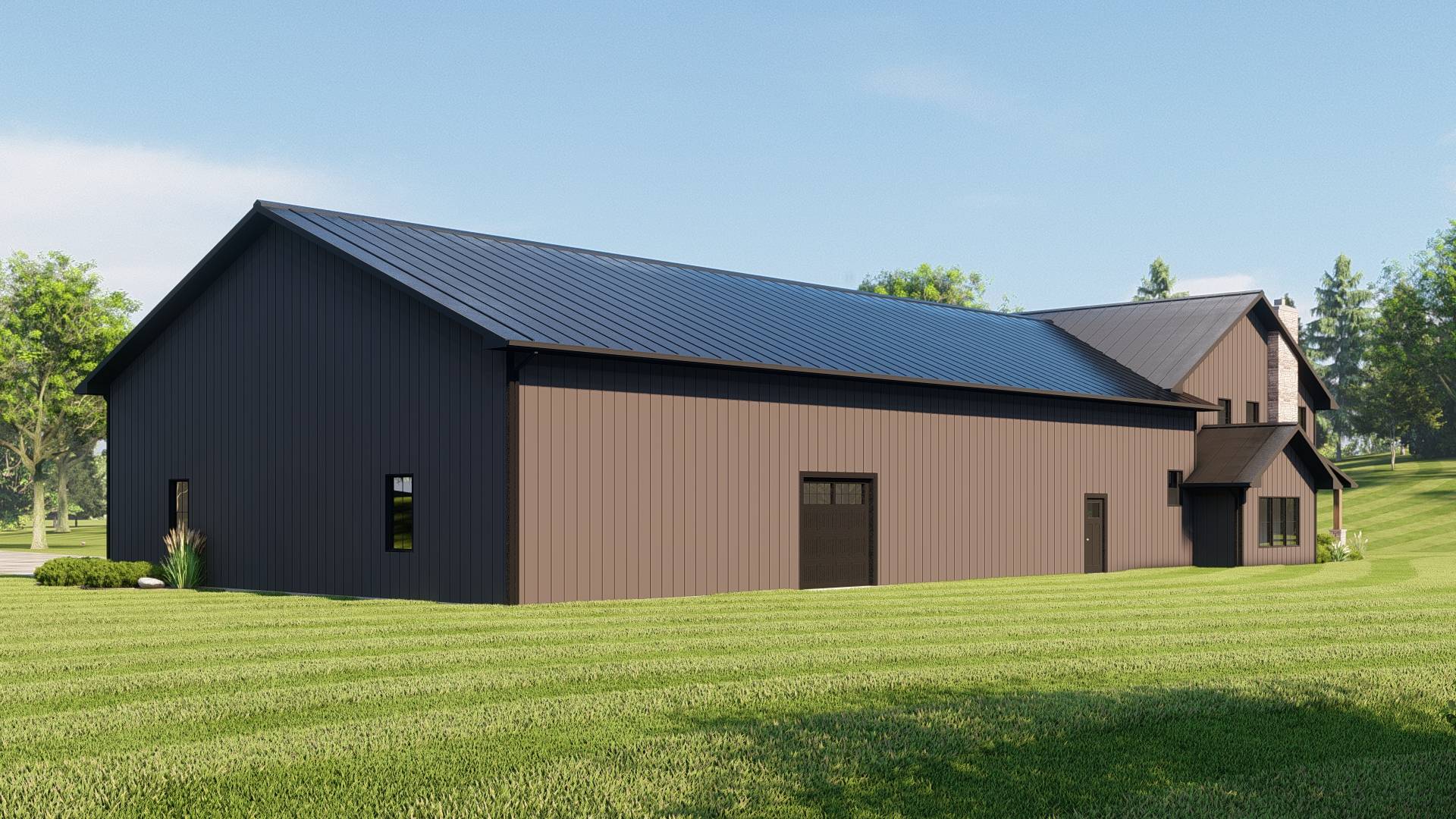

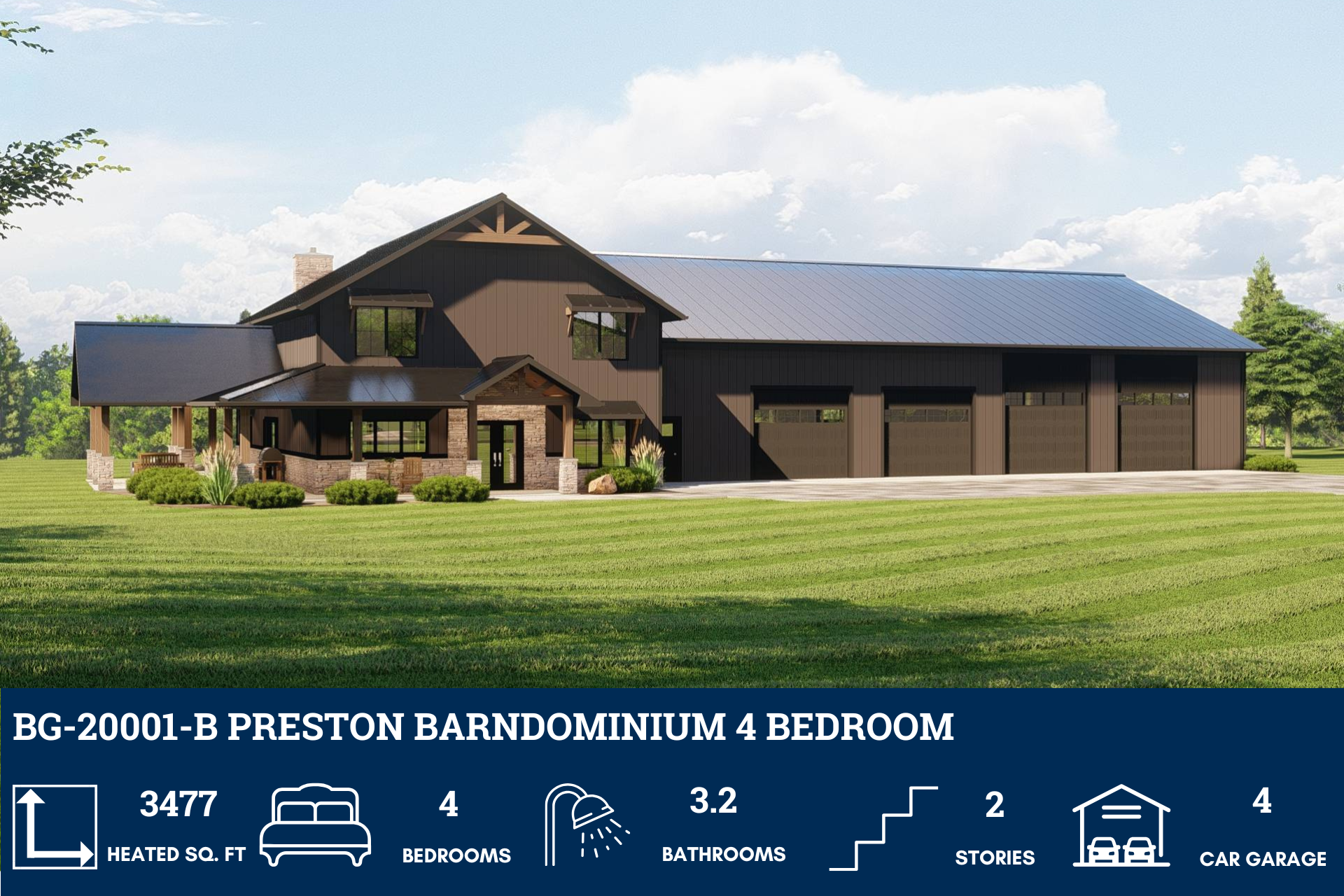

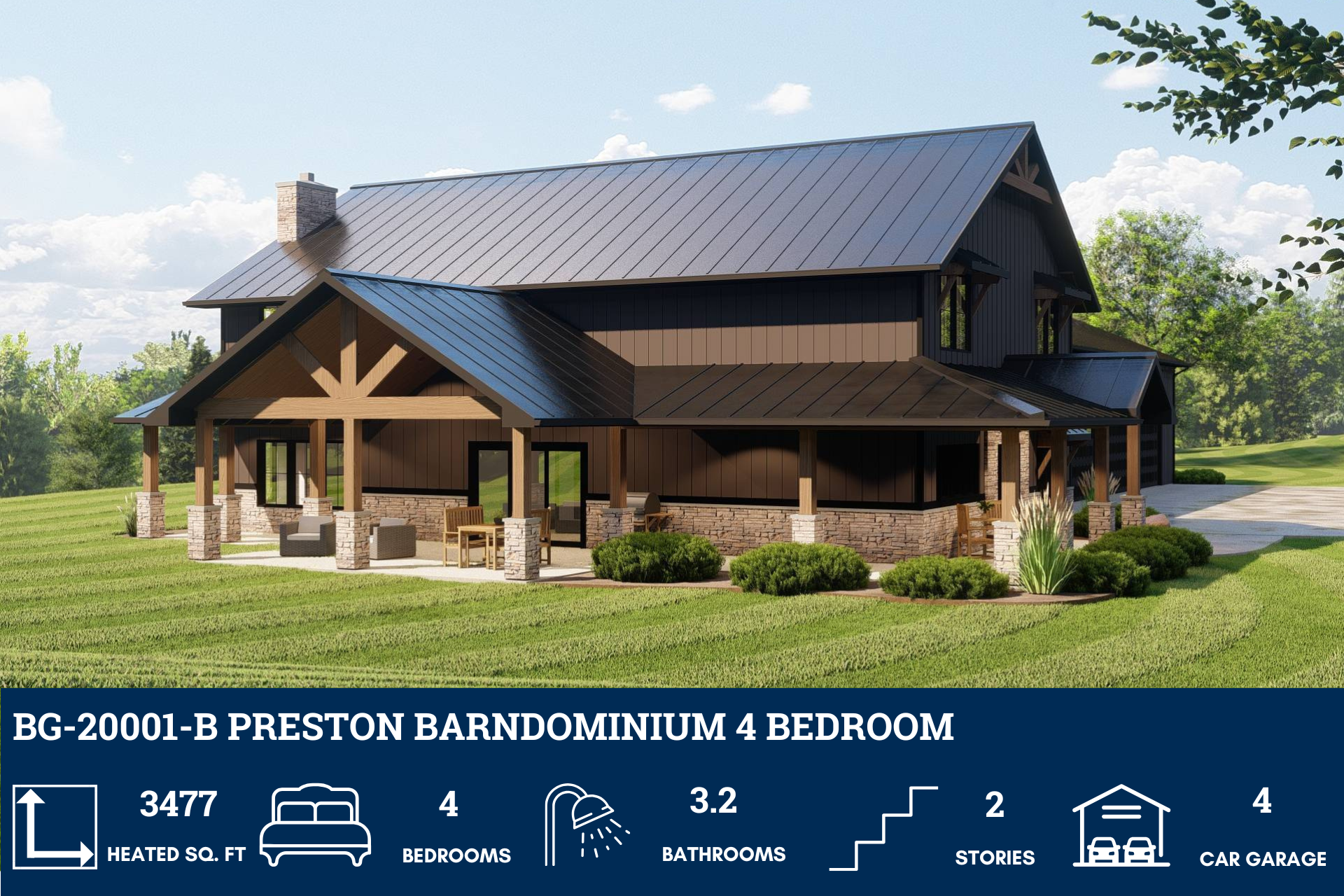

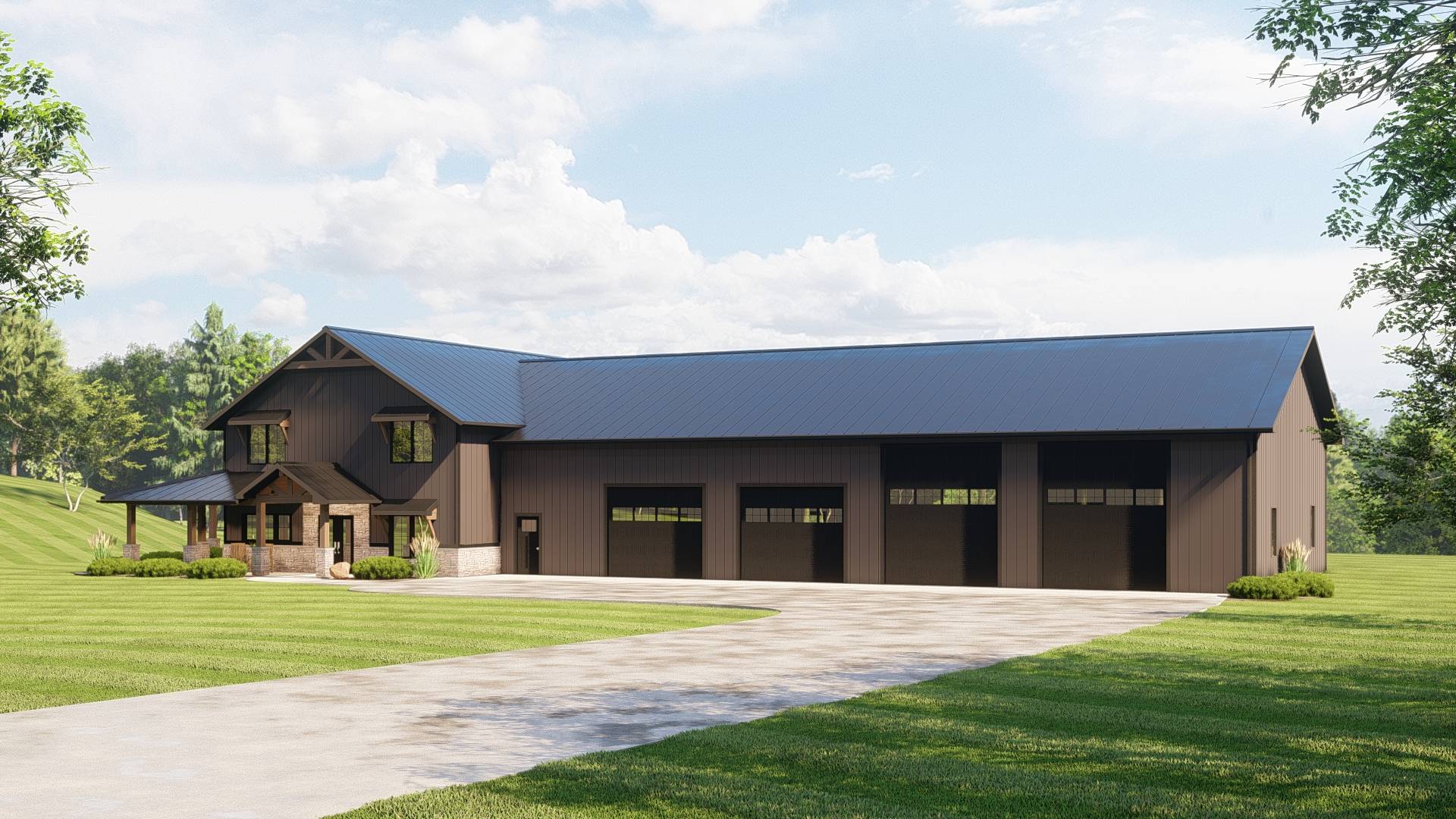

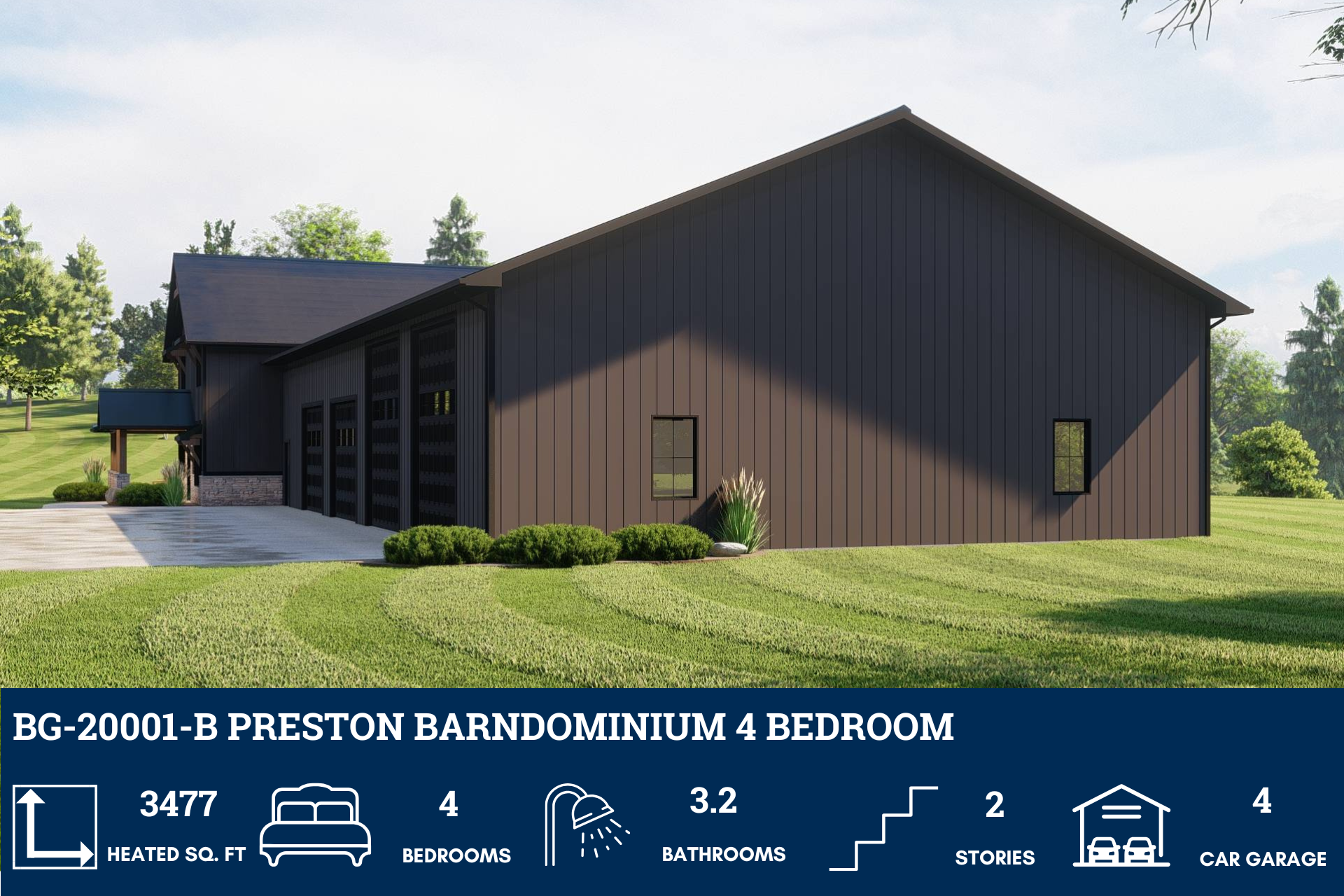

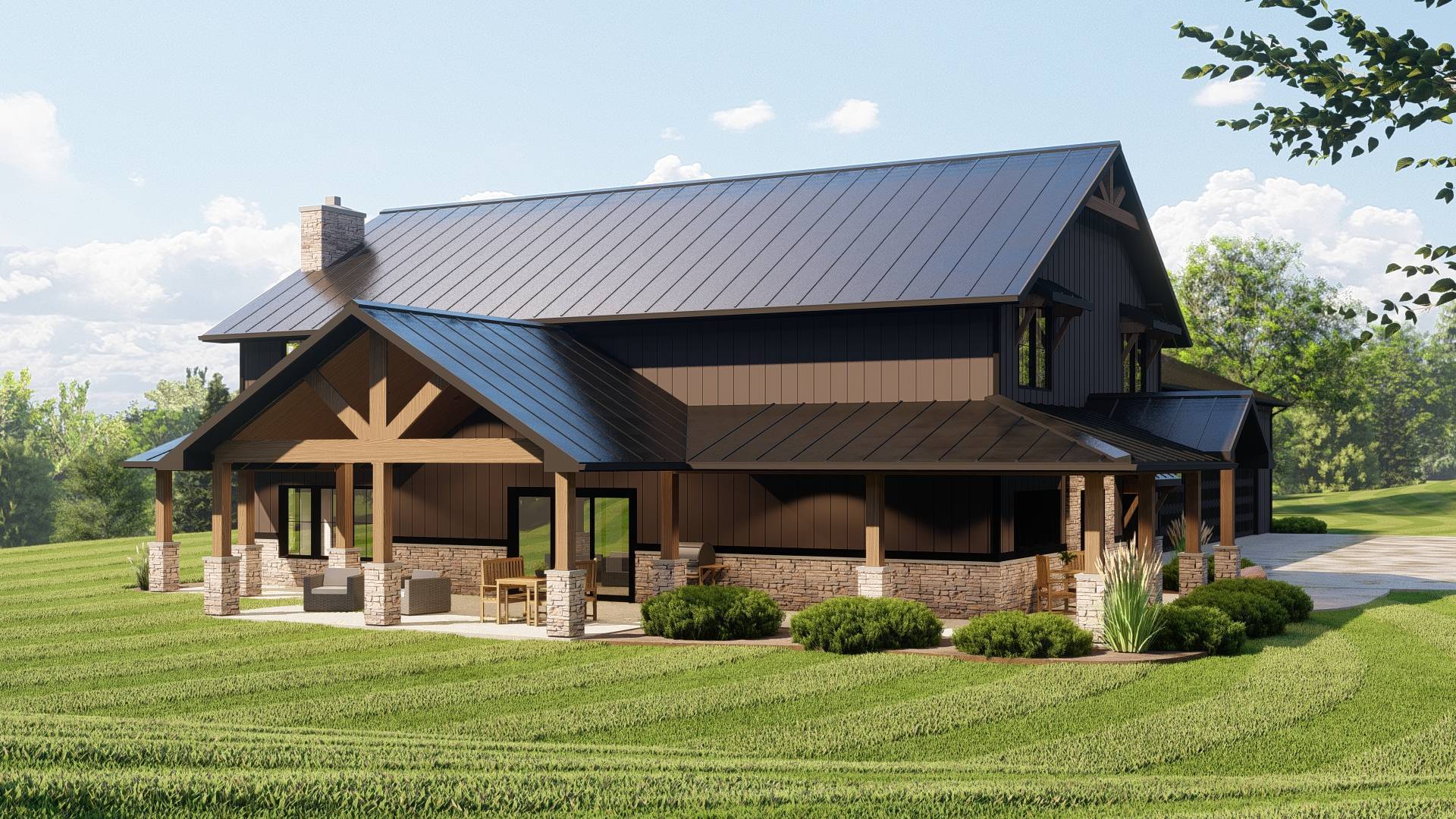

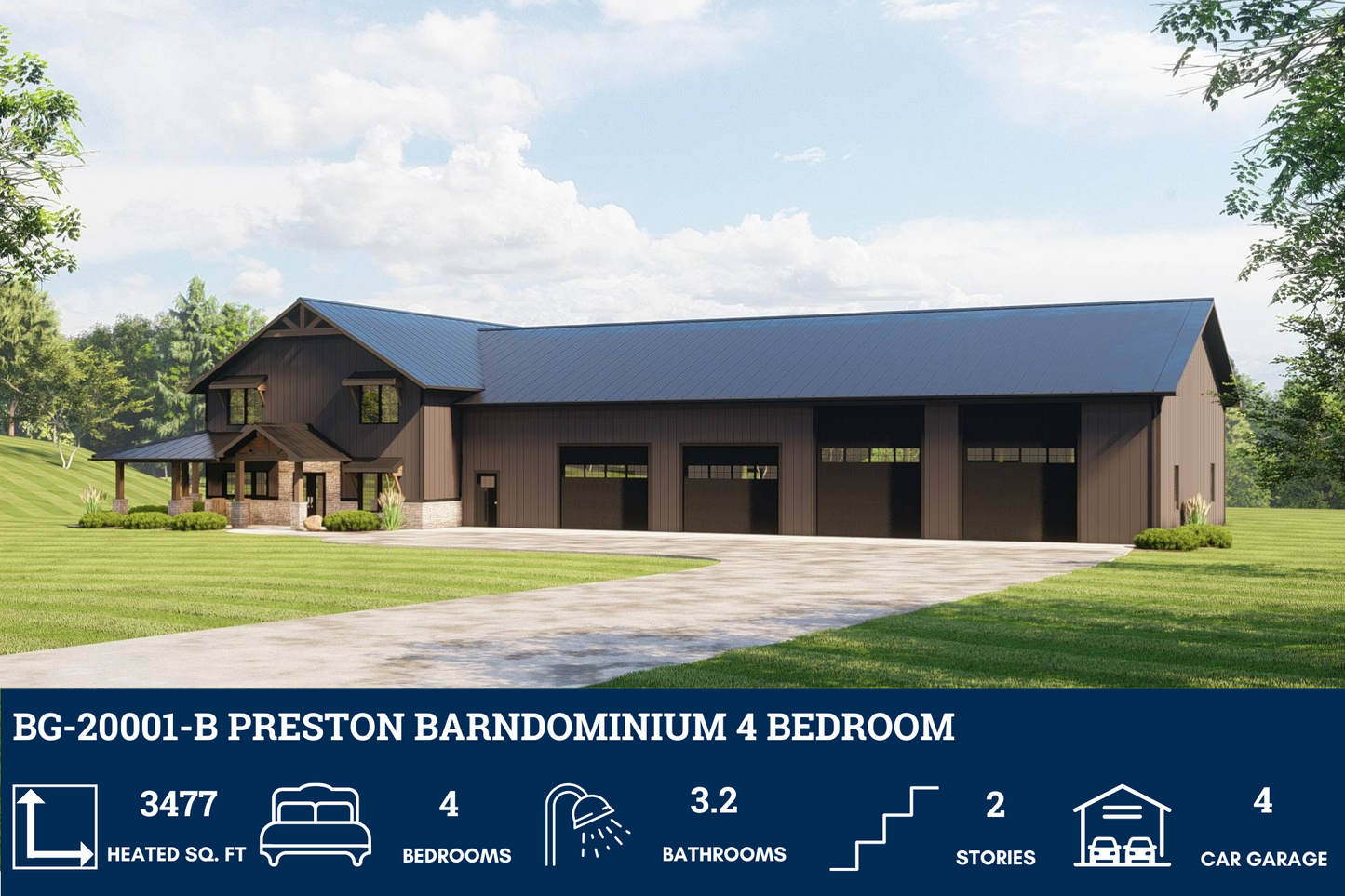

BG-20001-B Preston Barndominium House Plan

Regular price $1,350.00 USD
Regular price Sale price $1,350.00 USD
Sale Sold out
Skip to product information
1 of 16

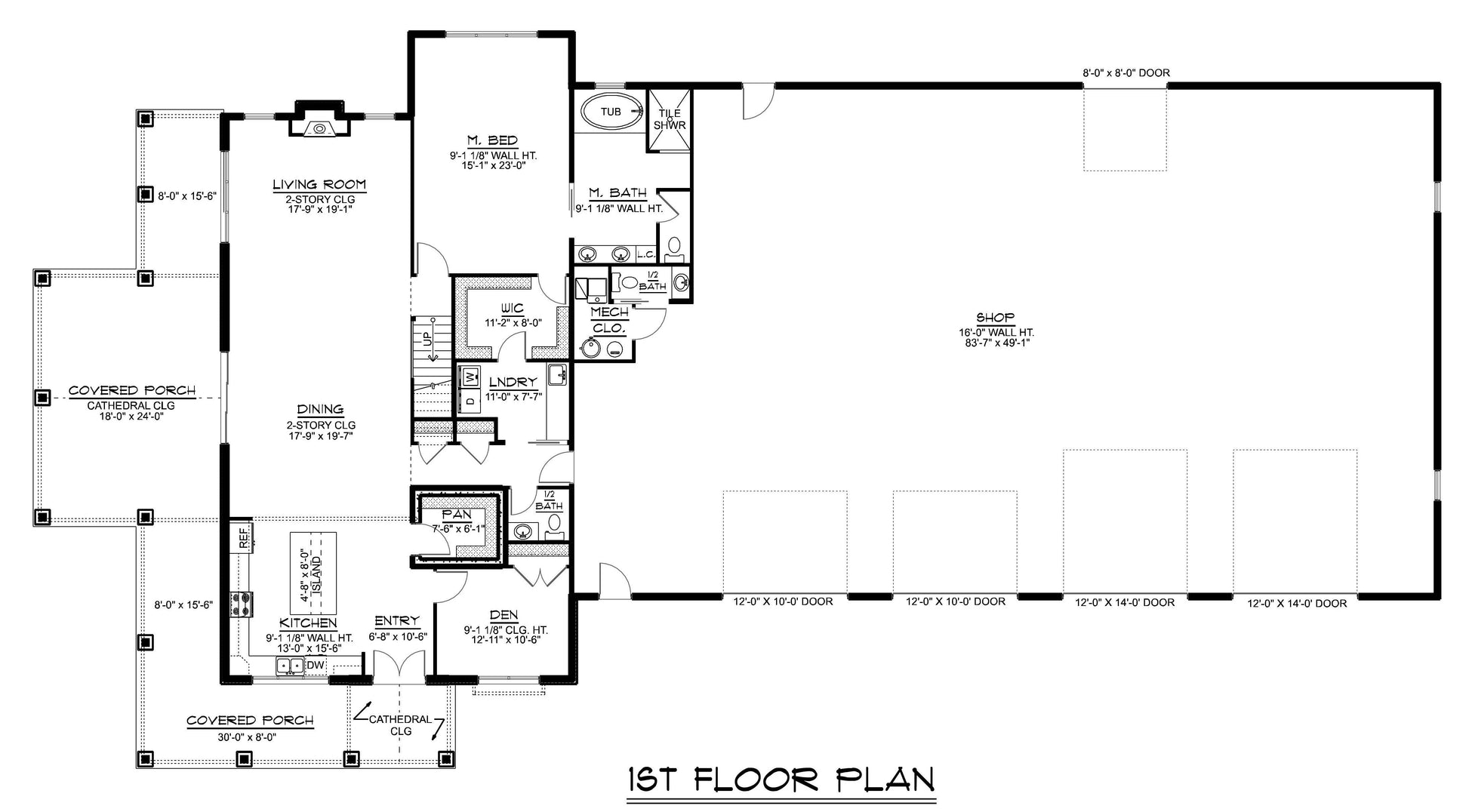

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,190 SF

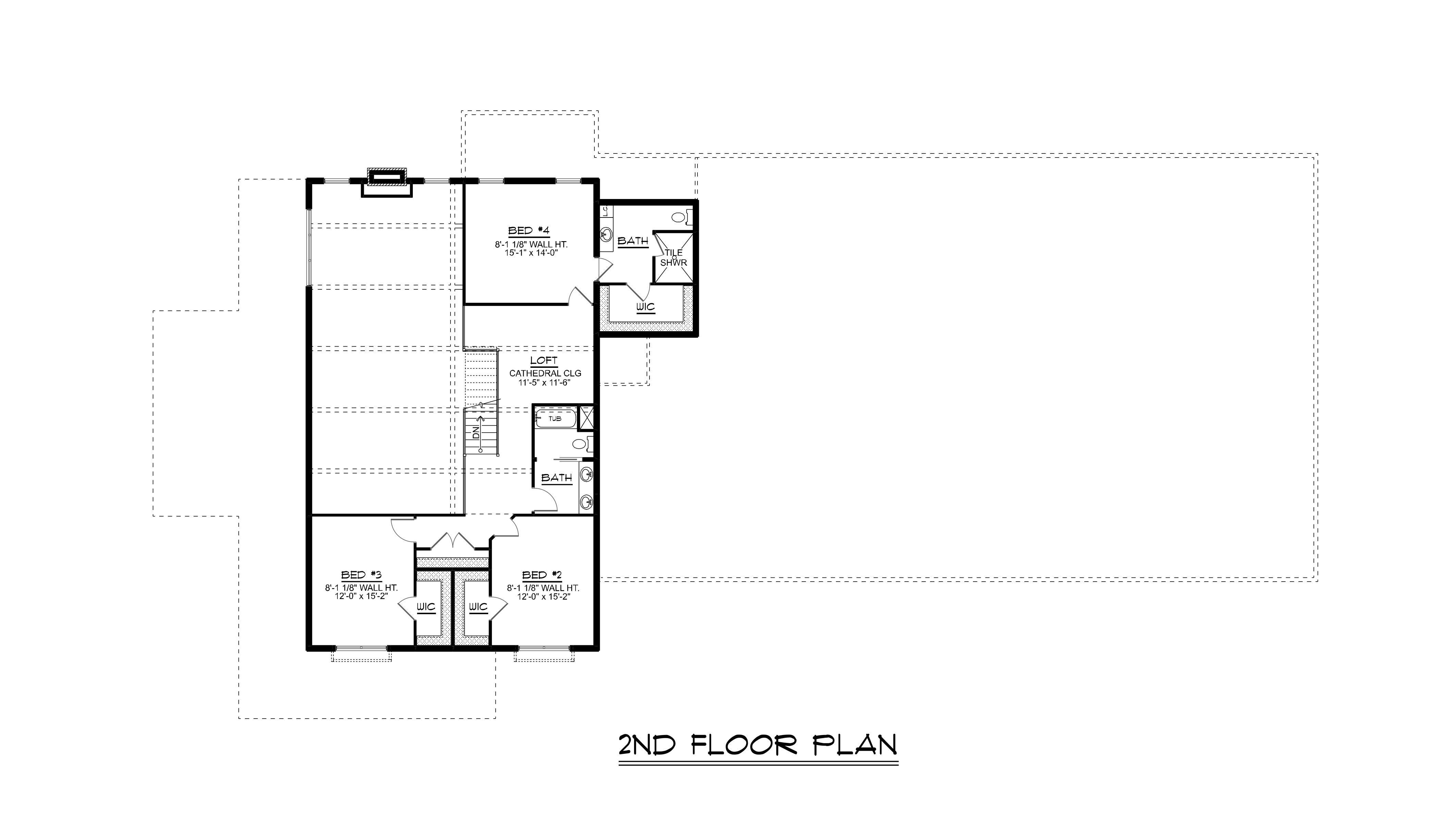

Second Floor:

1,287 SF

Total Heated Sq Ft:

3,477 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 4,006 SF, Porch 917 SF = TOTAL 4,923 SF

Carport:

None

Bedrooms:

4

Full Baths:

3

Floors:

2

Garage Size:

4,006 SF

Width:

136'

Depth:

71'

Height:

28'-8"

Foundation:

Concrete Slab, Basement Also Available

Main Roof Pitch:

7:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BG-20001-B Preston Barndominium House Plan



Looking for this plan, but a bit smaller? Discover a similar floor plan here that's 2765 sq ft.



About this barndominium house plan:

  • 3477 Heated square feet
  • 4 bedrooms
  • 3.2 bathrooms
  • Two Story
  • Loft
  • Open Concept
  • Den
  • Covered porch
  • Cathedral ceiling
  • Mechanical closet
  • 4006 sq ft attached garage



  • This is the space you've been dreaming of! With 3477 square feet, you have plenty of room to live, work, and play without feeling cramped.
  • Everyone gets their own sanctuary. Four cozy bedrooms offer the perfect escape for family and guests.
  • No more waiting! Two bedrooms with full baths, one common full bath on the second floor, and two convenient powder rooms for quick trips.
  • Enjoy the best of both worlds with a smart two-story layout that separates your living space from your sleeping quarters.
  • This flexible loft space is ready for anything—a game room, a home office, or a quiet reading nook.
  • Welcome to the heart of the home! The kitchen, dining, and living areas flow together seamlessly, so you're never left out of the action.
  • Need a quiet spot? The den is your personal hideaway for movie nights or catching up on work.
  • Rain or shine, your covered porch is the perfect spot to relax with a cup of coffee and enjoy the view.
  • More than just a garage, this shop is a massive space for your cars, toys, and all your projects.





What's included in BG-20001-B:

Cover Sheet
Four Elevations (Front, Back, Left Side, Right Side)
Roof Plan
Dimensioned Floor Plan
Foundation Plan
Wall Sections
Electrical Plans



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.


Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
