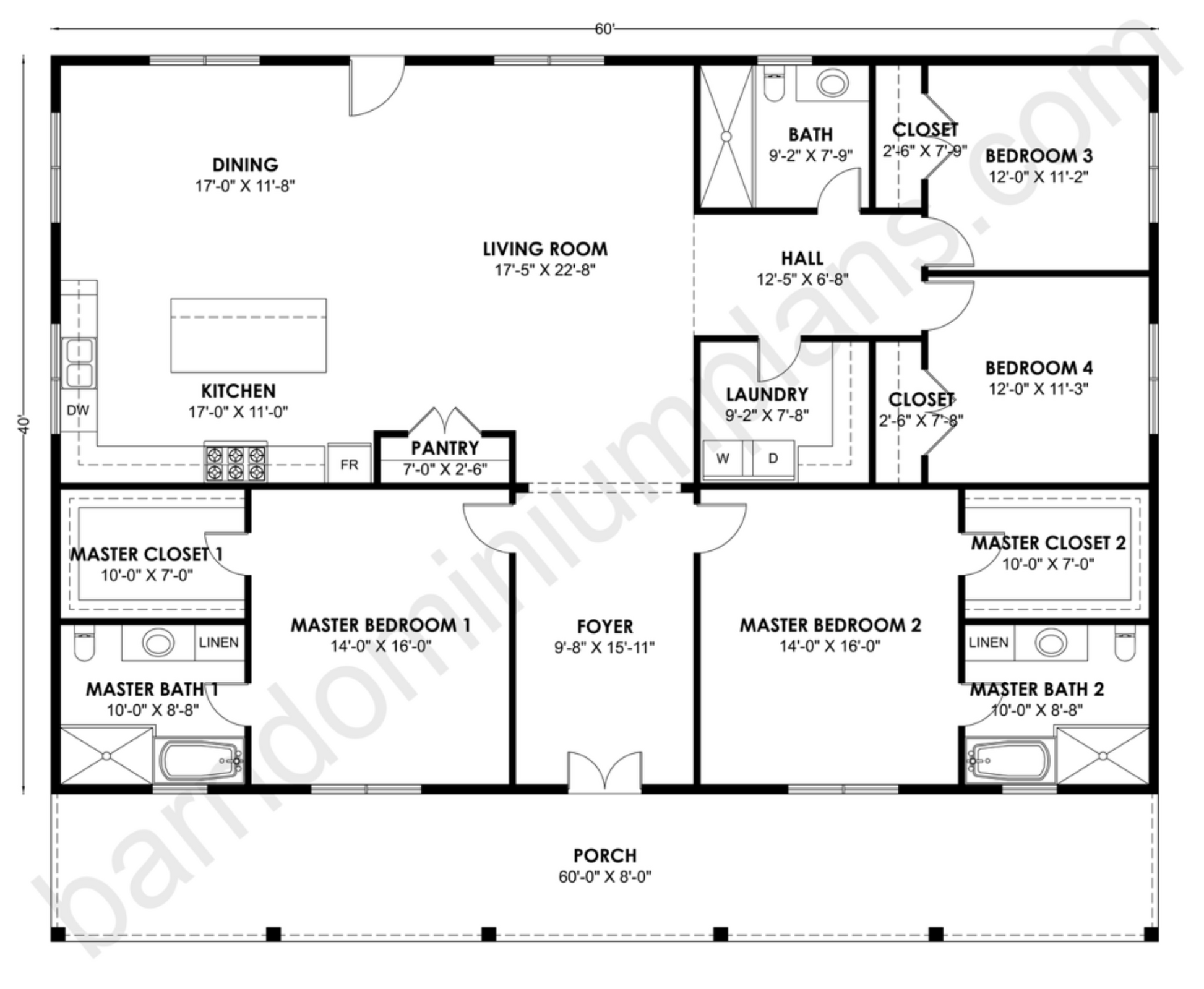

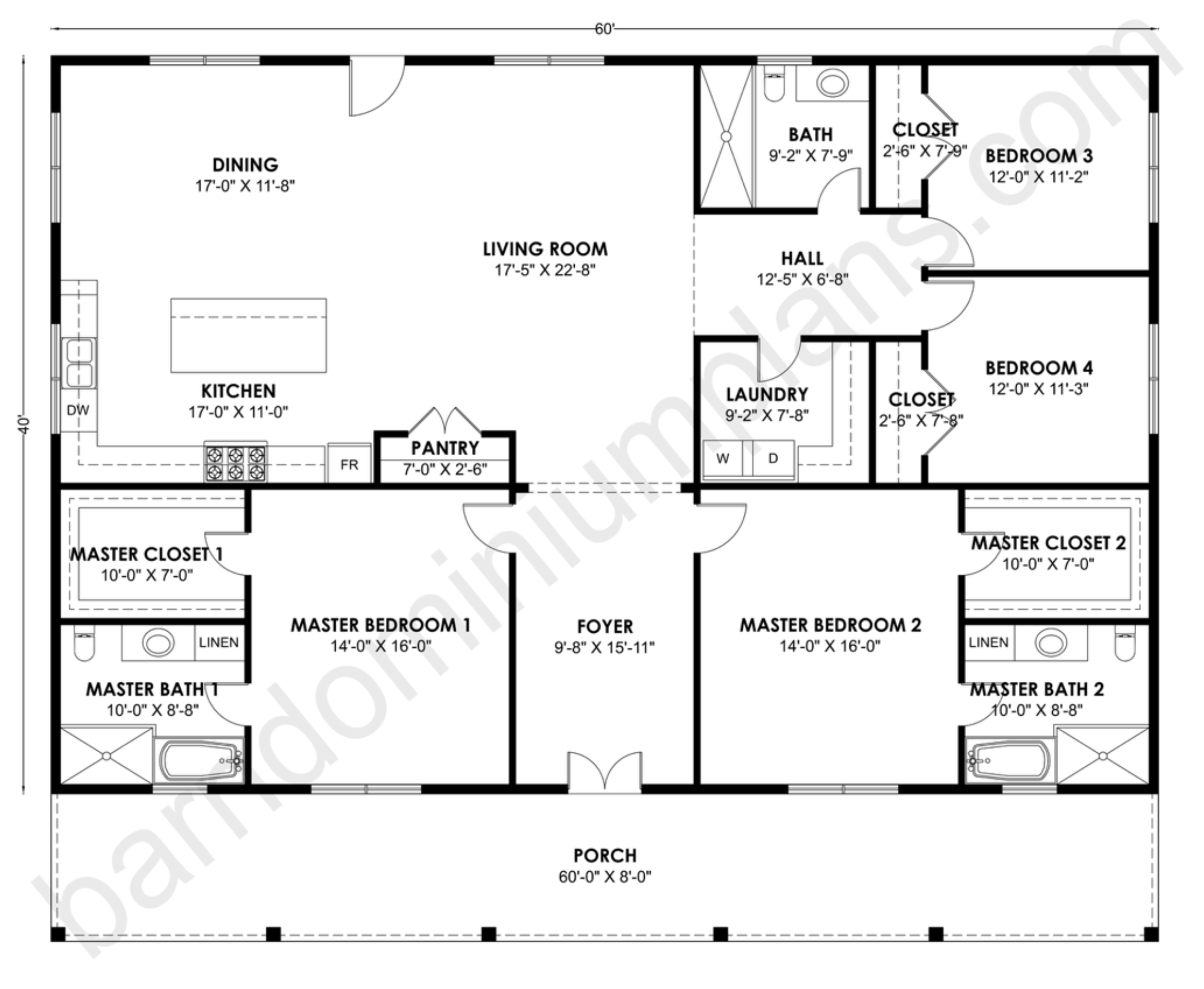

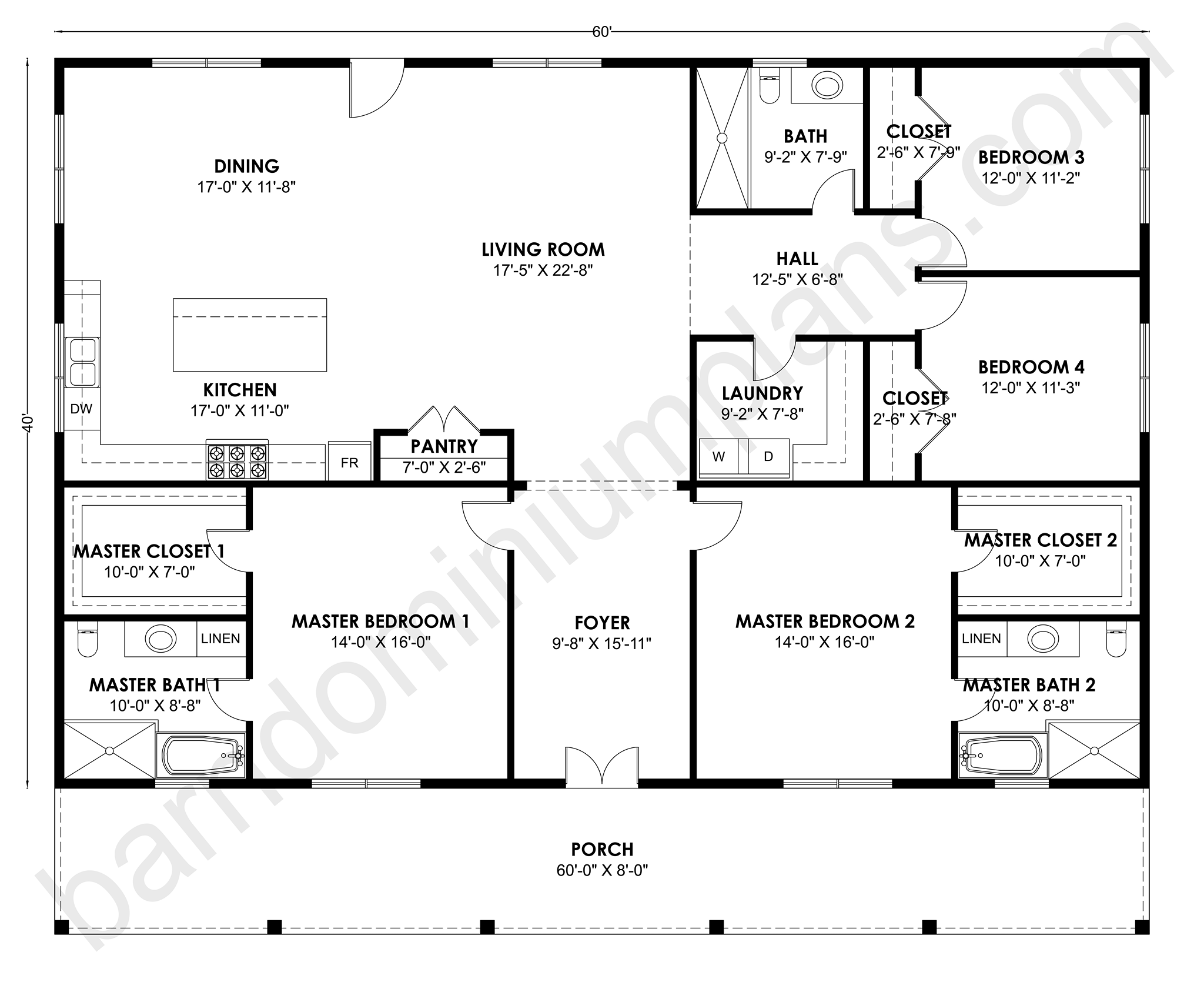

Floor Plan

DETAILS

BCO-40190-M Barndominium House Plan



About this barndominium house plan:

  • This 60' x 40' ranch-style plan features two large master suites and two guest bedrooms arranged in a split-wing configuration.

  • The kitchen and dining area (17'0" x 11'0") flow directly into a large 17'5" x 22'8" Living Room for a seamless entertainment experience.

  • Both Master Bedroom 1 and 2 measure 14'0" x 16'0" and are positioned at the front of the house to maximize natural light.

  • A central hallway provides privacy for the guest wing, which includes two bedrooms measuring 12'0" x 11'2" and a shared full bath.

  • The design is rounded out by a spacious 60-foot front porch and a dedicated laundry room with easy access to the main living area.

For more barndominium floor plans, check out our complete collection of 2-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Included In These Plans

Our house plan sets have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans

Plumbing Plans

Wall Section

Roof Plan

Roof Framing Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp - handled locally if required. We can help you find a structural engineer locally

Site Plan - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

🔥 [COUNT] shoppers are looking at this plan right now
