BCO-40174-C Clybourn Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 9
Bedrooms 4 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 2,695 Total Heated Area

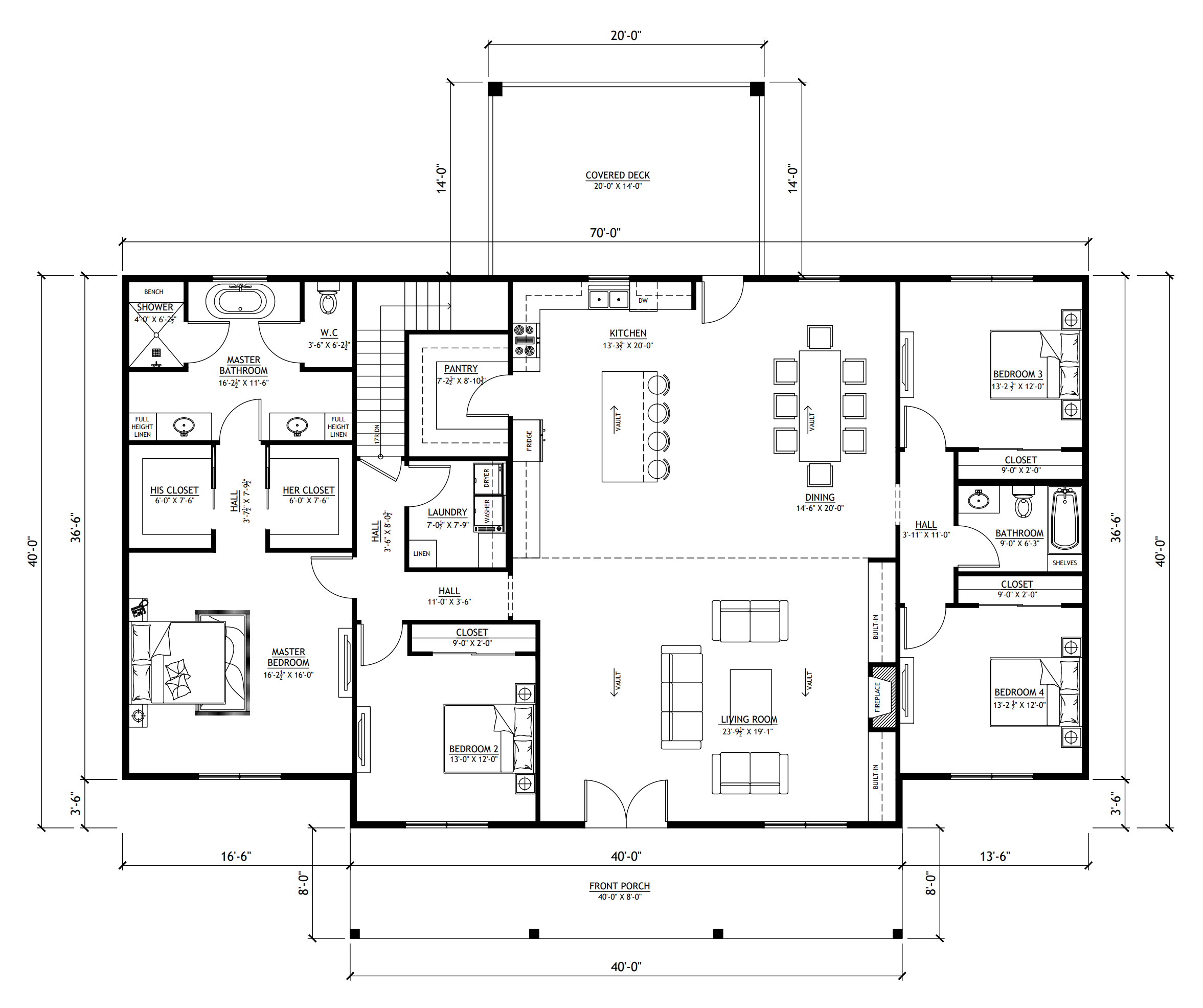

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,695 SF

Second Floor:

None

Total Heated Sq Ft:

2,695 SF

UNHEATED SQ FT

Total Unheated Area:

Porch 320 SF, Patio 280 SF, Deck 280 SF, Unfinished basement 3,015 SF = TOTAL 3,895 SF

Carport:

None

Bedrooms:

4

Full Baths:

2

Floors:

1

Garage Size:

None

Width:

70'

Depth:

62'

Height:

22'-9"

Foundation:

Walkout Basement

Main Roof Pitch:

6:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BCO-40174-C Clybourn Barndominium House Plan



About this barndominium house plan:

  • 2695 Heated Square Feet
  • 4 Bedrooms
  • 2 Bathrooms
  • Single Story
  • Open concept
  • His/her closet
  • Walk-in pantry
  • Laundry room
  • Mechanical room
  • Storage
  • Front porch
  • Rear deck
  • Walkout basement
  • Storm shelter



  • This 2,695 SF heated floor plan delivers a grand one-level experience with a spacious master bed and three secondary bedrooms.
  • Features a luxury master ensuite with a shower and a shared full bathroom serving the guest wing.
  • The kitchen features a large central island with seating and high-volume vaulted ceilings for an airy, upscale feel.
  • The primary suite features the rare luxury of separate walk-in closets, providing personalized organization.
  • A dedicated pantry room offers superior storage capacity just off the kitchen.

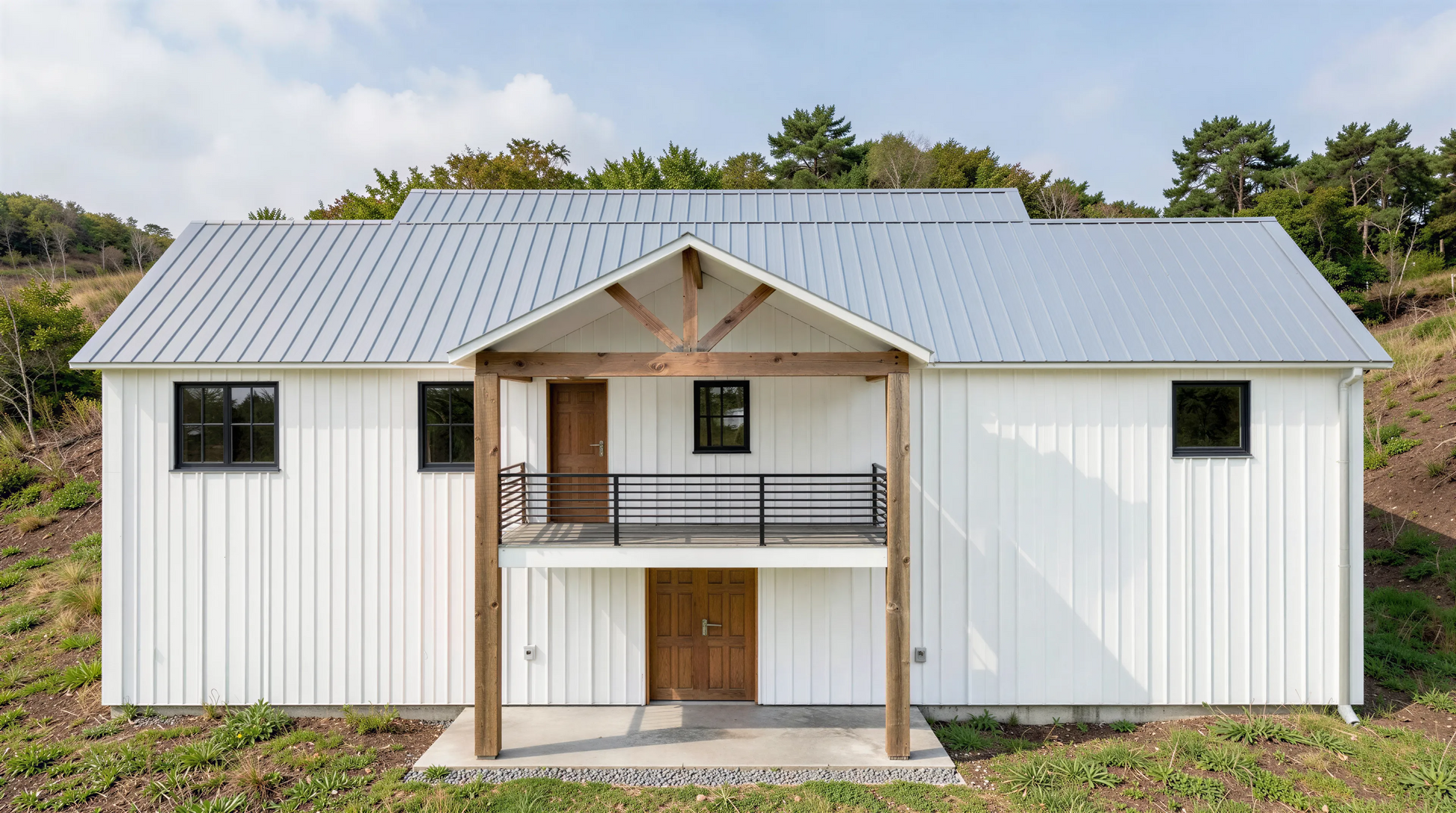

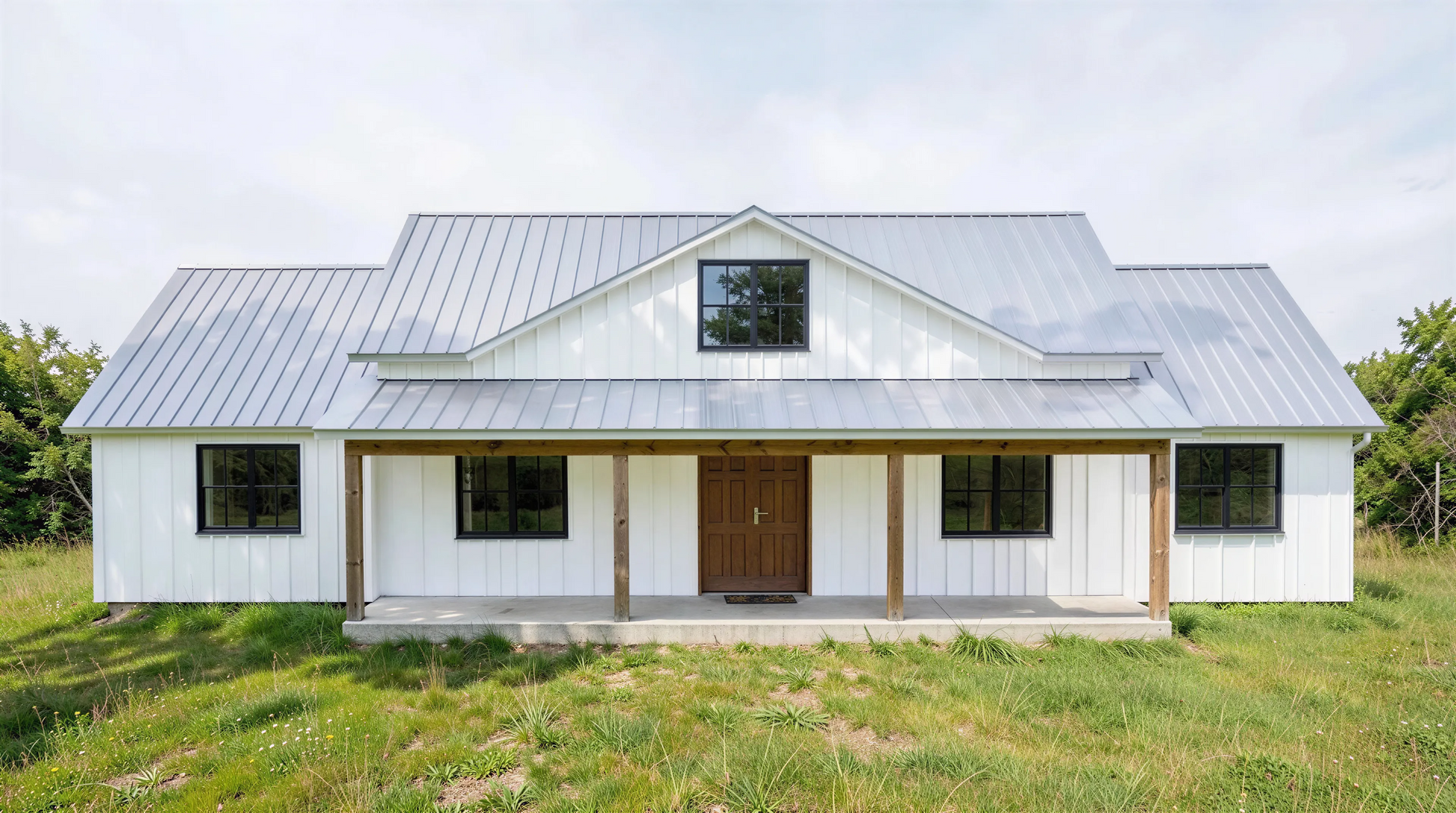

    Features a front porch and a covered rear deck, perfect for 360-degree views.
  • The lower level offers an additional flexible space, including a dedicated storm shelter.
  • Includes a dedicated laundry room, a discrete mechanical closet, and a hallway storage closet.
  • The great room is anchored by a fireplace flanked by custom, built-in shelving for a sophisticated aesthetic.



What's included in BCO-40174-C:

Cover Page

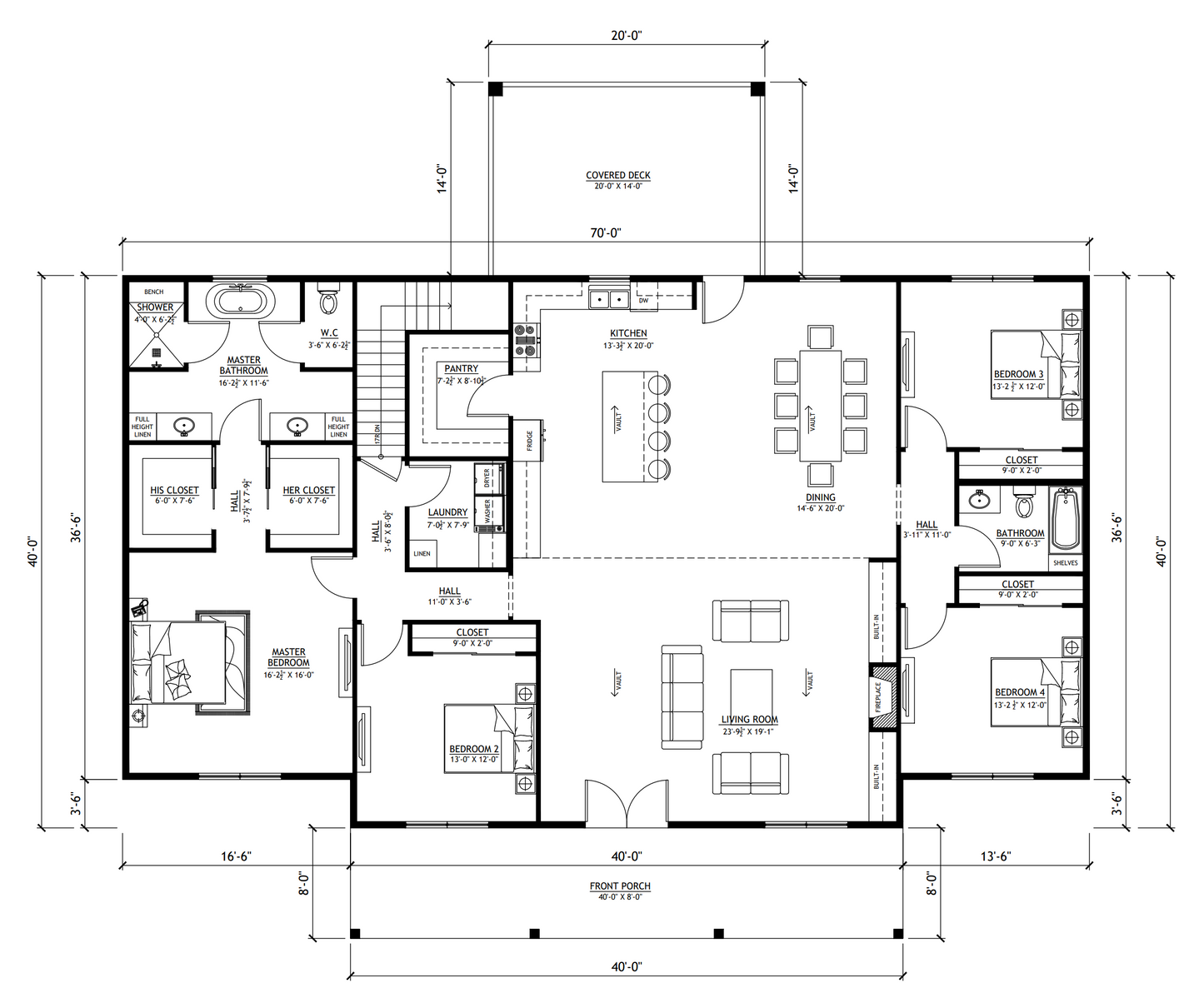

Main Floor Plan

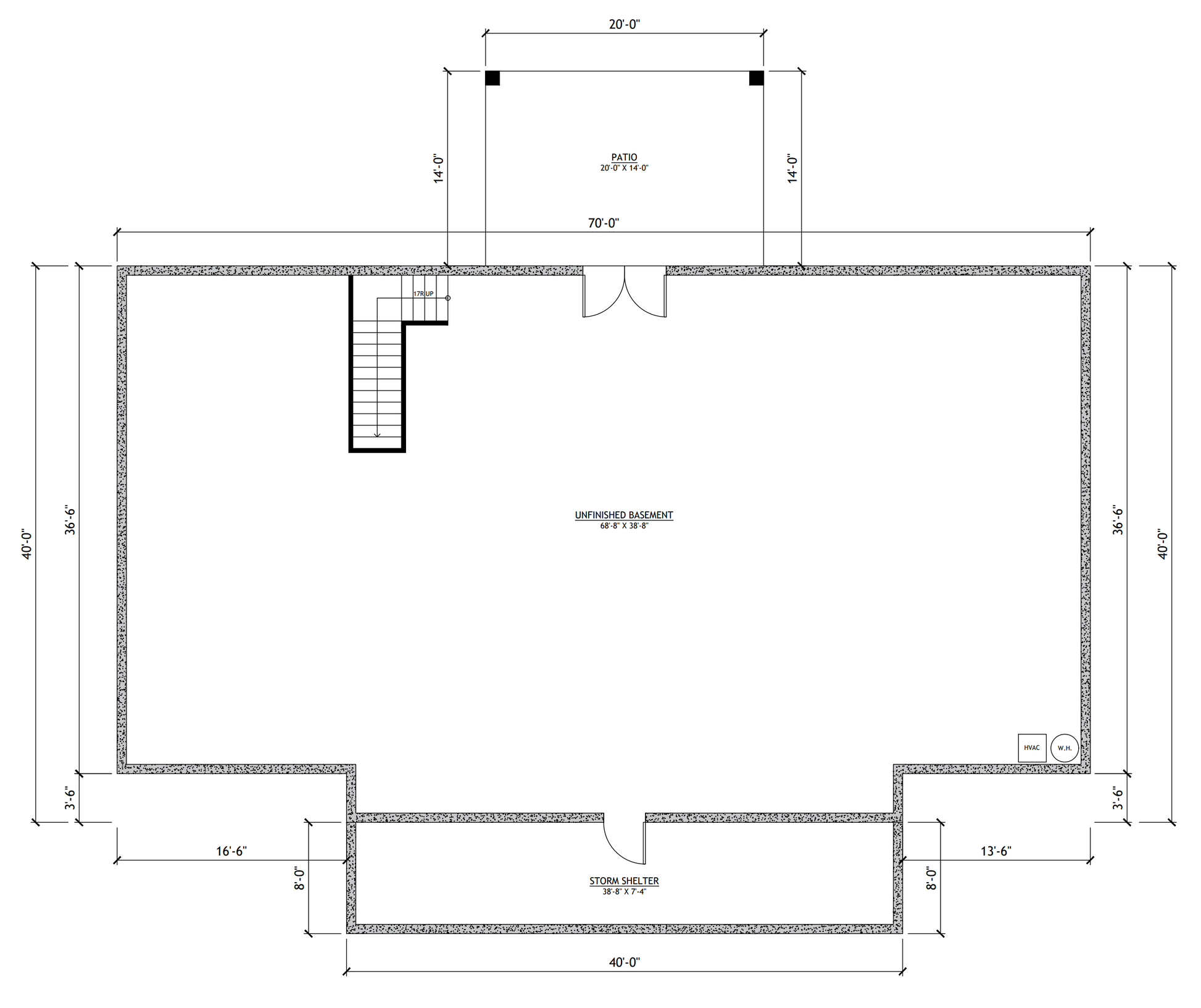

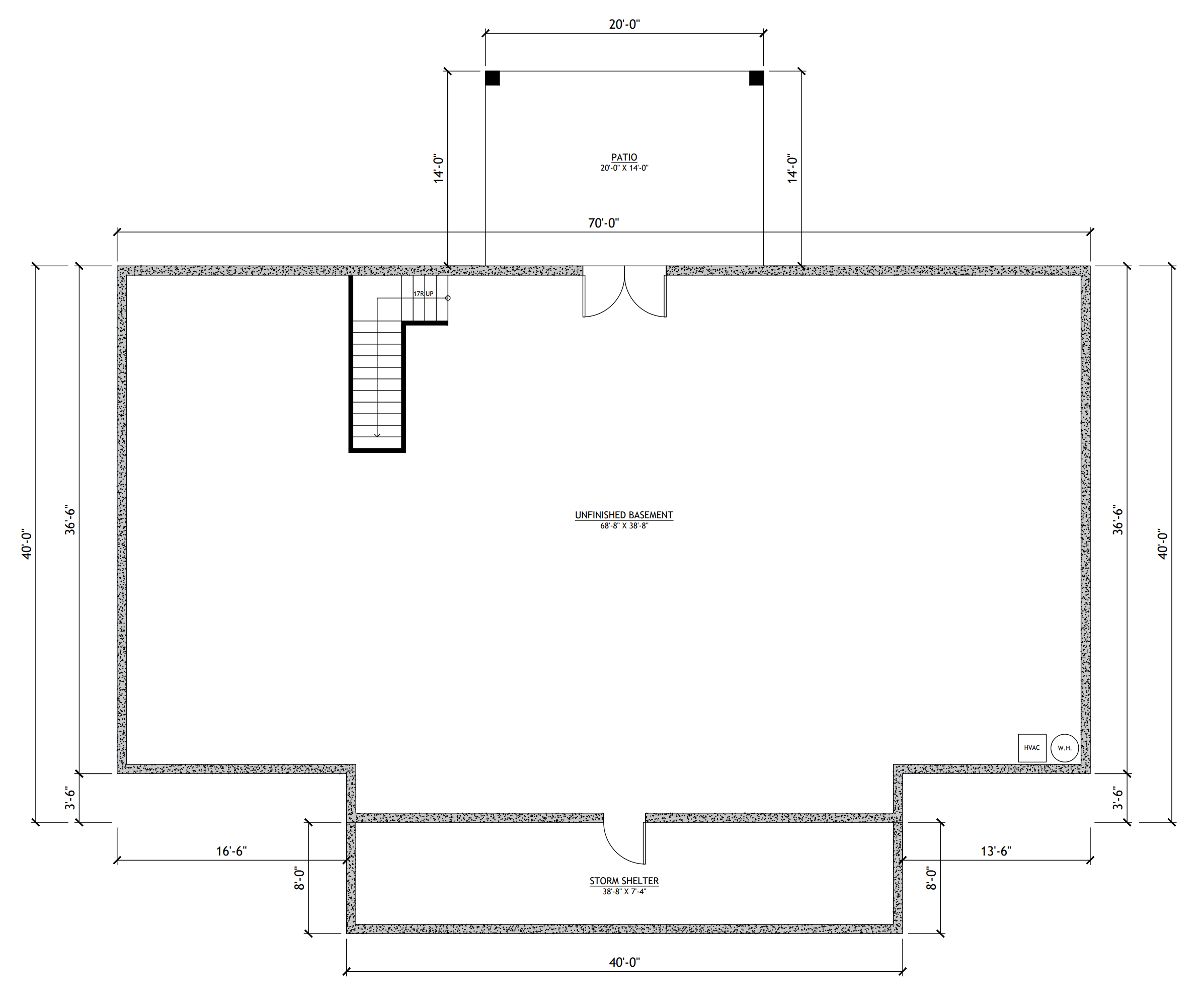

Basement Floor Plan
Roof Plan

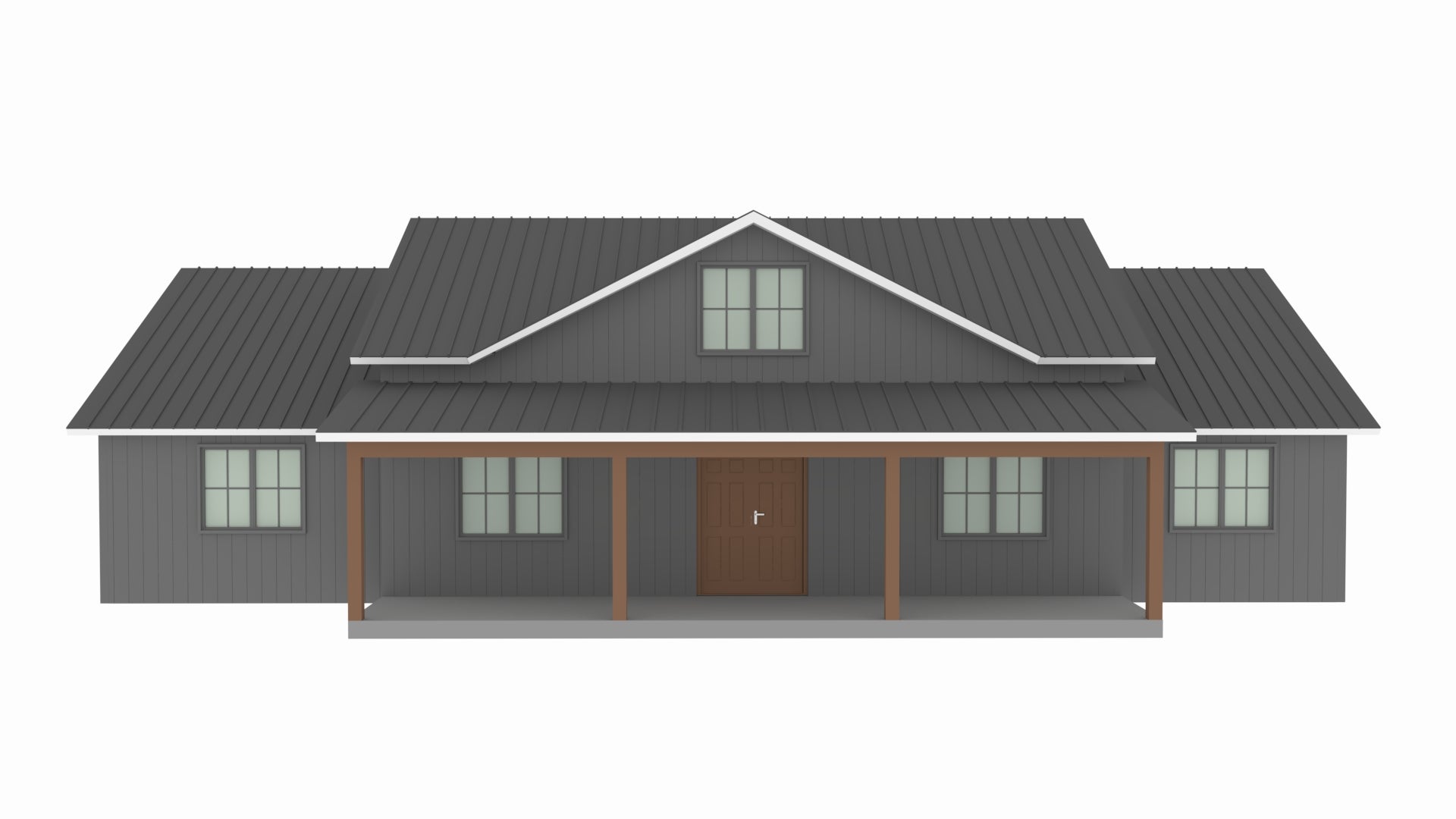

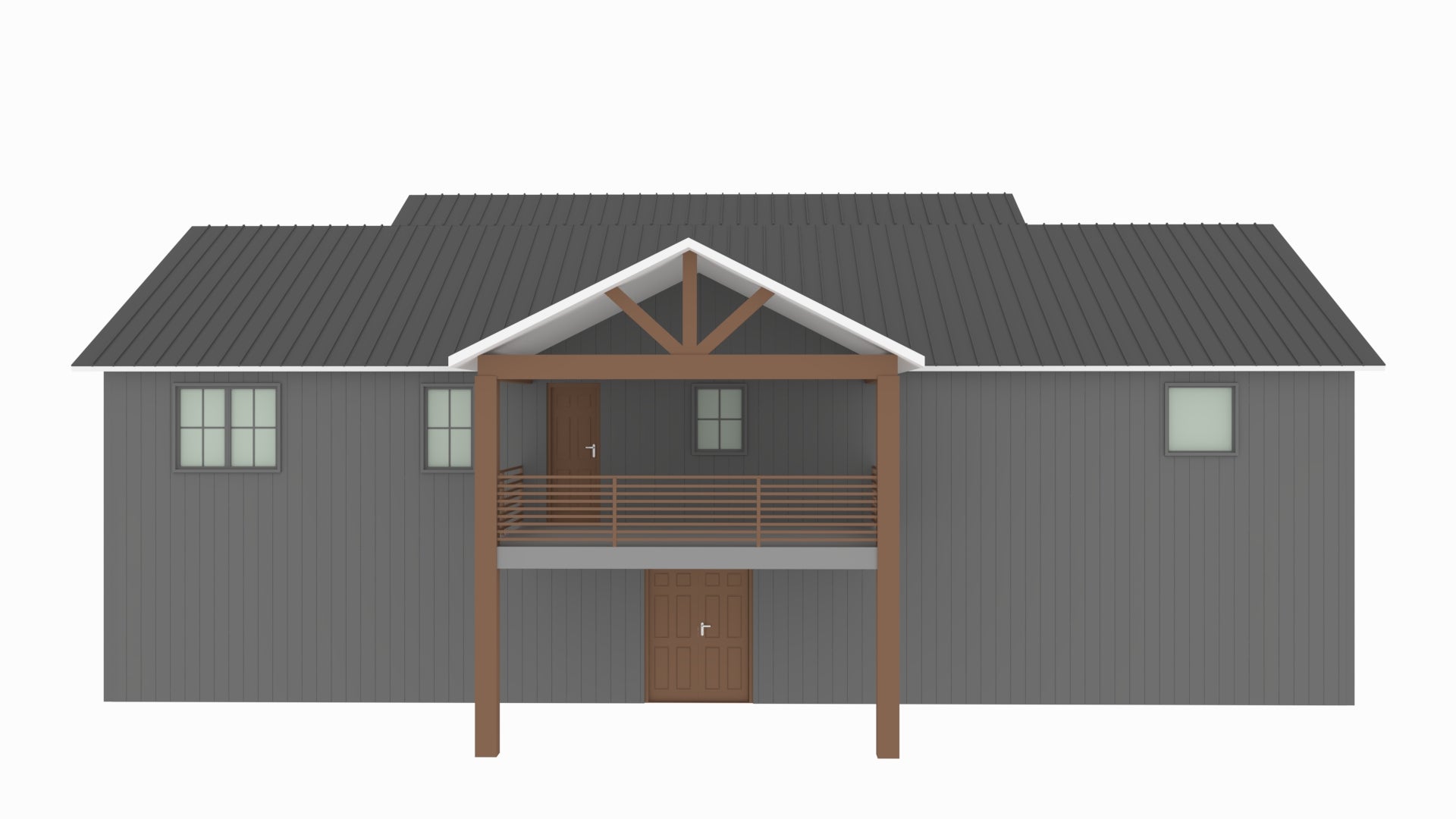

Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Lally Column Detail
Deck Ledger Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves.

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
