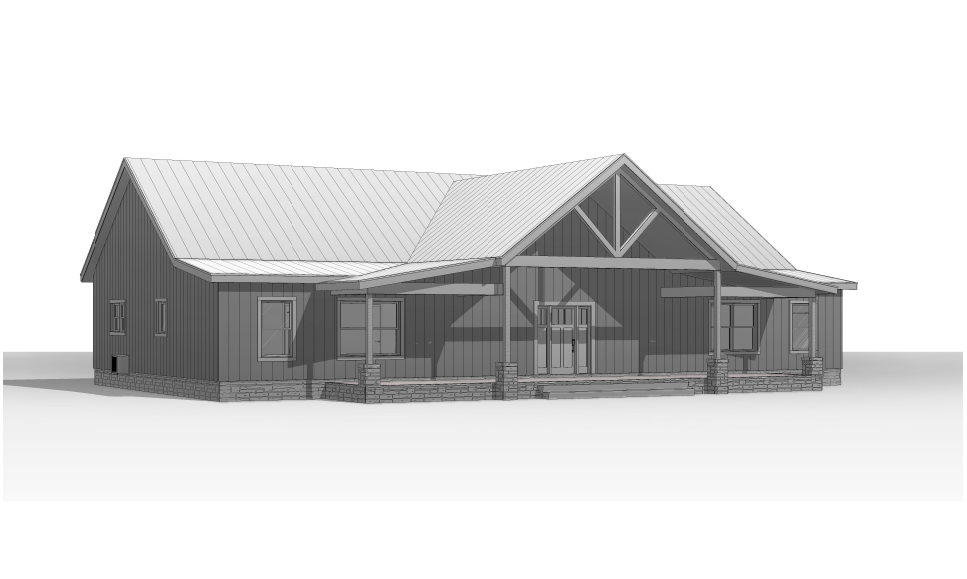

BCO-40073 Wilbur Barndominium House Plan

Regular price $849.99 USD
Regular price Sale price $849.99 USD
Sale Sold out
Skip to product information
1 of 8

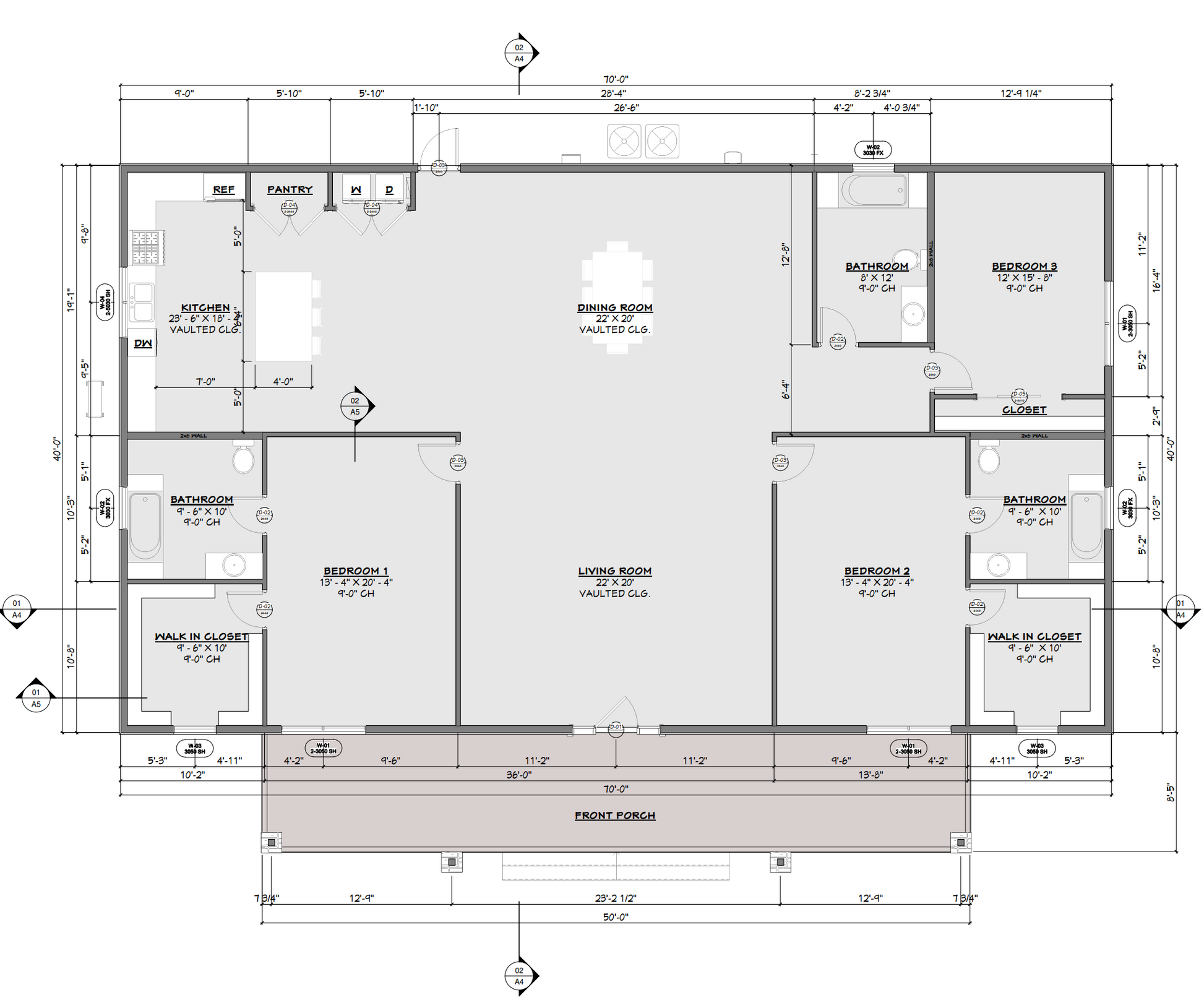

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,800 SF

Second Floor:

None

Total Heated Sq Ft:

2,800 SF

UNHEATED SQ FT

Total Unheated Area:

421 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

1

Garage Size:

None

Width:

70'

Depth:

40'

Height:

Top Eave Height 13'

Foundation:

Concrete Slab

Main Roof Pitch:

8:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

BCO-40073 Wilbur Barndominium House Plan



About this barndominium house plan:

  • 2800 Heated square feet
  • 3 bedrooms
  • 3 bathrooms
  • Single Story
  • Open Concept
  • Front porch



  • Spacious and thoughtfully designed, this single-story home offers 2,800 square feet of climate-controlled living—perfect for those who crave room to relax, entertain, and grow.
  • Three generously sized bedrooms provide peaceful retreats, each with ample natural light and privacy—ideal for families, guests, or a dedicated home office.
  • Three full bathrooms ensure comfort and convenience, with stylish finishes and smart layouts that support both daily routines and effortless hosting.
  • Enjoy the ease of single-level living—no stairs, just seamless flow and accessibility throughout, ideal for all ages and lifestyles.
  • A welcoming front porch sets the tone for relaxed living—ideal for morning coffee, evening chats, or simply enjoying the view with timeless charm.



What's included in BCO-40073:

Cover Sheet
Detailed Floor Plan Dimensions

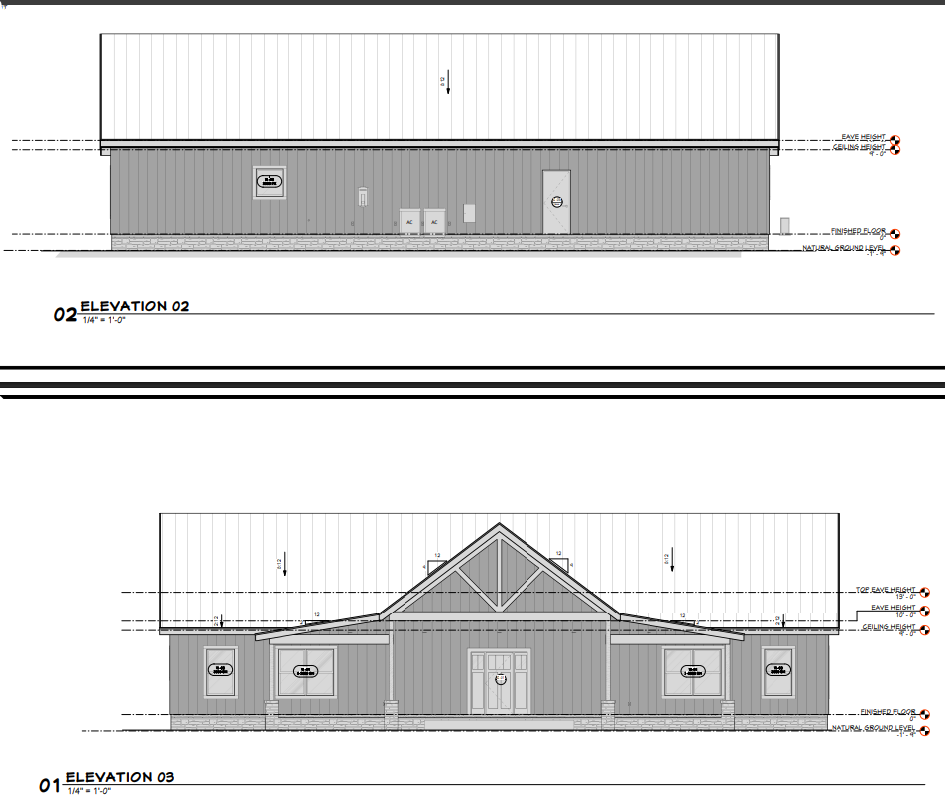

Four Elevations - Front, Back, Left Side, Right Side
Building Sections
Wall Sections and Attic Details
HVAC Plan
Foundation Plan
Foundation Details
Basic Plumbing Plan and Details
Electrical Plan
Roof Framing Plan
Roof Plan



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

💥 [COUNT] People are currently viewing this product.
Build
PDF (Single Build) $849.99

Additional Options

Still making a decision? Get an estimate of the construction cost for this house in your area.
Modify this Plan? Want to make adjustments? We’ll provide you with a free price estimate within 1 to 3 business days.

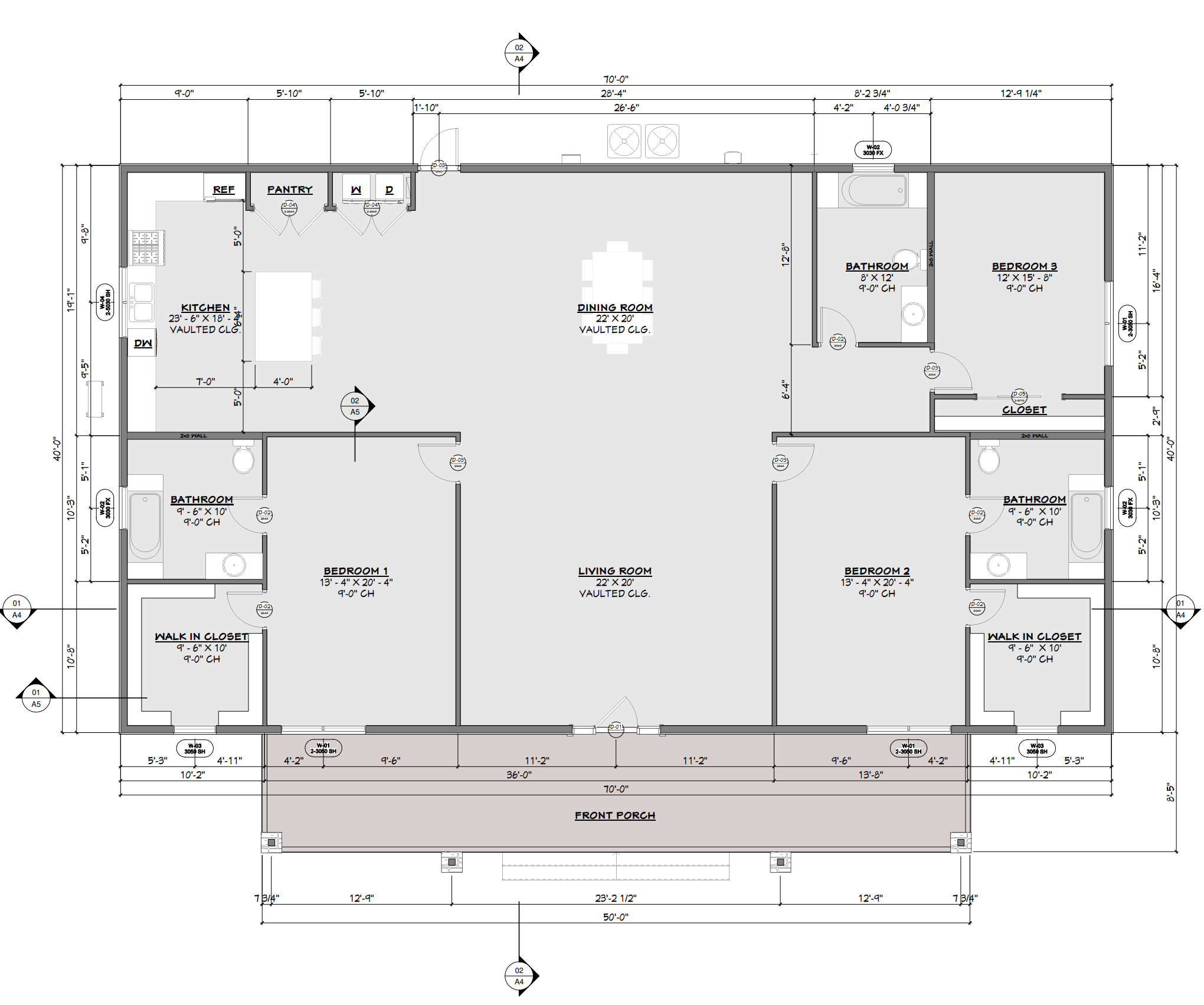

Floor Plan
