BCO-40069 Jay Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 11

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,750 SF

Second Floor:

None

Total Heated Sq Ft:

1,750 SF

UNHEATED SQ FT

Total Unheated Area:

480 SF

Carport:

None

Bedrooms:

2

Full Baths:

2

Floors:

1

Garage Size:

None

Width:

50'

Depth:

35'

Height:

Eave Height 10'

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

Stick-Frame

CEILING HEIGHTS

First Floor:

9'

BCO-40069 Jay Barndominium House Plan



About this barndominium house plan:

  • 1750 Heated square feet
  • 35x50 living space dimension
  • 2 Bedrooms
  • 2 Bathrooms
  • Single Stories
  • Open concept
  • Front porch



      • This single-story home, BCO-40069, encompasses 1750 square feet, with overall dimensions of 50 feet in length and 35 feet in width.

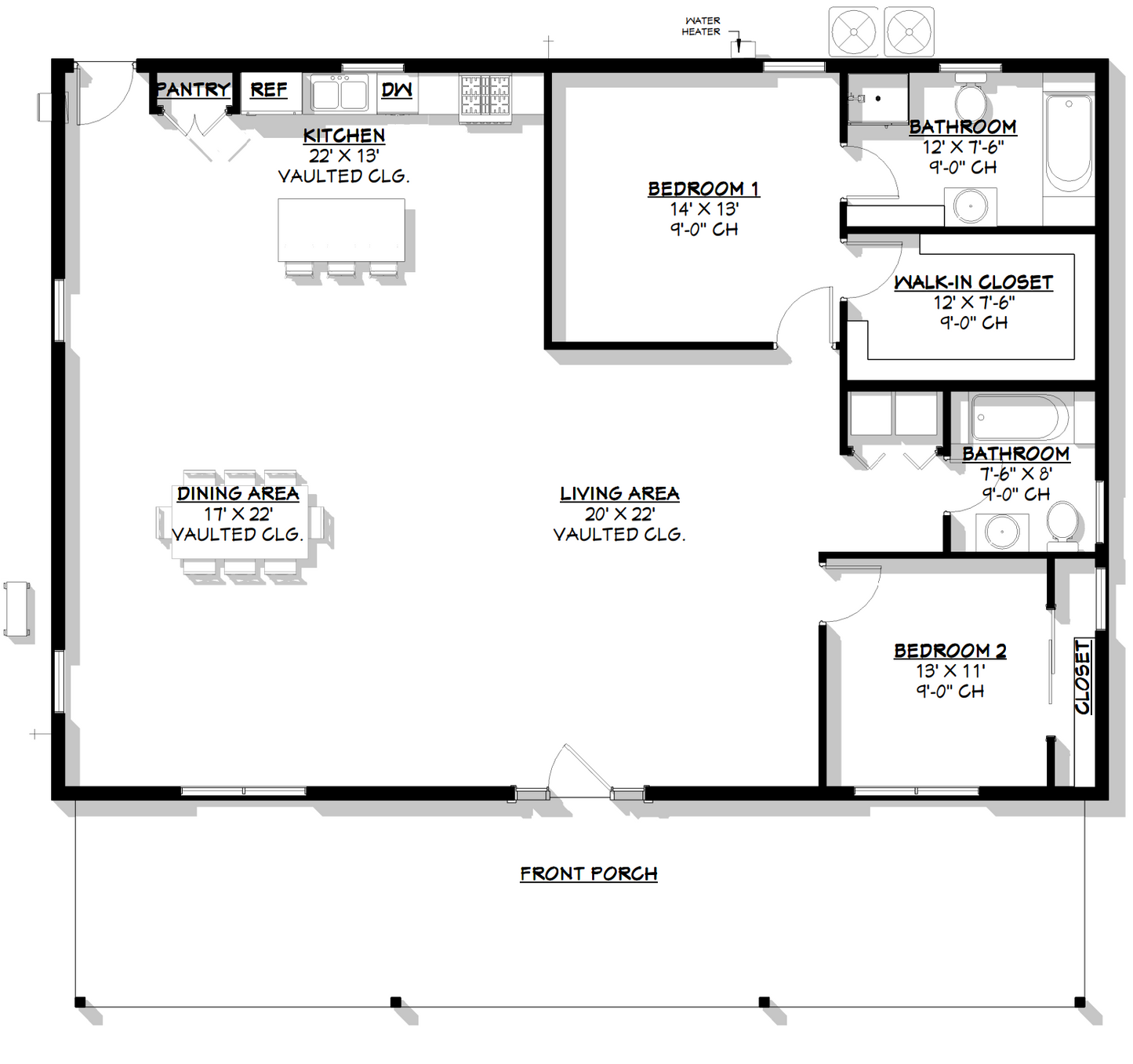

      • The floor plan features two bedrooms, including Bedroom 1 measuring 14' x 13'.
      • It also provides two bathrooms, one specifically sized 12' x 7'6" and the other 7'6" x 8'.
      • The central living area includes a living room of 20' x 22' and a dining room measuring 17' x 22', adjacent to a kitchen that is 24' x 13'.
      • This design offers a well-appointed and functional living space suitable for a family, without an integrated garage.



      What's included in BCO-40069:

      Cover Sheet

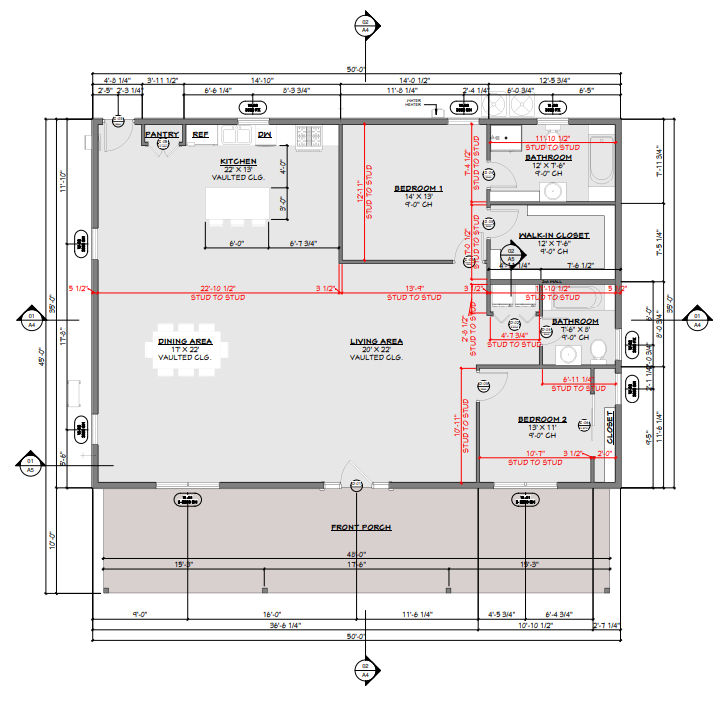

      Detailed Floor Plan

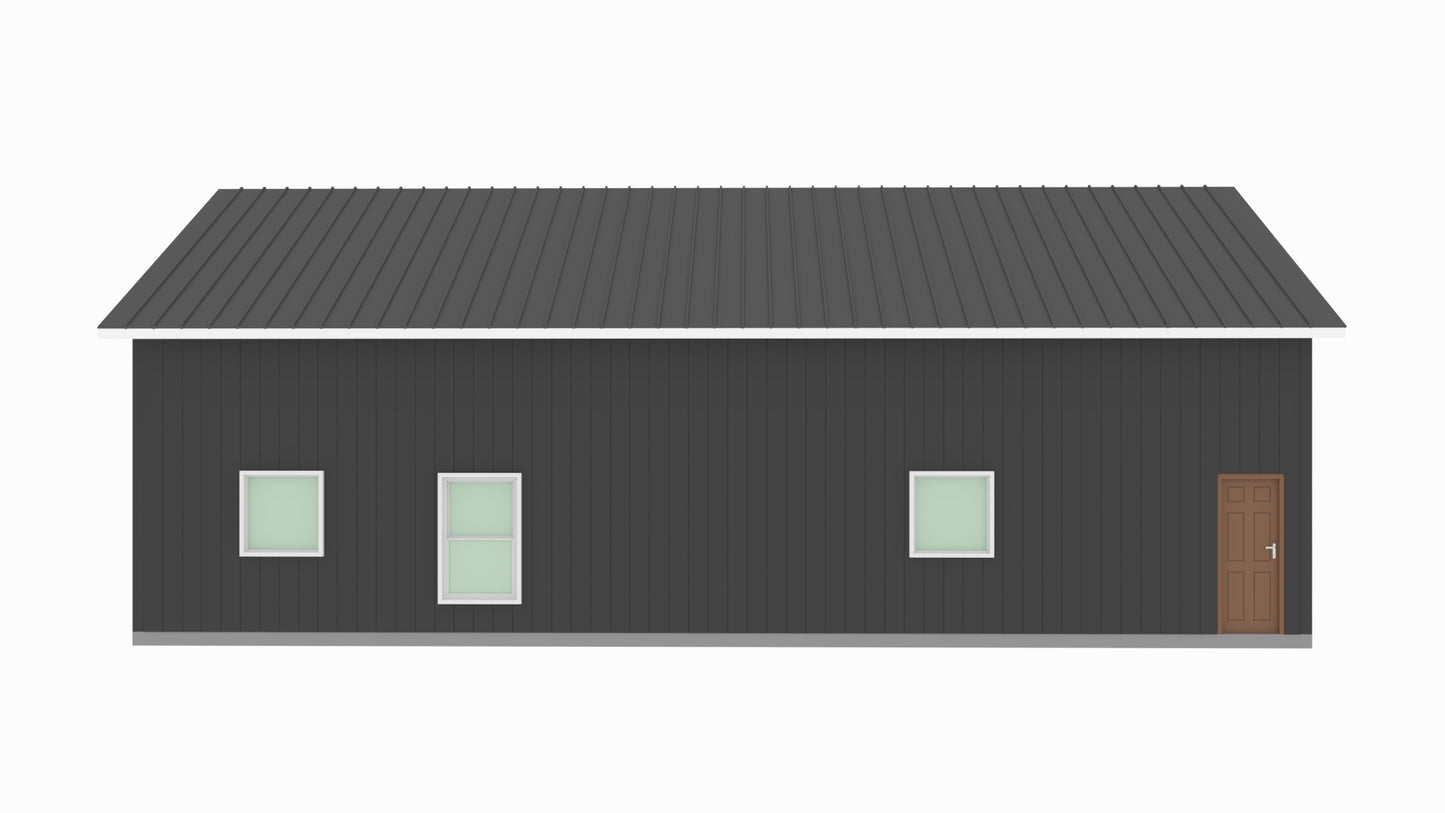

      Four Elevations - Front, Back, Left Side, Right Side
      Building Sections
      Wall Sections and Attic Details
      HVAC Plan
      Foundation Plan
      Foundation Details
      Basic Plumbing Plan and Details
      Electrical Plan
      Roof Framing Plan
      Roof Plan



      For more barndominium floor plans, check out our complete collection of 2-bedroom barndominium floor plans.

      Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

      Please note all square footage are estimates.
