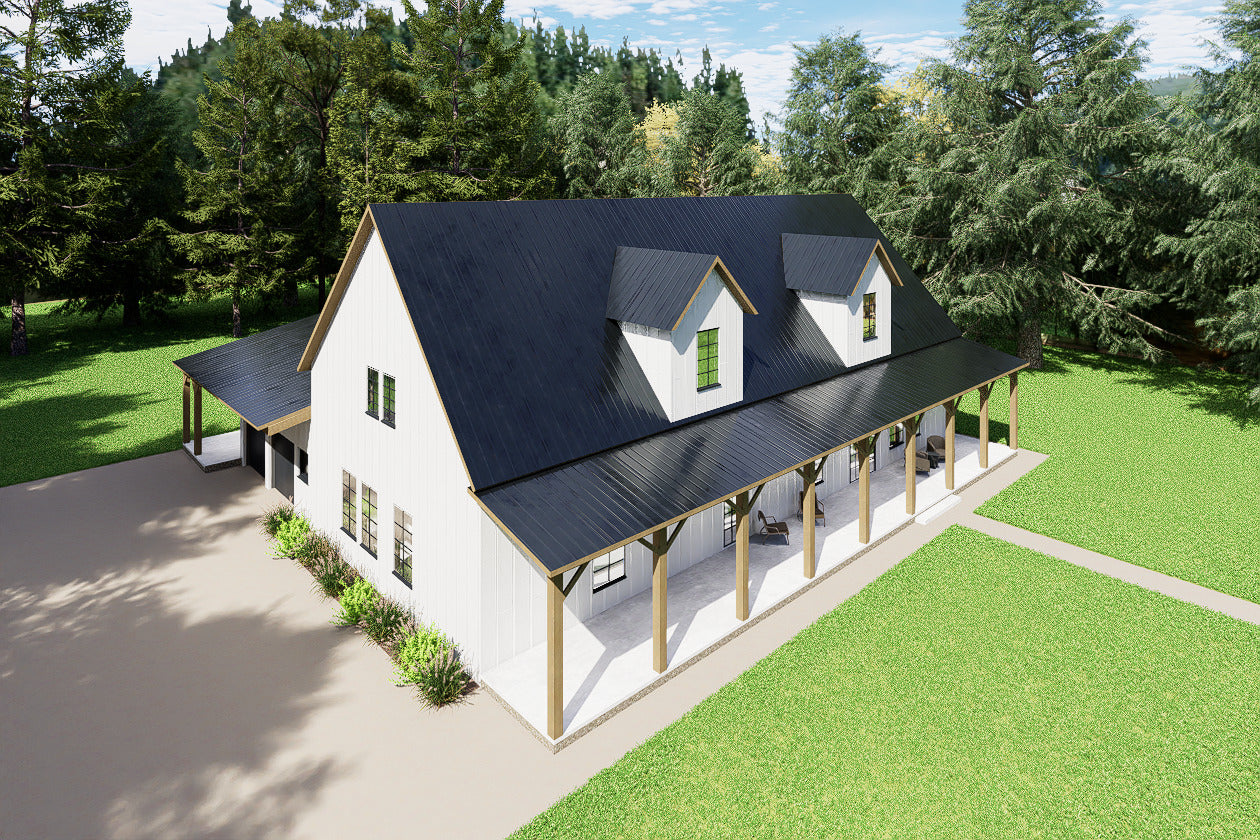

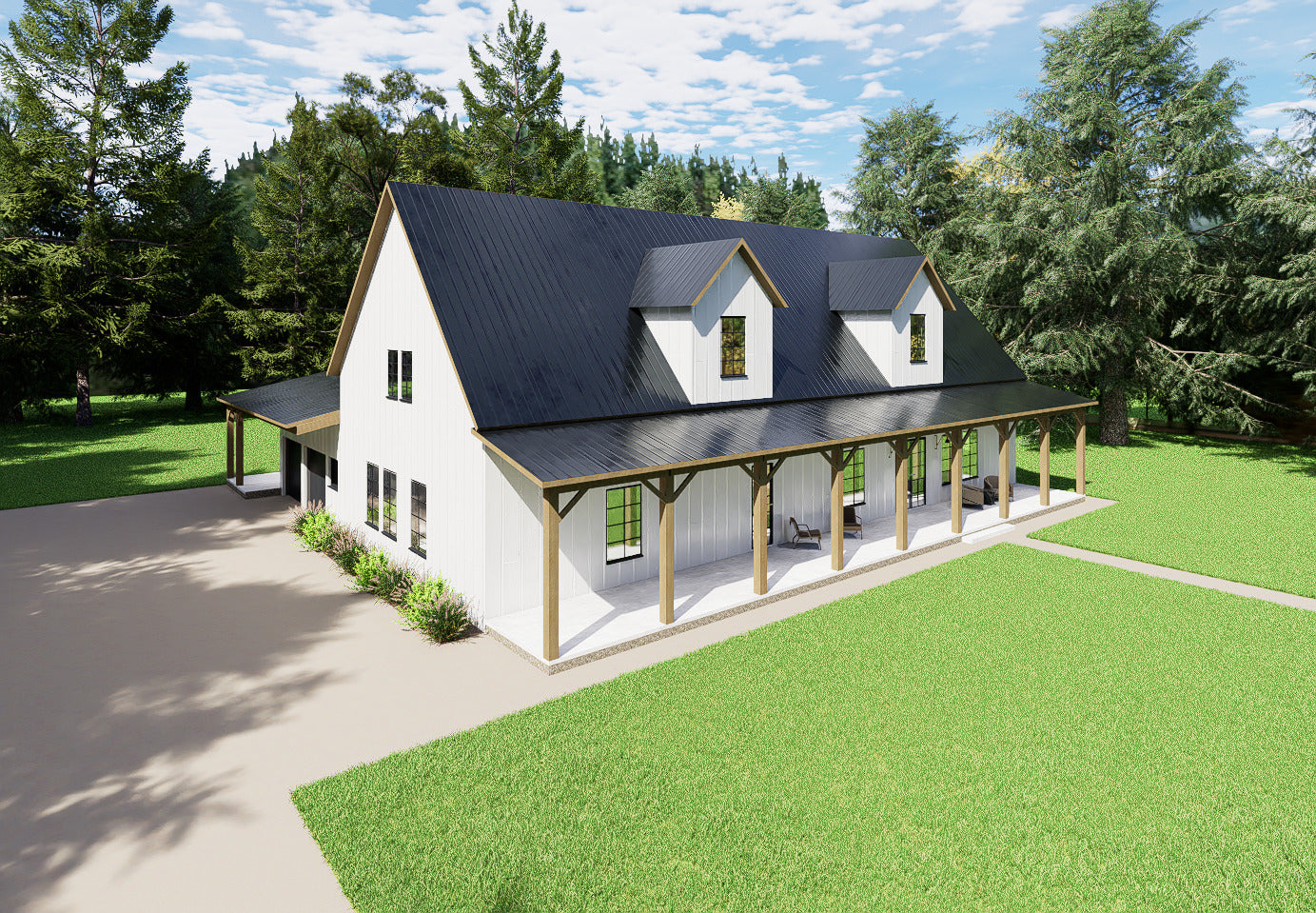

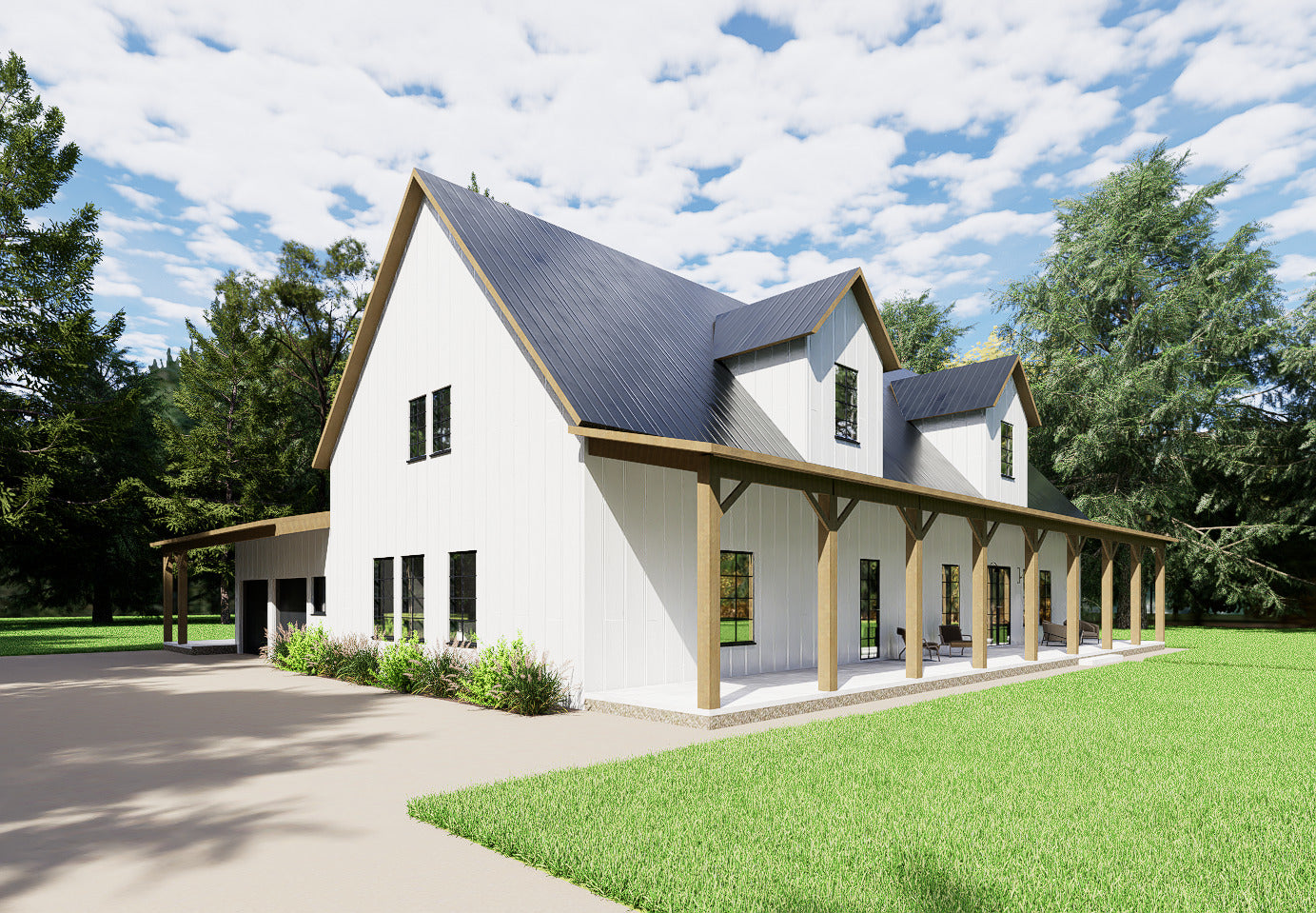

BCO-40020-M Marvin Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
Add To Wishlist
1 14
Bedrooms 3 Bedrooms
Floors 2 Floors
Full Baths 3 Full Baths
Total Heated Area 3,415 Total Heated Area

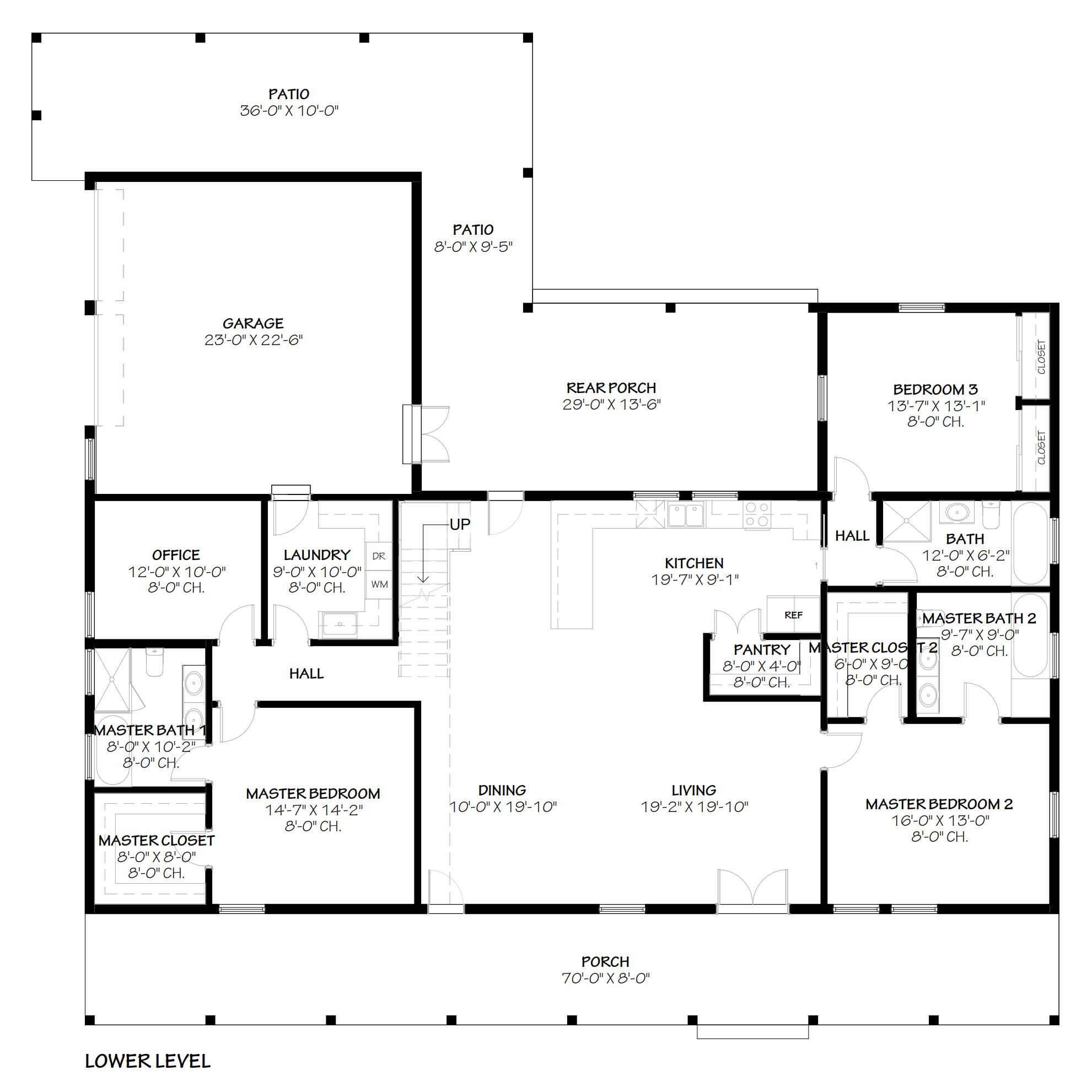

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,720 SF

Second Floor:

695 SF

Total Heated Sq Ft:

3,415 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 520 SF, Porch 1,380 SF = TOTAL 1,900 SF

Carport:

None

Bedrooms:

3

Full Baths:

3

Floors:

2

Garage Size:

520 SF

Width:

70'

Depth:

71'

Height:

Eave Height 12'

Foundation:

Crawl Space

Main Roof Pitch:

13:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

8'

BCO-40020-M Marvin Barndominium House Plan


About this barndominium house plan:

  • 3415 Heated Square Feet
  • 3 Bedrooms (including 2 master bedrooms)
  • 3 Bathrooms
  • Open Concept
  • Single Story
  • Attic Space
  • Office
  • Loft
  • Laundry Room
  • Front and Rear Porch
  • 520 Sq Ft Garage



  • The main level features a massive open-concept living and dining area seamlessly connected to a large kitchen with a dedicated pantry.
  • For privacy and comfort, the plan includes three bedrooms, highlighted by two master suites, with Master Bedroom 2 offering a generous 16' x 13' footprint.
  • Practicality is a priority with a dedicated office and a separate laundry room located conveniently near the garage entrance.

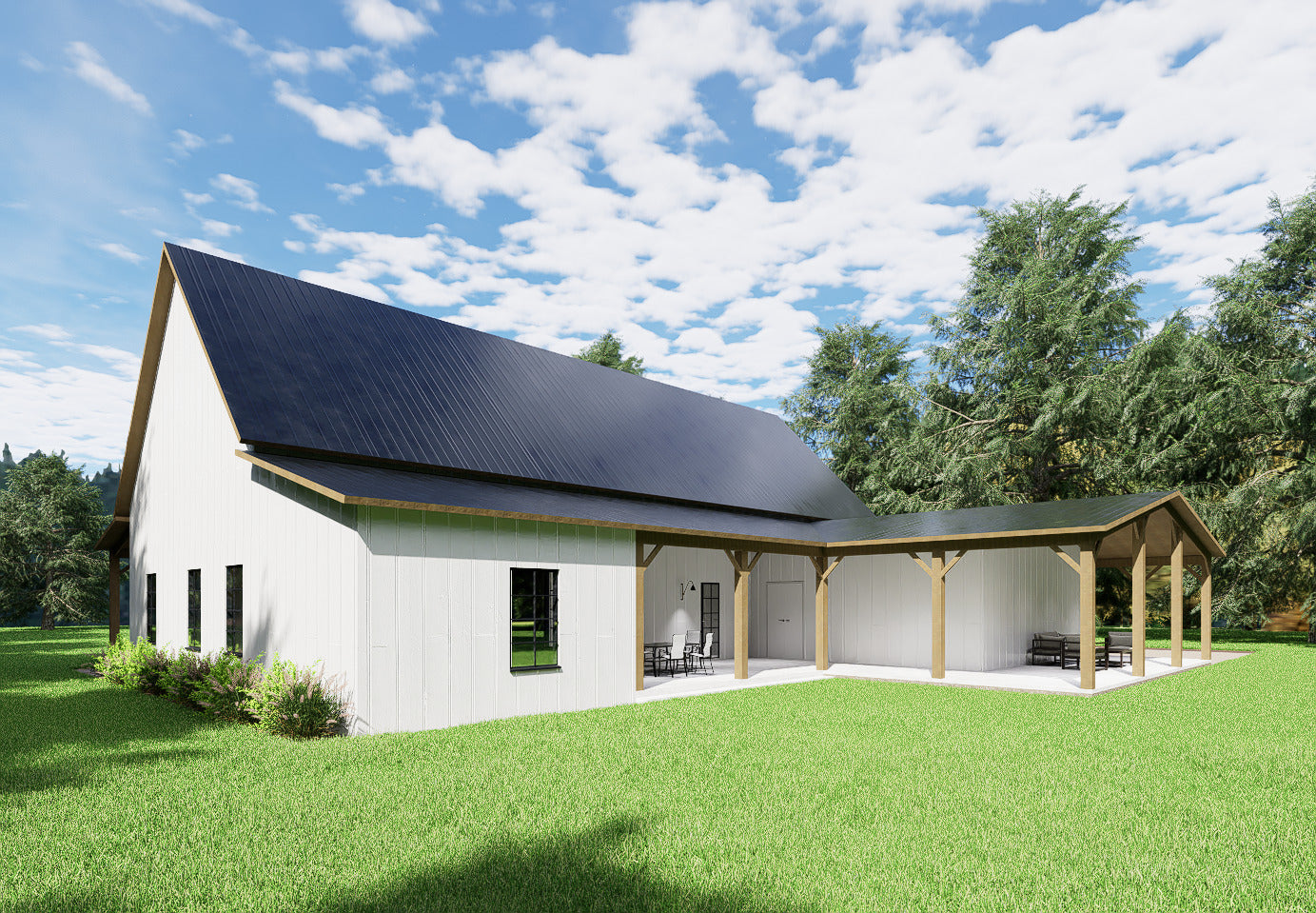

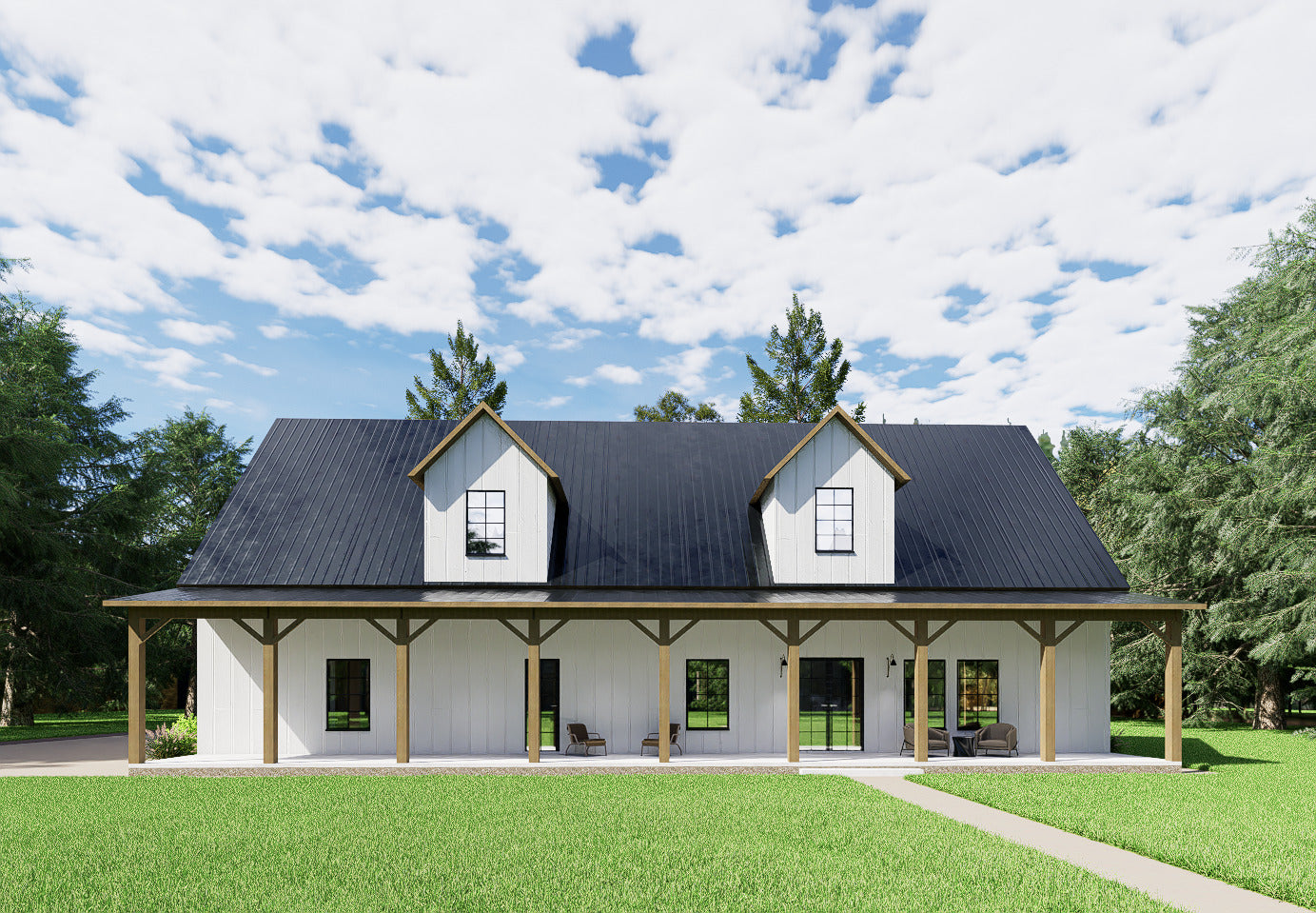

  • Outdoor living is expansive, boasting a 70' x 8' front porch and a rear porch/patio area that wraps around the back of the home.

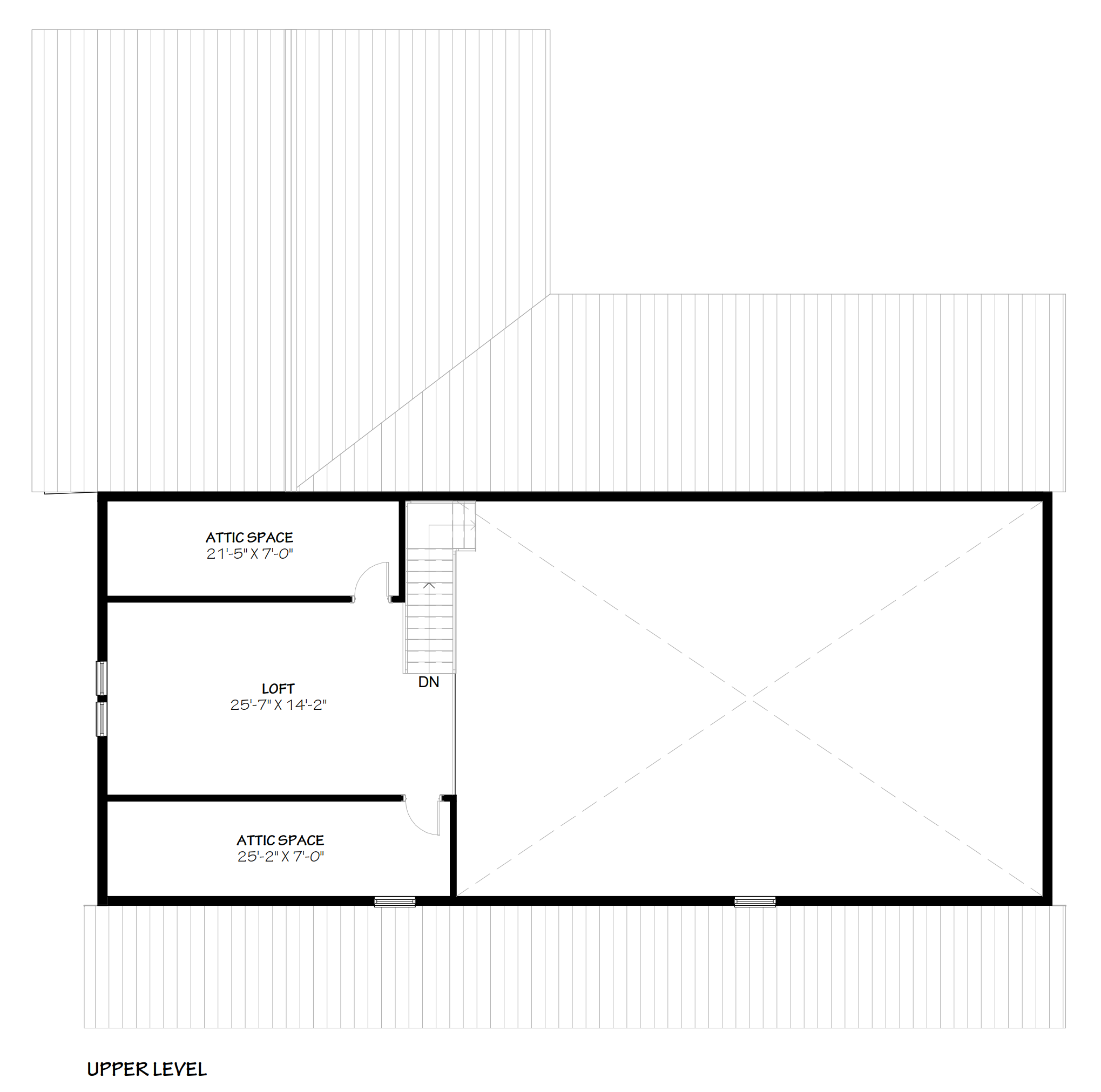

  • The upper level adds versatility with a loft flanked by two large attic spaces for ample storage.


What's included in BCO-40156-G:

Cover Sheet
Images
Floor Plan
Upper Floor Plan
Exterior Elevations
Building Sections
Wall Sections, Stair Section, and Attic Details
Ground Floor HVAC Plans
Upper Floor HVAC Plans
Foundation Plans
Foundation Details
Basic Plumbing Plans and Details
Ground Floor Electrical Plan
Upper Floor Electrical Plan
Roof Framing Plan
Roof Plan




For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.


Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
