AP-20001 Zion Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
1 6

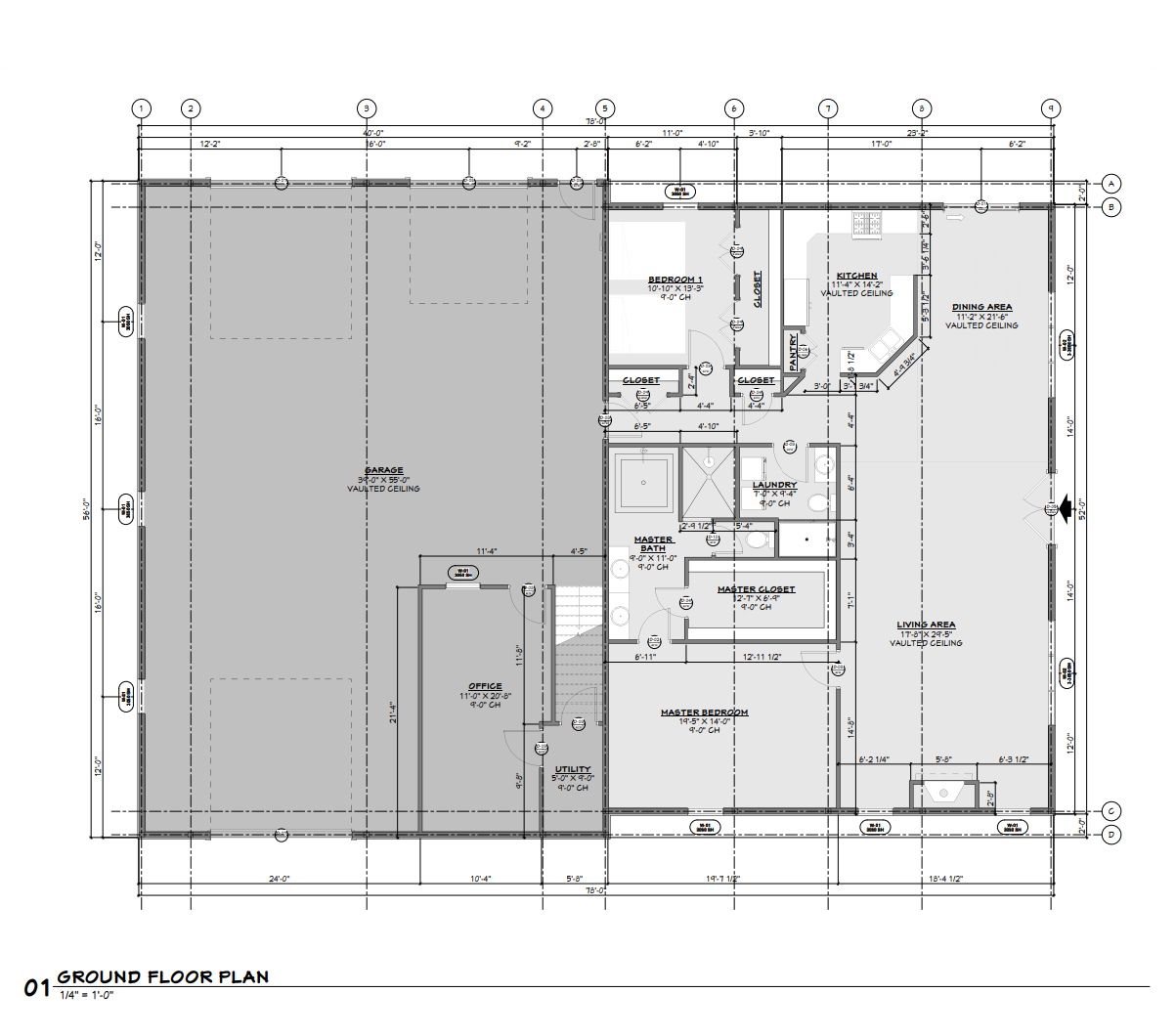

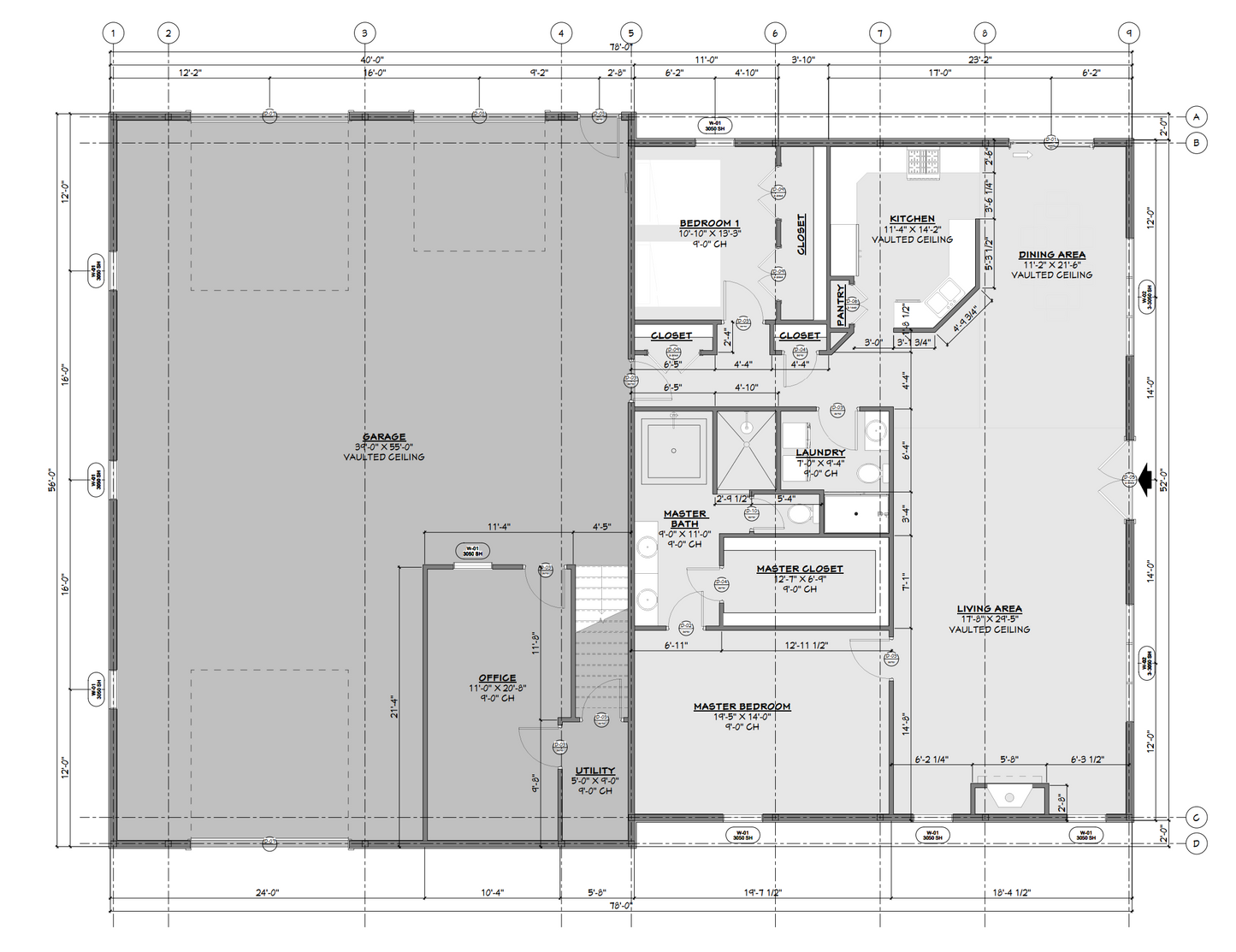

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1976

Total Heated Sq Ft:

1976

UNHEATED SQ FT

Total Unheated Area:

Garage 2240 SF

Carport:

None Shown

Bedrooms:

2

Full Baths:

1

Floors:

1

Garage Size:

39x55 feet

Width:

78 feet

Depth:

56 feet

Foundation:

Monolithic slab with turn-down footing details

Main Roof Pitch:

4:12

CEILING HEIGHTS

First Floor:

9 feet

AP-20001 Zion Barndominium House Plan

  • 1976 Heated square feet
  • 37x37 living space dimension
  • 2 Bedrooms
  • 2 Bathrooms
  • Single story
  • Open concept
  • Storage
  • Office
  • Utility room
  • Attached 3-car garage



  • This house plan offers a comfortable and efficient living space of 1976 heated square feet. The design is a single-story layout, ideal for those who prefer the convenience of one-level living. The open-concept design allows for a seamless flow between the main living areas.
  • The plan includes two bedrooms and two bathrooms, providing ample space for a small family or for hosting guests.
  • Additional features of this house plan include an office space providing a quiet place for work or study, and a utility room offers practical storage and laundry space.
  • Completing the plan is an attached 3-car garage, providing secure parking and additional storage space. This house plan combines practicality and modern design, offering a comfortable and stylish place to call home.



What's included in AP-20001

Cover Sheet
Detailed Floor Plan Dimensions

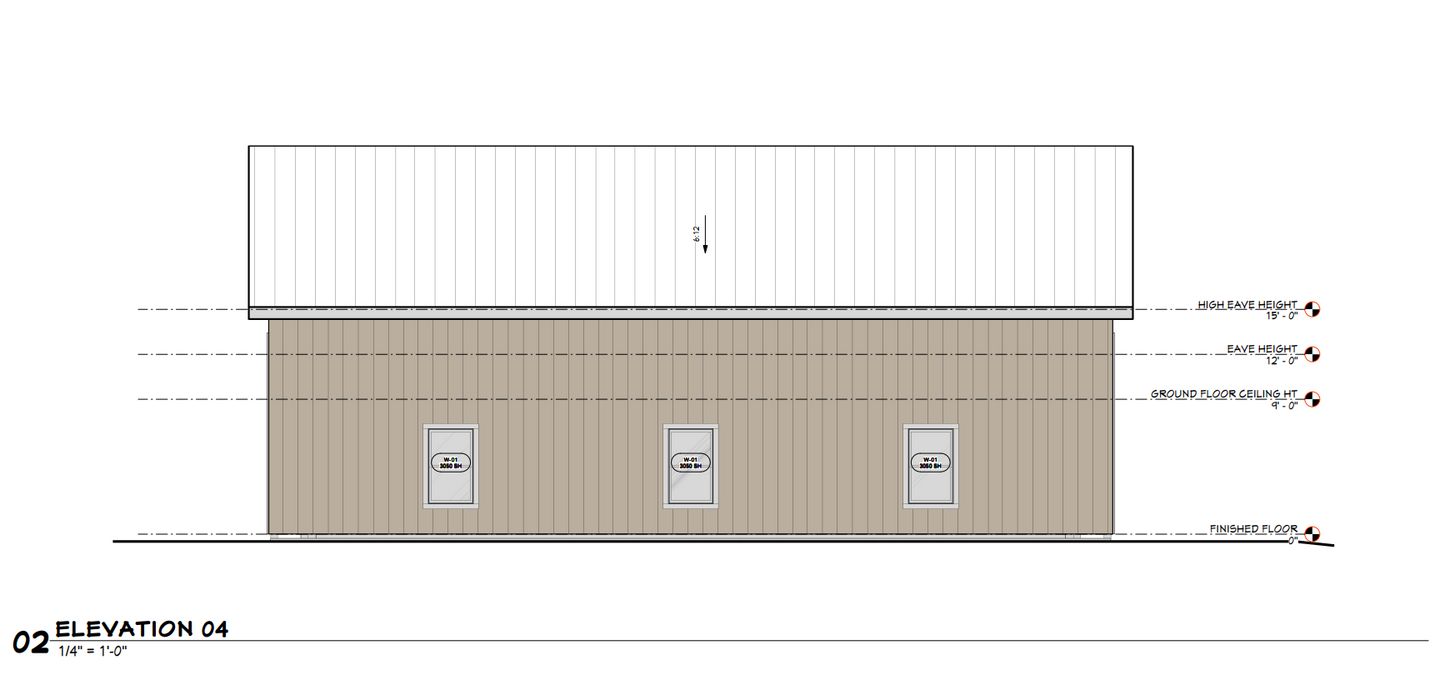

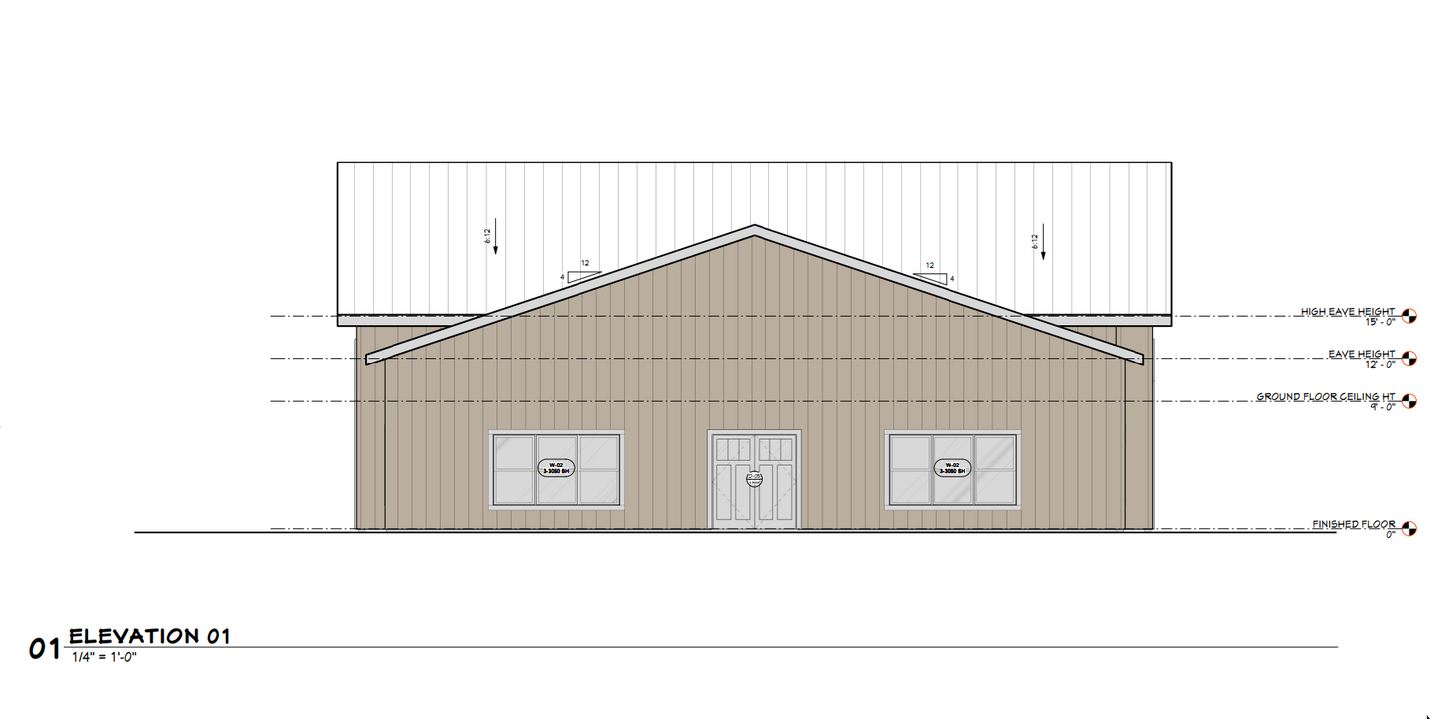

Four Elevations - Front, Back, Left Side, Right Side
Pole Layout Plan
Foundation Plan
Basic Plumbing Plan
Roof Plan



For more barndominium floor plans, check out our complete collection of 2-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
