AK-4006 Blackthorn Barndominium House Plan

$1,695.00 USD
$1,695.00 USD
Sale Sold out
1 19

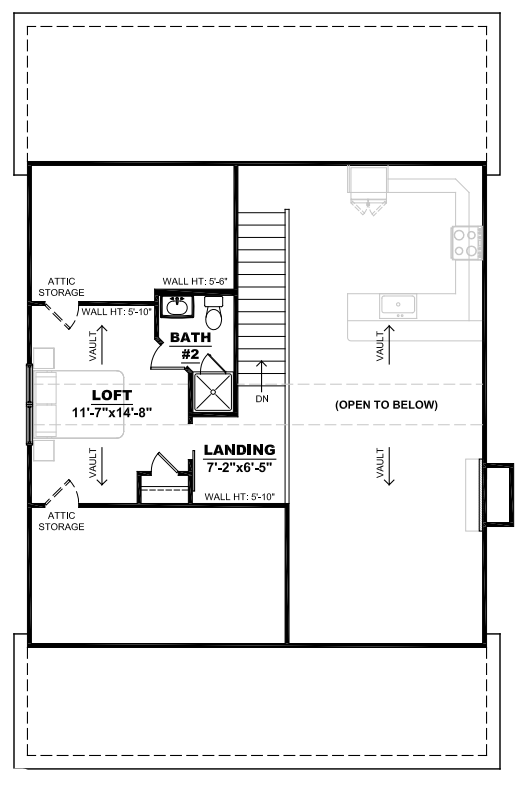

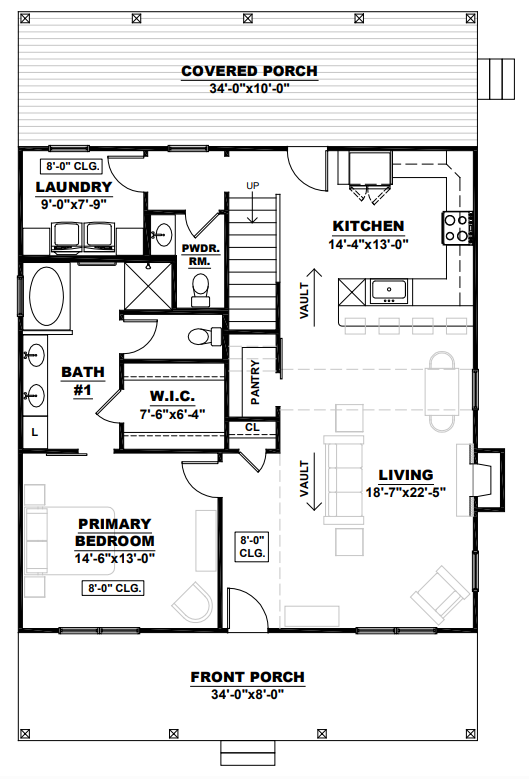

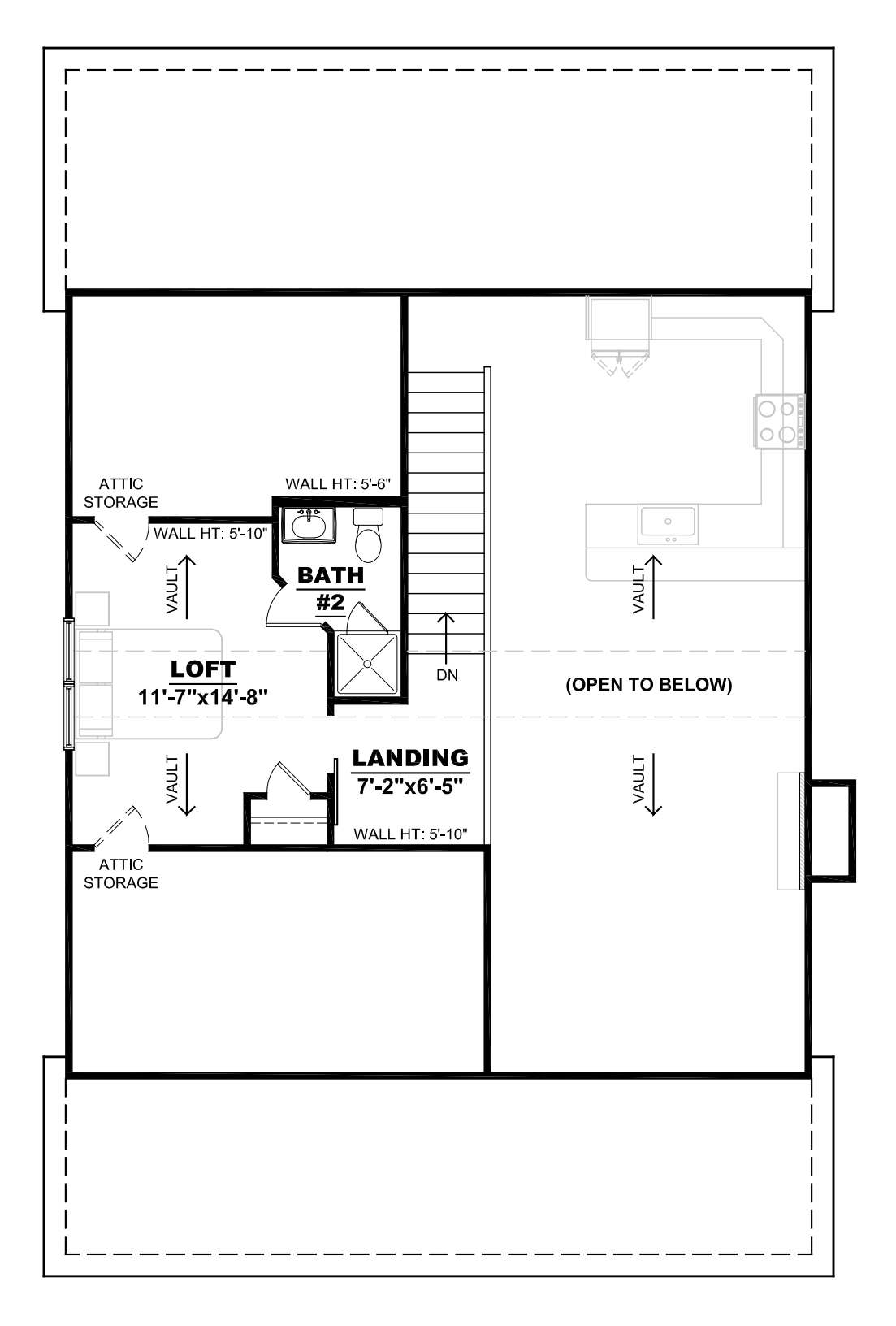

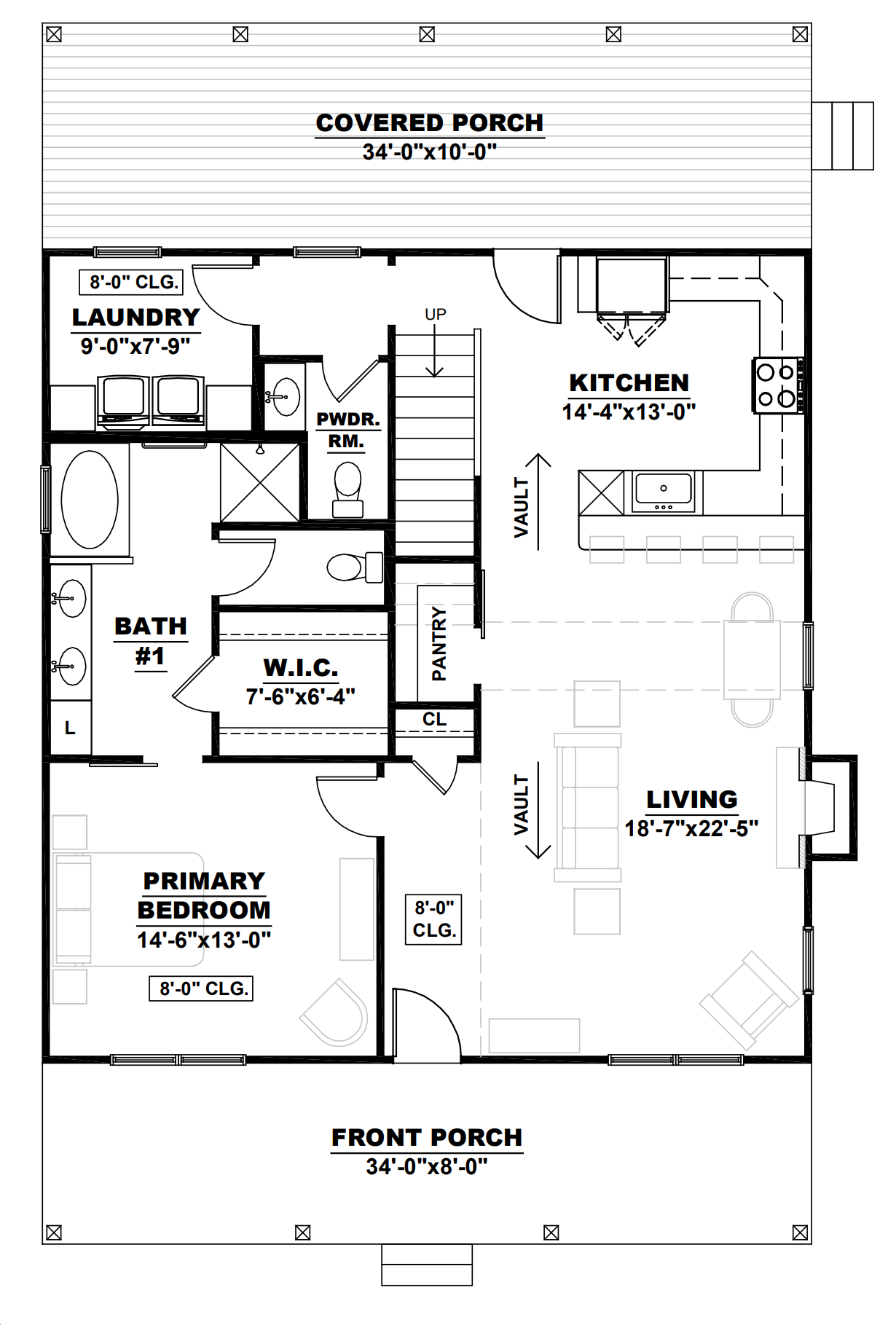

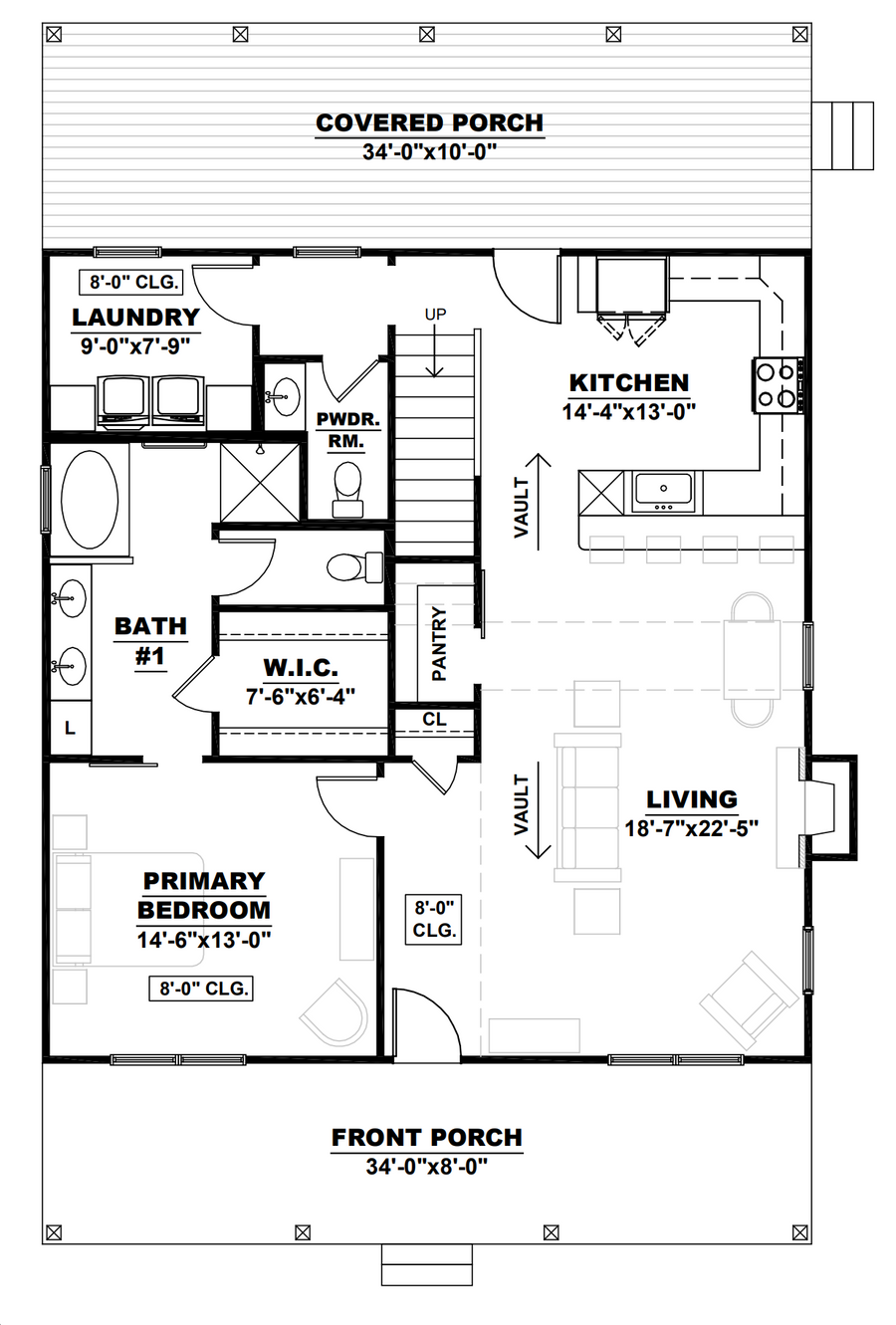

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1224

Second Floor:

276 SF

Total Heated Sq Ft:

1,500 SF

UNHEATED SQ FT

Total Unheated Area:

612 SF

Carport:

None

Bedrooms:

1

Full Baths:

2

Floors:

2

Garage Size:

None

Width:

34'

Depth:

54'

Height:

21'

Foundation:

Crawl Space

Main Roof Pitch:

8:12

Exterior Framing:

2x6 Stick-frame

CEILING HEIGHTS

First Floor:

8'

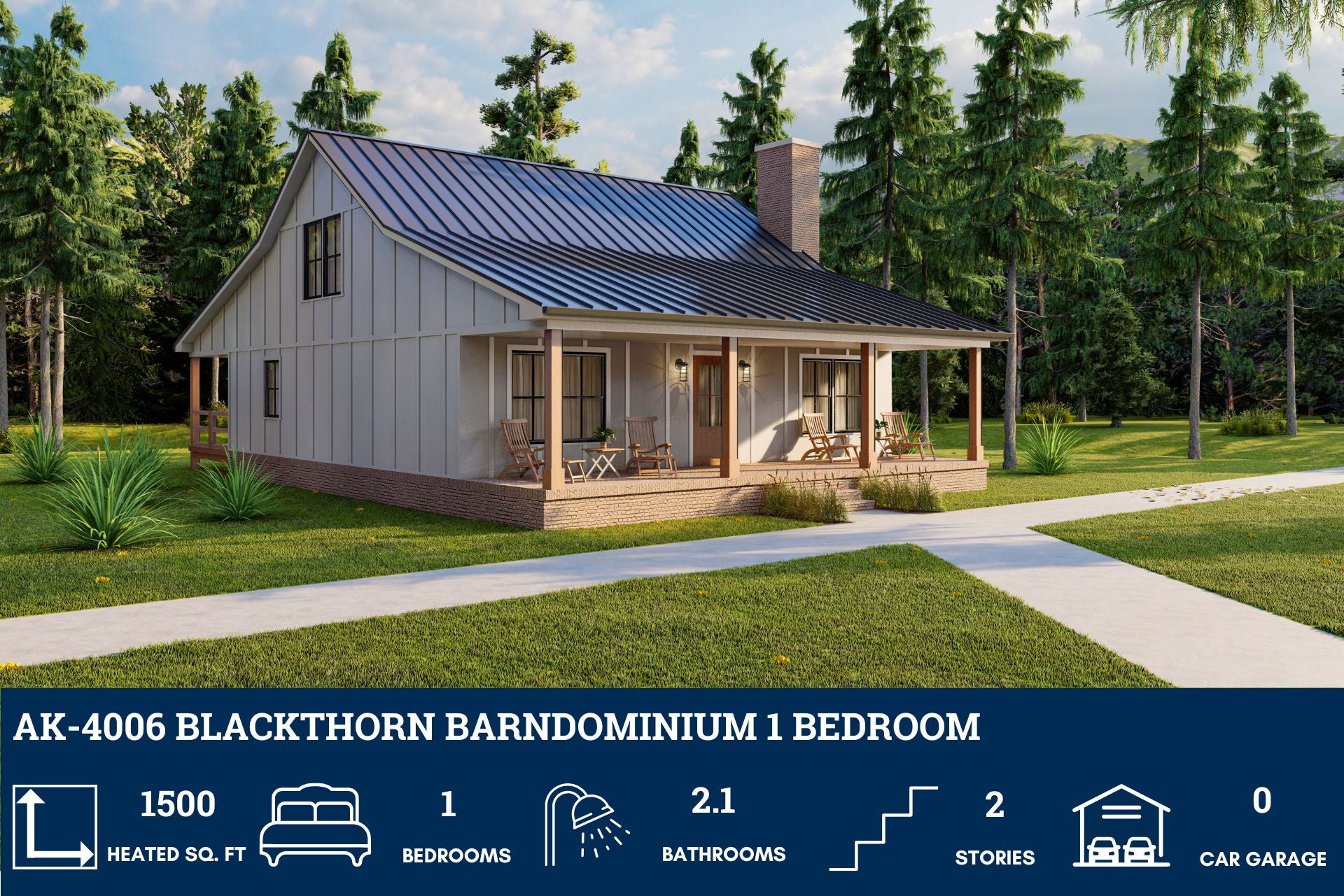

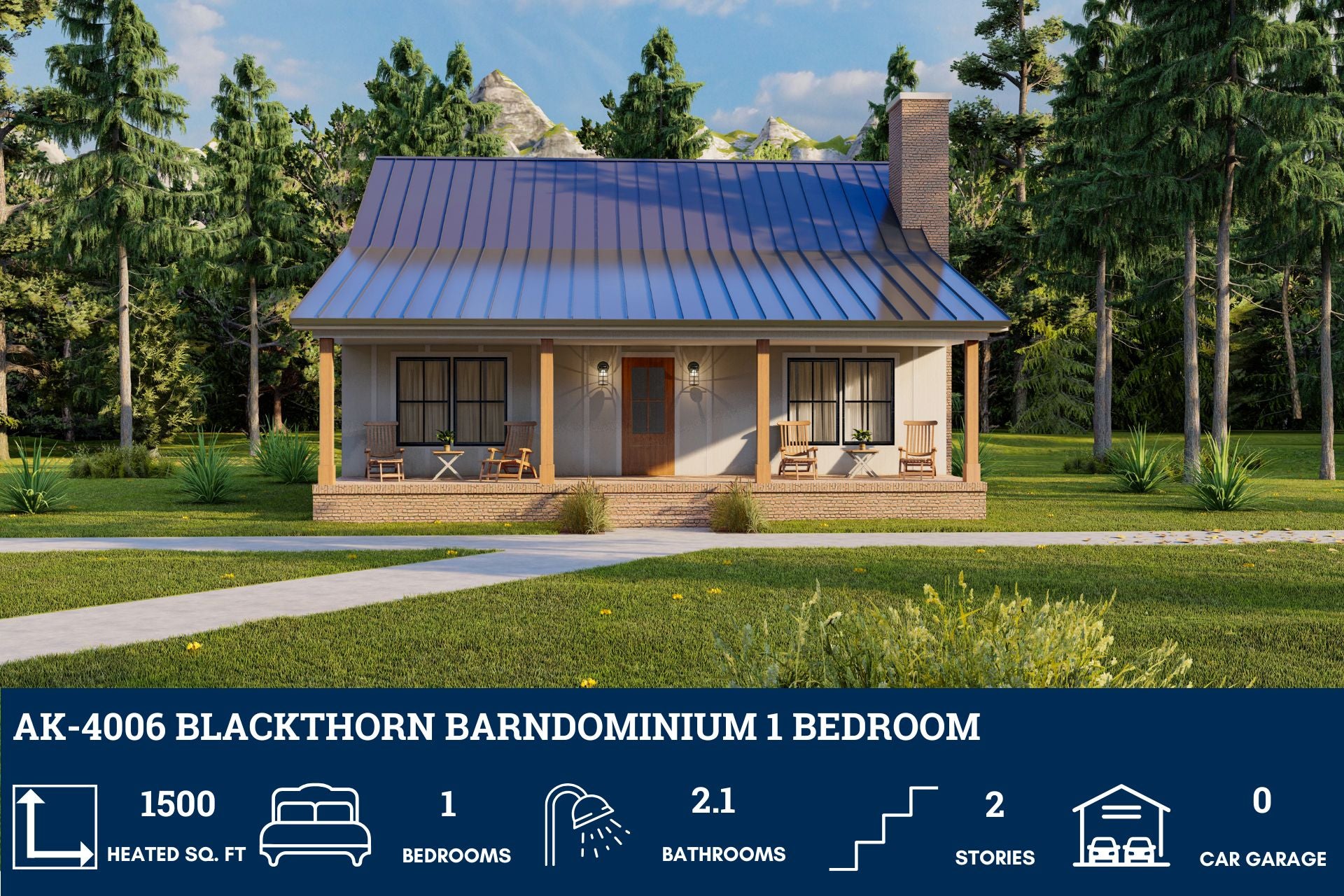

AK-4006 Blackthorn Barndominium House Plan

About this barndominium house plan:

  • 1500 Heated square feet
  • 1 bedroom
  • 2.1 bathrooms
  • 2 Story
  • Loft
  • Open Concept
  • Front & rear porch
  • Attic Storage
  • Crawl Space Foundation

  • A thoughtfully designed 1,500 square feet of heated living space offers the perfect balance of comfort and efficiency—ideal for those seeking a cozy yet spacious home.

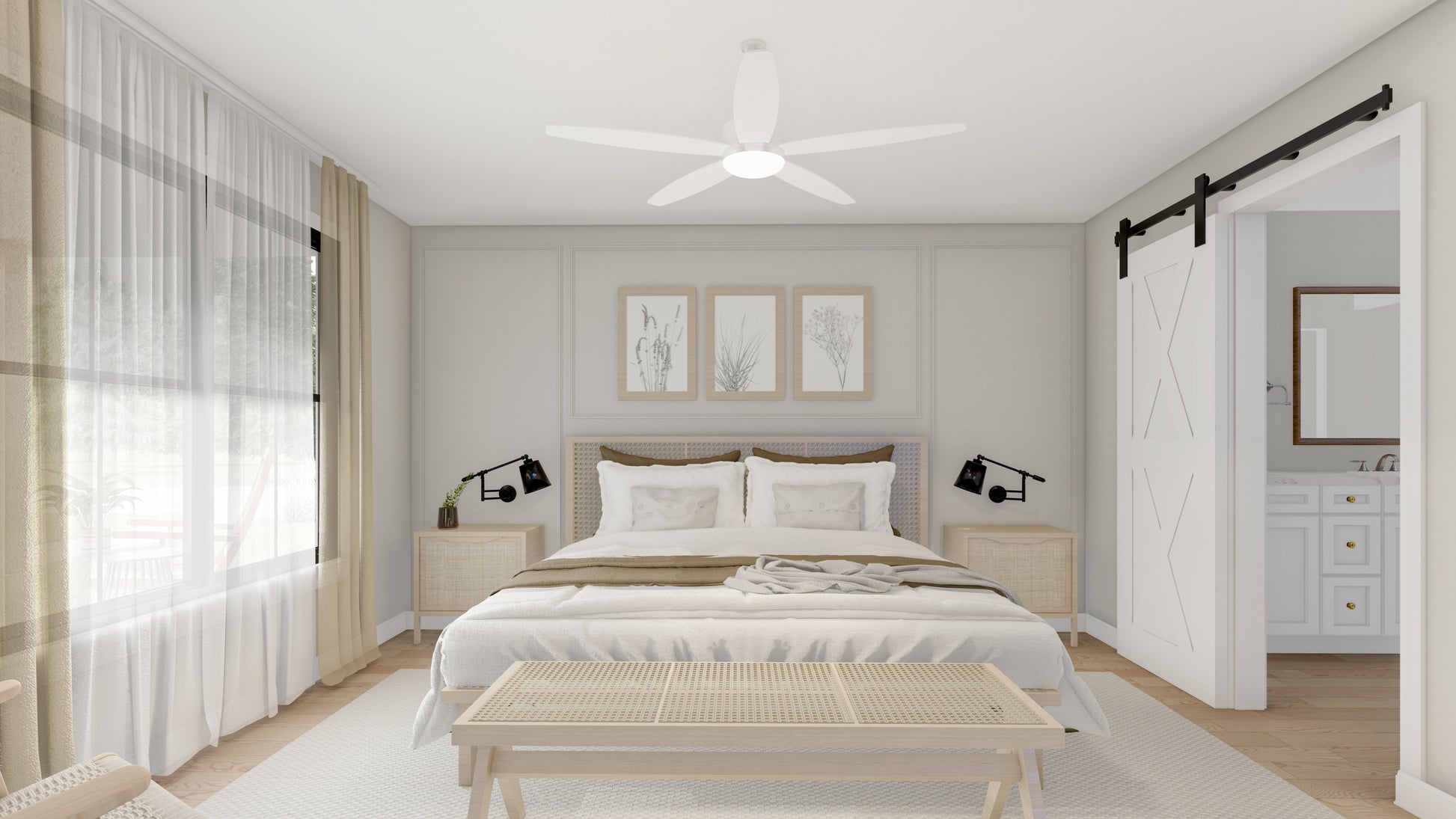

  • The generously sized primary bedroom provides a private sanctuary, complete with ample space for rest, relaxation, and personalization.
  • Featuring two full bathrooms and an additional powder room, this layout ensures convenience for both residents and guests, with no compromise on style or functionality.
  • A striking two-story design enhances the home's architectural appeal while maximizing vertical space and natural light. The upper-level loft adds flexible living space—perfect for a home office, reading nook, or creative studio.

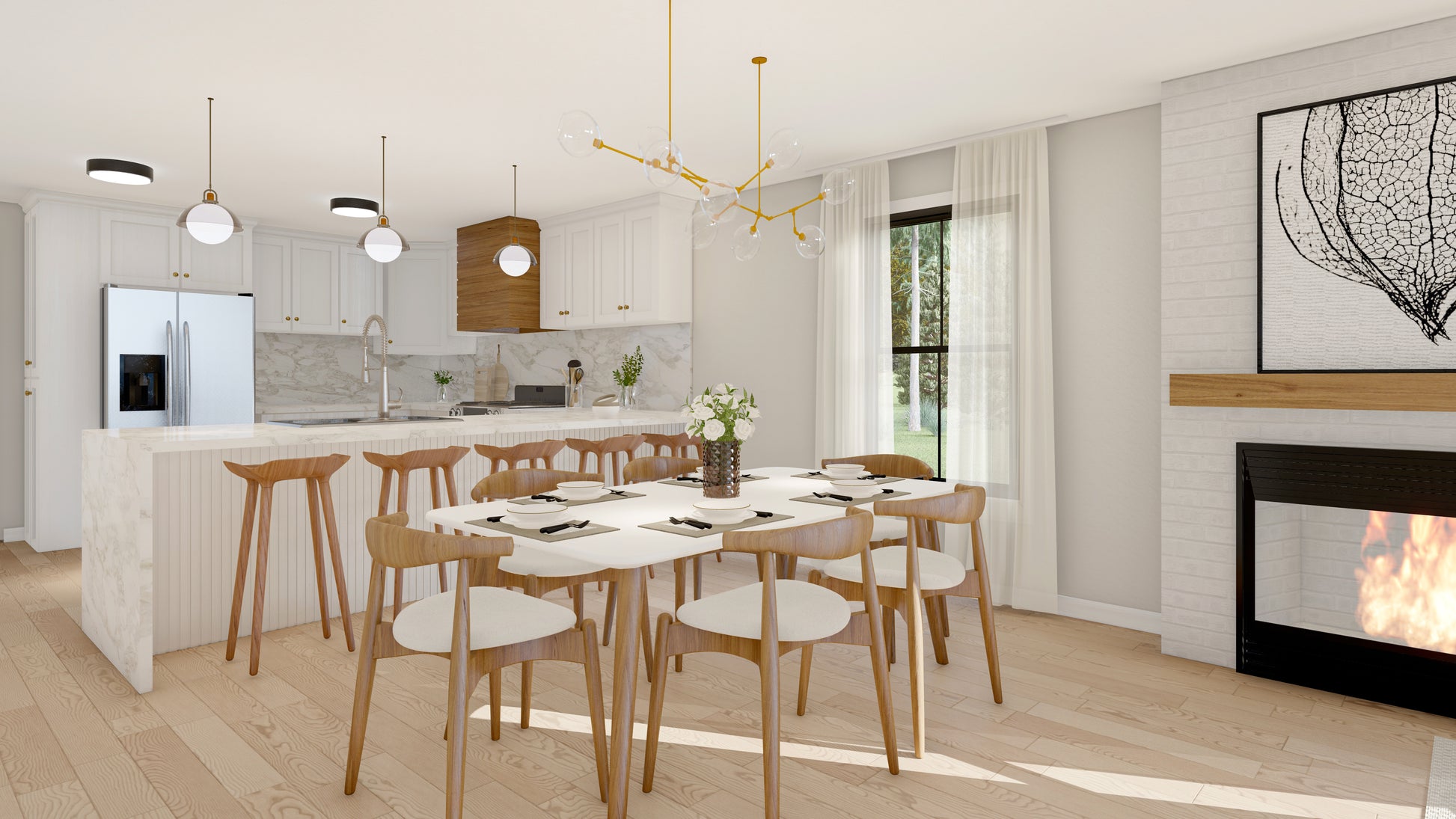

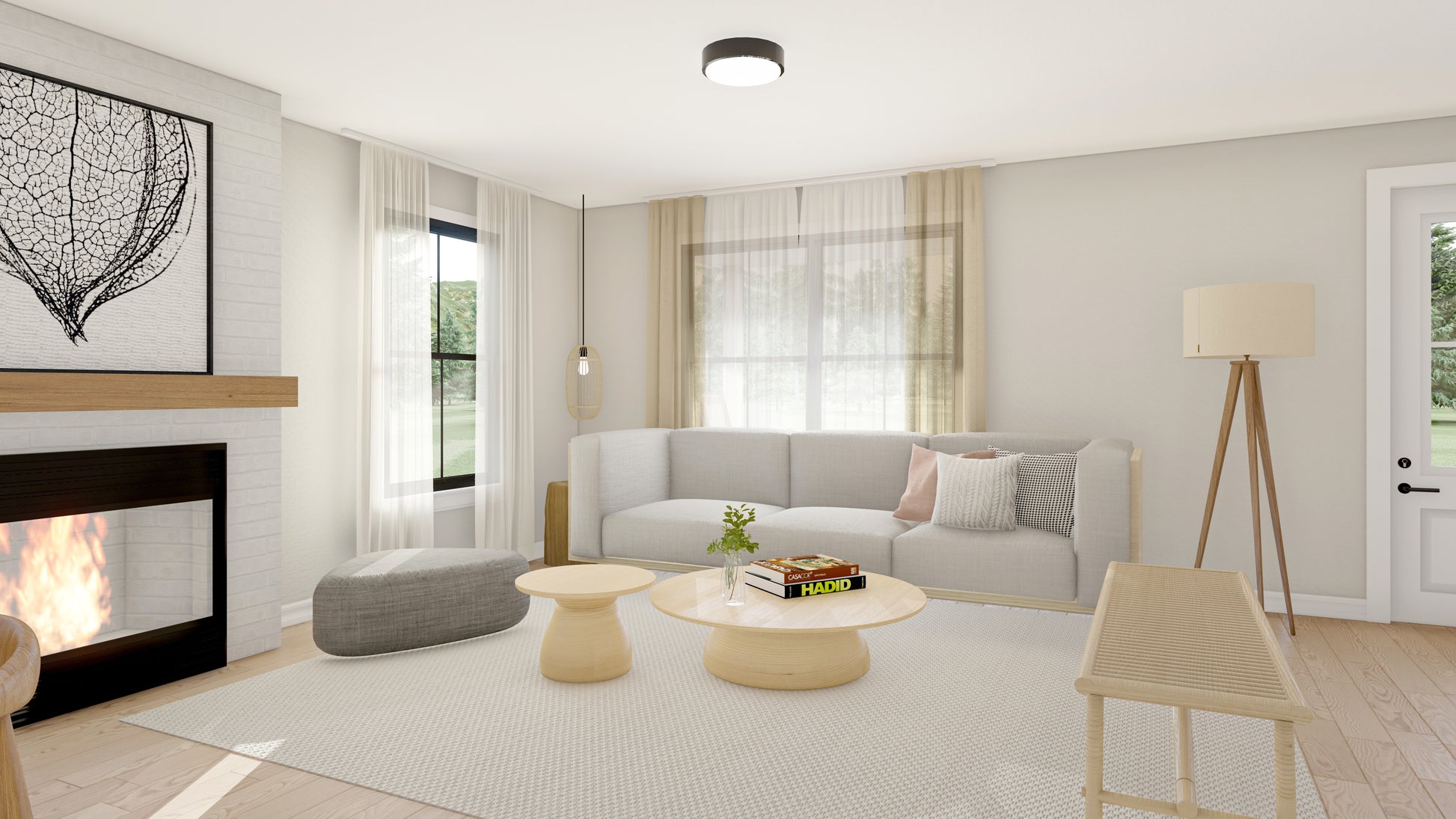

  • The open-concept layout seamlessly connects the kitchen, dining, and living areas, creating an inviting atmosphere for entertaining and everyday living.

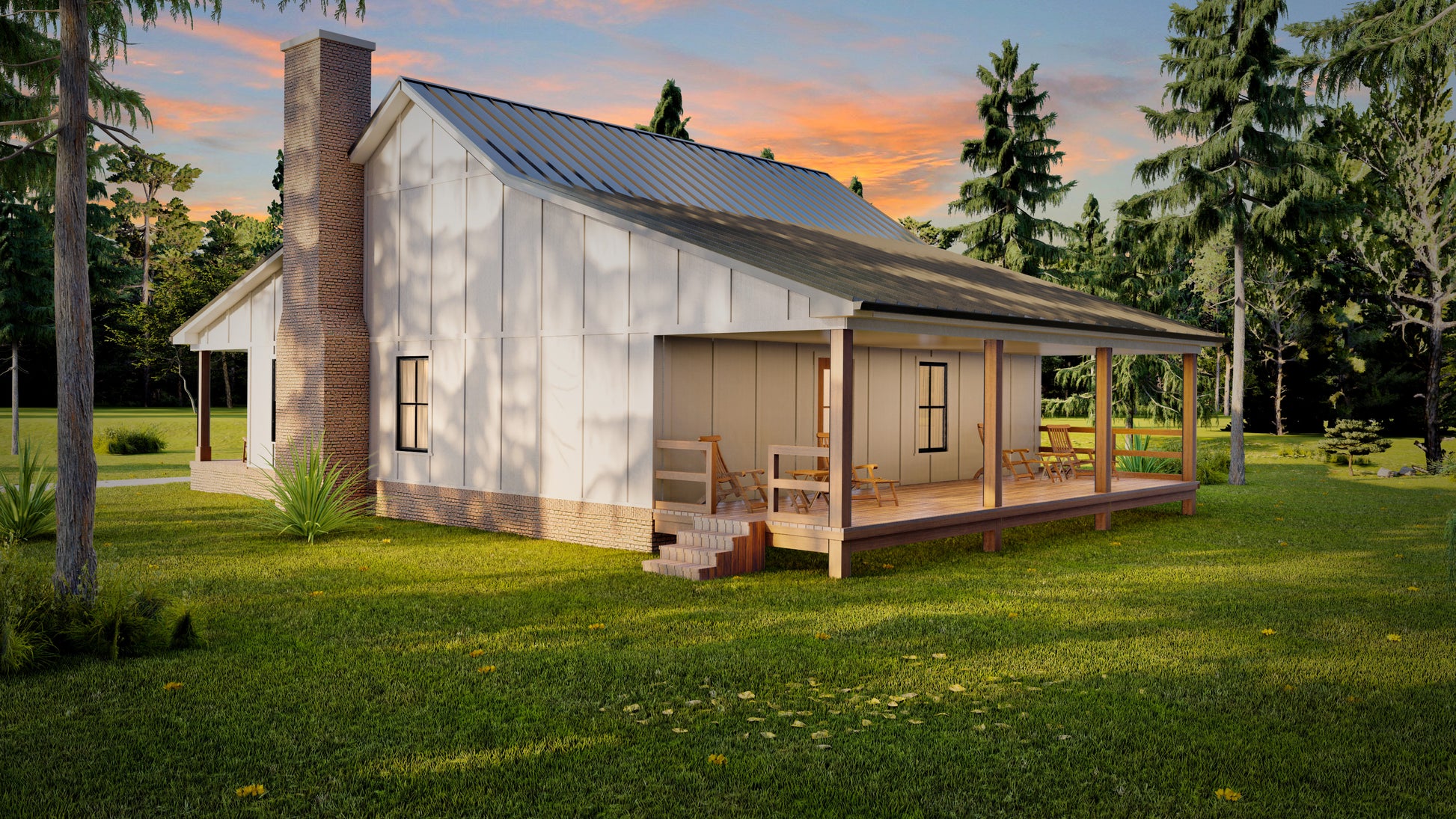

  • Enjoy outdoor living year-round with both front and rear porches—ideal for morning coffee, evening gatherings, or simply soaking in the surroundings.

  • Built on a crawl space foundation, this home offers enhanced ventilation and easy access for maintenance, while maintaining structural integrity and energy efficiency.

What's included in AK-4006:

Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, + Materials Legend
Foundation Plan, Foundation Details + Foundation Notes
Main Level Floor Plan, Upper Level Floor Plan, + Wall Type Legend
Roof Plan + General Roof Plan Notes
Four Exterior Elevations, General Elevation Notes
Building Section, Interior Elevations of Kitchen + Laundry Room
Electrical Lighting Plans, Electrical Legend, + Electrical Notes

For more barndominium floor plans check out our complete collection of 1 bedroom barndominum floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footages are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
