Barndominium Plans

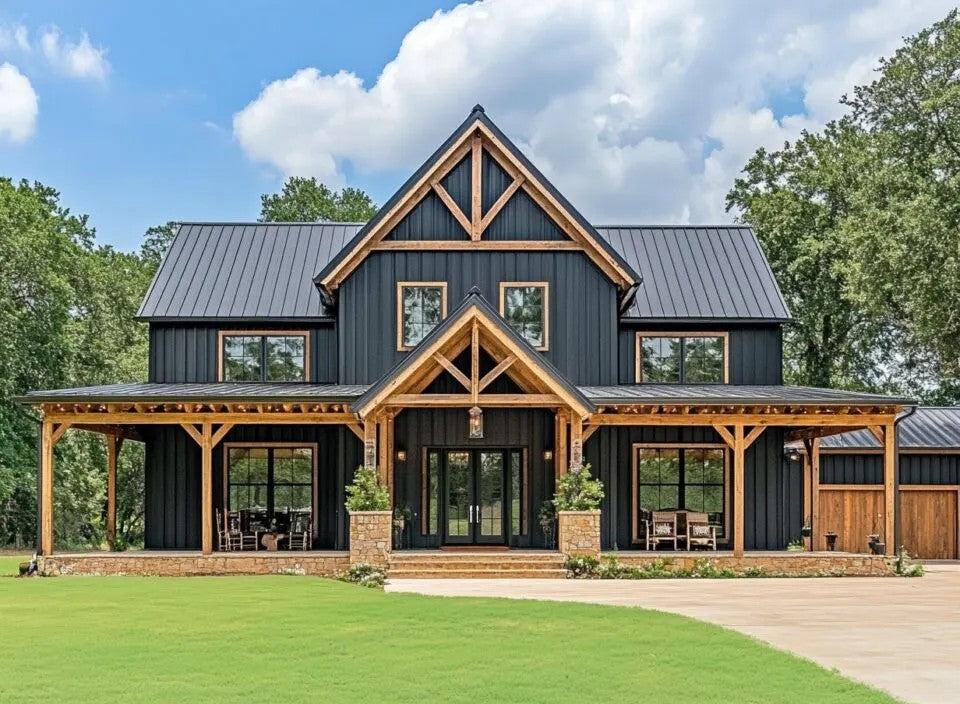

BCO-40052 Michael Barndominium House Plan

$1,349.99 USD
$1,349.99 USD
Sale Sold out
1 12

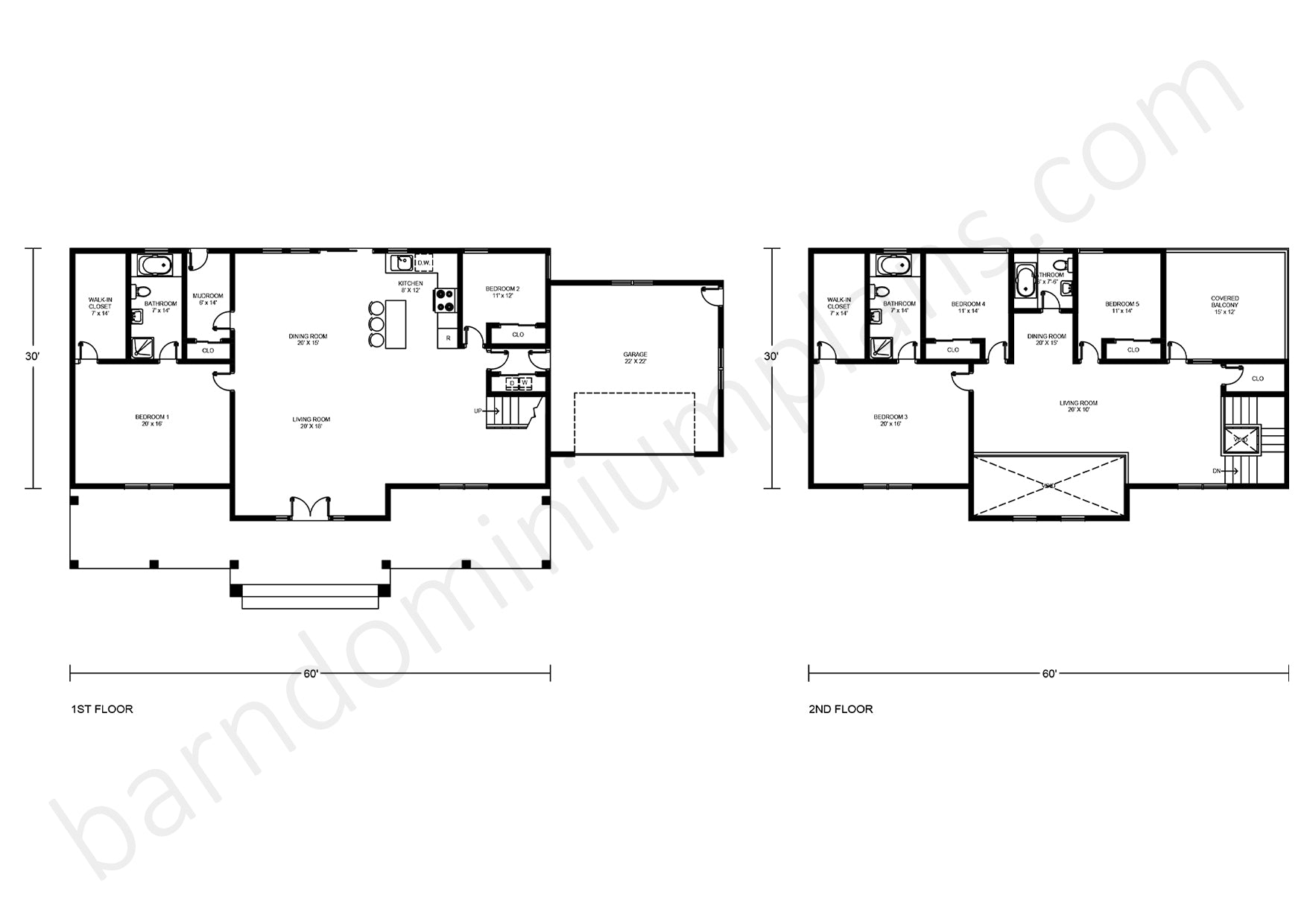

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,880 SF

Second Floor:

1,388 SF

Total Heated Sq Ft:

3,268 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 529 SF, Porch and Patio 623 SF, Balcony 195 SF = TOTAL 1,347 SF

Carport:

None

Bedrooms:

5

Full Baths:

3

Floors:

2

Garage Size:

529 SF

Width:

52'

Depth:

60'

Height:

25'

Foundation:

Concrete Slab

Main Roof Pitch:

6:12

Exterior Framing:

2x4 Stick-frame

CEILING HEIGHTS

First Floor:

9'

BCO-40052 Michael Barndominium House Plan



About this barndominium house plan:



  • 3268 Heated square feet
  • 30x60 living space dimension
  • 5 Bedrooms
  • 3 Bathrooms
  • 2 Stories
  • Open concept
  • Mudroom
  • Front porch & patio
  • Loft/bonus area
  • Balcony
  • Attached 529 Sq Ft Garage



      • Step into 3,268 square feet of pure comfort—where every inch is thoughtfully designed to elevate daily living. From cozy corners to grand entertaining zones, this expansive layout offers room to breathe, grow, and thrive.
      • Five dreamy retreats await—each one a canvas for personal style and restful nights. Ideal for growing families, guest stays, or even a home office, these bedrooms offer flexibility without compromising comfort.
      • Three beautifully appointed bathrooms ensure everyone starts their day with ease. Think spa-inspired finishes, smart layouts, and just the right touch of luxury to make mornings feel indulgent.
      • Two levels of living mean double the delight. With separation between social spaces and private sanctuaries, this layout offers both functionality and flair—perfect for dynamic lifestyles.
      • The heart of the home beats in its open-concept design—where kitchen, dining, and living areas blend seamlessly. It’s a space made for connection, conversation, and effortless entertaining.
      • Say goodbye to clutter and hello to convenience. The mudroom acts as a stylish buffer between the outdoors and indoors, keeping the rest of the home pristine while offering smart storage solutions.
      • A welcoming front porch and breezy patio invite you to savor the outdoors. Whether sipping morning coffee or hosting sunset soirées, these spaces extend your living experience into nature’s embrace.
      • The loft is your wildcard—an adaptable space ready to become a playroom, studio, media lounge, or quiet reading nook. It’s the bonus that makes this home truly yours.
      • Elevate your mornings with a private balcony—your personal perch for sunrise views, fresh air, and quiet reflection. It’s a luxurious touch that adds both style and serenity.
      • More than just parking—this 529-square-foot attached garage offers secure storage, workshop potential, and seamless access to the home. It’s convenience wrapped in curb appeal.



      What's included in BCO-40052:

      Cover Sheet

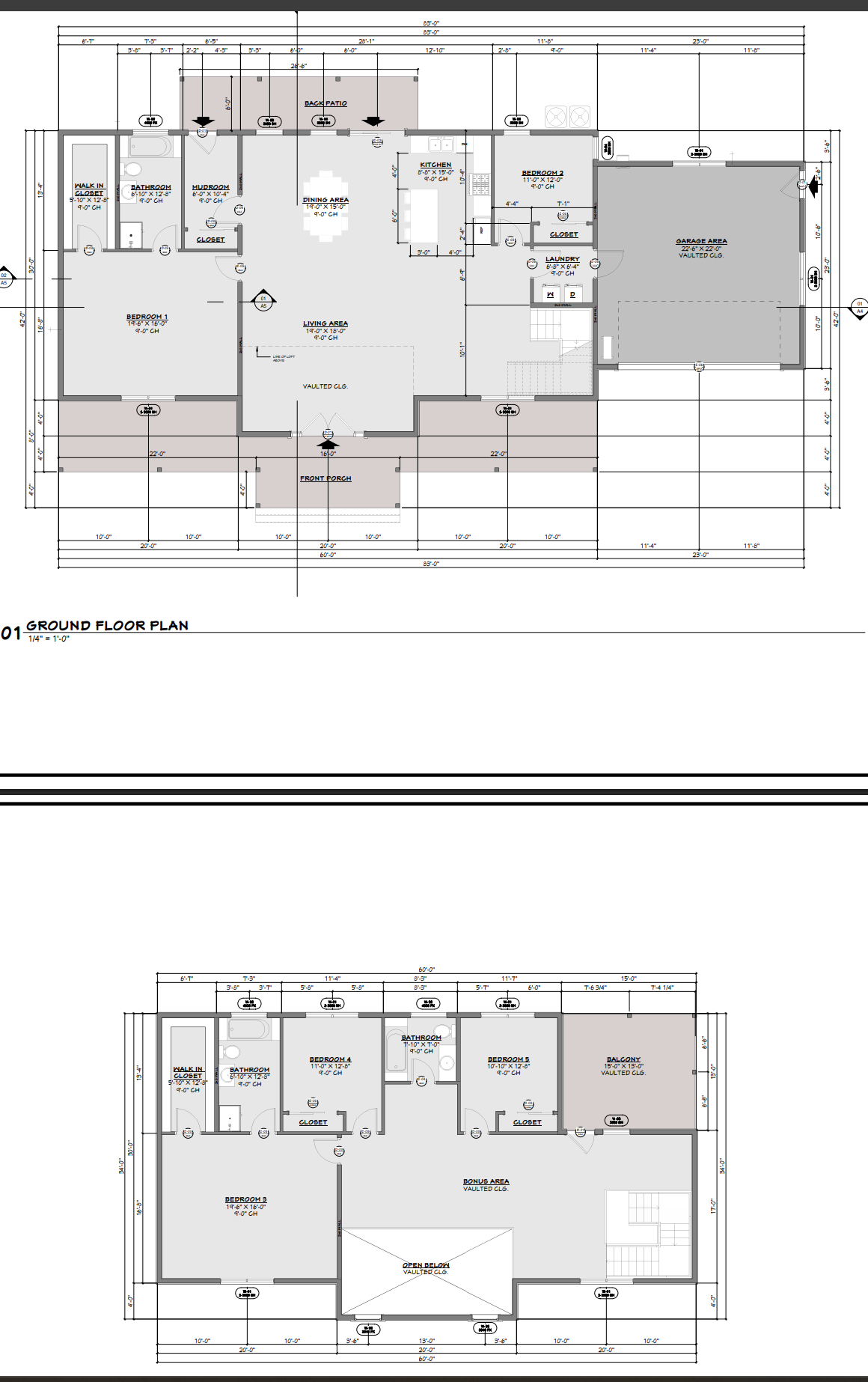

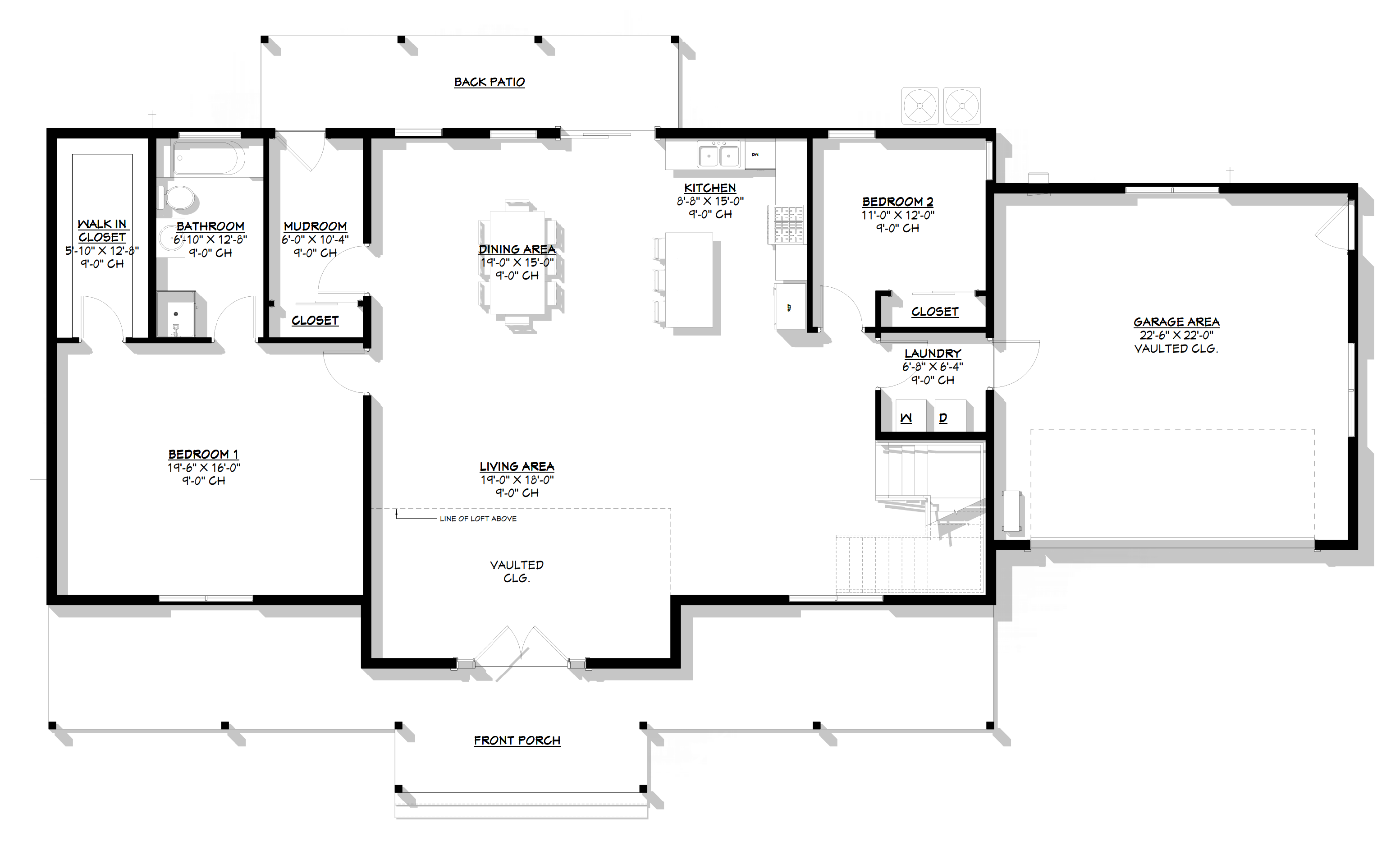

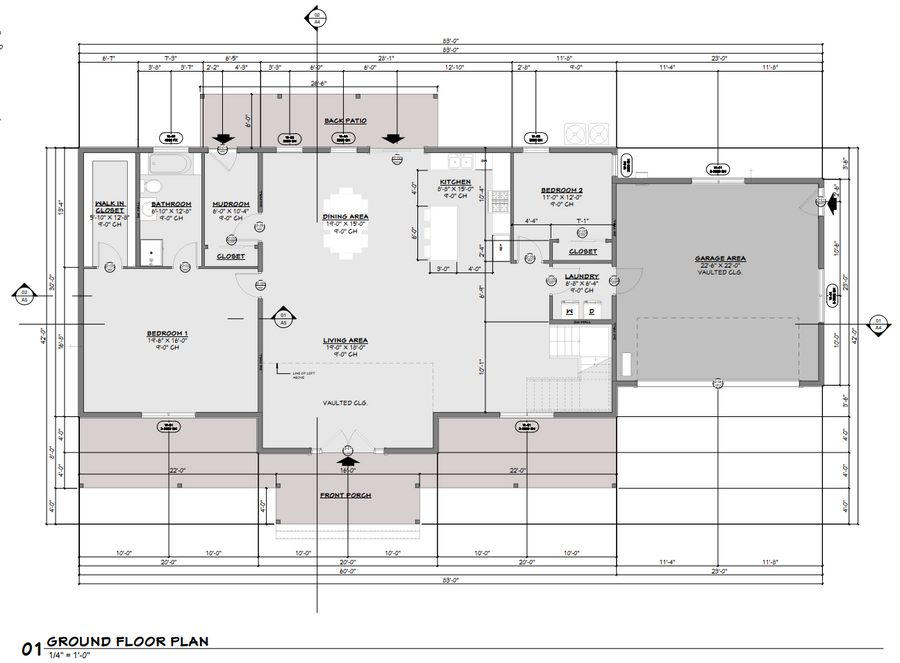

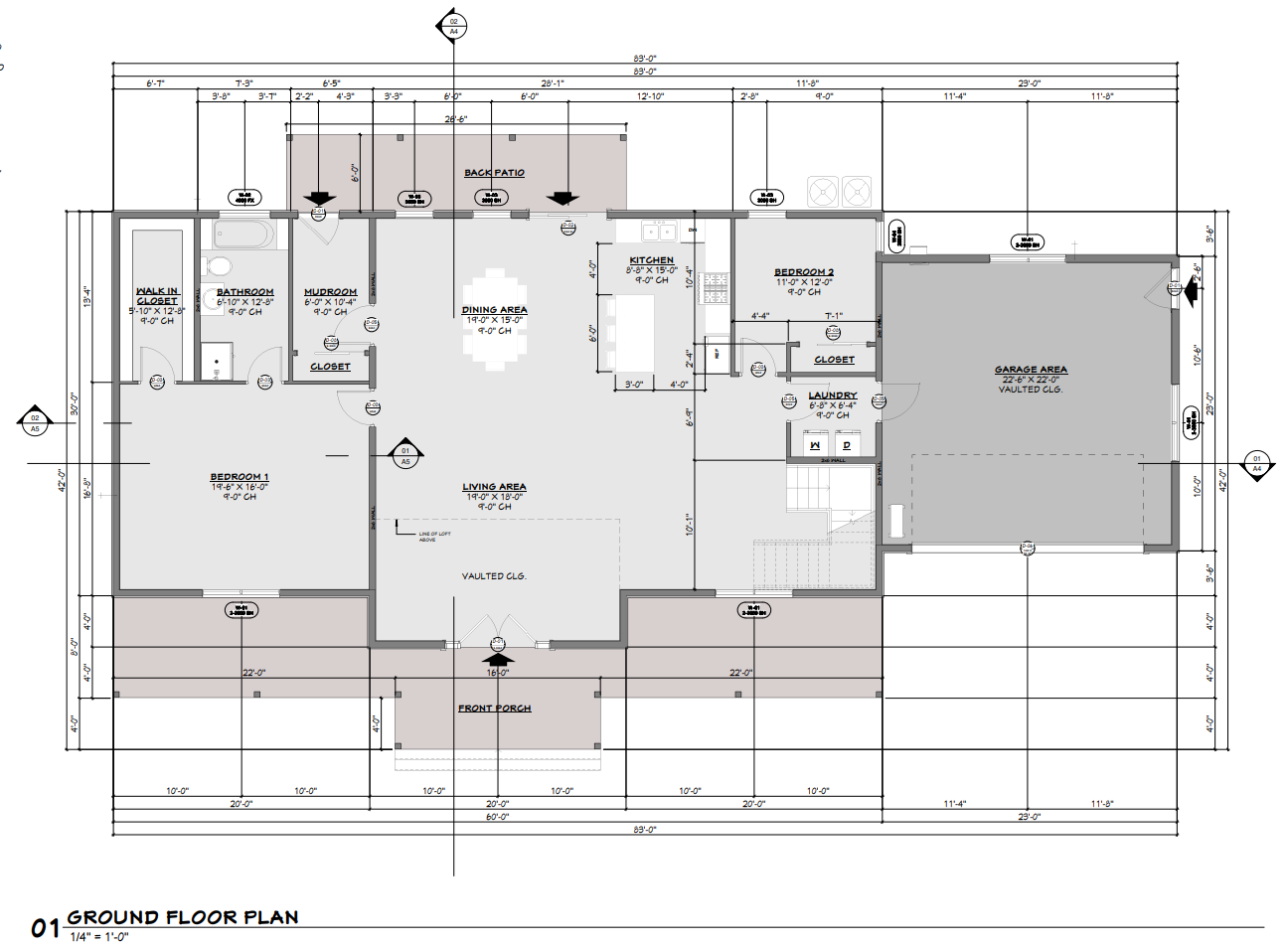

      Ground Floor Plan

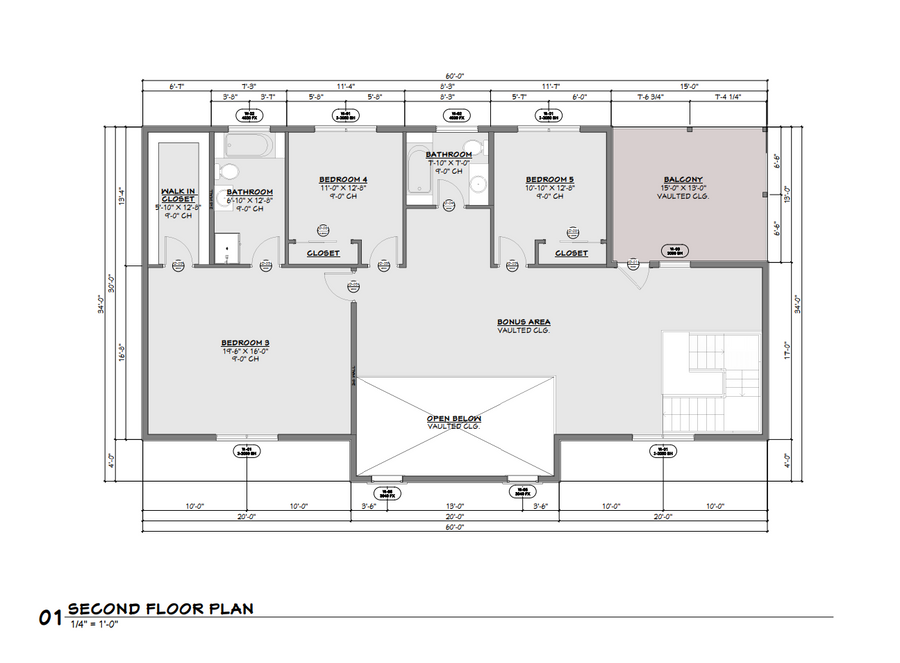

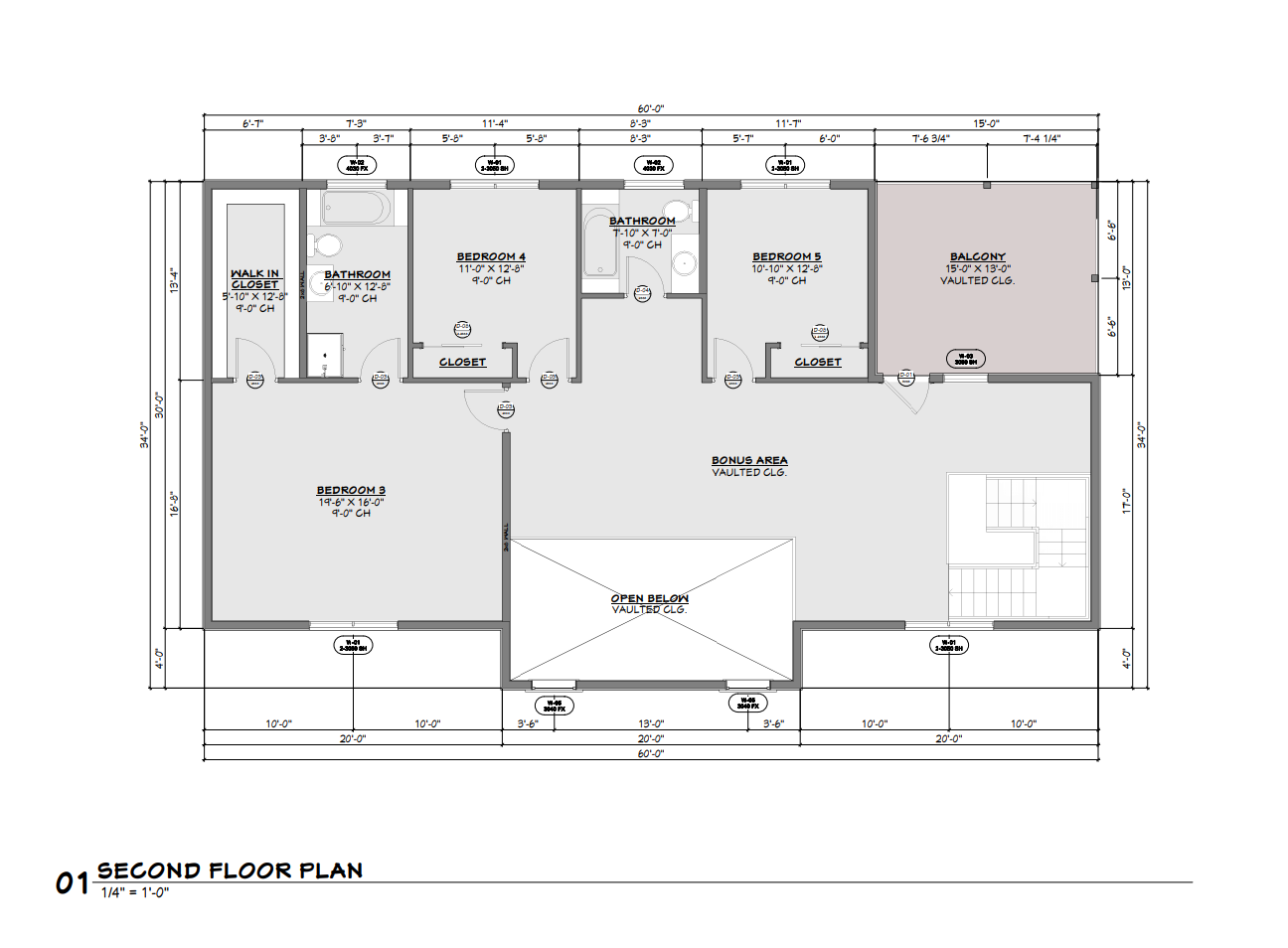

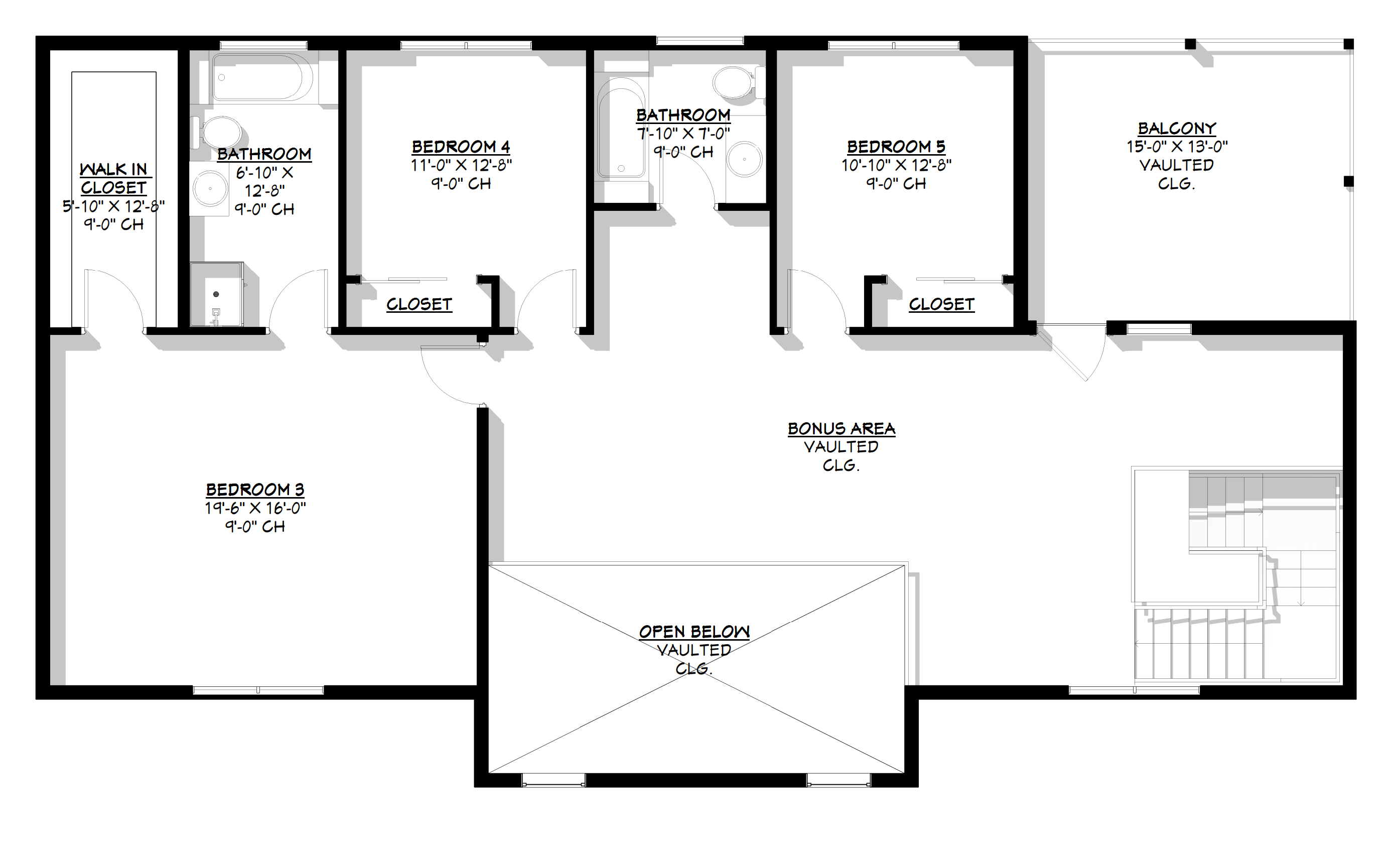

      Second Floor Plan

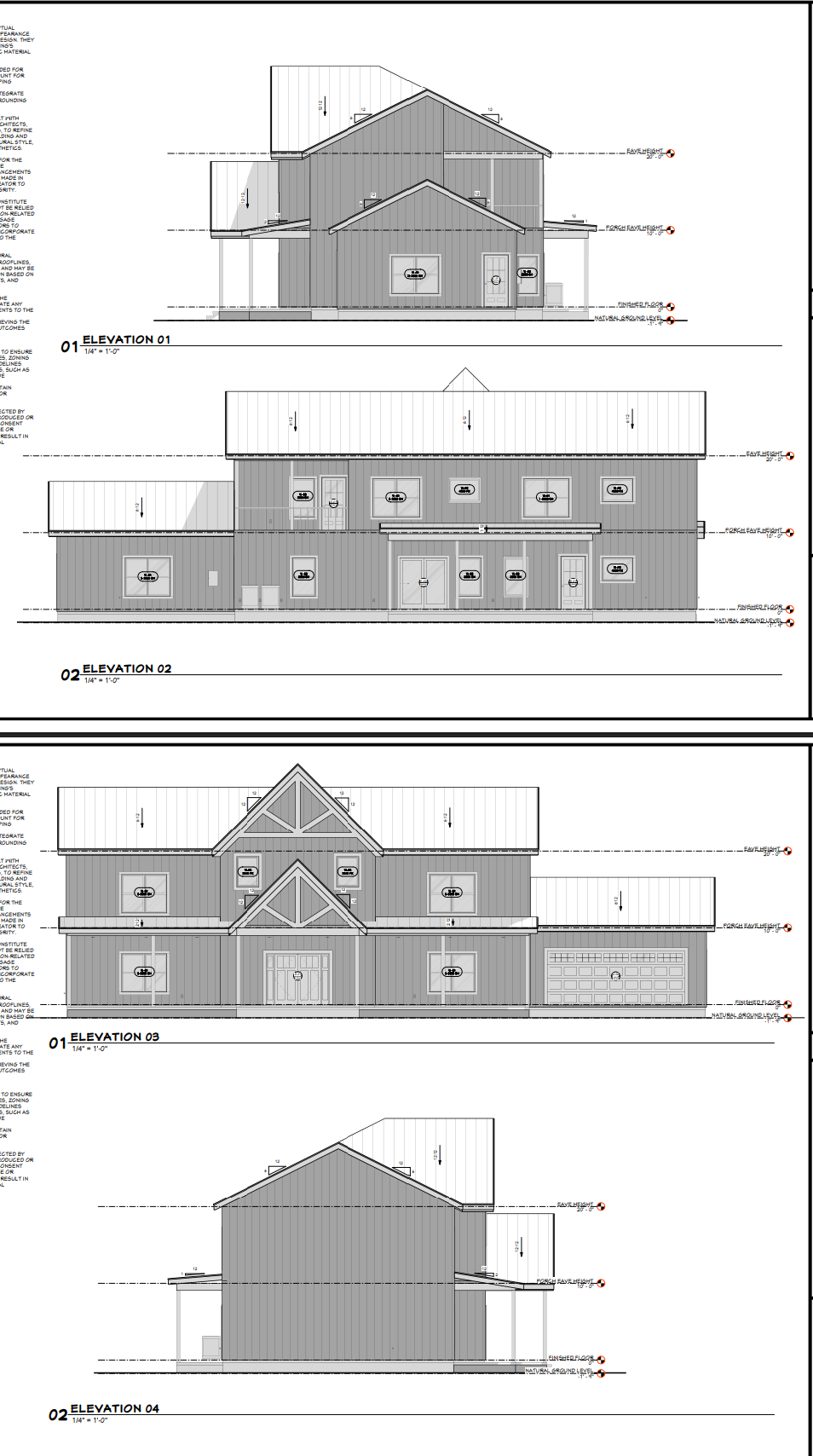

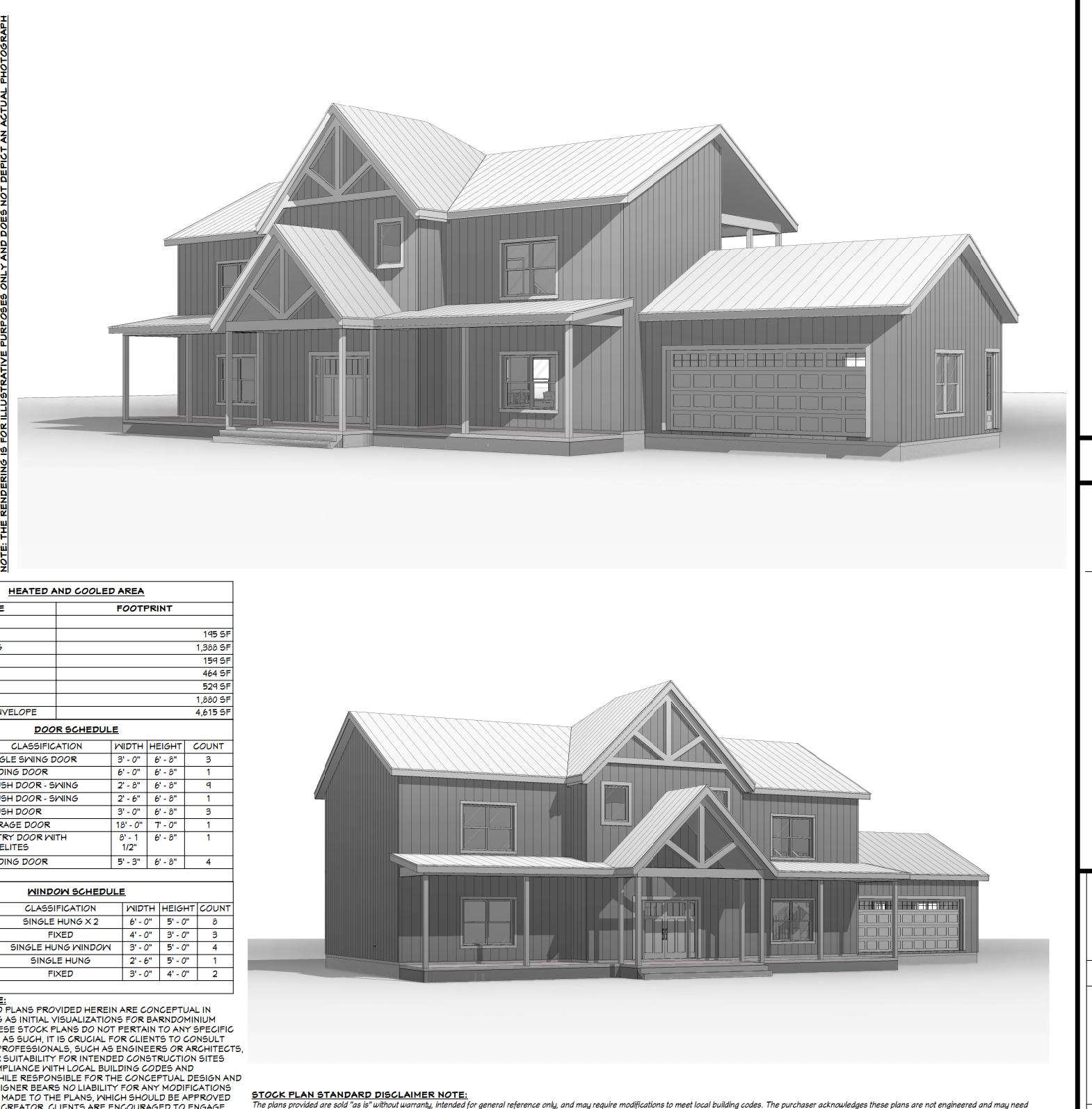

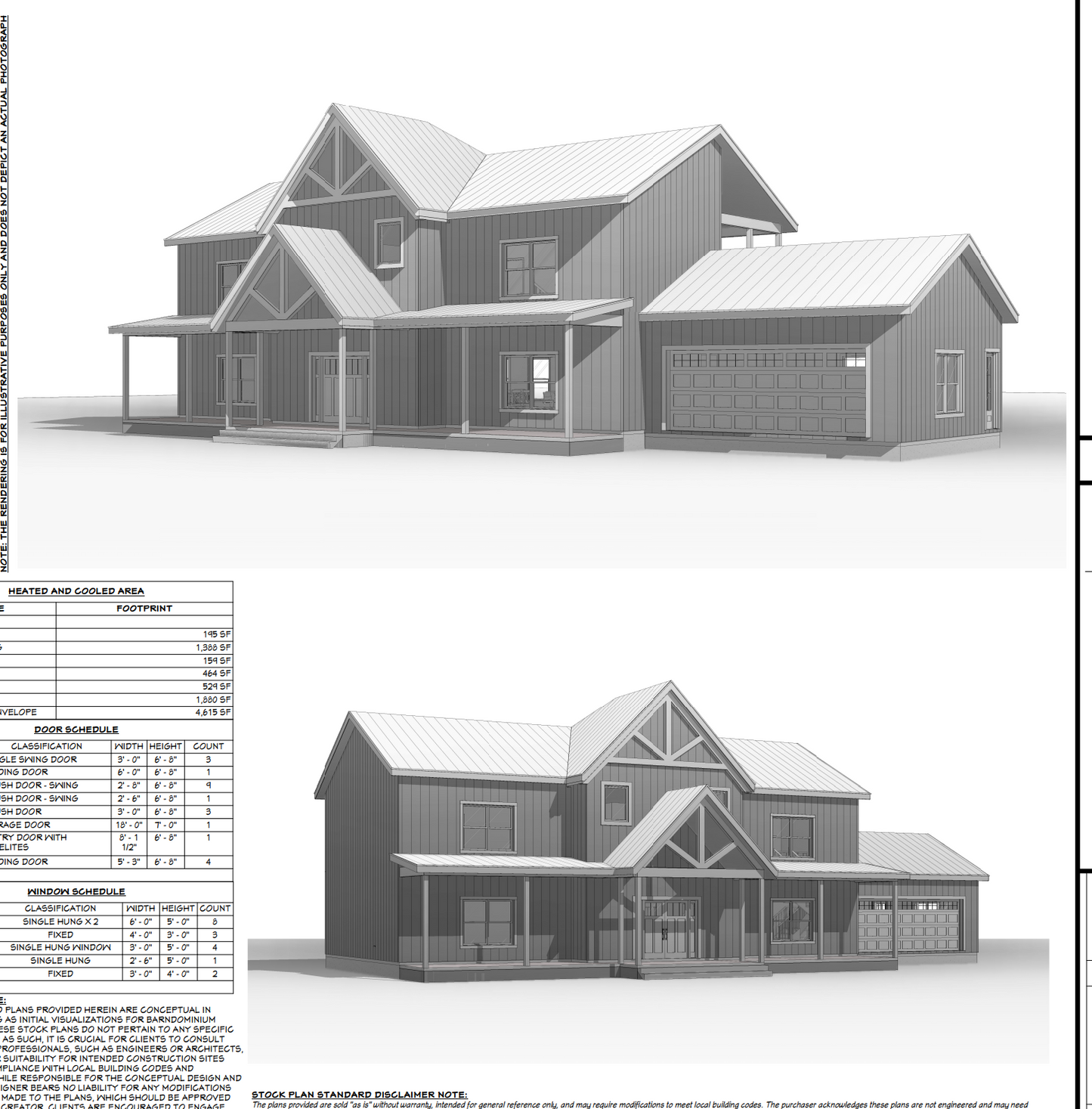

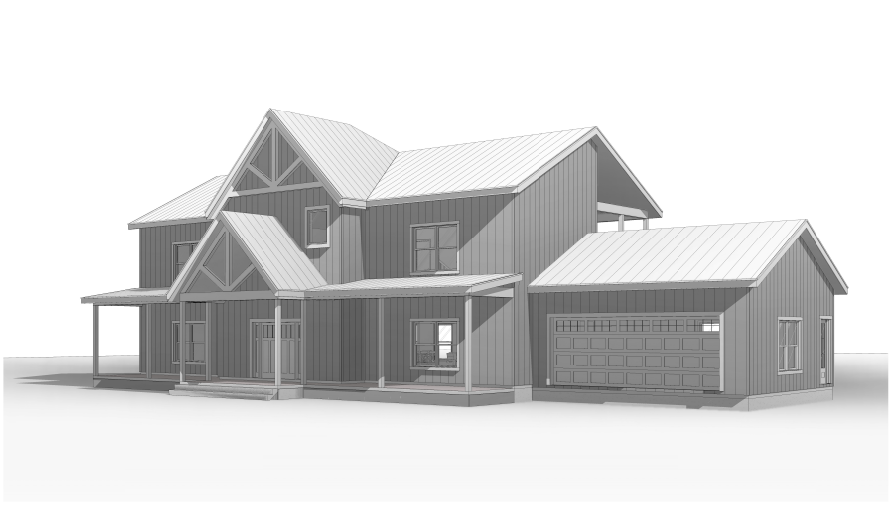

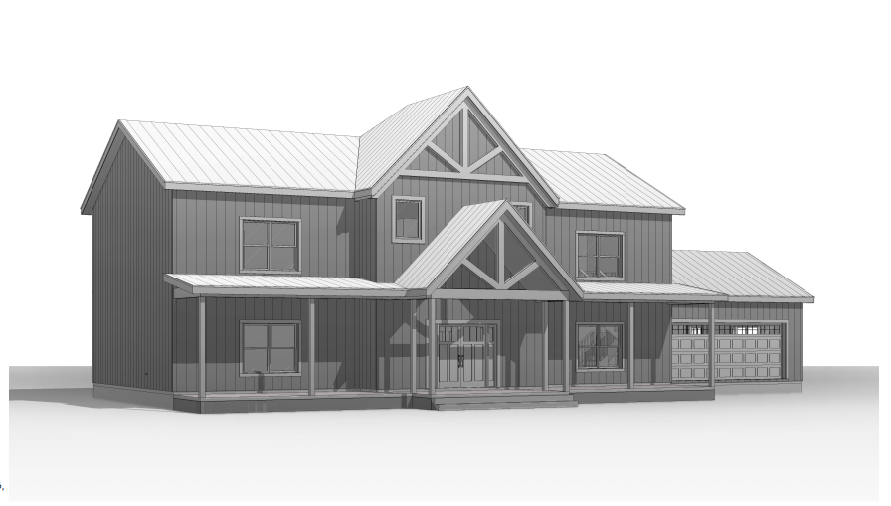

      Exterior Elevations
      Building Sections
      Wall Section and Attic Details
      HVAC Plan
      Foundation Plan
      Foundation Details
      Basic Plumbing Plan and Details
      Electrical Plan (Main Floor)
      Electrical Plan (second Floor)
      Roof Framing Plan
      Roof Plan



      For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.



      Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

      Please note all square footage are estimates.

      What's Included

      Our house plan sets typically have the following details:

      4 Elevations – Front, Back, Both Sides

      Detailed Floor Plan Drawing

      Electrical Plans with placements for HVAC

      Plumbing Plans with Placements

      Flooring Plan

      Roof Plan

      Foundation Plan

      For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

      Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

      What's Not Included

      The following items are NOT included:

      Architectural or Engineering Stamp. We work with a third party to provide an engineering stamp in most states.

      Site Plan - We can provide this if needed for $300 additional.

      Materials List - handled locally when required

      Energy calculations - handled locally when required

      Snow load calculations - handled locally when required

      Delivery

      This plan is available as a digital product or printed + shipped.

      If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

      If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

      We ship from the midwest in order to serve the entire country within 3-5 business days!

      Return policy

      All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
