SV-30002 Belmont Custom Home Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 6

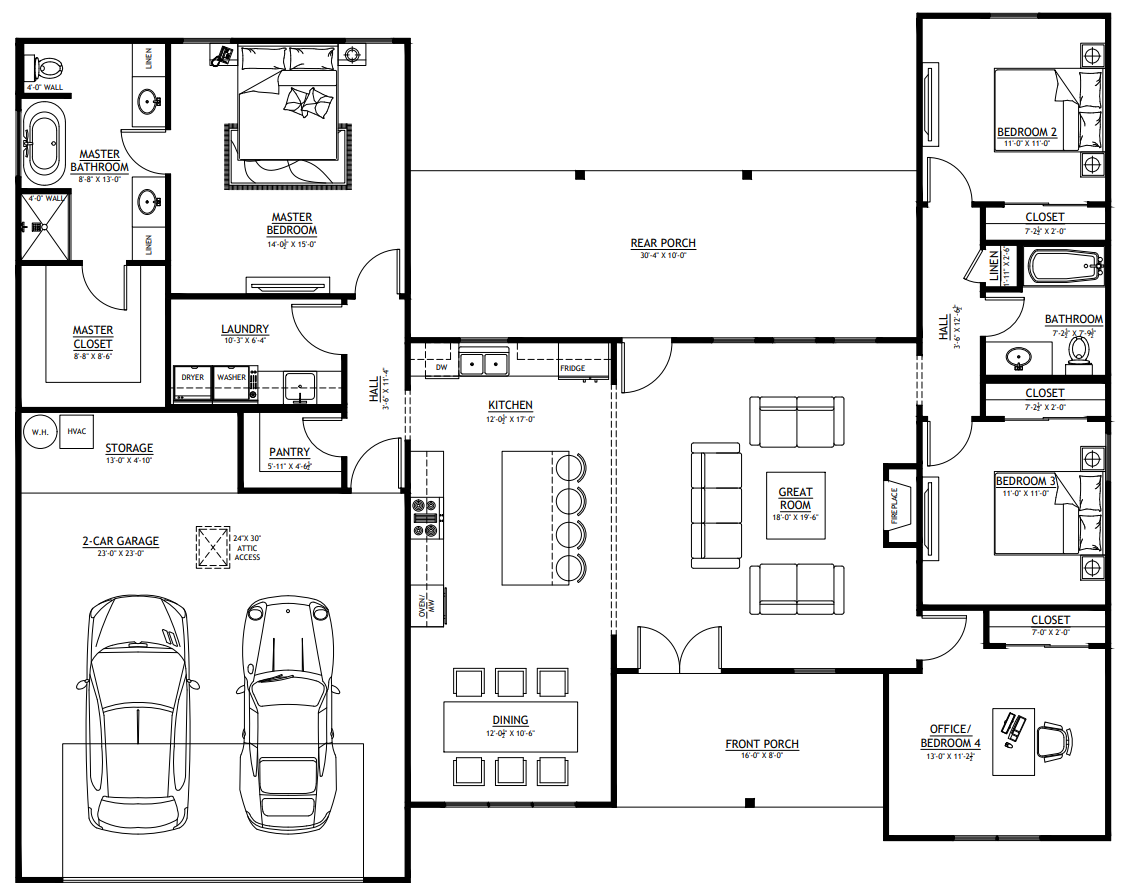

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

1,878 SF

Second Floor:

None

Total Heated Sq Ft:

1,878 SF

UNHEATED SQ FT

Total Unheated Area:

Garage 613 SF, Porch 431 SF = TOTAL 1,044 SF

Carport:

None

Bedrooms:

2

Full Baths:

3

Floors:

1

Garage Size:

613 SF

Width:

65'-6"

Depth:

52'

Height:

25'-8 1/2"

Foundation:

Concrete Slab

Main Roof Pitch:

9:12

Exterior Framing:

Stick Frame

CEILING HEIGHTS

First Floor:

9'

SV-30002 Belmont Custom Home Plan

About this Custom Home Plan:

  • 1,878 Heated Sq Ft
  • 3 Bedrooms
  • 2 Bathrooms
  • Single Story
  • Open concept
  • Storage area
  • Office
  • Front porch & rear porch
  • 613 sq ft garage

  • This thoughtfully designed home spans 1,878 heated square feet, creating an intimate yet spacious single-story living experience.
  • The three well-appointed bedrooms offer comfortable and private retreats for family and guests.
  • The home features two full bathrooms, including a private master bath and a second common bathroom for convenience.
  • A dedicated storage area within the garage provides an organized space for tools, seasonal items, and recreational gear.
  • A flexible office space offers a quiet place for work or can easily be converted into a fourth bedroom to suit your family’s needs.
  • A spacious 613-square-foot, two-car garage provides abundant room for vehicles and extra storage.
  • The strategically placed laundry area is right next to the master bedroom, making chores more convenient and efficient.

What's included in SV-30002:

Detailed Floor Plan Dimensions
Roof Plan

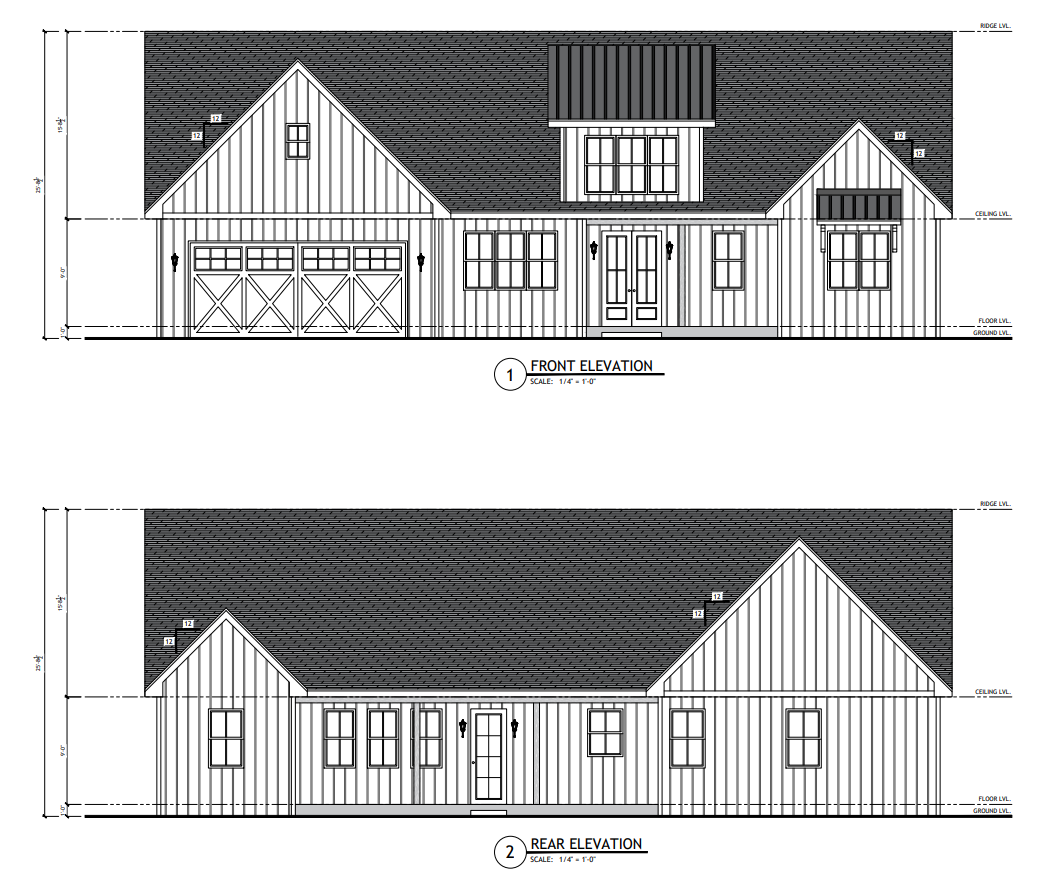

Four Elevations - Front, Back, Left Side, Right Side
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Details
Wall Section

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan (below the Add To Cart Button). We will get you a free price quote within 72 hours

Please note all square footage are estimates.

What's Included

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details.

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.

Site Plan - We can provide this if needed for $300 additional.

Materials List - handled locally when required

Energy calculations - handled locally when required

Snow load calculations - handled locally when required

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
