PL-71001 Olivia Barndominium House Plan

$849.99 USD
$849.99 USD
Sale Sold out
Add To Wishlist
1 8
Bedrooms 4 Bedrooms
Floors 1 Floors
Full Baths 2 Full Baths
Total Heated Area 2,209 Total Heated Area

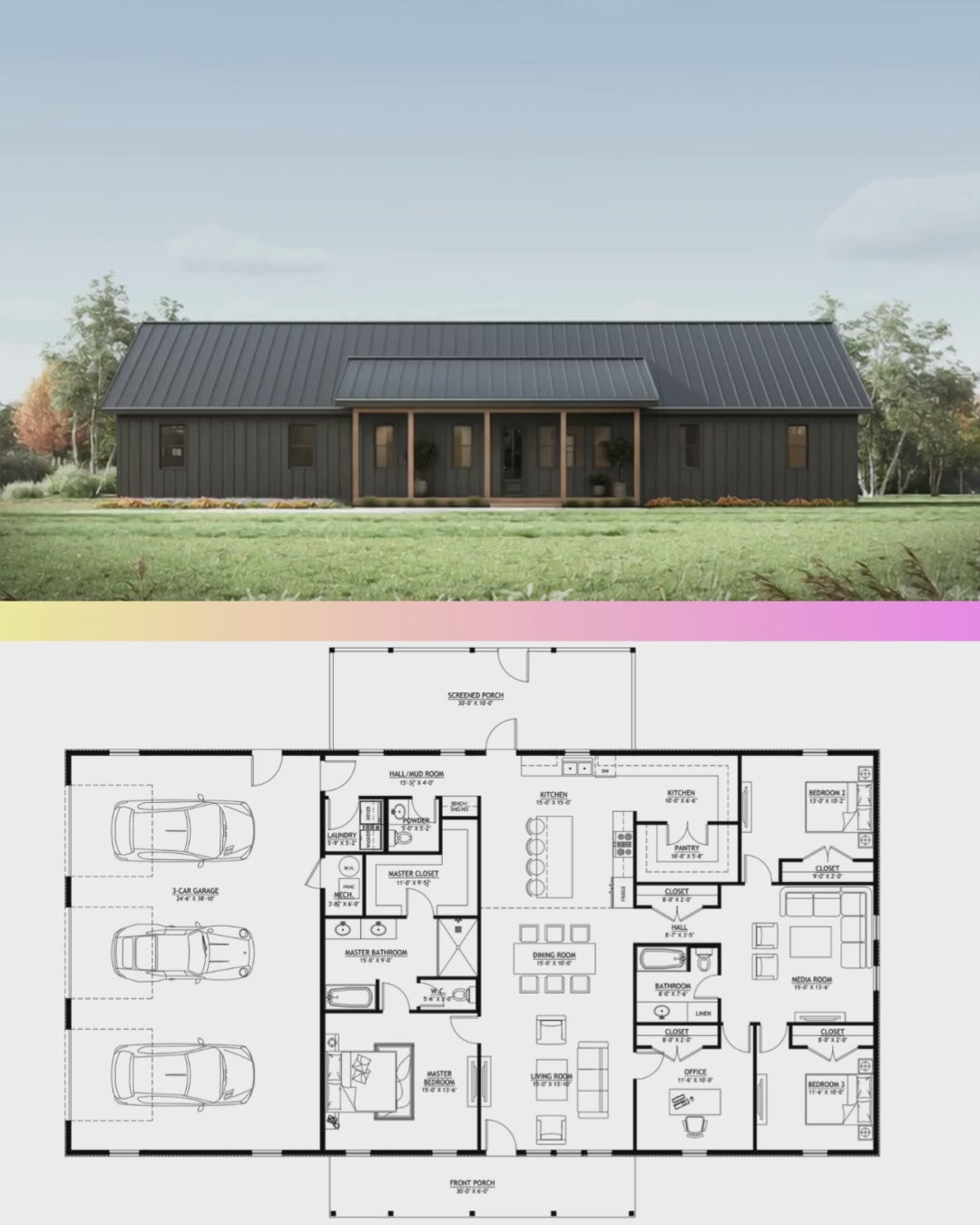

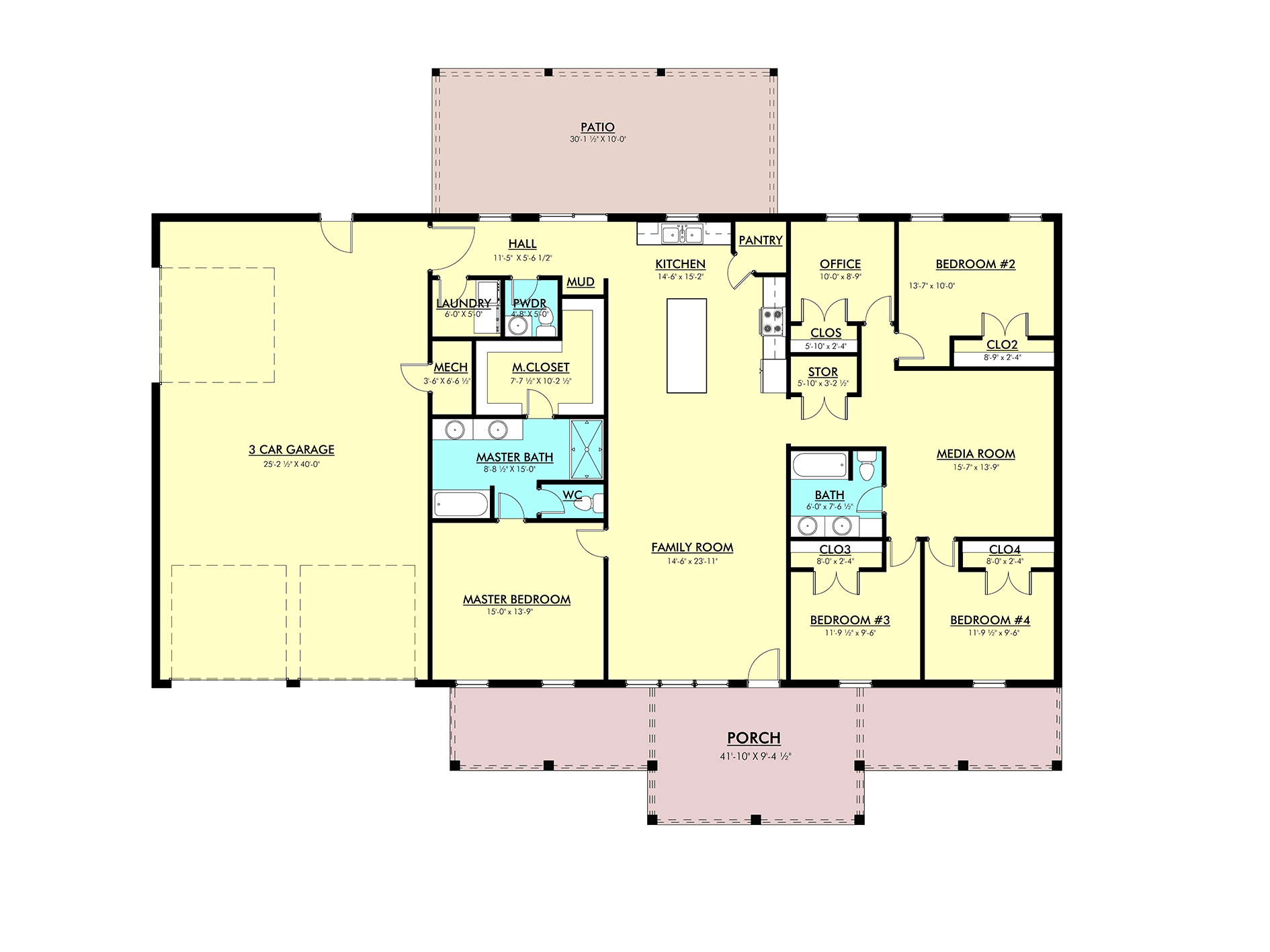

Floor Plan

DETAILS

HEATED SQ FT

First Floor:

2,209 SF

Second Floor:

None

Total Heated Sq Ft:

2,209 SF

UNHEATED SQ FT

Total Unheated Area:

598 SF porch + 941 SF garage = TOTAL 1,539 SF

Carport:

None

Bedrooms:

4

Full Baths:

2

Floors:

1

Garage Size:

941 SF

Width:

78'

Depth:

59'-4 1/2"

Height:

20'-7 5/8"

Foundation:

Concrete Slab

Main Roof Pitch:

05:12

Construction Type:

Stick Frame

CEILING HEIGHTS

First Floor:

10'

PL-71001 Olivia Barndominium House Plan

About this barndominium house plan:

  • 2209 Heated square feet
  • 40x55 living space dimension
  • 4 Bedrooms
  • 2.1 Bathrooms
  • Single story
  • Open concept
  • Office
  • Media Room
  • Utility room
  • Attached 3-car garage

  • This floor plan features 2209 heated square feet of living space, all on a single story. The layout is designed with an open concept, seamlessly connecting the main living areas.
  • This floor plan includes 4 bedrooms and 2.5 bathrooms. The layout is designed to accommodate a family comfortably, with ample space for rest, relaxation, and personal activities.
  • This floor plan features an attached 3-car garage, providing ample space for vehicle storage and potentially additional storage or workspace.
  • This floor plan incorporates an office, a media room, and a utility room. The office provides a dedicated workspace, the media room is designed for entertainment, and the utility room serves as a functional area for household tasks.

What's included in PL-71001:

Front and Rear Elevation
Left and Right Elevation
Detailed Floor Plan
Electrical Plan
Flooring Plan
Ceiling Joist Plan
Roof Plan
Plumbing Plan
Foundation Plan

For more barndominium floor plans, check out our complete collection of 4-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours

What's Typically Included

THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

Our house plan sets typically have the following details:

4 Elevations – Front, Back, Both Sides

Detailed Floor Plan Drawing

Electrical Plans with placements for HVAC

Plumbing Plans with Placements

Flooring Plan

Roof Plan

Foundation Plan

For more information on what's included and examples of what your plans will look like, go here -> https://barndominiumplans.com/pages/whats-included

Please Note: We work with many different draftspeople who work in many different ways.  It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"

What's Not Included

The following items are NOT included:

Architectural or Engineering Stamp. Our plans are engineering-ready! Can take to a local structural engineer, but we are not engineers ourselves. Once you've purchased plans, we can make a recommendation in all 50 states.

Septic Drawings - Handled locally

Metal Truss Plans - These are provided by the truss manufacturer

Wind and Snow Loads - Handled locally!

Delivery

This plan is available as a digital product or printed + shipped.

If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.

If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.

We ship from the midwest in order to serve the entire country within 3-5 business days!

Return policy

All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.

Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:

After your order is placed, our team gets started on your modifications.

First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.

After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.

🔥 [COUNT] shoppers are looking at this plan right now
